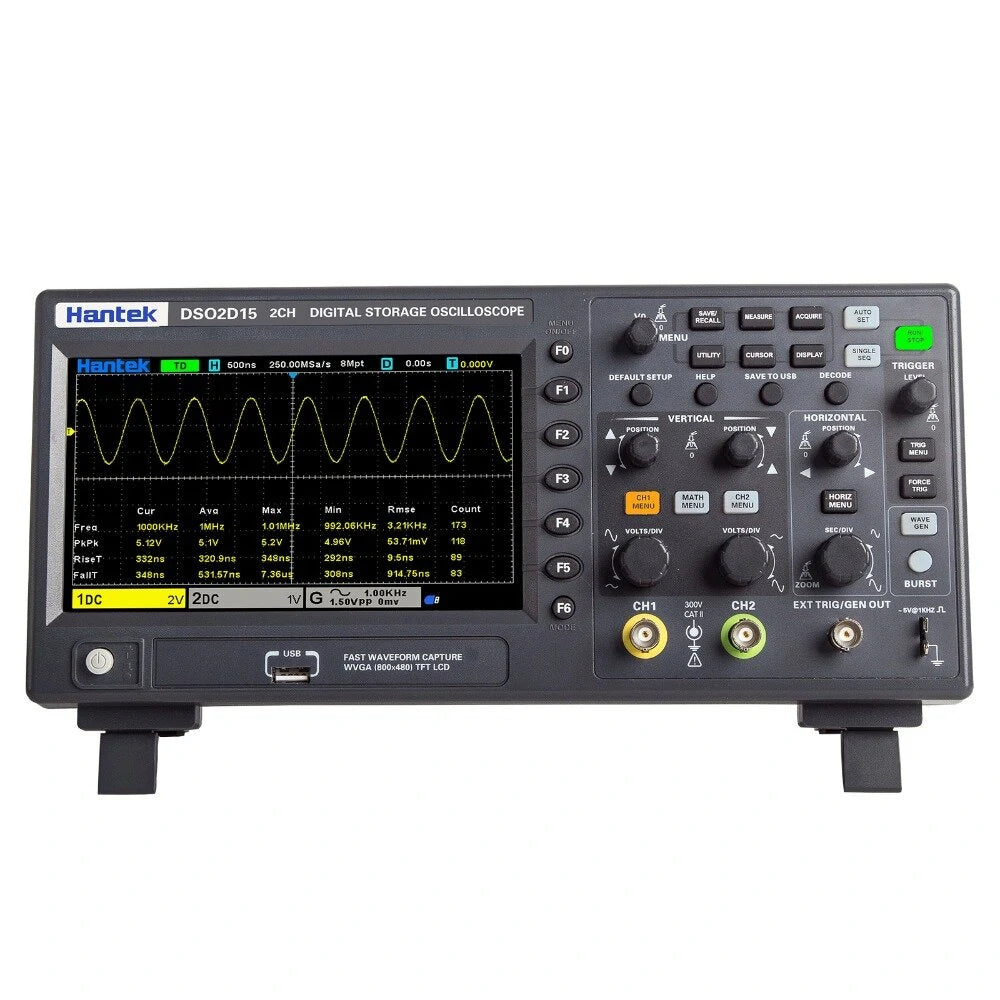

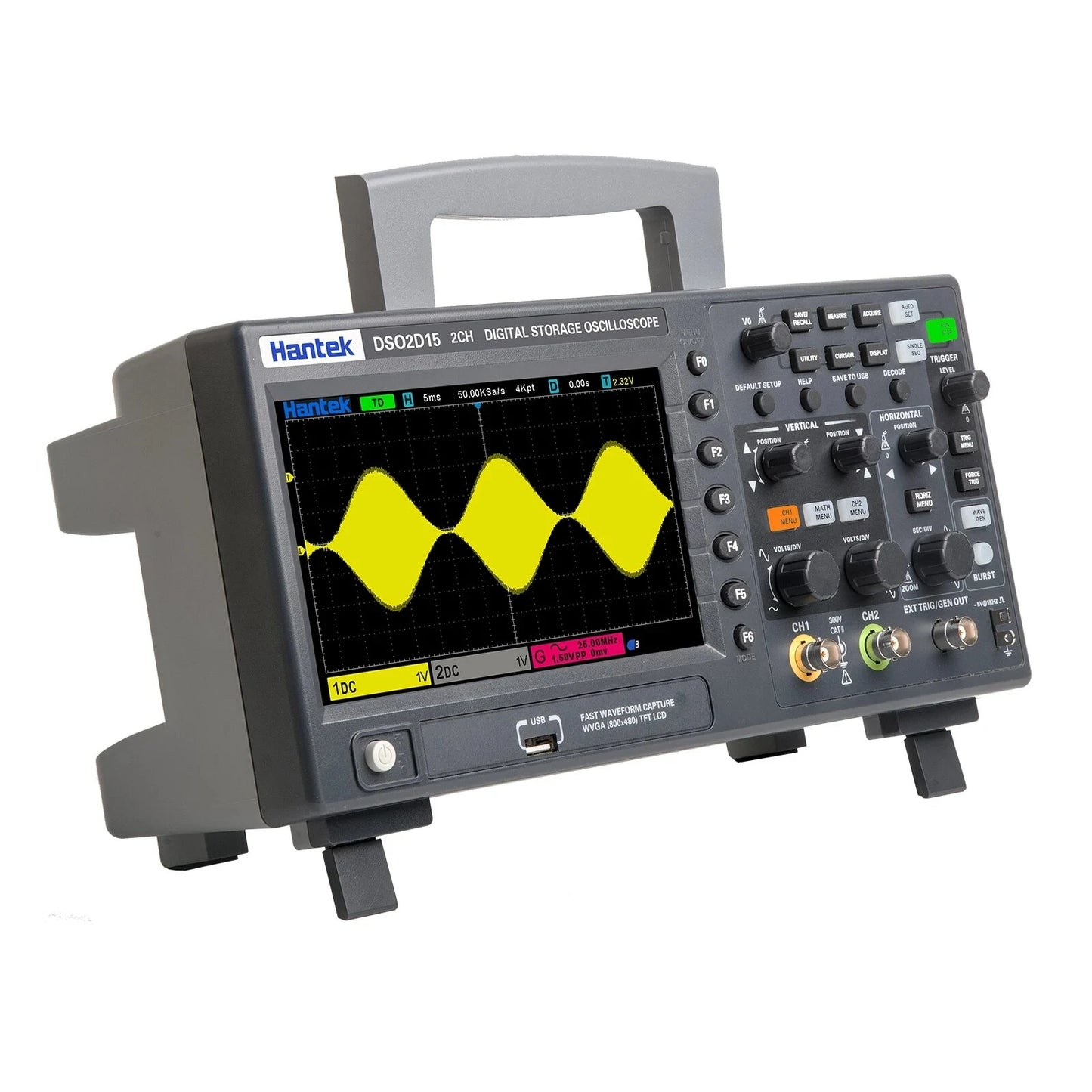

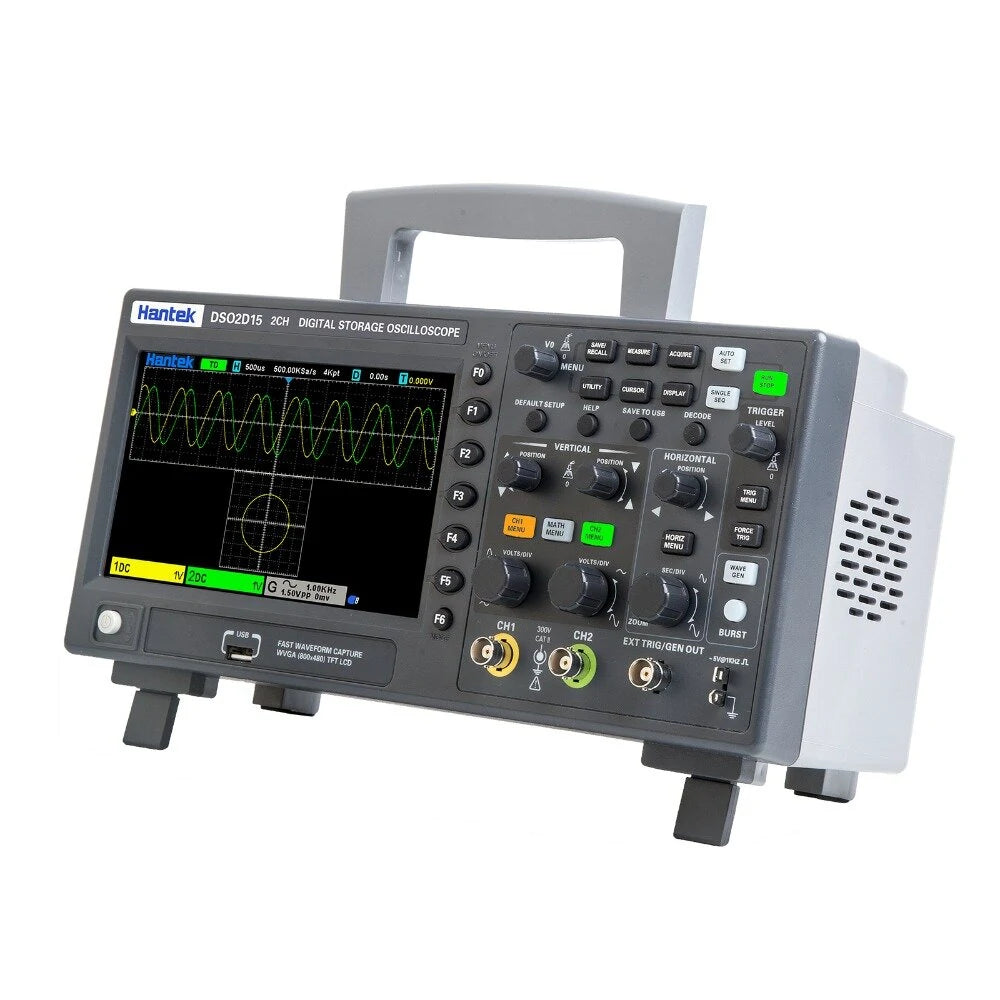

Dual-Channel Digital Storage Oscilloscope & AFG Signal Generator - Hantek DSO2D15, 150MHz 1GSa/s, 2-in-1

Key Features

• 2 channels, each controlled independently
• 150 MHz analog channel bandwidth
• 1 GSa/s real-time sample rate
• 8M memory depth
• Vertical range from 2mV/div to 10V/div
• Built-in 1 CH 5MHz waveform generator
• Vertical resolution: 8 bits
• Trigger modes: Edge, Pulse Width, Video, and more
• Protocol analysis and decoding: RS232/UART, I2C, SPI, CAN, LIN
• Save data in various formats: settings, waveform, CSV, pictures
• Includes 5-bit digital voltage meter and 6-bit hardware frequency indicator
• 32 auto measurements with statistics
• Supports threshold testing and free measurements
• Remote command control with SCPI
• USB Host and Device interfaces

Product Models

Specifications

Model: DSO2D15

• Channels: 2 CH + 1CH
• Bandwidth: 150 MHz
• Sample rate: 1 GSa/S
• Memory depth: 8M
• AFG: 1CH

Parameters

Acquisition and Input

• Single channel sample rate: 1 GSa/s
• Two channels sample rate: 500 MSa/s
• Input coupling: DC, AC, GND
• Input impedance: 1MΩ ±2% ‖ 20pF ±3pF
• Probe attenuation factor: 1X, 10X, 100X, 1000X

Vertical Specifications

• Resolution: 8 bits
• Sensitivity: 2mV/div to 10V/div
• Bandwidth limit: 20 MHz

Horizontal Specifications

• Waveform interpolation: (sin x)/x
• Time base modes: Y-T, X-Y, Roll

Trigger Options

• Types: Edge, Pulse Width, Video, Slope, etc.
• Range: ±5 divisions from the center of the screen
• Mode: Auto, General, Single

Measurement

• Cursors: Voltage and time differences
• Auto measurement: Frequency, period, RMS, and more

General Specifications

• Display: 7'' TFT liquid crystal
• Resolution: 800 x 480 pixels
• Operating temperature: 0 to 50 °C (32 to 122 °F)
• Weight: 2900g
• Size: 318 x 140 x 150 mm

Note: For complete technical details, refer to the manual.
