DANIU 40112302 Precision Metric Dial Test Indicator with Dovetail Rails

40112302 Dial Test Indicator Precision Metric

Available now from our UK warehouse.

Description

The 40112302 Dial Test Indicator is engineered for precision measurements in machinery, layout, and inspection tasks. This versatile tool is essential for both professionals and hobbyists who require accurate results in tight or recessed areas.

Features

• Fowler inch/metric dial test indicator designed for measuring surface variations.
• Wide measuring range of 0-0.8mm with 0.0005"/0.01mm graduations.
• Balanced dial readings: 0-40-0 inch and 0.001mm metric.
• Auto-reversing contact point for smooth performance.
• 360-degree adjustable knurled bezel for easy zero setting.
• Durable one-piece housing with satin chrome finish.
• Three dovetail mounts allow versatile positioning (top, back, or front).

Additional Information

• Includes one 3/8" and one 5/32" dovetail clamp along with a molded case.
• Balanced dials measure the difference from a reference point, whereas continuous dials provide direct readings over a larger range.

Specifications

• Face: 1-1/4" diameter, yellow face.
• Dial Type & Reading: 0-40-0 balanced inch and 0-.25-0 balanced metric.
• Range: 0-0.8mm.
• Graduations: 0.0005"/0.01mm.
• Contact Point Length: 1/2".
• Dovetail Clamps: 3/8" and 5/32".

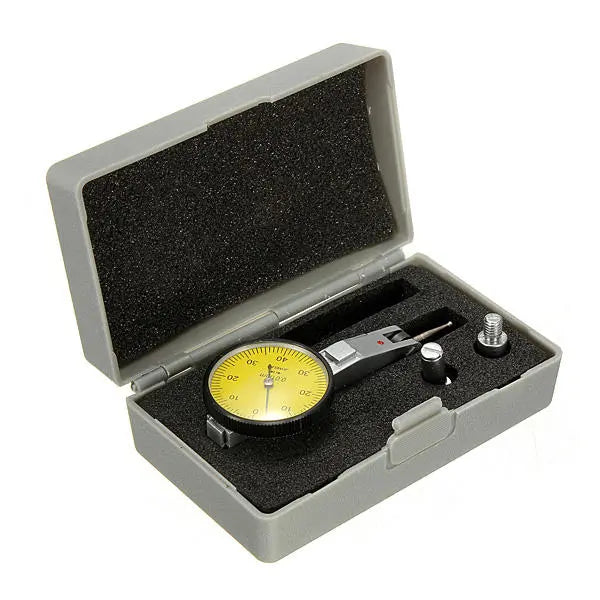

Package Included

• 1 x 40112302 Dial Test Indicator
• 1 x 3/8" Dovetail Clamp
• 1 x 5/32" Dovetail Clamp
• 1 x Molded Case
