ATmega328P Nano V3 Enhanced UNO Expansion Board

UNO Expansion Board

ATmega328P Nano V3 Improved Version

Description:

The UNO Expansion Board is designed specifically for the NANO. It comes with two rows of pins suitable for use with the Duemilanove 2009 and UNO R1. The improved Nano V3 version features the ATmega328P microcontroller.

Specifications:

• Microcontroller: ATmega328
• Operating Voltage (logic level): 5V
• Recommended Input Voltage: 7V - 12V
• Input Voltage Limits: 6V - 20V
• Digital I/O Pins: 14 (6 provide PWM output)
• Analog Input Pins: 8
• DC Current per I/O Pin: 40mA
• Flash Memory: 32KB (2 KB used by bootloader)
• SRAM: 2KB
• EEPROM: 1KB
• Clock Speed: 16MHz

Note: This version does not include a USB cable. It features an improved USB chip for enhanced download speed and stability on Windows 7 and 8 systems.

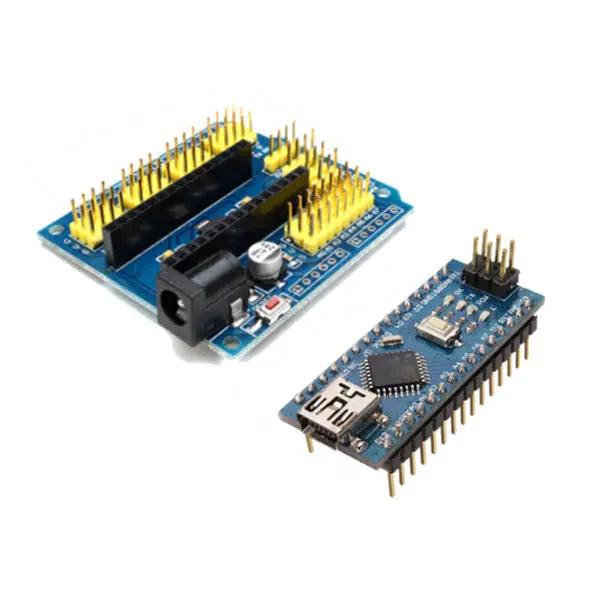

Package Includes:

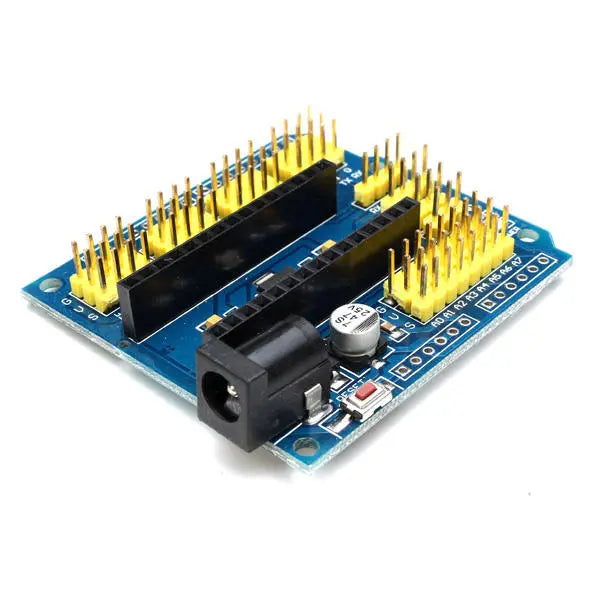

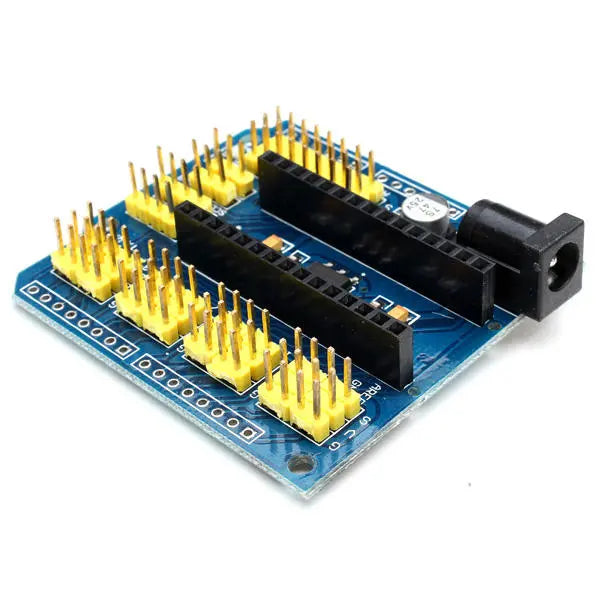

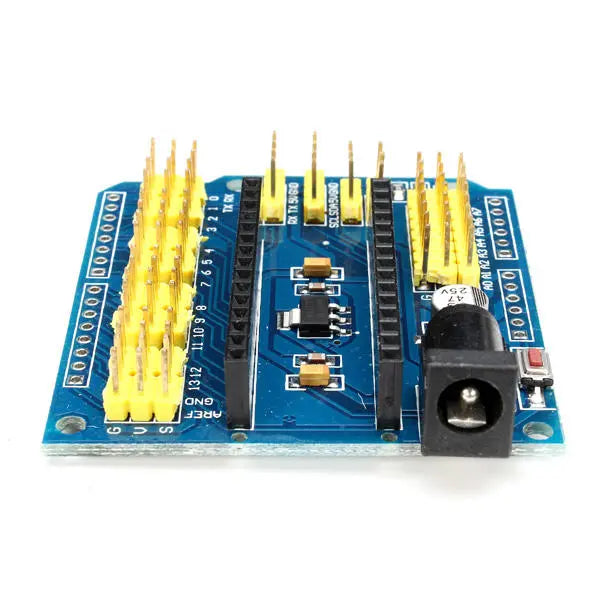

• 1 x 328P Multifunction Expansion Board V3.0

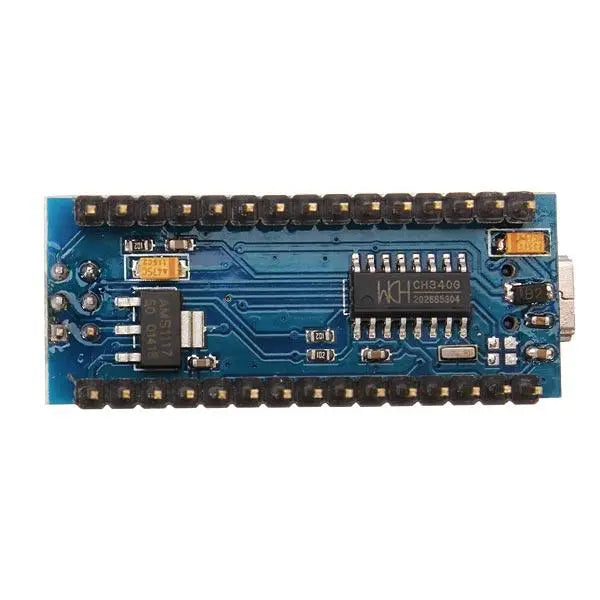

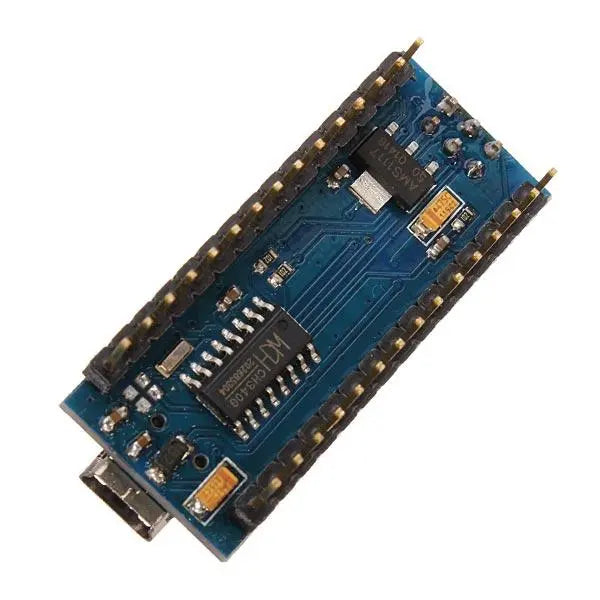

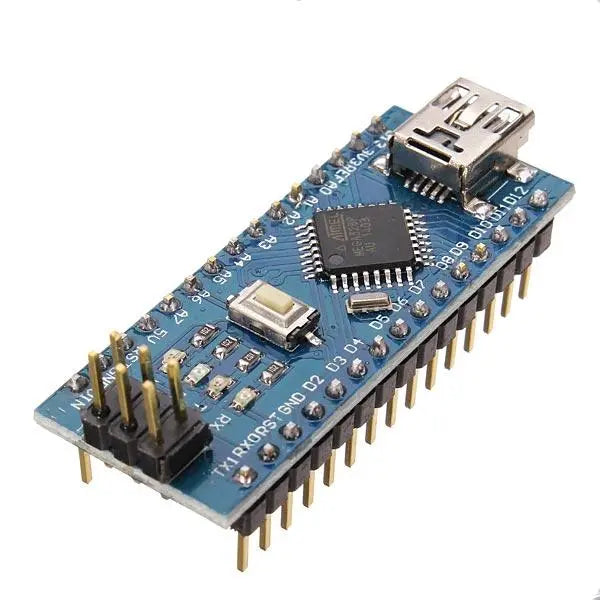

• 1 x Compatible Improved Version Nano V3.0
