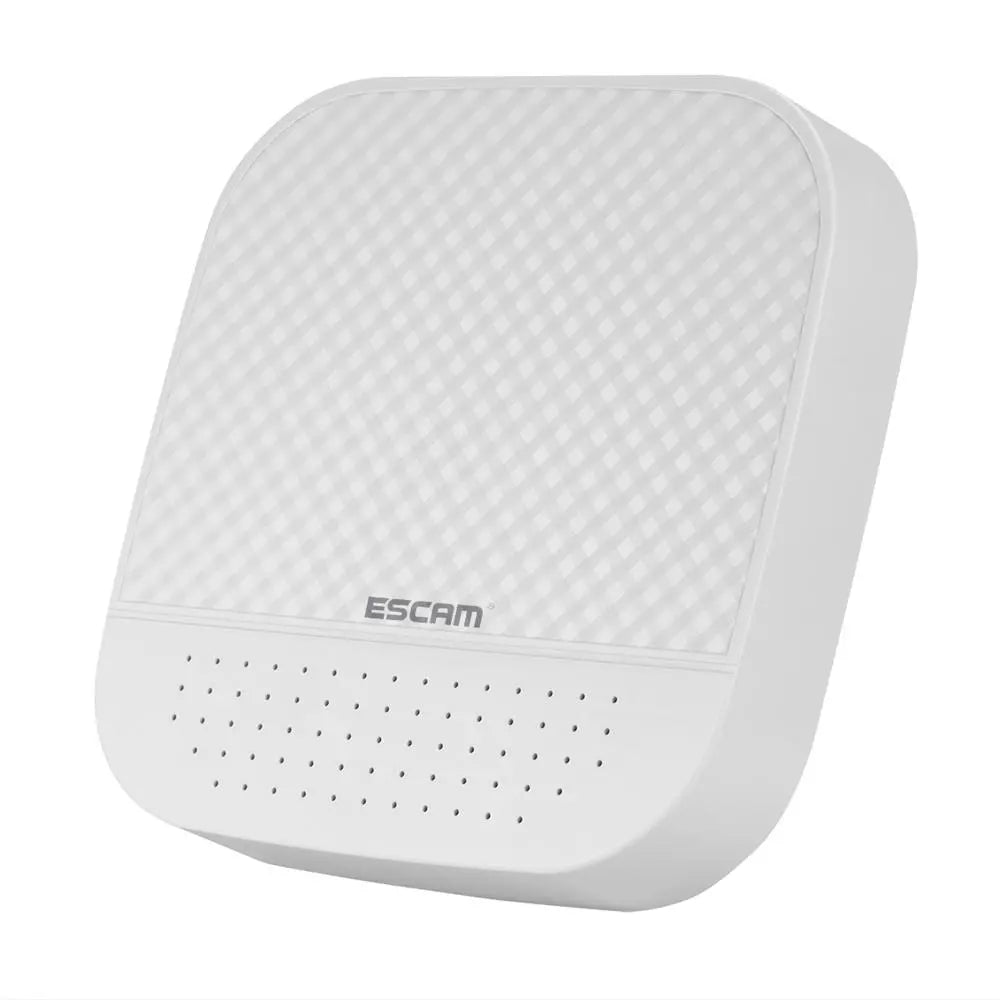

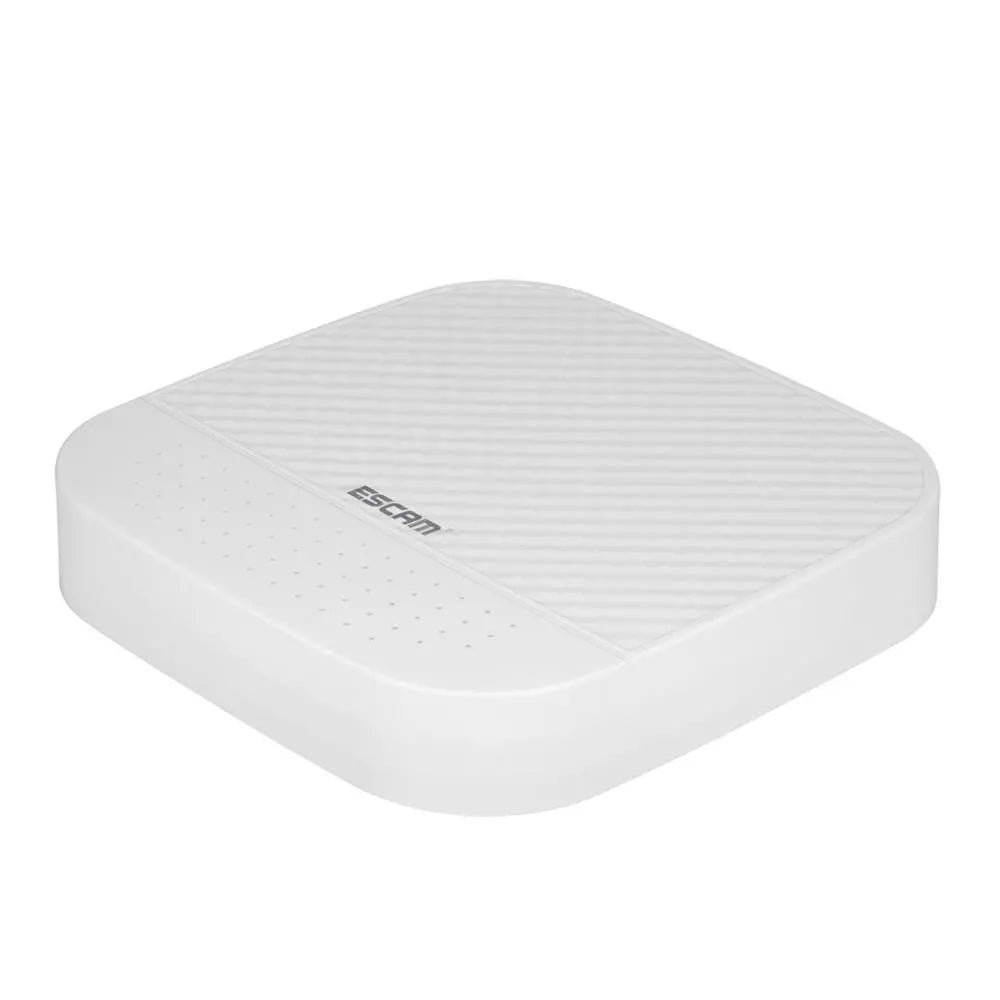

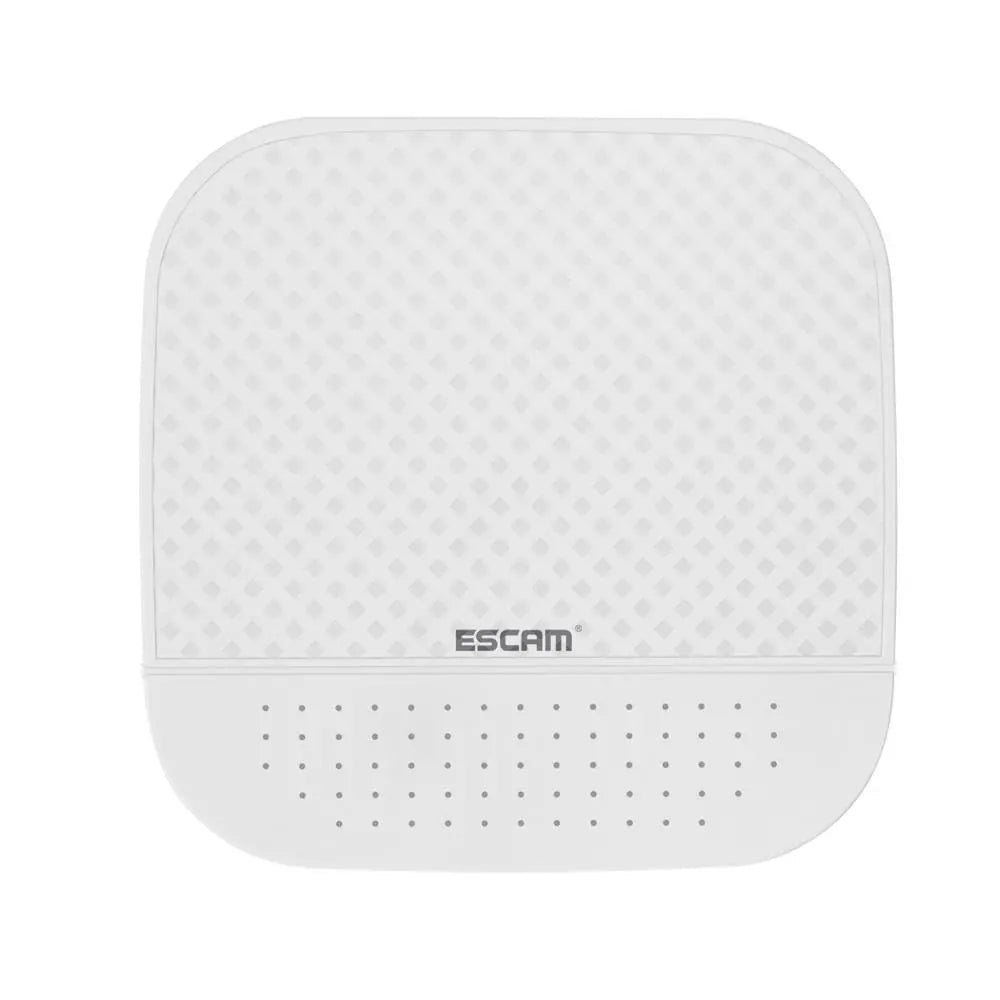

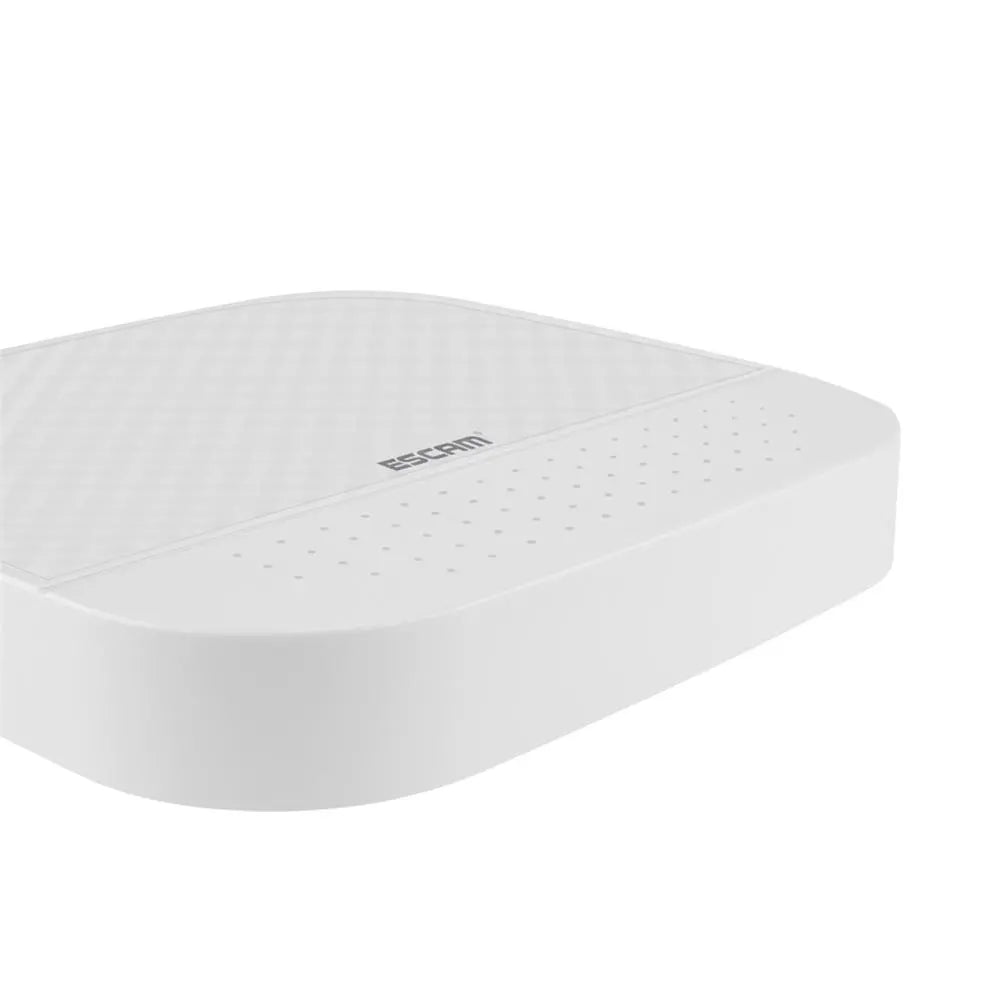

ESCAM PVR204 1080P 6-Channel ONVIF NVR with Cloud Video Recorder for IP Camera Systems

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below:

• Year: Select
• Make: Select
• Model: Select
• Submodel: Select
• Trim: Select
• Engine: Select

This part is compatible with 0 vehicle(s).

This part is compatible with 1 vehicle(s) matching.

This part is not compatible with recent searches:

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Product Features

• Install up to 4 cameras and 1 PVR in different locations for video recording.
• Simultaneous VGA and HDMI 1080P output.
• Supports Max. 6 channels preview, 4 channels playback; +2 channels cloud channel, add ESCAM IP camera remotely.
• Max. 2MP single picture main-stream, 4*1.3MP for 4 pictures main-stream.
• HDMI audio output supported.
• Preview and playback snapshots.
• Playback timeline with color-coded record types for easy video retrieval.
• Backup records by occurrence time and duration, down to seconds.
• Customize camera IP addresses in bulk, add cameras remotely.
• Connect with IP cameras, support Onvif versions and various main brand IPC protocols.
• Flexible preview channel switching; MAC address remains unchanged for easy installation.
• Playback records and images from U-disk on NVR conveniently.
• Multiple playback modes: fast forward, slow playback, fast backward up to 16X.
• Compatible with WEB/VMS, Android/iOS mobile apps.
• P2P, QR scan, and playback available via mobile apps.

Specifications

• System

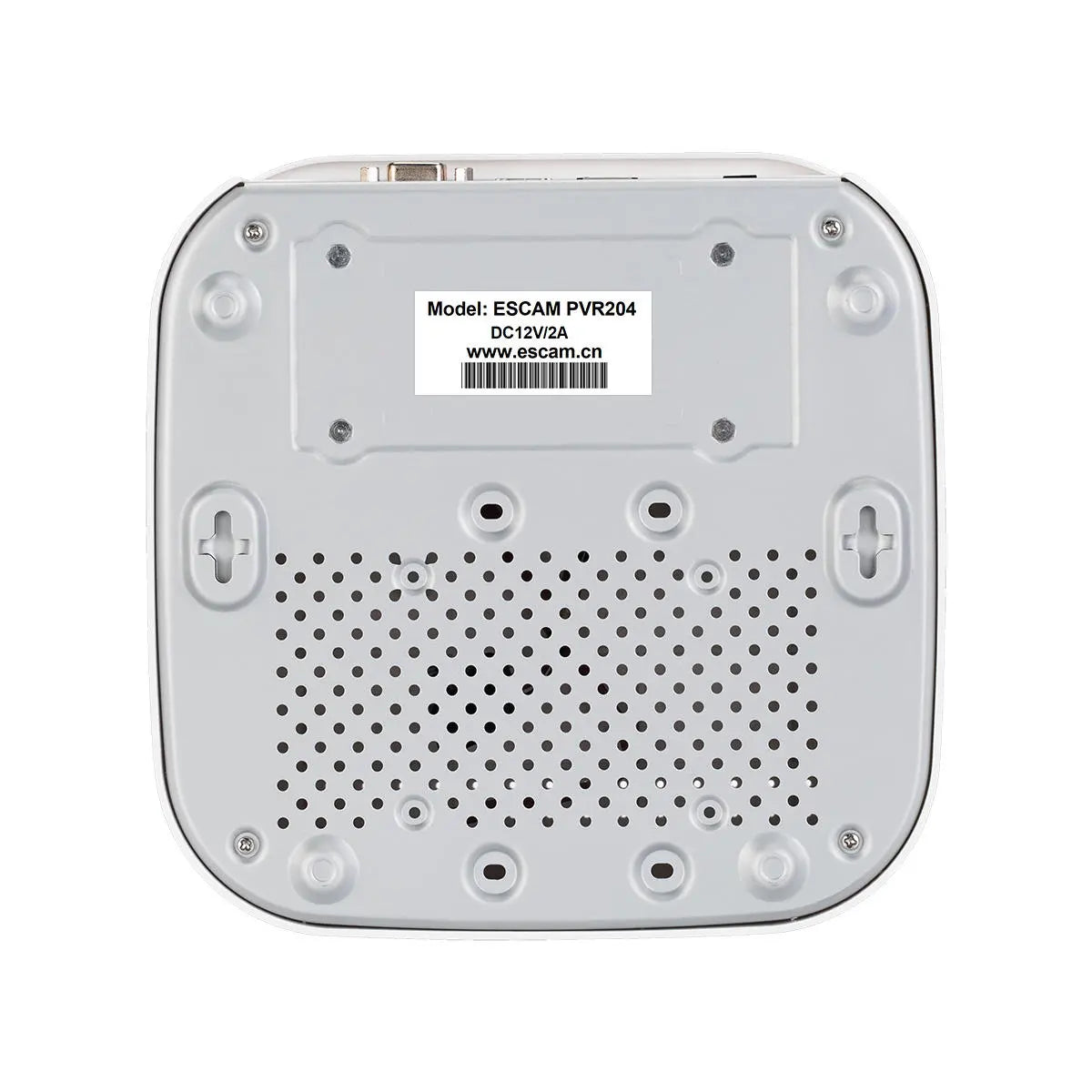

• Model No.: ESCAM PVR204
• Main Chipset: HI3520D
• Operating System: Embedded Linux
• Operate Interface: 16-bit graphic interface, mouse and keyboard support
• Image Display
• Channels: 1/4/6ch
• Video Mode: 6ch 1080P/960P/720P
• Video
• Frame Rate: NTSC@30fps, PAL@25fps
• Video Output: VGA*1, HDMI*1, 1080P resolution
• Image Decode: H.264
• Playback Quality
• Playback Quality: 1080P/960P/720P
• Area Shutter & Motion Detection Support
• Audio
• Format: G.711U
• No Talk Feature
• Audio Input: Same as channel number
• Output: HDMI Audio Output Supported
• Playback
• Record Mode: Timing, Motion Detection, Manual
• Playback Channels: 1ch 1080P/4ch 960P
• Record Retrieval: Time, Event, Timeline
• Storage Backup
• Record Saving: Local hard-disk
• Backup Mode: USB HDD, USB Flash Disk
• Remote Surveillance
• Mobile: iPhone, Android
• Computer: Support IE and VMS Remote Surveillance
• Interface

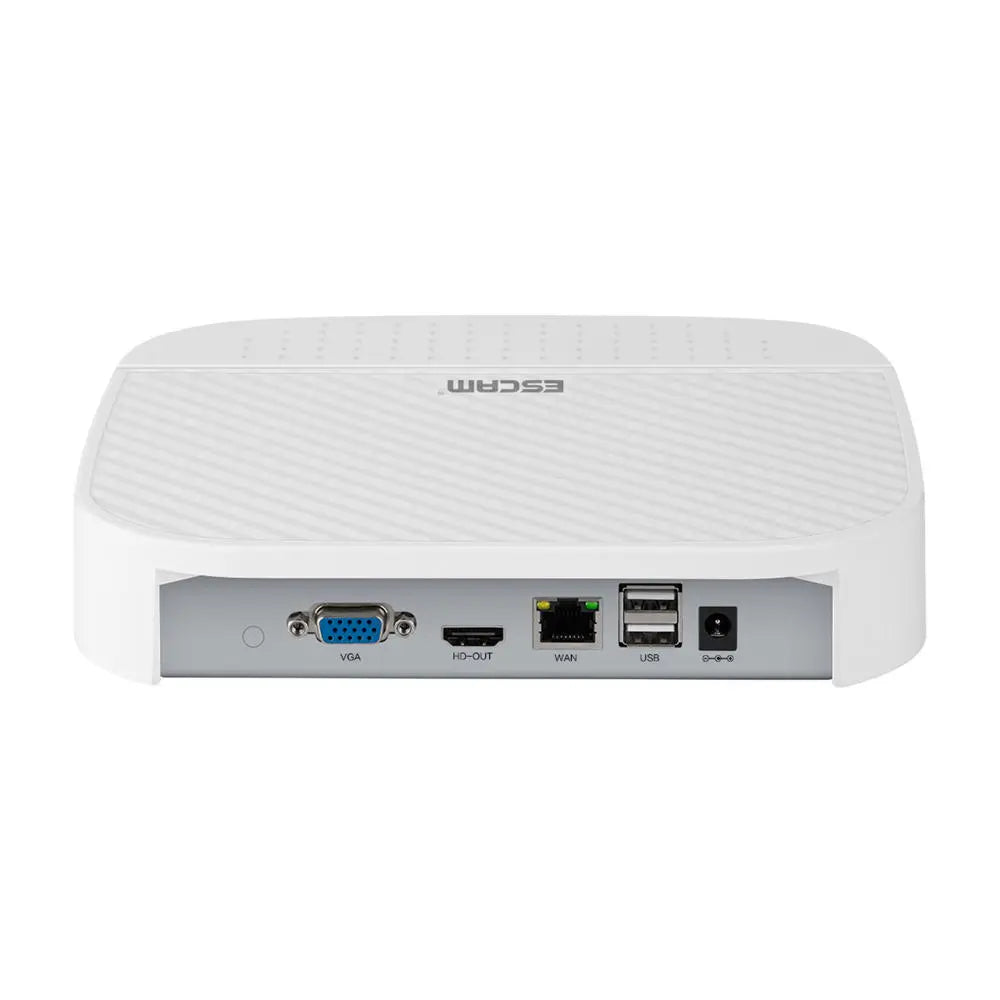

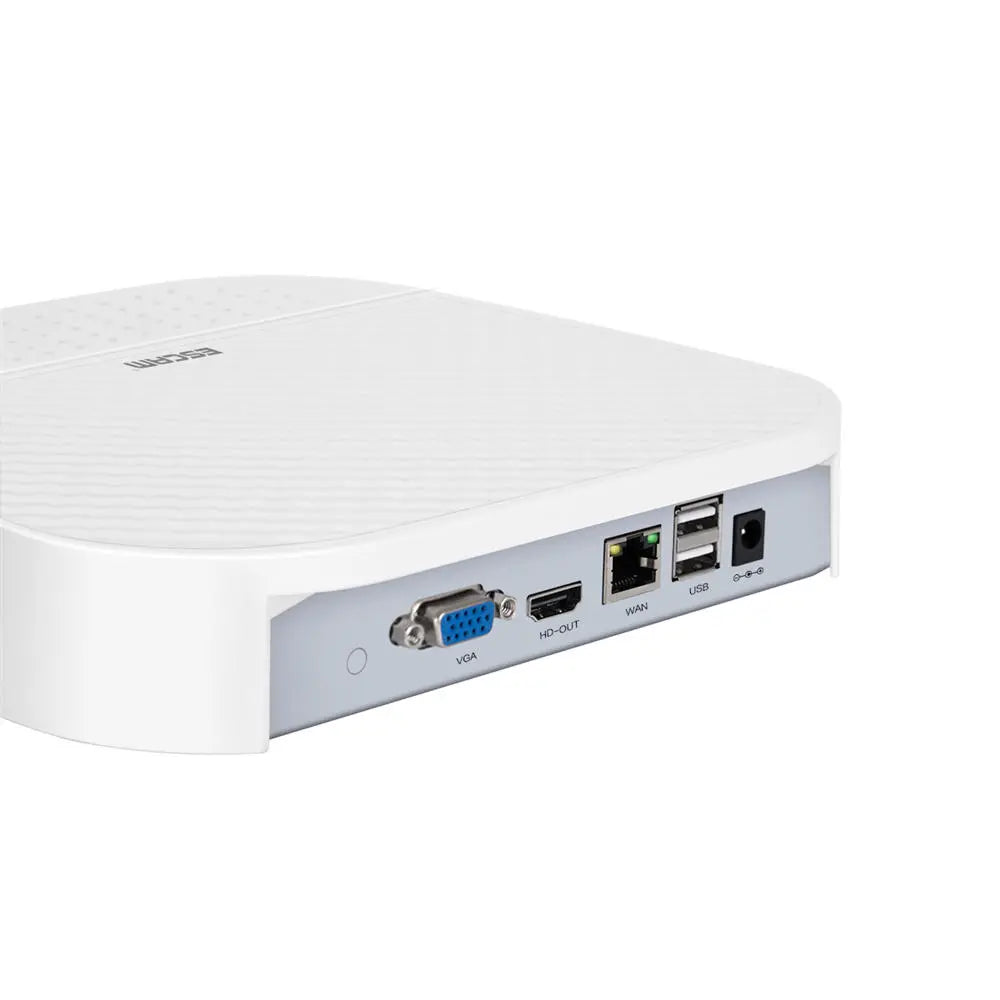

• Video Output: 1*VGA, 1*HDMI
• Network
• 1*RJ45 10/100M Ethernet Interface
• USB
• 2*USB2.0
• Hard-disk
• 1*SATA 2.0; Max 6T
• Others
• ONVIF Support
• Power: 12V 2A
• Consumption: ≤15W
• Working Environment: -10℃ to +50℃, 10%-95%RH
• Product Size: 210*209*40mm
• Product Weight: 436g
• Package Size: 320*240*52mm
• Gross Weight: 965g

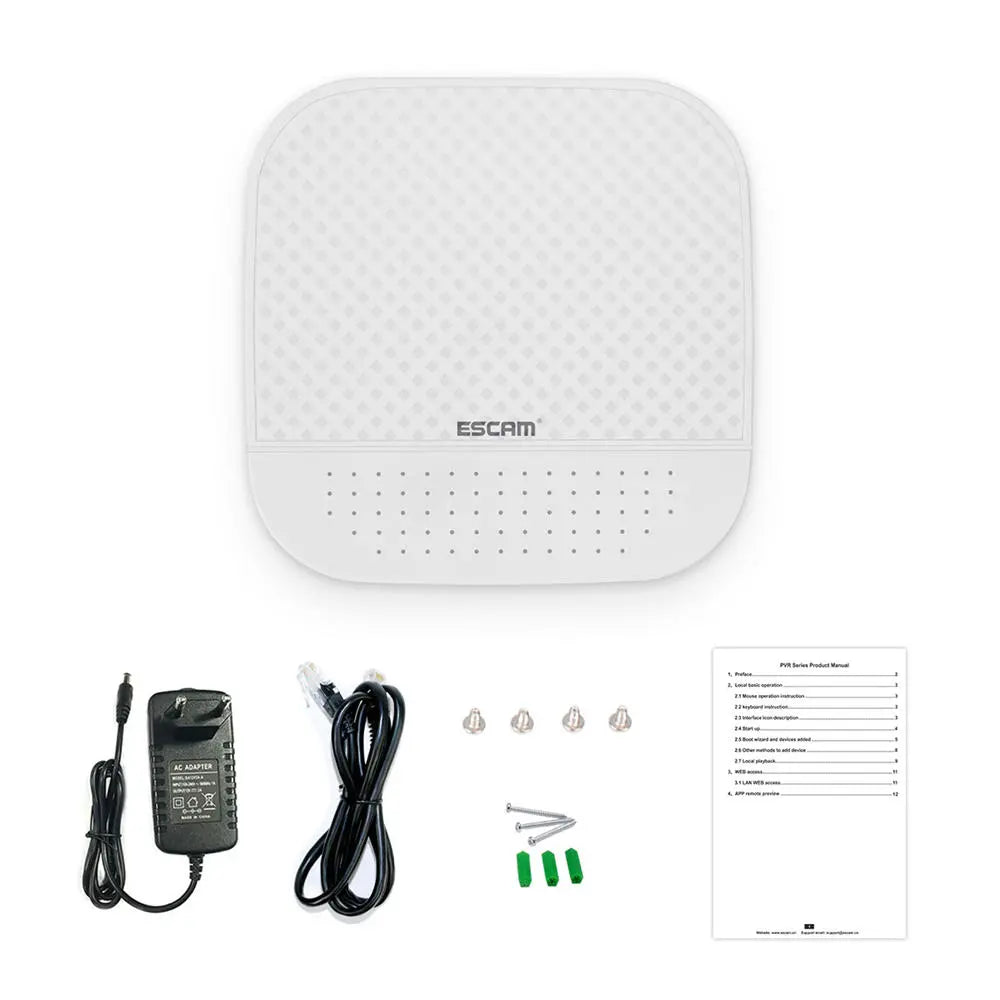

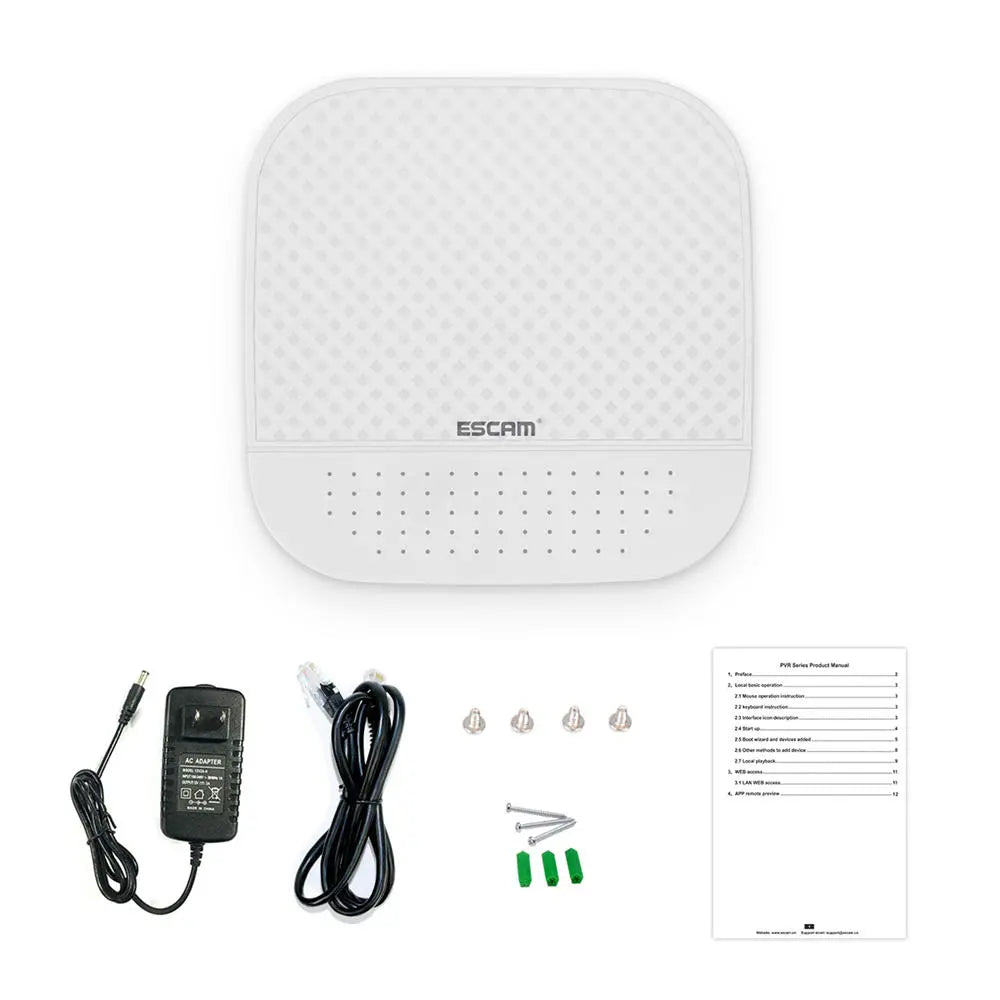

Package Includes

• 1 x ESCAM PVR204 4CH PVR
• 1 x Power Adapter (EU/US/UK/AU Plug Optional)
• 1 x User Manual
• 2 x Screw
• 1 x Network Cable
