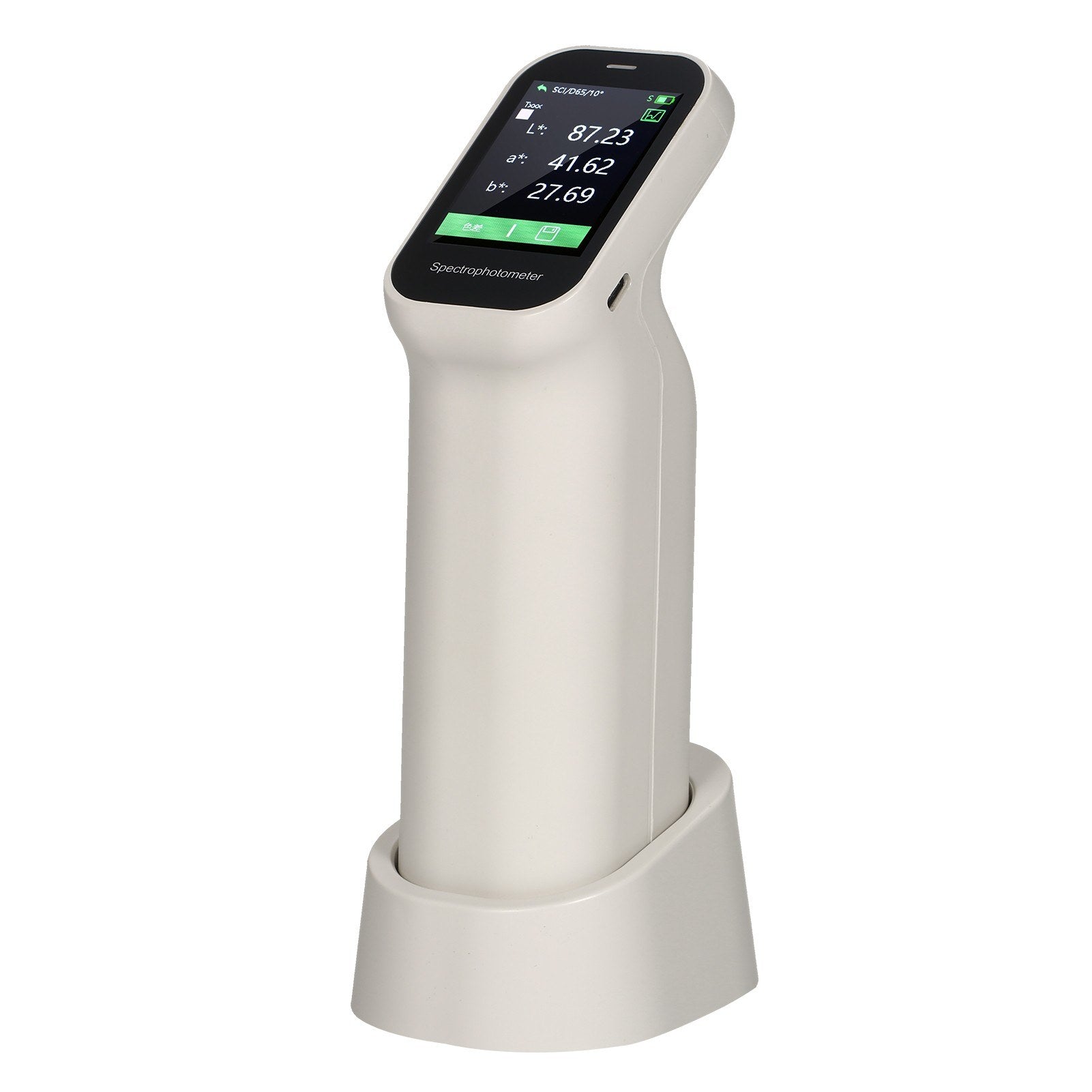

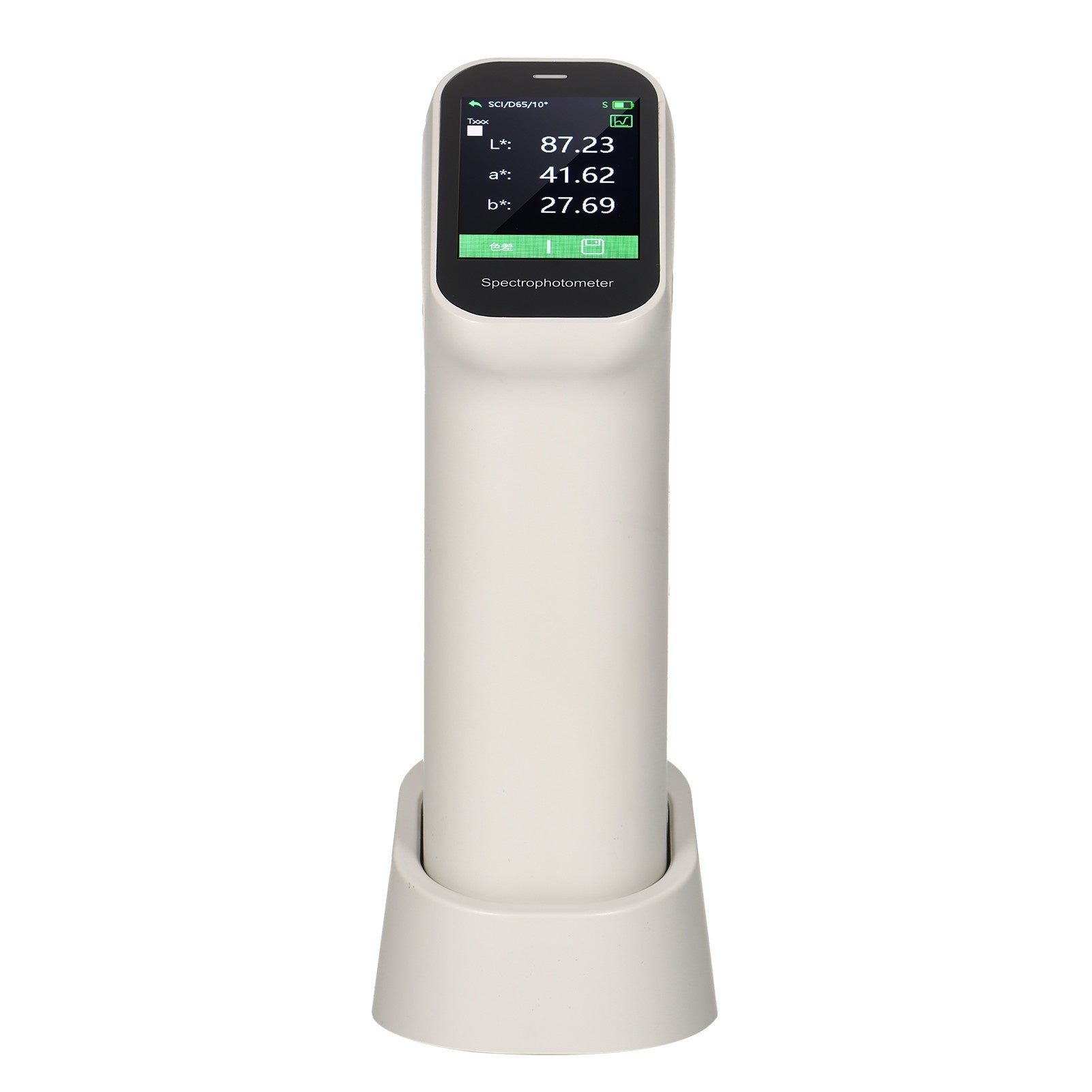

Handheld Rechargeable Colorimeter & Spectrophotometer with Auto Calibration, 6mm & 11mm Aperture, IPS Touchscreen

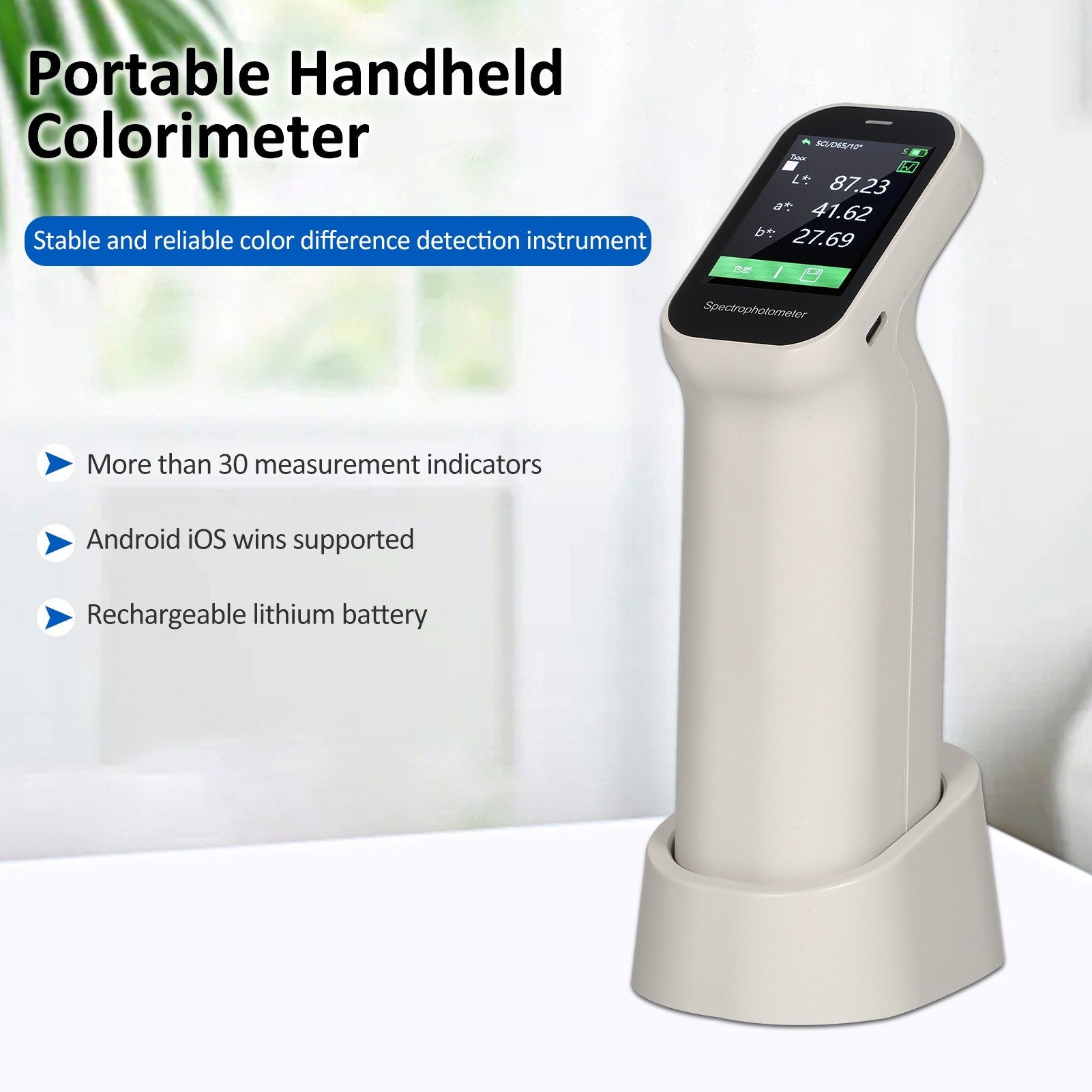

Experience Precision with Our Portable Spectral Colorimeter

This state-of-the-art portable spectral colorimeter is designed for ease of use and accuracy. Featuring automatic calibration and a built-in rechargeable battery, this device is perfect for color matching instruction and color separation measurement across a broad range of industries.

Key Features:

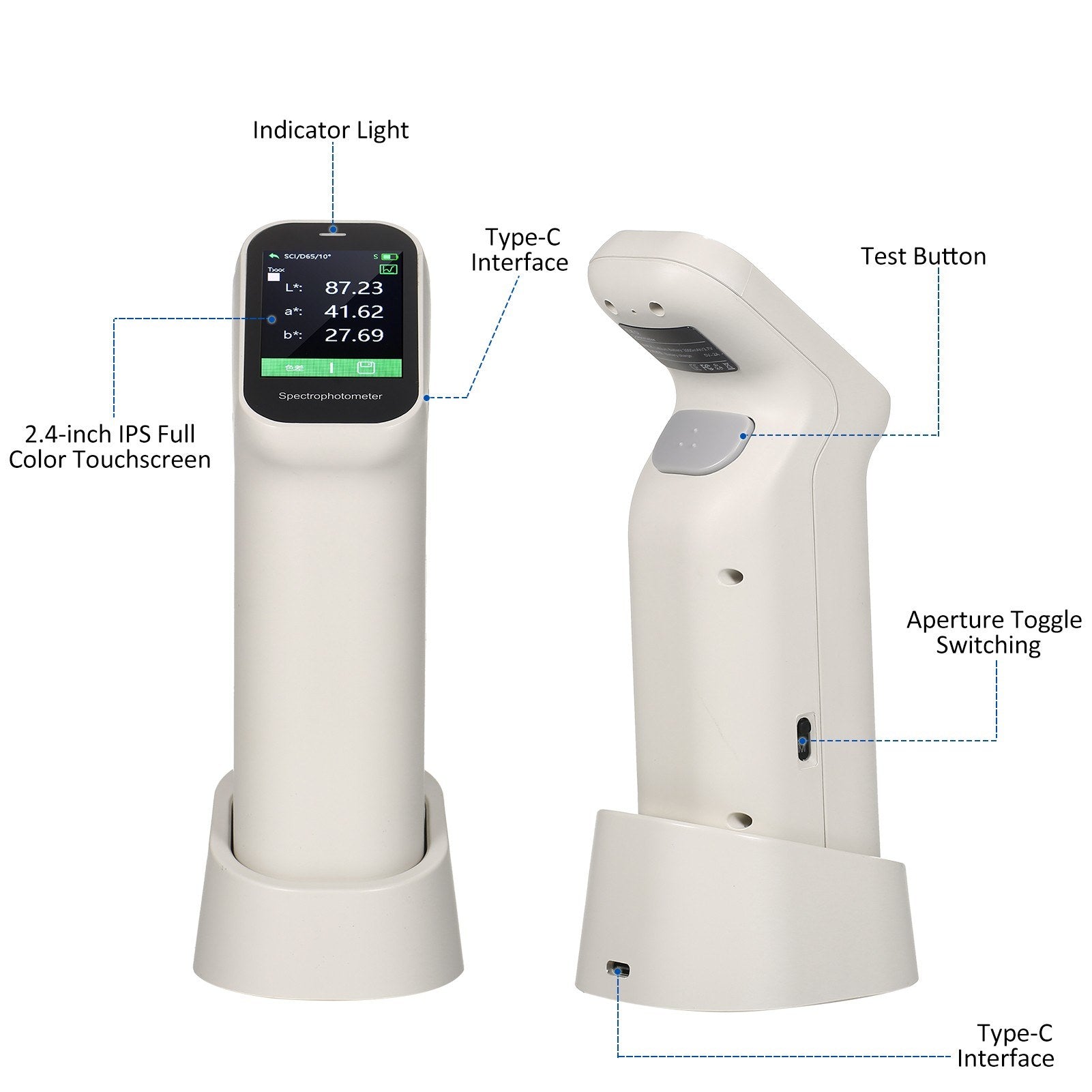

• Intuitive Display: Equipped with a 2.4-inch IPS full color touchscreen for effortless reading.
• Versatile Testing: Offers 6mm & 11mm test apertures and automatic calibration for quick color difference analysis across various targets.
• International Standards: Utilizes international D/8, SCI measuring conditions, ideal for use with highly reflective samples.
• Convenient Data Handling: Supports APP mass storage of data, USB data transmission, and computer software capabilities.
• Wide Industry Application: Suitable for use in industries such as plastics, paint, printing, packaging, automotive, textiles, food, and more.
• Efficient Use: The self-adhesive magnetic base allows easy placement and charging of the colorimeter, protecting the device and facilitating easy access.

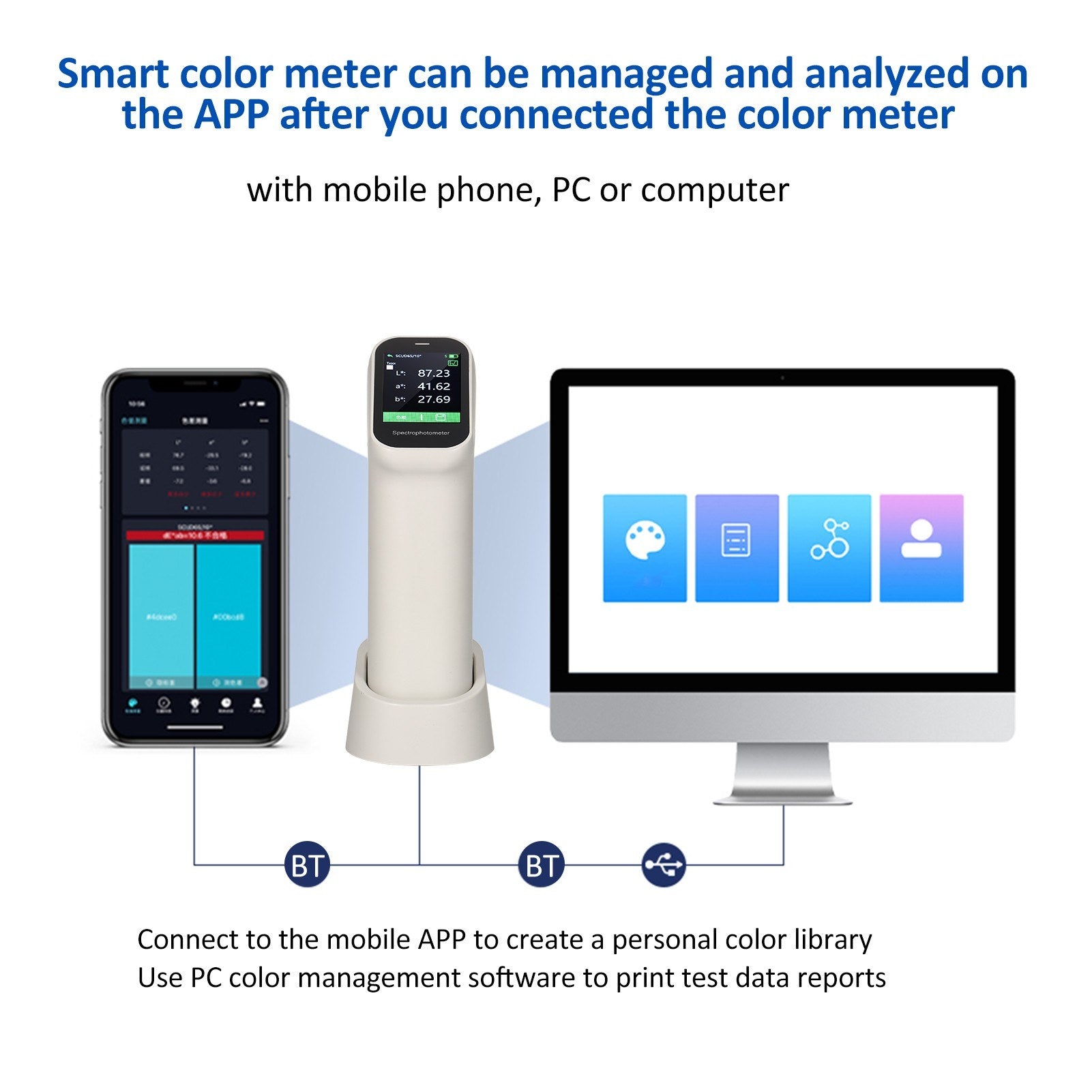

• Smart Connectivity: Manage and analyze data on the APP by connecting the colorimeter to mobile devices or computers.
• Long-Lasting Power: The 3000mAh lithium battery supports easy charging via a Type-C USB interface, with a recommended 5V 2A adapter.

Specifications:

• Material: ABS

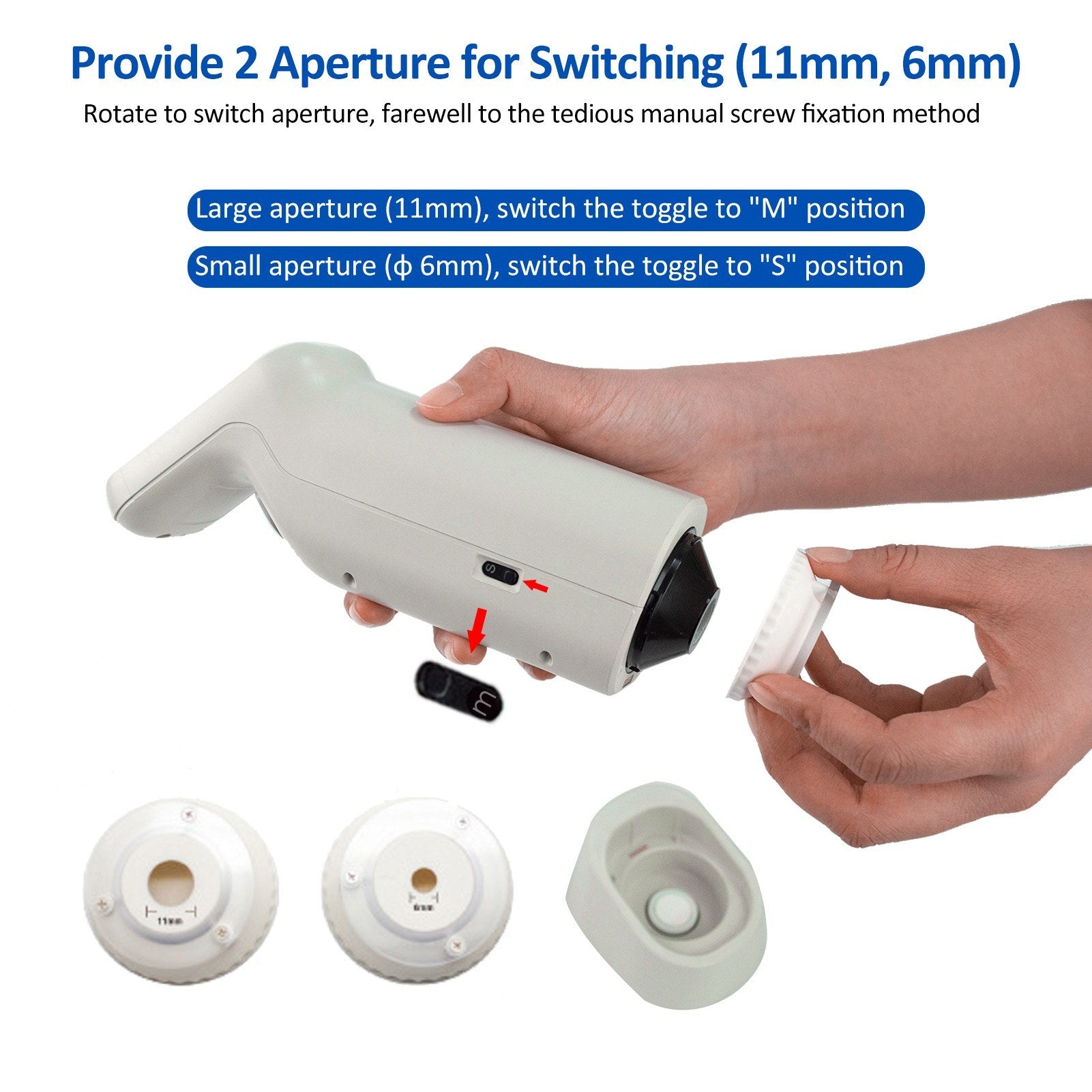

• Measurement Area/Aperture Size: MAV: φ11mm + SAV: φ6mm

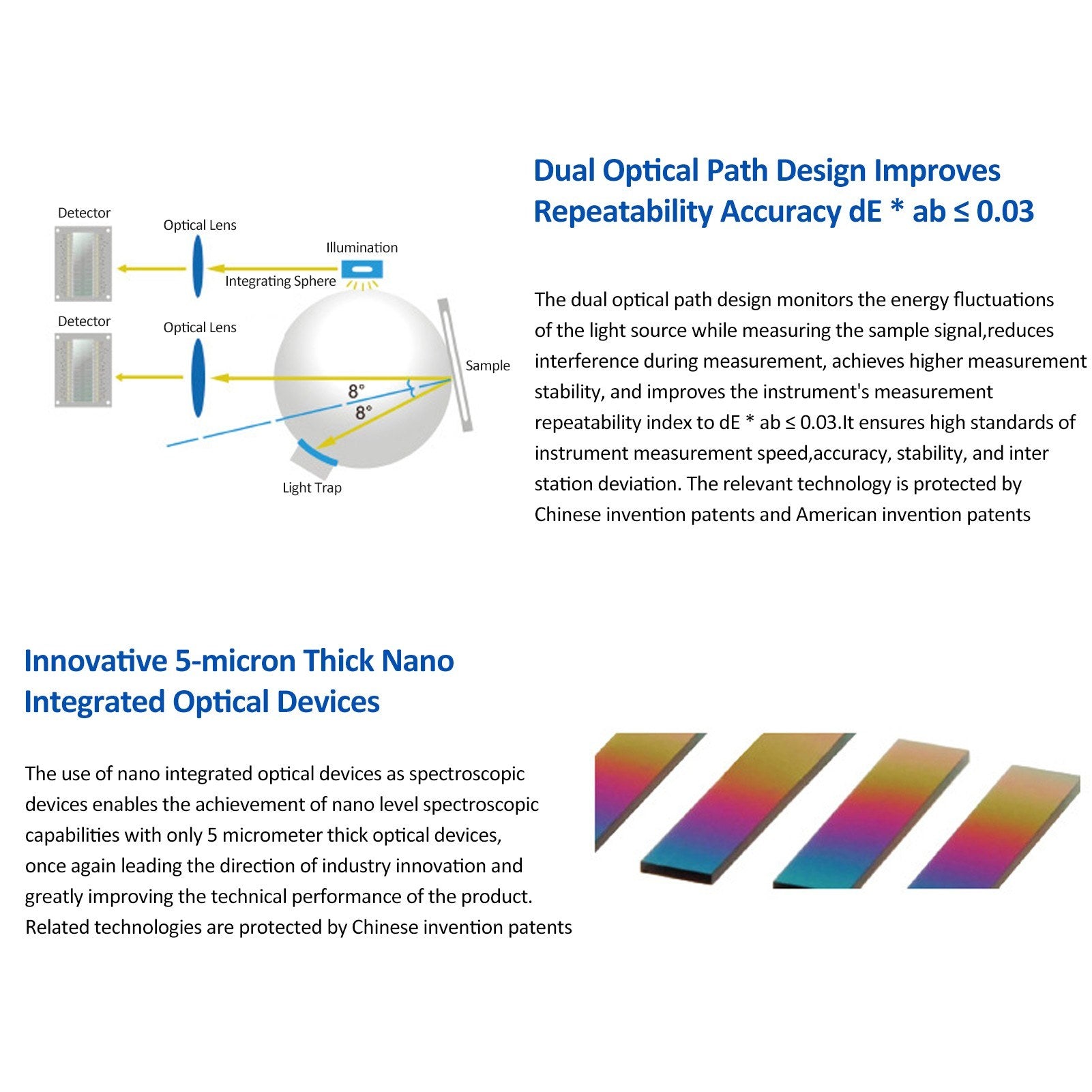

• GeoMetry and Angle: d/8 (diffused illumination, 8 degree viewing); SCI (specular component included)
• Standards Compliant: Conforms to CIE No. 15, GB/T 3978, GB 2, GB/T 18833, IS07724-1, ASTM E1164, DIN5033 Teil 7
• Spectroscopic Method: Integrated optical component
• Sensor: CMOS sensor

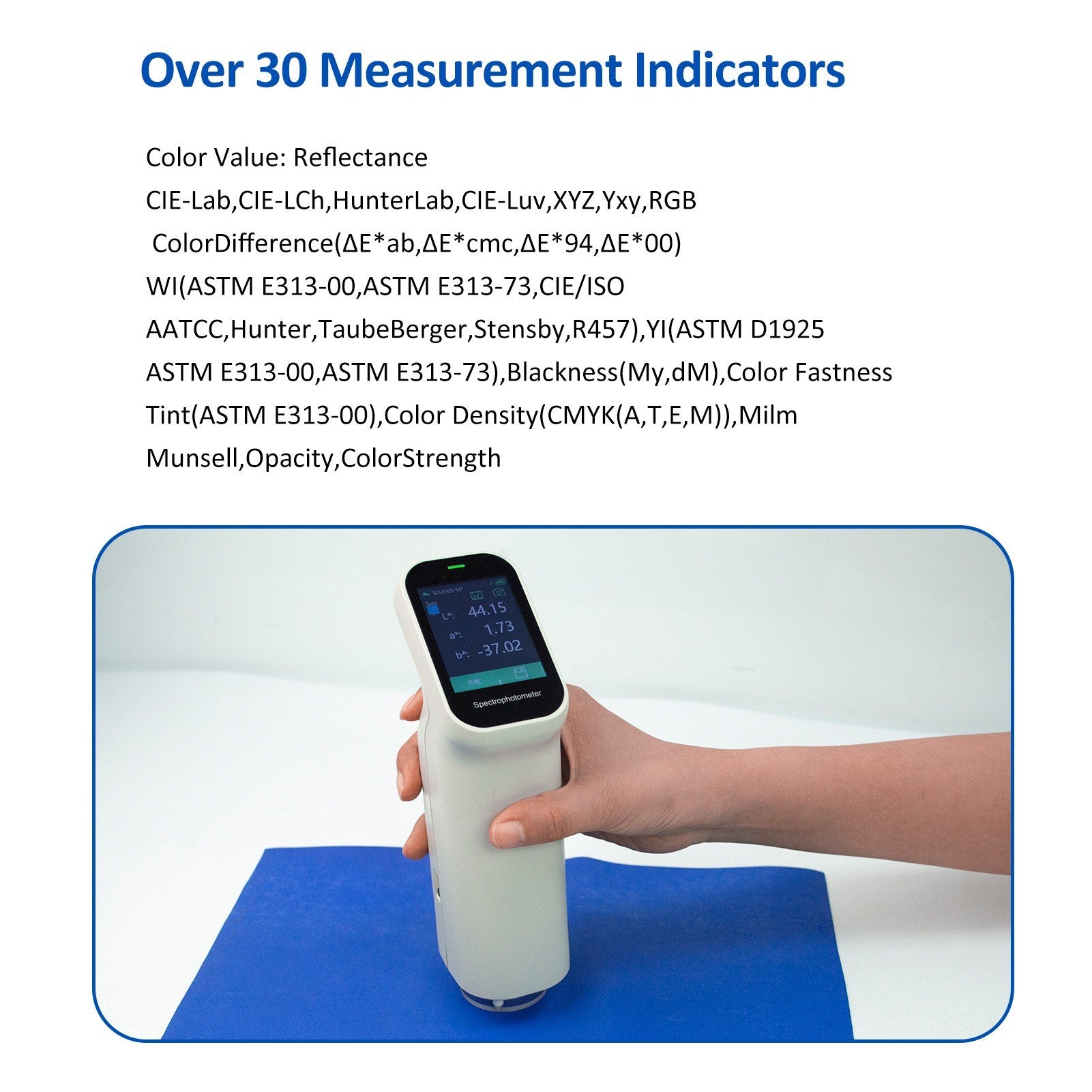

• Color Value: Reflectance (CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB)
• ColorDifference: ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00
• Collective Metrics: WI, YI, Blackness, Color Fastness, Tint, Color Density
• Light Source: LED (Full band balanced LED light source)
• Wavelength Range: 400-700nm
• Measurement Accuracy: 0.01
• Interface: USB, BT
• Observer Angle: 2°, 10°
• Battery Life: Rechargeable, 8,000 continuous tests, 3.7V/3000mAh
• Light Source Lifetime: 10 years, 3 million tests
• Languages: Chinese, English

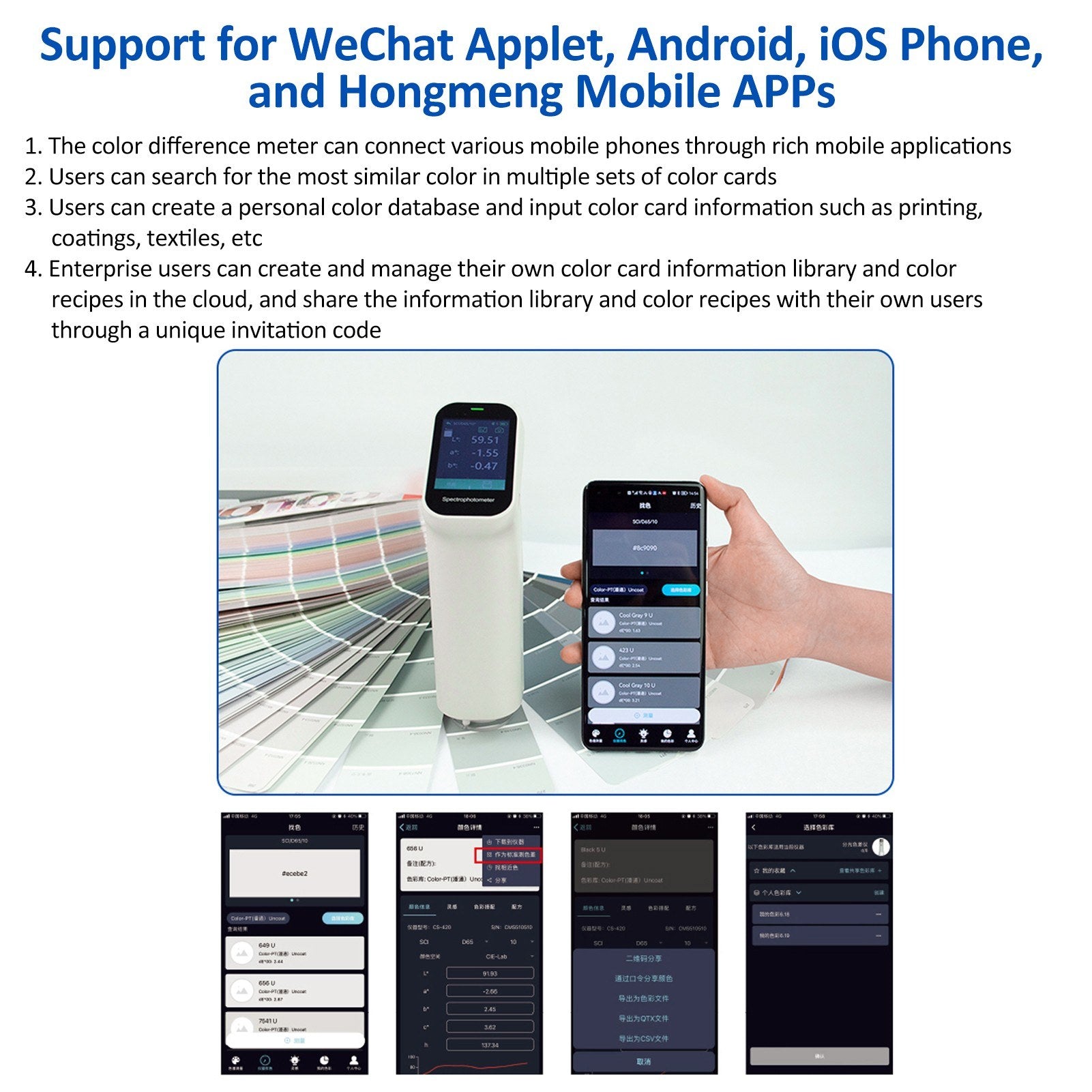

• Software Support: Android/iOS/Windows/WeChat applet

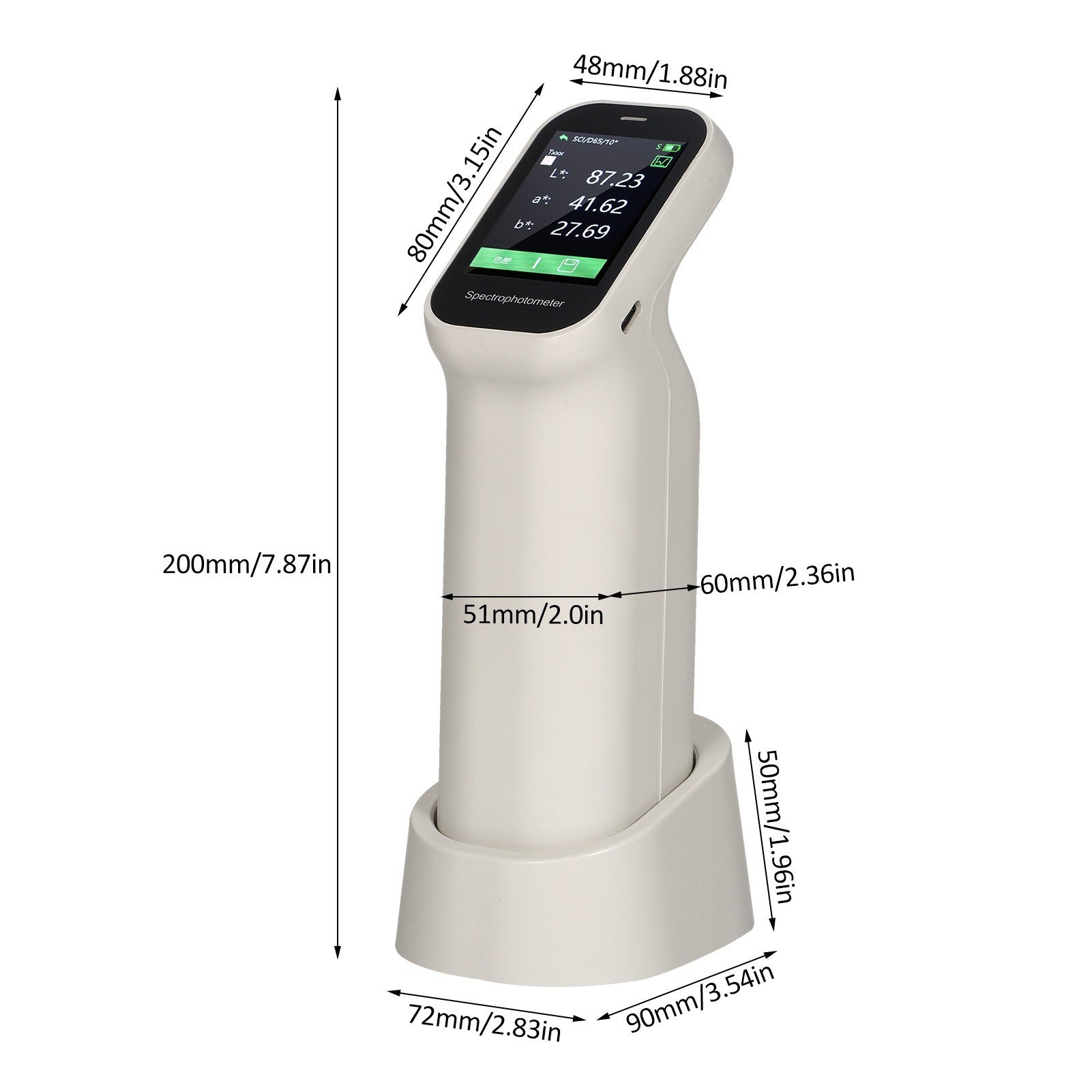

• Dimensions: Base Size: 90 x 72 x 50mm; Item Size: 185 x 75 x 52mm
• Weight: Item with base: 371g; Package: 1046g
• Package Dimensions: 29 x 28 x 10cm

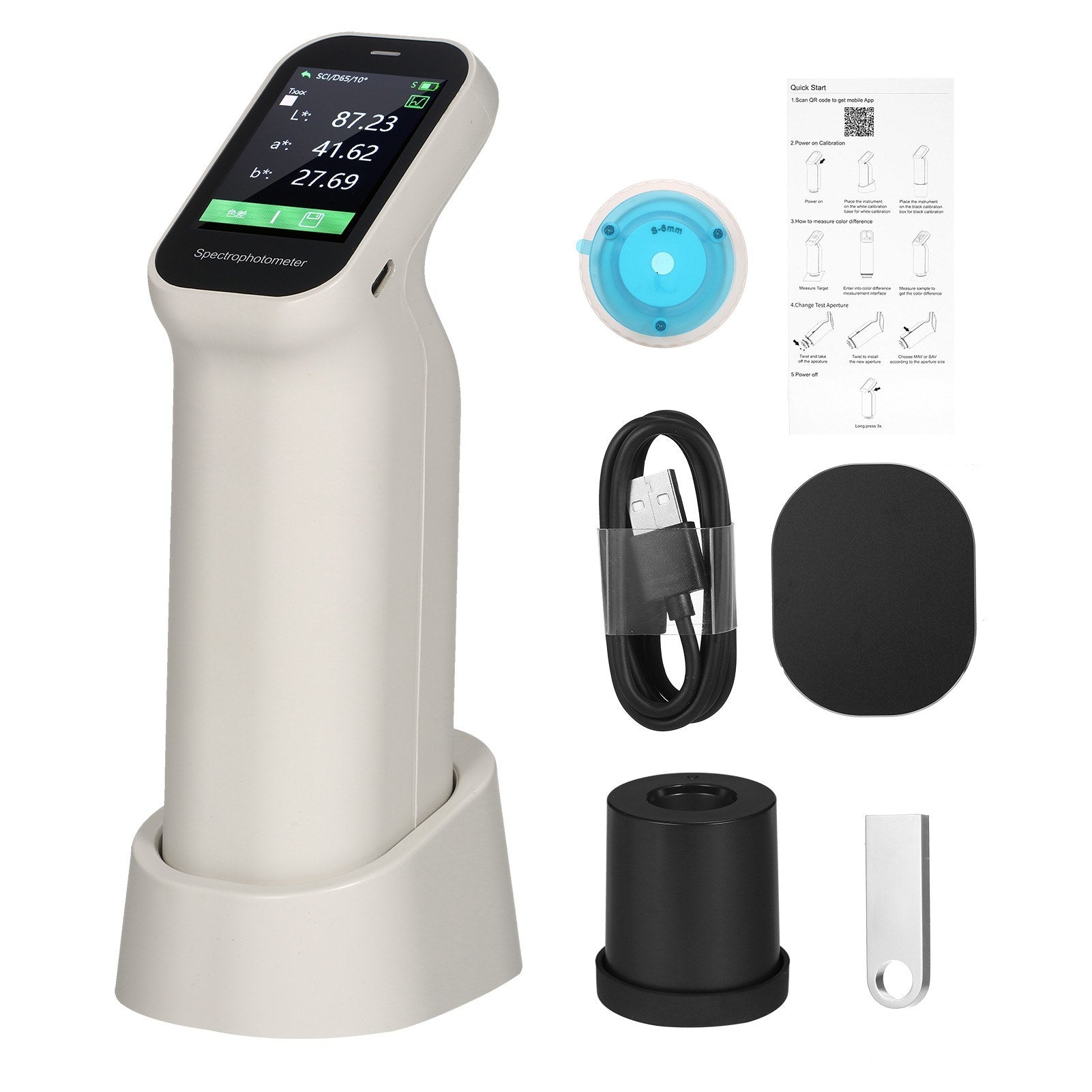

Package Includes:

• 1 Color Meter
• 1 Calibration Base
• 1 Black Calibration Box
• 1 Aluminum Alloy Base
• 1 11mm Aperture
• 1 6mm Aperture
• 1 U Disk
• 1 Type-C Cable
• 1 Manual (English)
