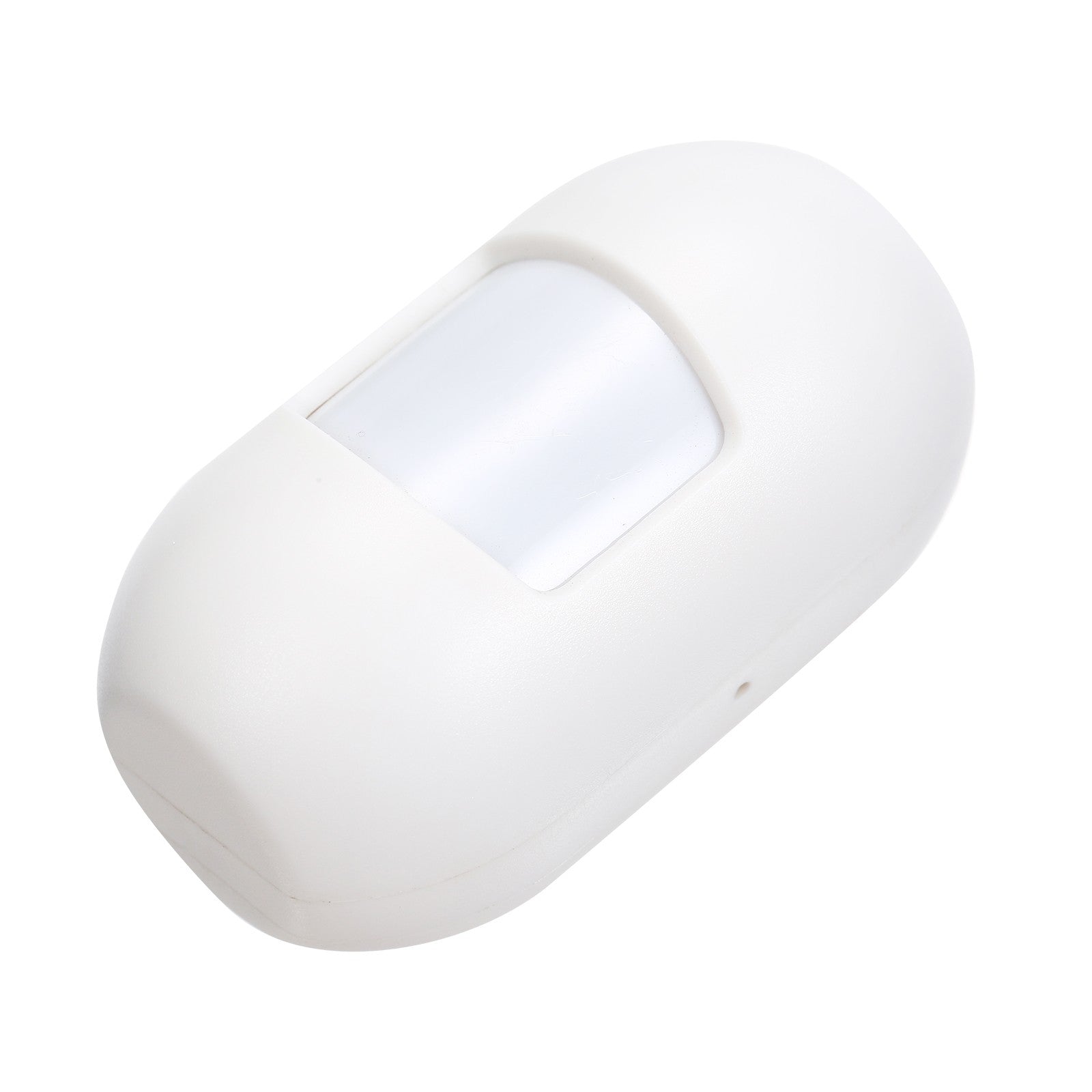

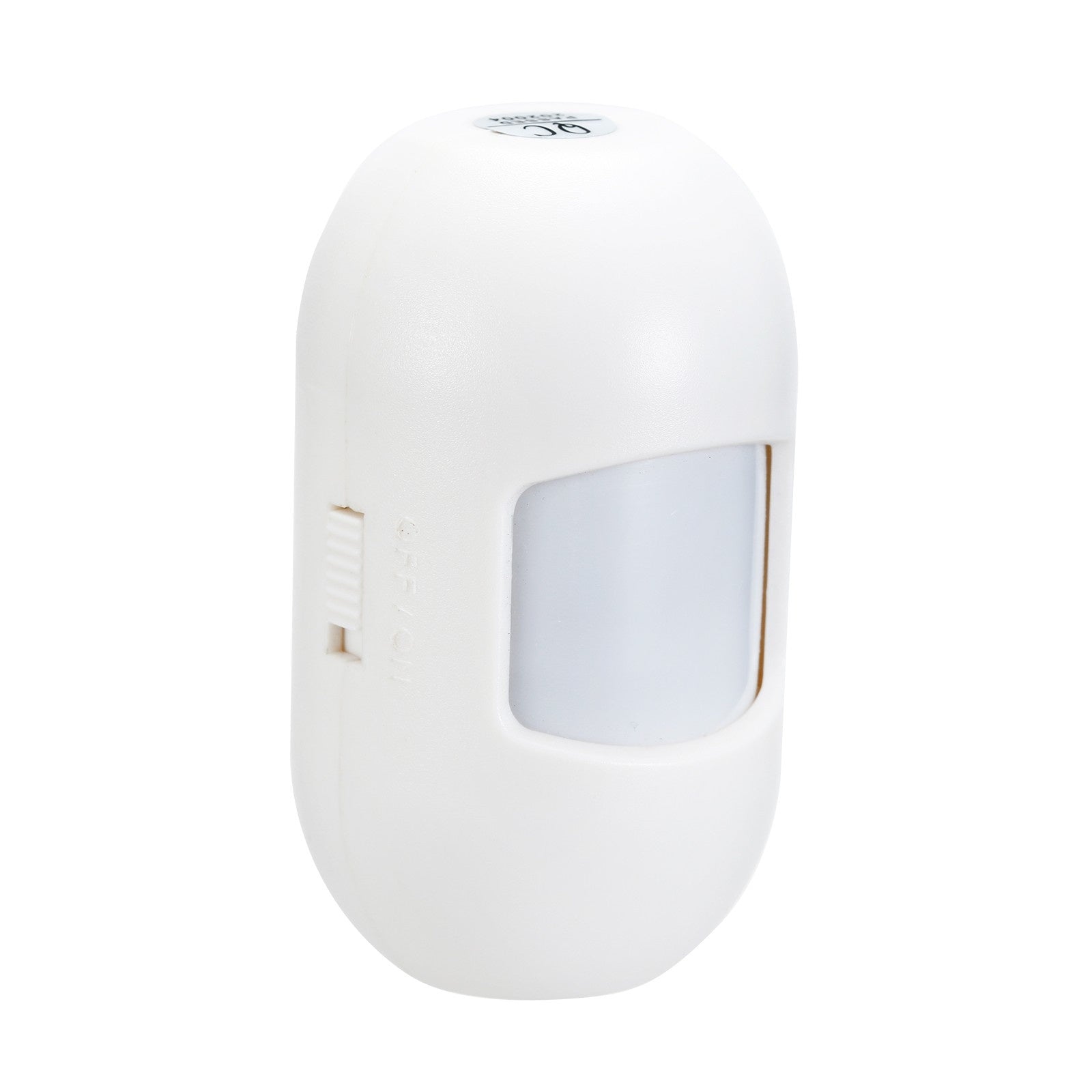

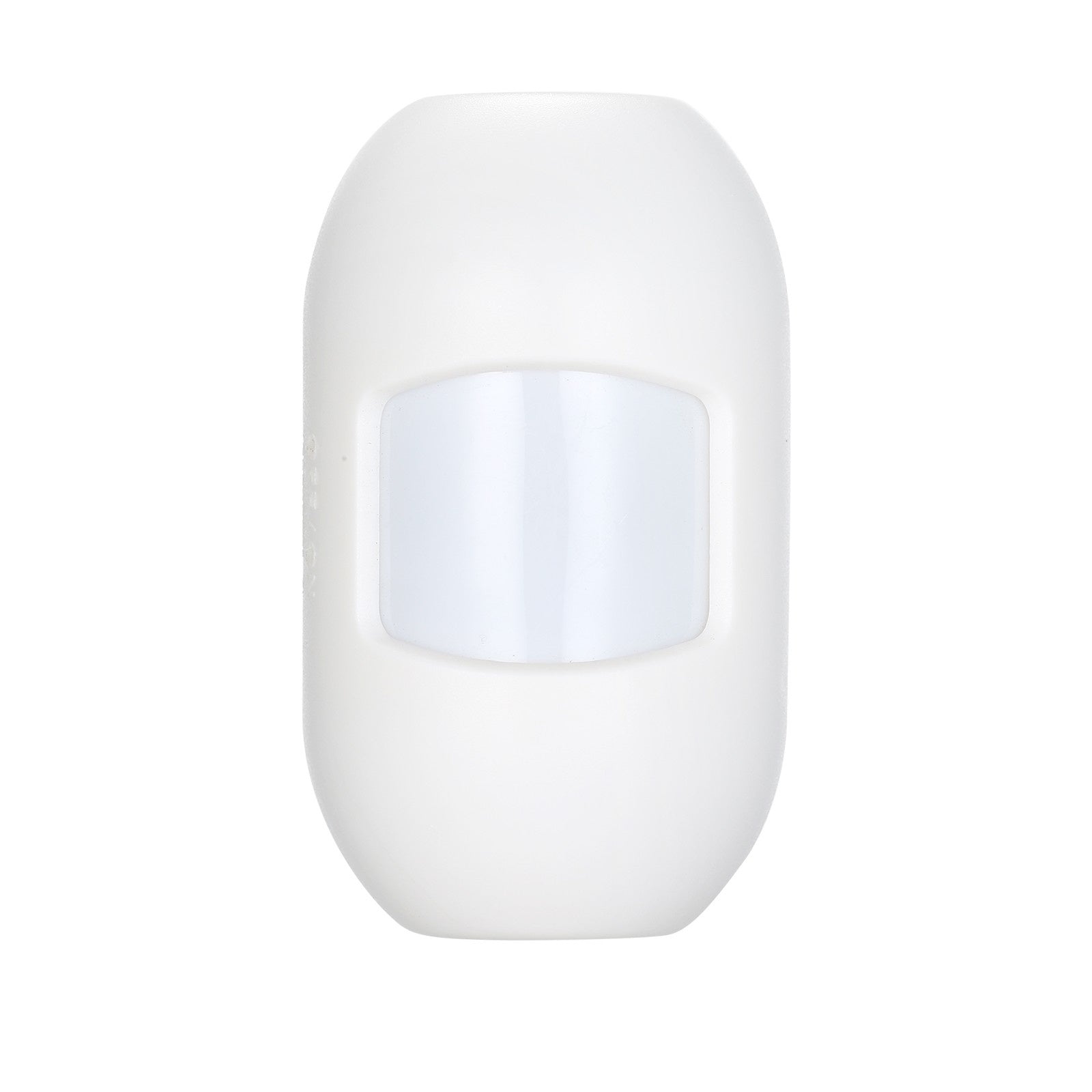

eWeLink Wireless PIR Motion Sensor

Overview:

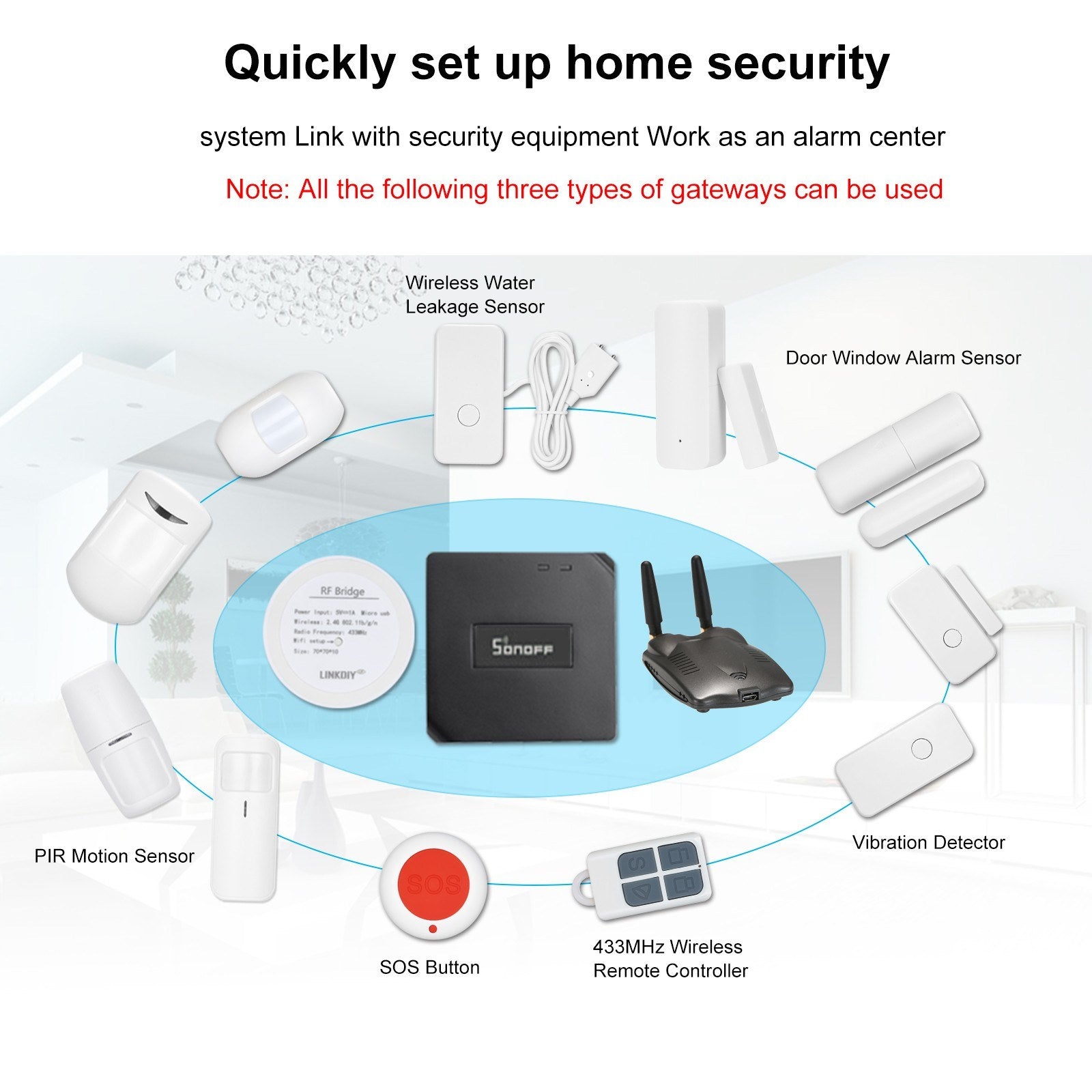

This wireless wide-angle Passive Infrared (PIR) motion sensor operates at 433MHz and is designed for human detection. It integrates seamlessly with the Sonoff RF Bridge 433 or an alarm system host, providing instant human detection alerts straight to your phone.

Features:

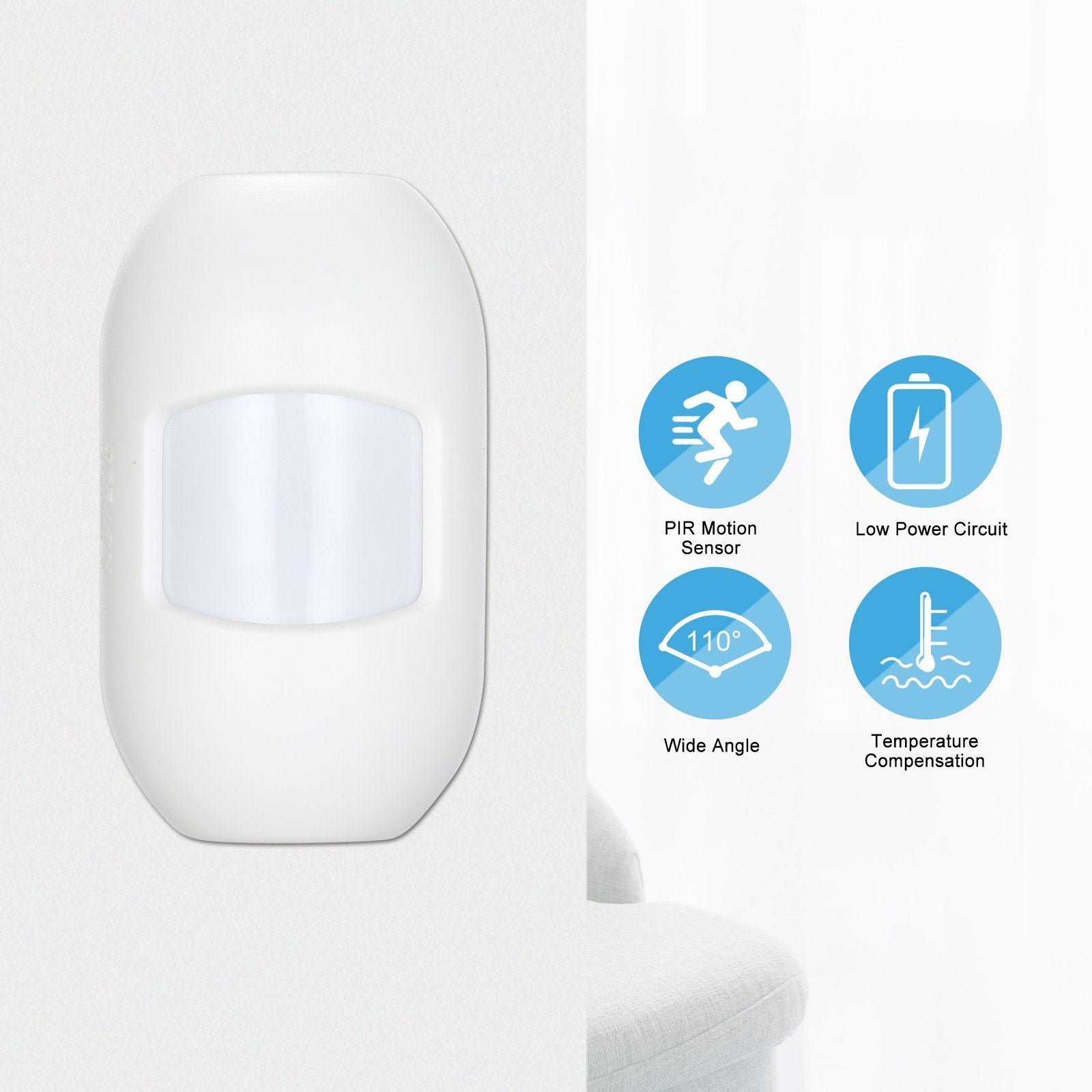

• Dual infrared sensors with ultra-low power microprocessors.

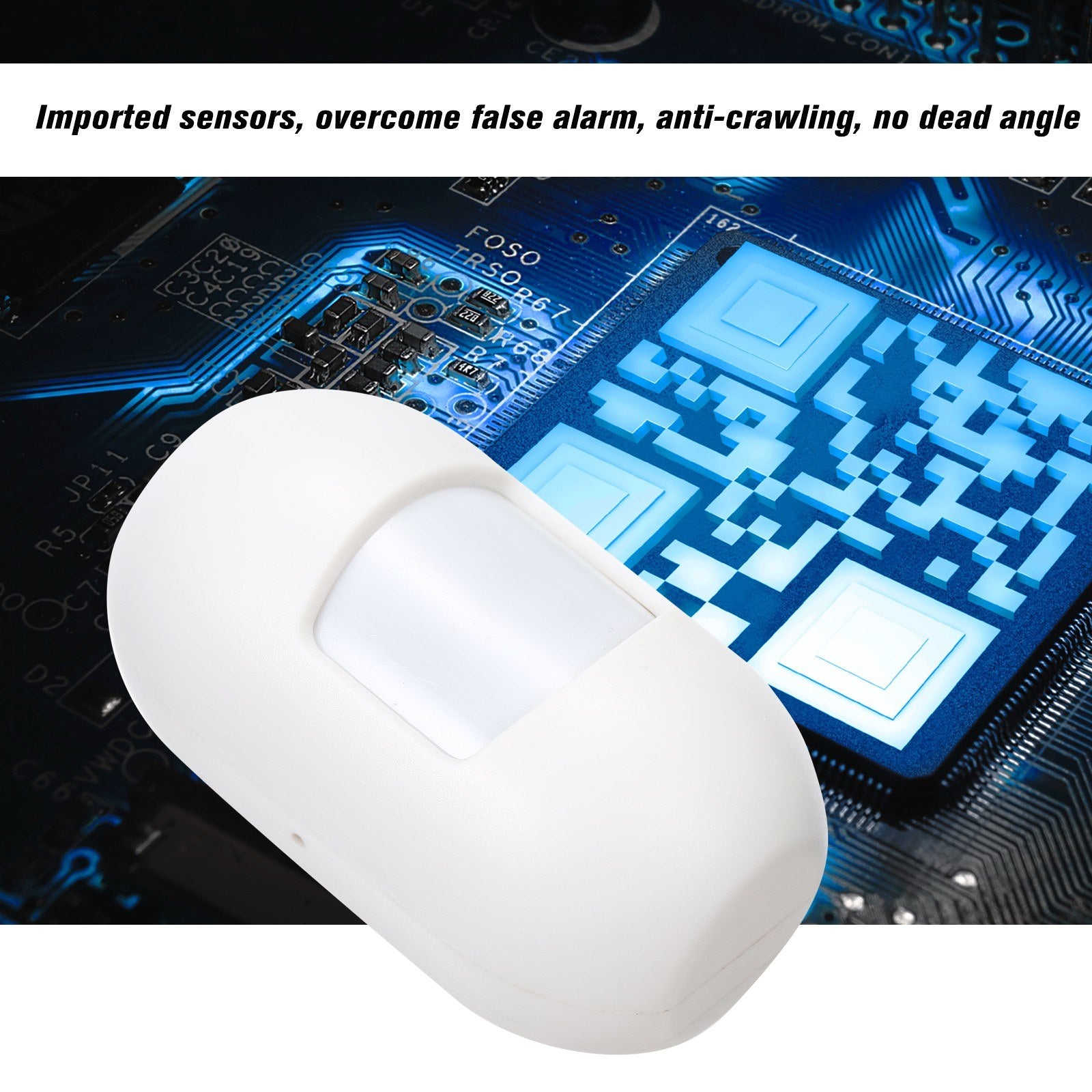

• High-quality sensors minimize false alarms and are anti-crawling with no blind spots.
• Double temperature compensation technology and adjustable pulse count.
• Durable construction, suitable for various settings including homes, offices, sheds, and garages.

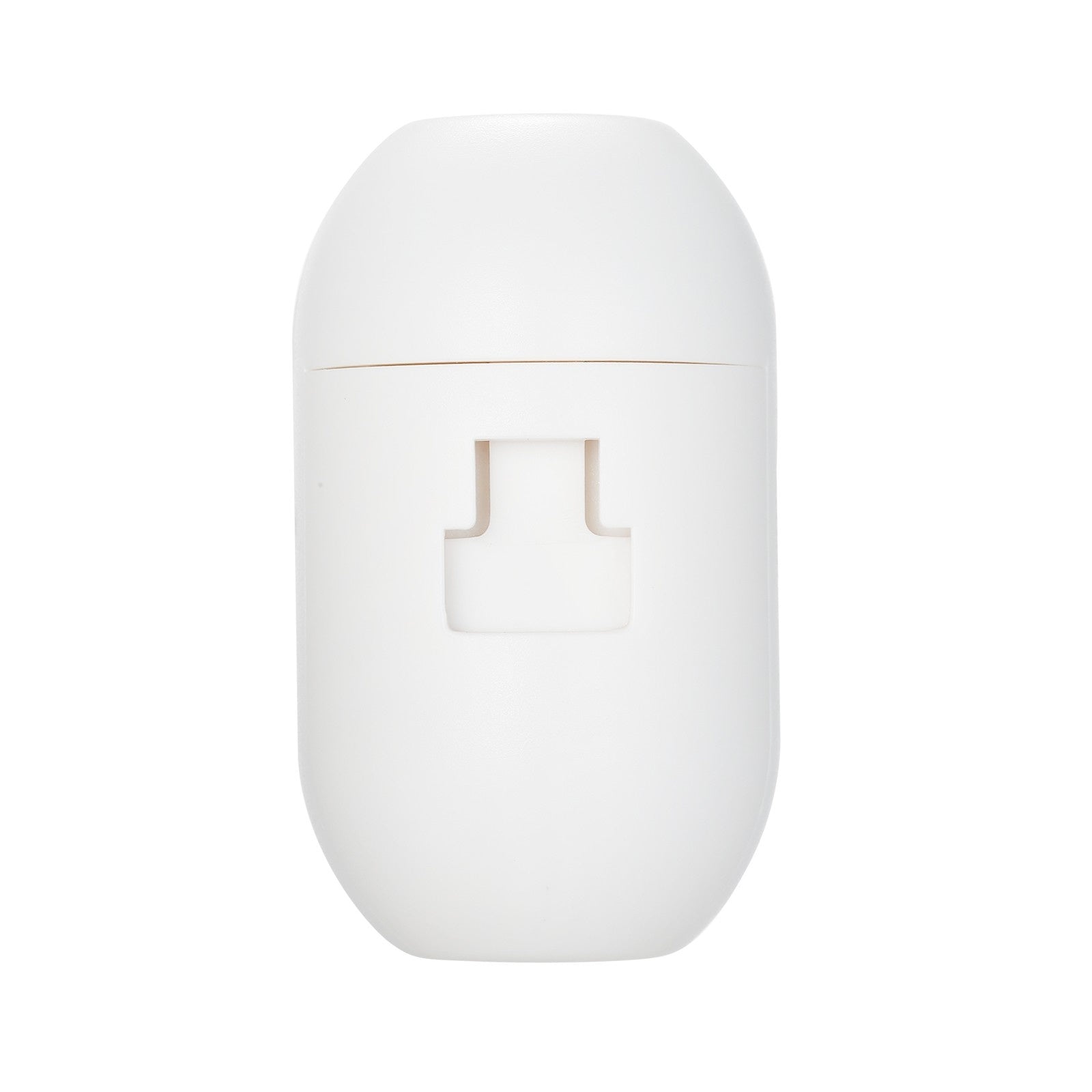

• Compact, cute design for easy installation and setup; simply wall-mount it.

Specifications:

• Transmission Frequency: 433MHz
• Transmission Distance: 100m (in open areas)
• Power Supply: 3V CR2450 battery (not included)
• Standby Current: ≤ 15μA
• Alarm Current: ≤ 25mA
• Wireless Frequency: 433.92MHz
• Wireless Transmit Code: 1527MHz (default)

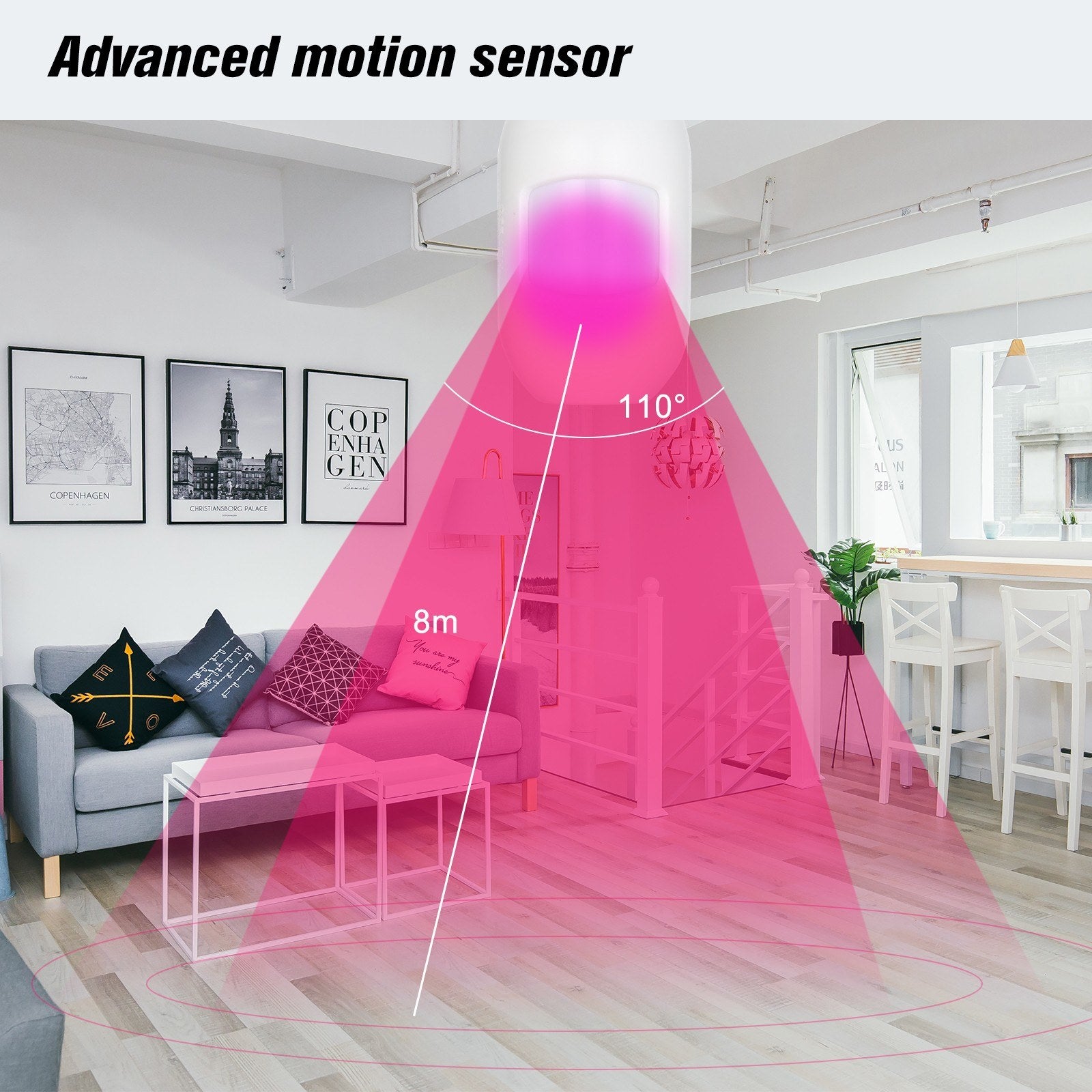

• Detection Distance: 8m at 25℃
• Detection Angle: 110 degrees (wide angle)
• Intended Use: Indoor environments
• Case Material: ABS plastic
• Item Dimensions: 62 x 35 x 35mm
• Item Weight: Approx. 28g / 0.99oz

Package Information:

• Package Dimensions: Approx. 6.8 x 5 x 4cm / 2.7 x 2 x 1.6in
• Package Weight: Approx. 35g / 1.2oz

Packing List:

• 1 x PIR Motion Sensor (batteries not included)
• 1 x Mounting Bracket
• 1 x Bag of Mounting Screws
