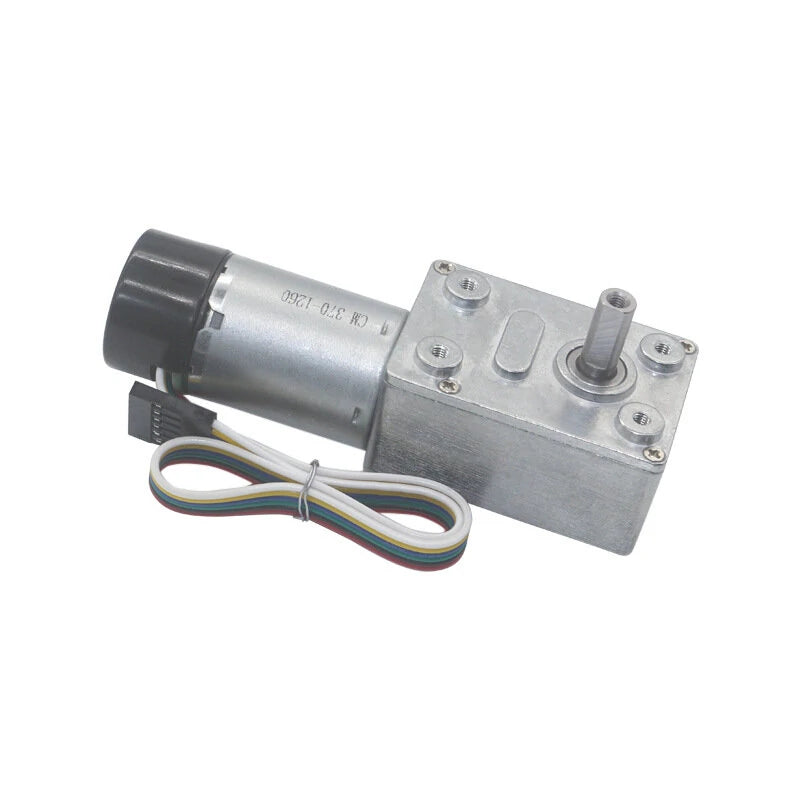

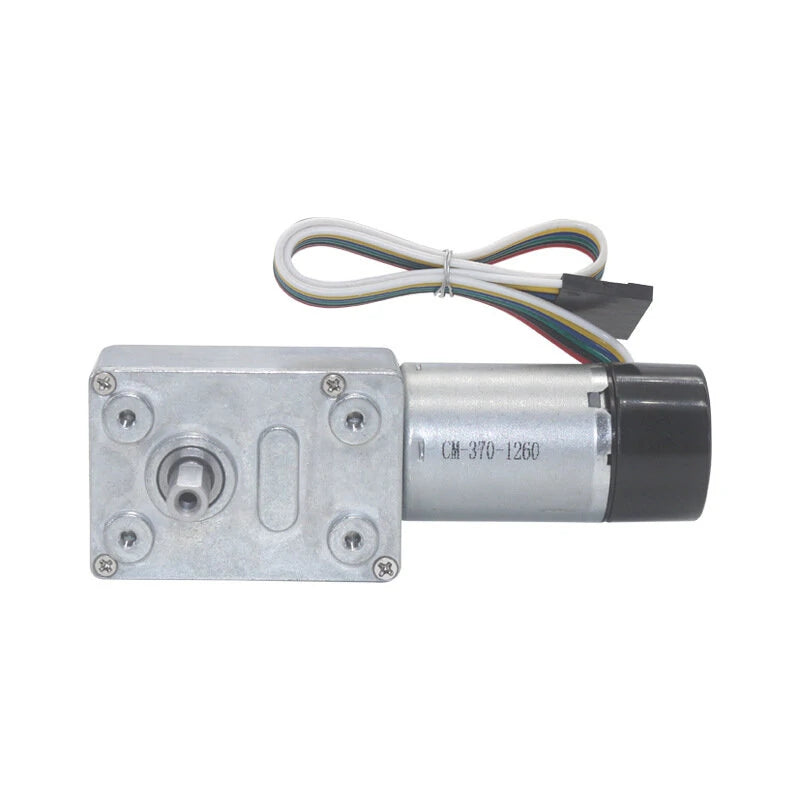

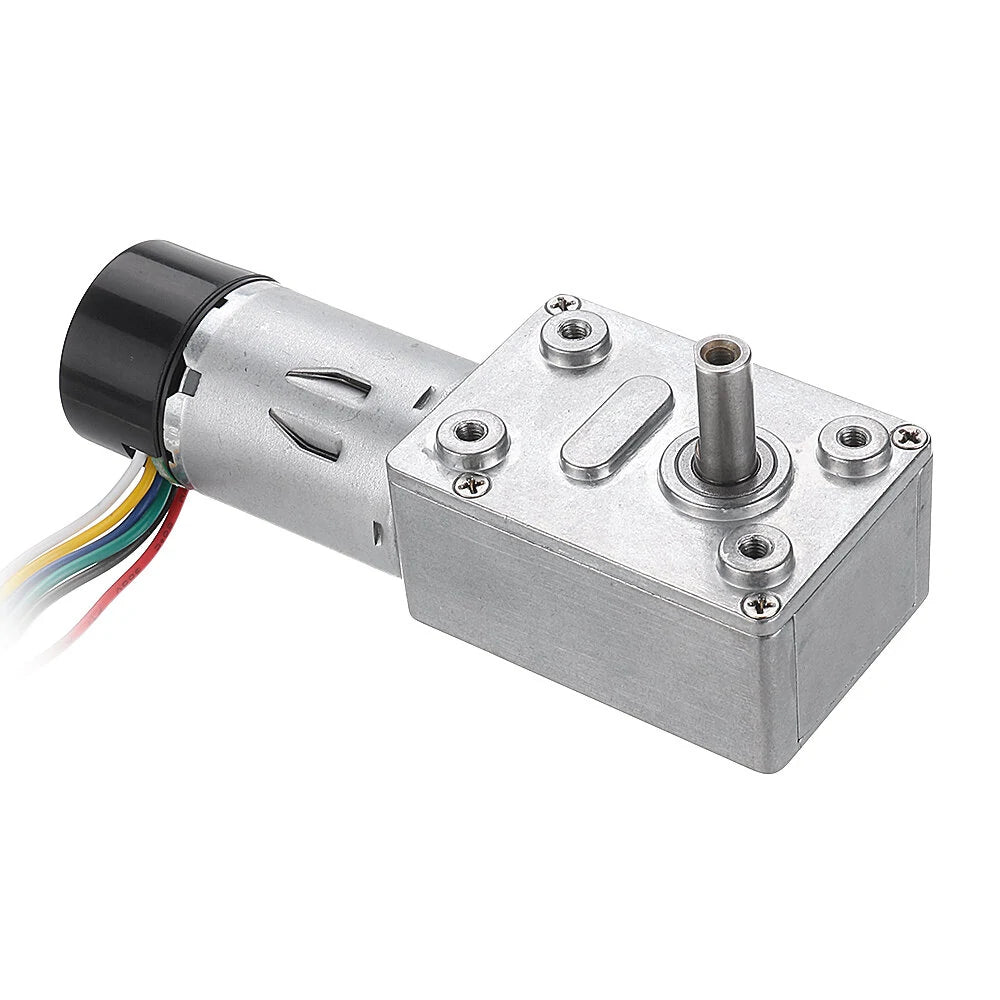

Machifit JGY-370 12V Reduction Gear Turbine Worm Motor

Experience superior performance with the Machifit JGY-370 12V reduction gear turbine worm motor, featuring self-locking capabilities, low speed, and encoder signal feedback.

Specifications:

• Brand: Machifit
• Type: Reduction Motor
• Material: Metal
• Voltage: DC 12V
• Weight: 167g
• Power: 3W
• Rated Voltage: 3 - 24V
• Speed Regulation: Yes
• Rotation: Bi-directional

Dimensions:

• Outer Diameter: 6mm
• Motor Size (without shaft): 46 x 32mm
• Line Length: 230mm

Performance Details:

Reduction Ratio	No-load Current (mA)	No-load Speed (rpm)	Rated Torque (Kg.cm)	Rated Speed (rpm)	Rated Current (A)	Max Torque (Kg.cm)	Stop Current (A)
600	≤40	10	15.9	7.5	≤0.3	30	0.85
200	≤40	30	5.3	22	≤0.3	10	0.85
65	≤40	90	0.5	70	≤0.3	1.6	0.85
40	≤40	150	0.2	120	≤0.3	0.9	0.85

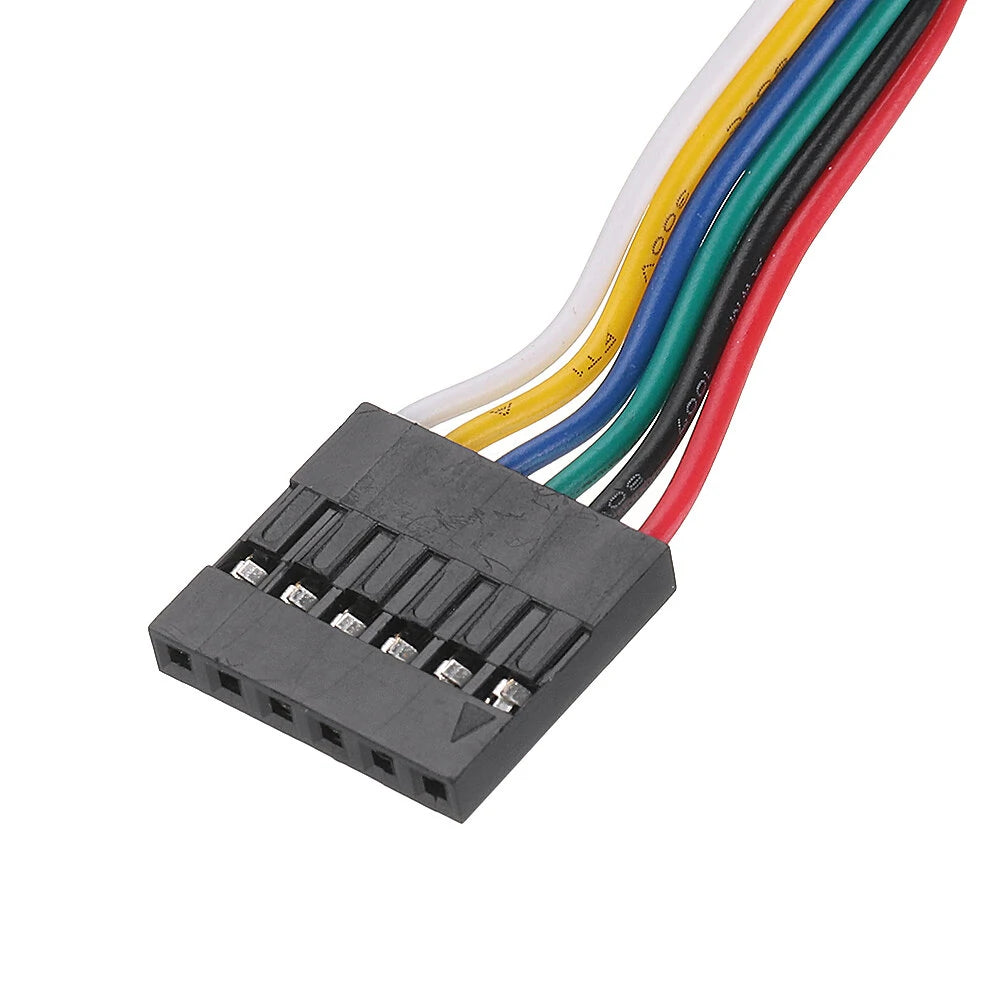

Wiring Information:

• Red: Motor positive
• Black: Motor negative
• Green: Sensor ground wire - (5-12V)
• Blue: Sensor power (5-12V)
• Yellow: Signal A output point (11 pulses)
• White: Signal B output point (11 pulses)

Key Features:

• D-axis Display: Enhanced stability, superior thermal conductivity, high hardness, and anti-friction properties.
• Internal Gearbox: Constructed with all-metal materials providing wear resistance, extended lifespan, and rust-free operation.

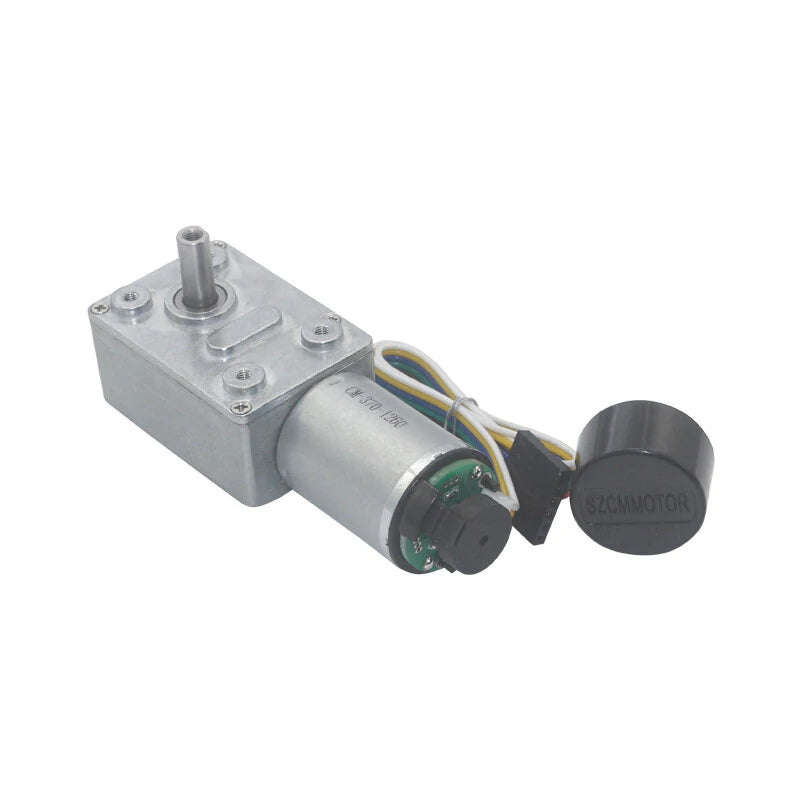

• Covered Encoder: Copper wiring ensures smooth power output, with a three-layer high-density molecular coating protecting against dust and extending lifespan by 10 times compared to standard coating.
• Durable Motor: Offers a service life of up to 1000 hours.
• Versatile Applications: Ideal for massage chairs, electronic locks, smart devices, fishing equipment, and more.

Package Includes:

• 1 x 12V Reduction Gear Motor
