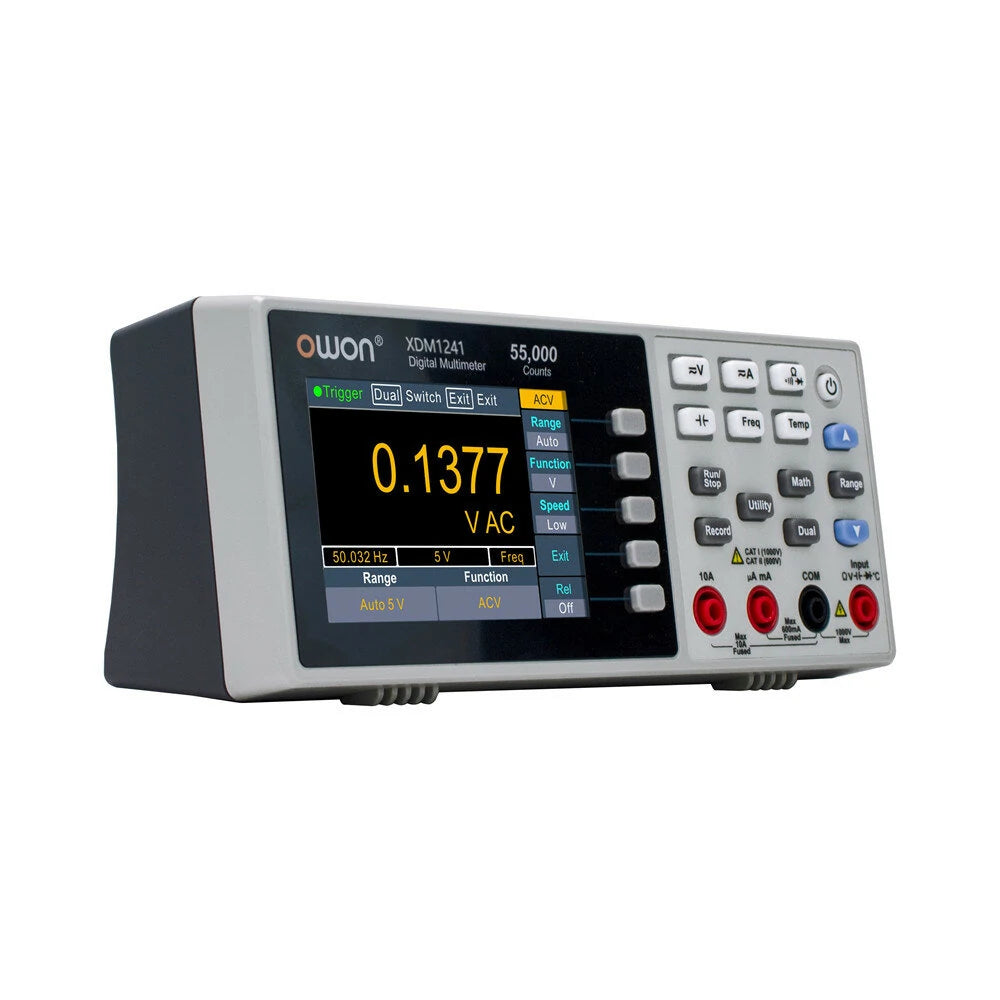

OWON XDM1241 3.5-inch TFT LCD USB Digital Multimeter, 55000 Counts Universal Desktop Meter

OWON XDM1241 3.5-inch TFT LCD USB Digital Multimeter, 55000 Counts Universal Desktop Meter

$123.99 USD
$0.00 USD $123.99 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Icon Estimated Delivery: -

Lock Icon
Guaranteed secure & safe checkout.
Payment Logos
Product Description

Digital Multimeter

Features

  • TFT LCD Screen: 3.5-inch 480x320 high-resolution display with backlight, 55,000 counts, DC voltage accuracy of 0.05%, and dual line display for clear and precise visuals.
  • Fast Measurement: Achieve up to 65 readings per second for quick and accurate results.
  • User-friendly Interface: Easy-to-use interface displaying results in a table format, allowing you to access, store, process, and manage your data effortlessly.
  • Data Record Function: Includes manual and auto record options, storing up to 1,000 data points in internal storage. Data can be exported to your computer for further analysis.
  • Temperature Measurement: Compatible with a K-type temperature probe (not included) for accurate temperature readings.

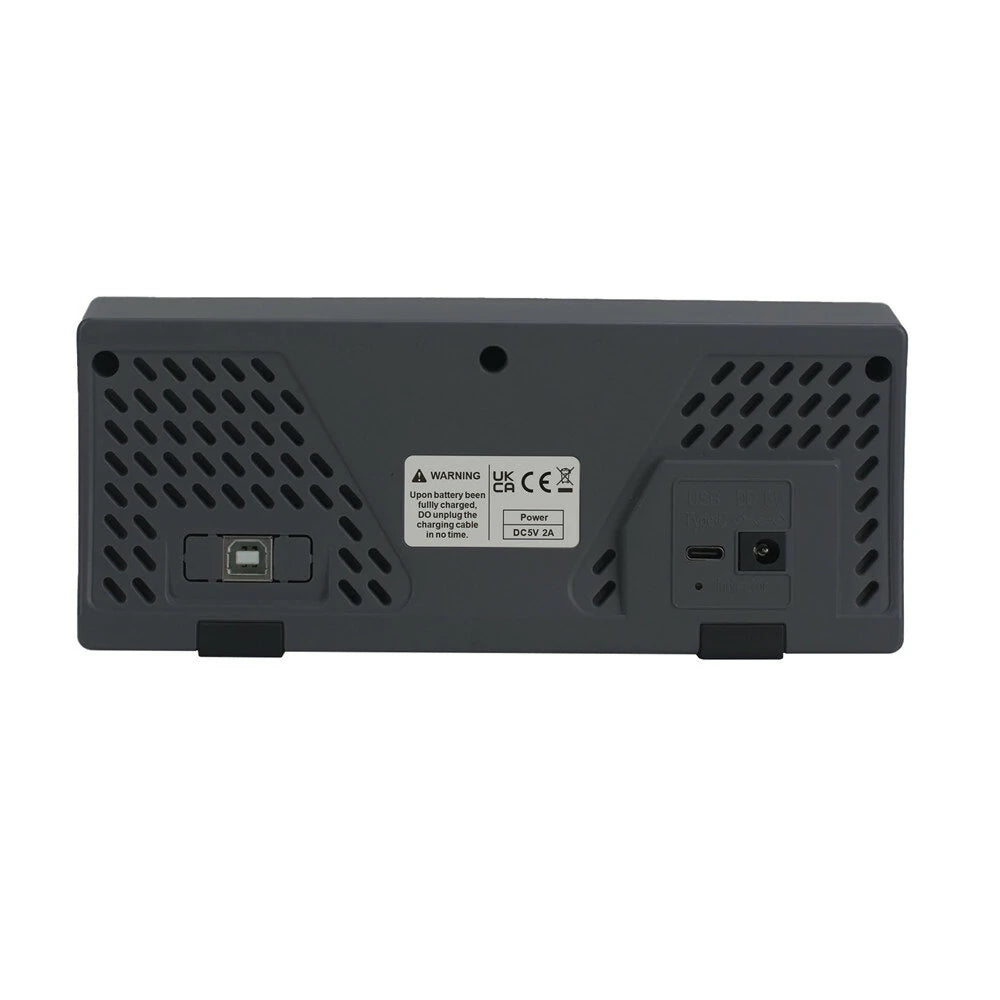

  • Replaceable Fuse: Features an anti-burn design for safety, with an easy-to-replace line fuse accessible from a plastic fuse box on the rear panel. A spare fuse is included for convenience.
  • Multiple Measurements: Capable of measuring DC/AC voltage & current, frequency, resistance, capacitance, True RMS, diode on-off, continuity, and temperature.

Specifications

Material ABS
Color White
Display 3.5-inch TFT LCD (480x320 resolution)
Max. Display 55,000 counts
DC Voltage 50mV~1000V
AC Voltage 500mV~750V
DC Current 500μA~10A
AC Current 500μA~10A
Resistance 500Ω~50MΩ
Frequency 10Hz~60MHz
Capacitance 50nF~50mF
Diode 3.000V
Continuity 1000Ω
Temperature K type, PT100 (K-type temperature probe not included)
Data Logging Duration 15ms~9999.999s
Data Logging Length 1,000 points
Warm-up Time 30 minutes
Programming Language Standard SCPI, compatible with mainstream multimeter commands
Charging USB type-c or DC5V direct
Item Size Approx. 20x8.8x6.5 cm / 7.87x3.46x2.56 in
Item Weight Approx. 405g / 14.29oz
Package Size Approx. 24.5x17x8 cm / 9.65x6.69x3.15 in
Package Weight Approx. 869g / 30.65oz

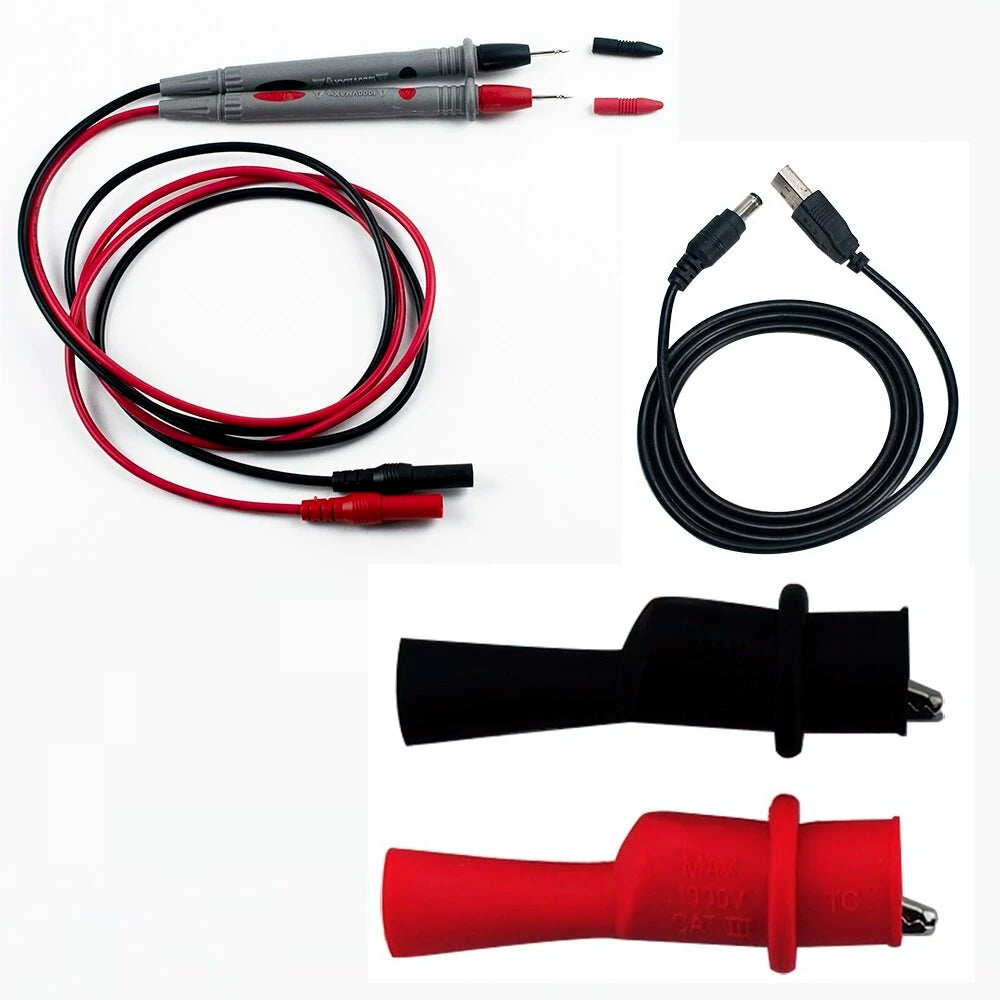

Package Included

  • 1 Digital Multimeter
  • 1 Pair of Test Leads
  • 2 Alligator Clips
  • 1 DC to USB Cable
  • 1 User's Manual (English)

Note: Please read the User's Manual carefully to avoid injury and damage to this product.
