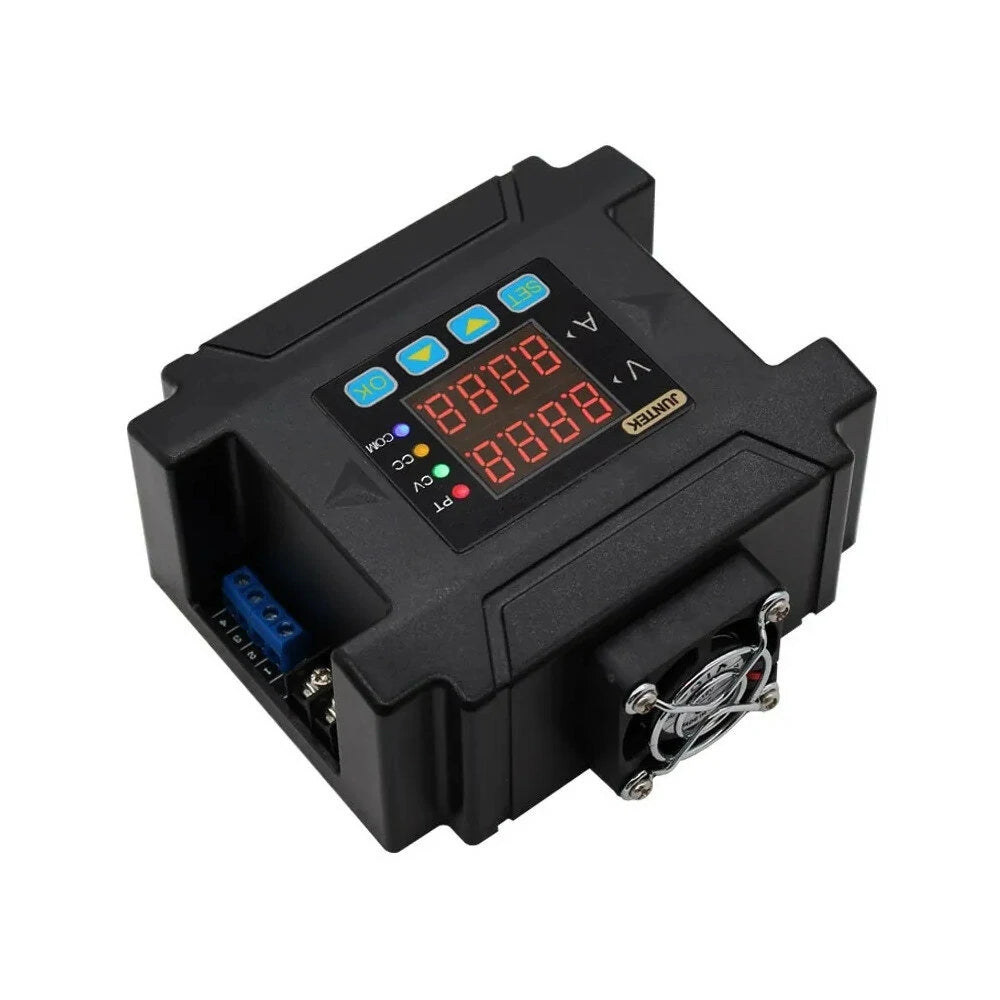

DPM8600 Series Programmable DC Power Supply

Introduction

The DPM8600 series programmable DC power supply provides digital display for output voltage, current, temperature, and other parameters. It offers two distinct output modes: constant voltage and constant current. Ideal for factory equipment power supply, product aging and debugging, solar charging, LED lamp driving, and battery charging/discharging needs.

Features

• Utilizes BUCK structure switching power supply technology.
• Automatically stops output when over-temperature is detected.
• Parameters are saved automatically upon power-off.
• Equipped with a fast quick discharge function, enhancing voltage response speed.
• Offers two communication protocols: a simple communication protocol and MODBUS-RTU.
• Includes PC software and communication protocol support for secondary program control.

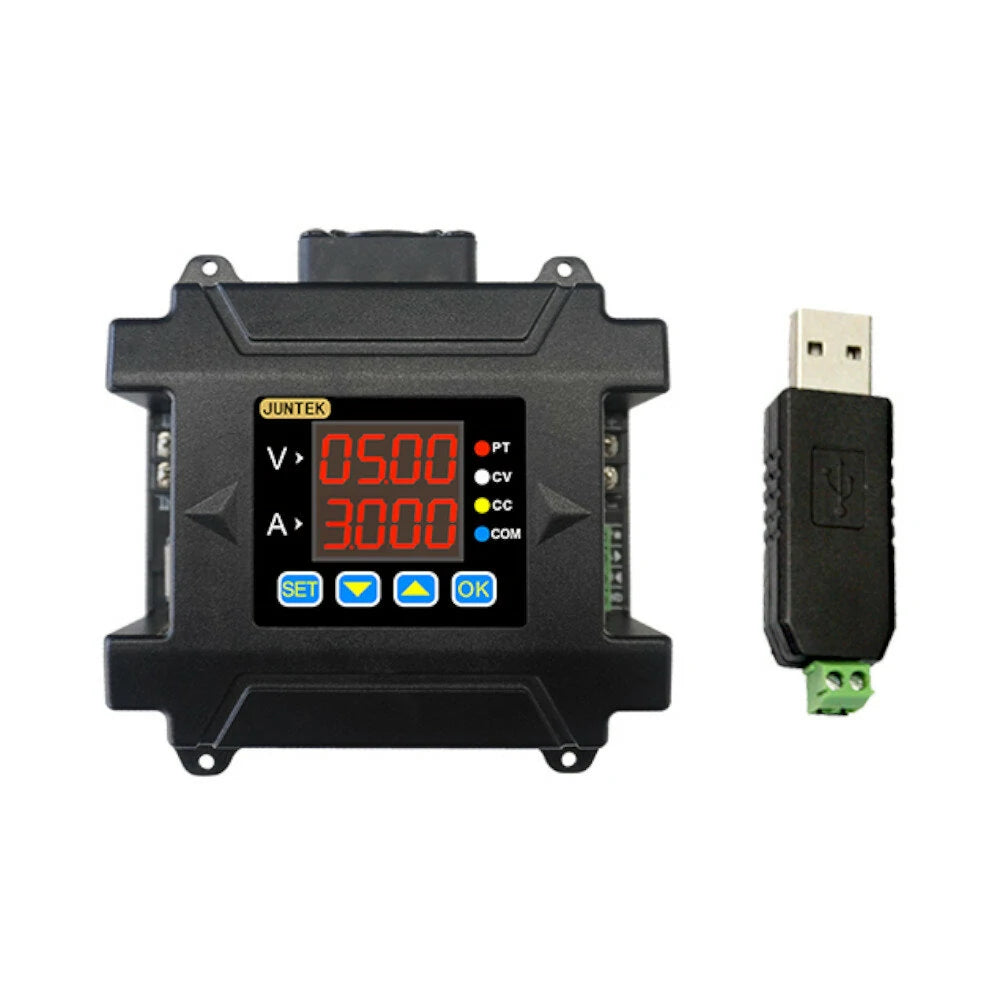

• Standard “USB to TTL” supports TTL serial communication, making it easy to control the power supply via PC software.

Models

DPM-8605, DPM-8608, DPM-8616, DPM-8624, DPM-8650

DPM8605-485, DPM8608-485, DPM8616-485, DPM8624-485, DPM8650-485

Specifications

Input Voltage	10-75V
Output Voltage	0-60V
Output Current	0-5A, 0-8A, 0-16A, 0-24A, 0-50A
Output Power	0-300W, 0-480W, 0-960W, 0-1440W, 0-3000W
Voltage Resolution	10mA
Current Resolution	1mA, 10mA
Output Ripple	<50mvPP
Efficiency	92%
Display Accuracy	10mV, 1mA, 10mV, 10mA
Output Tolerance	Voltage: ±2‰＋1digit, Current: ±5‰＋2digit
Response Time	<50ms
Product Dimension	120*131*55mm, 150*120*59mm, 180*150*77mm
Operating Frequency	150KHZ
Applied Ambient Temperature	-10℃~+45℃
Control Method	Digital Control
LED Display	Included
Package Weight	390g, 625g, 2200g
Package Dimensions	131*112*55mm, 150*120*59mm, 255*210*95mm

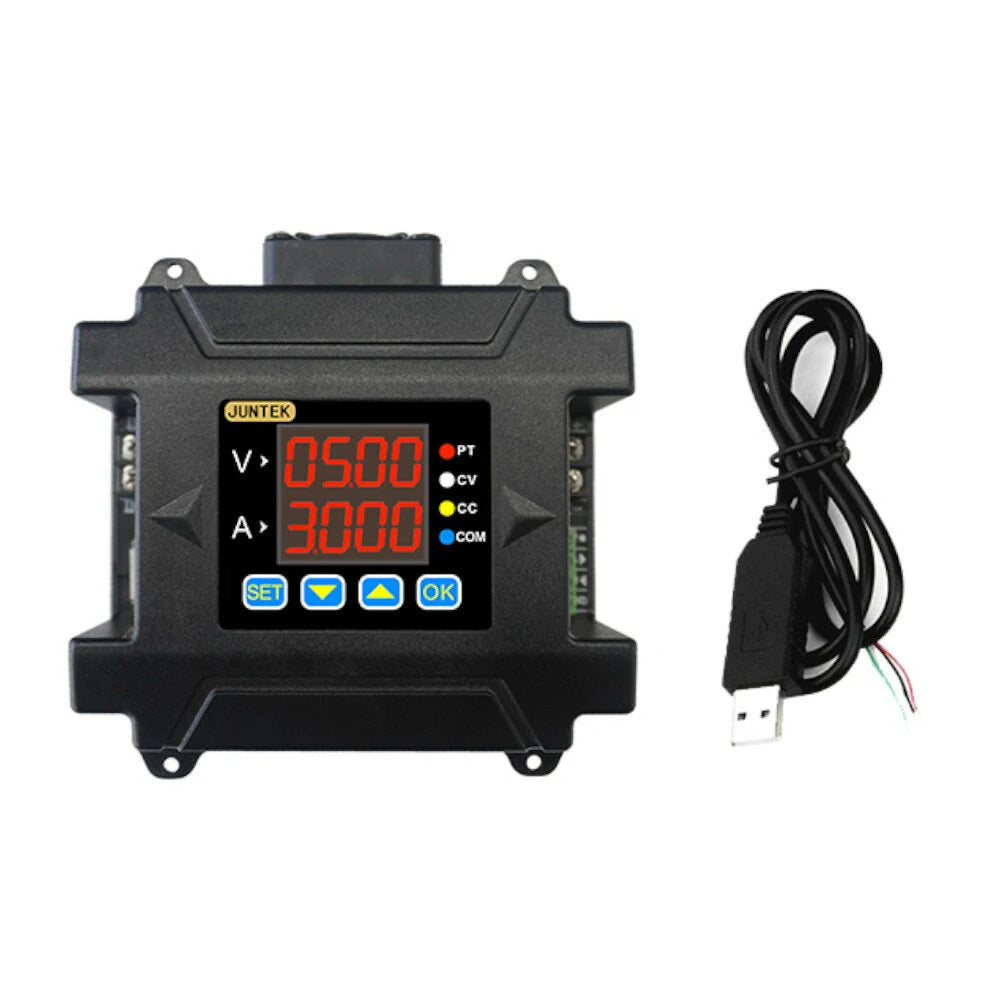

Package Includes

• 1 x Machine
• 1 x Cable
