Raspberry Pi 5
Key Features & Benefits
The Raspberry Pi 5 boasts a powerful 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, offering a 2 to 3 times increase in CPU performance compared to the Raspberry Pi 4. With its 800MHz VideoCore VII GPU, it provides an exceptional graphics performance boost, dual 4Kp60 display output over HDMI, and advanced camera support through a new Raspberry Pi Image Signal Processor, ensuring a seamless desktop experience and vast opportunities for industrial applications.
Innovative In-House Design
For the first time, the Raspberry Pi 5 utilizes silicon designed in-house. The RP1 significantly enhances the I/O capabilities, providing notable improvements in peripheral performance. USB bandwidth is more than doubled, improving data transfer speeds to external drives. The upgraded MIPI transceivers triple the total bandwidth, supporting up to two cameras or displays. Additionally, the platform includes a PCI Express 2.0 interface for high-bandwidth peripherals.
Comparison Overview: Raspberry Pi 5 vs Raspberry Pi 4B
Feature | Raspberry Pi 5 | Raspberry Pi 4B |
---|---|---|
CPU | Broadcom BCM2712, Quad-core Cortex-A76, 2.4GHz | Broadcom BCM2711, Quad-core Cortex-A72, 1.5GHz |
Cache | L1: 64KB Data/Instruction per-core, L2: 512KB per-core, L3: 2MB shared | L1: 32KB Data/48KB Instruction per-core, L2: 1MB shared |
GPU | 800MHz VideoCore VII, OpenGL ES 3.1, Vulkan 1.2 | 600MHz VideoCore VI, OpenGL ES 3.0 |
Memory | LPDDR4X-4267 SDRAM, 4GB/8GB | LPDDR4-3200 SDRAM, 1GB/2GB/4GB/8GB |
Operating System | Micro SD card, SDR104 mode | Micro SD card |
Wireless | 2.4GHz & 5.0GHz, Bluetooth 5.0 BLE | 2.4GHz & 5.0GHz, Bluetooth 5.0 BLE |
USB Interface | 2x USB 3.0, 2x USB 2.0 | 2x USB 3.0, 2x USB 2.0 |
HDMI | Two micro HDMI, dual 4Kp60 support | Two micro HDMI, single 4Kp60 or dual 4Kp30 |
PCIe Interface | One PCIe 2.0X1 interface | None |
Size | 85mm x 56mm | 85mm x 56mm |
Frequently Asked Questions
- Will older versions of Raspberry Pi OS work with Raspberry Pi 5? You will need the latest version of Raspberry Pi OS, Bookworm, for your Raspberry Pi 5.
- Will my Raspberry Pi 4 power supply work with Raspberry Pi 5? Raspberry Pi 5 is more powerful, so a high-quality 5V 5A USB-C power supply is recommended.
- Will my Raspberry Pi 5 fit my Raspberry Pi 4 case? Raspberry Pi 5 is designed for a new case to maximize performance.
- Does Raspberry Pi 5 need active cooling? Yes, active cooling is recommended for optimal performance.
Package Includes
- 1 x Raspberry Pi 5

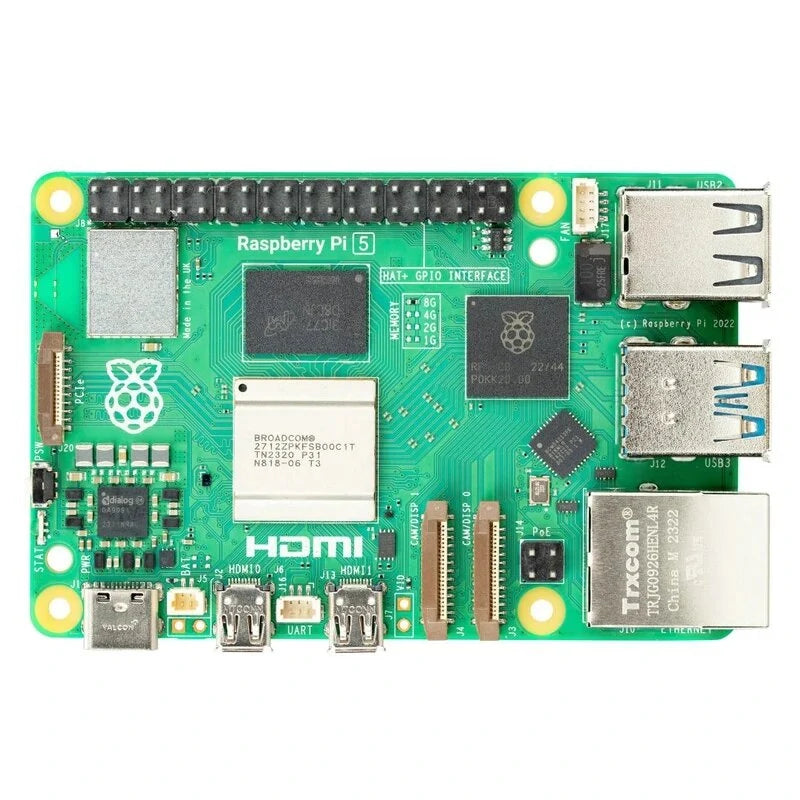

![Raspberry Pi 5 Development Board with 8GB RAM, PCIe 2.0 Interface for AI Programming and Learning](http://evalm.com/cdn/shop/files/49bfea75-4c63-4d6e-a5aa-da5d0f1d0b47_jpg.webp?v=1731547899&width=1445)

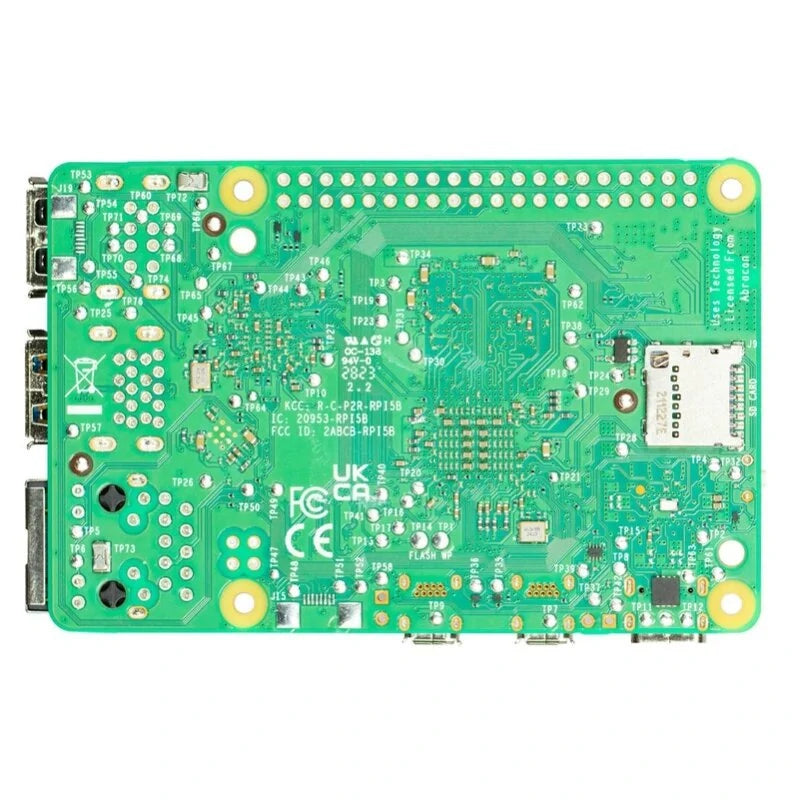

![Raspberry Pi 5 Development Board with 8GB RAM, PCIe 2.0 Interface for AI Programming and Learning](http://evalm.com/cdn/shop/files/11f1e0d7-4bab-4968-a7ca-48fd57386199_jpg.webp?v=1731547899&width=1445)

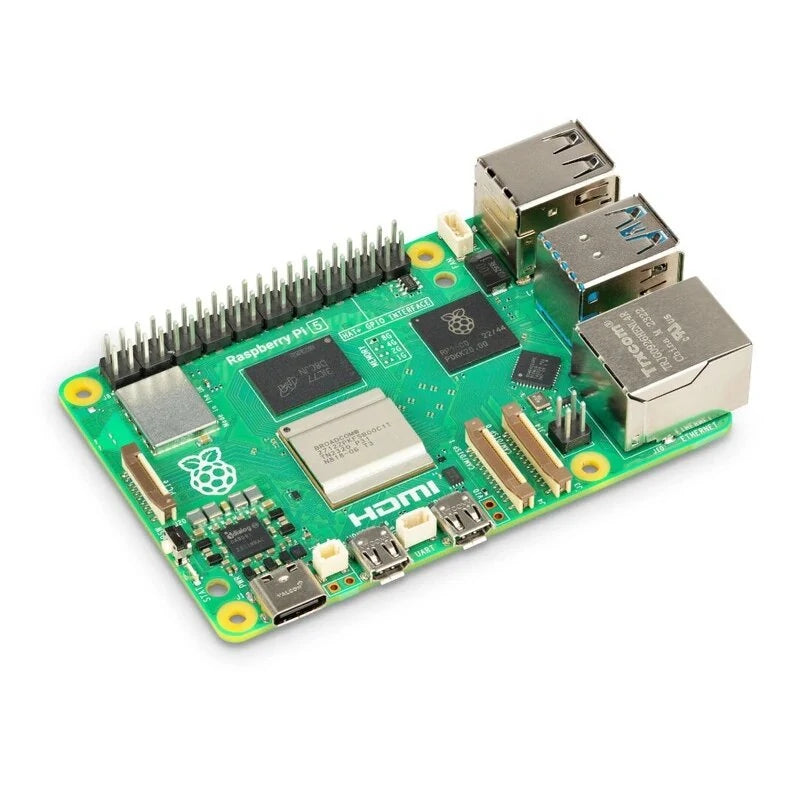

![Raspberry Pi 5 Development Board with 8GB RAM, PCIe 2.0 Interface for AI Programming and Learning](http://evalm.com/cdn/shop/files/837246e0-1d87-44c3-aad4-31000bcd774c_jpg.webp?v=1731547899&width=1445)

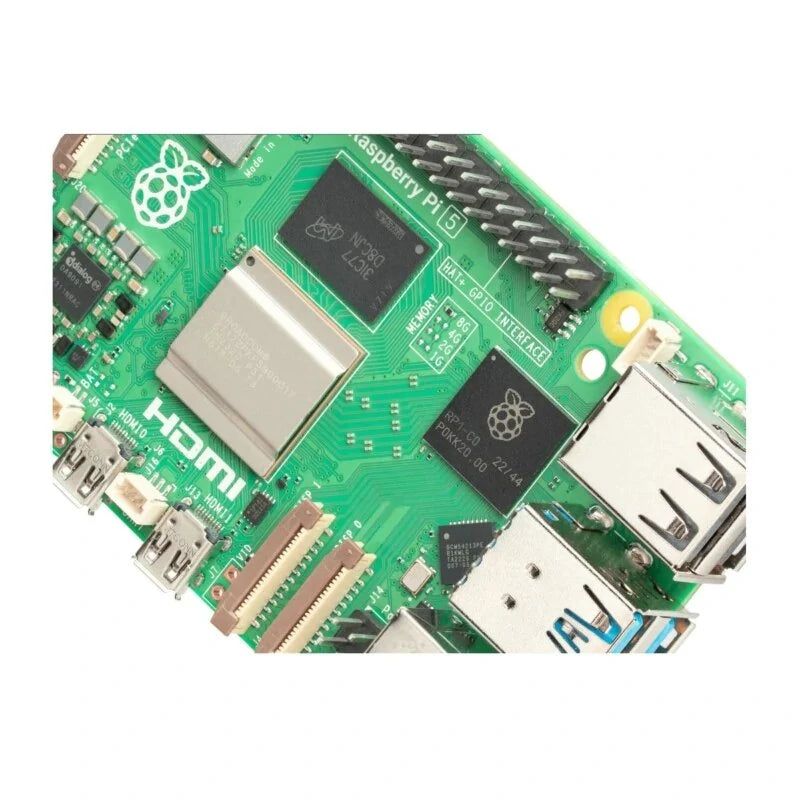

![Raspberry Pi 5 Development Board with 8GB RAM, PCIe 2.0 Interface for AI Programming and Learning](http://evalm.com/cdn/shop/files/b170fd7a-669f-4885-ad1c-7c9c9a22d86b_jpg.webp?v=1731547900&width=1445)

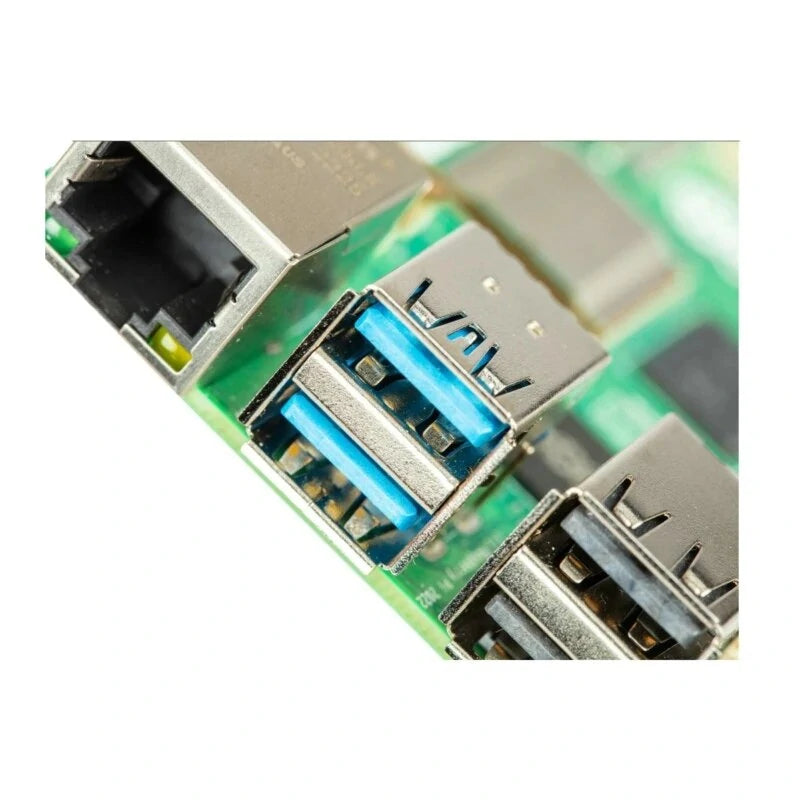

![Raspberry Pi 5 Development Board with 8GB RAM, PCIe 2.0 Interface for AI Programming and Learning](http://evalm.com/cdn/shop/files/c0a11828-faee-4ed2-8259-5954c58c1817_jpg.webp?v=1731547900&width=1445)

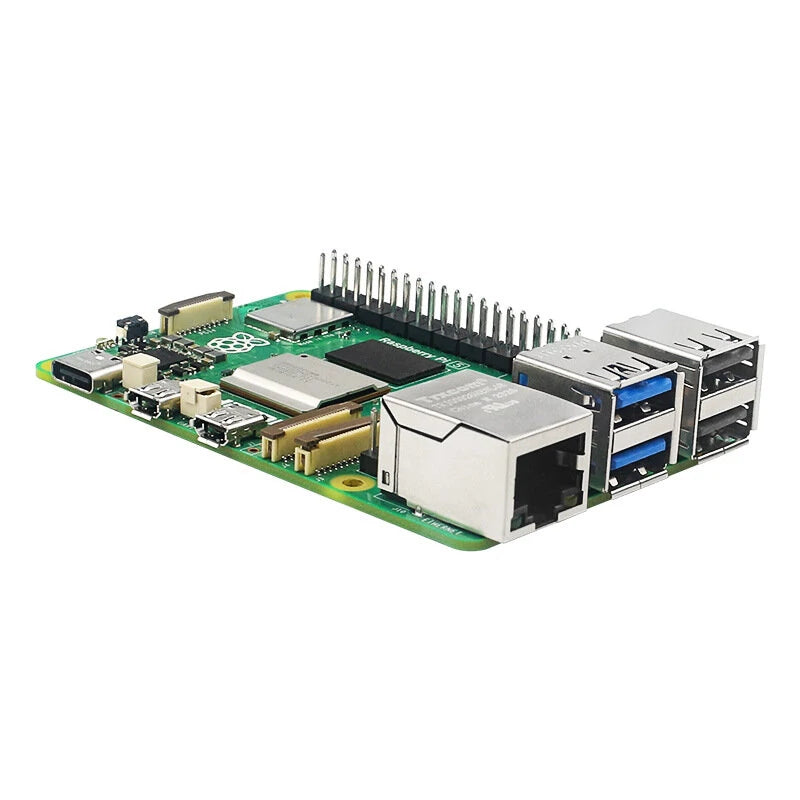

![Raspberry Pi 5 Development Board with 8GB RAM, PCIe 2.0 Interface for AI Programming and Learning](http://evalm.com/cdn/shop/files/0fcd564a-735f-427b-809a-bb823c9bcc45_jpg.webp?v=1731547900&width=1445)
