16MP 1080P 60FPS USB C-Mount Digital Industry Microscope Camera with HDMI - HAYEAR

16MP 1080P 60FPS USB C-Mount Digital Industry Microscope Camera with HDMI - HAYEAR

Regular price $94.99 USD
Regular price $0.00 USD Sale price $94.99 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Icon Estimated Delivery: -

Upgraded Version: 1987458

Compatibility

  • PC Support: Compatible with Windows XP/7/8/10 systems.
  • USB Output Limitations: Software operated adjustments for white balance, exposure, and color are not available. Remote control is not operational.
  • HDMI Output: White balance, exposure, and color adjustments are possible when connected to a monitor. Remote control can be operated wirelessly.
  • USB Connection Tip: Ensure no memory card is in the camera; USB outputs store directly to the PC. Memory card storage is for HDMI output only.
  • Power Source: For PC connections, simply use the USB cable without needing additional power. USB provides photo recording and measurement functions.

Features

Our digital microscope camera is designed to work seamlessly with microscopes, delivering high-quality, high-resolution, and clear images. Here's what sets it apart:

  • Live image display on any HDMI monitor, projector, or TV.
  • Supports USB 2.0 and HDMI HD video. Features two output ports.

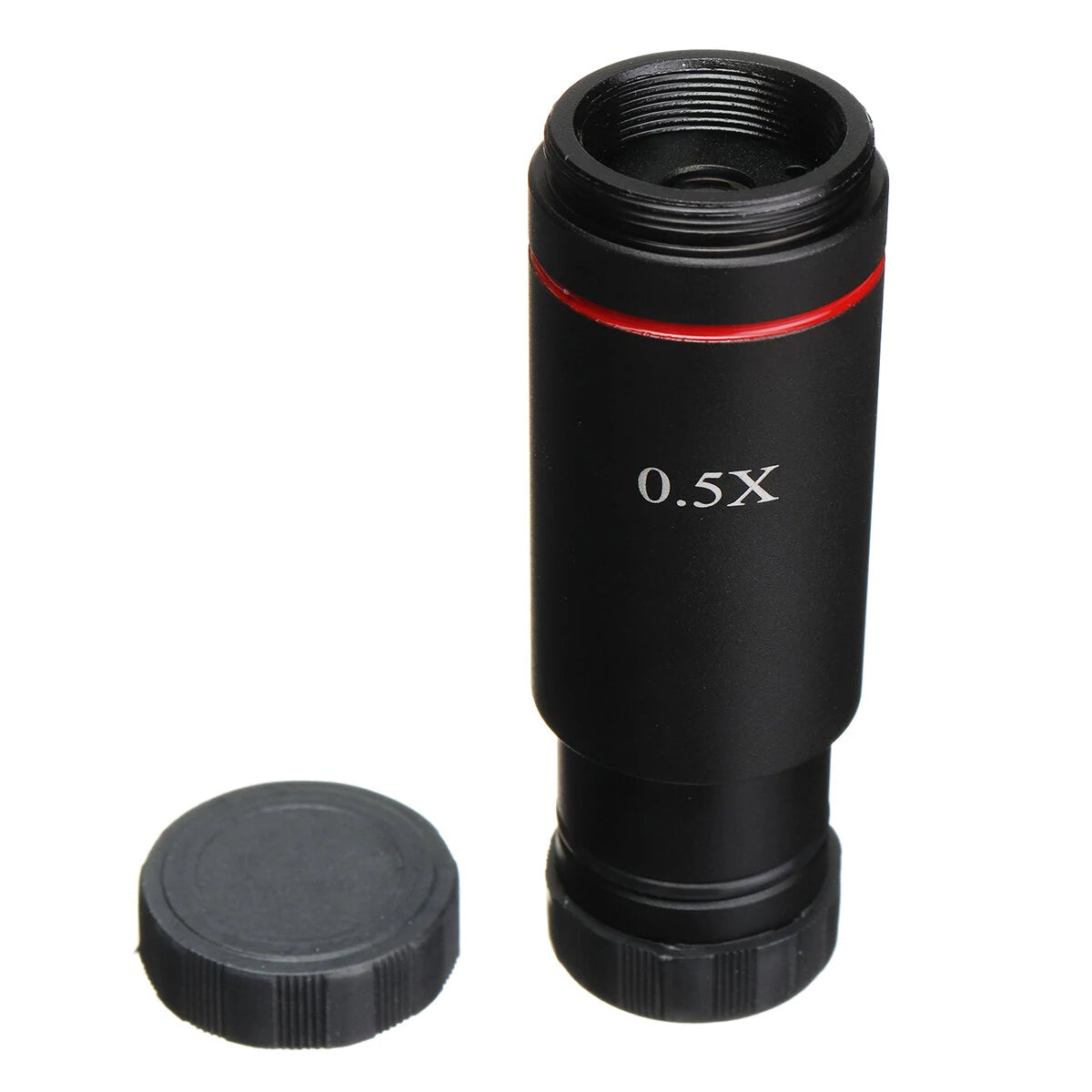

  • Includes a 0.5X C-MOUNT adapter for connecting to CCD cameras or digital eyepieces.

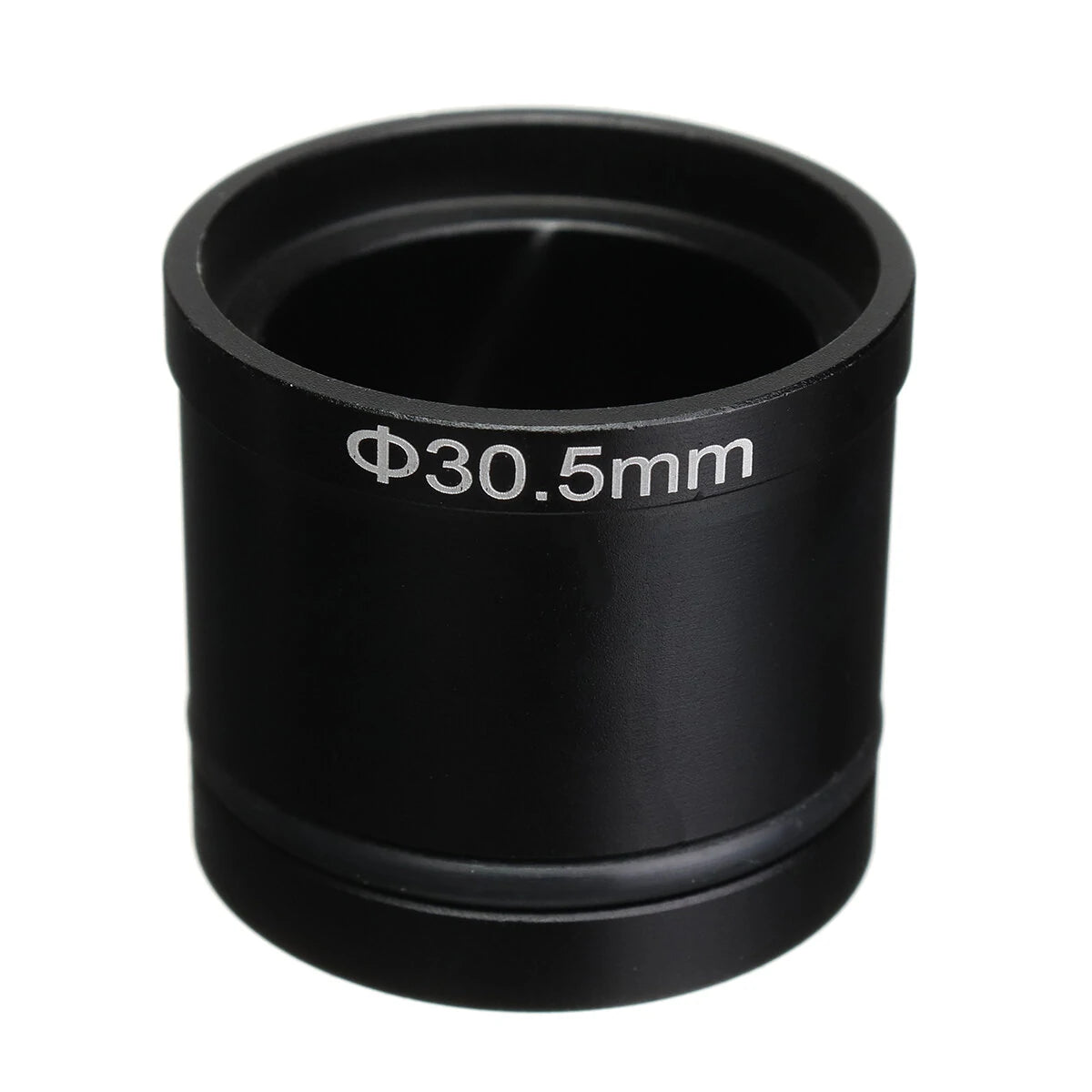

  • Comes with two ring adapters (23.2mm to 30mm and 23.2mm to 30.5mm).

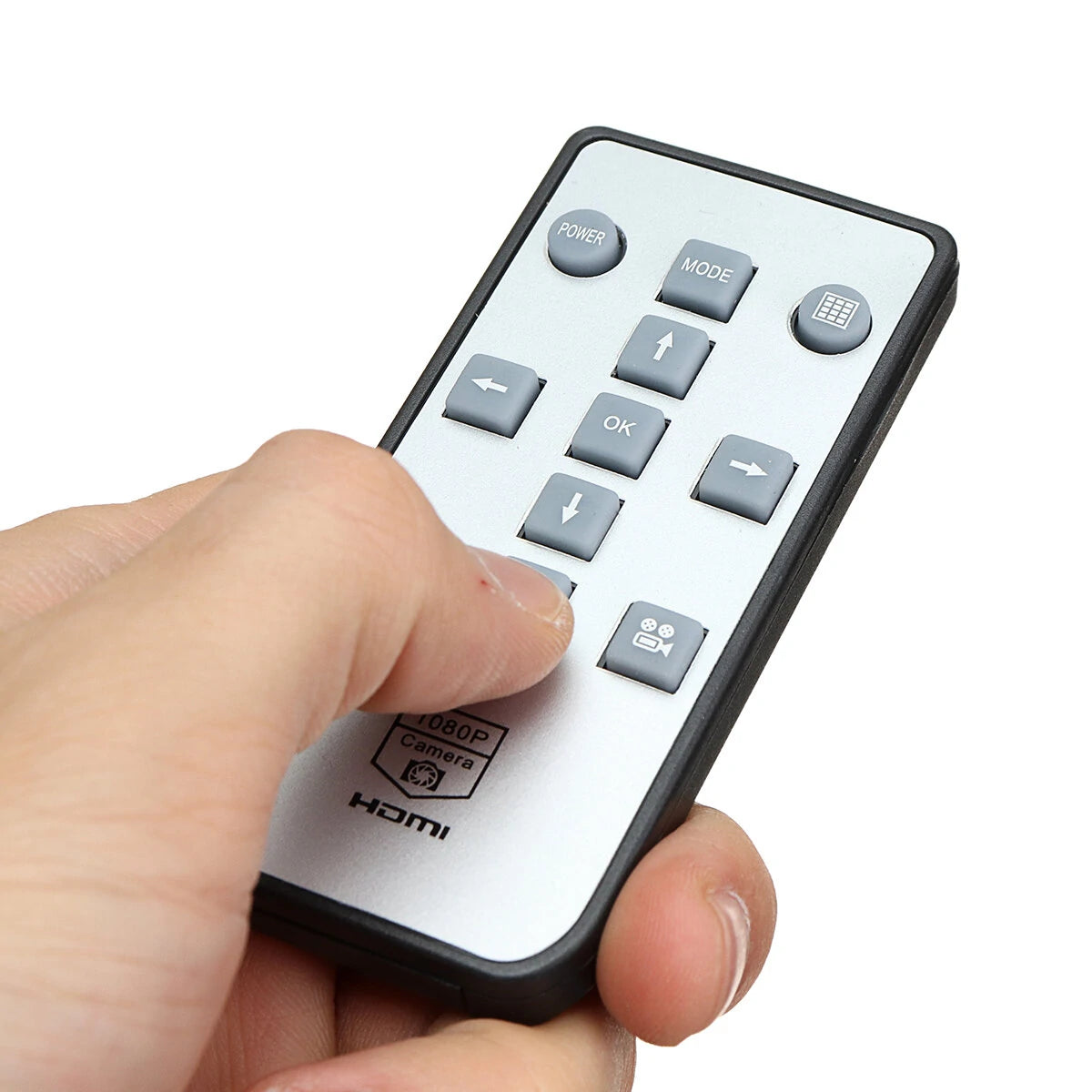

  • Features a convenient remote control function.
  • Ideal for various fields, including microelectronics, molds, precision machinery, jewelry, fingerprint identification, ticket identification, printing, mobile phone maintenance, archaeological, biological anatomy, school teaching, and more.
  • Perfect for observing the microstructure of larger objects.

Specifications

  • Material: Metal Shell
  • Color: Blue
  • Voltage: 110V-220V
  • Size: Approx. 6.5x5.7x5.4cm/2.6x2.2x2.1 inches
  • Image Sensor: 16 megapixel sensor, 1/2.3 inch
  • Effective Pixel: 16 megapixel
  • Pixel Size: 1.43x1.43μm
  • Frame Rate: 60fps
  • Image Resolution: 4320x3240 (TF memory card), 1920x1080 @ 30FPS (TF memory card)
  • Video Format: MP4, MOV (for TF card)
  • Video Resolution: 1920x1080 @60FPS
  • USB Video Resolution: 1920x1080 @30FPS
  • White Balance: Auto/manual
  • Exposure: Supports EV value (exposure compensation) adjustment
  • Color: R/G/B adjustable
  • Lens: C/CS interface
  • Lines: Supports multi-color, 4 pcs of transverse lines/vertical lines, moveable
  • Digital Magnification: 5 times digital zoom
  • TF Card Interface: Up to 32GB
  • USB Interface: Standard USB2.0
  • HDMI: Standard HDMI output
  • Freeze: Supported
  • SNR: Supported
  • OSD Languages: English/Chinese/French/Spanish/Portuguese

Package Includes:

  • 1 x 16MP Digital Microscope Camera
  • 1 x AC Adapter
  • 1 x Remote Control
  • 1 x USB Cable
  • 1 x HDMI Cable
  • 1 x Wireless Remote Control
  • 1 x CD (includes PC Video Measurement software)
  • 1 x Eyepiece Adapter
  • 1 x 23.2mm to 30mm Ring Adapter
  • 1 x 23.2mm to 30.5mm Ring Adapter

Note: A plug adapter suitable for your country will be provided.
