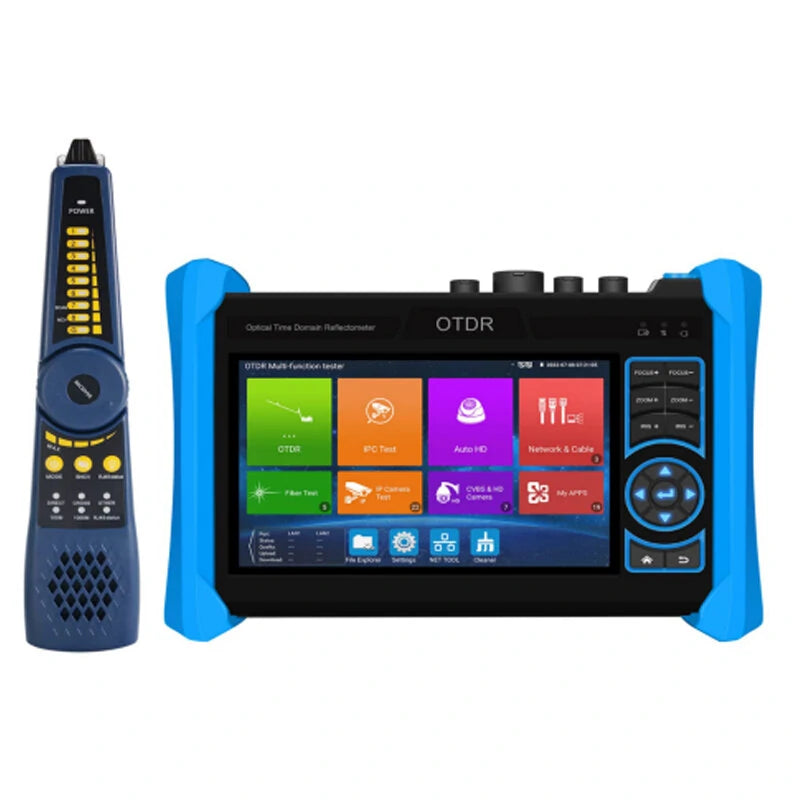

NetMaster MT6810 OTDR Coaxial Cable & Fiber Optic Fault Locator - Efficient Cable Break & Obstruction Tester

Product Features:

• Vibrant Display: 5.4-inch IPS touchscreen with a 1920 x 1152 resolution for clear, crisp visuals.
• Advanced OTDR Functionality: Evaluate fiber length, loss, attenuation, and event mapping with precision.
• Wavelength Options: Choose between 1310/1550nm (Model 1) or 1610nm (Model 2) for tailored testing.
• Impressive Dynamic Range: 28/26dB for Model 1; 28dB for Model 2, supporting up to a 150 km test range.
• Reliable Laser Source: CW/270/330/1000/2000Hz frequency support ensures stable measurements.

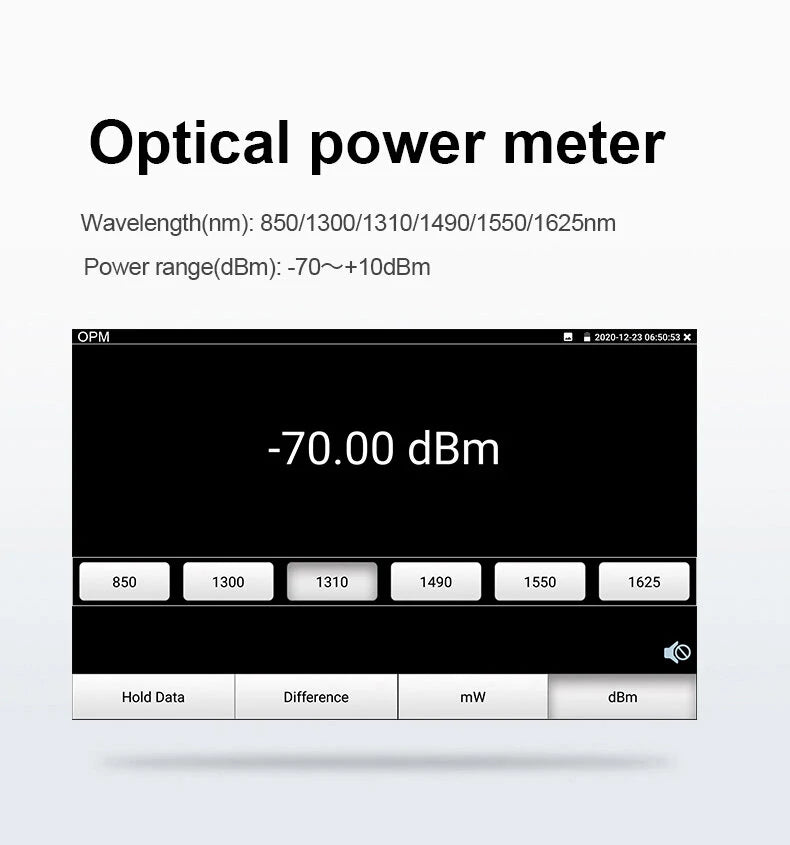

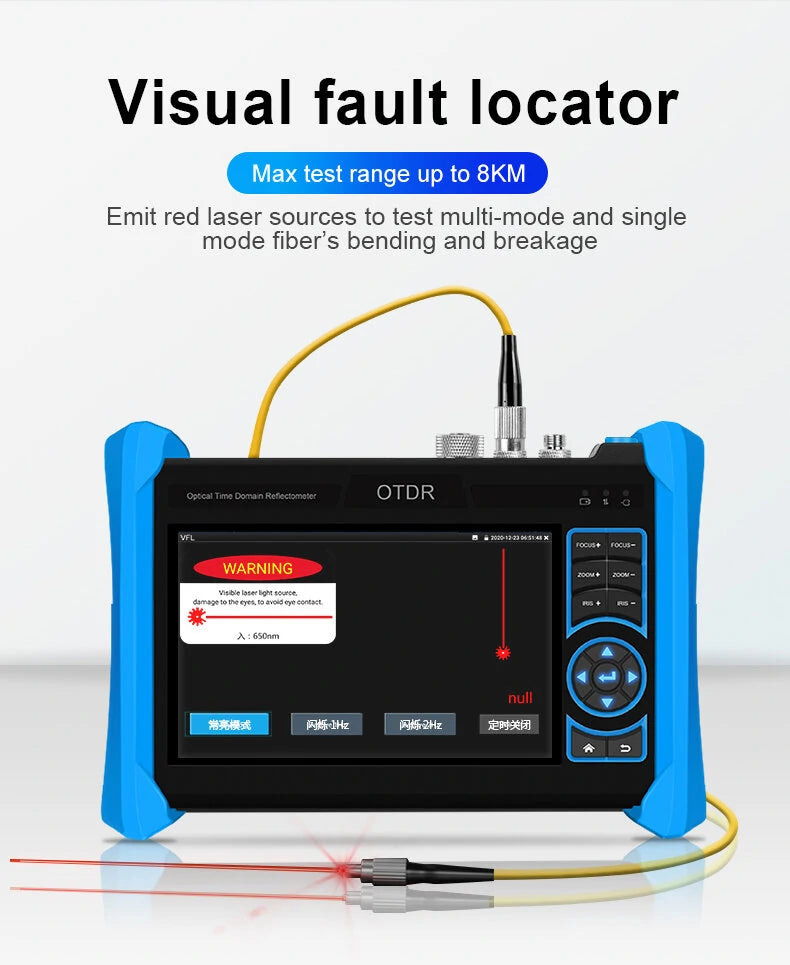

• Comprehensive Toolset: Built-in optical power meter and visual fault locator for complete diagnostics.
• Automated Analysis: Effortlessly analyze link and fusion points with dedicated software.
• Save and Analyze: Testing curves can be stored (up to 30,000 pcs), reviewed, and manipulated for detailed examination.
• Versatile Reporting: Generate reports in EXCEL, PDF, or screenshot form, inclusive of detailed testing data.

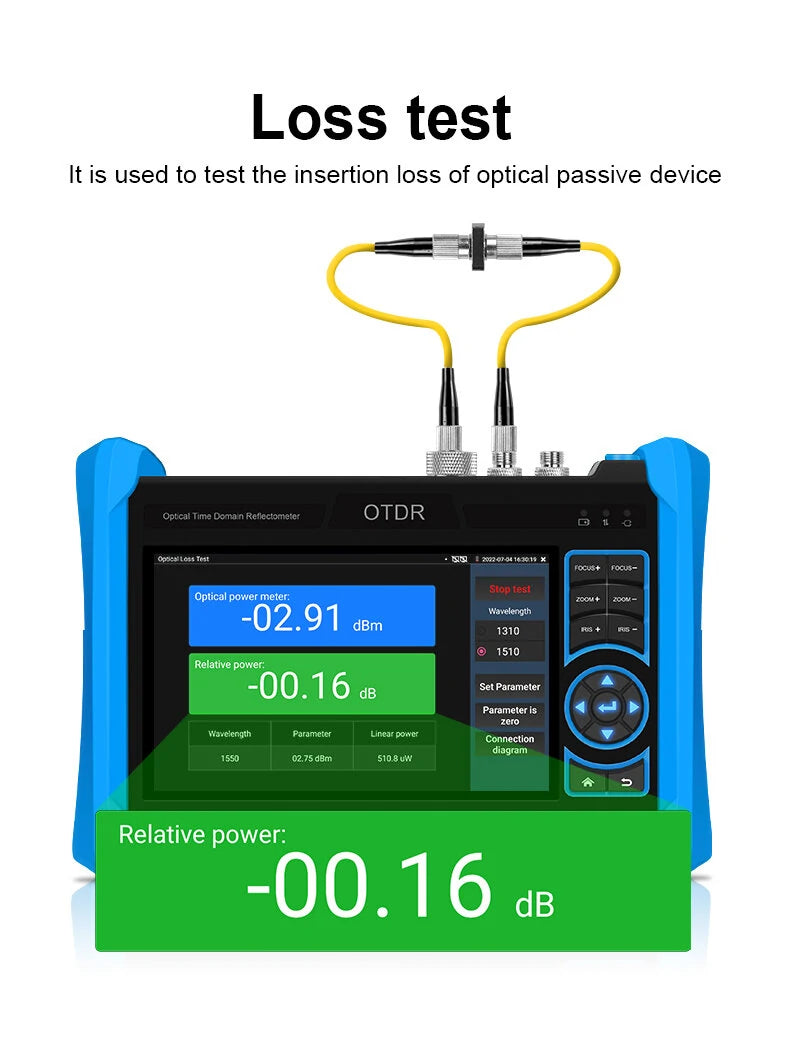

• Loss Testing: Accurate detection of optical or component loss values.
• Extensive Camera Testing: Compatible with TVI, AHD, CVI formats, featuring audio and 4K video testing capabilities.
• Support for Cutting-Edge Technology: 8K H.265 video, 4K 60FPS HDMI input, 4K 30FPS HDMI output, and VGA inputs are supported.
• Efficient Camera Compatibility: IPC TEST PRO app for seamless operation and quick ONVIF camera setup. Compatible with AXIS, Hikvision, and non-ONVIF cameras.
• Browser Support: Test and configure Axis cameras using the Chrome browser.

Specifications:

Package Includes:

• 1 x Optic Tester (Choose Model)
• 1 x Optical Power Meter
• 1 x Visual Fault Locator
• 1 x Charger
• 1 x USB Cable
• 1 x User Manual

Long Battery Life: Powered by a 7.4V 5200mA Li-ion battery, providing up to 11 hours of operation from a 2.5-hour charge.
