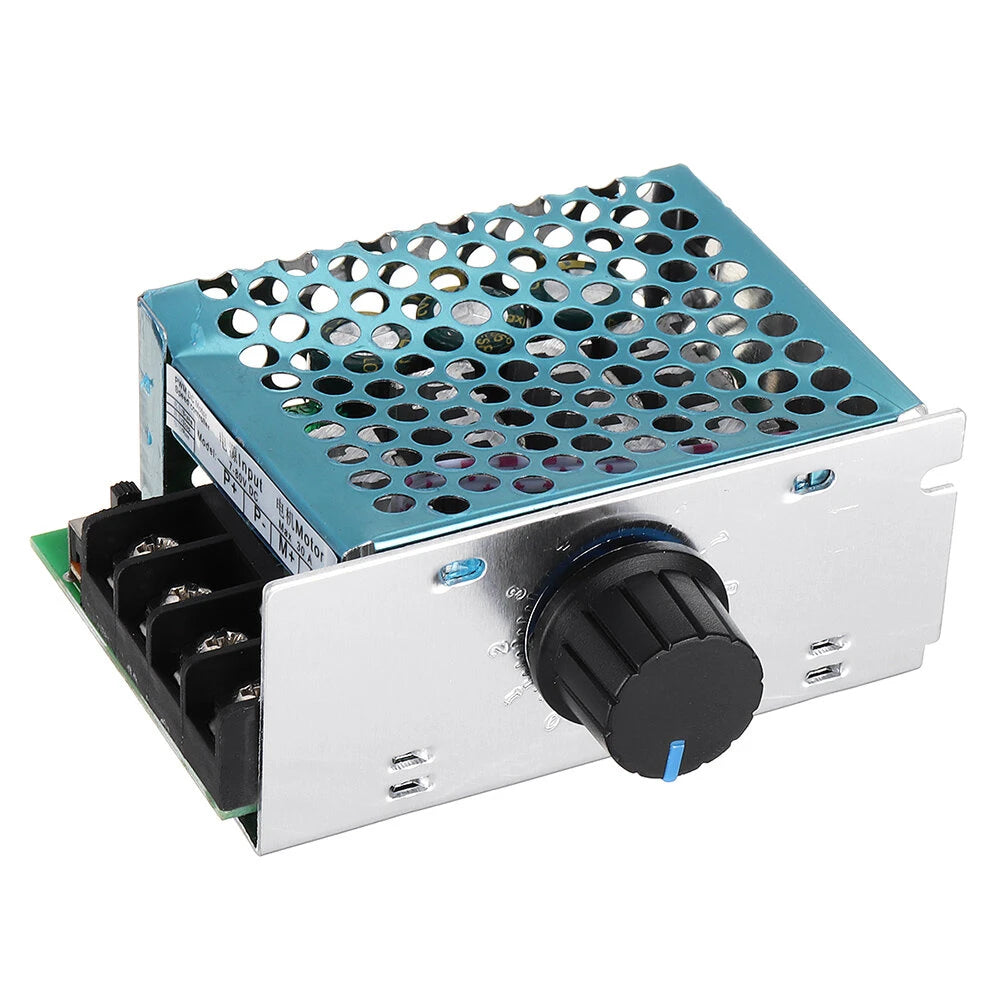

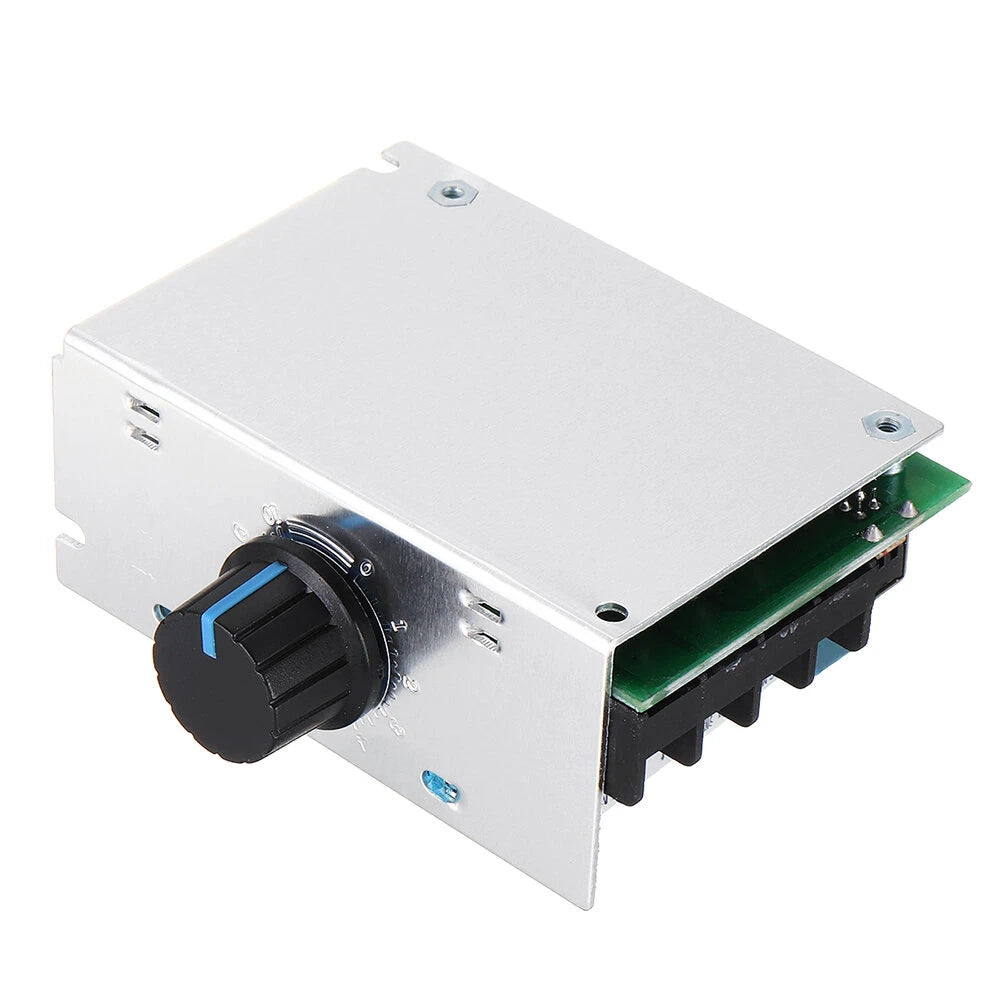

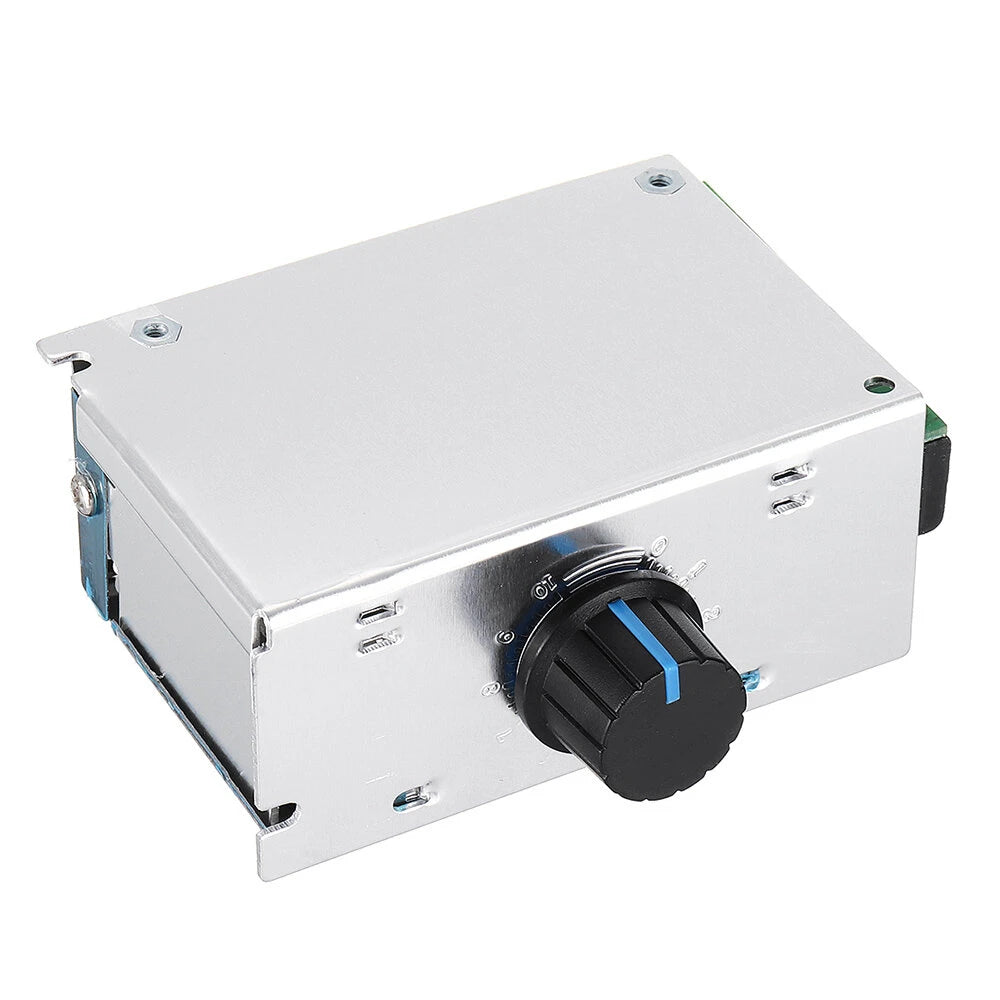

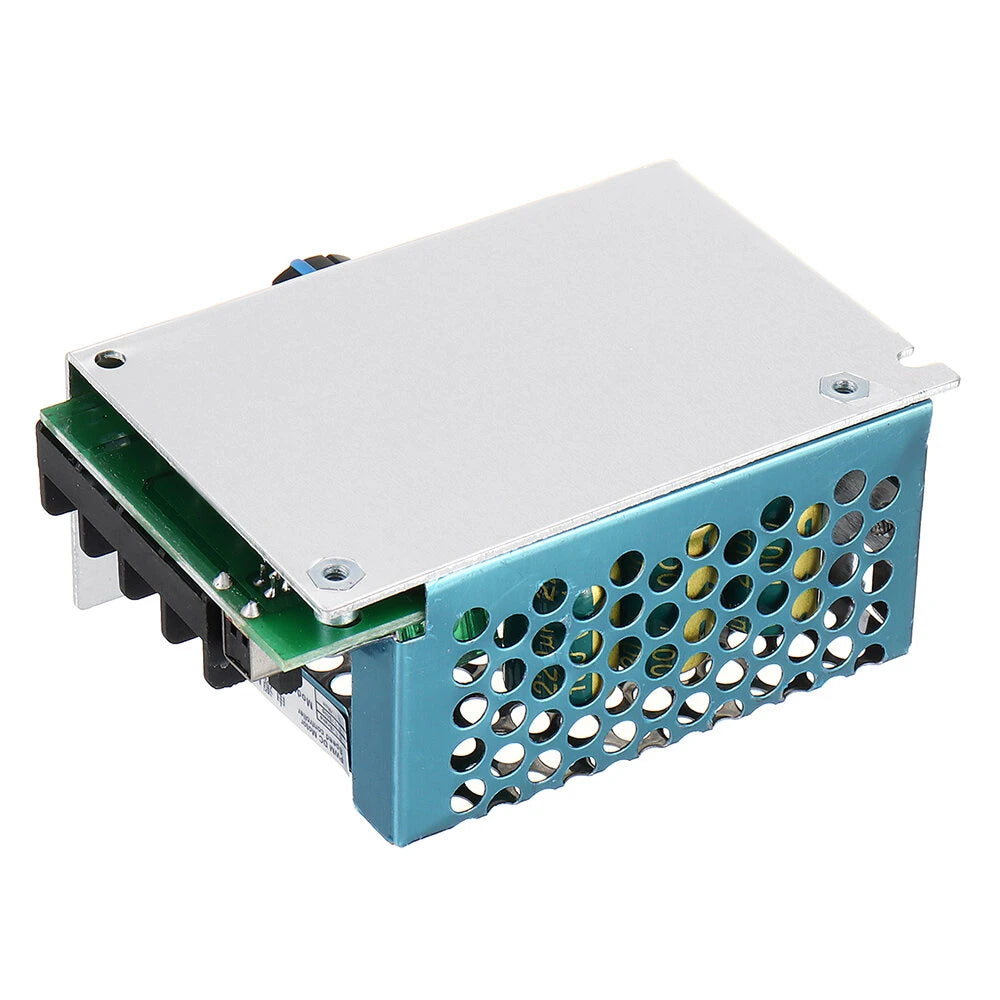

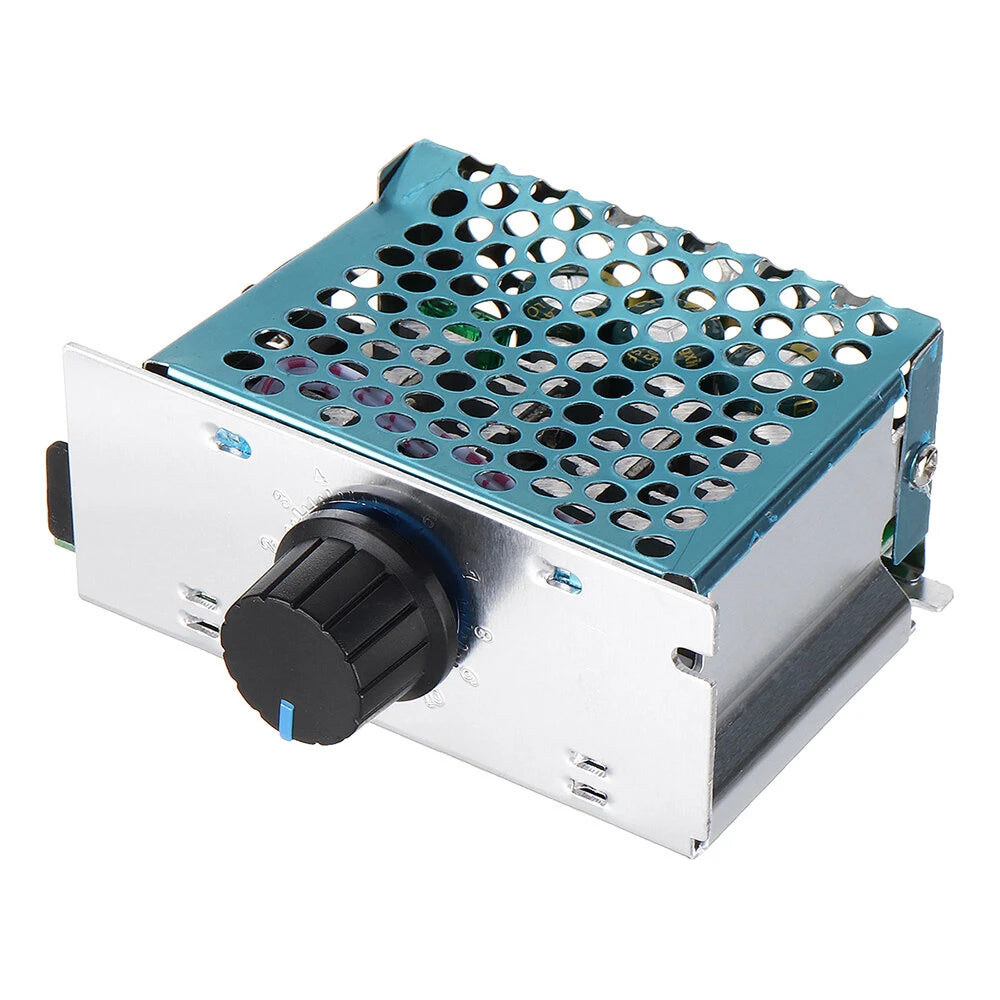

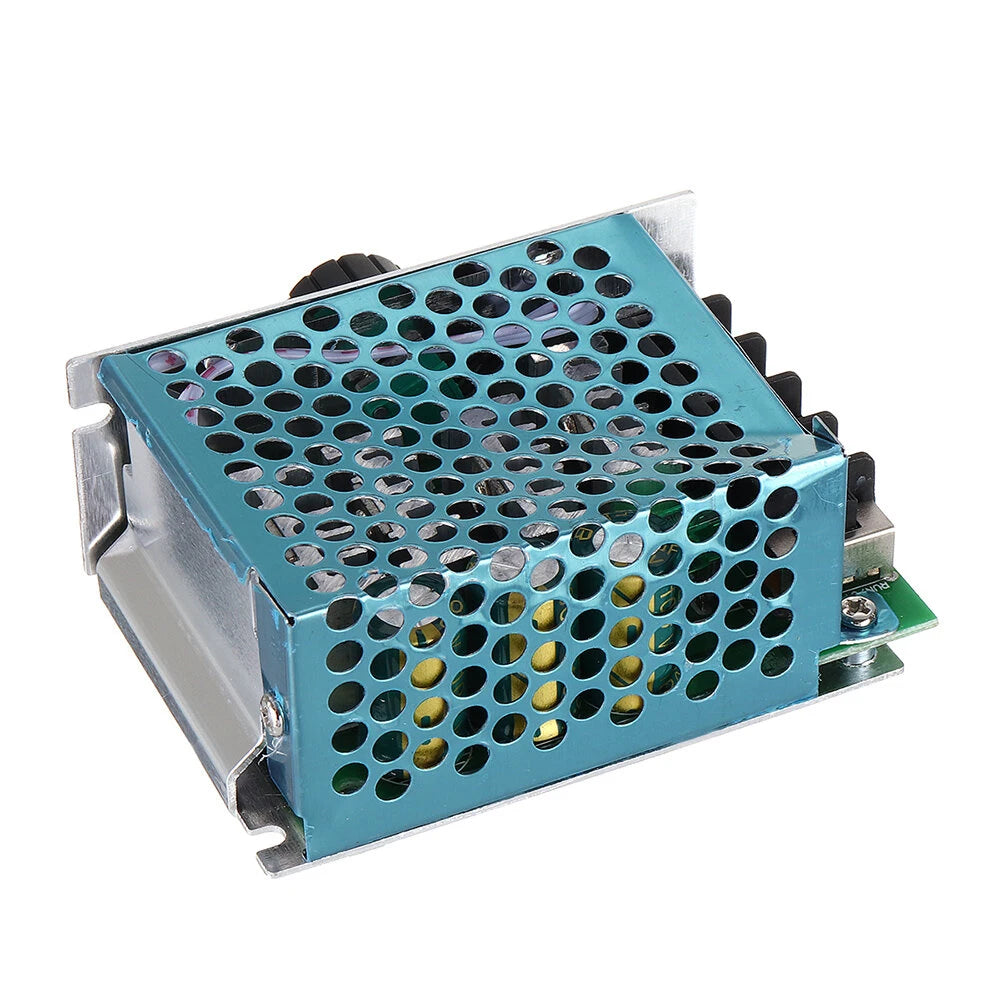

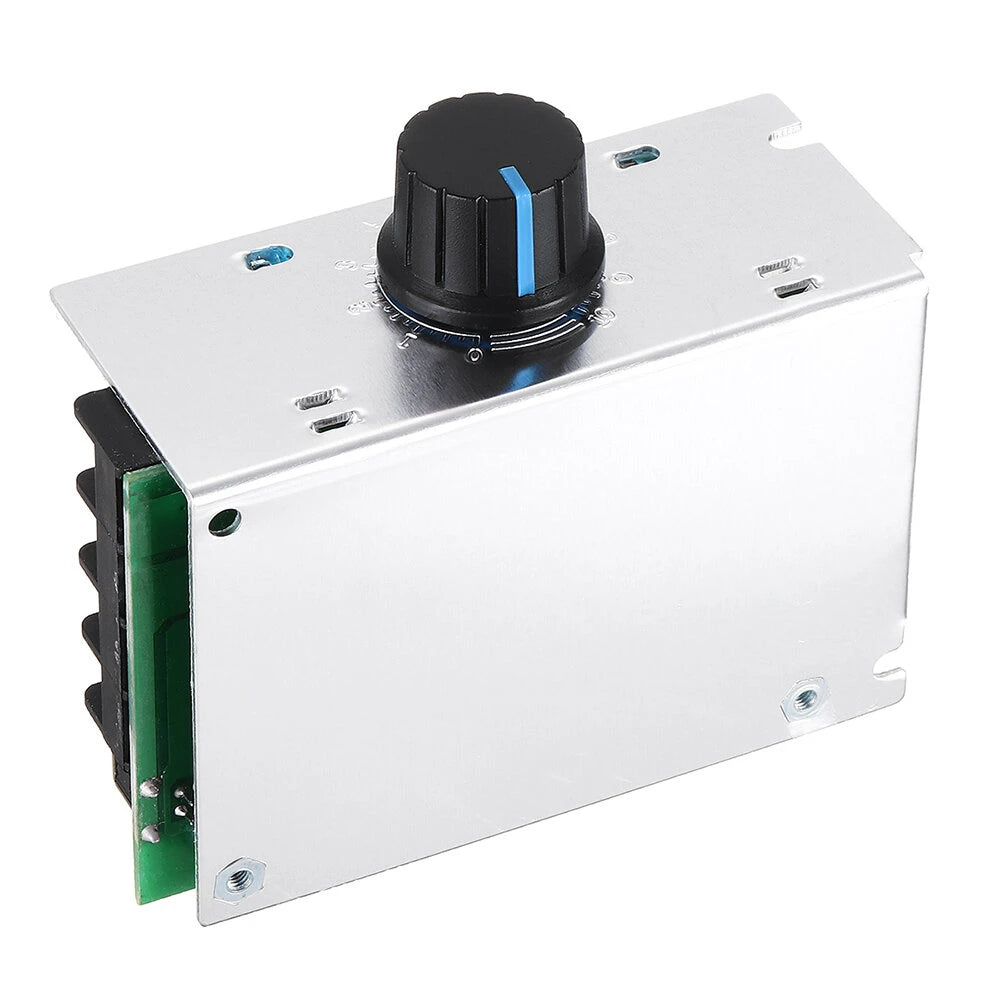

DC Motor Speed Controller PWM Module 7-80V, 30A Switch for 12V/24V/60V/70V Motors

Product Features

• Wide voltage range: 7-70V, high current 30A design, suitable for diverse applications.
• On-board switch with run/stop/brake function for enhanced control.
• Adjustable potentiometer with detachable soft cable (15CM length) for ease of use.
• Optimized circuit design ensures a wide duty cycle adjustment range, enabling smooth motor operation without noise or vibration.
• Equipped with a power indicator and a stable circuit design for long-term reliability.
• Features imported high-voltage MOS tube and three 100V high-frequency low-resistance capacitors, ensuring components remain cool and are easily replaceable.
• Standard aluminum housing for durable protection of internal circuits and components.

Specifications

• Applicable Voltage Range: DC 7-80V (maximum working voltage is 80V; please allow some margin).
• Drive Current: Up to 30A (reduce current for higher working voltages). Use with adequate power supply.
• Control Power:
  • 12V: within 300W
  • 24V: within 400W
  • 48V: within 450W
  • 60V: within 500W
• Adjustable Duty Cycle Range: Approximately 1%-100%.
• PWM Frequency: 12KHz.
• Shell Size: 85 x 59 x 34 mm.
• Potentiometer Opening: 8 mm.
• Button Protrusion Height: 16 mm.
• Weight: 145g.

Important Notes

• This product is designed for DC brushed motor speed control and requires a DC power supply. It is not compatible with AC power and cannot drive a brushless motor.
• Before connecting power, refer to the wiring label. Ensure correct polarity for direct current input. The output connection to the motor does not require polarity matching; swap the motor wires to change rotation direction.

Package Includes

• 1 x PWM DC Motor Speed Controller DC7-80V
