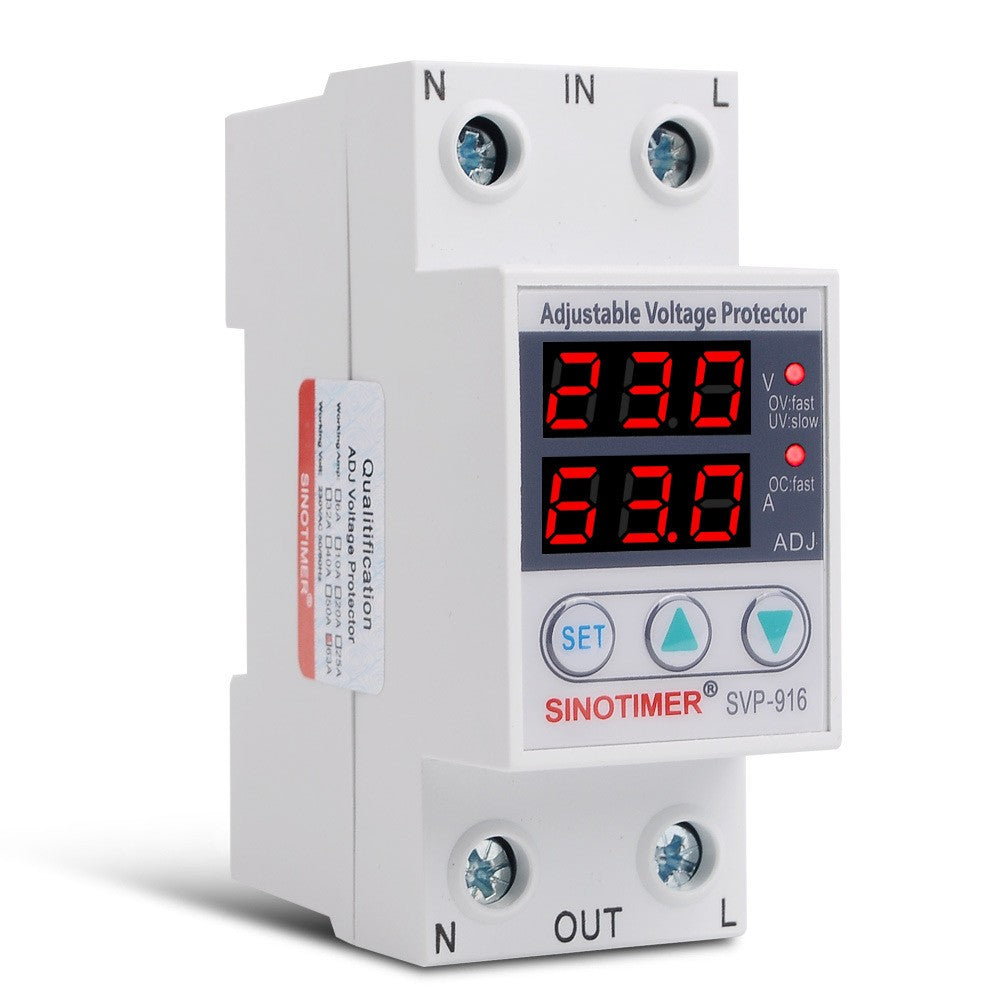

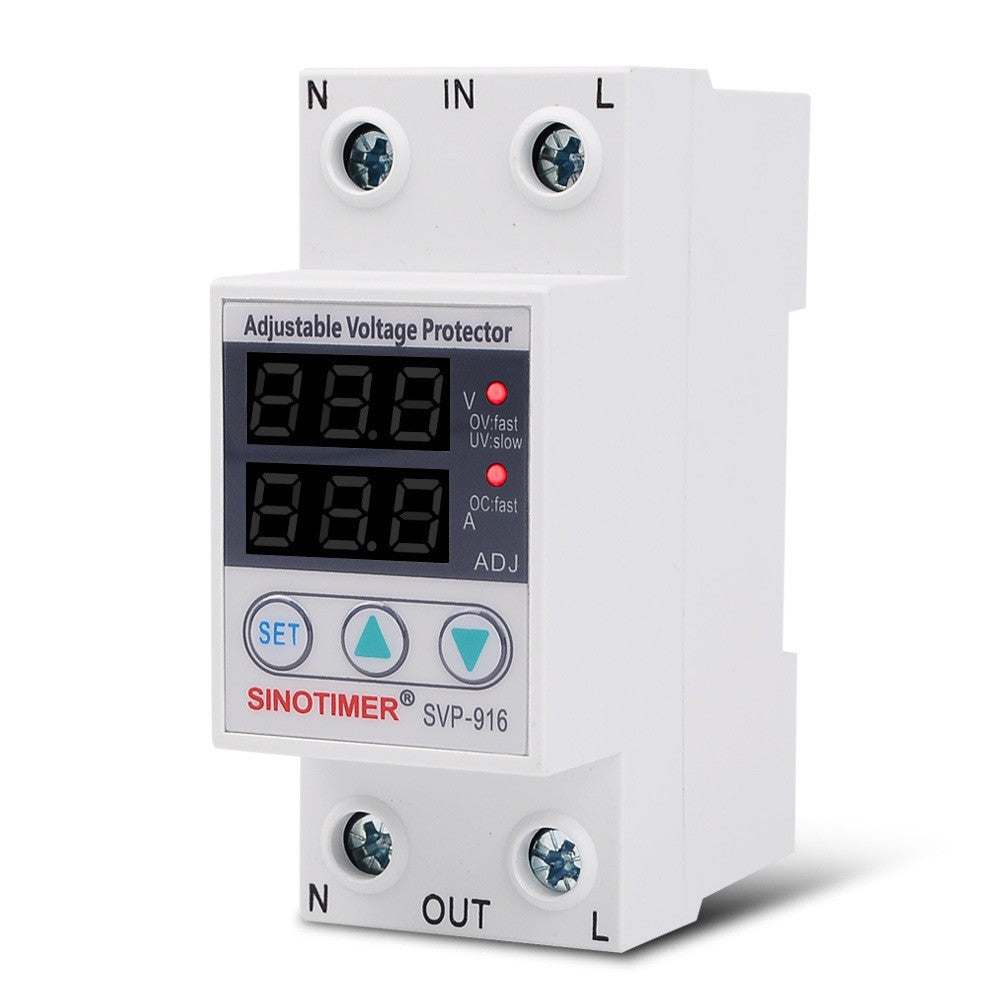

Adjustable Voltage & Current Protector with Dual Display and Self-resetting Switch

Product Overview

The Multifunctional Self-Resetting Dual Display Protector is designed to safeguard your electrical equipment by integrating powerful protections. It effectively guards against over-voltage, under-voltage, and over-current, automatically cutting off the circuit when any issues arise. Once the line voltage or current stabilizes, it seamlessly resumes normal power supply after a user-defined delay, ensuring safety and convenience.

Key Features

• Comprehensive Protection: Offers reliable over-voltage, under-voltage, and over-current protection.
• Dual-Display Design: Displays current voltage and current values for precise monitoring.
• Automatic & Manual Modes: Choose between automatic and manual reset modes to suit your preference.
• Customizable Settings: Easily adjustable over-voltage, under-voltage, and over-current protection values.
• Adjustable Action Times: Fine-tune protection action times and recovery delay times.
• Fault Inquiry & Factory Reset: Equipped with a fault inquiry function and the ability to restore factory settings.

Specifications

• Name: Adjustable Voltage Protector
• Material: Plastic

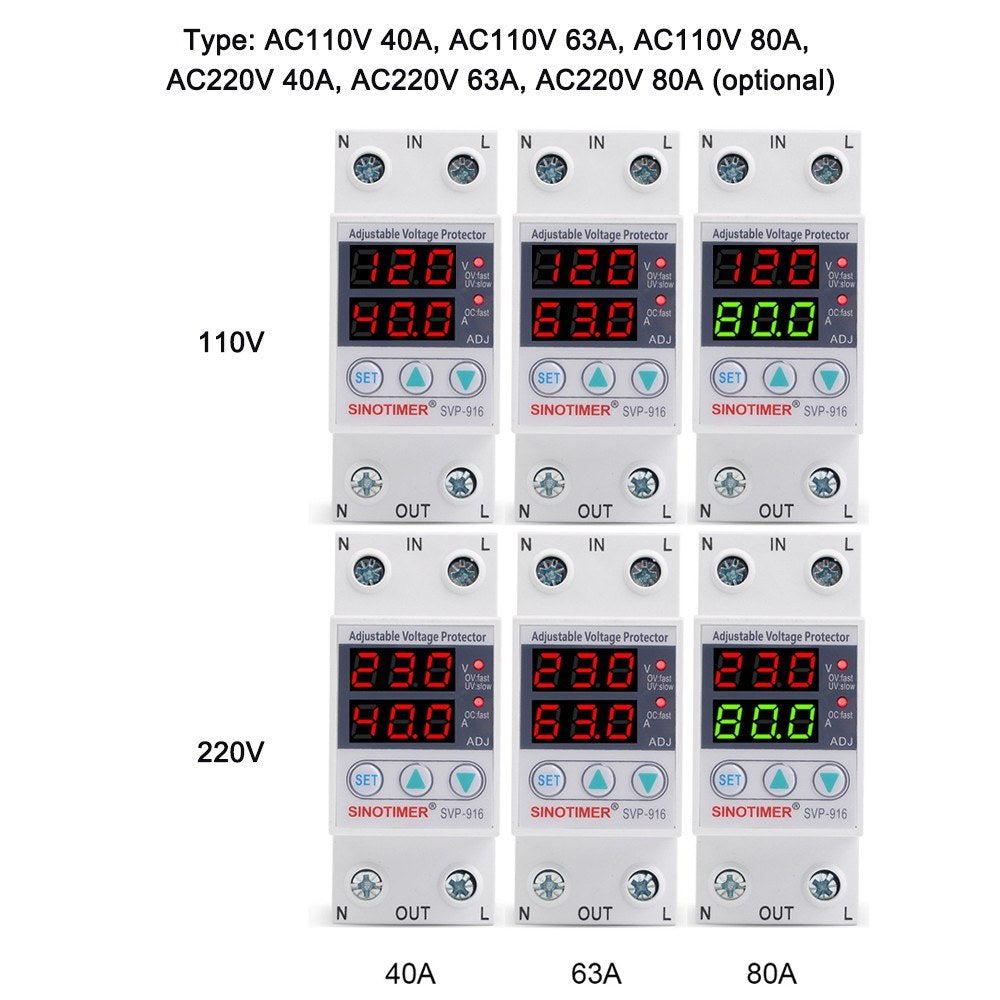

• Types Available:
  • AC110V 40A, AC110V 63A, AC110V 80A
  • AC220V 40A, AC220V 63A, AC220V 80A (optional)
• Over-Voltage Protection: 221V-300V-OFF (default 280V)
• Over-Voltage Recovery: 220V-299V (default 250V)
• Under-Voltage Protection: 219V-150V-OFF (default 160V)
• Under-Voltage Recovery: 151V-220V (default 180V)
• Over-Current Protection: 1A-63A (default 63A/40A)
• Default & Adjustable Timings:
  • Action Times: 0.1-10s, 0.1-512s, varying by measurement type
  • Recovery and Power-On Delays: 2-512s, 2-255s
• Dimensions & Weight:

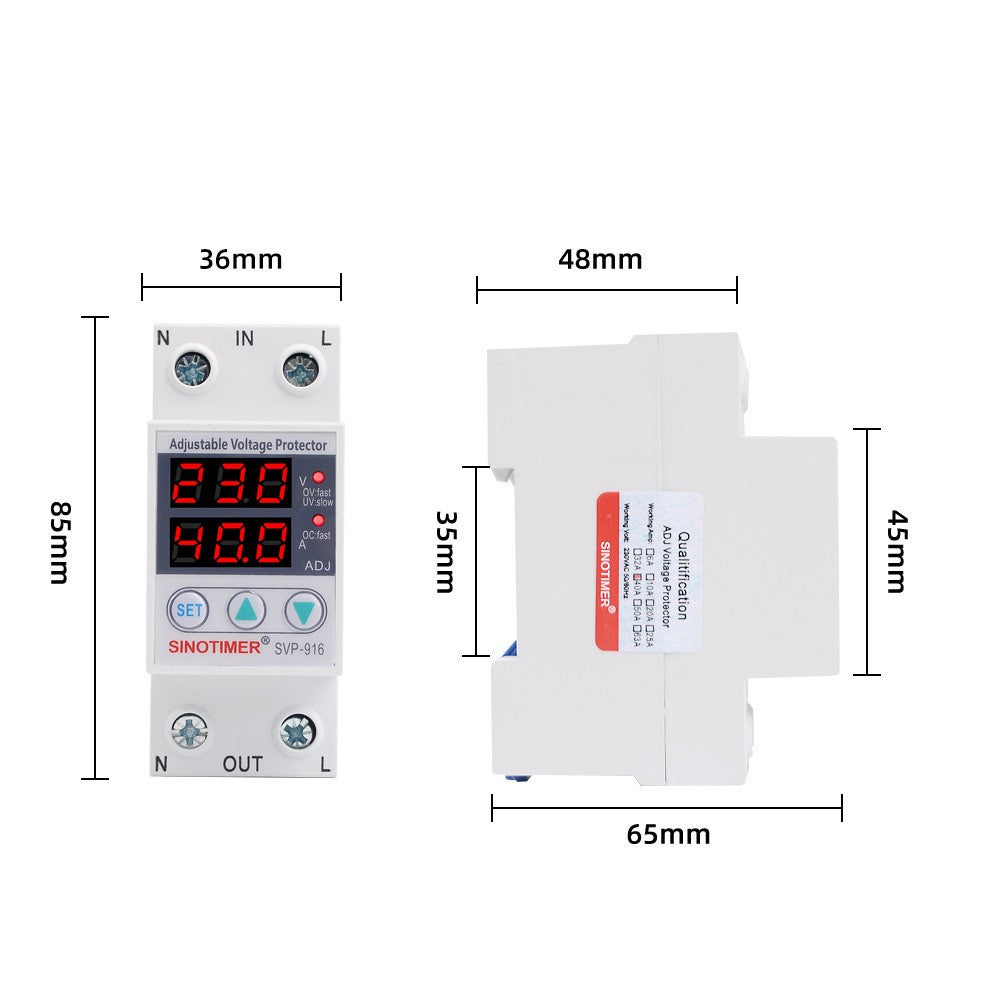

  • Item Size: 85 * 65 * 36 mm / 3.35 * 2.56 * 1.42 in
  • Item Weight: 177 g / 6.24 ounces
  • Package Size: 90 * 70 * 50 mm / 3.54 * 2.76 * 1.97 in
  • Package Weight: 200 g / 7.05 ounces

Packing List

• 1 x Adjustable Voltage Protector
