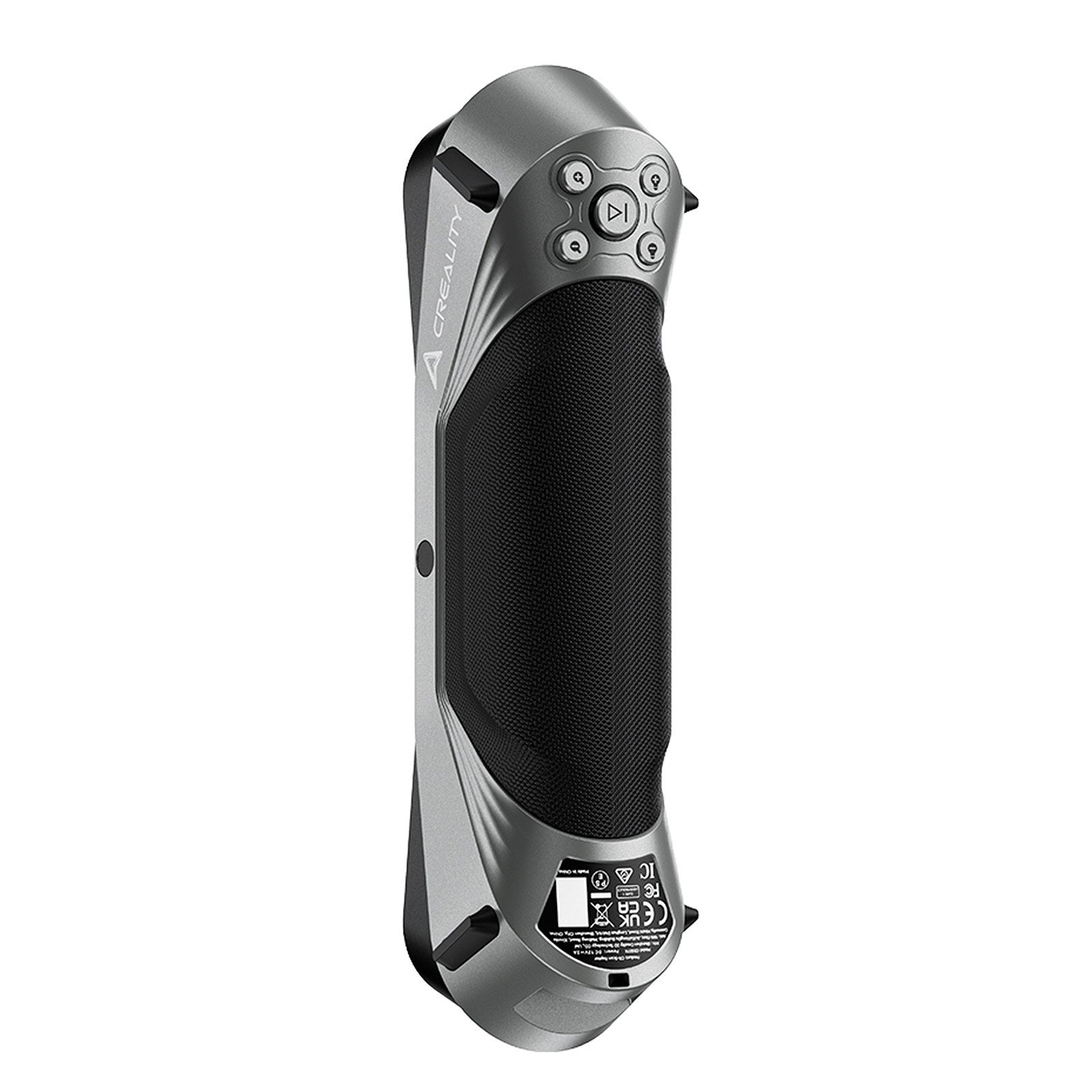

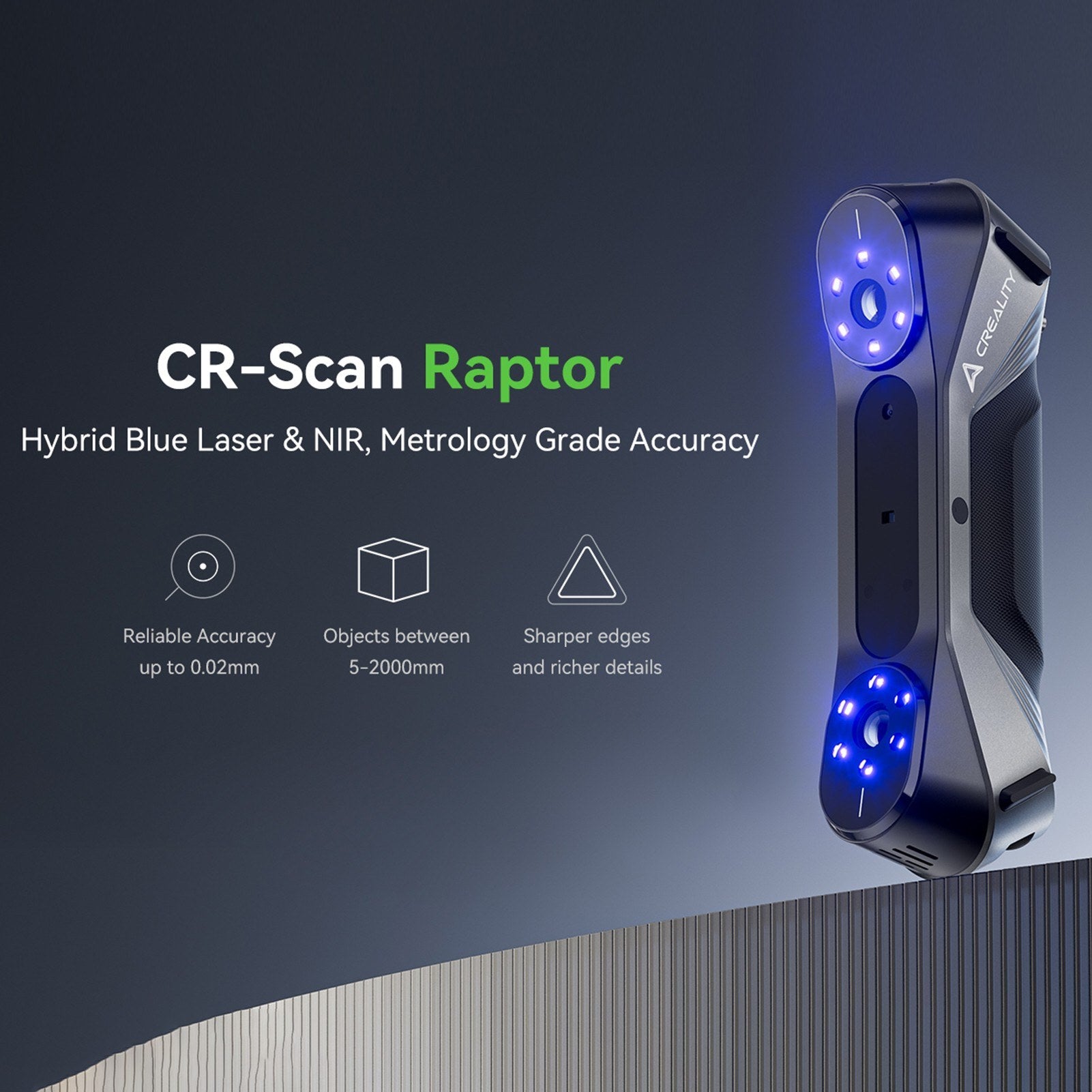

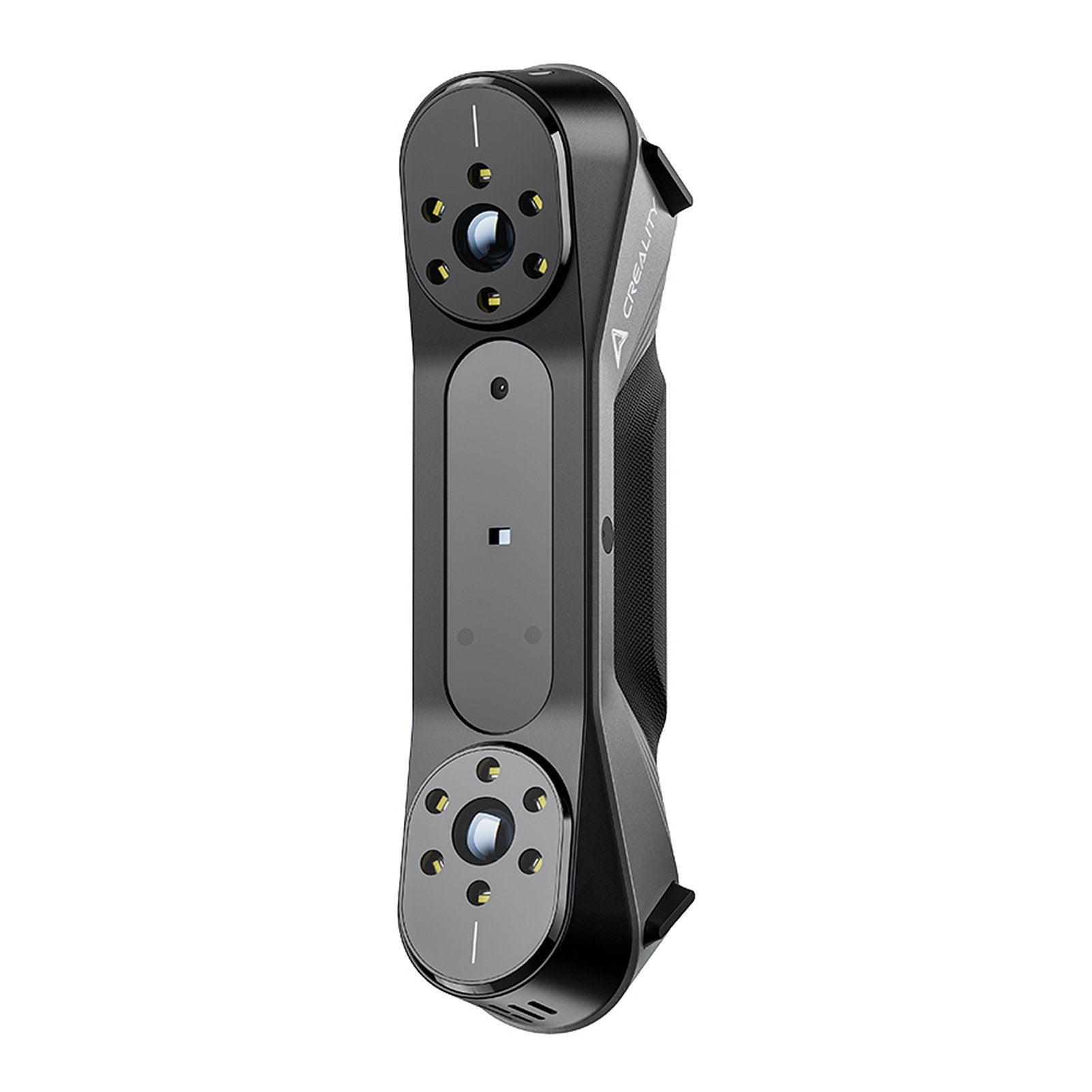

Creality CR-Scan Raptor 3D Scanner

Features:

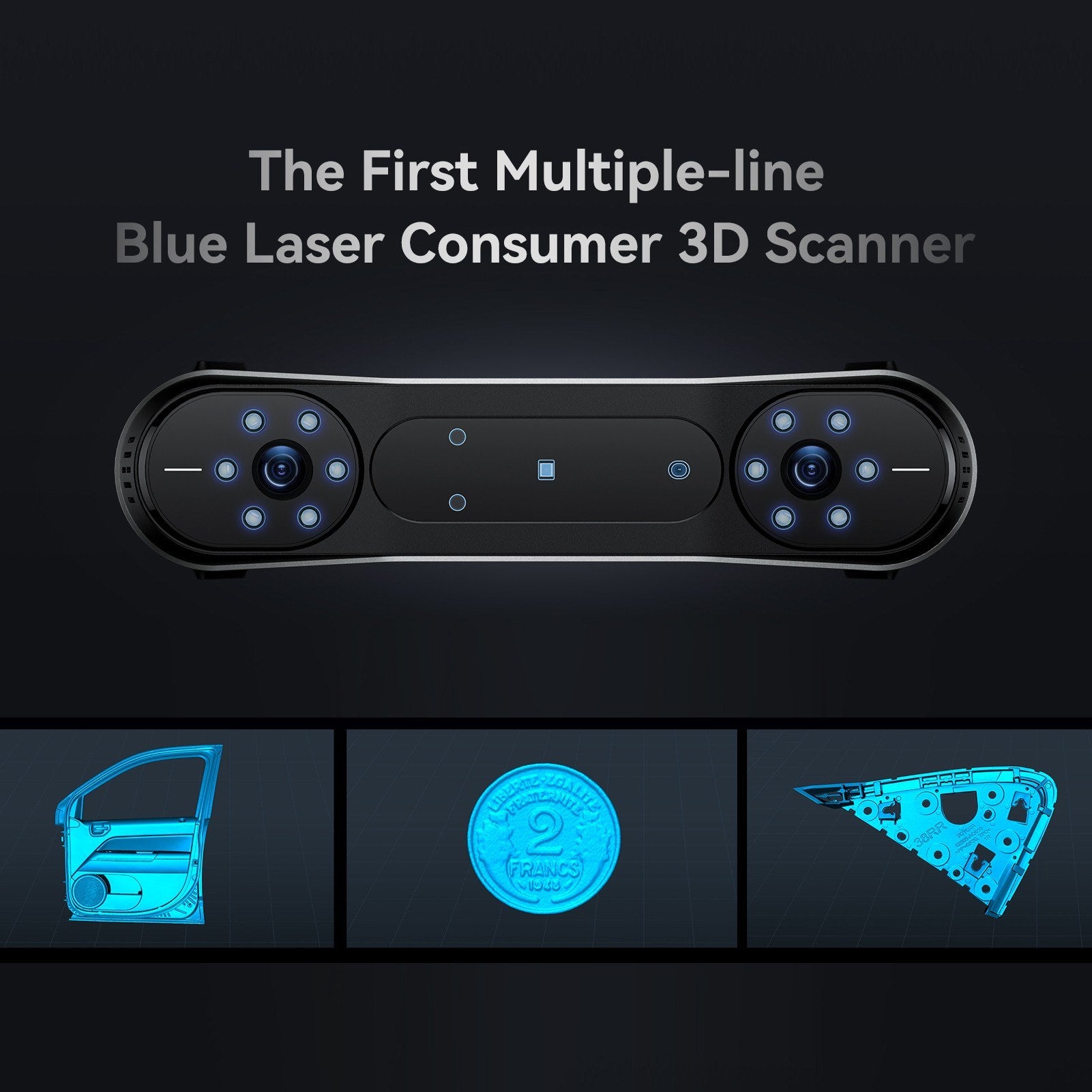

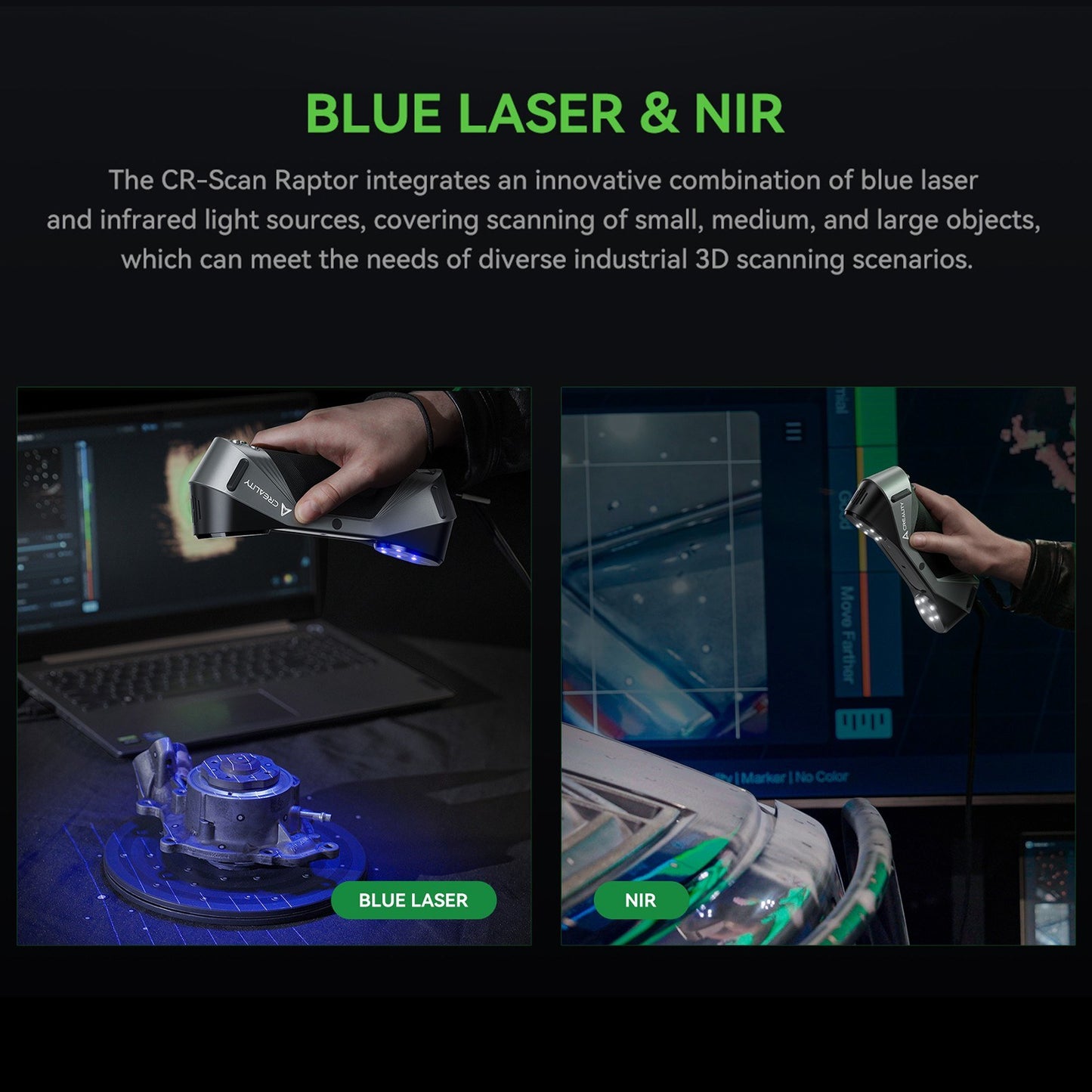

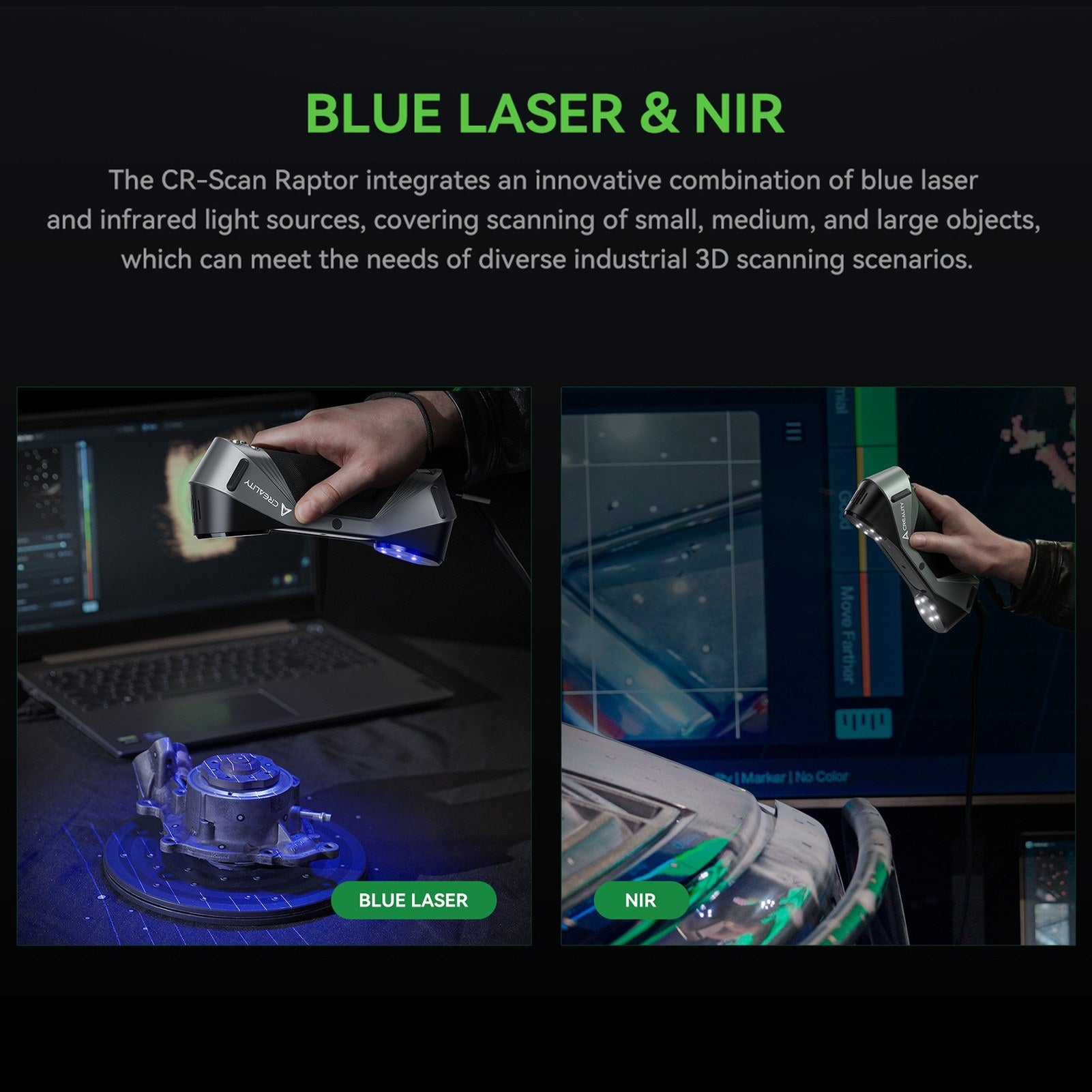

The World's First Multi-Line Blue & NIR Consumer 3D Scanner

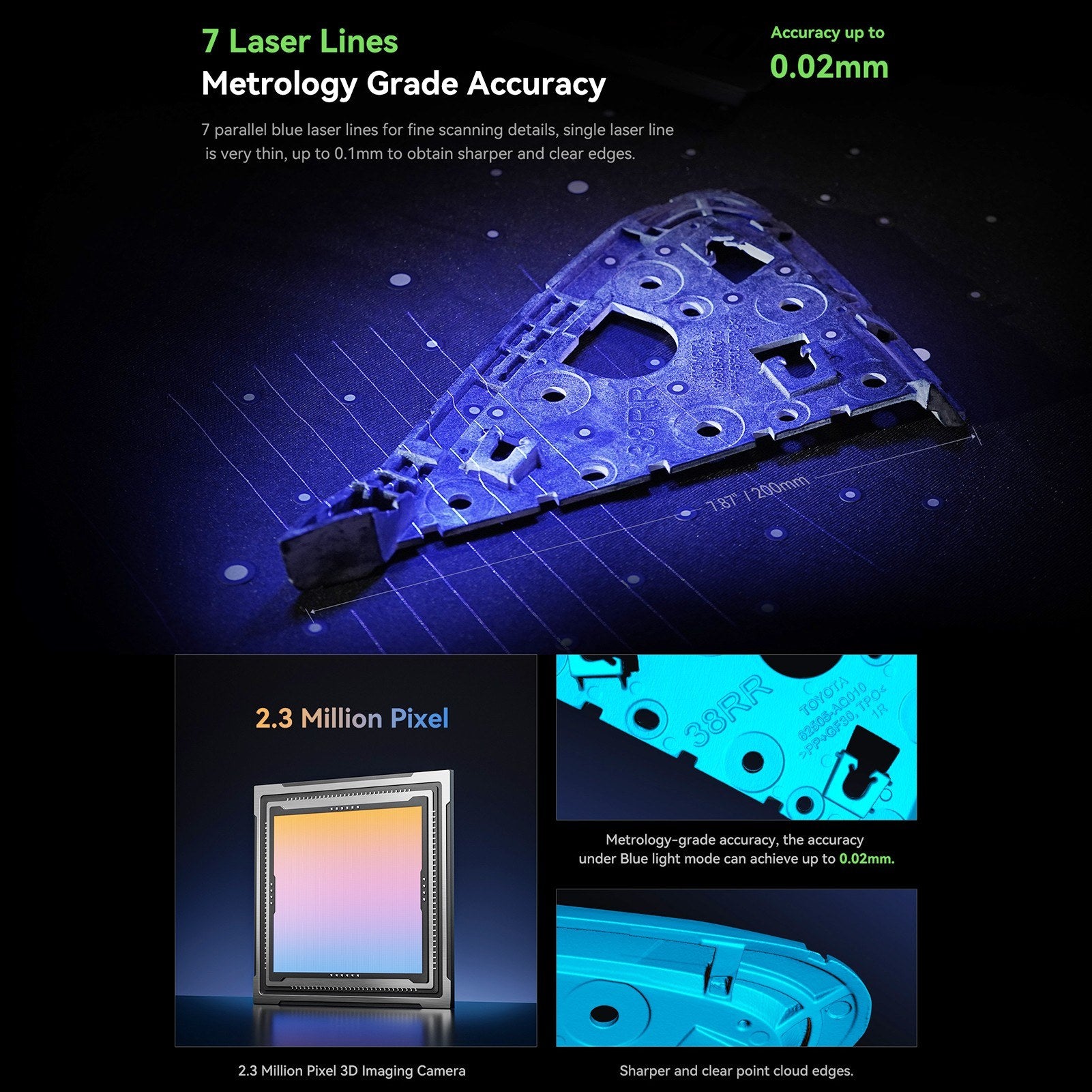

The Creality CR-Scan Raptor Scanner is a pioneering tool for 3D scanning, combining blue infrared technology to capture small to large objects. Its seven parallel blue lines allow for precise scanning, achieving a resolution of up to 0.1mm and accuracy of 0.02mm for sharp and clear edges.

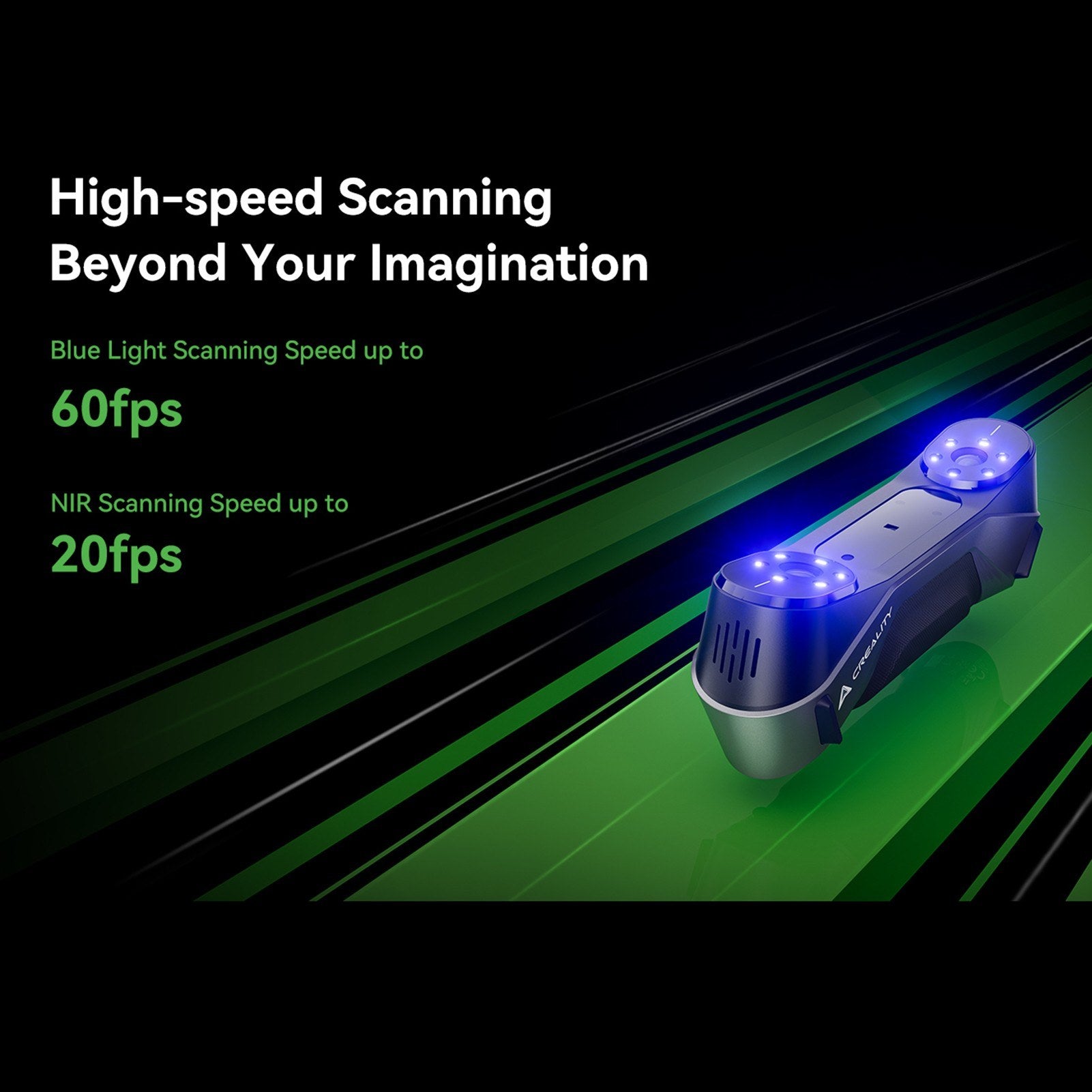

High-Speed Scanning Capabilities

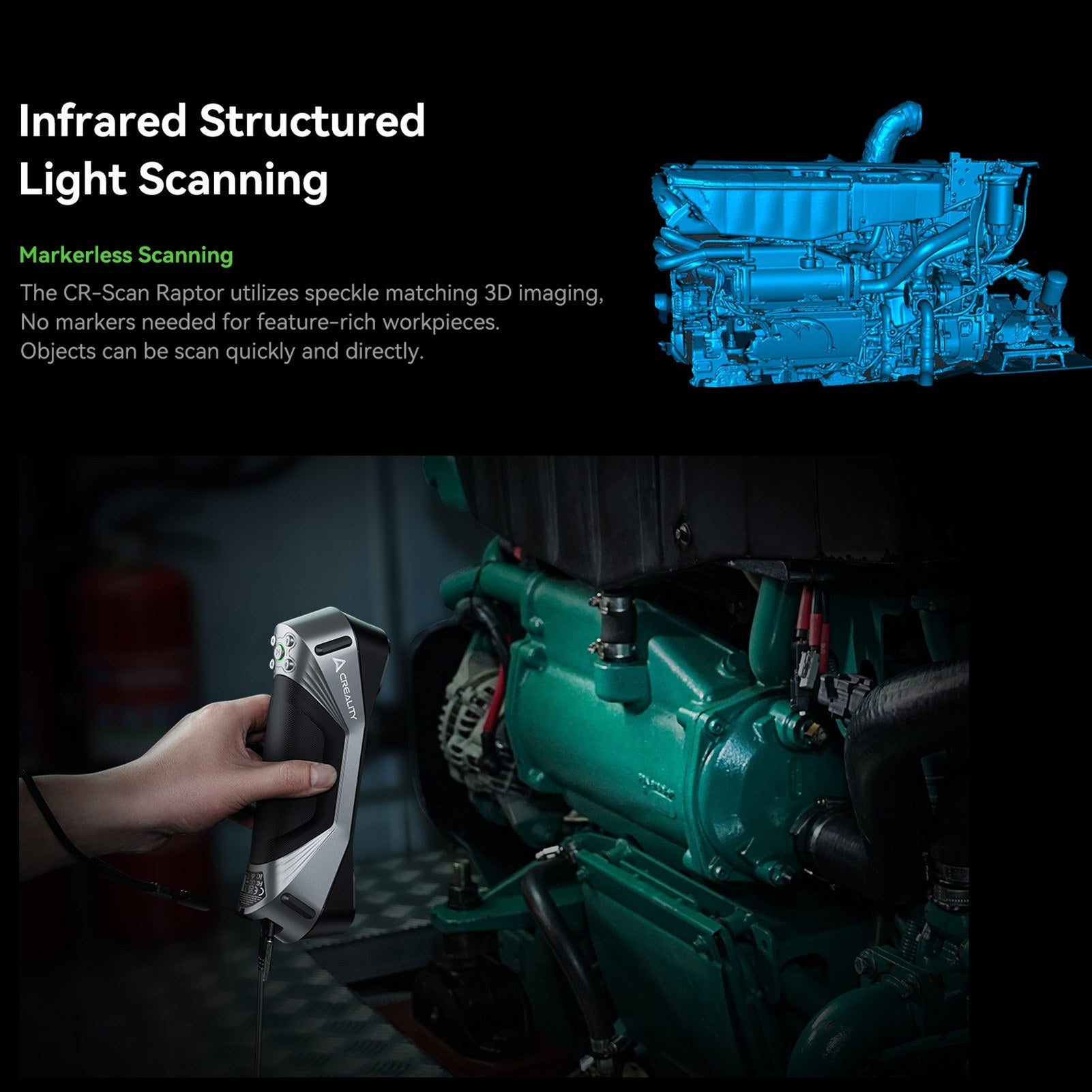

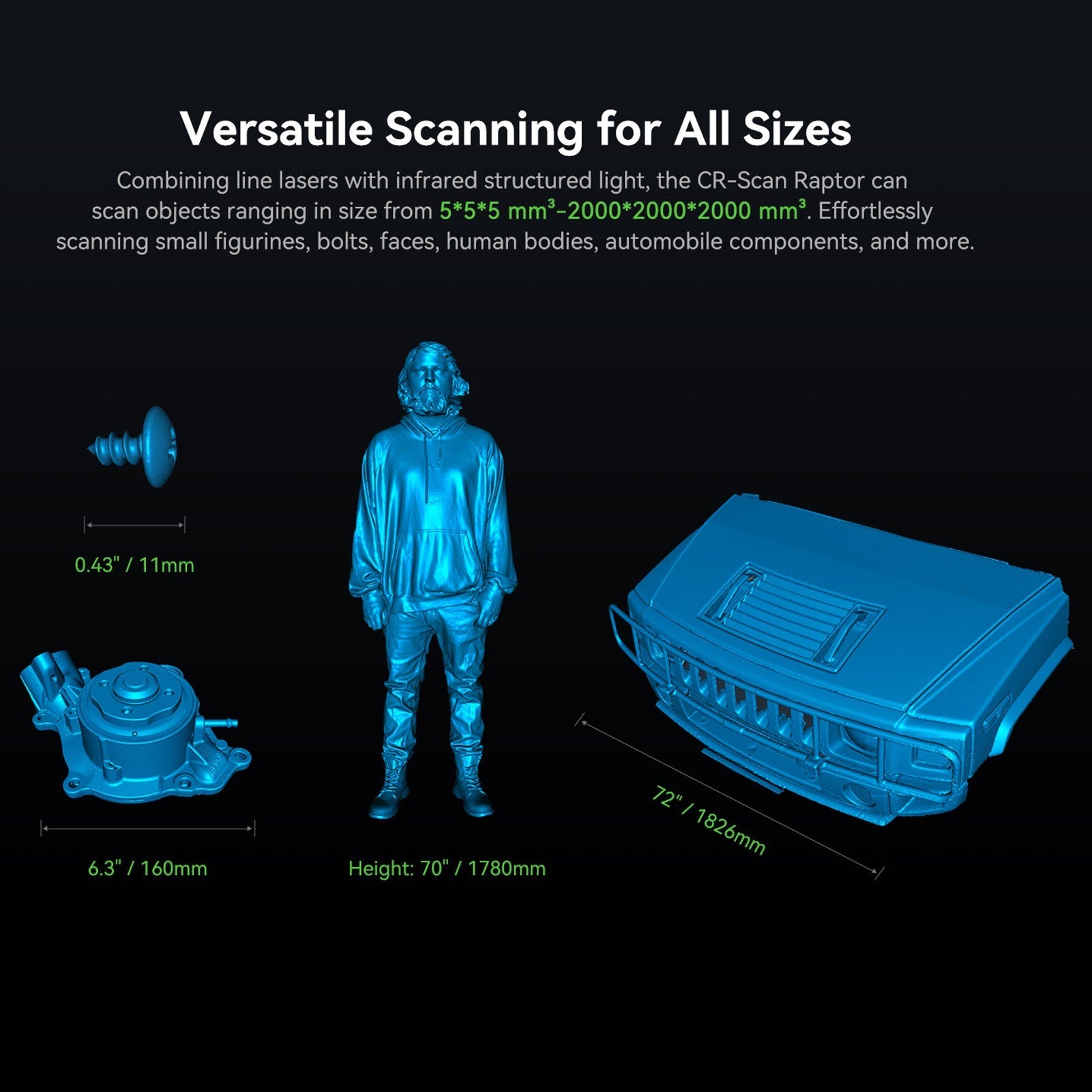

Experience fast and versatile scanning with speeds of up to 60fps with blue light and 20fps with NIR. This system can handle objects ranging in size from 5 x 5 x 5 mm to 2000 x 2000 x 2000 mm, making it perfect for everything from small figurines to large automobile components. Its speckle matching 3D imaging allows for quick, marker-free scans of feature-rich items.

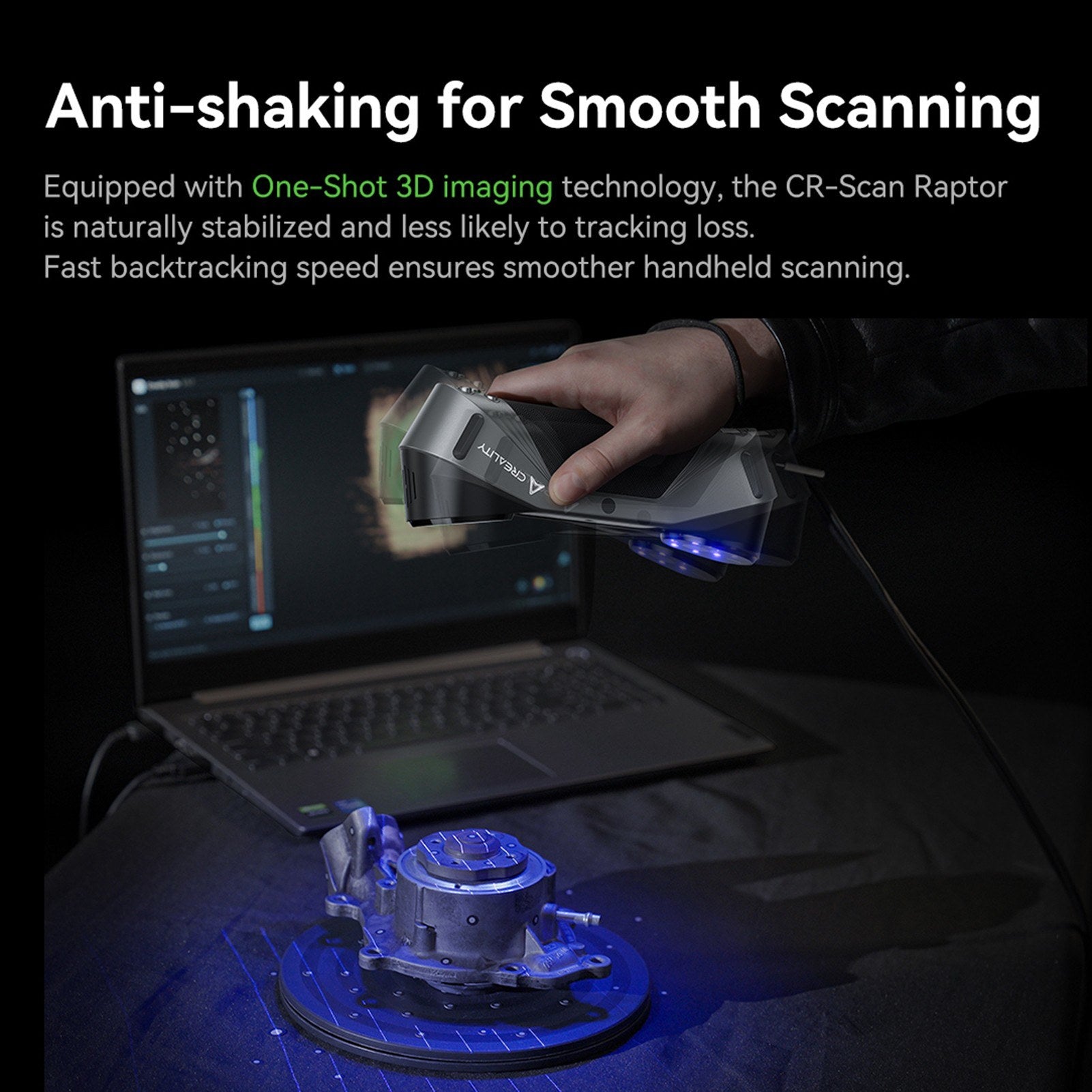

Anti-Shake for Smooth and Efficient Scanning

Featuring one-shot 3D imaging technology, the CR-Scan Raptor ensures smooth handheld scanning with fast backtracking speed. The autofocus lens eliminates issues like lost frames or defocus, ensuring a seamless scanning process.

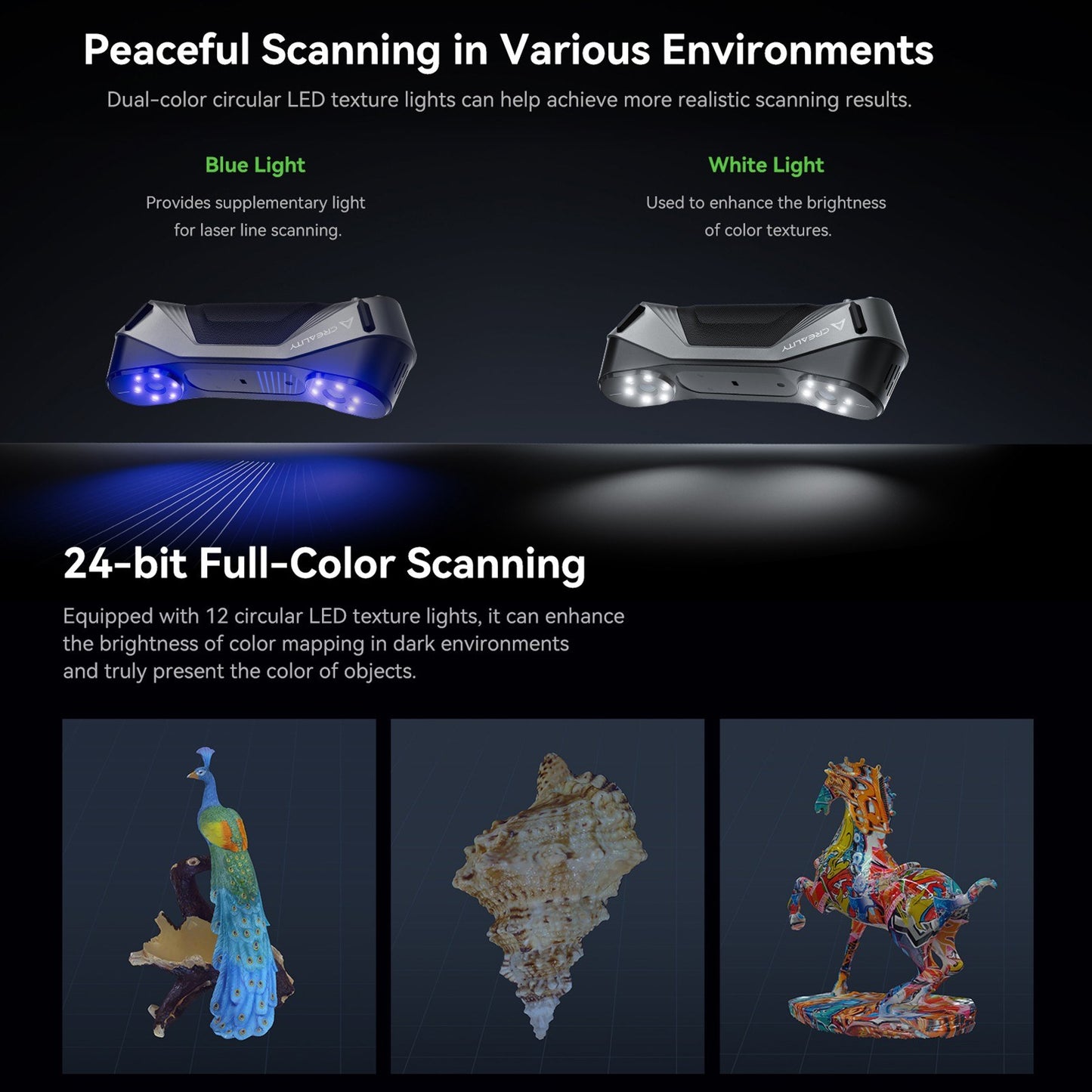

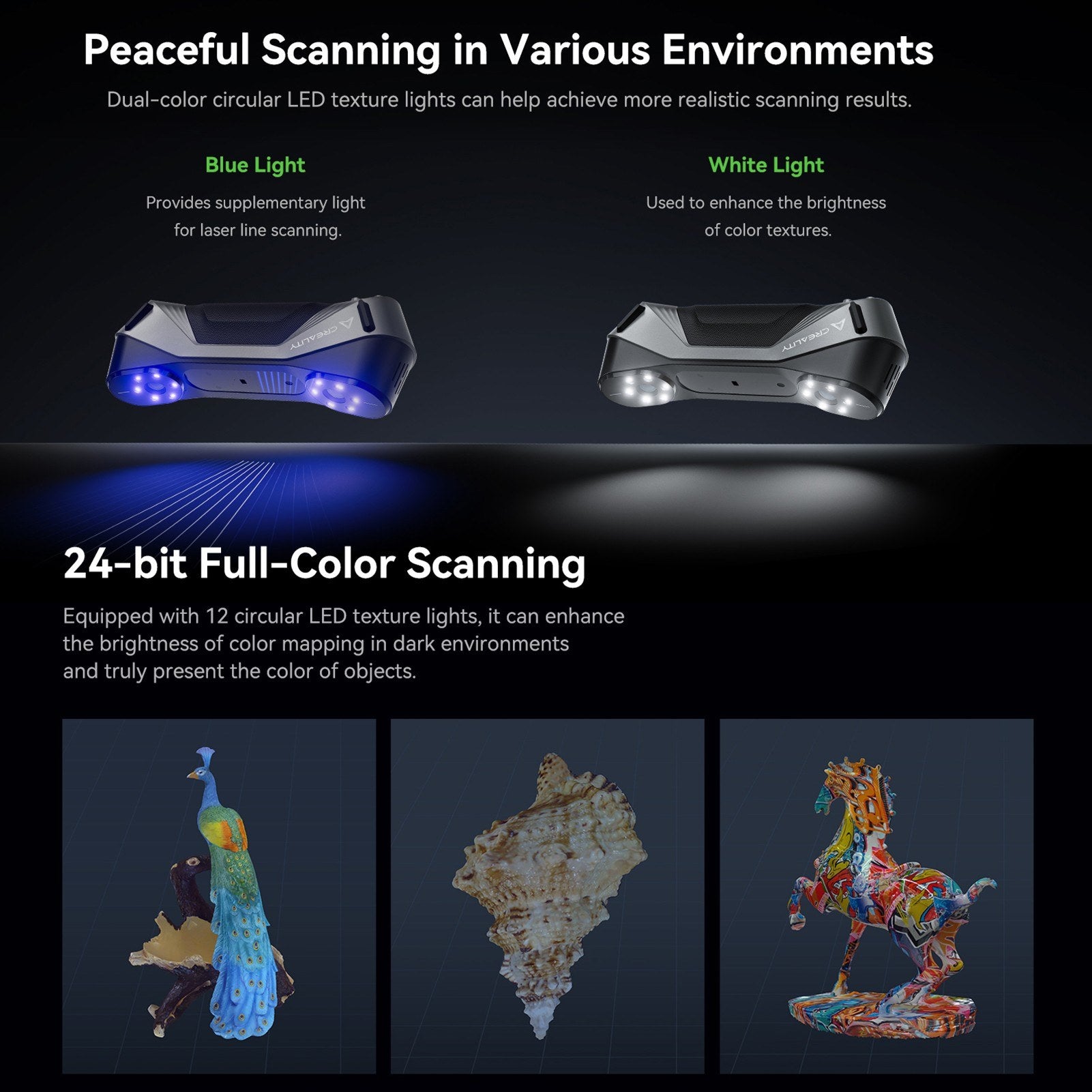

24-Bit Full-Color Scanning

This scanner comes with 12 circular LED texture lights, enhancing color brightness in low-light conditions for realistic results. The dual-color LED lights enhance laser and color texture brightness for optimal scanning.

Additional Features

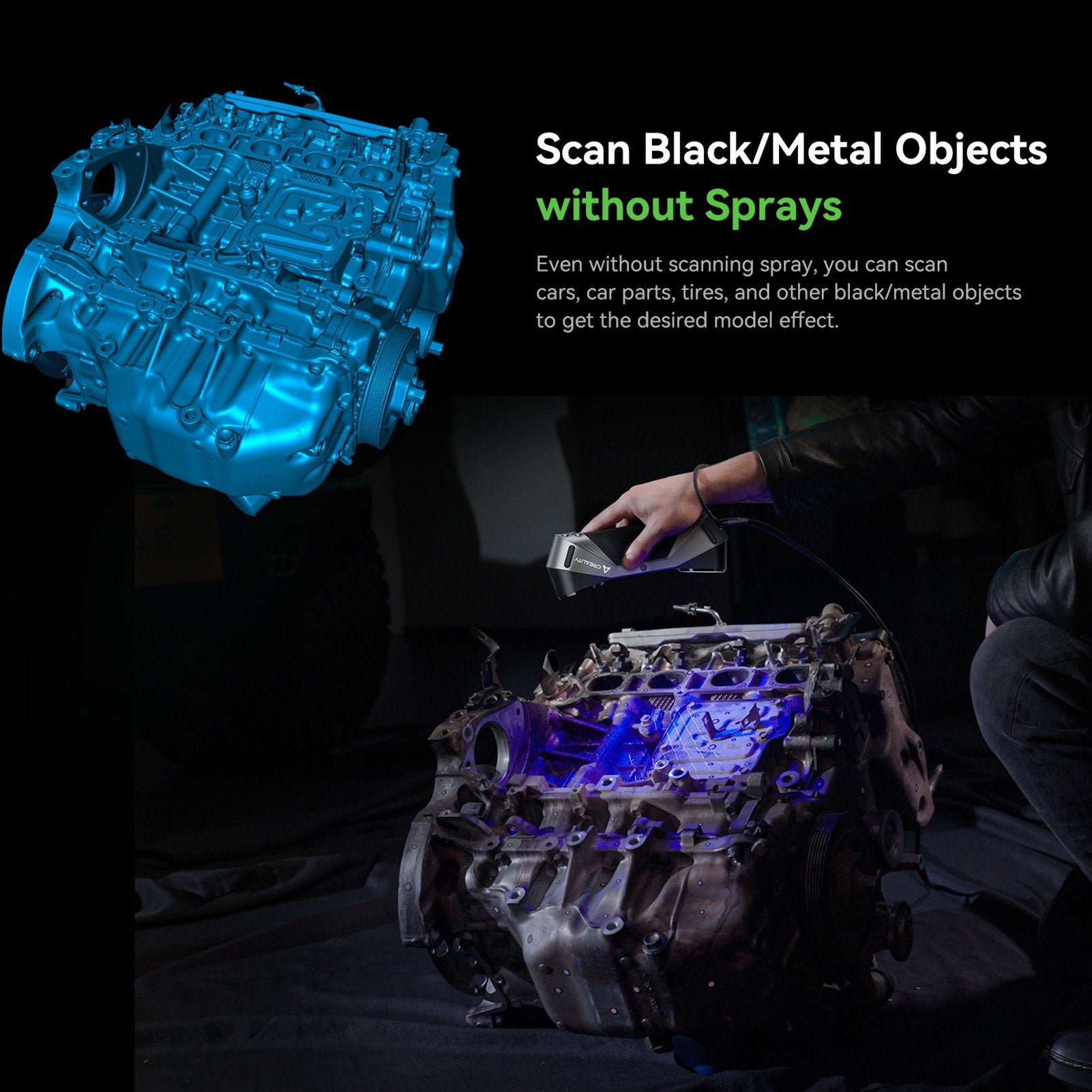

• Scan black and metal surfaces without the need for scanning spray.

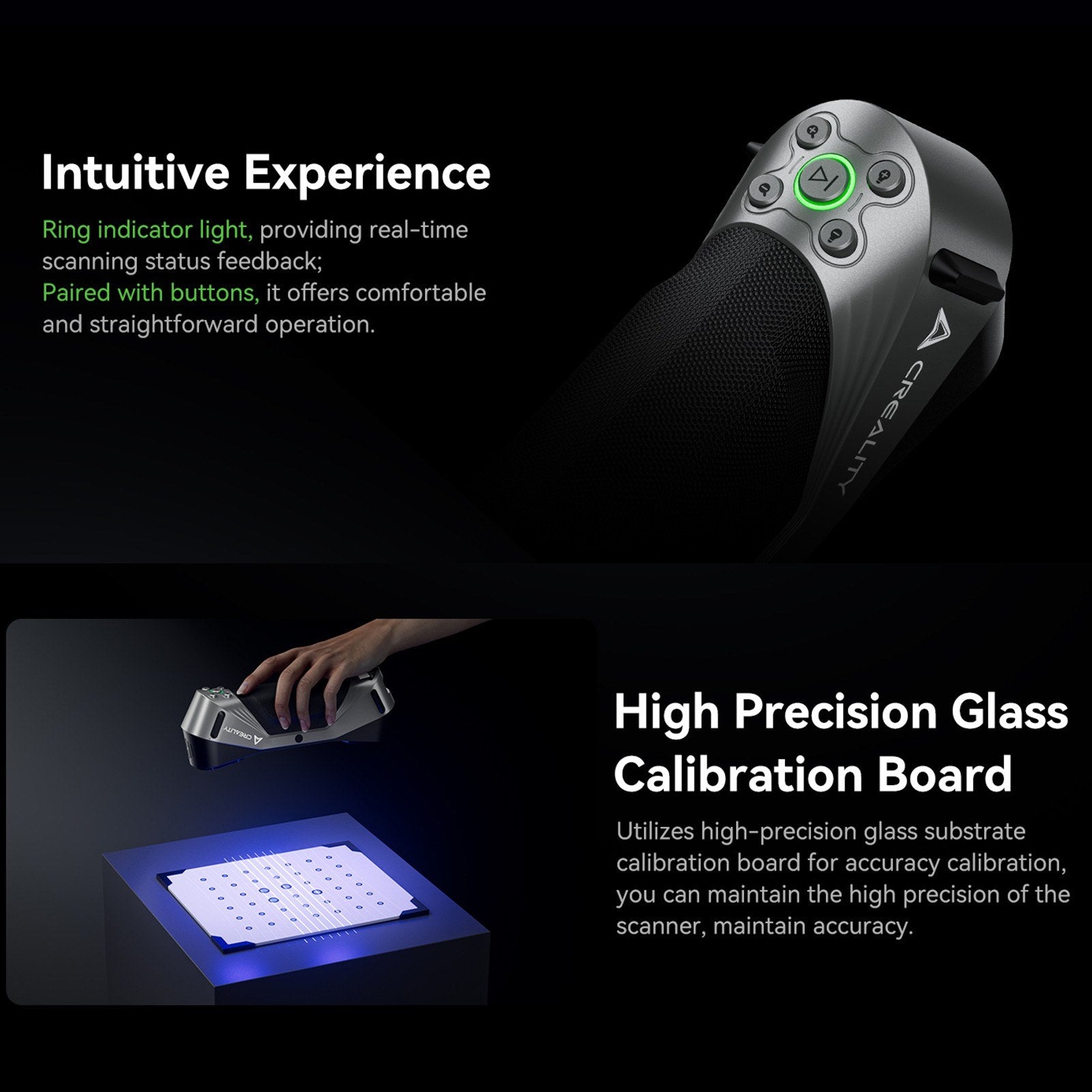

• Easy-to-use interface with real-time scanning status feedback via buttons and ring indicator light.
• Includes a high-precision glass calibration board to ensure accuracy.

Cross-Platform Compatibility

The scanner is compatible with Windows 10/11 (64 bit) and macOS. CrealityScan software offers user-friendly features with powerful image and point cloud processing. Easy step-by-step tutorials and one-click model processing kick-start your scanning journey effortlessly.

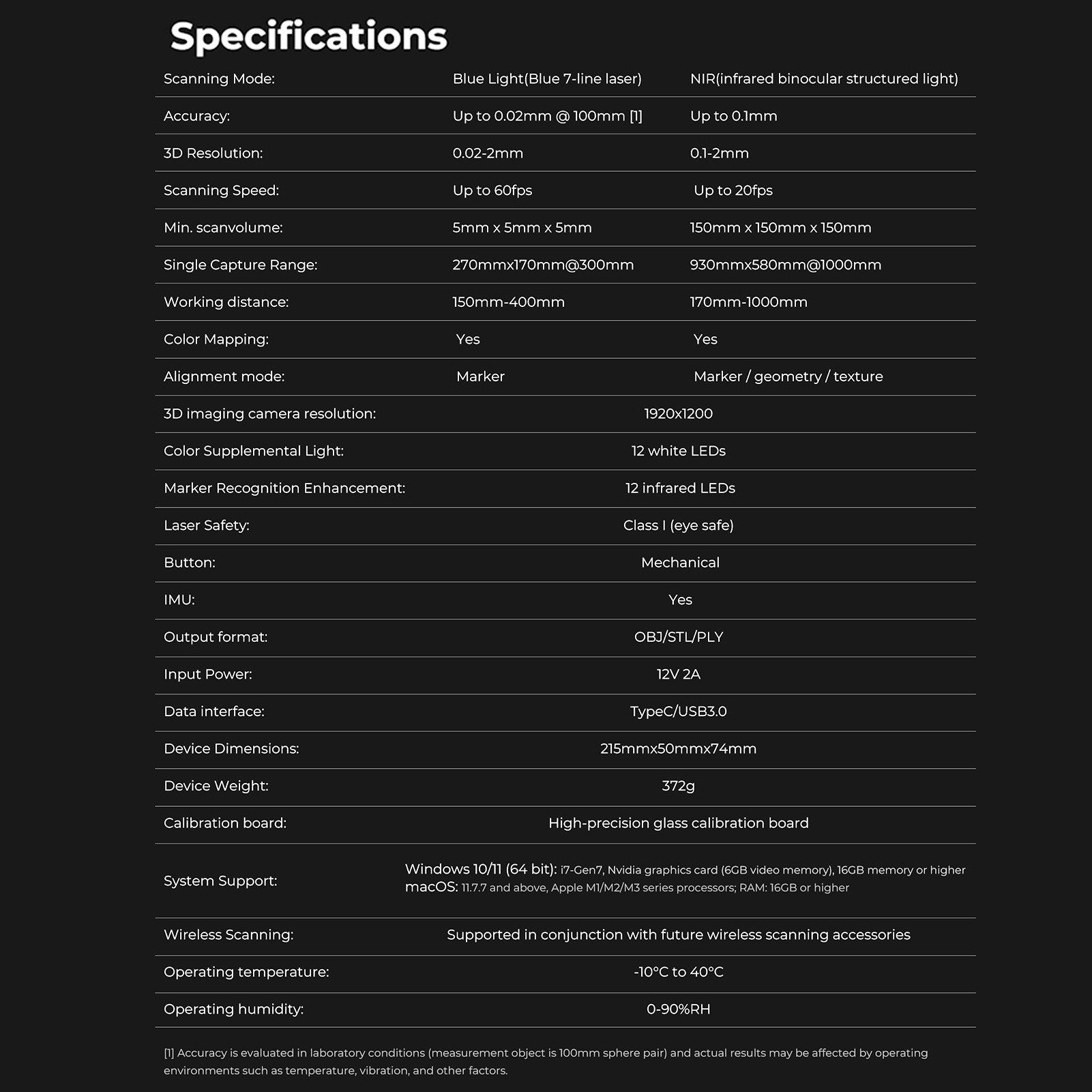

Specifications:

Model: Raptor

Blue Light Scanning

• Accuracy: Up to 0.02mm @ 100mm
• 3D Resolution: 0.02-2mm
• Scanning Speed: Up to 60fps
• Min. Scan Volume: 5mm x 5mm x 5mm
• Single Capture Range: 270mm x 170mm @ 300mm
• Working Distance: 150mm-400mm
• Color Mapping: Yes
• Alignment Modes: Marker
• 3D Imaging Camera Resolution: 1920x1200
• Color Supplemental Light: 12 white LEDs

NIR Scanning (Infrared Binocular Structured Light)

• Accuracy: Up to 0.1mm
• 3D Resolution: 0.01-2mm
• Scanning Speed: Up to 20fps
• Min. Scan Volume: 150mm x 150mm x 150mm
• Single Capture Range: 930mm x 580mm @ 1000mm
• Working Distance: 170mm-1000mm
• Color Mapping: Yes
• Alignment Modes: Marker / Geometry / Texture
• 3D Imaging Camera Resolution: 1920x1200
• Color Supplemental Light: 12 white LEDs

Technical Details:

• Marker Recognition Enhancement: 12 infrared LEDs
• Laser Safety: Class I (eye safe)
• IMU: Yes
• Output Format: OBJ/STL/PLY
• Input Power: 12V 2A
• Data Interface: Type C/USB3.0
• Device Dimensions: 215mm x 50mm x 74mm
• Device Weight: 320g
• System Support: Windows 10/11 (64 bit) & macOS
• Operating Temperature: -10°C to 40°C

Packing List:

• 1 x 3D CR-Scan Raptor Kit
