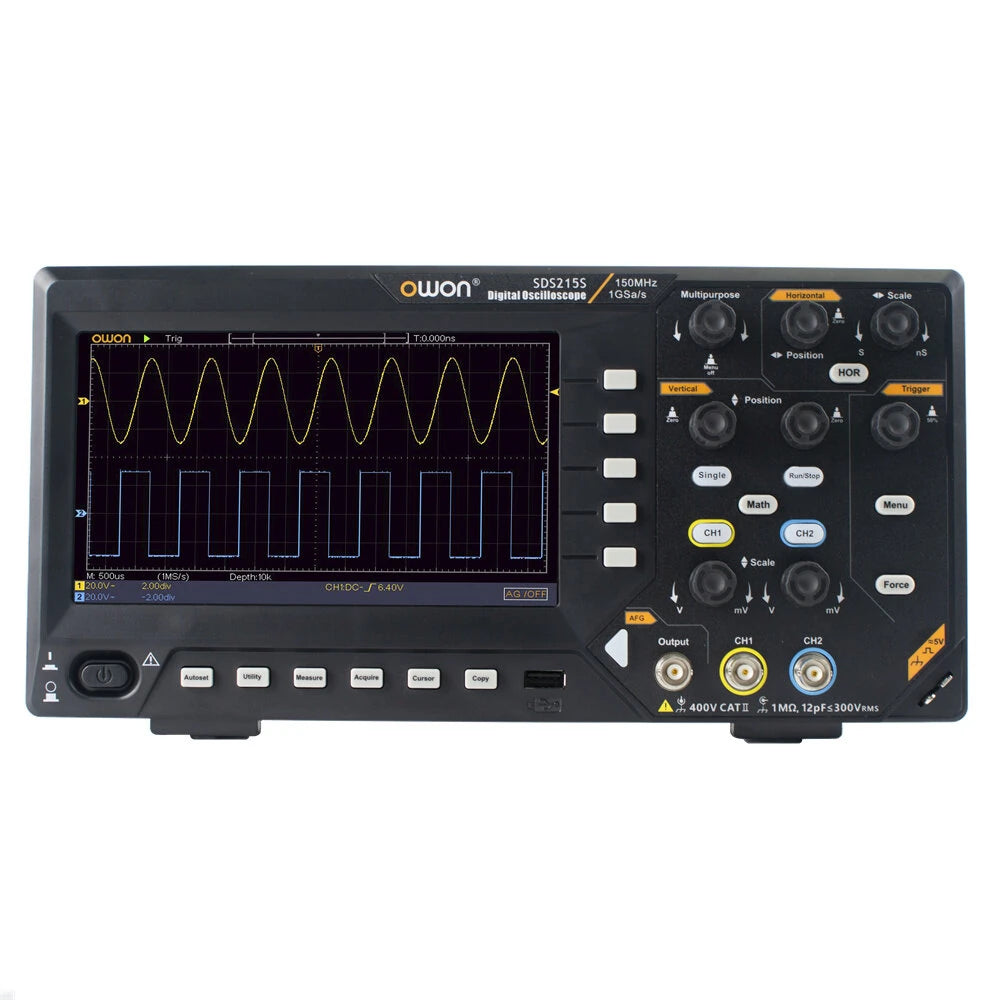

OWON SDS200 Series Digital Oscilloscope, 2-Channel, 1 GS/s, 150-200 MHz, USB, EU/US Plug

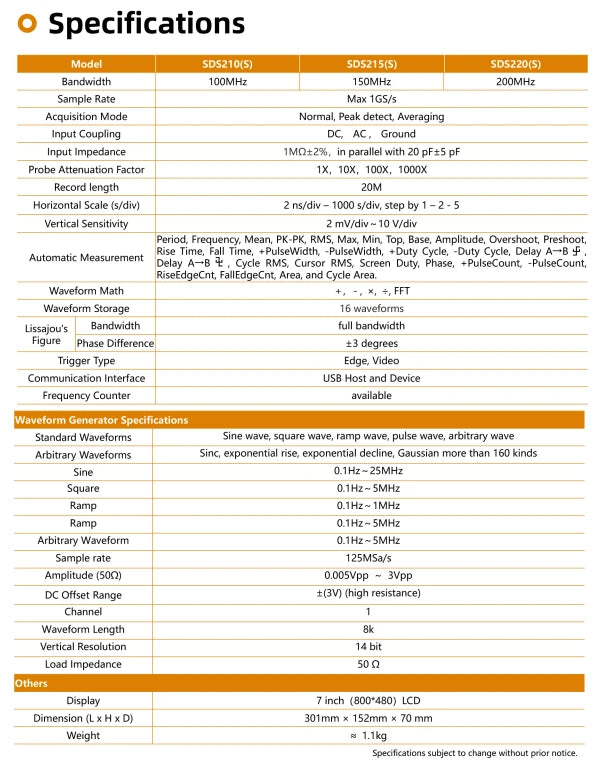

Specifications:

• Brand: SDS200 Series
• Optional Models: SDS210, SDS210(S), SDS215, SDS215(S), SDS220, SDS220(S)
• Optional Plug: US / EU Plug
• Bandwidth:
  • 100 MHz (SDS210)
  • 150 MHz (SDS215)
  • 200 MHz (SDS220)
• Channels: 2 channels
• Acquisition Mode: Normal, Peak detect, Averaging
• Sample Rate (real-time): 1 GS/s
• Input Coupling: DC, AC, Ground
• Input Impedance: 1 MΩ±2%, in parallel with 12 pF±5 pF
• Input Attenuation: 1X, 10X, 100X, 1000X
• Max. Input Voltage: 400V (DC+AC, PK - PK)
• Channel-Channel Isolation:
  • 50Hz: 100:1
  • 10MHz: 40:1
• Display Scanning Speed (S/div): 2 ns/div – 1000 s/div, step by 1 – 2 - 5
• Vertical Resolution (A/D): 8 bits (2 channels simultaneously)
• Sensitivity: 2 mV/div – 10 V/div
• Display Size: 4 inch
• Trigger: Edge, Video
• Communication Port: USB 2.0
• Counter: Supported

Features:

• High Bandwidth Options: Choose from 100 MHz, 150 MHz, or 200 MHz to suit your signal analysis needs.
• Fast Sample Rate: Achieve a real-time sample rate of 1 GS/s for precise signal capture and analysis.
• Versatile Input Coupling: Supports DC, AC, and Ground input coupling with a maximum voltage of 400V, enhancing measurement flexibility.
• Advanced Acquisition Modes: Offers Normal, Peak Detect, and Averaging modes for various signal conditions.
• Comprehensive Triggering: Supports edge and video triggering, including standard NTSC, PAL, and SECAM broadcast systems.

Package Included:

• For SDS210/SDS215/SDS220:
  • 1 x SDS210/SDS215/SDS220 Oscilloscope (option)
  • 1 x USB Cable
  • 1 x Power Adapter (EU/US Plug) (option)
  • 1 x Probe Adjust
  • 2 x Probes
  • 1 x User Manual
  • 1 x Calibration Certificate
• For SDS210S/SDS215S/SDS220S:
  • 1 x SDS210S/SDS215S/SDS220S Oscilloscope (option)
  • 1 x USB Cable
  • 1 x Power Adapter (EU/US Plug) (option)
  • 1 x Probe Adjust
  • 2 x Probes
  • 1 x User Manual
  • 1 x Calibration Certificate
  • 1 x BNC Cable (Only for SDS210S/SDS215S/SDS220S)
