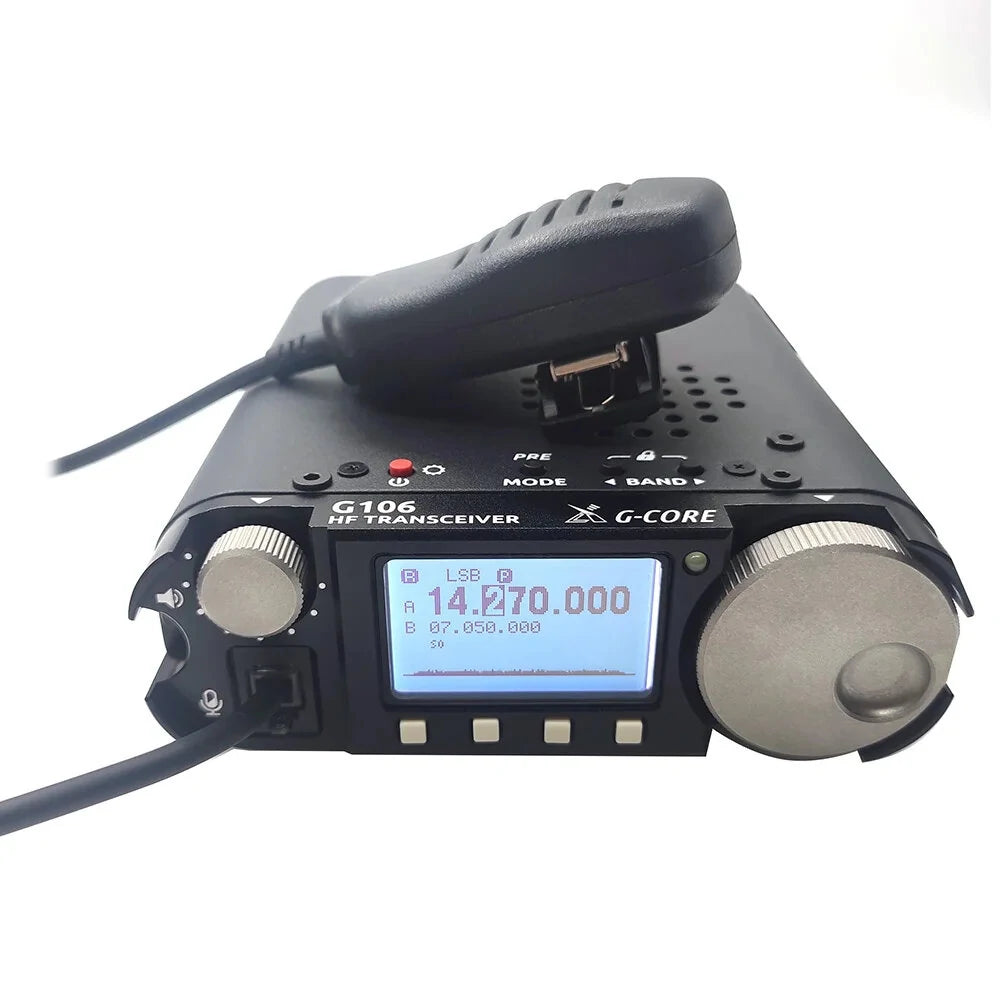

Xiegu G106C 5W HF SDR Transceiver - Portable SSB/CW/AM, WFM Reception, Broad Frequency, Enhanced CW Filter, PC Connectivity

Features

1. Superior Performance: The G106 portable QRP model features an advanced SDR core circuit structure utilizing 16-bit CODEC sampling, offering exceptional transmission and reception clarity.
2. Multimode Operation: Equipped with three modes: SSB, CW, AM, plus an additional WFM receiving function, allowing you to listen to local FM broadcasts while communicating.
3. Broad Frequency Coverage: Capable of transmitting and receiving across all amateur frequency bands from 3.8 to 29.7 MHz, and receiving WFM broadcasts from 88 to 108 MHz, ensuring excellent connectivity.
4. Enhanced Filtering: Features a CW digital filter with three bandwidth options, boosting signal reception and your ability to reach distant radio stations.
5. Computer Connectivity: With an optional external DE-19 digital adapter, seamlessly connects to your computer for online control and data communication, enhancing utility for amateur radio enthusiasts.

Specifications

• Receiving Frequency: 0.55 to 30 MHz, 88 to 108 MHz (WFM)
• Transmitting Frequency: Ranges from 3.5 to 3.9 MHz to 28.0 to 29.7 MHz across multiple bands
• Operating Modes: SSB, CW, AM, WFM (receive only)
• Receiving Sensitivity: CW: 0.25 µV, SSB: 0.5 µV, AM: 10 µV
• Frequency Stability: ±1.5 ppm (within 30 min after power on) @25°C: 1 ppm/hour
• Transmitting Power: ≥5W @13.8V DC
• Transmitting Spurious Suppression: ≥50 dB
• Audio Output Power: 0.3W
• Operating Voltage: 9 to 15V DC
• Standby Current: 0.37A max
• Transmitting Current: 2.8A max
• Dimensions: 120 x 40 x 135 mm
• Weight: Approximately 720g (host only)

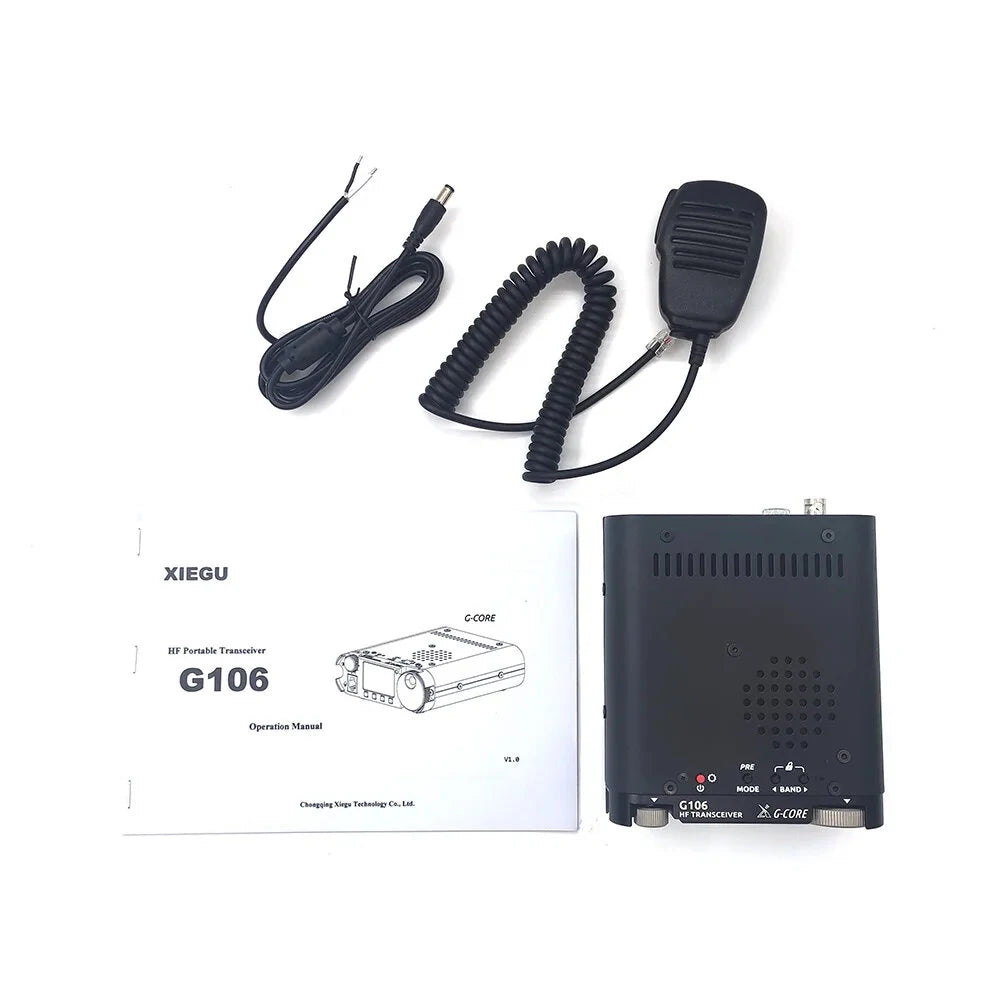

Package Includes

• 1 x G106 HF Portable Transceiver
• 1 x User Manual
