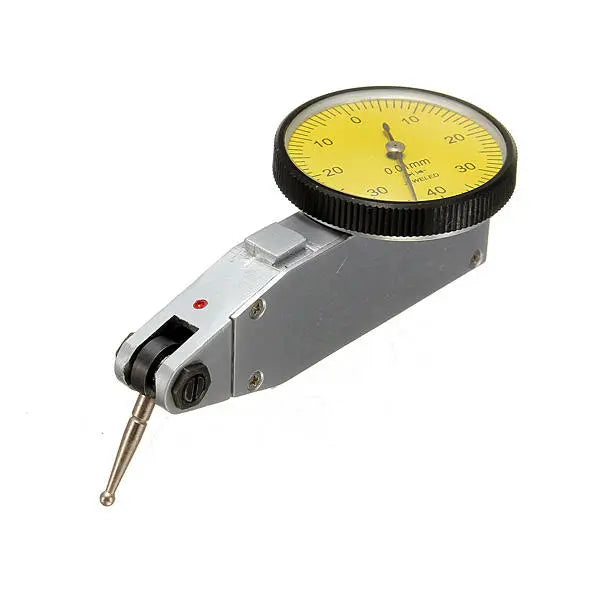

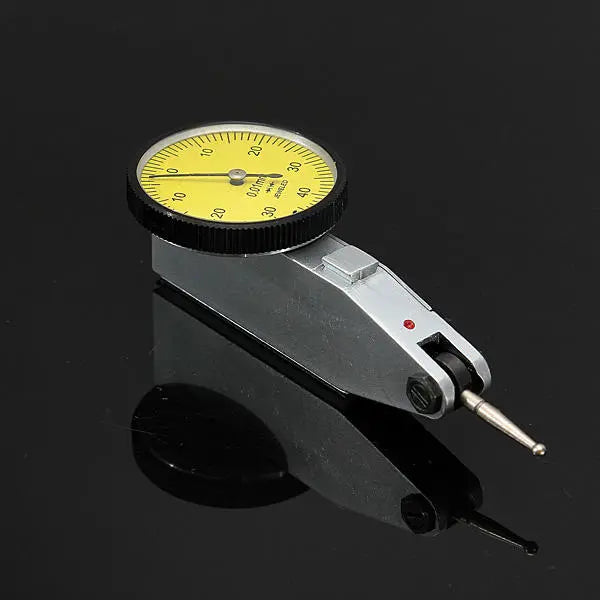

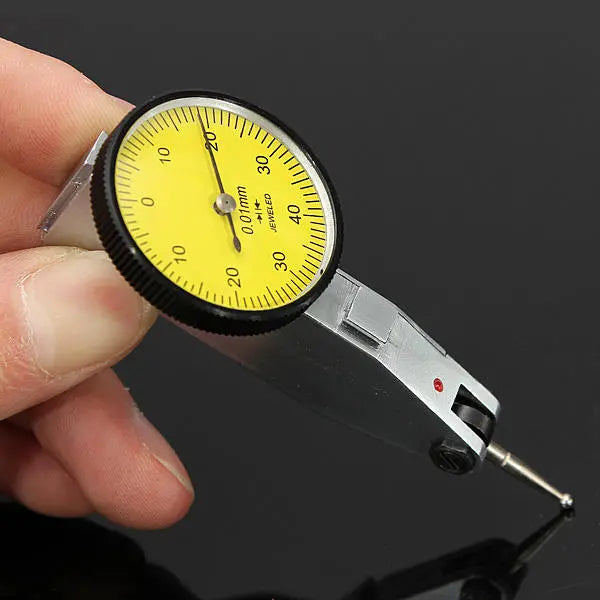

40112302 Dial Test Indicator Precision Metric with Dovetail Rails - 0-0.8mm, 32mm

Available now from our UK warehouse.

Description

The 40112302 Dial Test Indicator is designed to provide precision measurements in machining, layout, and inspection work. It features both inch and metric readings, making it versatile for various applications.

Features

• Fowler inch/metric dial test indicator with a yellow face for enhanced visibility in narrow or recessed areas.
• Measuring range of 0-0.8mm with 0.0005"/0.01mm graduations.
• Designed with microfine black graduations for 0-40-0 balanced inch readings and red graduations for 0.001mm balanced metric readings.

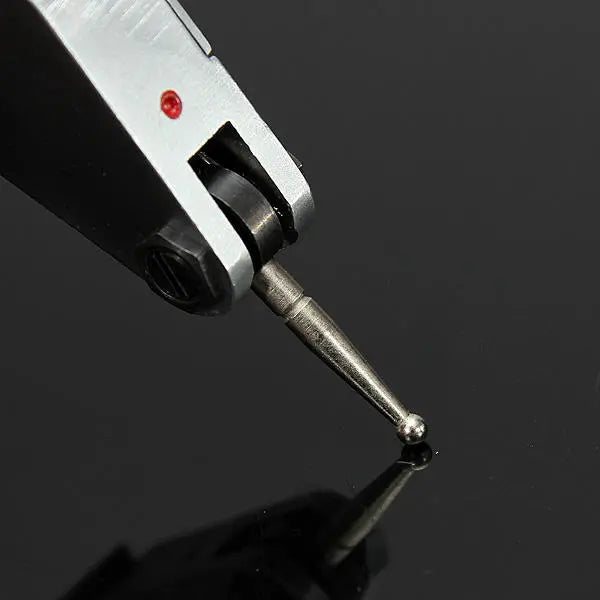

• Features smooth-action movement and auto-reversing contact point.
• The adjustable knurled bezel rotates 360 degrees to zero readings at any location.

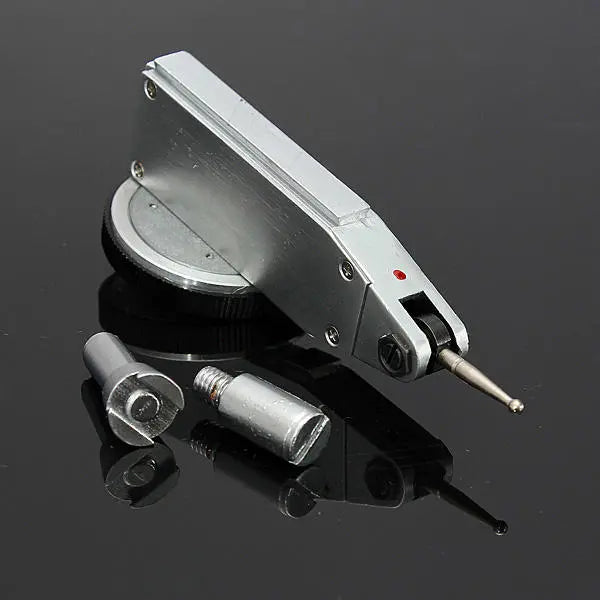

• Equipped with three dovetail mounts allowing mounting from the top, back, or front.
• One-piece housing with a durable satin chrome finish.

Specifications

• Face: 1-1/4" diameter yellow face.
• Dial Type and Reading: 0-40-0 balanced inch and 0-.25-0 balanced metric readings.
• Range: 0-0.8mm.
• Graduations: 0.0005"/0.01mm.
• Contact Point Length: 1/2".
• Dovetail Clamps: 3/8" and 5/32".
• Mounting Type: Dovetail.

Package Includes

• 1 x 40112302 Dial Test Indicator.

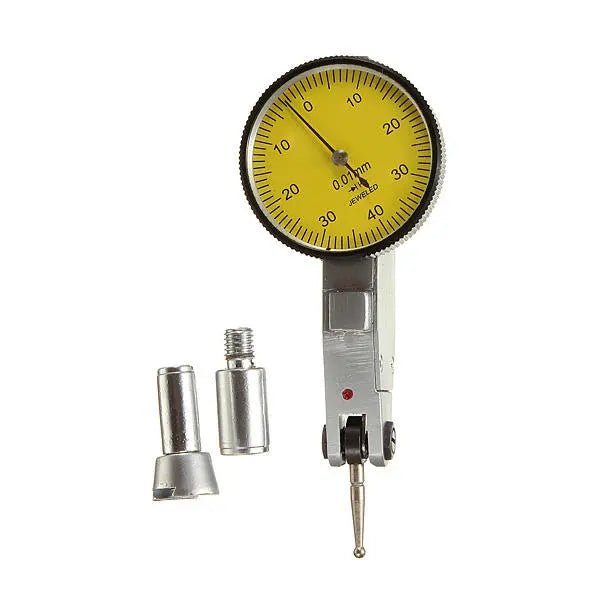

• 1 x 3/8" Dovetail Clamp.
• 1 x 5/32" Dovetail Clamp.

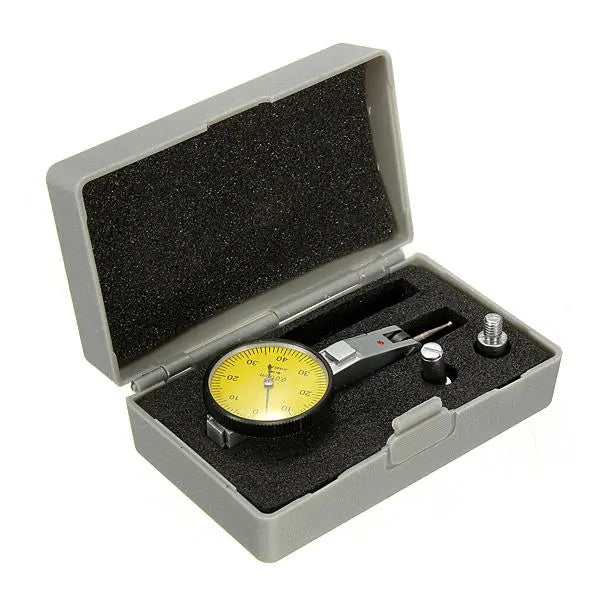

• 1 x Molded Case.

Additional Information

The 40112302 Dial Test Indicator is suitable for detecting surface variations and offers reliability with its durable construction. The balanced dial readings (e.g., 0-40-0) indicate a balanced dial which is ideal for discerning differences from a reference point, whereas continuous dials (e.g., 0-100) offer direct readings with a greater measurement range.
