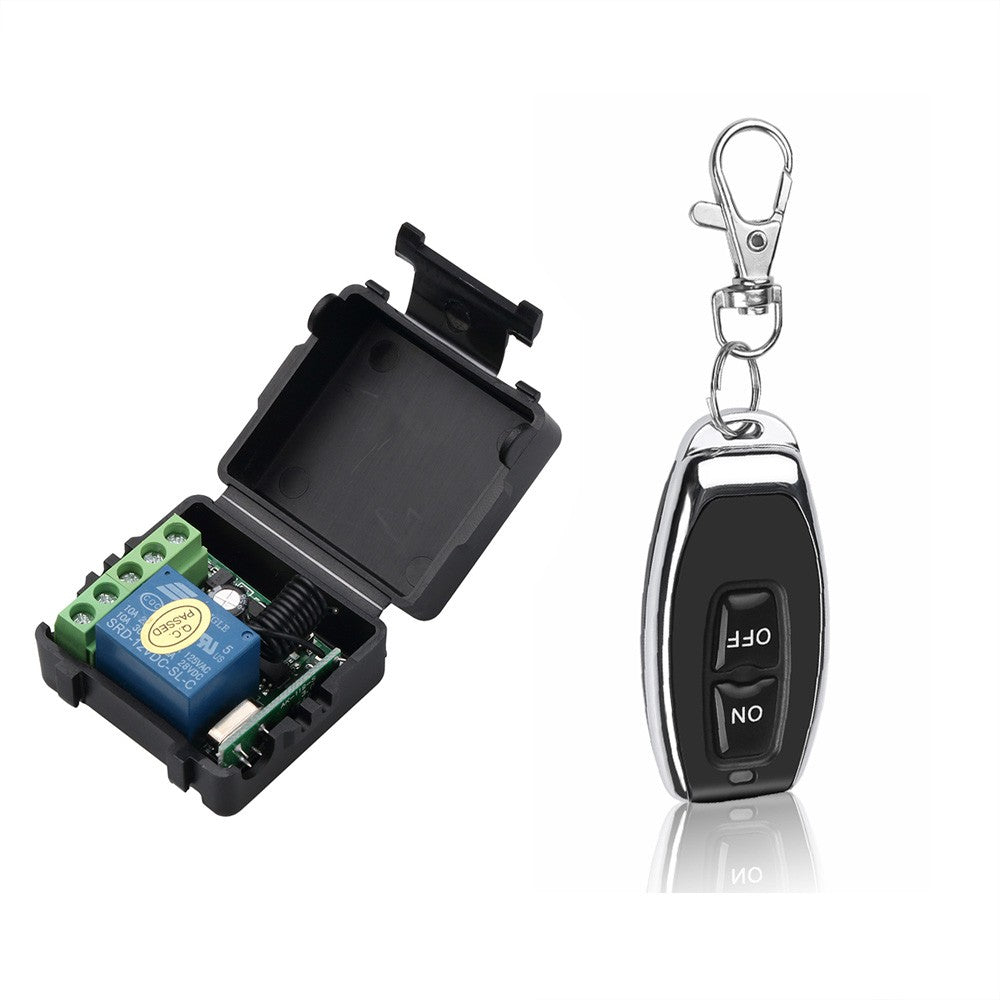

433MHz DC 12V Smart Home Wireless Remote Switch, 1CH

Product Features

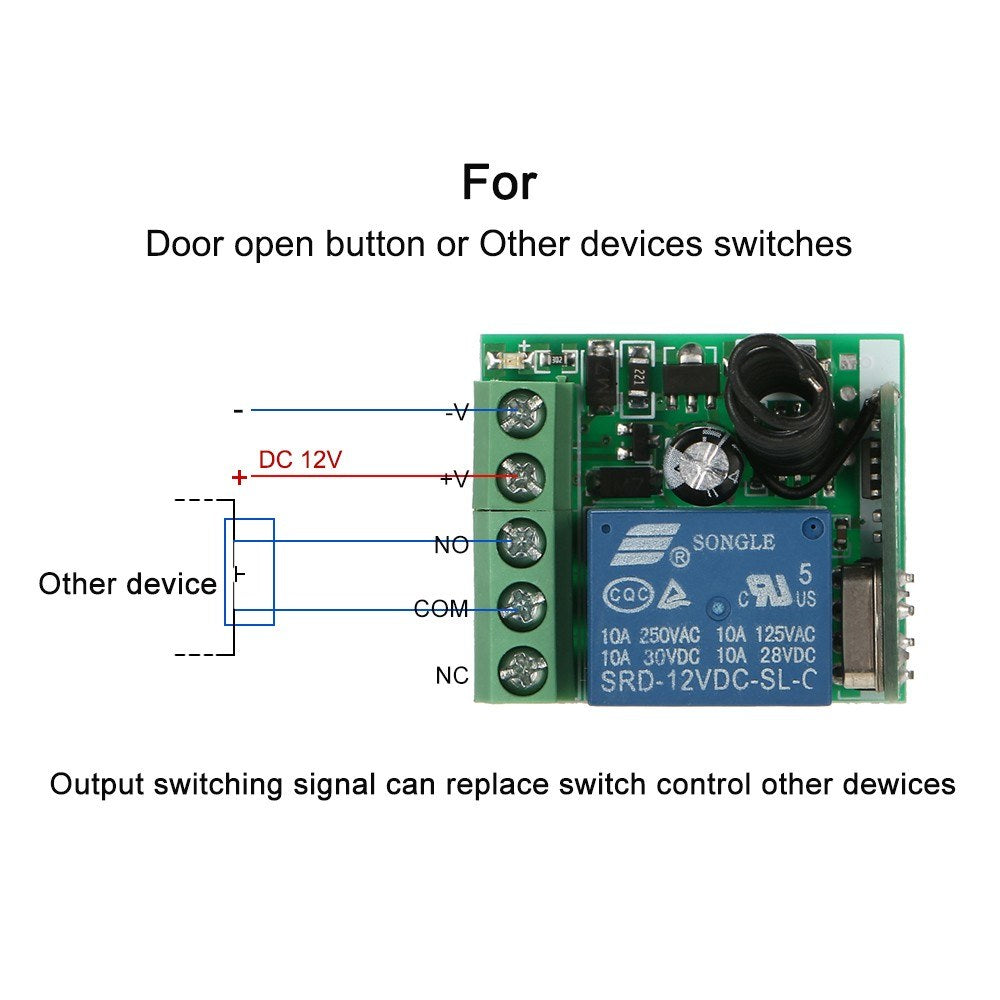

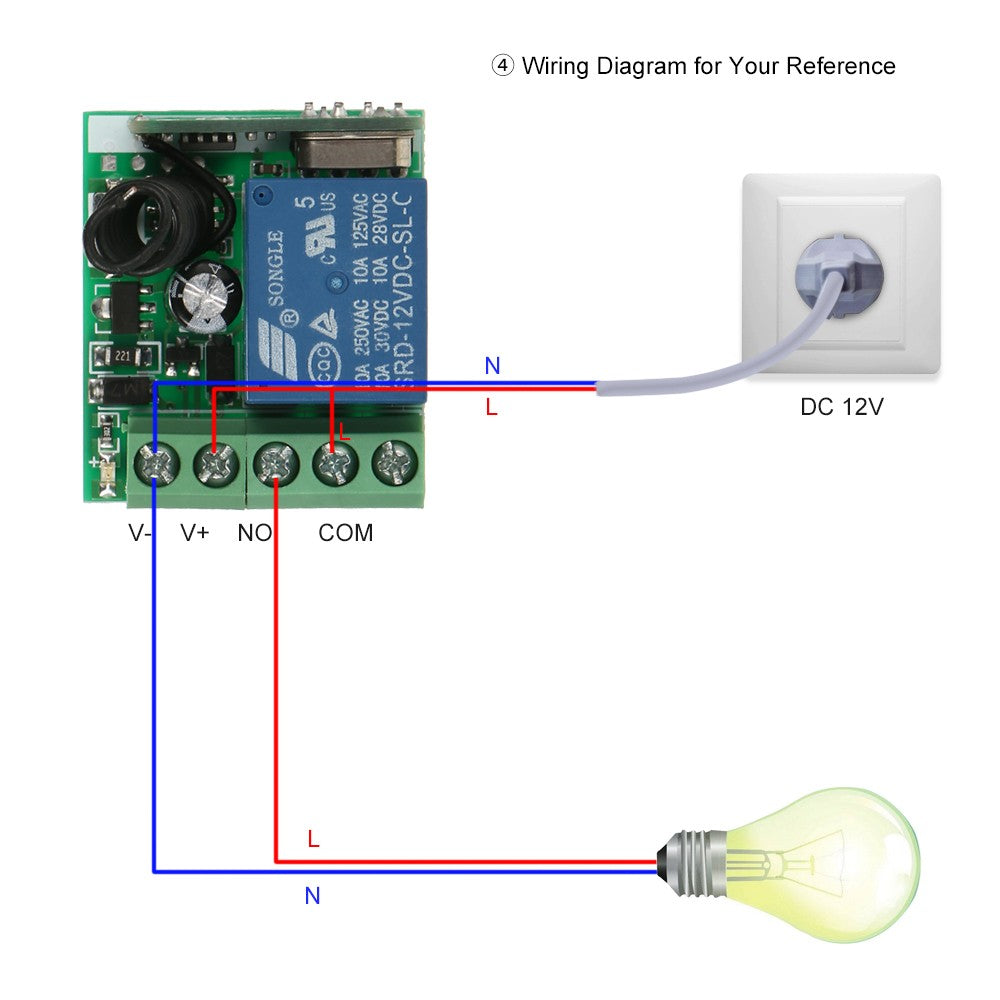

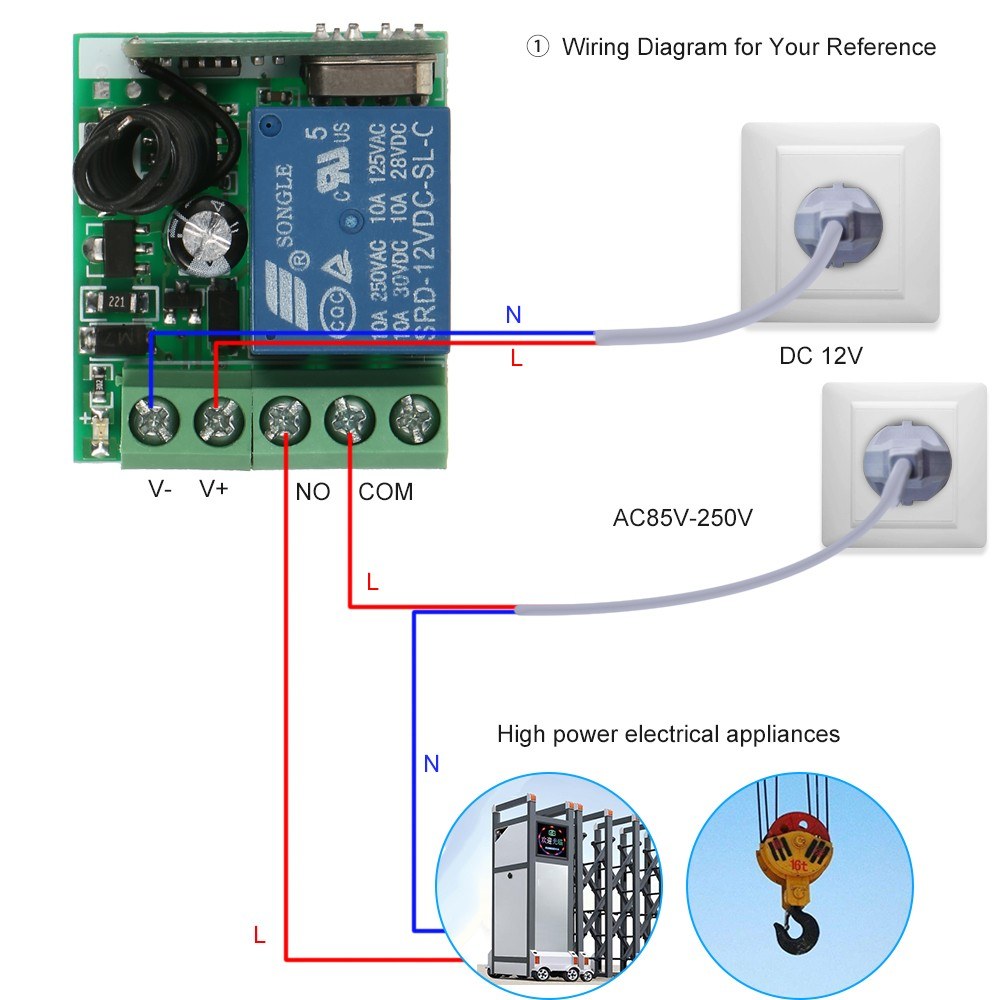

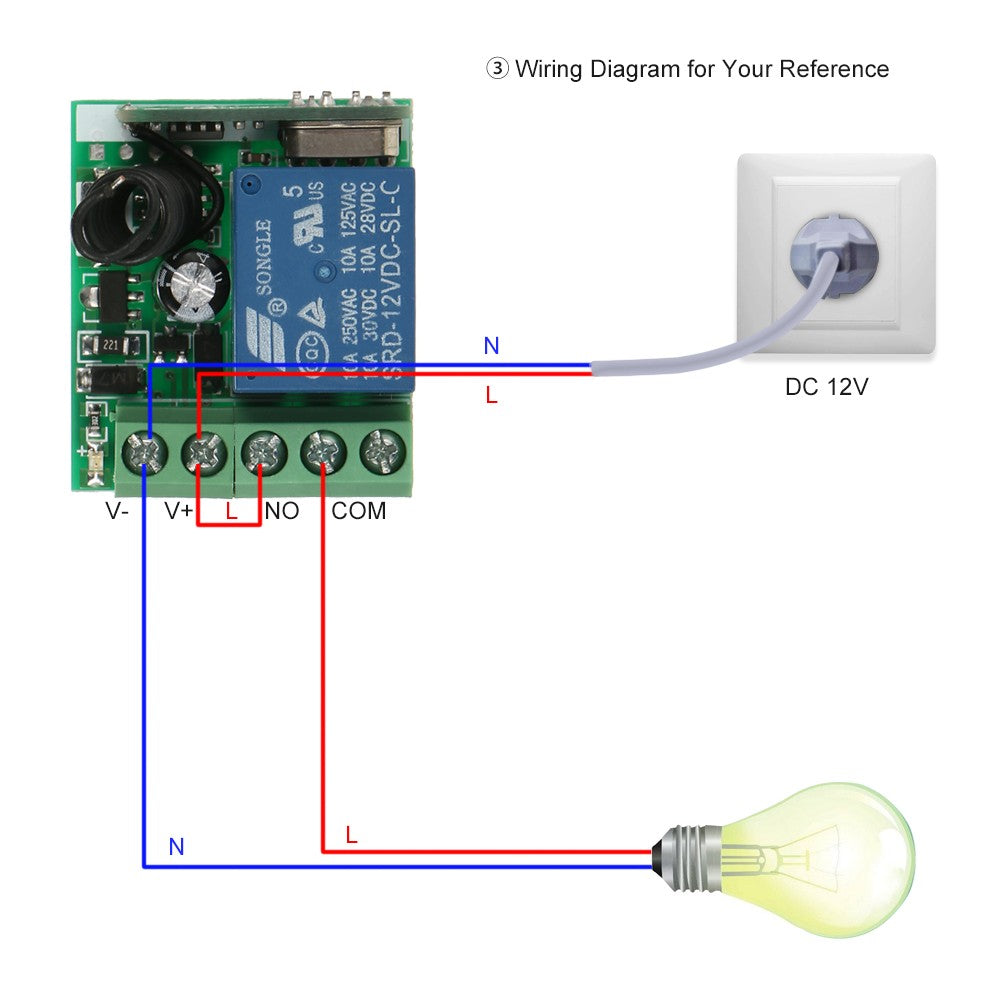

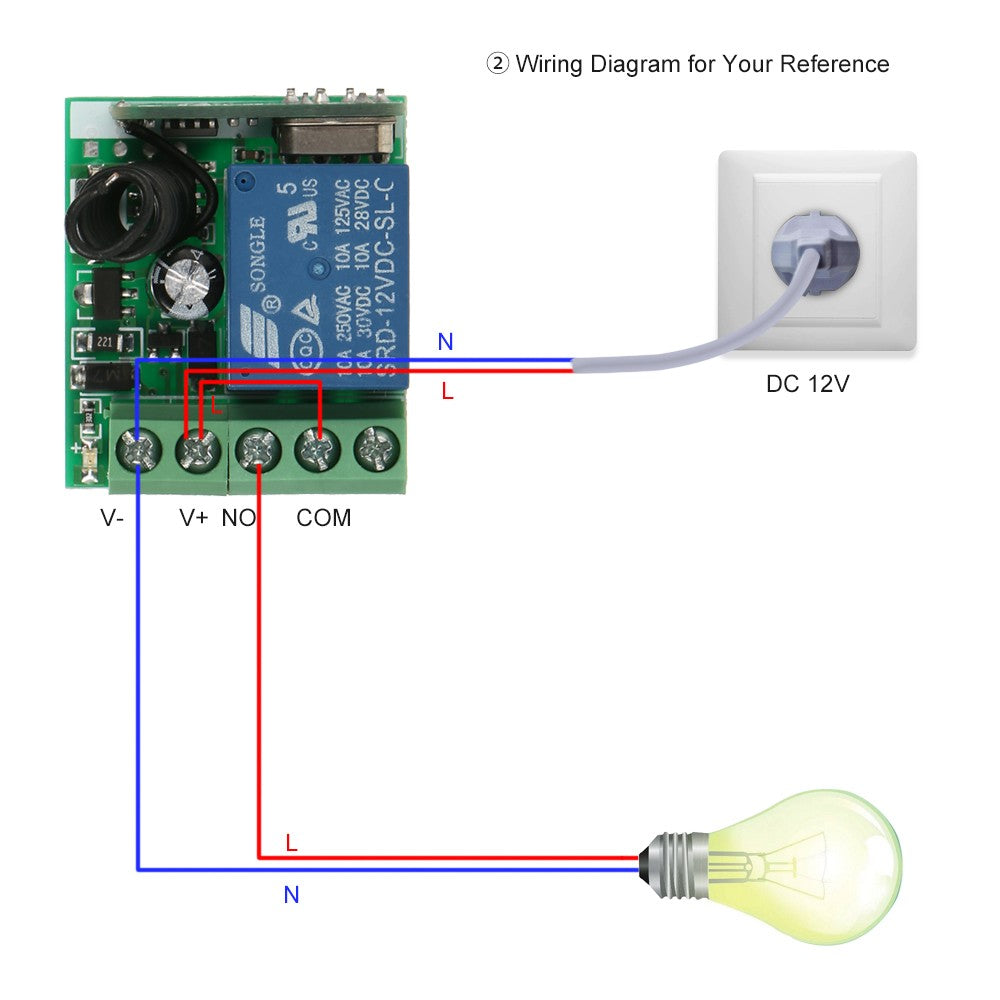

• Easy to use with a simple wiring diagram for installation.
• Supports remote control operation with up to 20 remotes. Its compact design saves space.

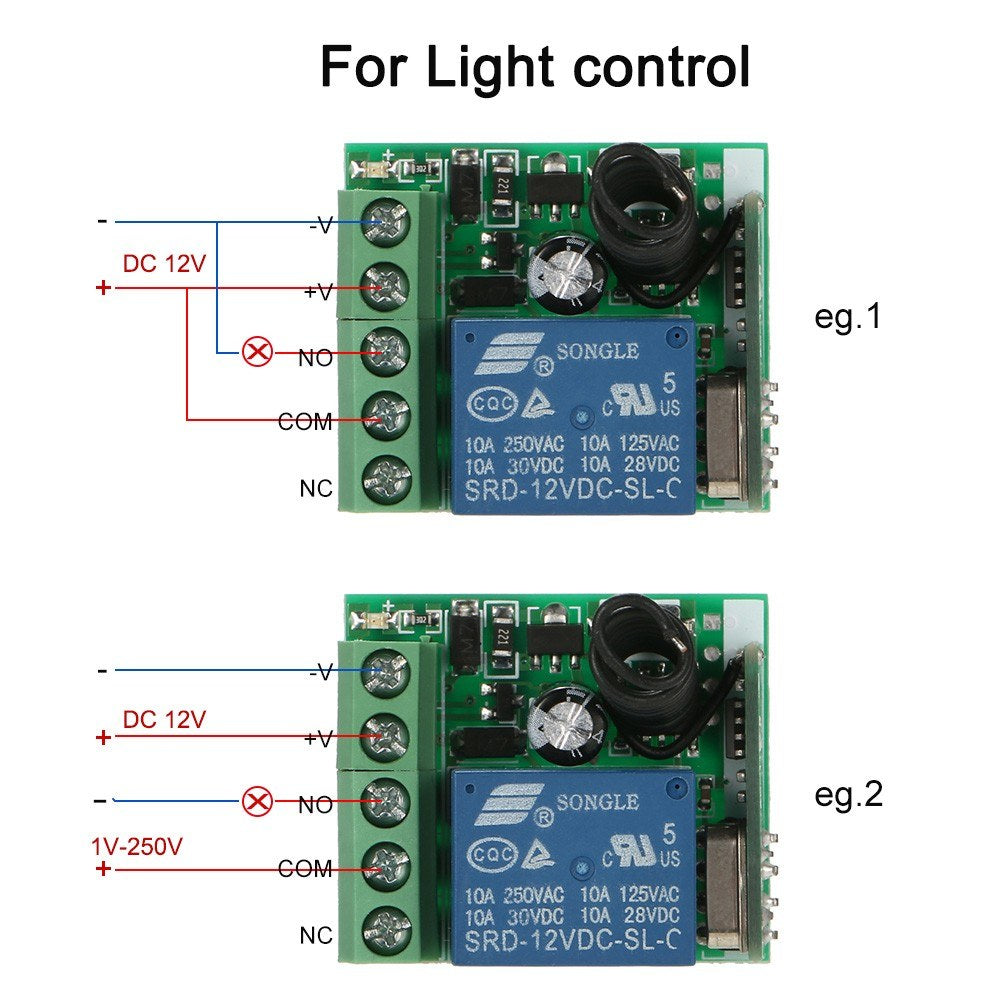

• Compatible with electronic control systems like locks, lights, and electric curtains for versatile control of your environment.
• Customizable working modes: switch between momentary, toggle, and latching modes as per your requirements.
• Features a learning pair code function, allowing easy re-pairing with any remote control of the same frequency, making replacement effortless.

Technical Specifications

• Input Power: DC 10V-14V
• Standby Current: Less than 5mA
• RF Frequency: 433 MHz
• RF Working Mode: Superheterodyne reception
• Receive Sensitivity: Greater than 97 dBm
• Transmitting Distance: Up to 100 meters in open areas
• Decoding Mode: MCU software decoding
• Remote Control Storage: Supports up to 20 remotes
• Working Mode Options: Momentary, Toggle, Latching
• Wiring Type: Fixed terminal
• Output Terminal Options: NO, NC, COM
• Remote Control Battery: 2 x 3V button batteries (included)
• Supporting Remote Control Type: Learning code (1527 chip)

Package Information

• Package Size: Approximately 13 x 9 x 3 cm (5.12 x 3.54 x 1.18 inches)
• Package Weight: Approximately 50g (1.8 oz) with 1 remote control
• Package Weight: Approximately 70g (2.5 oz) with 2 remote controls

Package List

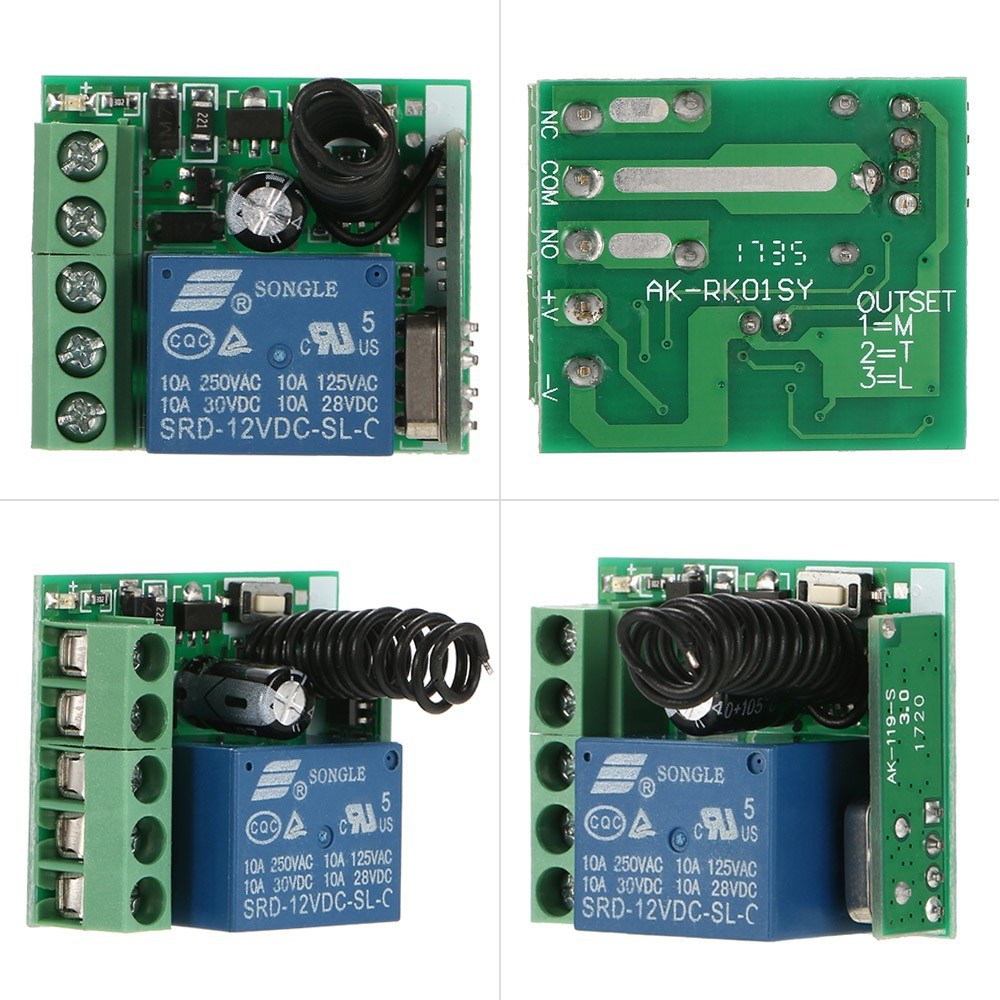

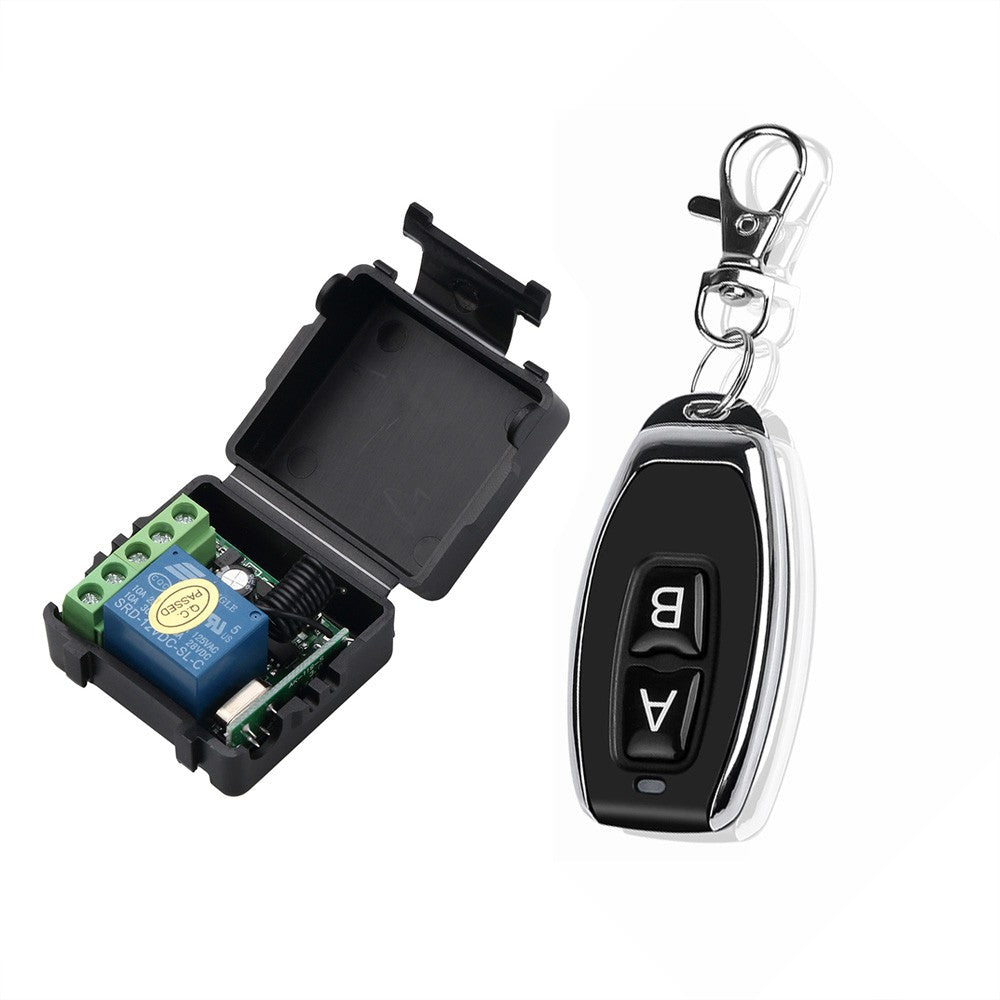

• 1 x Receiver Board
• 1 x Fuse Box
• 1 or 2 x Remote Control(s)
