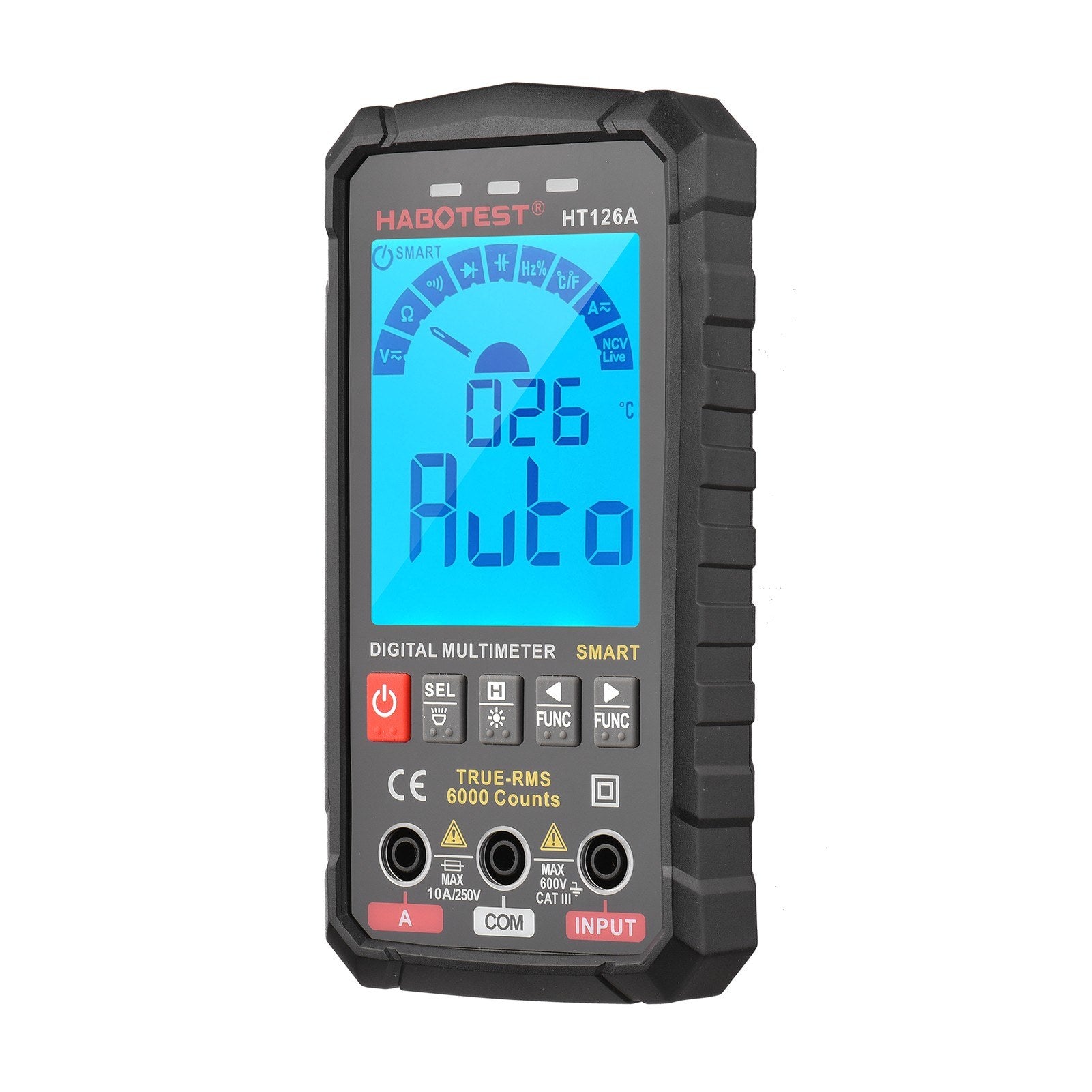

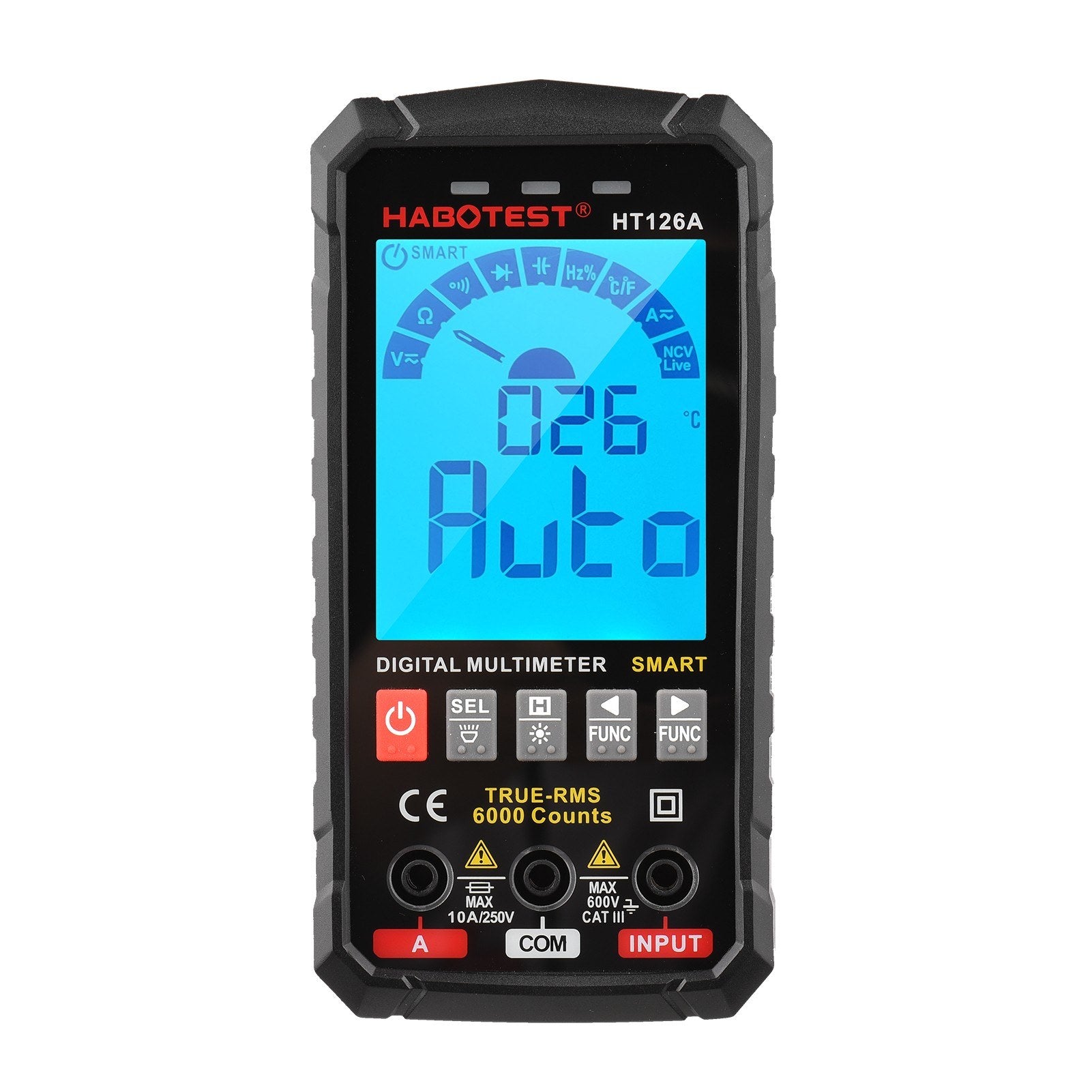

Smart Digital Multimeter

Experience the convenience and versatility of this multifunctional tool, combining the capabilities of a multimeter, temperature meter, electrical test pen, and flashlight. With its digital screen for easy reading and compact size for effortless portability, this tool is perfect for electrical testing, temperature measurement, automotive repair, and addressing a range of household and industrial electrical problems.

Features:

• Multifunction Multimeter: A 3-in-1 digital multimeter, temperature meter, and electrical test pen that can be widely used for various electrical testing needs.

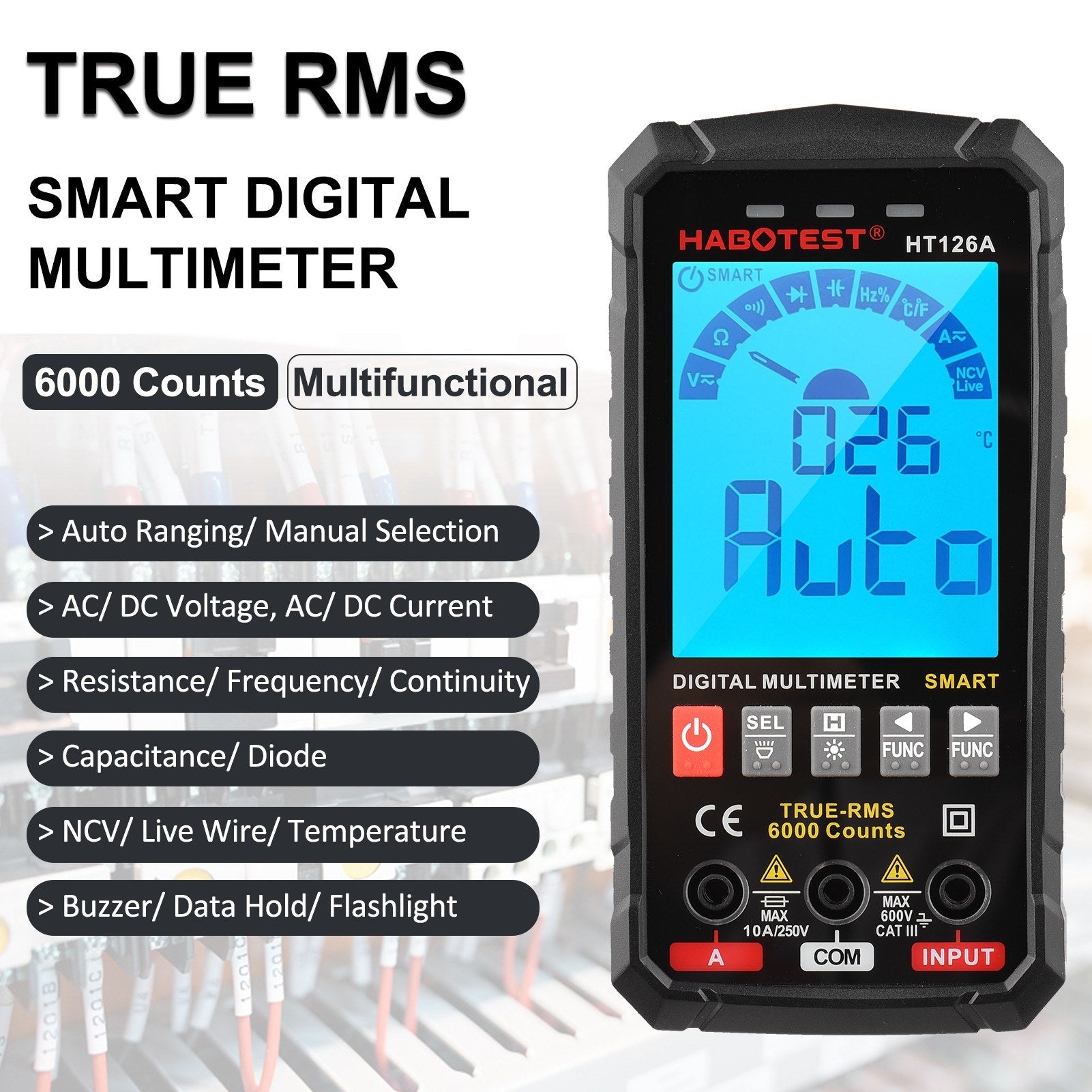

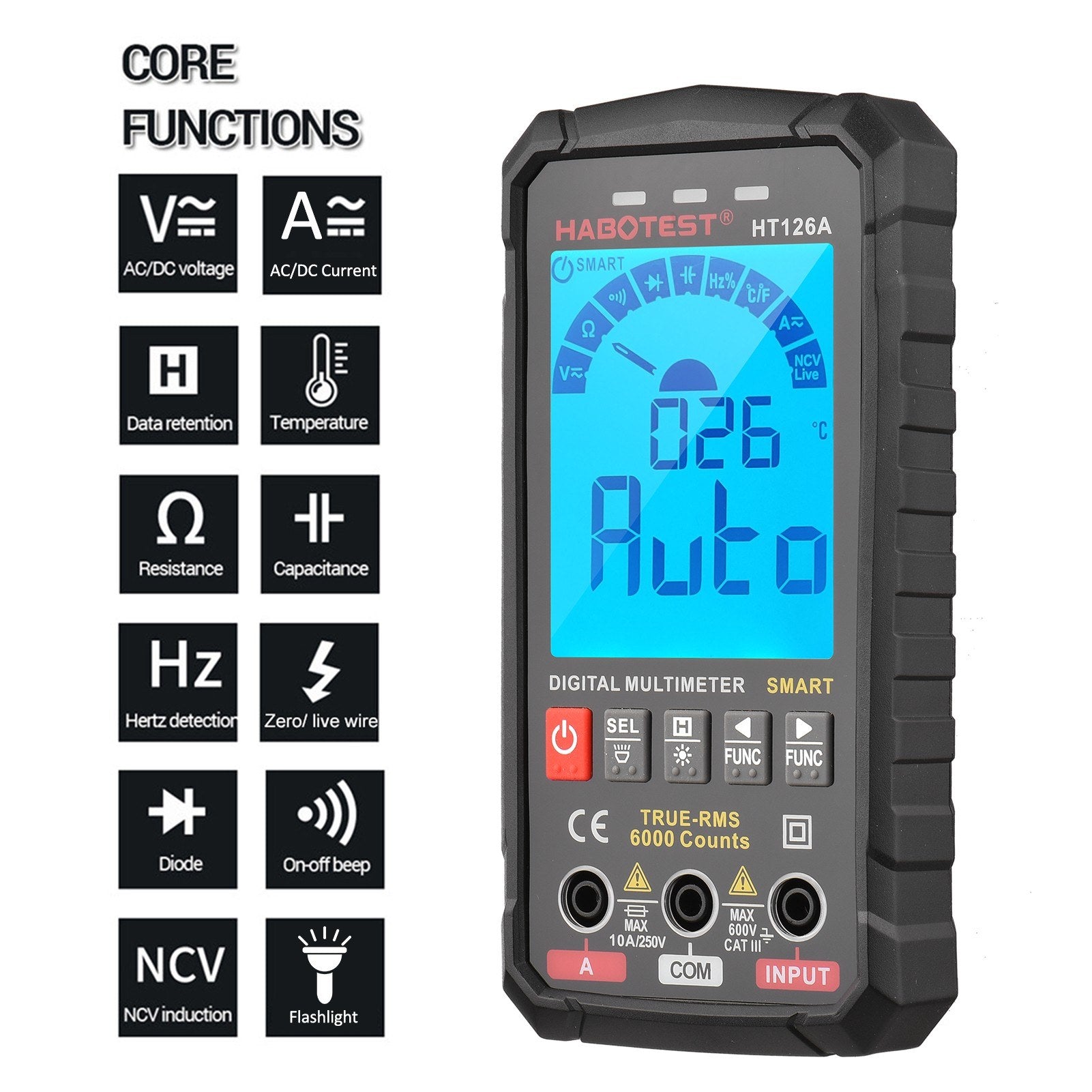

• Auto/ Manual Ranging: High accuracy with a true RMS and 6000 counts. It auto recognizes or allows manual selection for AC/DC voltage, AC/DC current, resistance, capacitance, diode, frequency, continuity, and temperature.
• Temperature Measurement: Equipped with a thermocouple, it offers a wide range of -40~1000℃ (-40~1832℉) for industrial temperature measurement, providing quick response and accurate data.

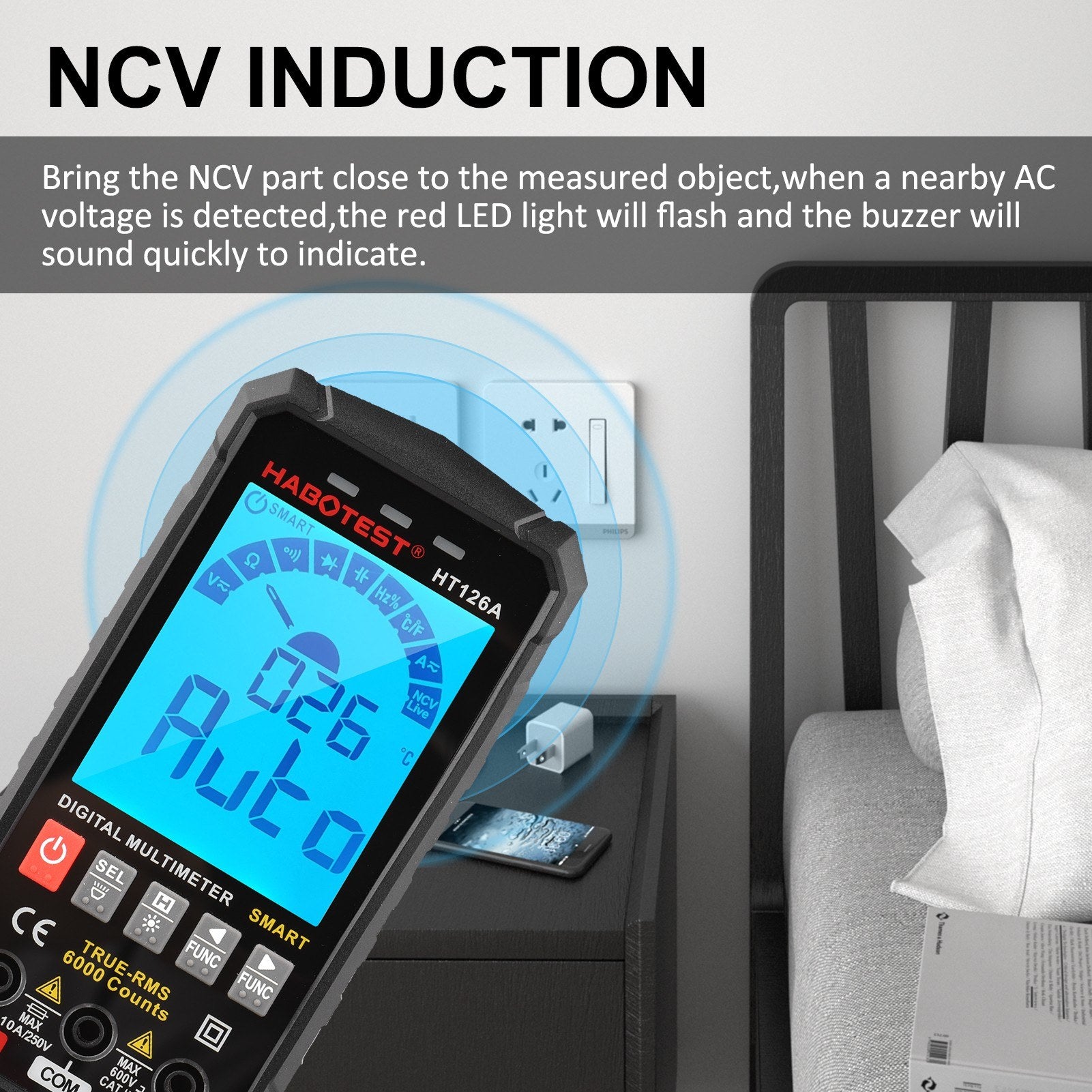

• NCV Induction: Safely detect AC voltage with a non-contact design. The red LED flashes and buzzer sounds when nearby AC voltage is found.

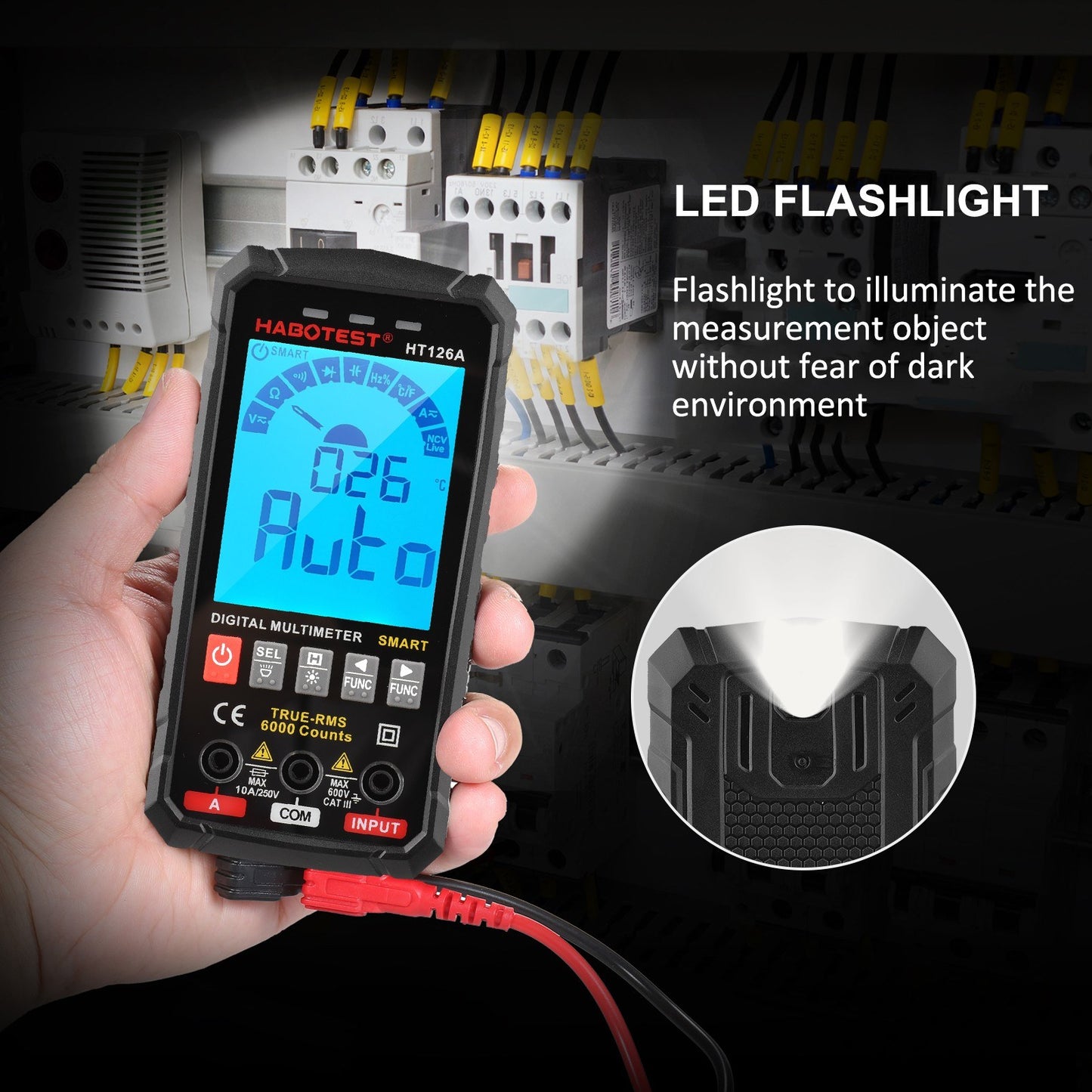

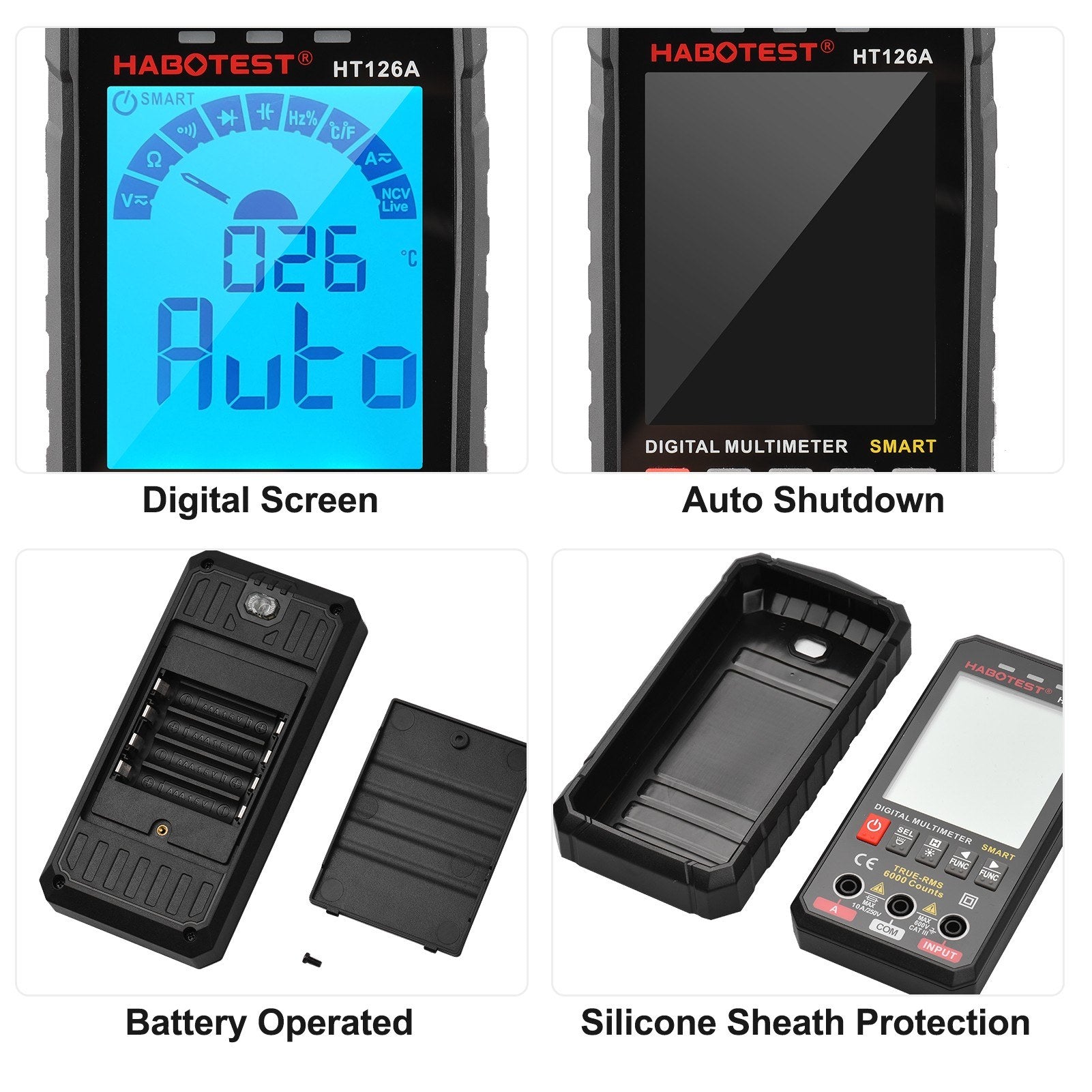

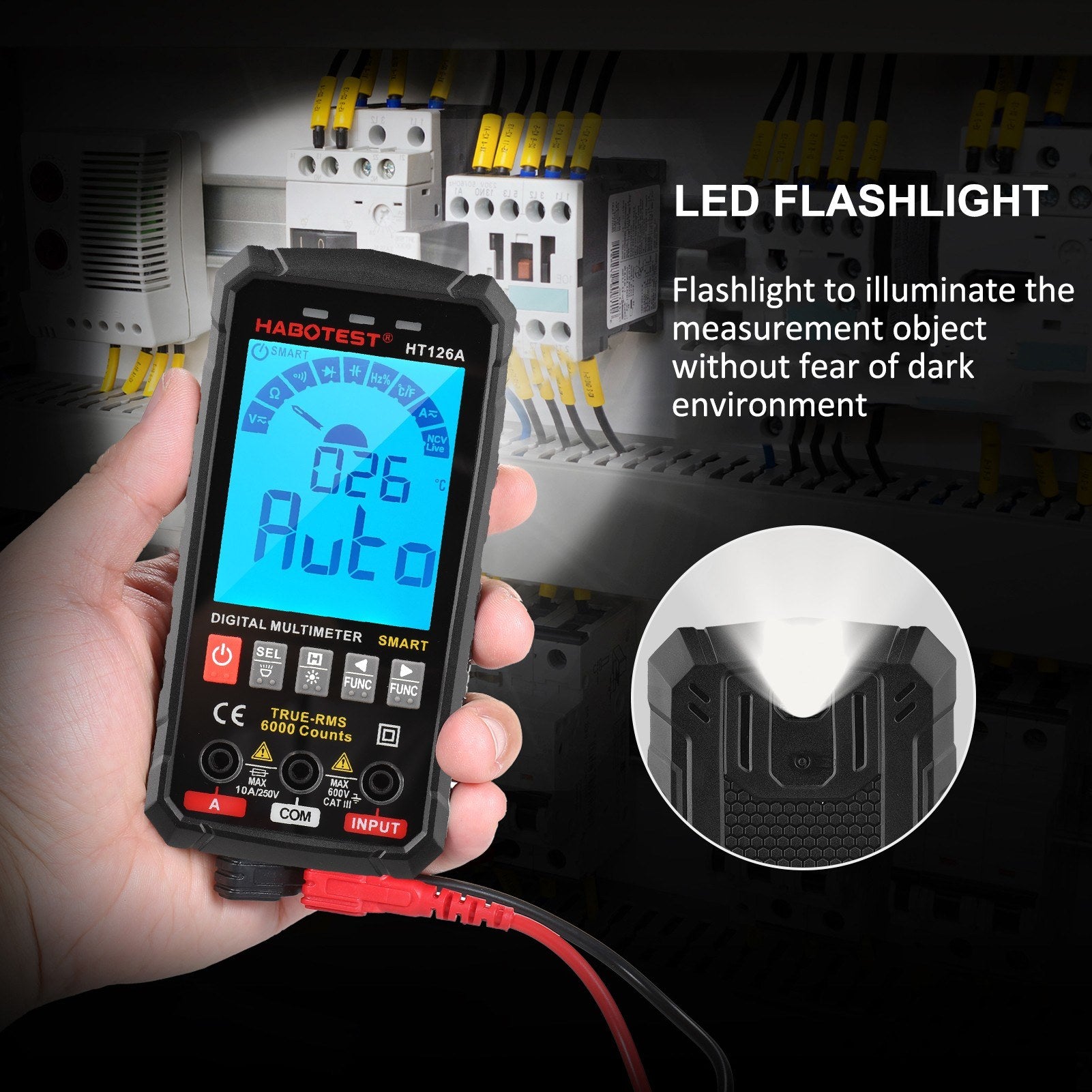

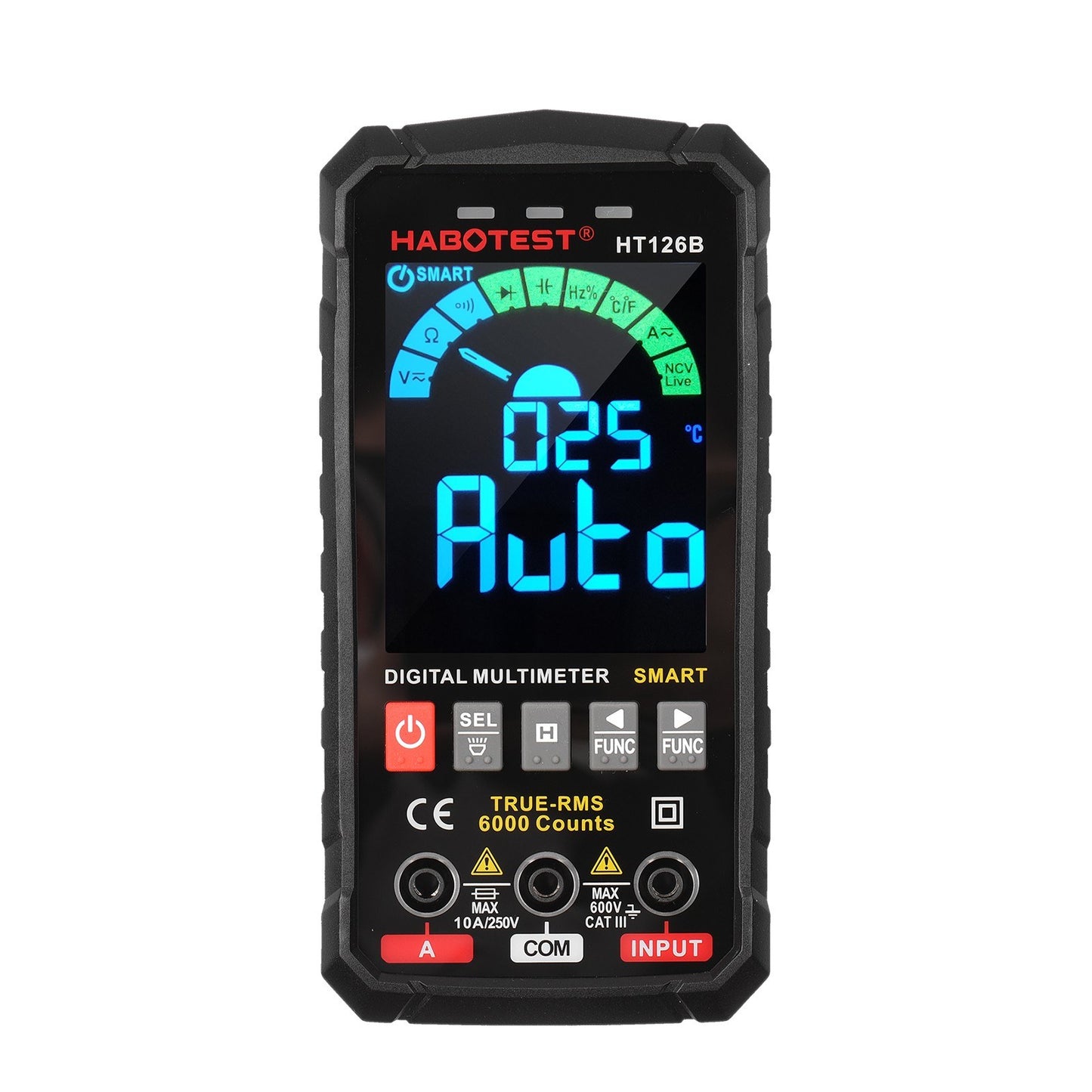

• Digital Screen & Flashlight: Enhance your reading experience with an LCD backlight screen (HT126A) or a VA color screen (HT126B). The built-in flashlight illuminates measured objects in dark environments.
• Battery Powered & Compact: Operates on 4 AAA batteries (not included). It features automatic shutdown after about 15 minutes of idle time to save power. Designed ergonomically for easy portability.
• Silicone Sheath Protection: Offers protection against falls and scratches with a covering silicone sheath, ensuring the longevity of your multimeter.

Note:

1. Please read the user manual carefully before use.
2. Size and color may vary slightly due to manual measurement and different light conditions. Thanks for understanding.

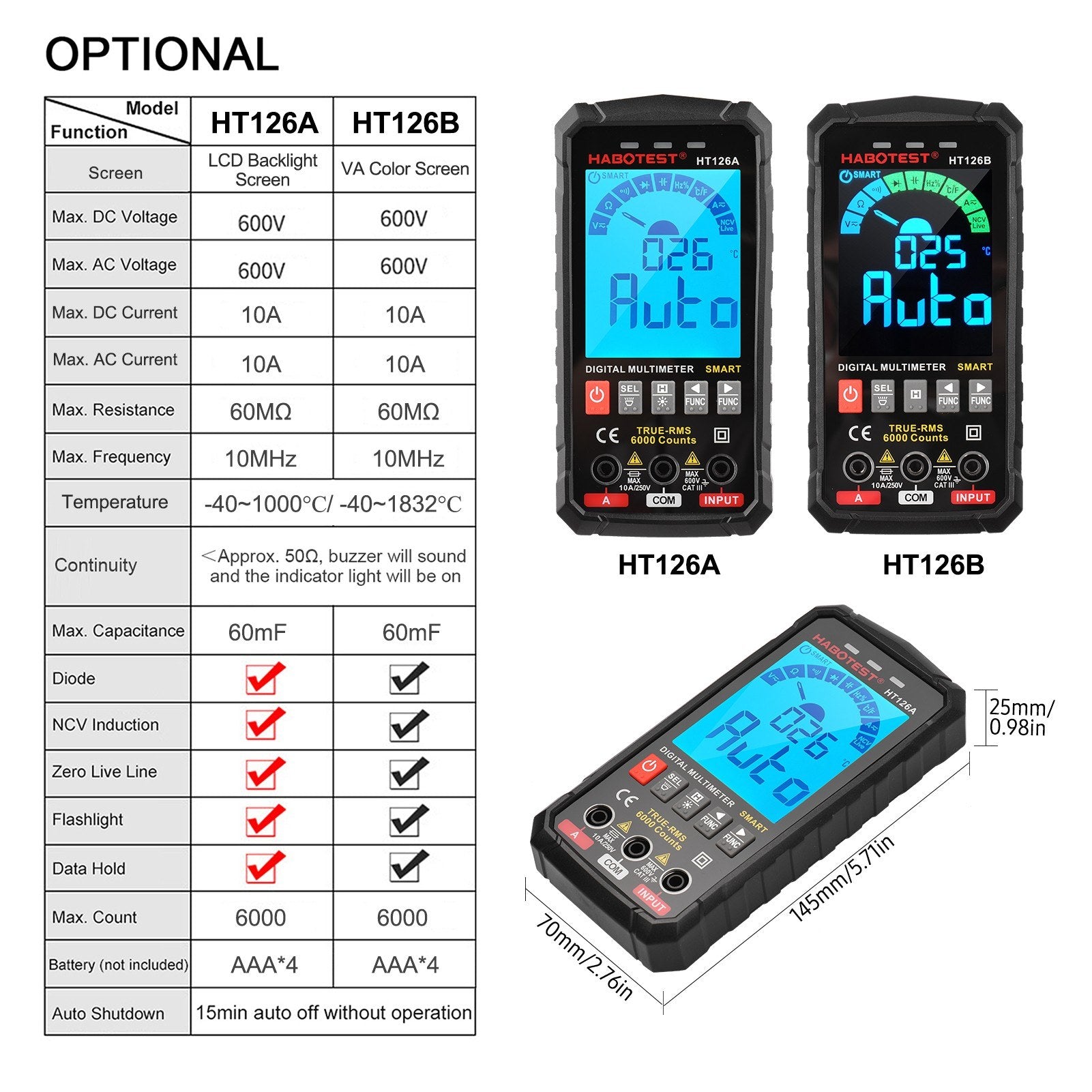

Specifications:

• Model: HT126A/ HT126B (Optional)
• Material: ABS
• Screen: LCD Backlight Display (HT126A)/ VA Color Screen (HT126B)
• True RMS: Yes
• Counts: 6000
• Max. Voltage: 600V DC or AC
• Max. Current: 10A DC or AC
• Max. Capacitance: 60mF
• Max. Resistance: 60MΩ
• Max. Frequency: 10MHz
• Temperature Measuring Range: -40~1000℃/ -40~1832℉
• Diode/Continuity/NCV Induction: Yes
• Auto Shutdown: about 15min
• Power Supply: 4 * 1.5V AAA Battery (NOT included)
• Operating Environment: Temperature 0~40℃, Humidity <80% RH
• Storage Environment: Temperature -10~60℃, Humidity <70% RH, Remove the Batteries
• Altitude: <2000m
• Item Size: 145 * 70 * 25mm / 5.71 * 2.76 * 0.98in
• Item Weight (without batteries): 184g / 6.48oz
• Package Size: 17.5 * 10 * 5.5cm / 6.89 * 3.94 * 2.17in
• Package Weight: 367g / 12.94oz

Package List:

• 1 Smart Digital Multimeter
• 1 Thermocouple
• 2 Measuring Pens
• 1 User Manual (English)
• 1 Storage Bag
