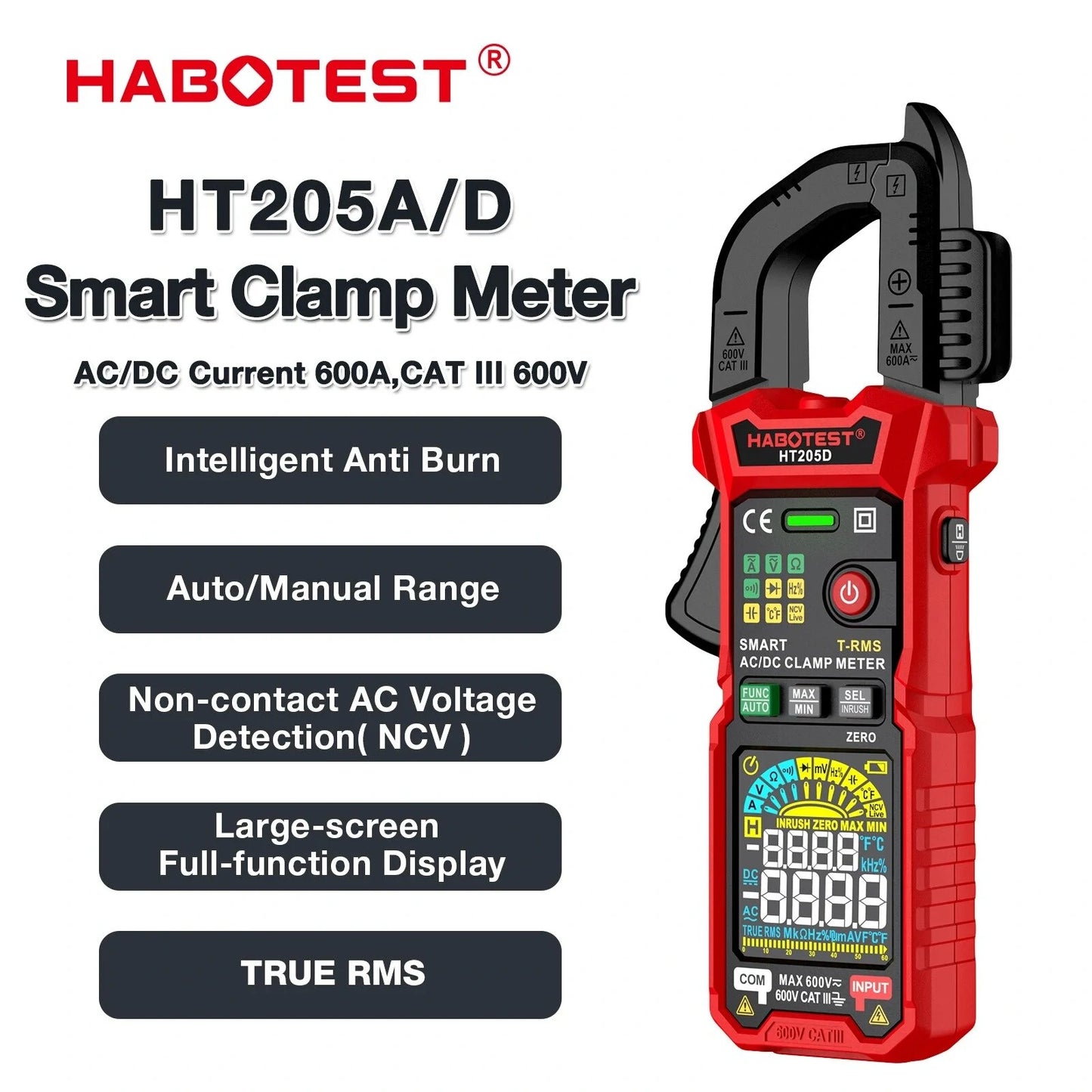

HABOTEST HT205 Inrush Clamp Meter 600A True RMS AC/DC Current, Voltage, Temperature, Capacitance Tester

HT205D Digital Clamp Multimeter

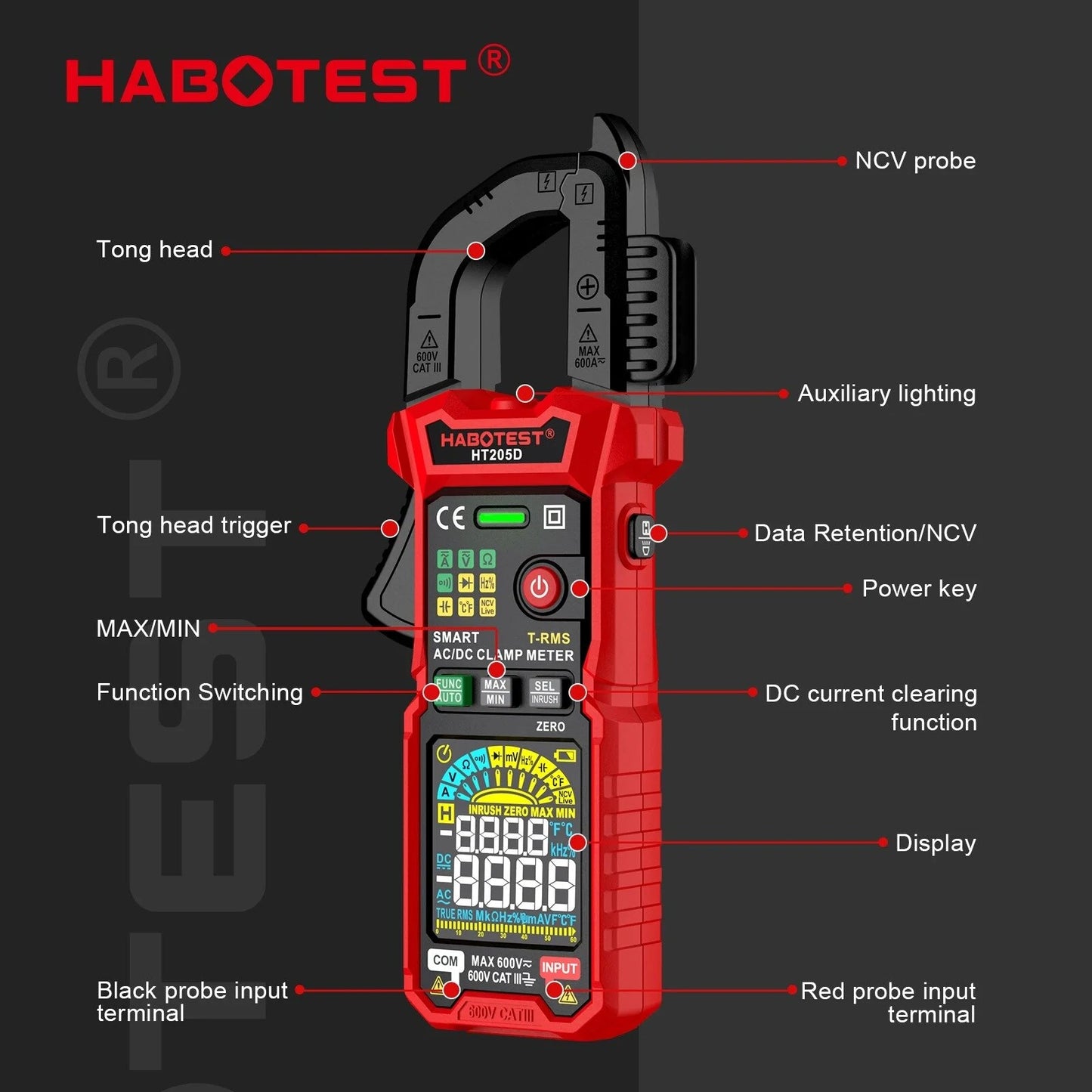

Features

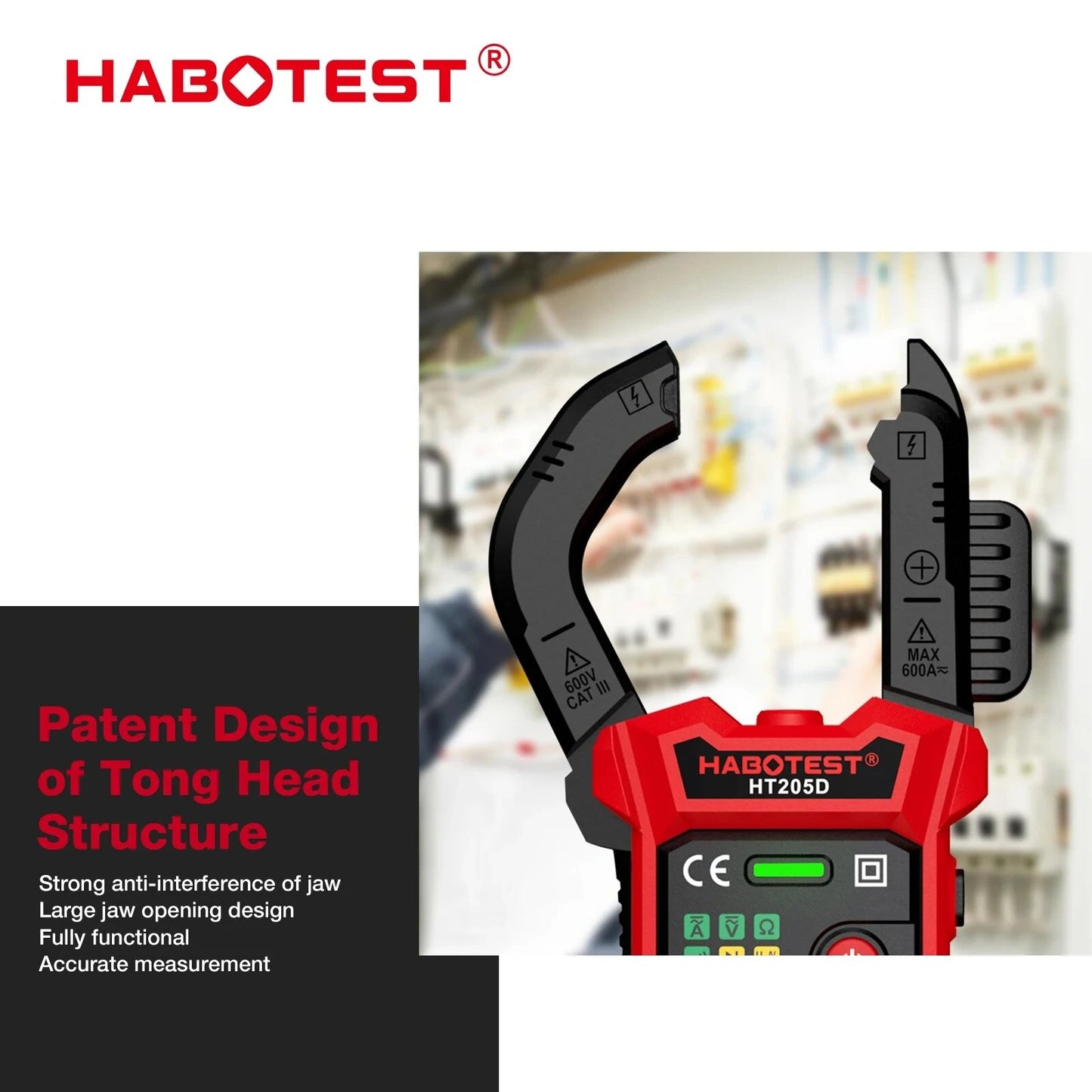

• "D" Type Mouth Design: Enjoy precise measurements with the unique "D" type mouth design of the HT205D.

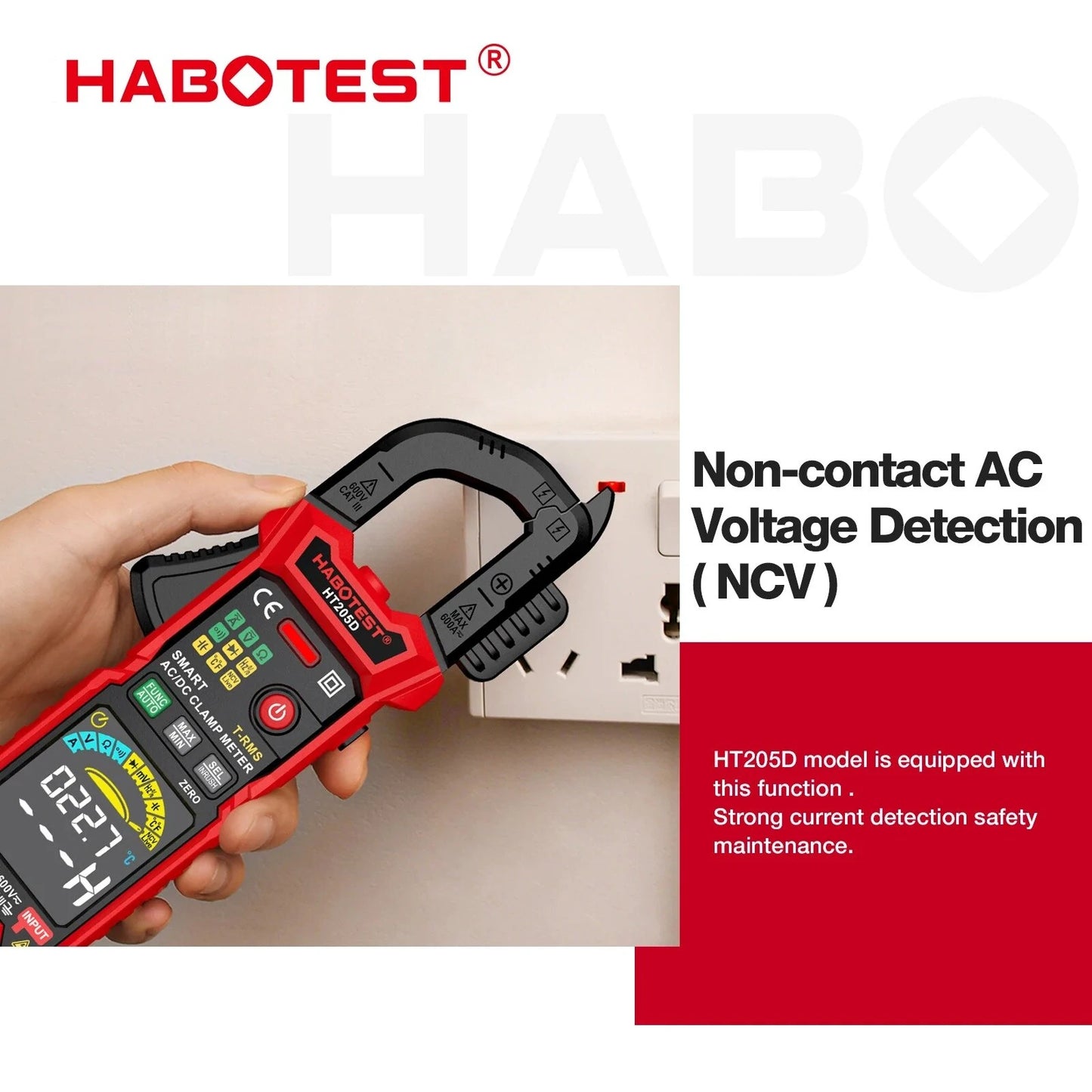

• Non-Contact AC Voltage Detector (NCV): Safely detect strong currents with the NCV function, ensuring secure maintenance.
• Test Pen Function: Identify neutral and live wires easily and efficiently, enhancing operational safety.
• Auto Power Off: Save battery life with the automatic power-off feature.
• Convenient and Safe: Features like data hold, backlight, flashlight, and automatic range enhance user convenience and safety.

Specifications

• DC Voltage: 600mV/6V/60V/600V ±(0.5%+5)
• AC Voltage: ±(0.8%+5) 600mV/6V/60V/600V ±(2.5%+5)
• DC Current: 60A/600A ±(2.5%+5)
• AC Current: 60A/600A ±(2.5%+5)
• Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(1.0%+5)
• Capacitance: 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF ±(4.0%+5)
• Frequency: 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz ±(1.0%+3) ±(3.0%+3)
• Duty: 1%~99% ±(1.0%+3)
• Temperature (°C/°F): -40°C~1000°C/-40°F~1832°F ±(1.0%+3)
• Continuity: 600Ω
• Diode: Yes
• NCV: Yes
• Live: Yes
• Counts: 6000
• Analog Bar: Yes
• Data Hold: Yes
• Max/Min: Yes
• Backlight: Yes
• Flashlight: Yes
• DCA ZERO: Yes
• SMART or AUTO: Yes
• Low Battery Indication: Yes
• Auto Power Off: Yes
• True RMS: Yes
• Product Weight: Approx. 206g
• Power: 3 x 1.5V AAA batteries (batteries not included)

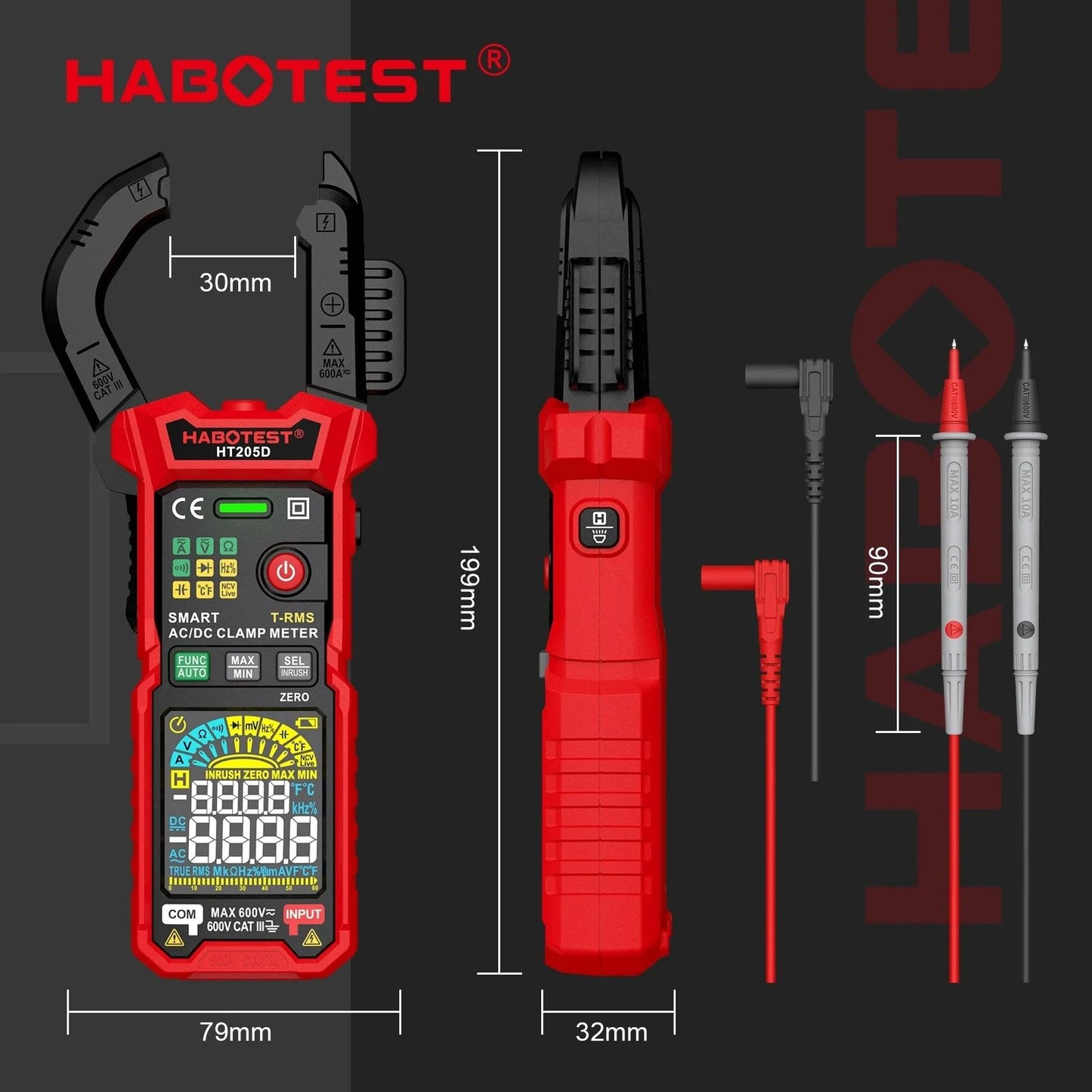

• Product Size: 199×79×32mm
• Safety Rating: EN61010-1, -2-030, EN61010-2-033, EN61326-1, CAT III 600V

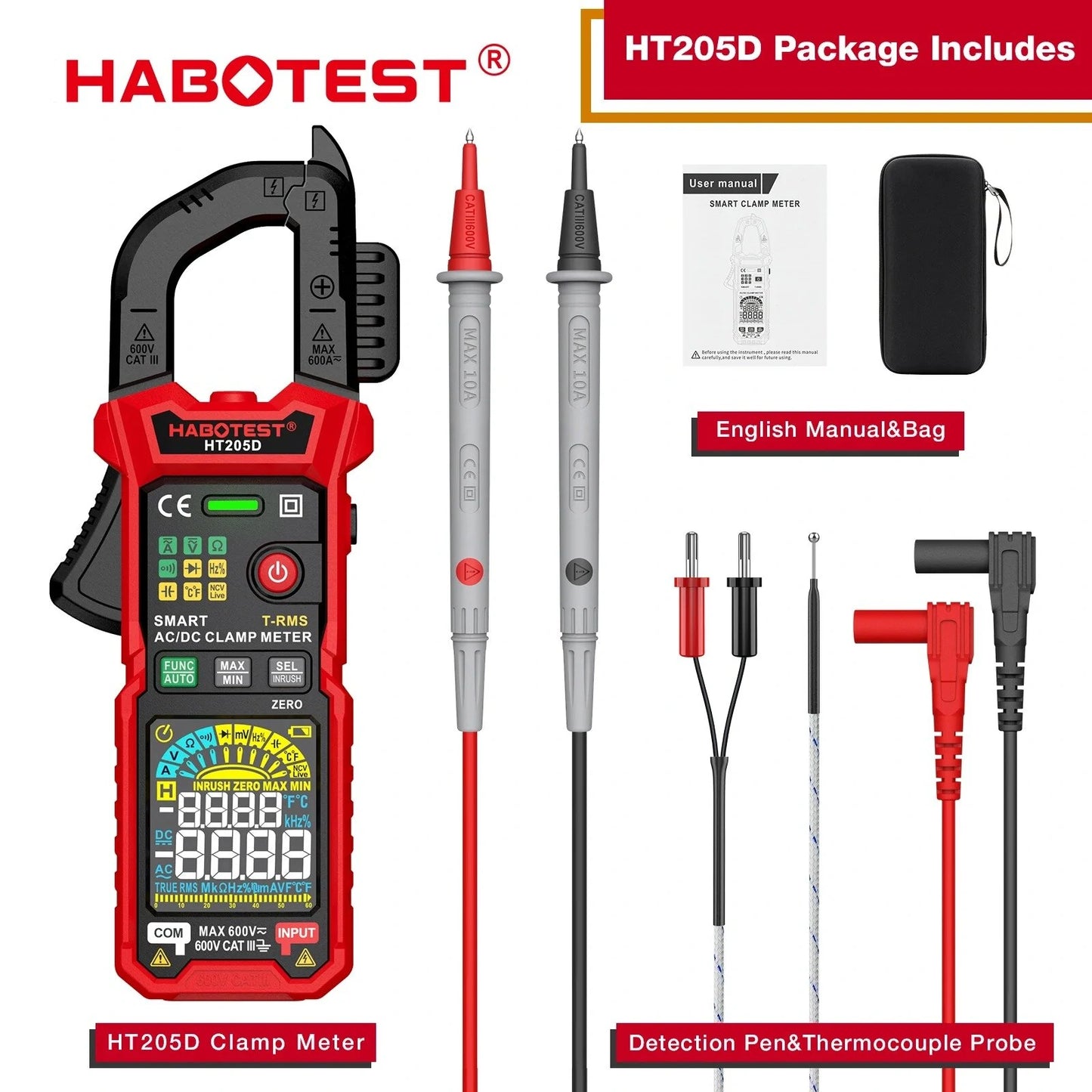

Package Included

• 1 x HT205D Digital Clamp Multimeter
• 1 x Test Pen
• 1 x User Manual
