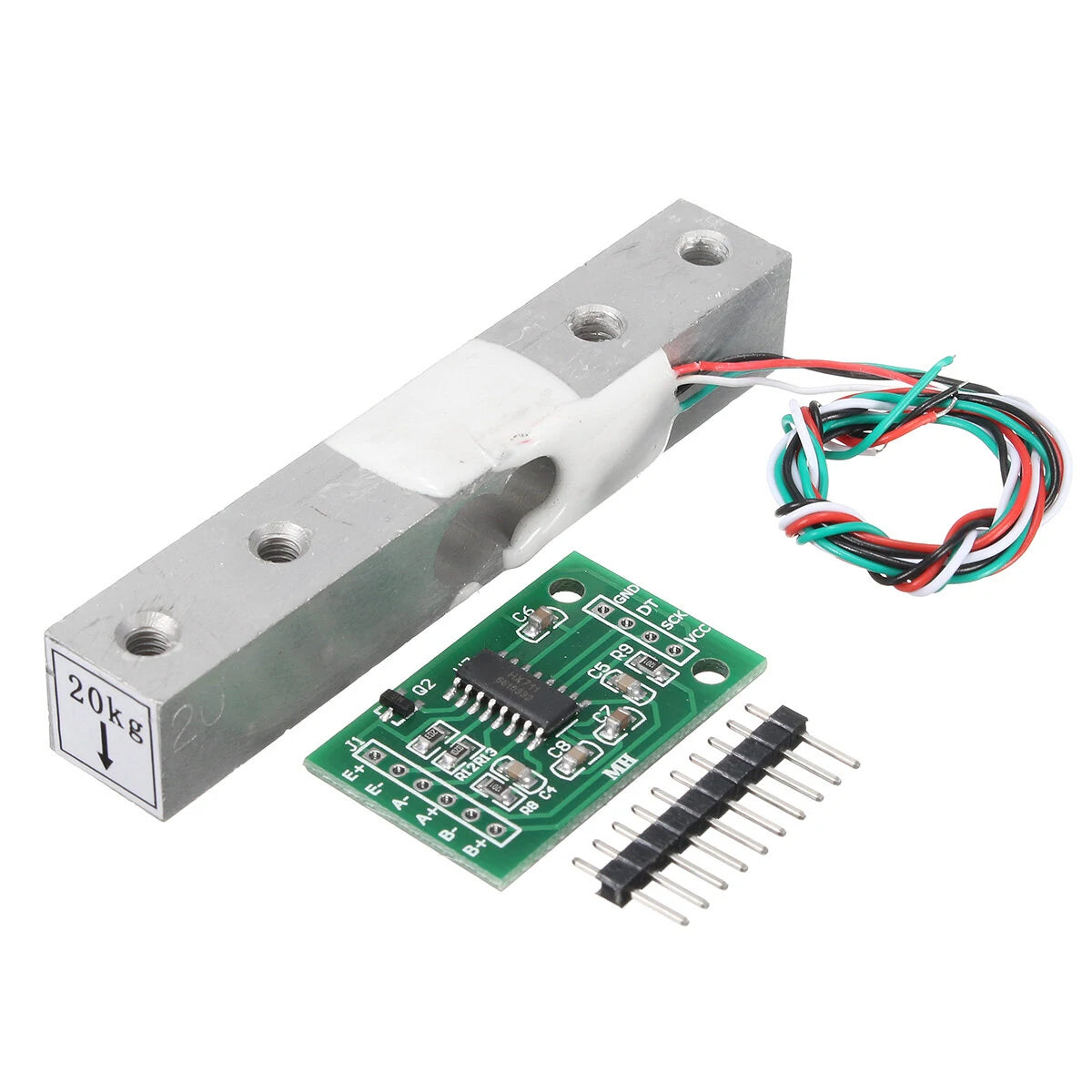

20kg Load Cell Kit with HX711 Module & Aluminum Alloy Sensor

Product Details

Specifications

• Comprehensive Error: 0.05% F.S
• Rated Output Temperature Drift: ≤ 0.15% F.S / 10°C
• Output Sensitivity: 1.0 ± 0.1 mV/V
• Zero Drift: 0.05% F.S (1 minute)
• Zero Point Temperature Drift: 0.2% F.S / 10°C
• Zero Output: ± 0.1 mV/V
• Input Impedance: 1000 ± 50Ω
• Output Impedance: 1000 ± 50Ω
• Overload Capacity: 150% F.S
• Recommended Excitation Voltage: 5-10V
• Operating Temperature Range: -10 to +50°C

Application

Ideal for high-precision small-scale weighing tasks like micro-automatic testing equipment, micro-weighing equipment, push and pull equipment, and pull pressure tests.

Wiring Information

• Red: E+
• Black: E-
• White: A-
• Green: A+

Package Includes

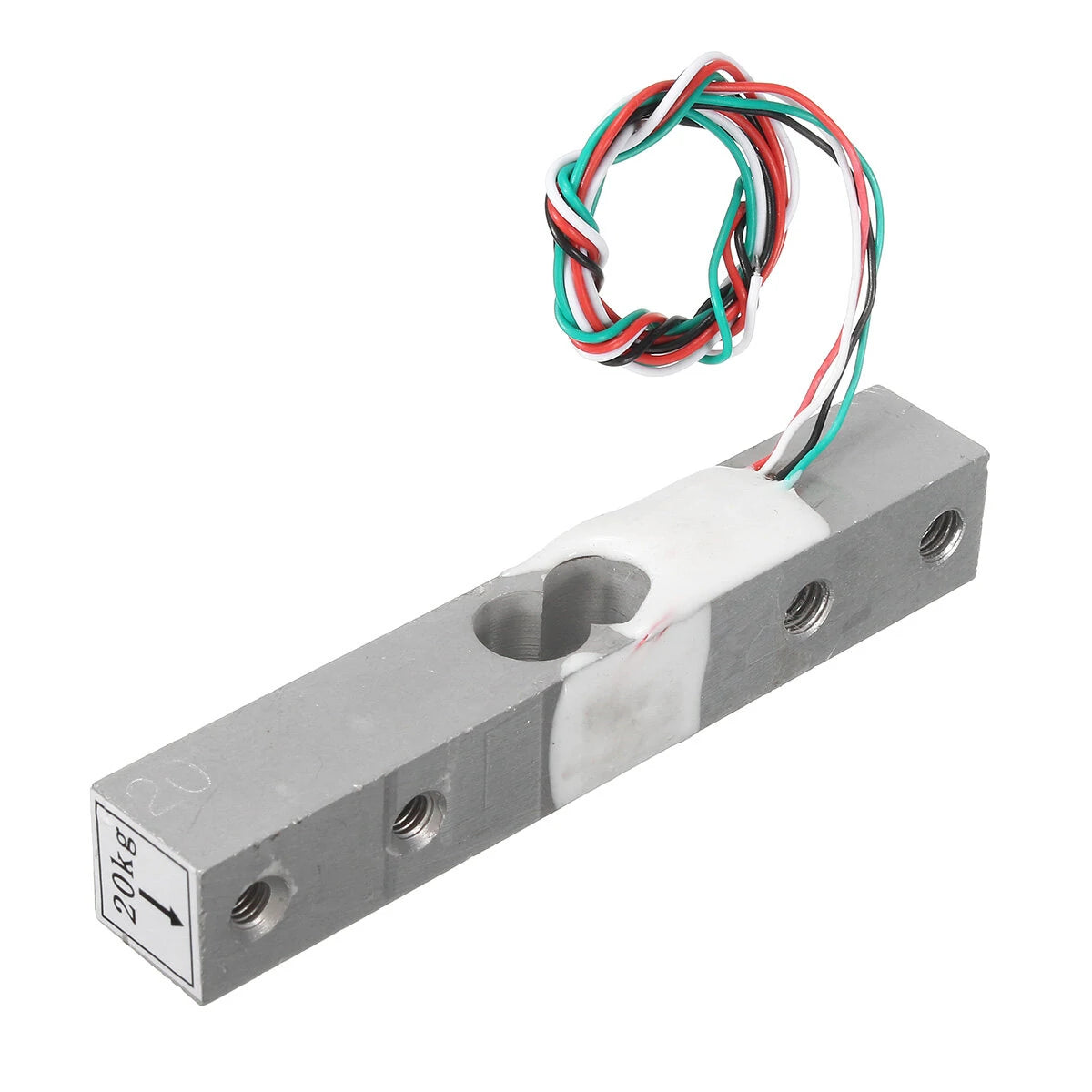

• 1 x Weighing Sensor Load Cell

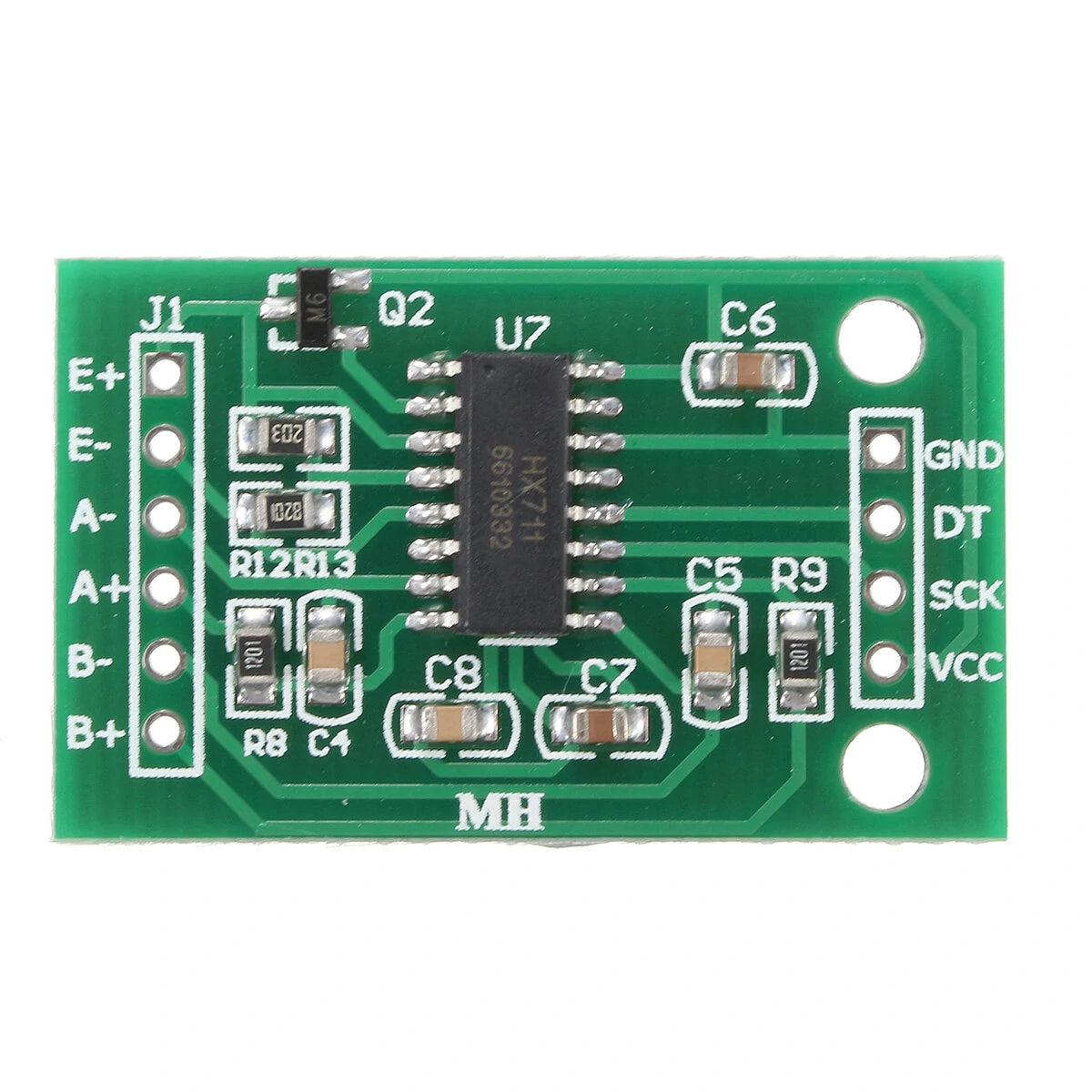

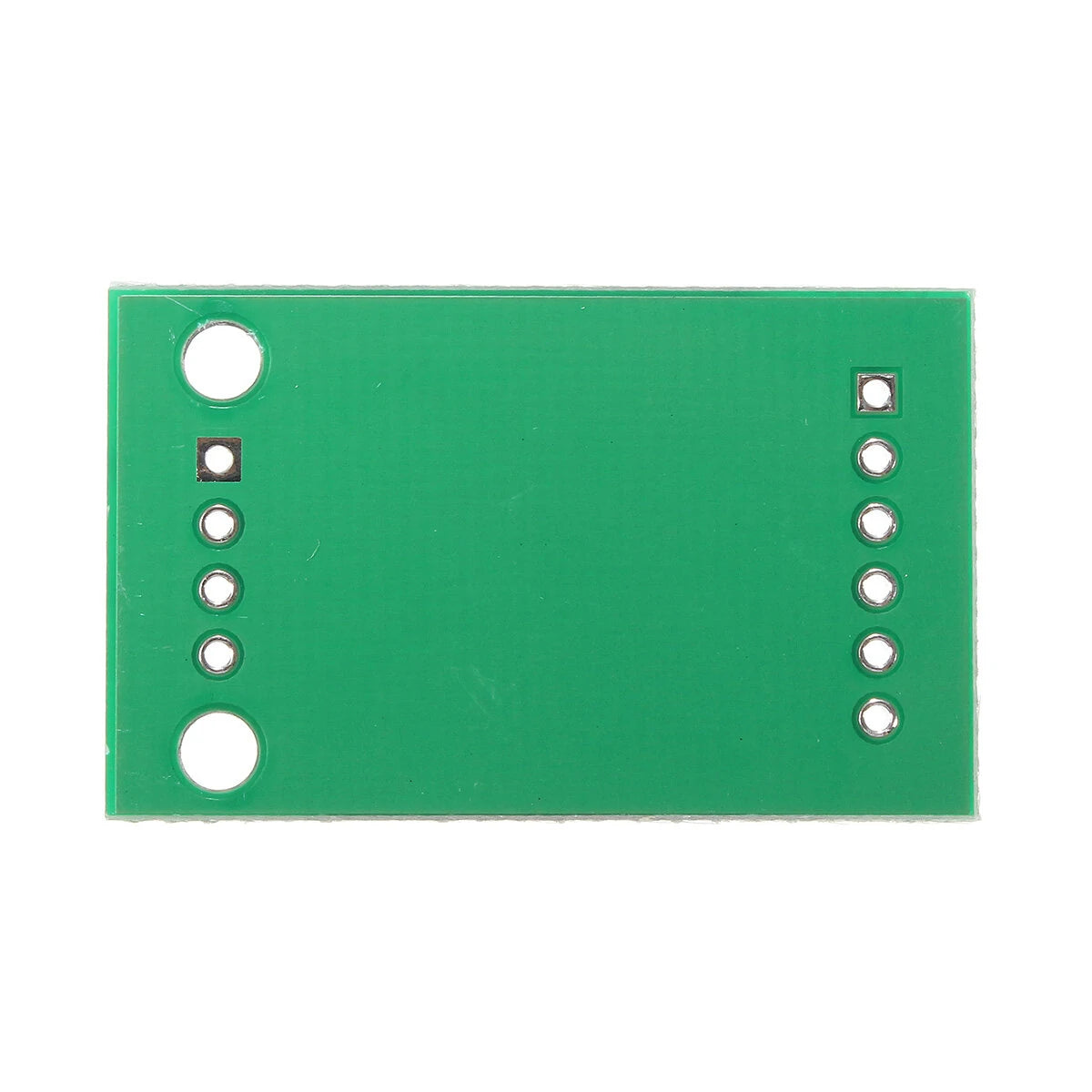

• 1 x HX711 Module
