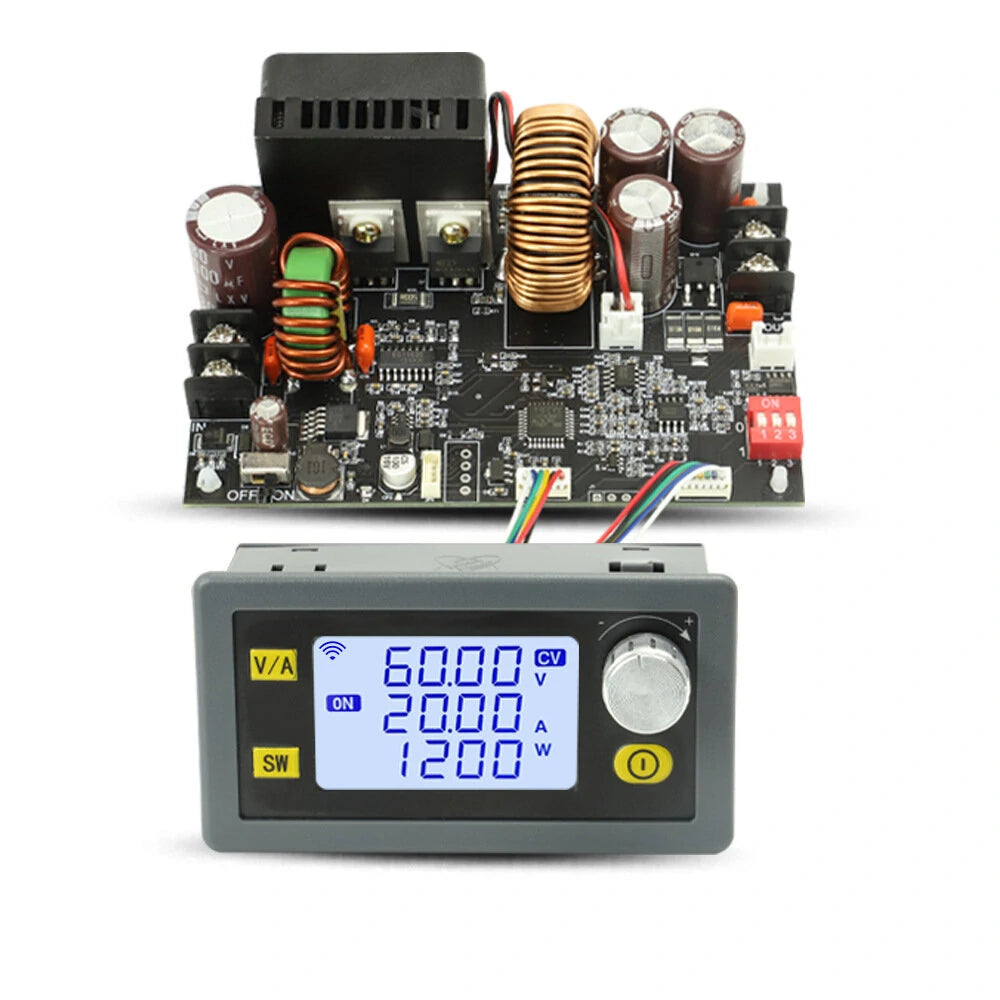

High-Power Adjustable 6-70V CNC Voltage Stabilized Power Supply Module 20A 1200W

Specifications:

• Input Voltage: 6.0~70V
• Output Voltage: 0.0~60V
• Output Current: 0~20.00A
• Output Power: 0~1200W
• Output Ripple: Typical 100mV VPP
• Maximum Output Voltage: (Input Voltage x 1.1) - 2
• Input Voltage Measurement Resolution: 0.01V
• Output Voltage Setting Measurement Resolution: 0.01V
• Current Setting Measurement Resolution: 0.01A
• Input Voltage Measurement Accuracy: ± 1%
• Output Voltage Setting and Measurement Accuracy: ± 0.4%
• Output Current Setting and Measurement Accuracy: ± 0.5%
• Cooling Fan On: When Current > 2A, Power > 50W, Temperature > 50°C

Features:

• High-Quality Build: Constructed from premium materials for durability and longevity, ensuring reliable long-term usage.
• Precision CNC Stabilization: Features constant voltage and constant current capabilities, providing precise control for CNC applications and consistent performance.
• Large Screen Display: The dedicated LCD offers a comprehensive view of vital information, facilitating easy monitoring and management of voltage, current, and other crucial parameters.
• Enhanced Performance: Designed with solid materials and input common mode inductance to minimize the impact of input power fluctuations, leading to low harmonic output and improved overall performance.
• User-Friendly Operation: Attractive display layout and intuitive controls allow for easy adjustments to voltage, current, and protection settings.

Package Includes:

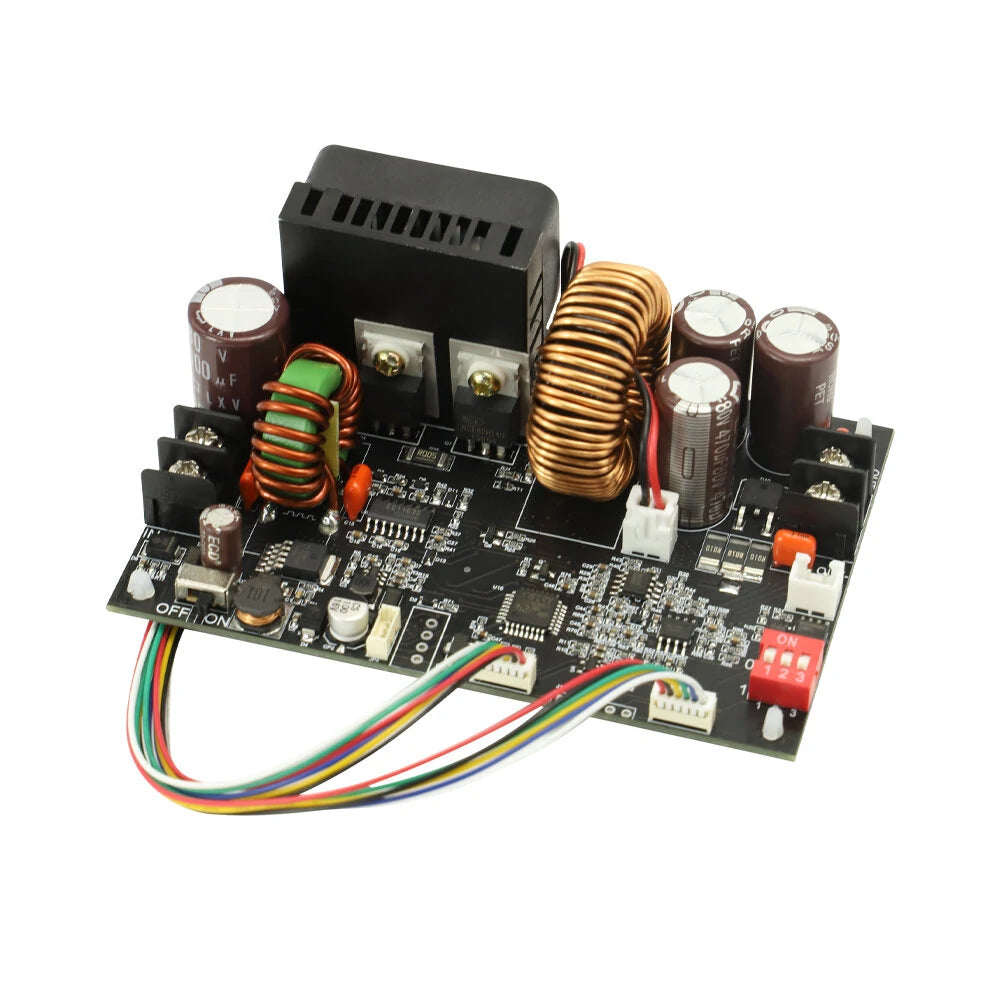

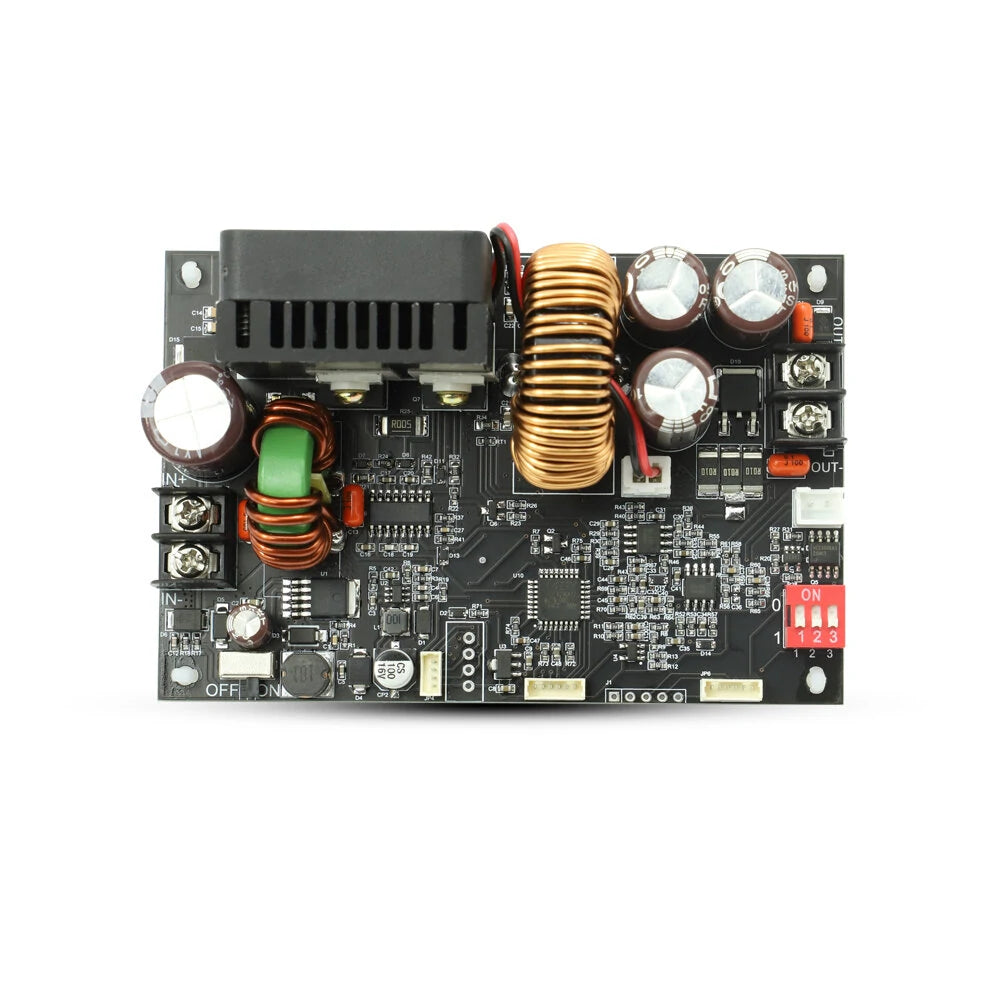

• Only Module Board: 1x Bottom plate
• Set: 1x Header, 1x Bottom plate, 2x Wire
