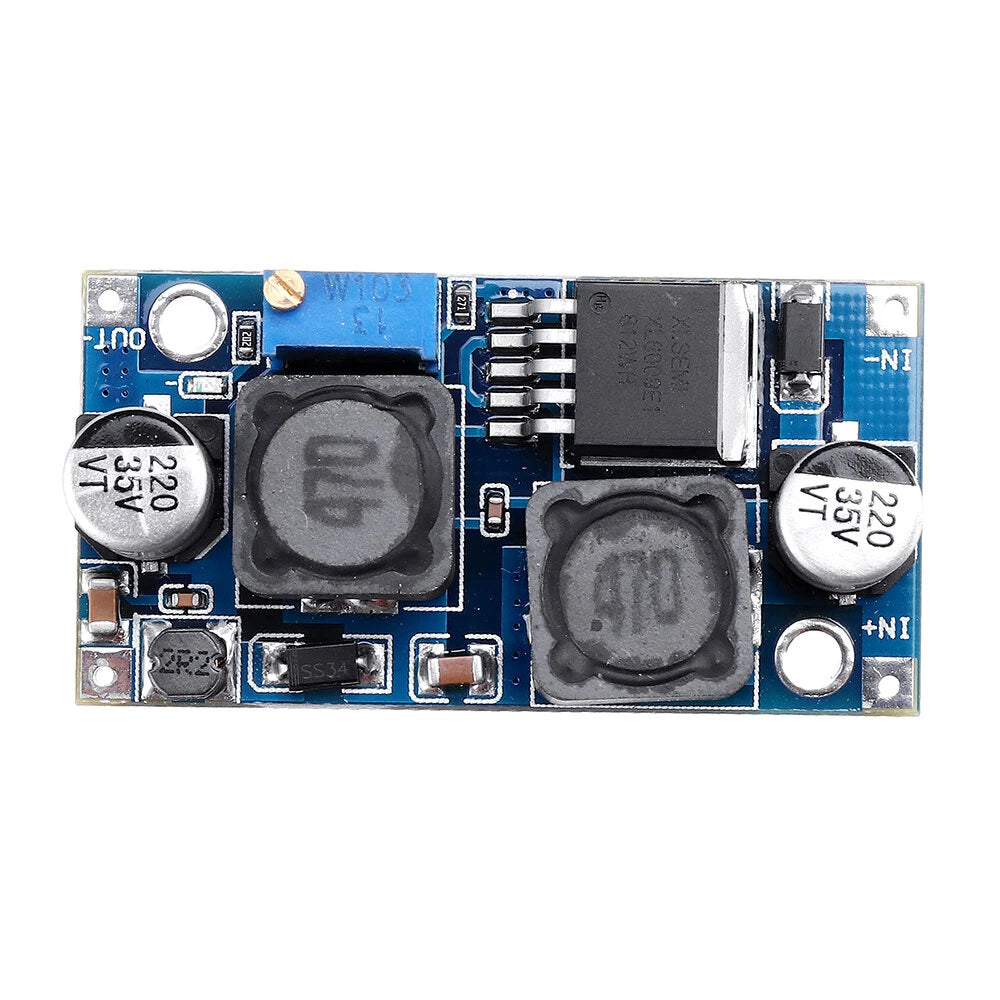

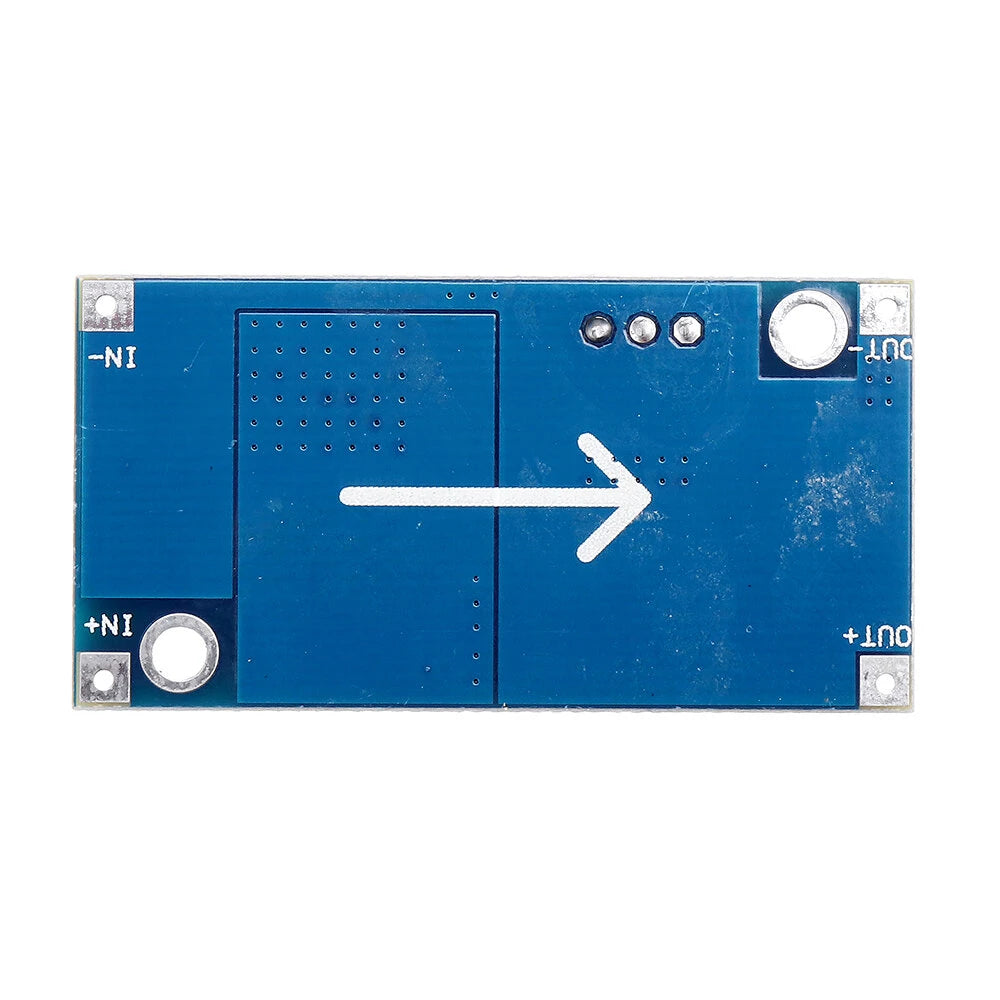

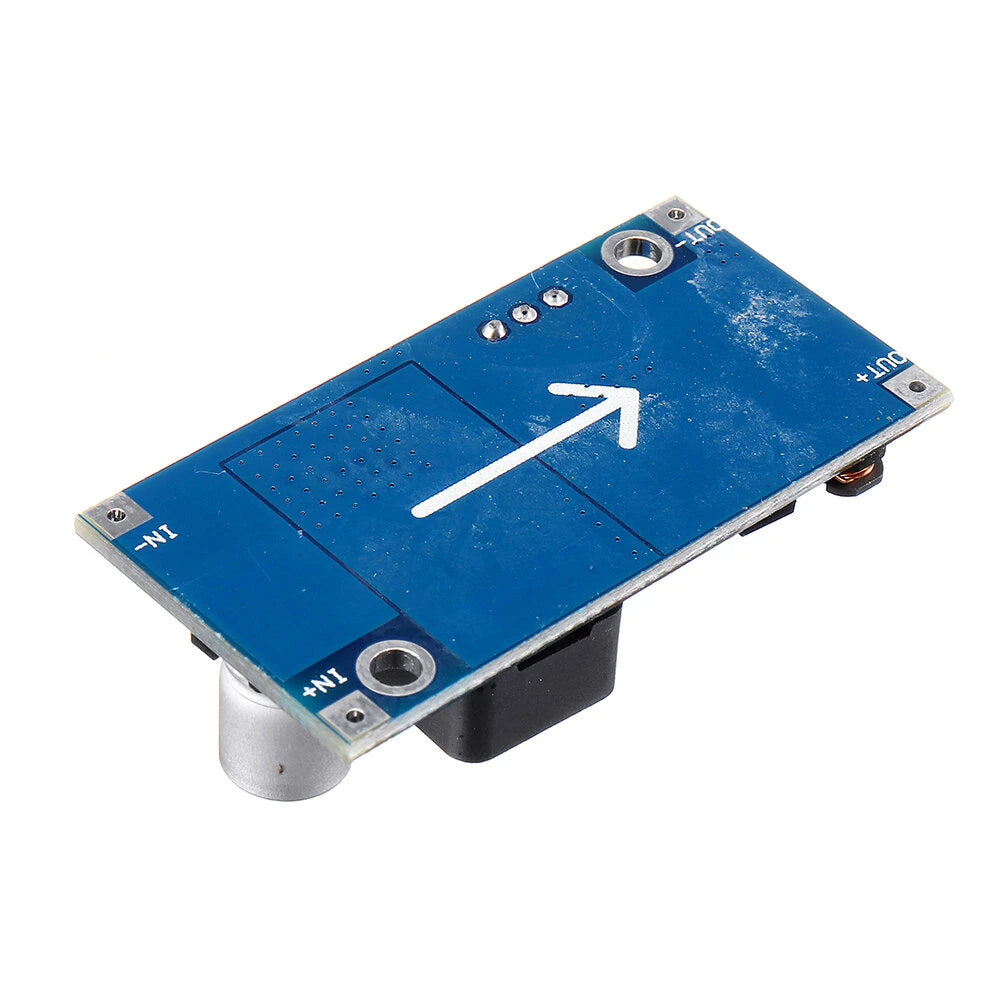

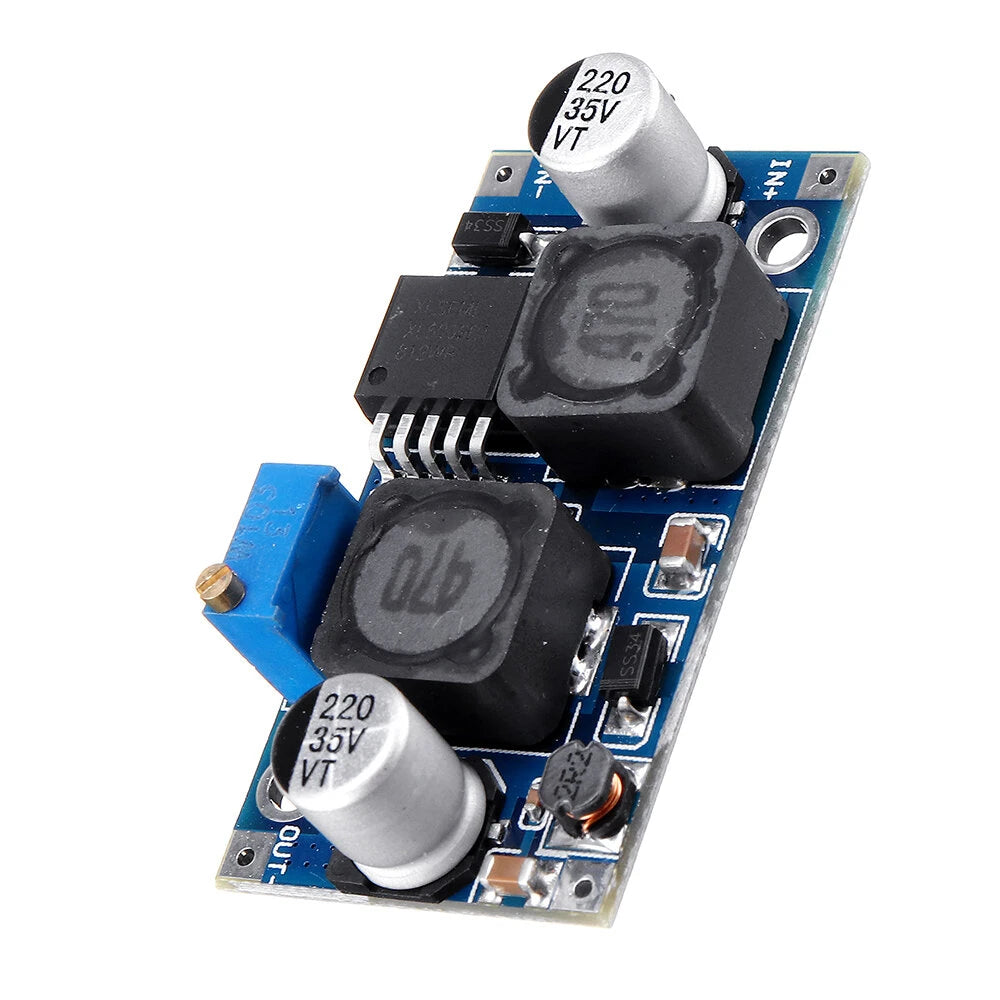

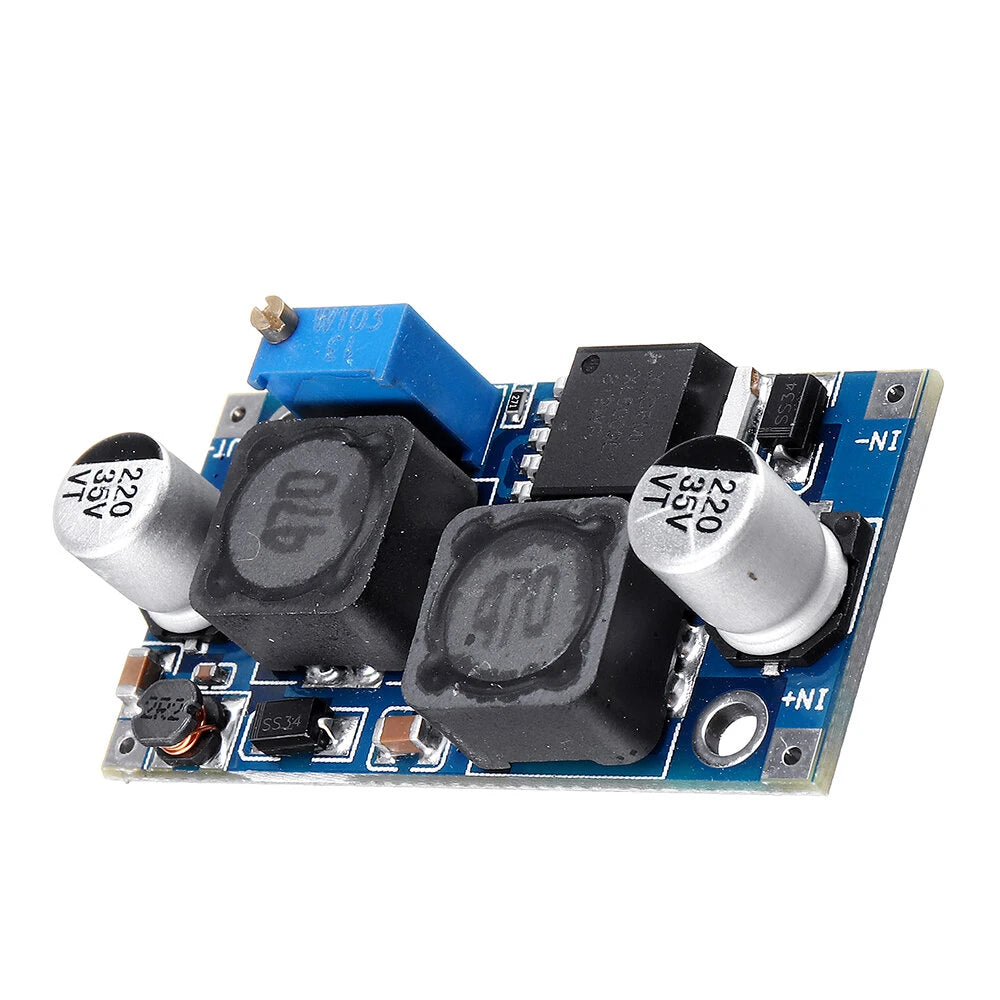

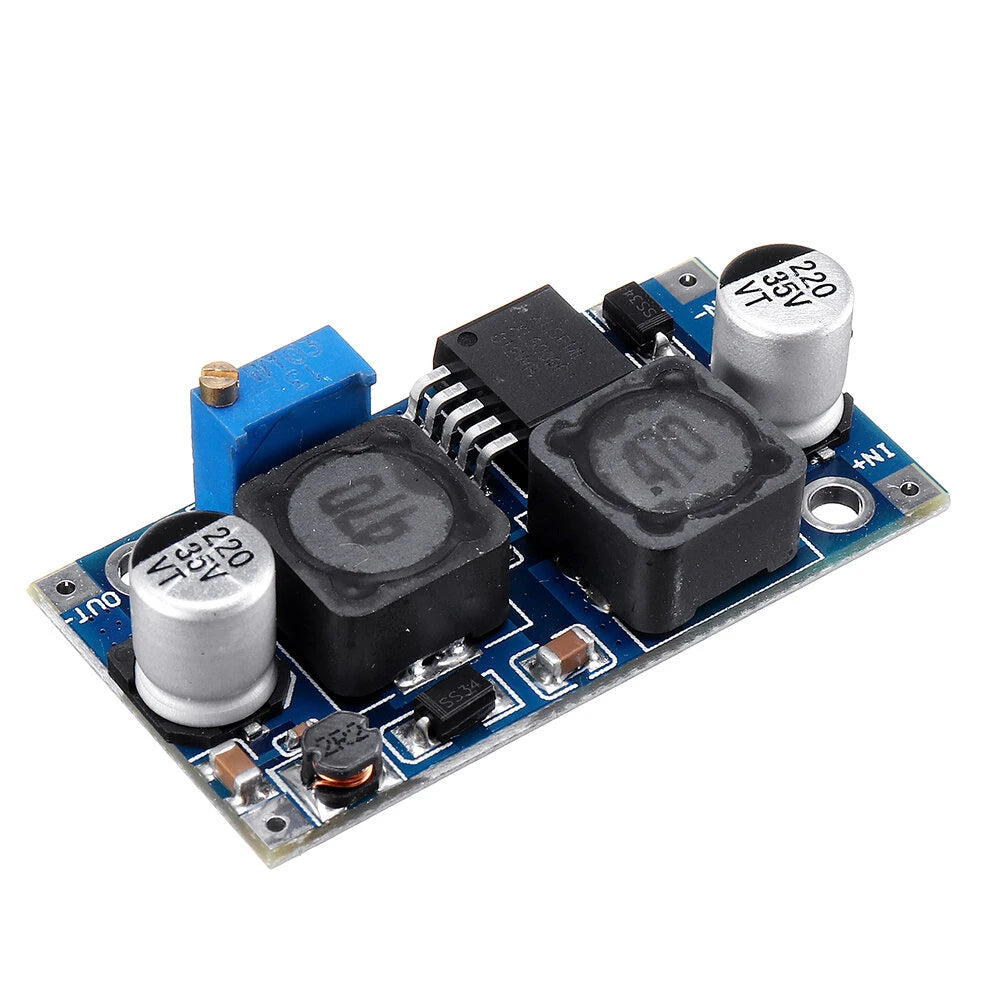

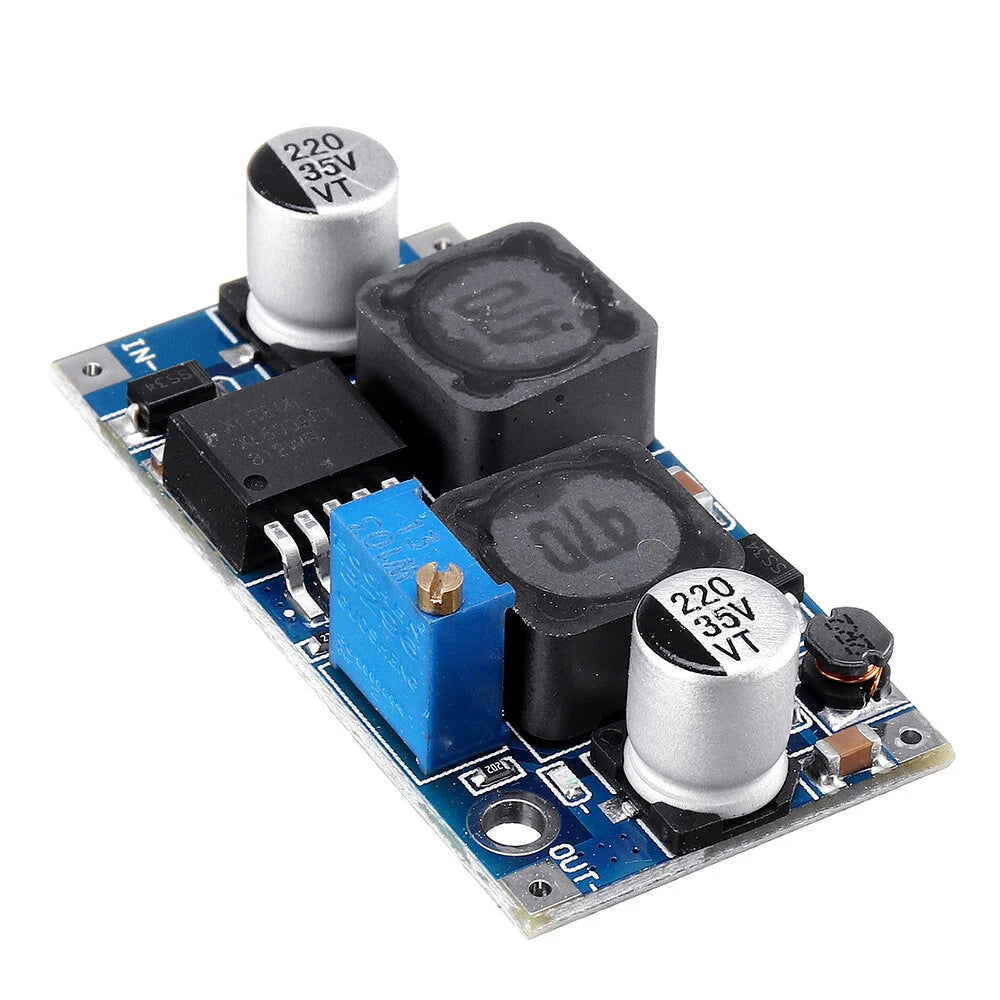

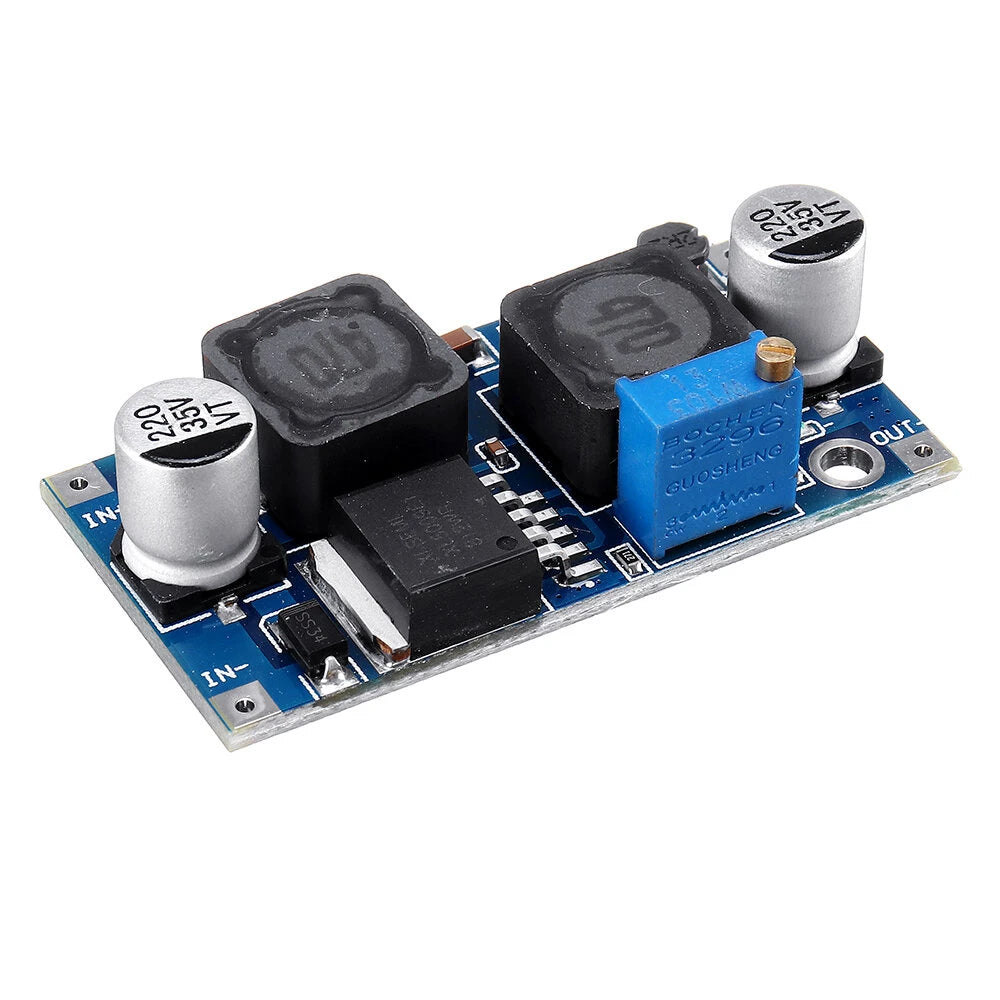

50pcs XL6009 DC-DC Adjustable Step Up/Down Converter Module for Solar Panels

Product Description

This Automatic Buck Boost Module ensures stable power delivery, making it an essential tool for managing voltage fluctuations in your 12V electrical equipment. Whether your input voltage is 5V, 12V, or 32V, this module automatically stabilizes the output at 12V.

Key Features

• Auto-adjusts from low voltages (as low as 7V) to high voltages (up to 15V or more) ensuring smooth engine operation.
• Built-in efficient 4A MOSFET switches achieving up to 94% efficiency.
• High switching frequency of 400KHz for reduced ripple and compact design compared to alternatives running at 50KHz.

Ideal Applications

• Car Regulators
• Solar Photovoltaic Systems
• Wind Power Solutions
• Any situation with voltage instability

Specifications

• Model: DSN6000AUD Automatic Buck Module
• Module Type: Non-Isolated Boost (BOOST)
• Rectification: Non-Synchronous Rectification
• Input Voltage Range: 3.8V - 32V
• Output Voltage Range: 1.25V - 35V
• Input Current: Up to 3A; no-load current less than 18mA
• Conversion Efficiency: Up to 94%
• Switching Frequency: 400KHz
• Output Ripple: 50mV (varies with voltage and current)
• Load and Voltage Regulation: ±0.5%
• Operating Temperature: -40°C to +85°C

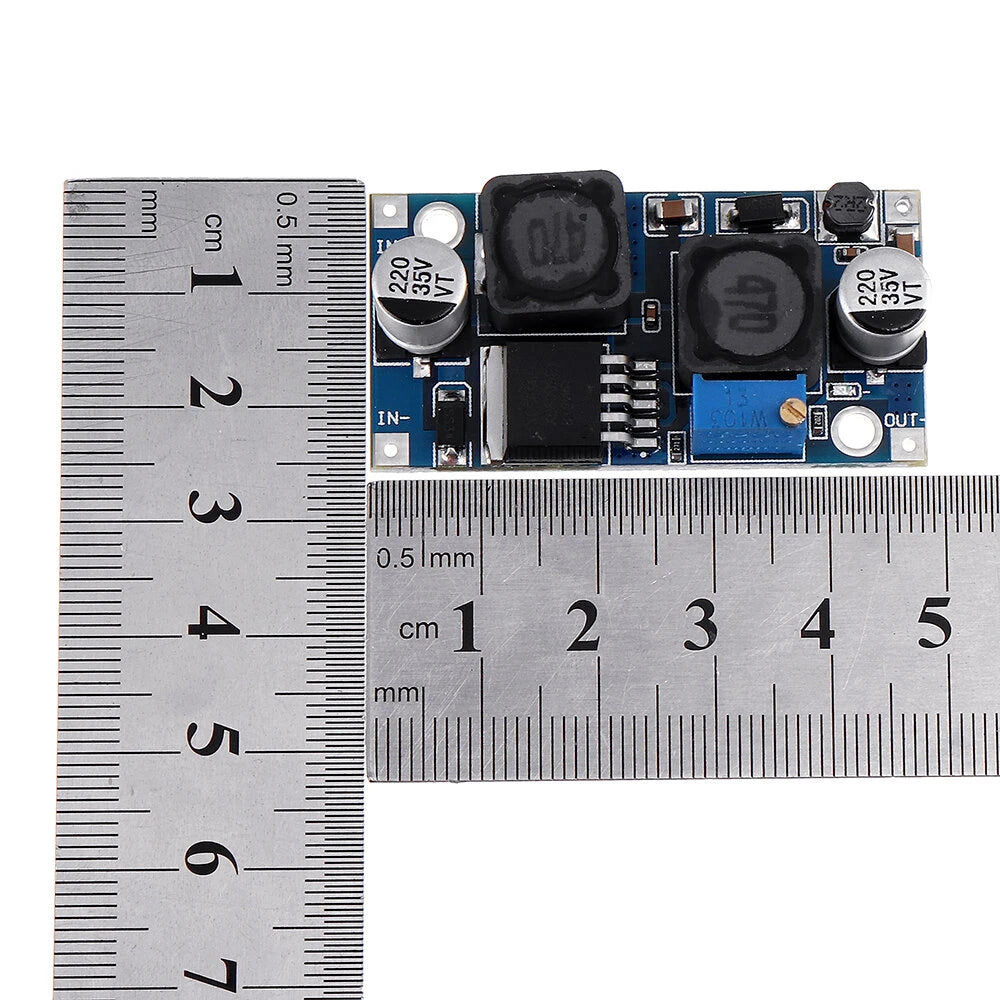

• Dimensions: 48 x 25 x 14mm (L x W x H)

Package Includes

• 50 x DC-DC Boost Buck Adjustable Step-Up Step-Down Automatic Converter XL6009 Module
