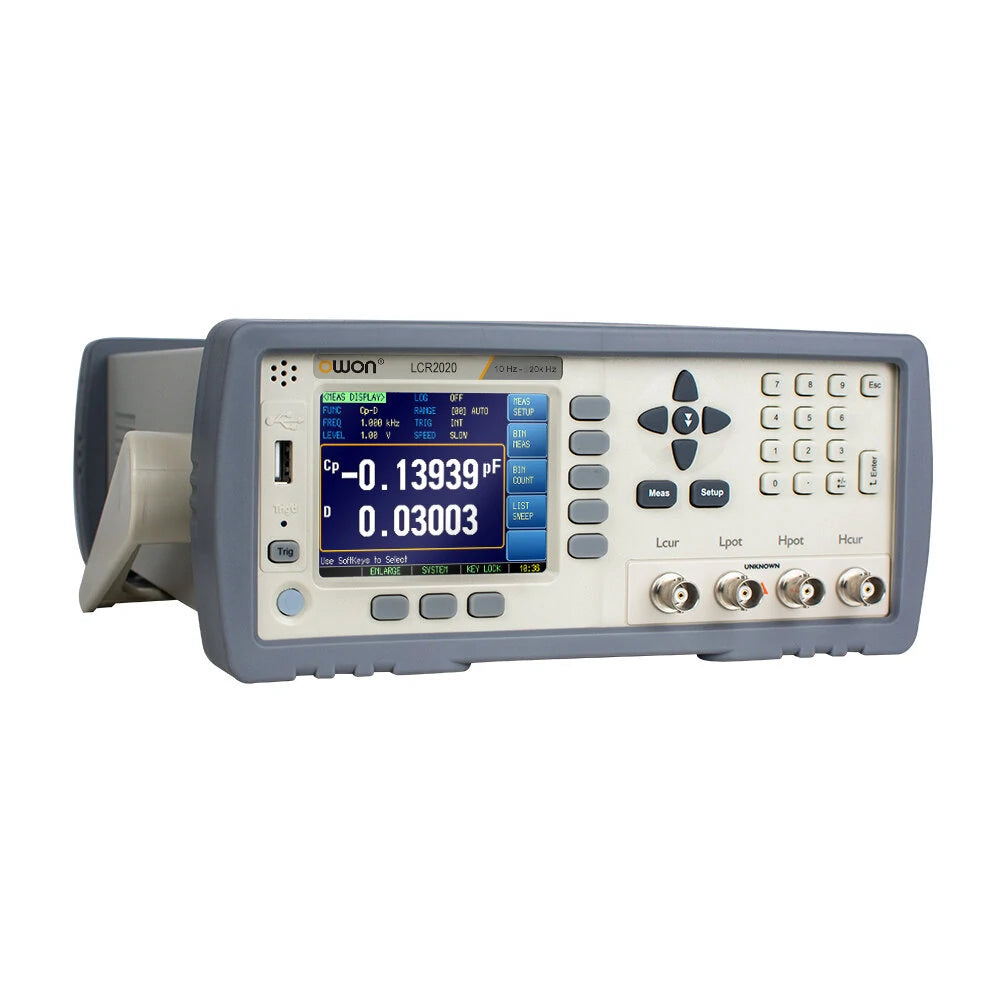

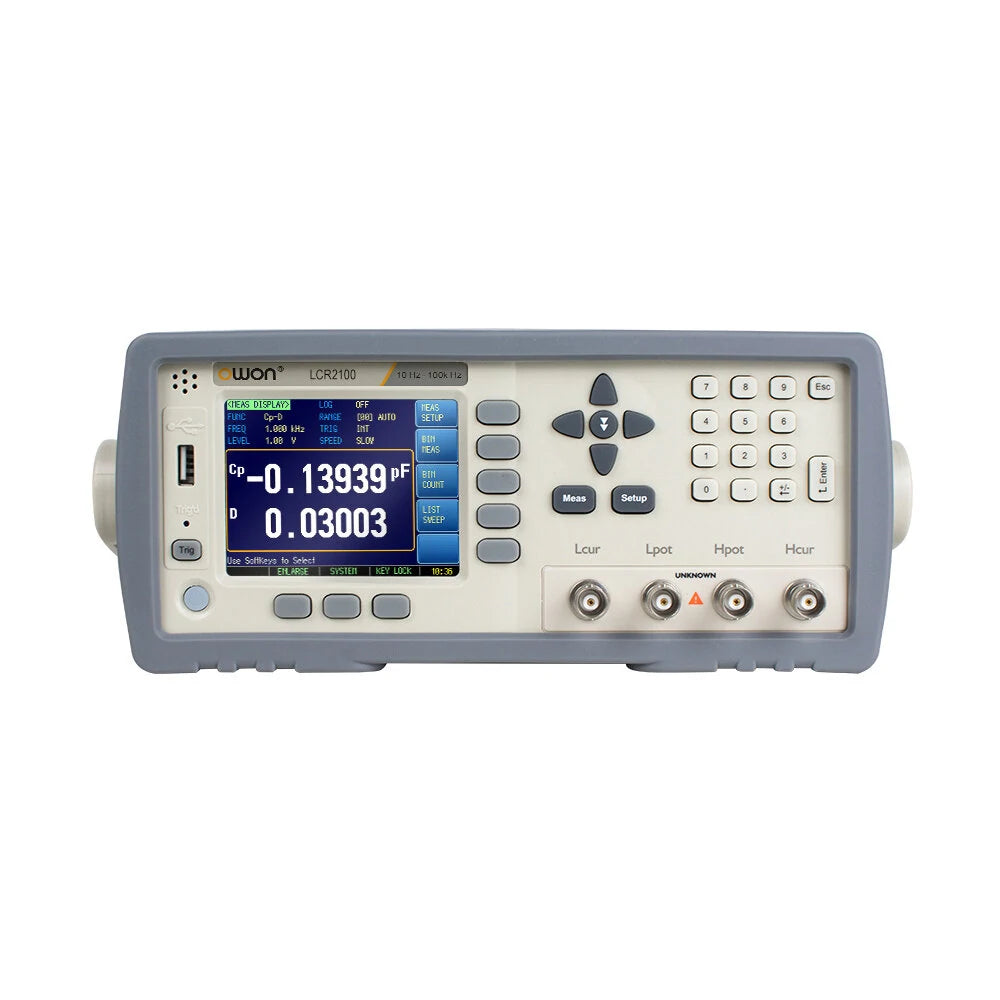

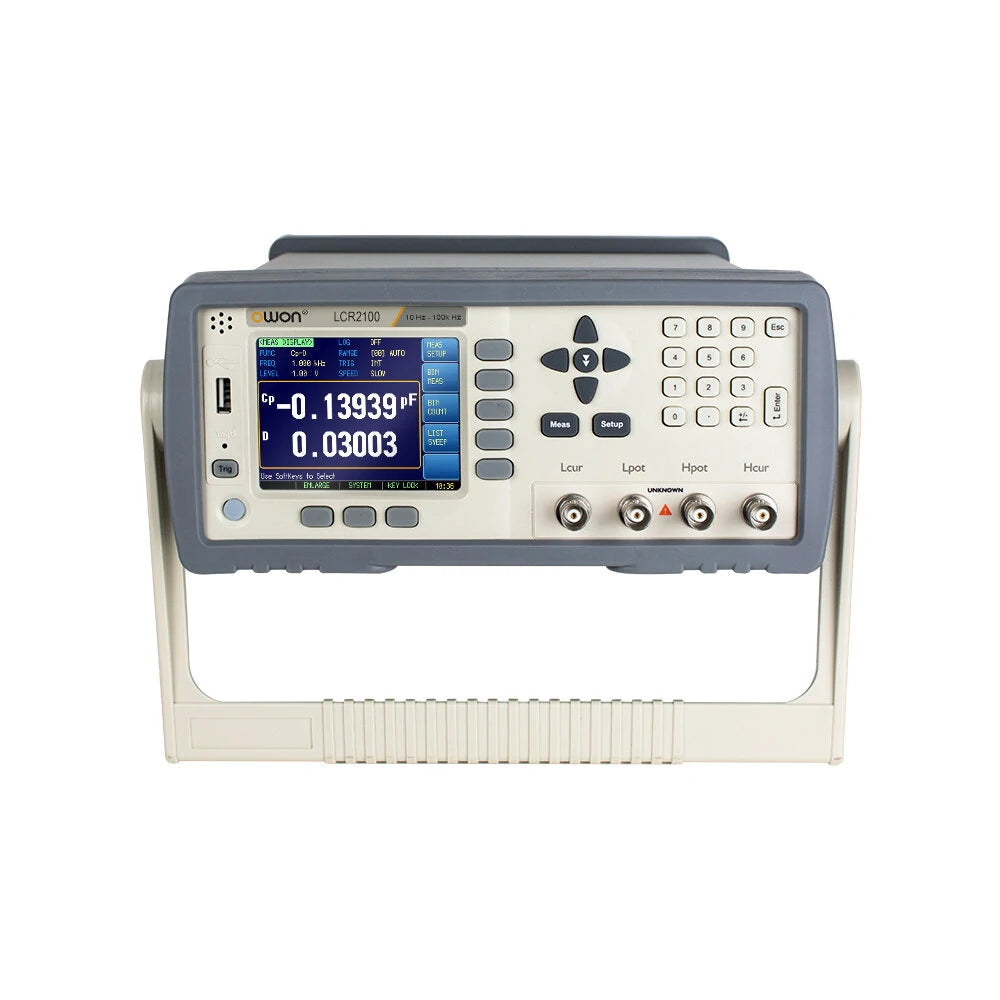

OWON LCR2000 Series LCR Meter - High Frequency, 0.05% Accuracy, Fast Measurements, Advanced Interface, Versatile Usage

Key Features

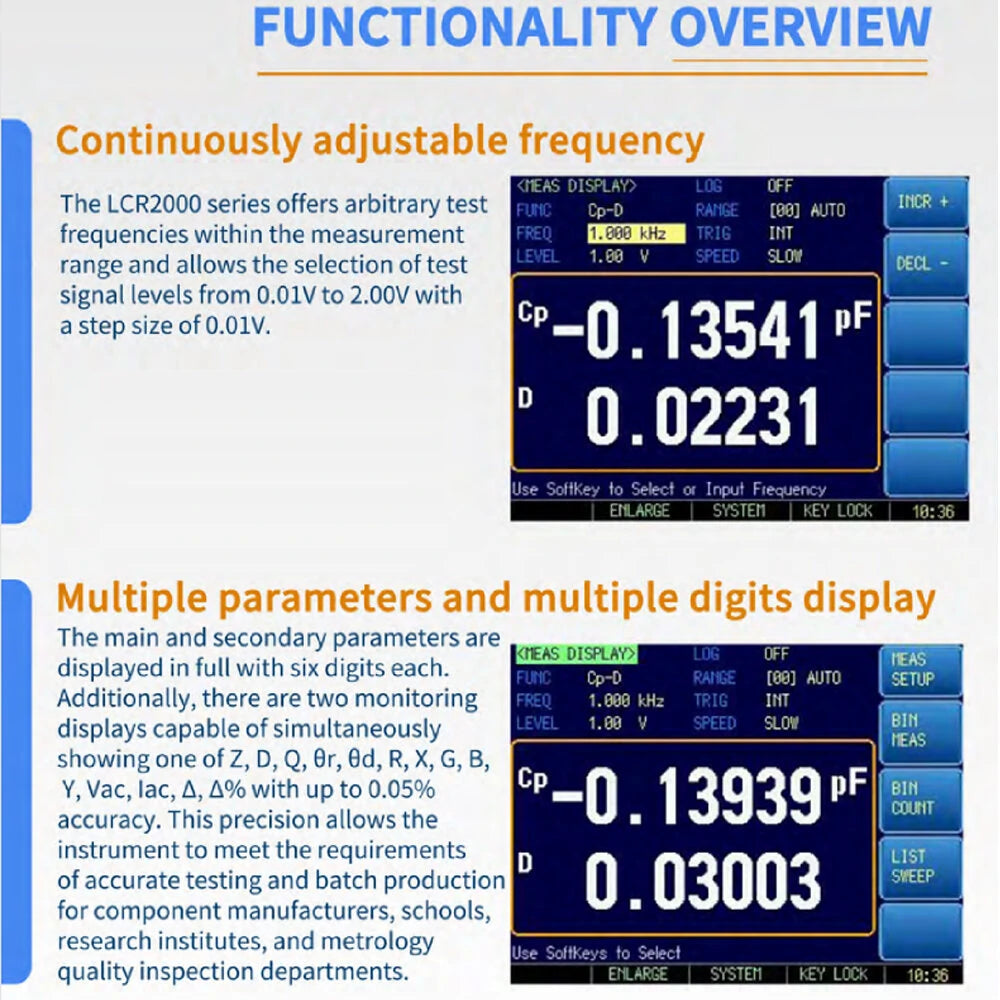

• Consecutive Test Frequency: The LCR2000 Series provides a broad range of testing capabilities with its consecutive test frequencies.
• High Accuracy: Achieve highly precise measurements with a basic accuracy level of 0.05%, perfect for all your inductance, capacitance, and resistance (LCR) tests.
• Fast Testing Speed: Enhance productivity and efficiency with a rapid measuring speed of up to 40 times per second.

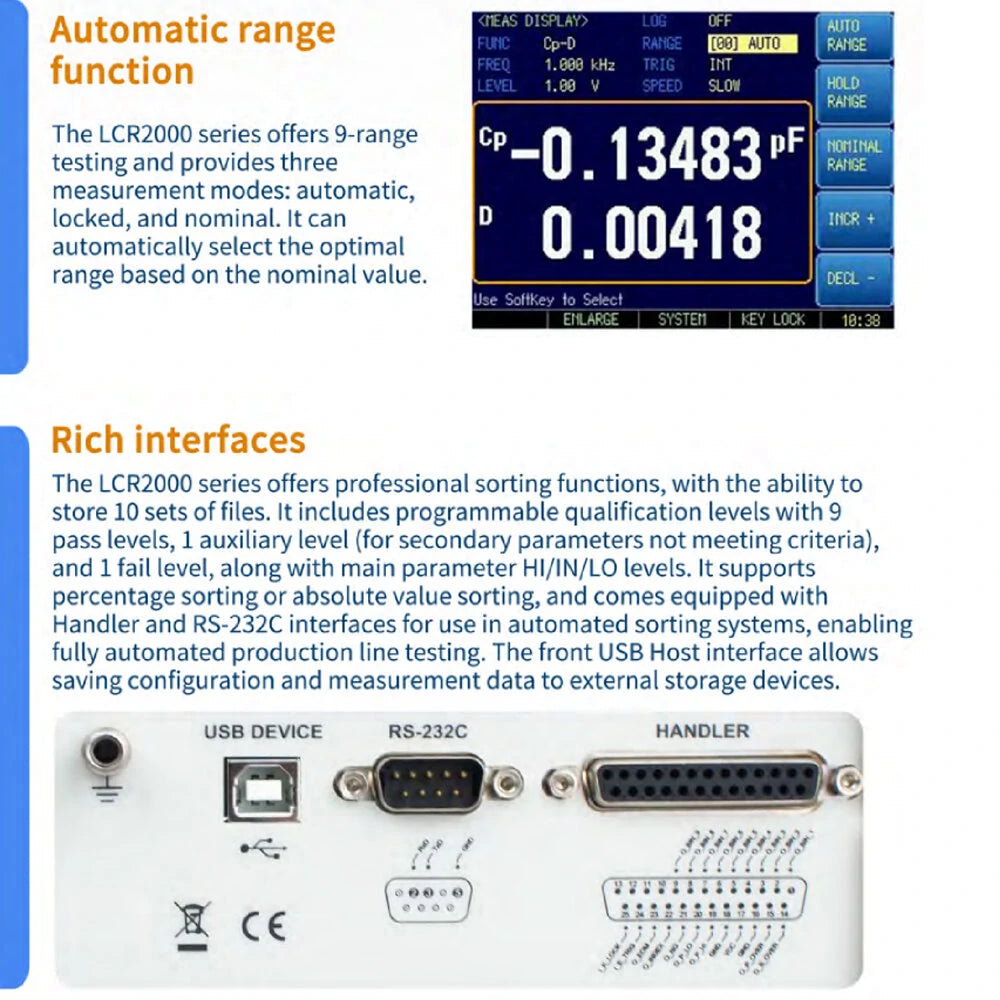

• Advanced Interface: Enjoy simple and flexible connectivity options with RS-232C, Handler, USB Host/Device interfaces.
• Versatile Usage: With DCR measurement and internal D.C. bias voltage, this instrument is ideal for a wide array of applications, expanding your testing and analysis capabilities.

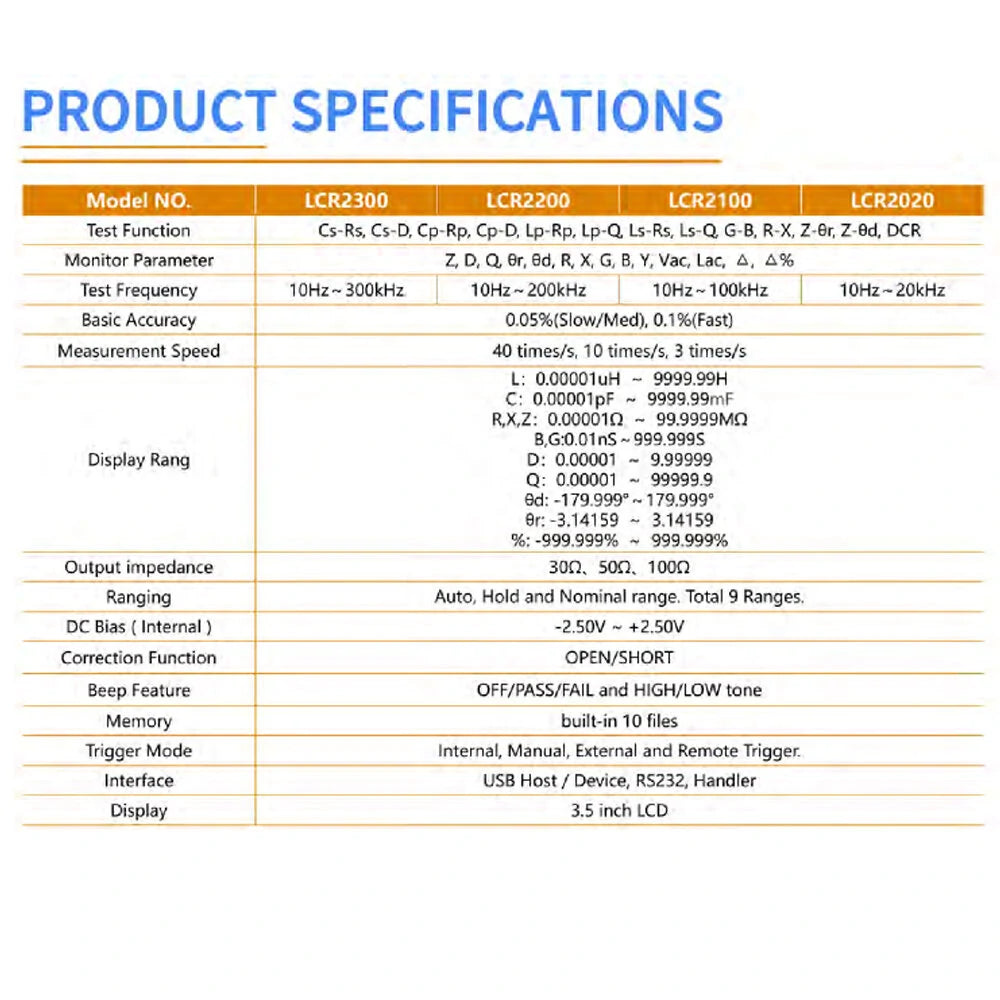

Specifications

• Optional Model: LCR2020/LCR2100
• Test Function: Z, D, Q, Or, Bd, R, X, G, B, Y, Vac, A, A%
• Test Frequency: 10Hz~100kHz (LCR2100), 10Hz~20kHz (LCR2020)
• Basic Accuracy: 0.05% (Slow/Med), 0.1% (Fast)
• Measurement Speed: 40 times/s, 10 times/s, 3 times/s
• Display Range:
  D: 0.00001 ~ 9.99999
  Q: 0.00001 ~ 99999.9
  Bd: -179.999° ~ 179.999°
• Output Impedance: 300, 50Ω, 100Ω
• DC Bias (Internal): -2.50V ~ +2.50V

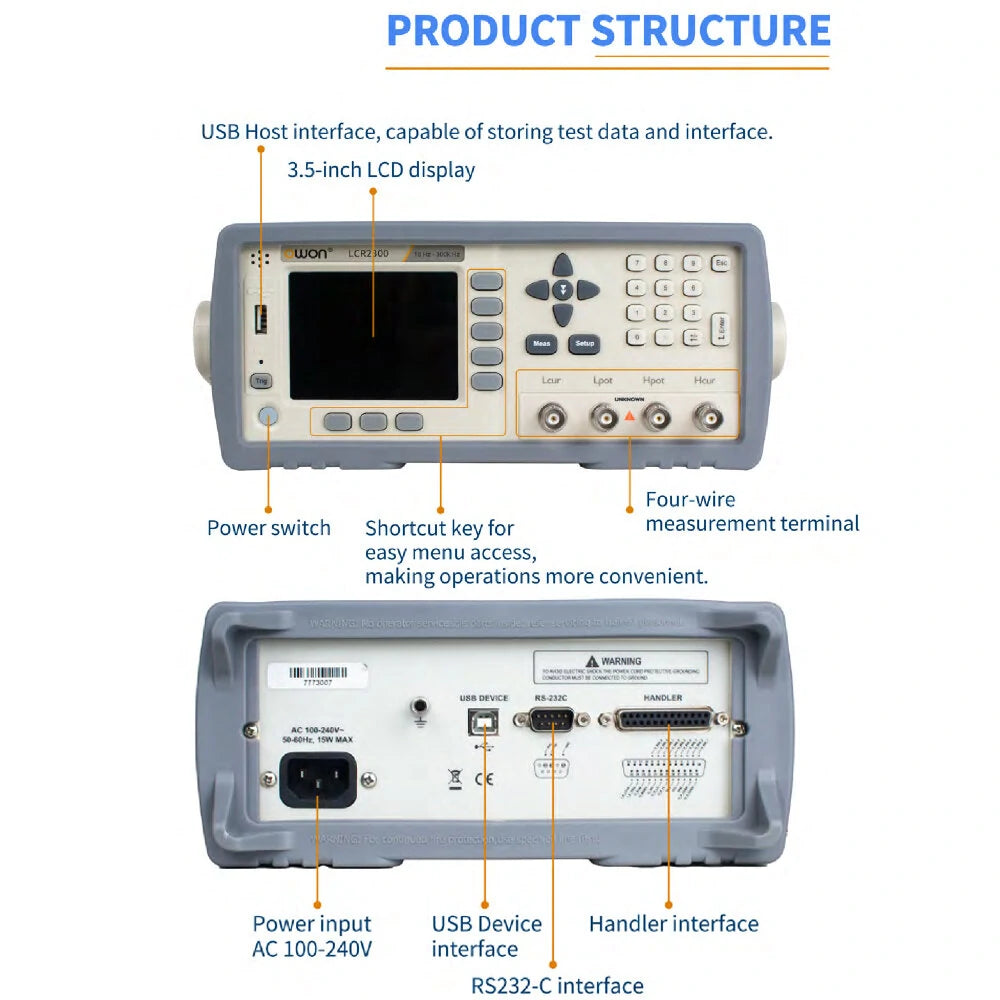

• Interface: USB Host/Device, RS232, Handler
• Display: 3.5 inch LCD
• Optional Plug Type: EU/US Plug

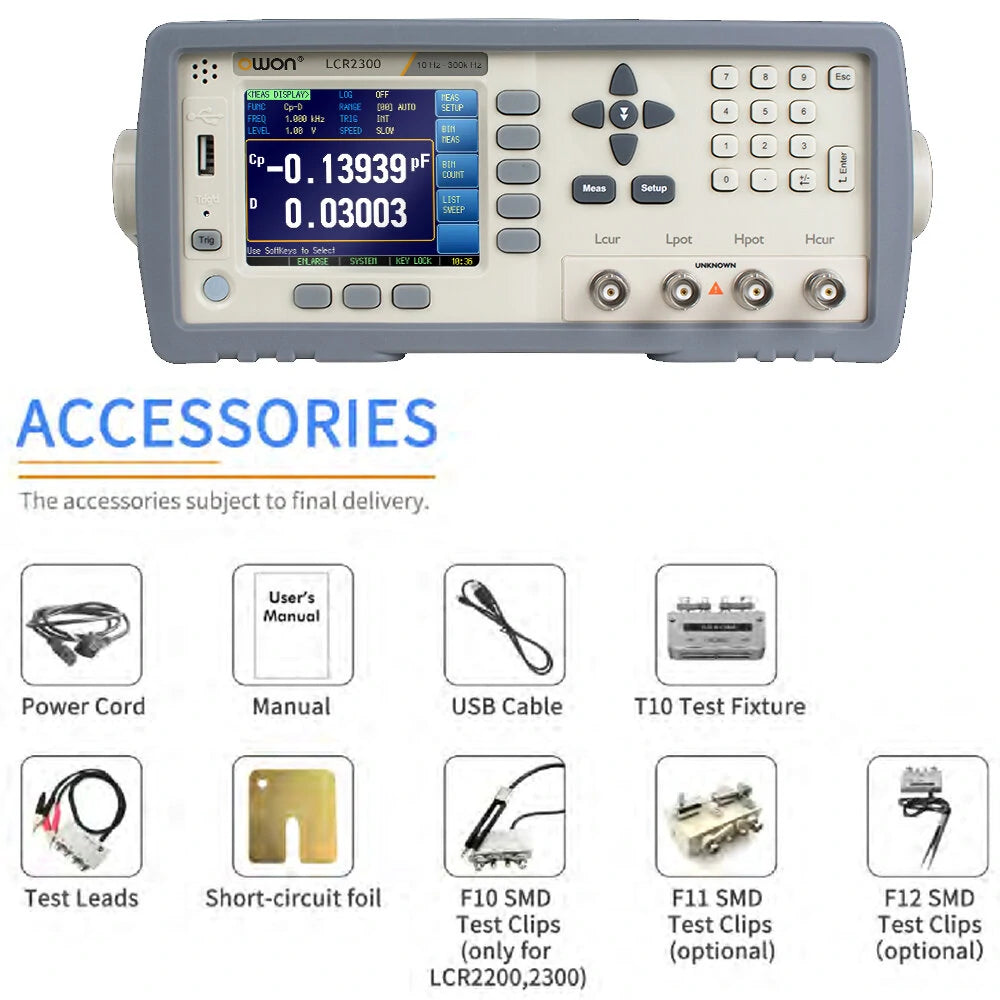

Package Included

• 1 x LCR Meter (Model as your choice)
• 1 x Power Cord (Plug as your choice)
• 1 x USB Cable
• 1 x T10 Test Fixture
• 1 x Test Lead
• 1 x Short Circuit Foil
• 1 x User Manual
