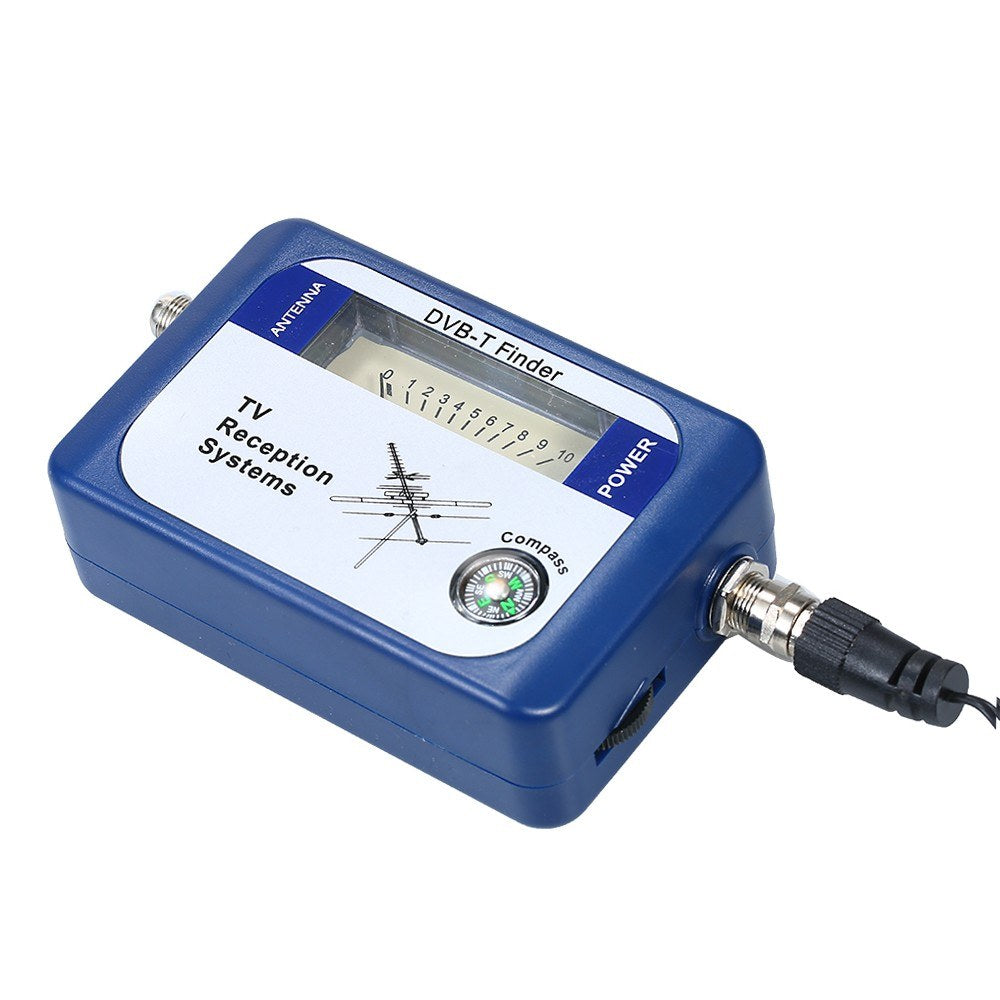

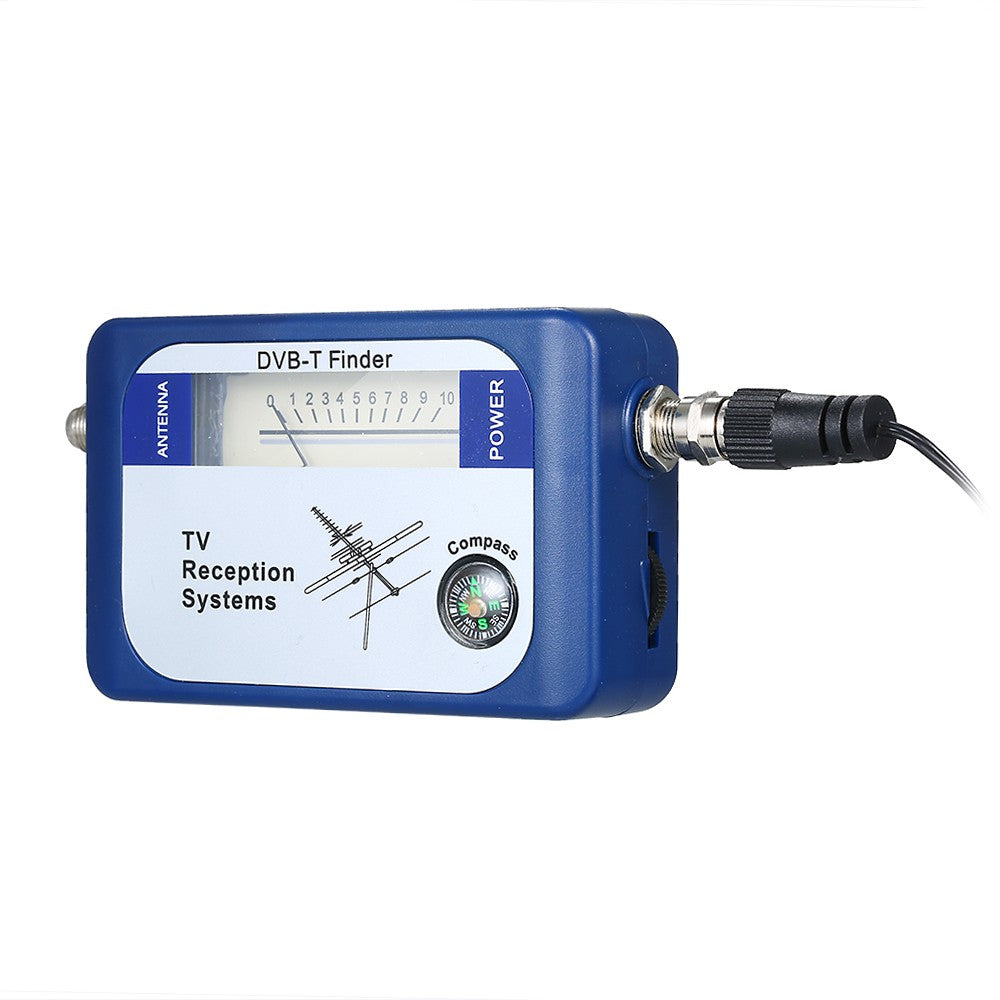

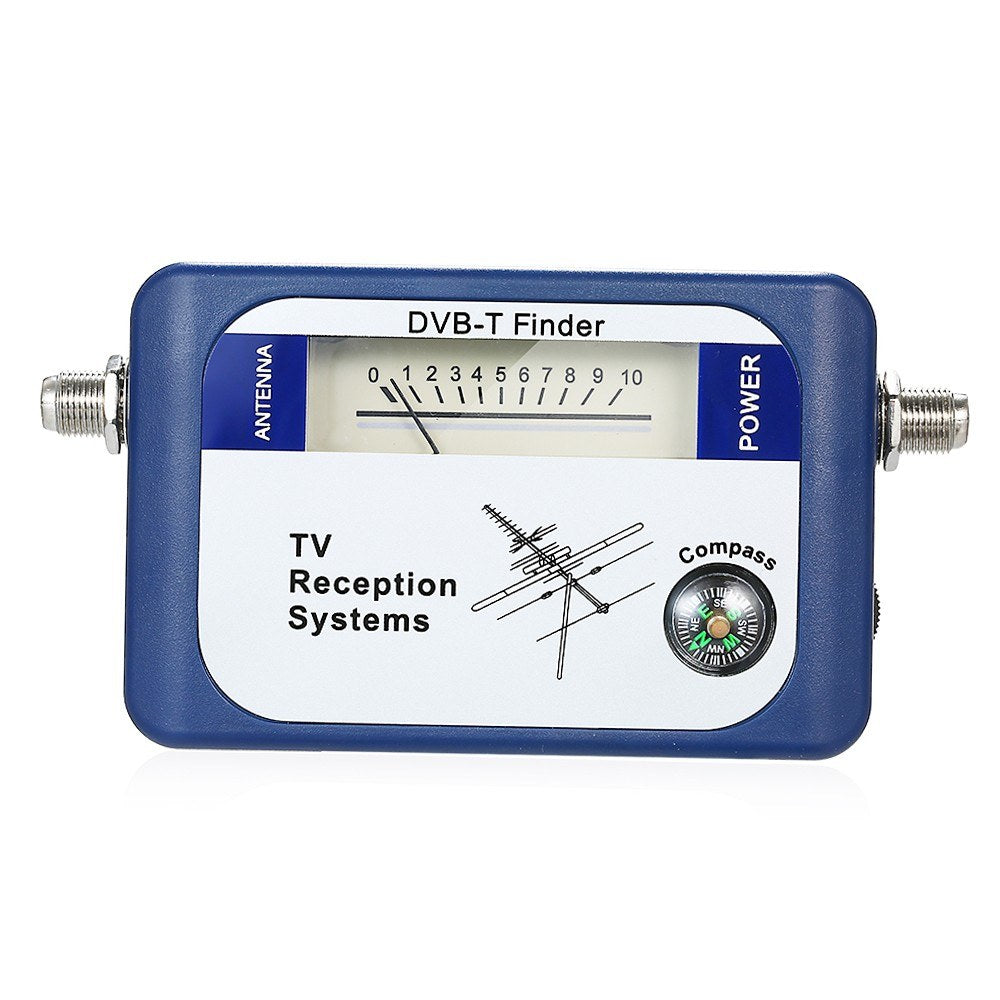

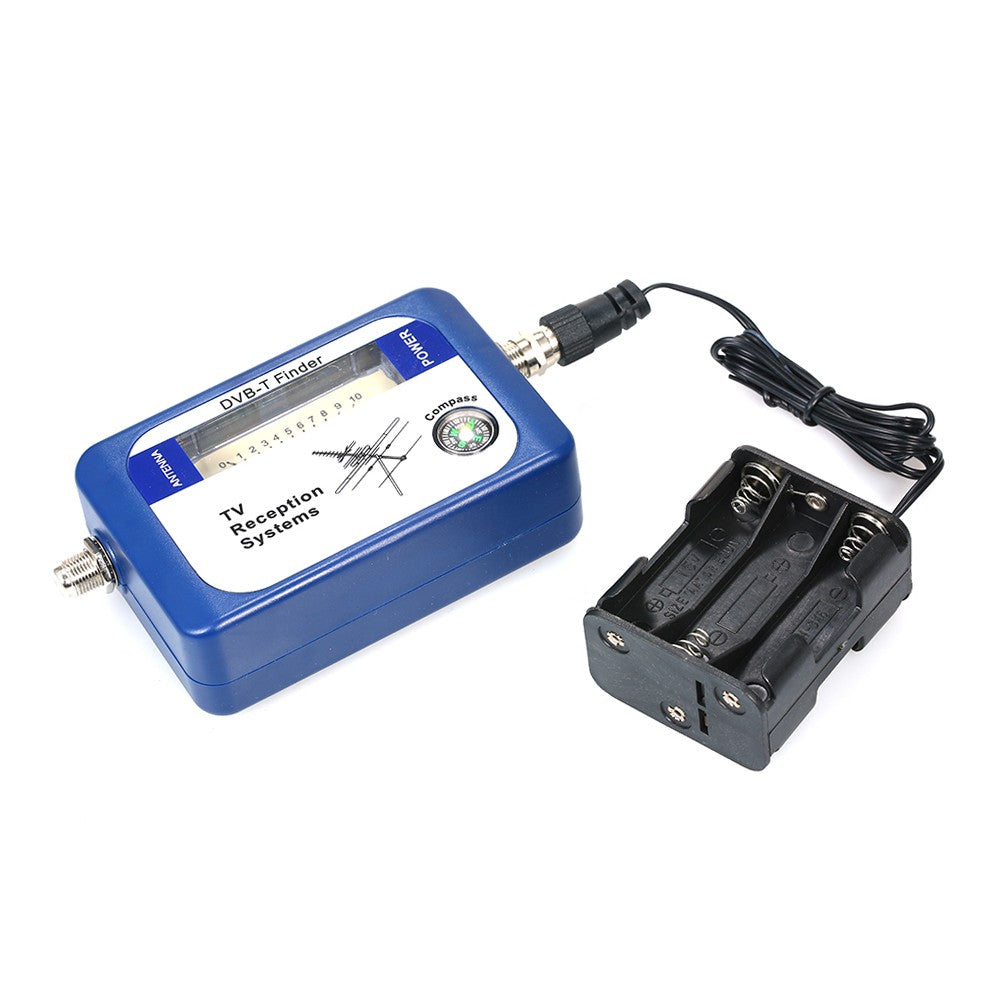

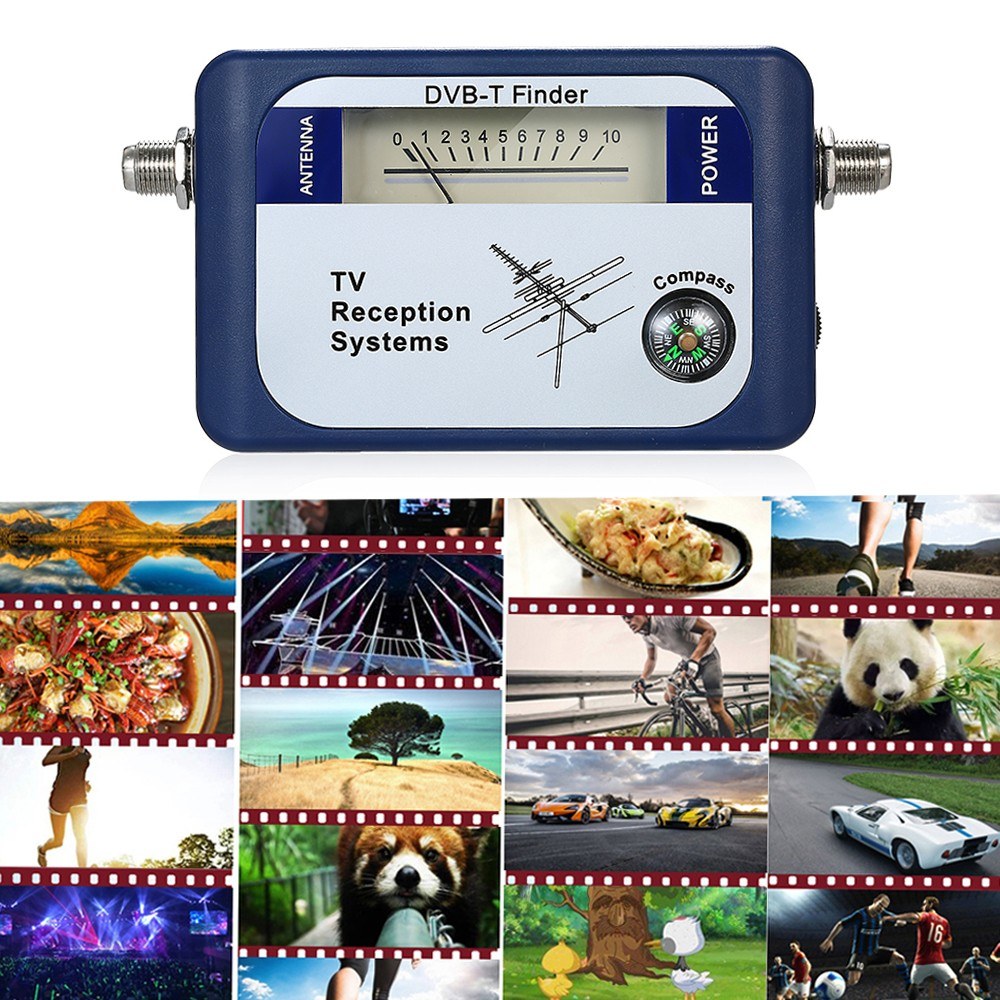

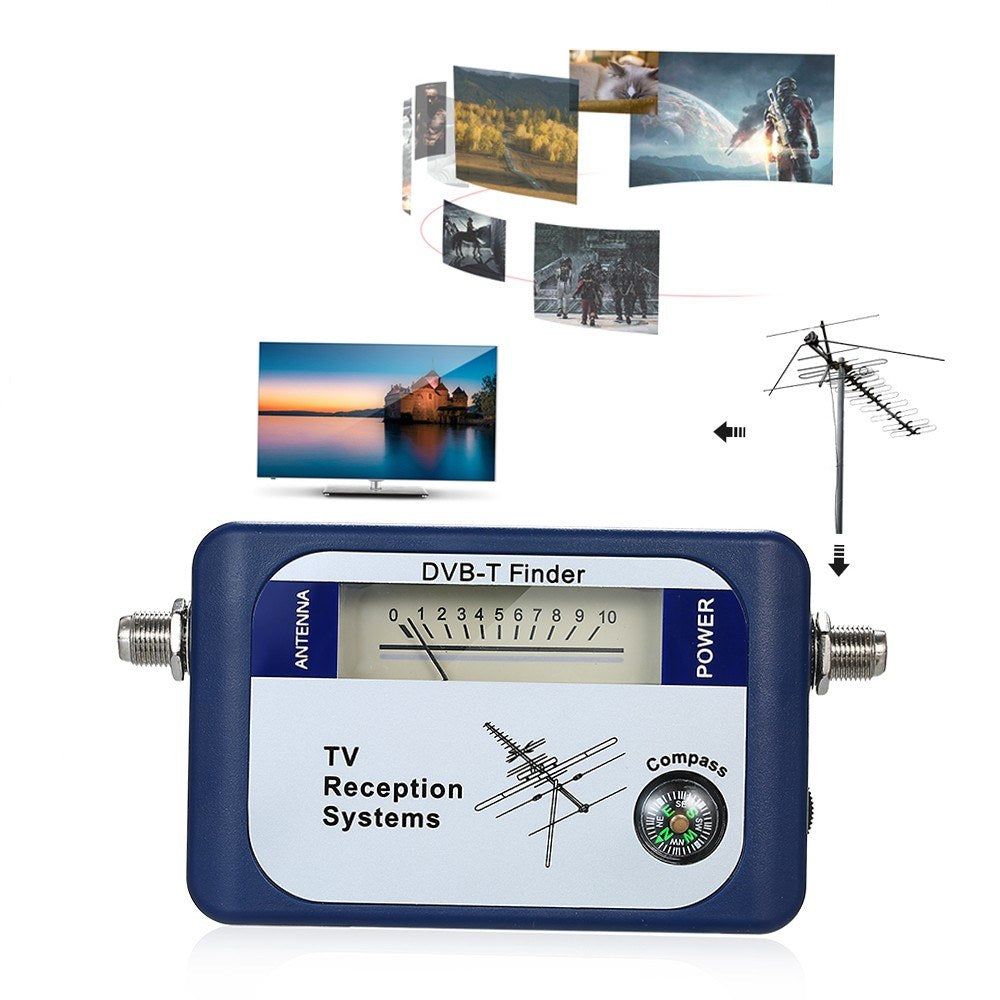

DVB-T Digital TV Antenna Signal Finder Meter with Compass for Terrestrial Reception Systems

Product Features

• Excellent Sensitivity and Accuracy: Assists in finding the optimal position for DVB-T antenna installation.
• Built-in Compass: Facilitates easier and quicker tuning.
• User-Friendly Operation: Includes a buzzer and attenuation control function for easy use.
• Intuitive Signal Display: Feedback numbers clearly show signal strength.
• Portable Design: Compact in size and lightweight, making it convenient to carry.

Operation Instructions

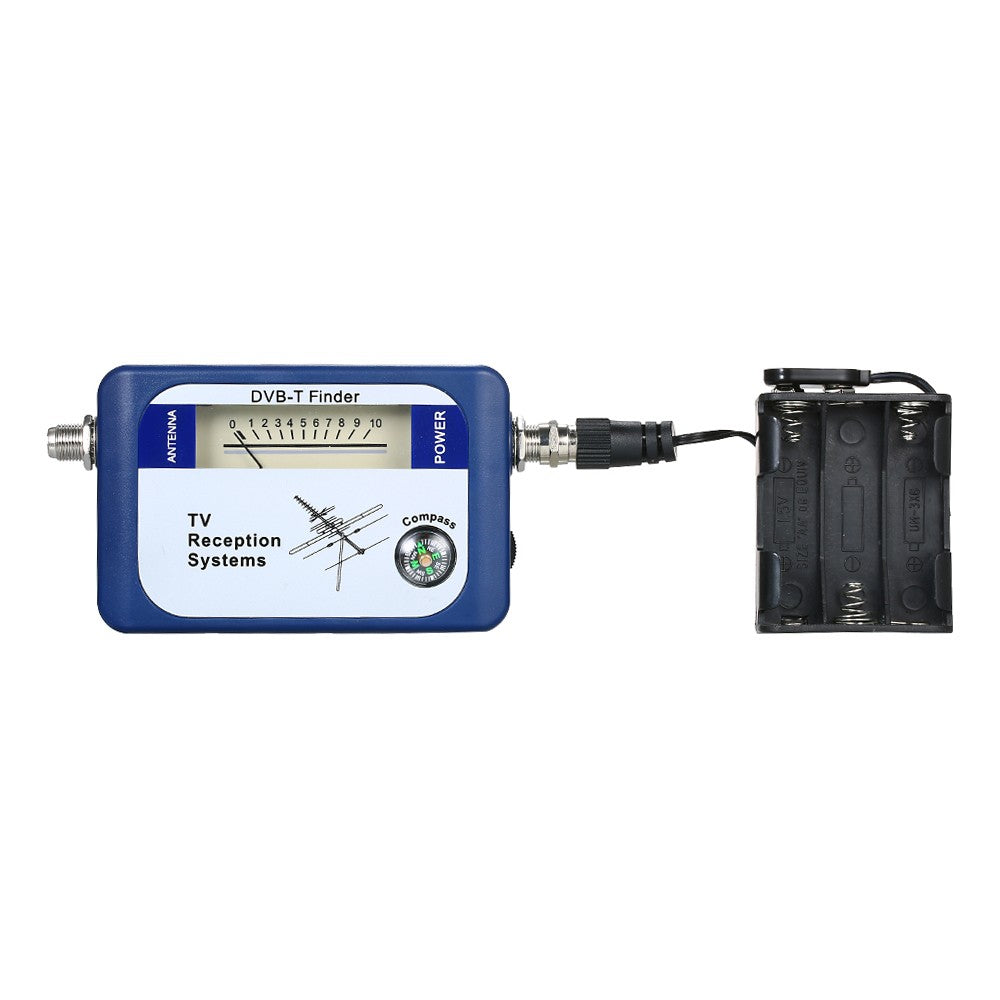

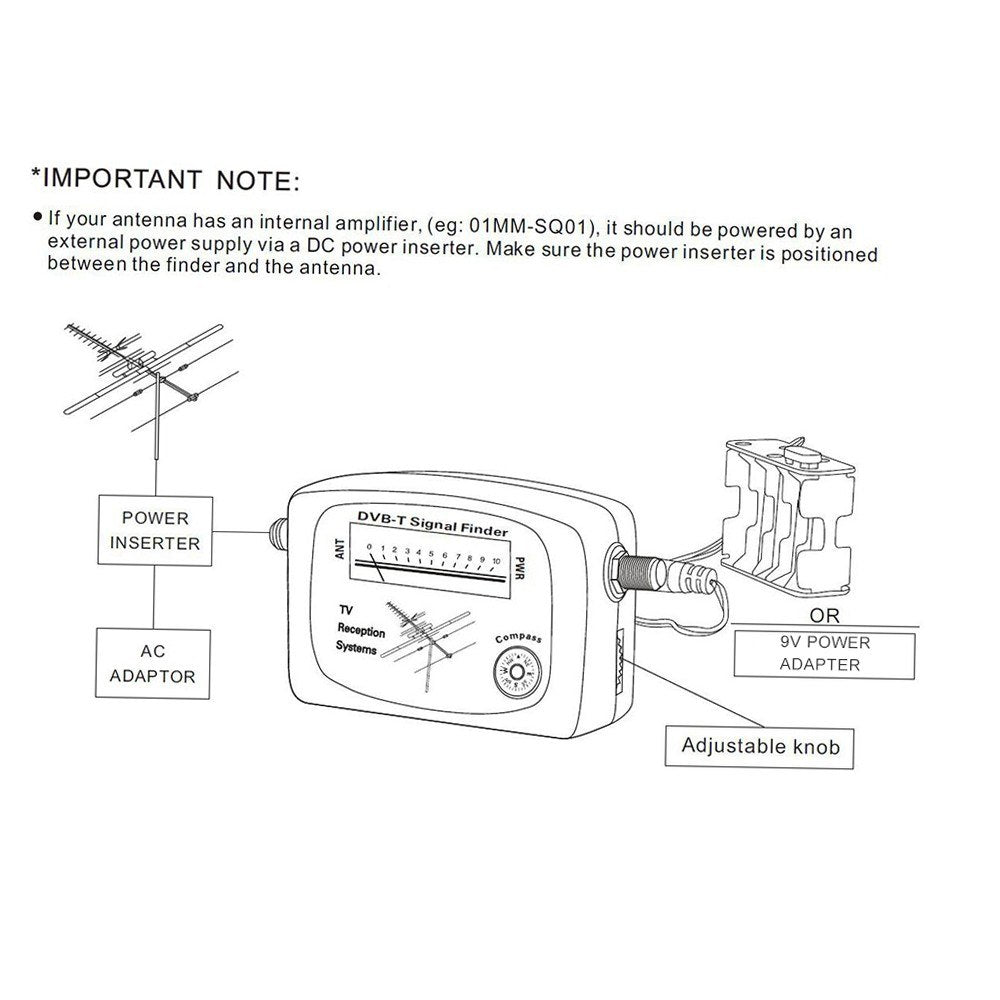

1. Connect the antenna cable to the left F Female and the battery pack cable to the right F Female. Ensure any external amplifier is disconnected from the antenna.
2. Adjust the antenna by monitoring the meter's reading. Move the antenna until obtaining the highest possible reading. If the meter is full scale, turn the level control knob clockwise to reduce the reading to around 5.
3. Once adjusted, disconnect the finder and reconnect any previously removed amplifier.

Specifications

• Color: Blue
• Material: Plastic

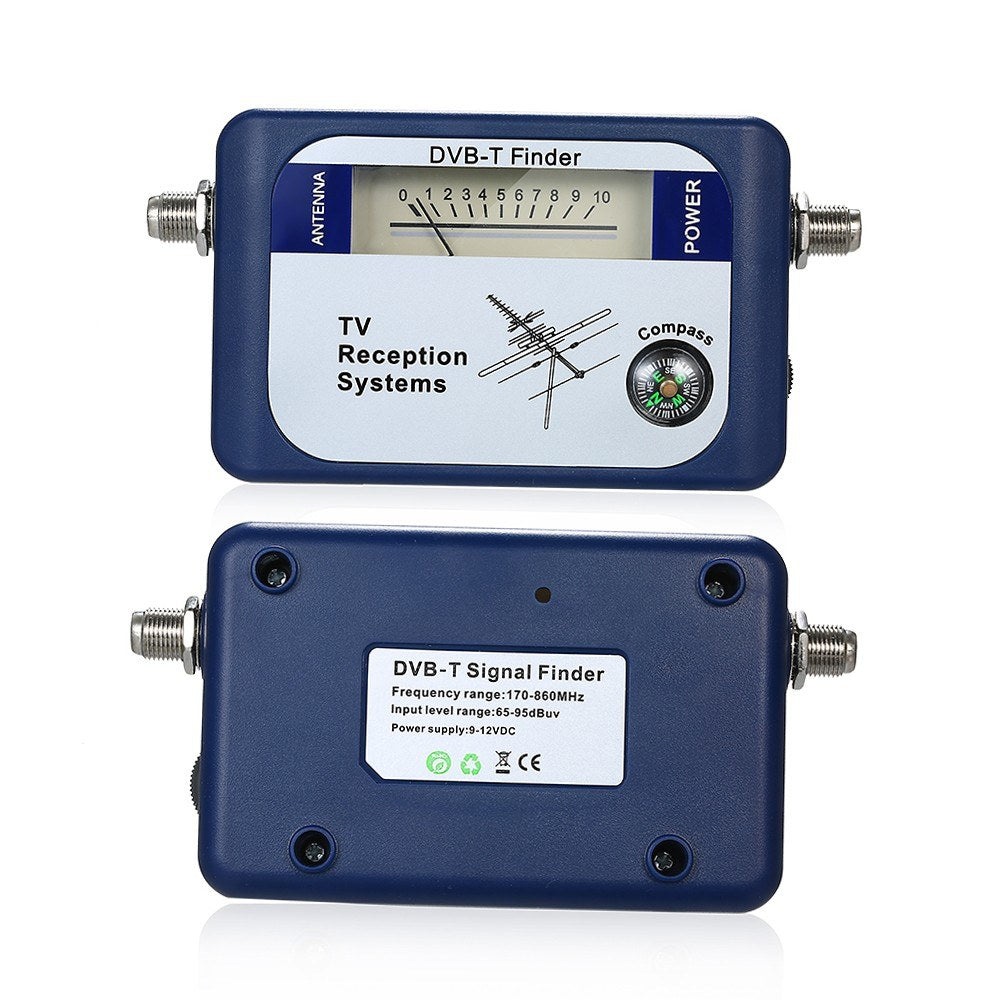

• Frequency Range: 170-860MHz
• Input Level Range: 65-95dBuv
• Impedance: 75Ω
• Insertion Loss: ≤5.0dB
• Power Supply: 9-12V DC

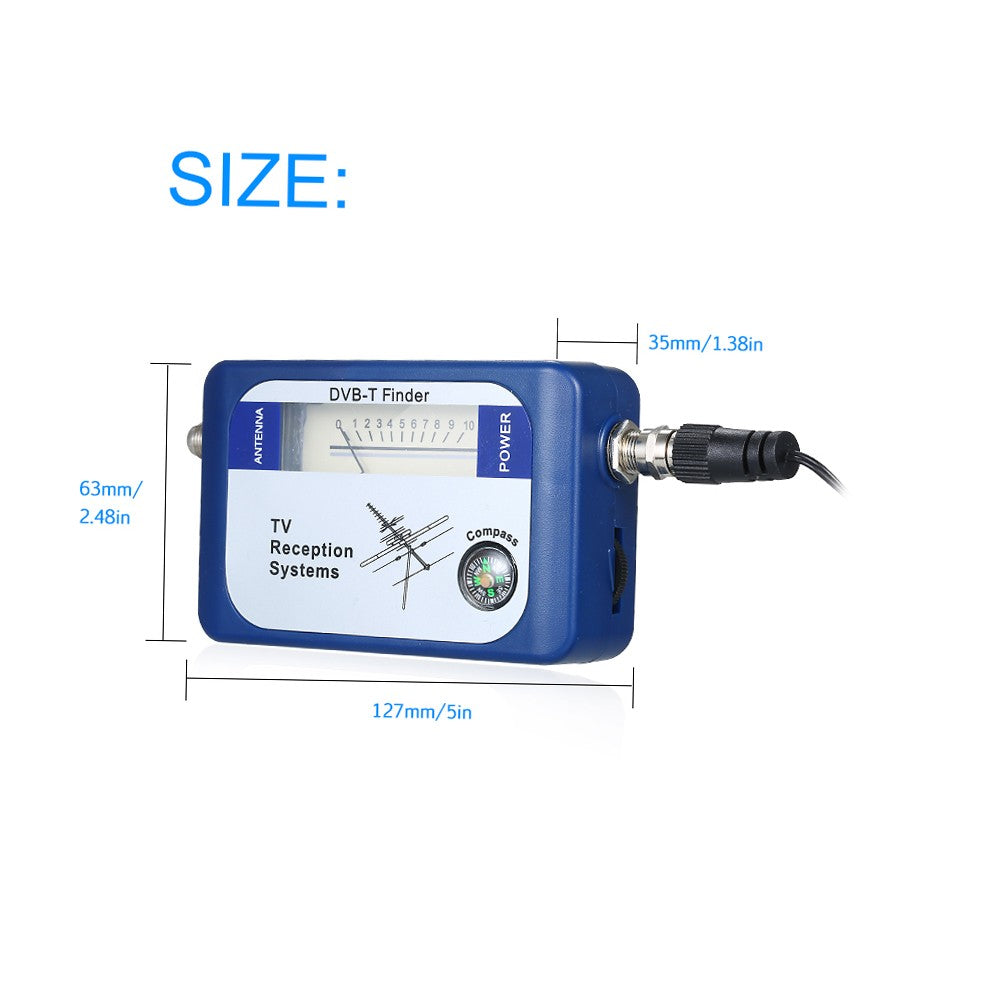

• Item Size: Approx. 127 x 63 x 35 mm / 5 x 2.48 x 1.38 in
• Item Weight: Approx. 90g / 3.2 oz
• Package Size: Approx. 18.6 x 14.1 x 4.3 cm / 7.32 x 5.55 x 1.69 in
• Package Weight: Approx. 197g / 6.97 oz

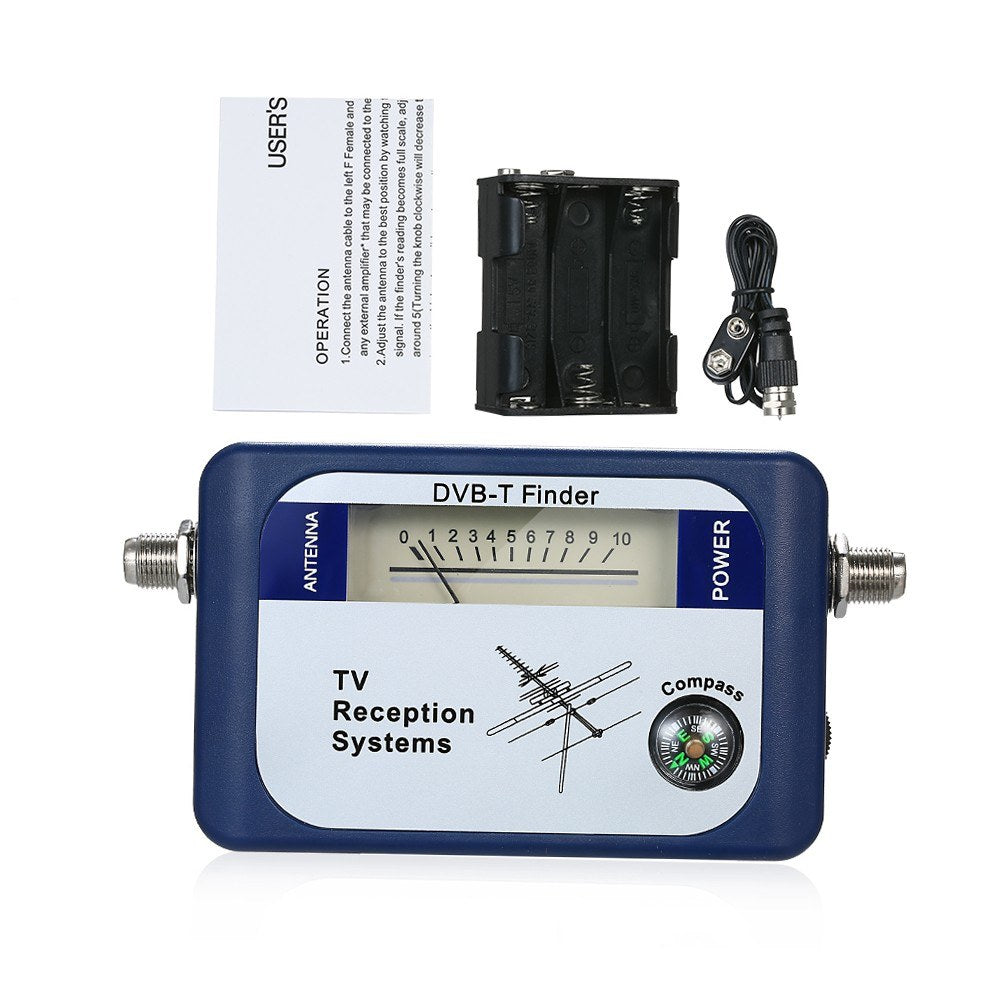

Package Contents

• 1 x Satellite Finder
• 1 x English User Manual
• 1 x Battery Holder
• 1 x Power Cable
