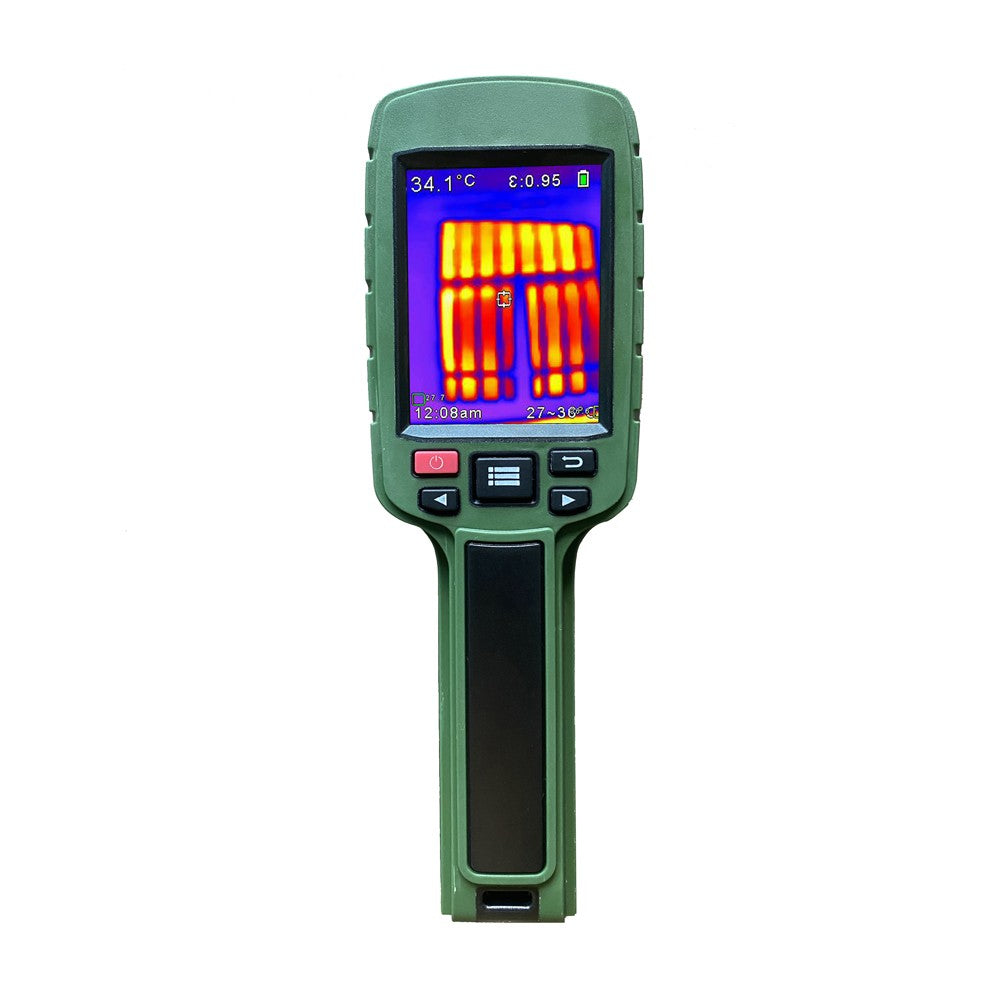

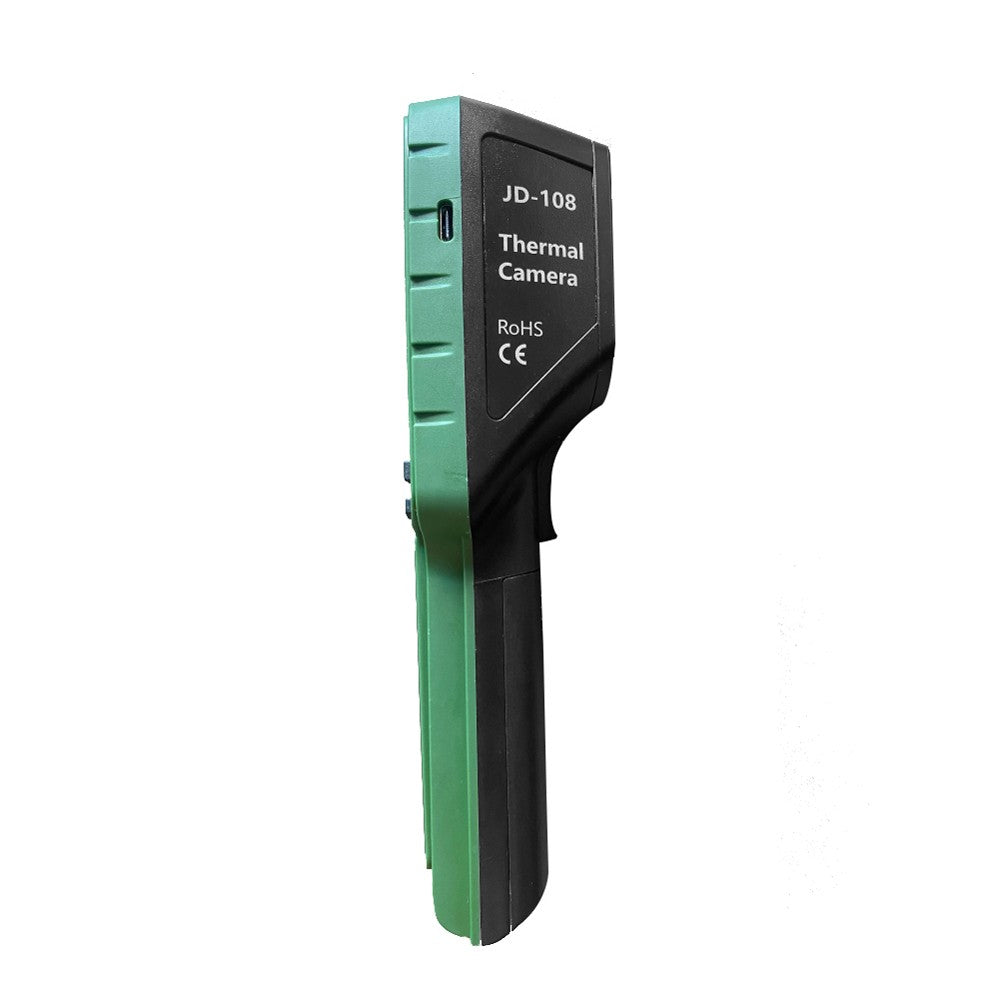

Portable JD-108 Infrared Thermal Imager Camera, 160x120 Color Display, Handheld Temperature Detector

Product Overview:

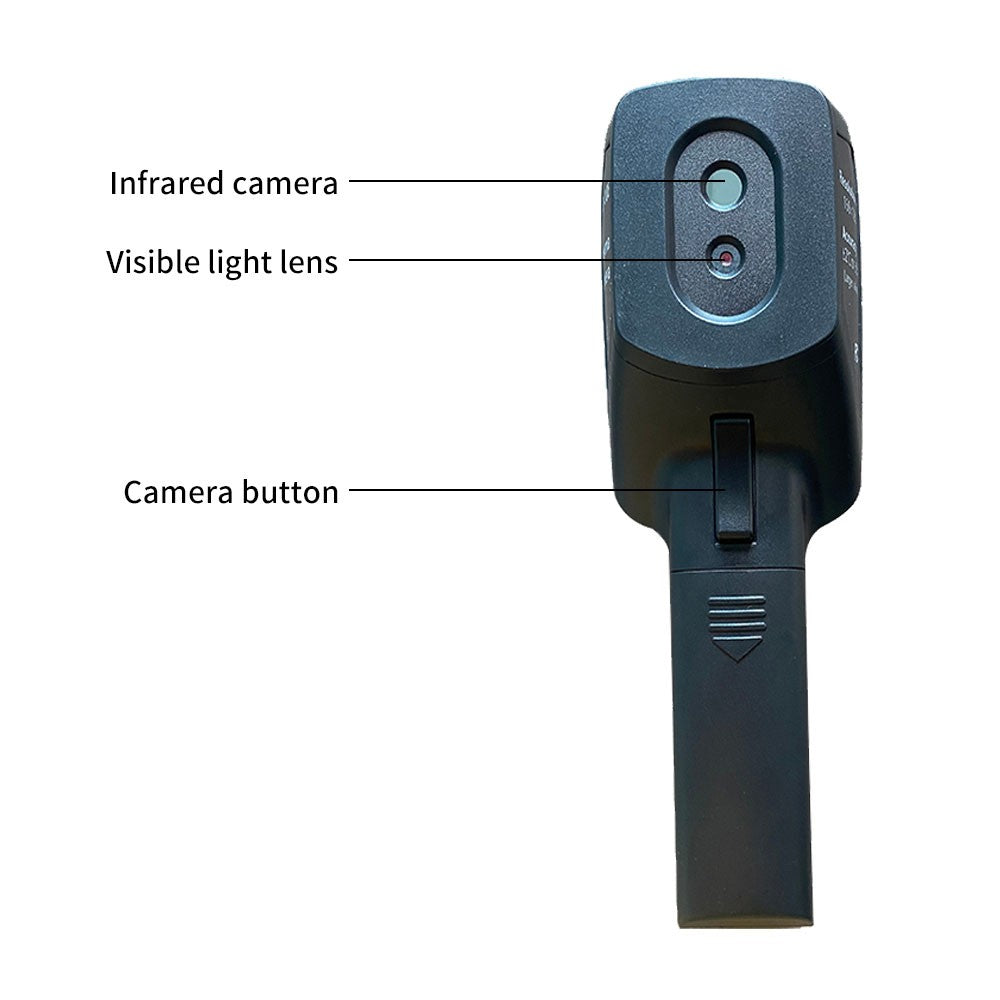

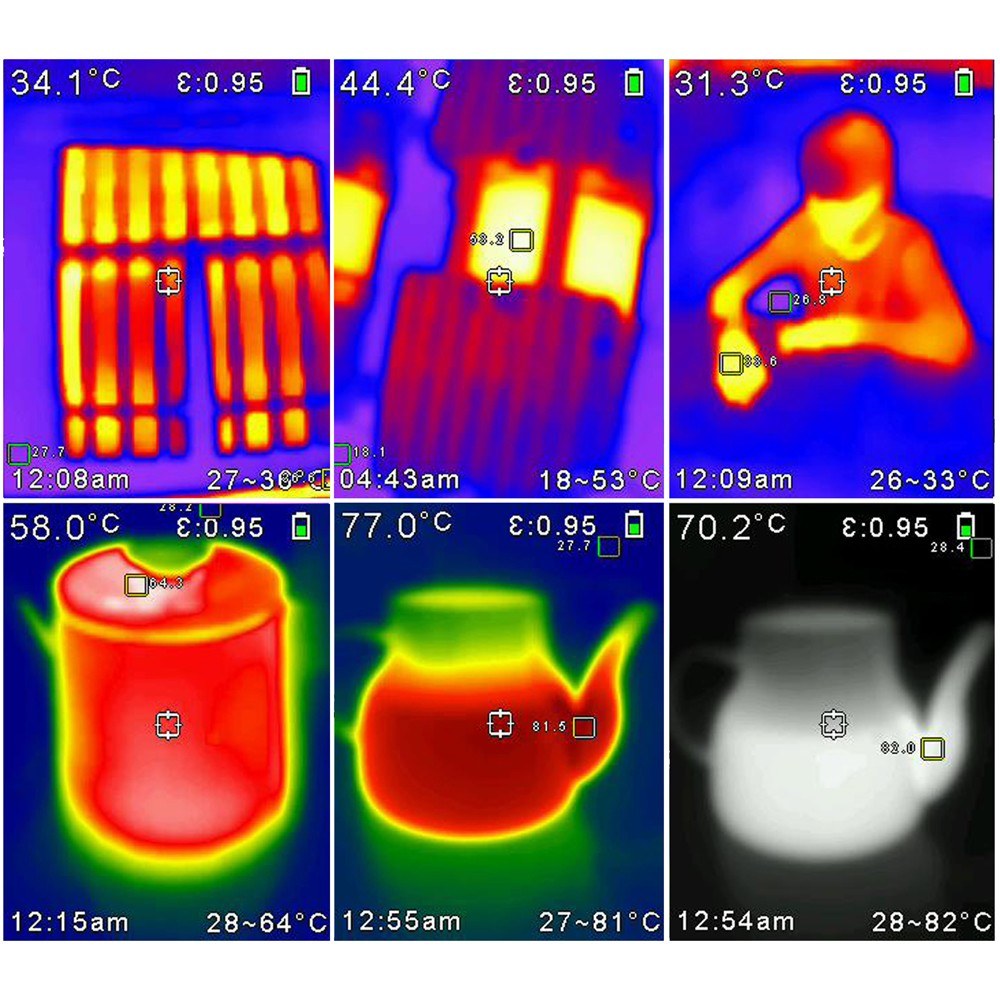

Introducing our hand-held infrared thermal imager, a versatile tool that combines surface temperature measurement with real-time thermal imaging. With this device, you can capture photos, record videos, and log data effortlessly. Easily identify potential issues displayed on the vibrant color screen, enabling quick and accurate pinpointing of measurement points. Enhance image identification by blending full thermal and full visual images.

Key Features:

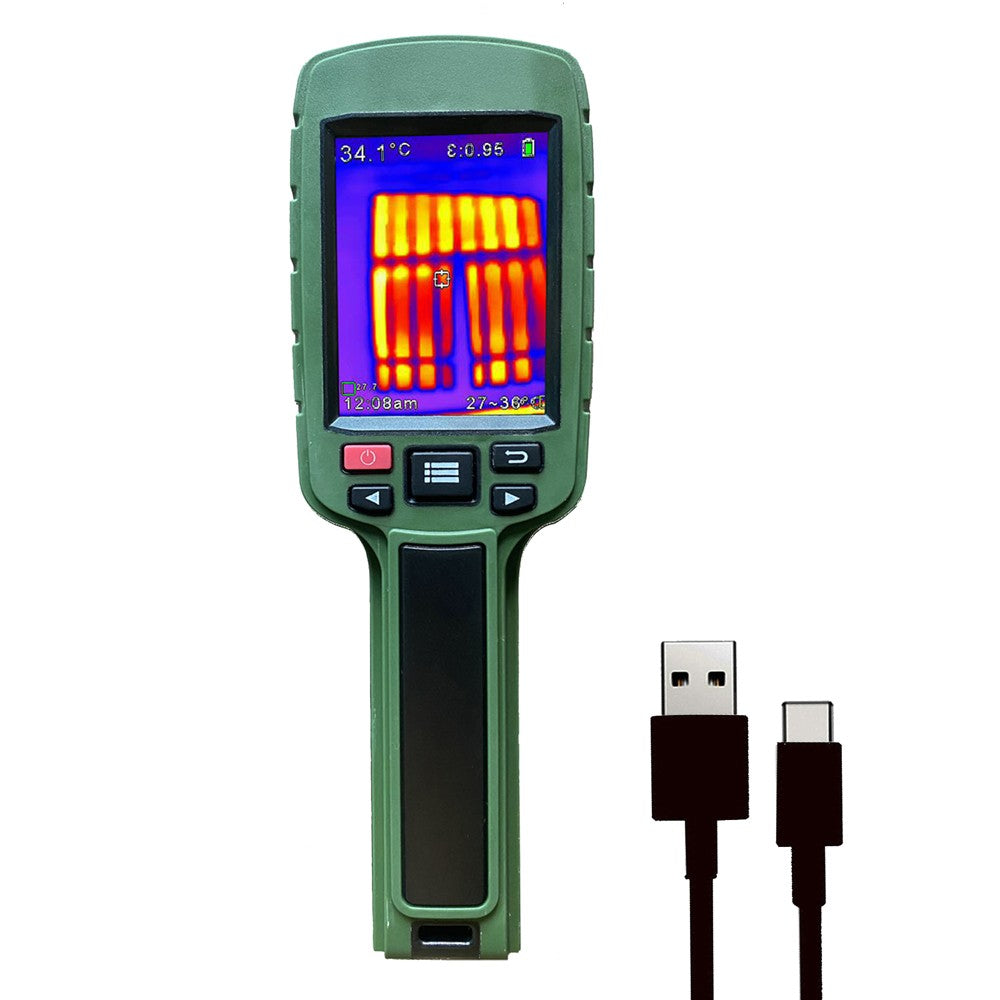

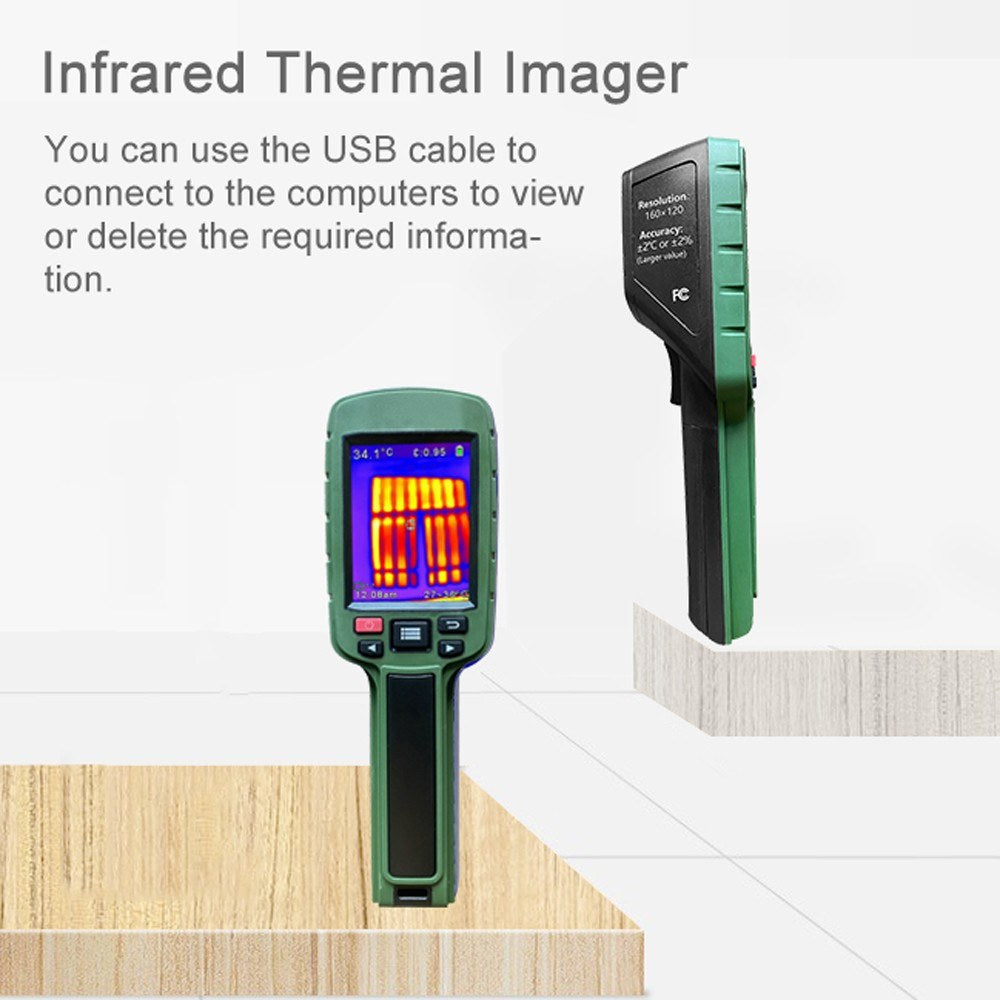

• Connect to computers via USB cable to view or delete stored information.
• Ideal for both human and industrial temperature detection.

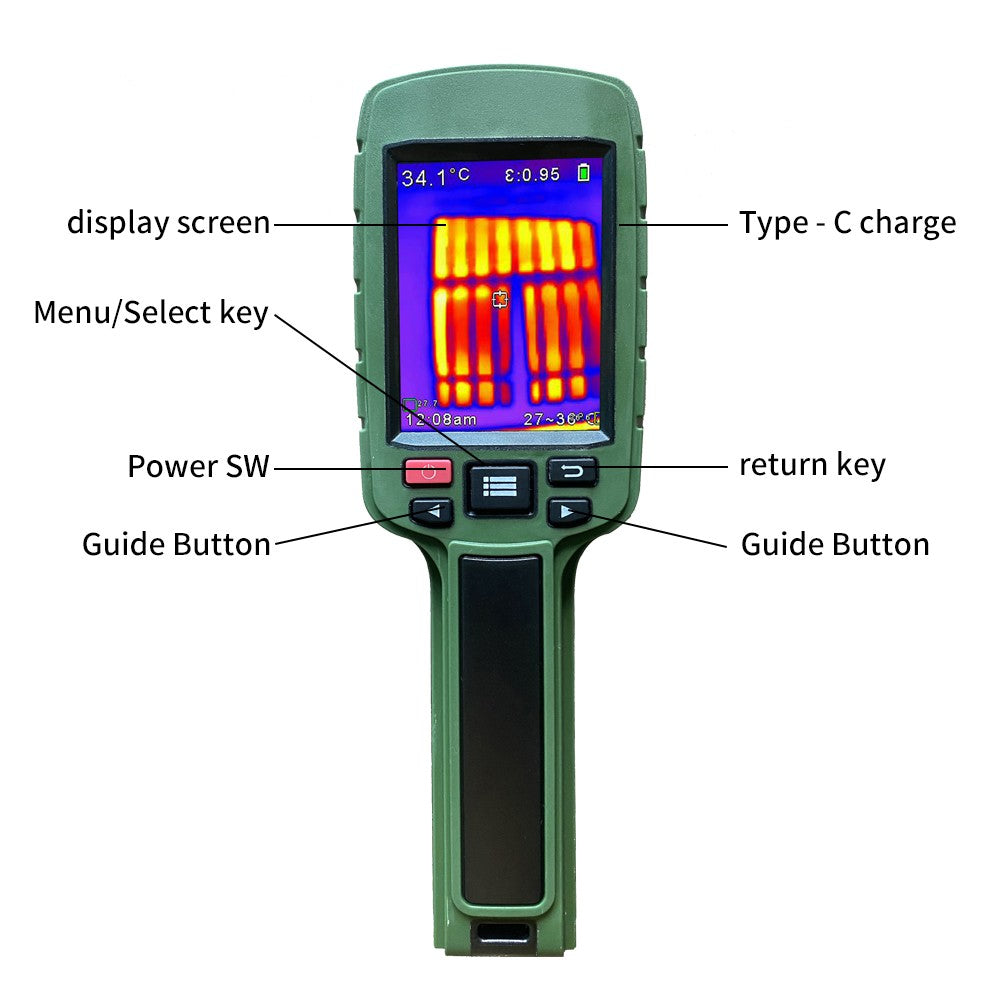

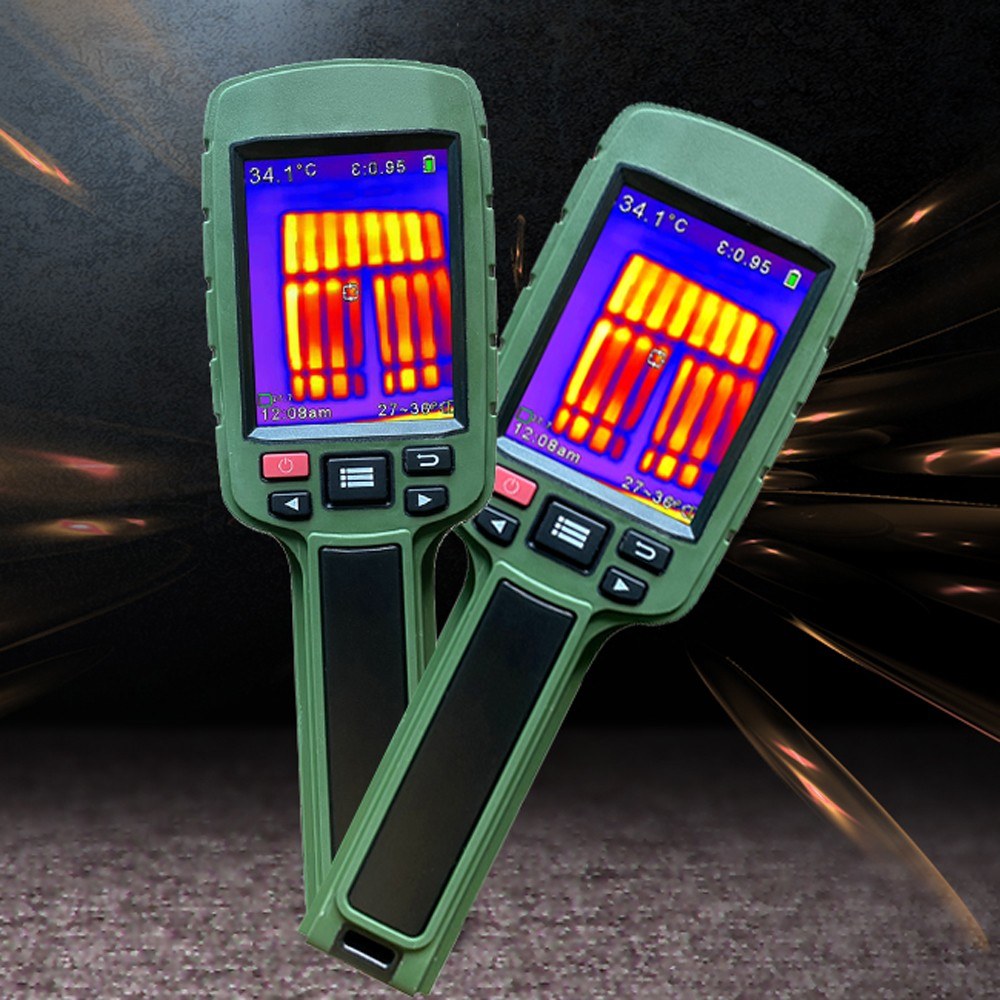

• Large, easy-to-read color screen for clear data visualization.

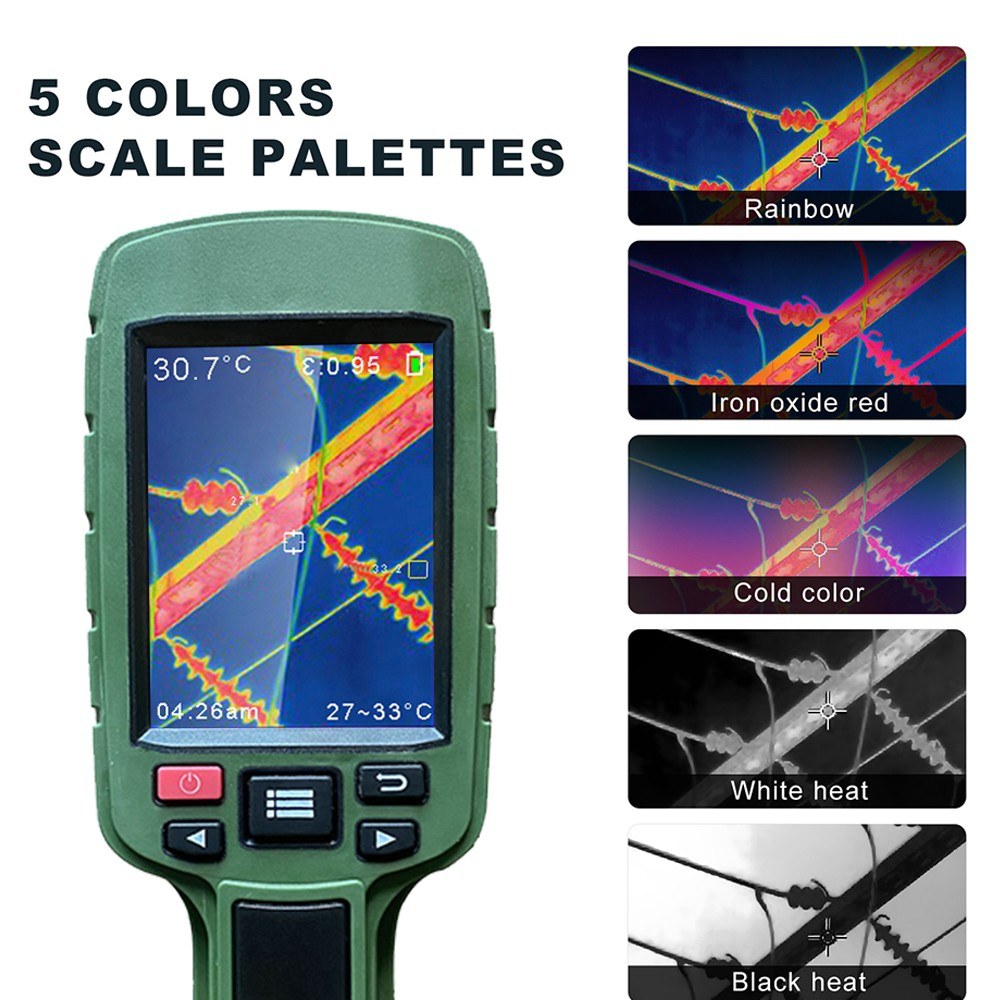

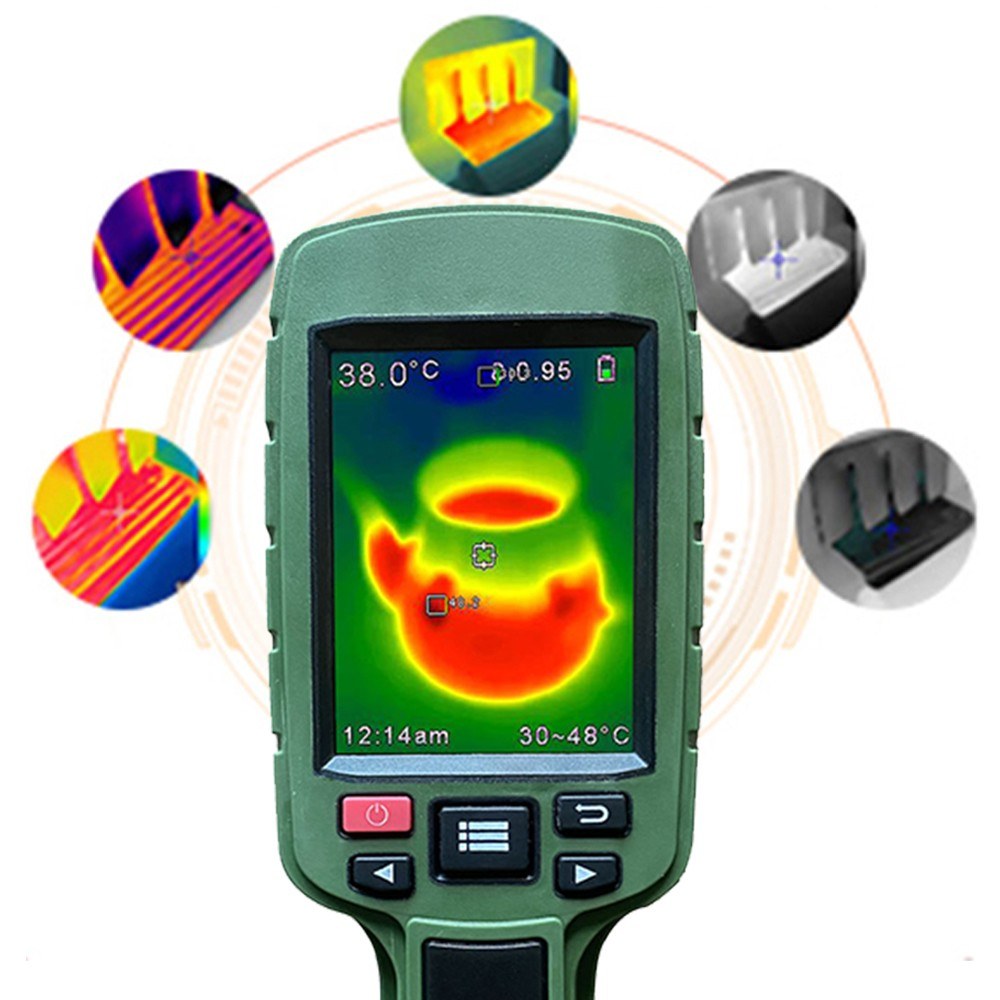

• Customize with 7 color palette modes: iron red, lava, rainbow, pseudo color, white hot, cool color, brown hot.
• Capture photos, record videos, and manage data with ease (record/delete).
• Set maximum and minimum alarm temperatures for audible alerts.
• Switch temperature units between ℃ and ℉.
• Adjustable screen brightness for optimal visibility.
• Flexible auto shutdown settings: choose between 5, 10, or 25 minutes.

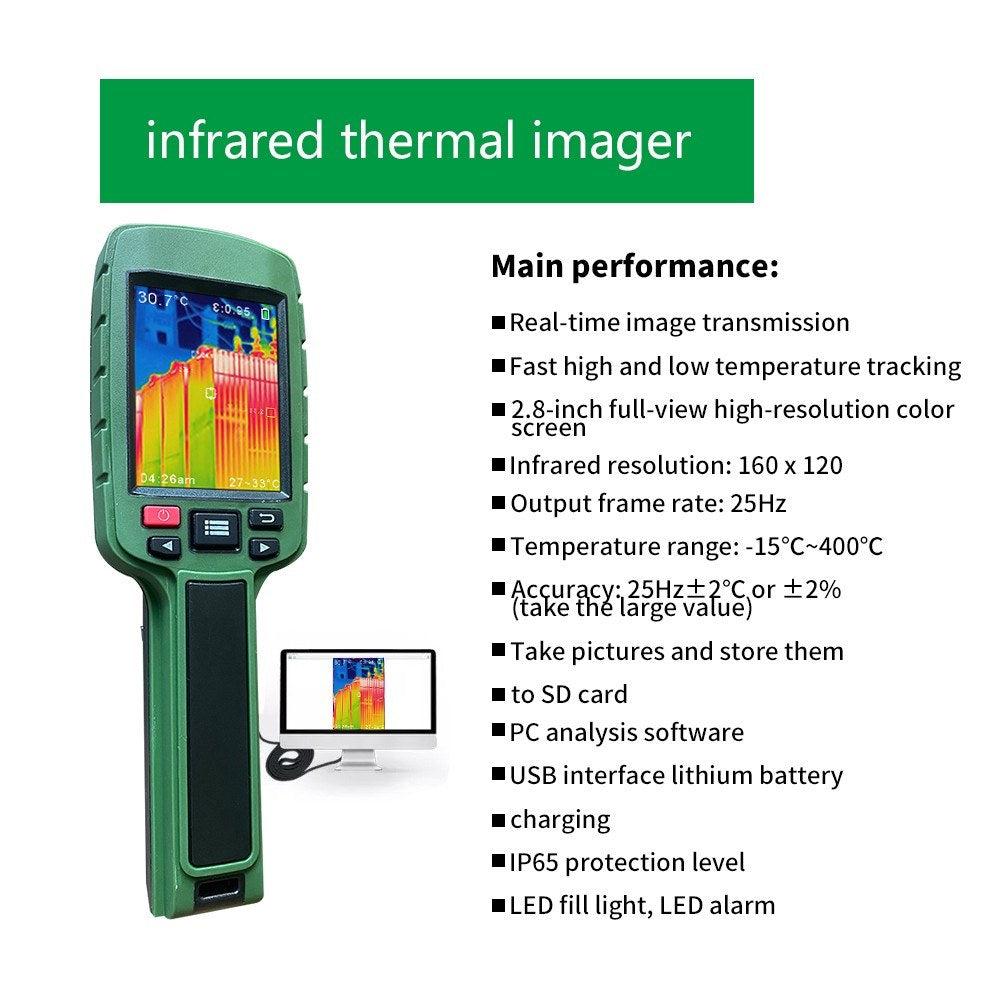

Technical Specifications:

• Screen size: 2.8 inches
• Infrared resolution: 160 x 120
• Response band: 8μm-14μm
• NETD: <50mK
• Horizontal FOV Angle: 50°
• Output frame rate: 25Hz

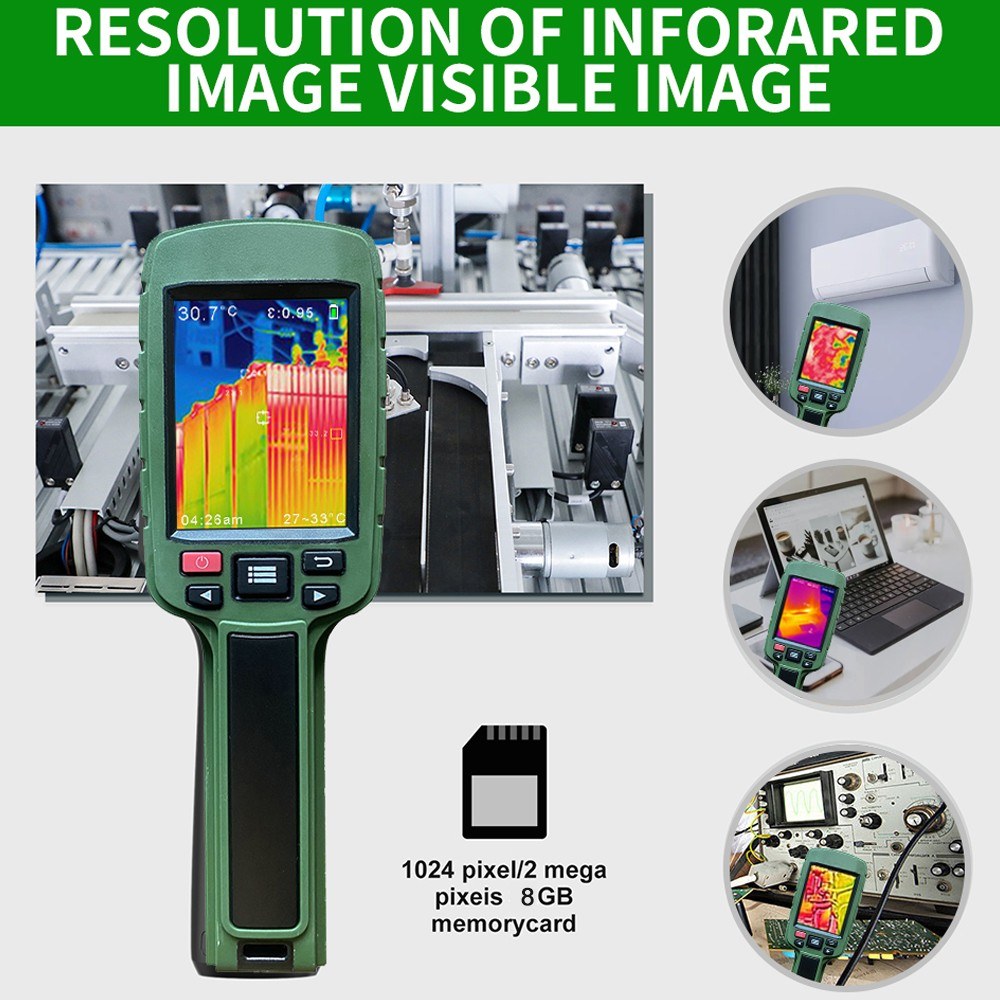

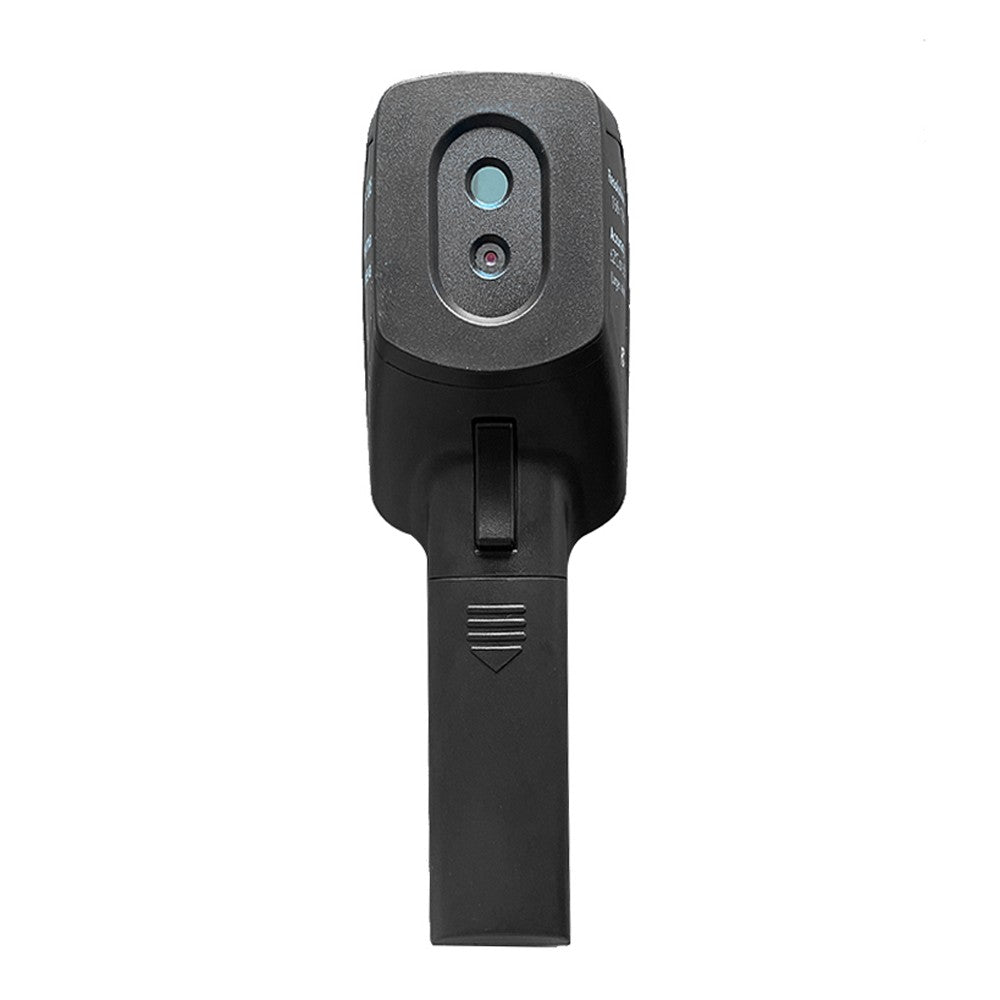

• Visible light resolution: 2 million pixels

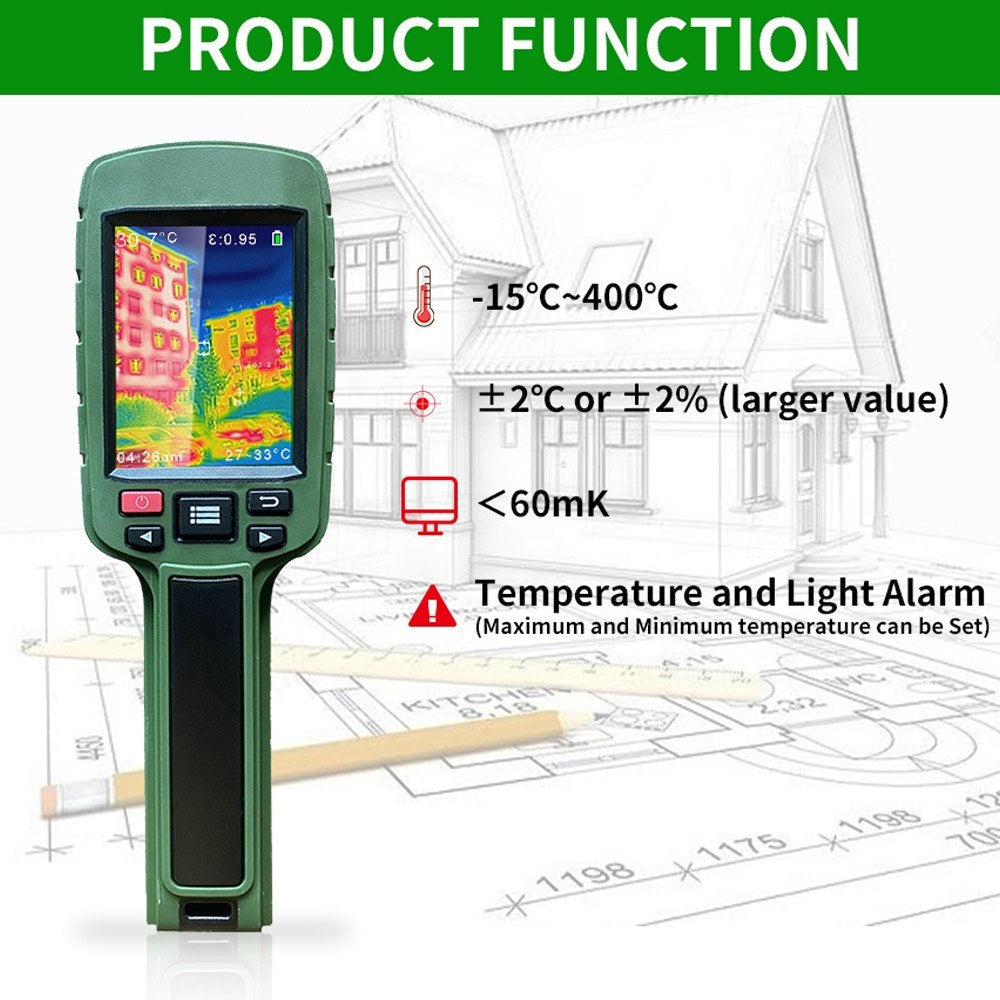

• Temperature measurement range: -20°C to 400°C

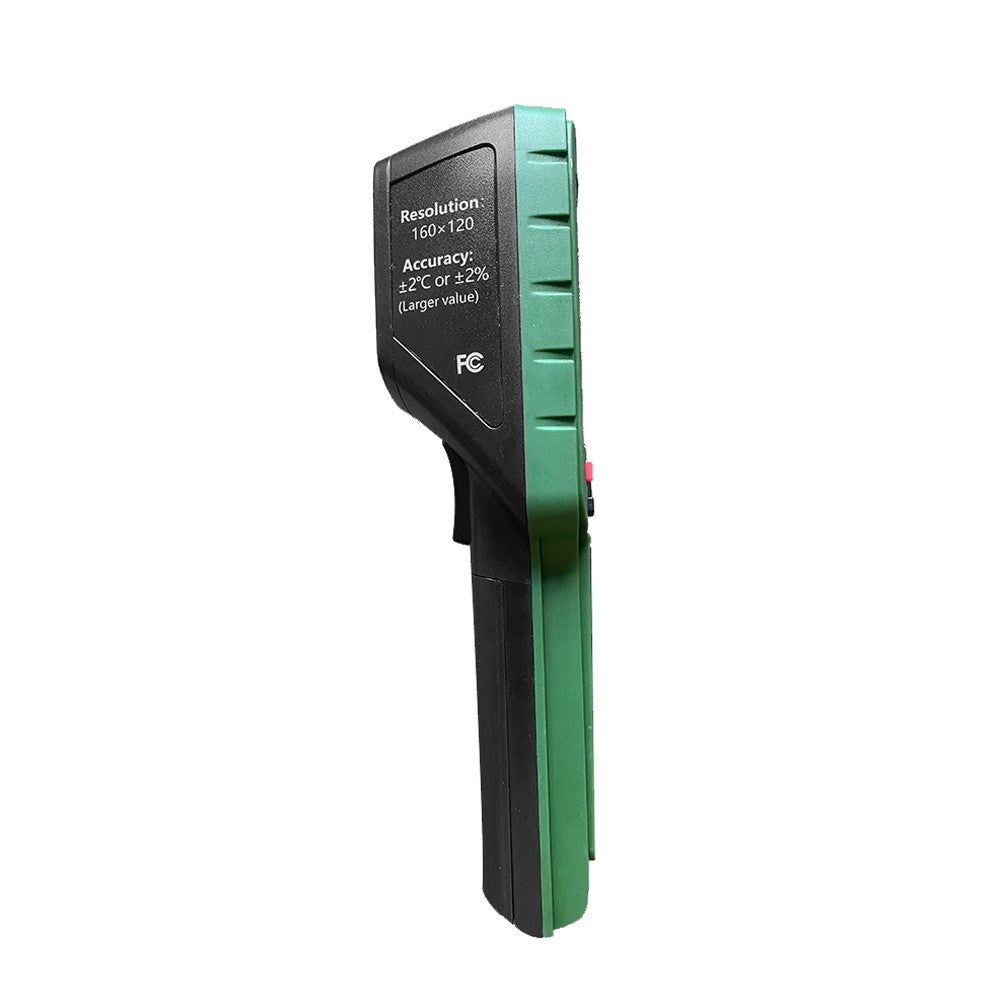

• Temperature measurement accuracy: ±2℃ or ±2% (whichever is greater)
• Emissivity: adjustable from 0.1 to 0.99
• Memory card capacity: 8GB
• Image format: JPG
• Video format: AVI
• Operating temperature: 0°C to 40°C
• Storage temperature: -10°C to 60°C
• Storage humidity: 10%-85% RH
• Battery: 3.7V, 2000mA
• Item dimensions: 205 x 70 x 53mm / 8.07 x 2.76 x 2.09in
• Item weight: 574g / 1.27lb
• Package dimensions: 247 x 137 x 75mm / 9.72 x 5.39 x 2.95in
• Package weight: 865g / 1.91lb

Packing List:

• 1 x Infrared Thermal Imager
