Advanced Home Security System

Features

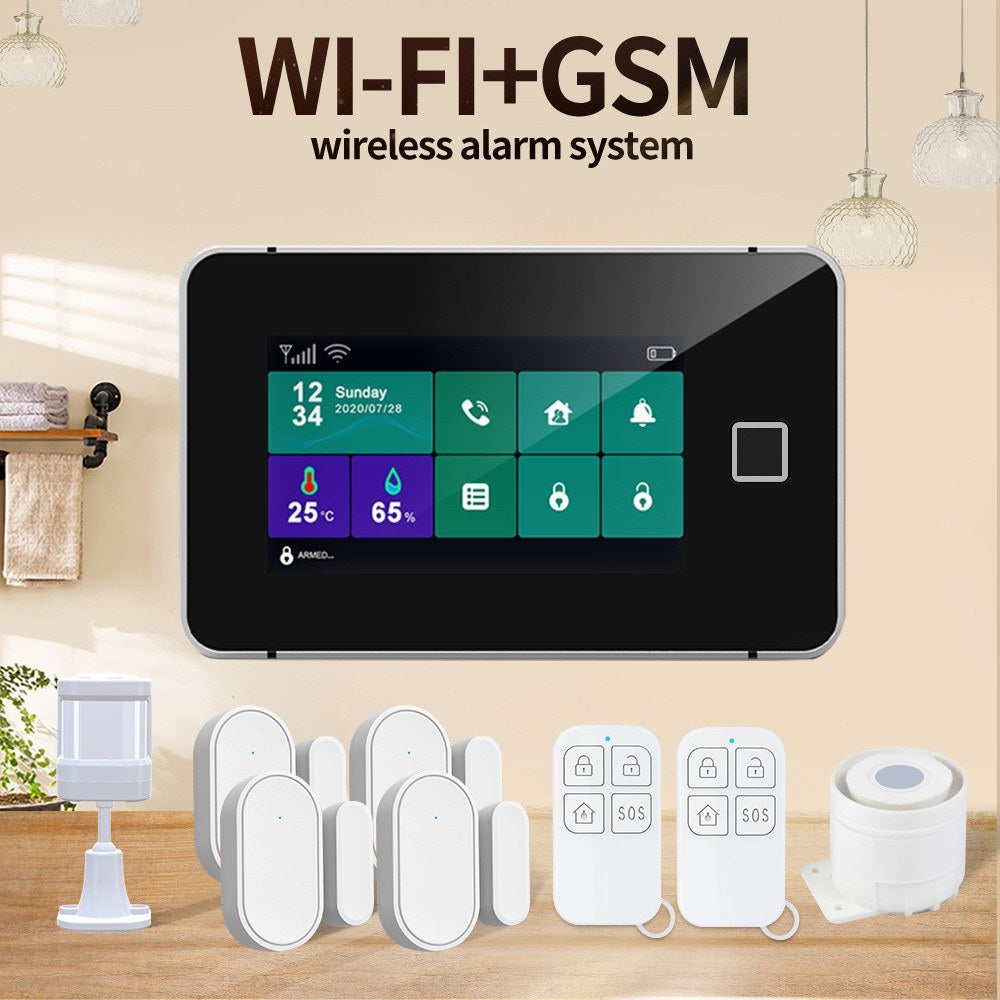

• Dual Network System: Seamlessly integrates Wi-Fi 802.11 b/g/n (2.4GHz) and cellular (GSM or 4G) networks for a robust home security experience.

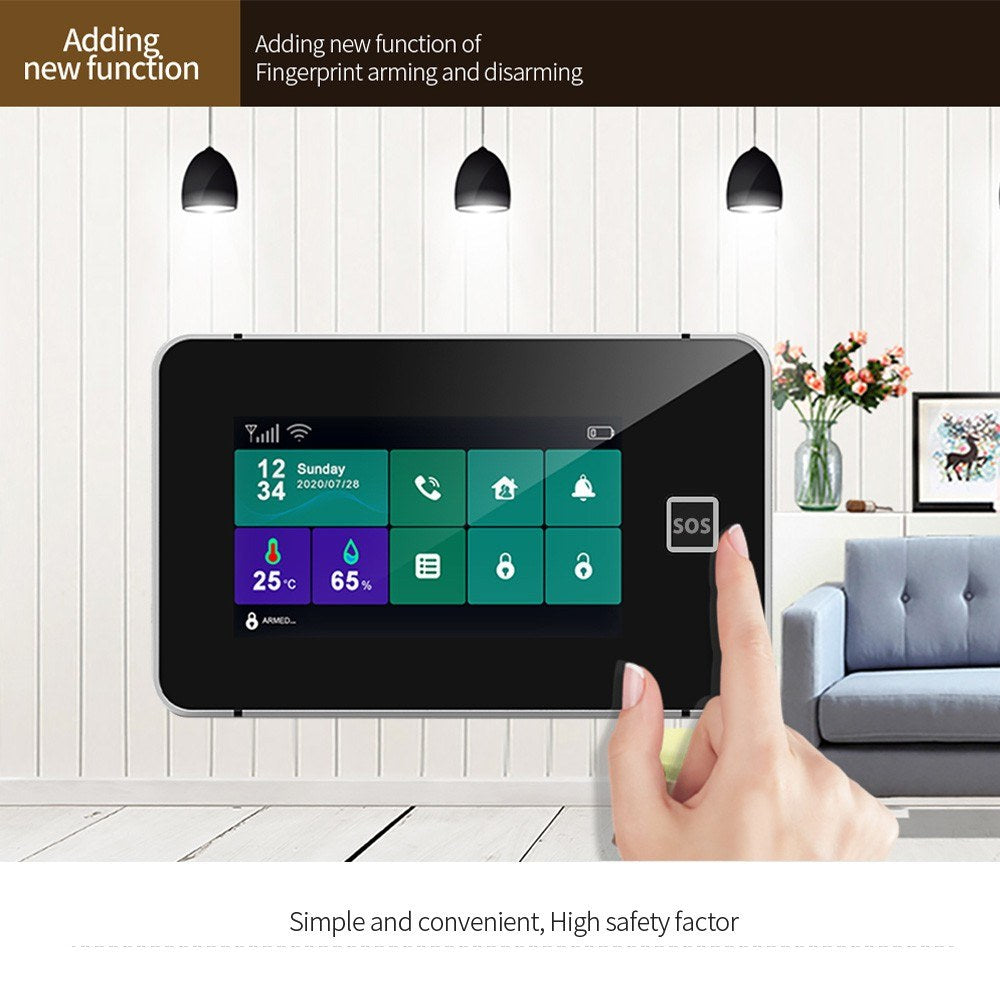

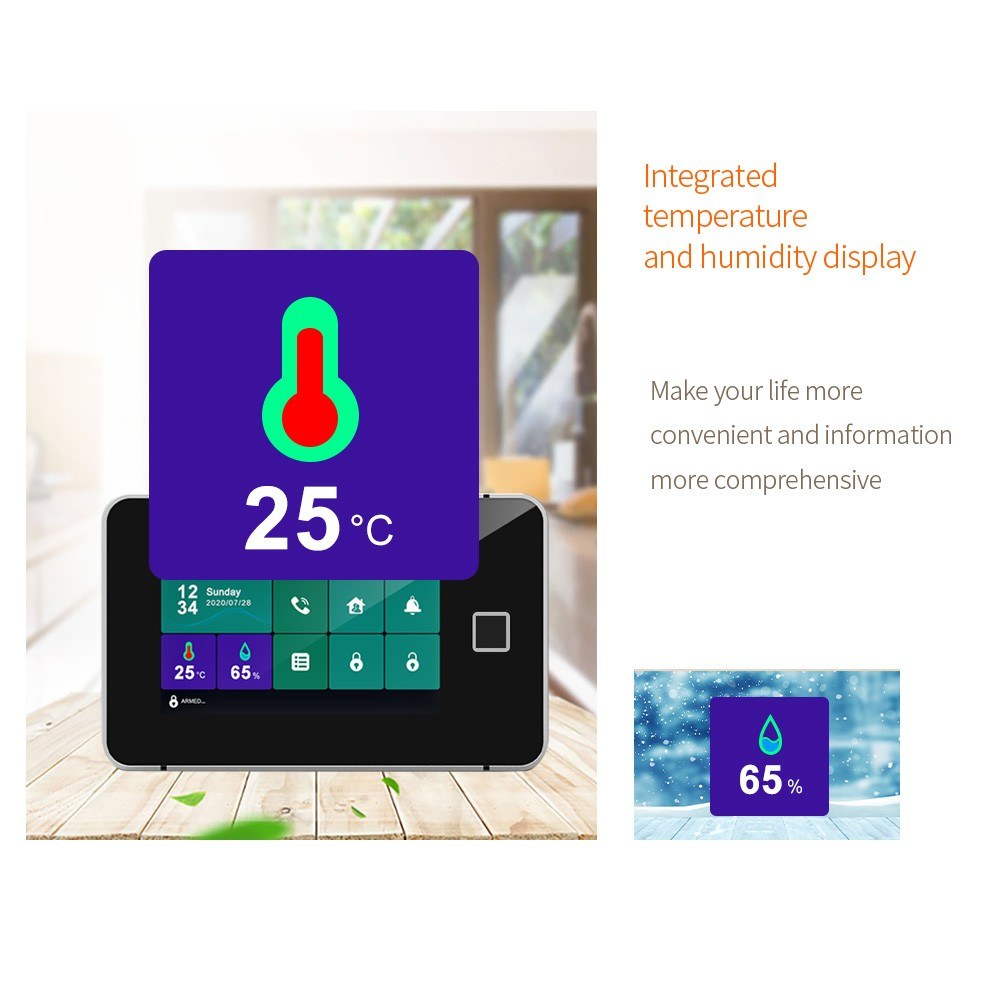

• Fingerprint Sensor and Display: Unlock with ease and monitor your environment with our integrated fingerprint sensor and display that shows current temperature and humidity.

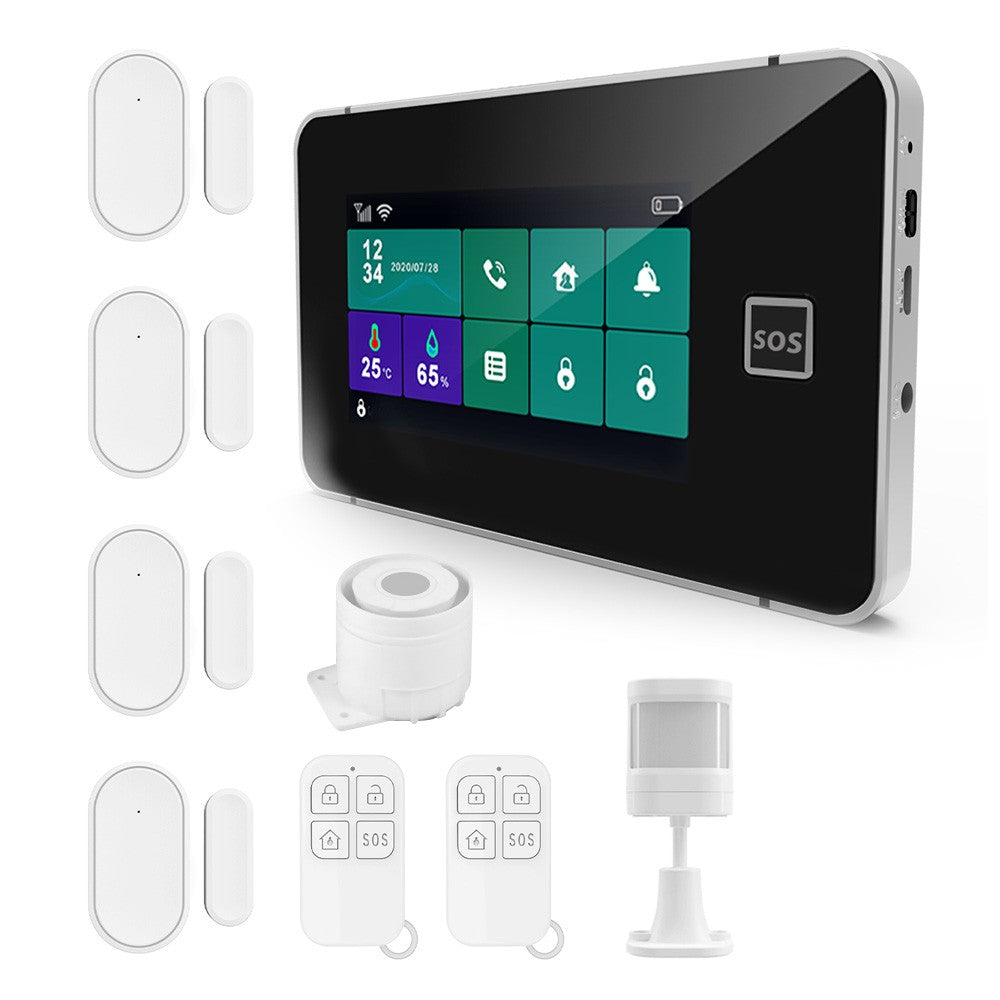

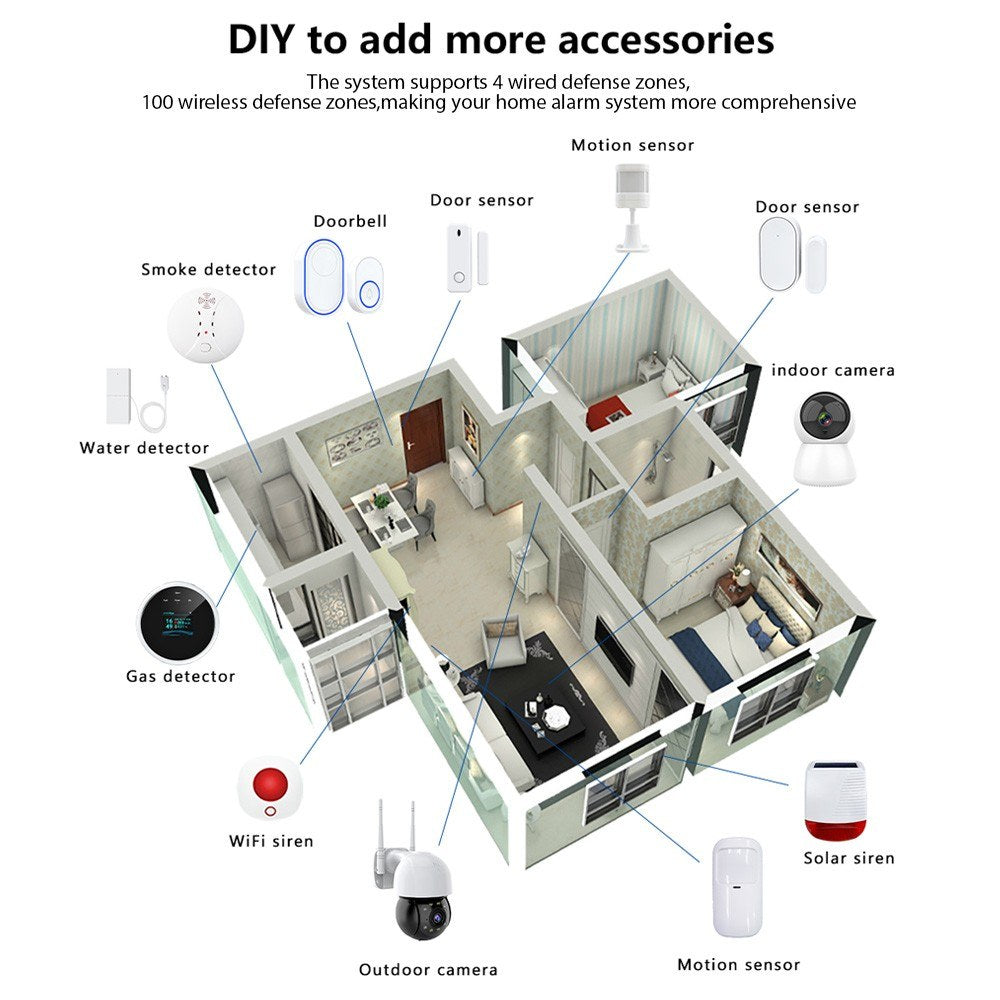

• High Capacity and Loud Alarm: Connects up to 100 wireless sensors and various alarms. Includes an 80dB on-site alarm and 100dB external alarm, with instant notifications to all users when triggered.
• Multiple Disarming Methods: Choose from fingerprint, touch panel, or remote control tags for convenient system management.
• Sensor Notifications: Receive accurate push notifications detailing the name and location of triggered sensors, ensuring swift action in the event of a breach.

Specifications

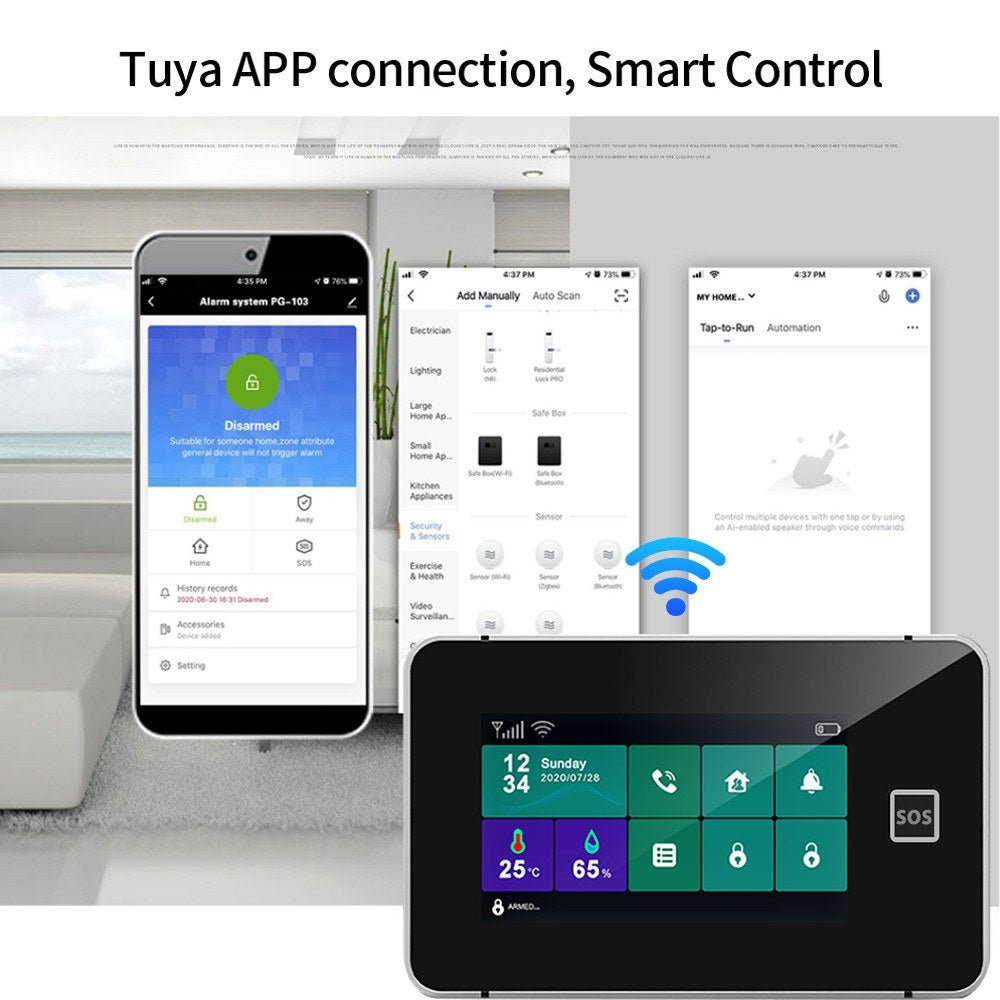

• APP: Tuya

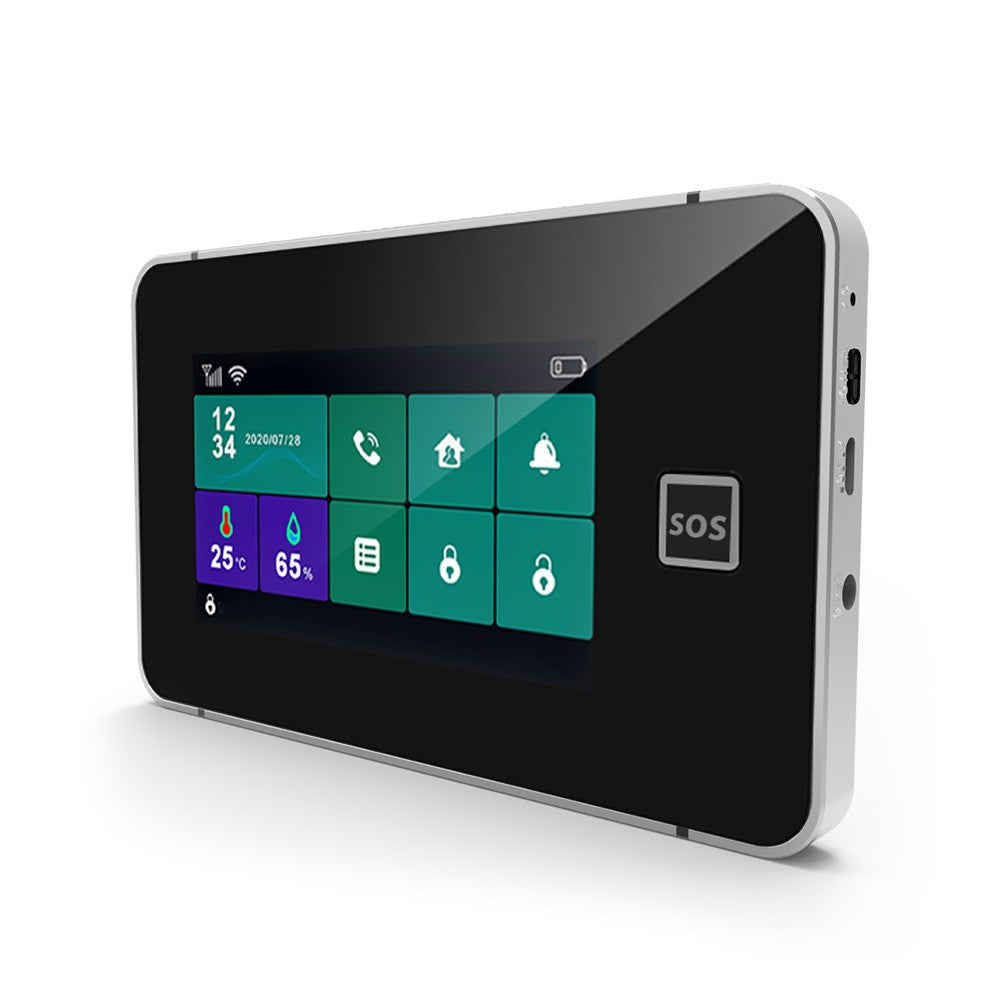

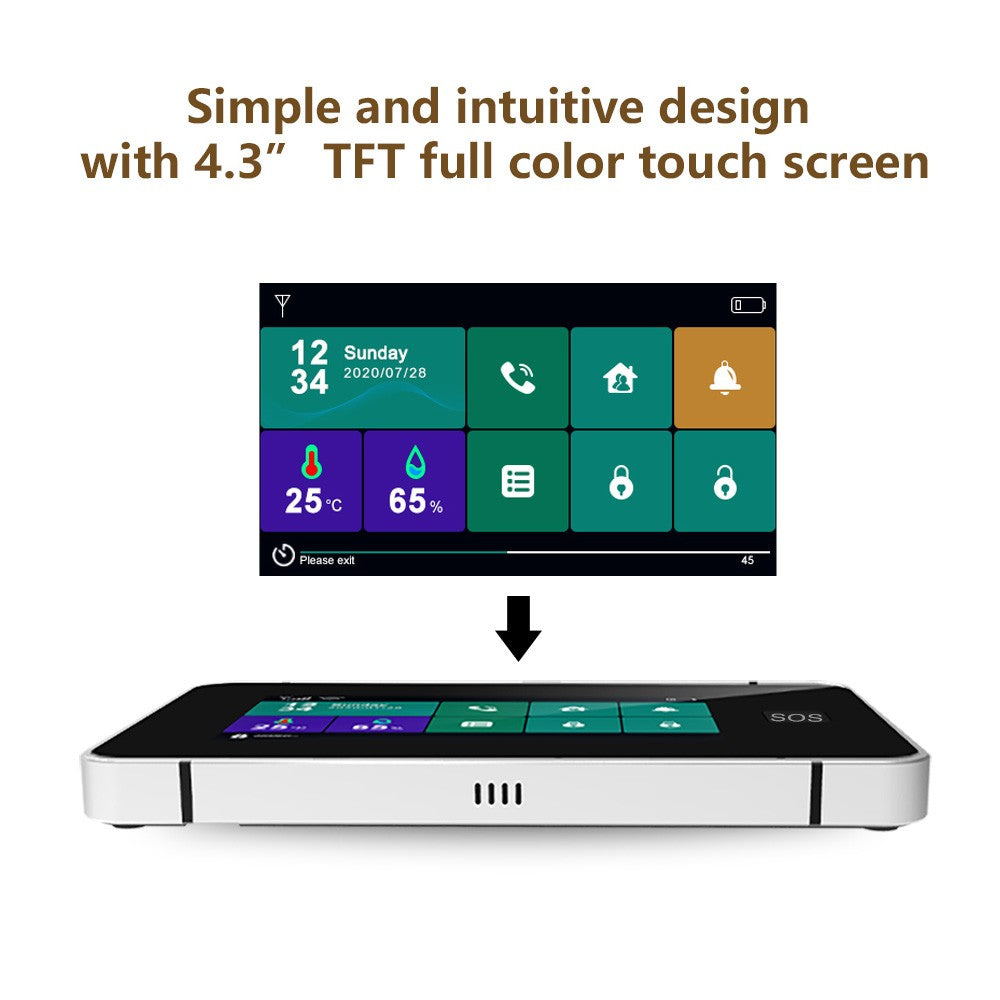

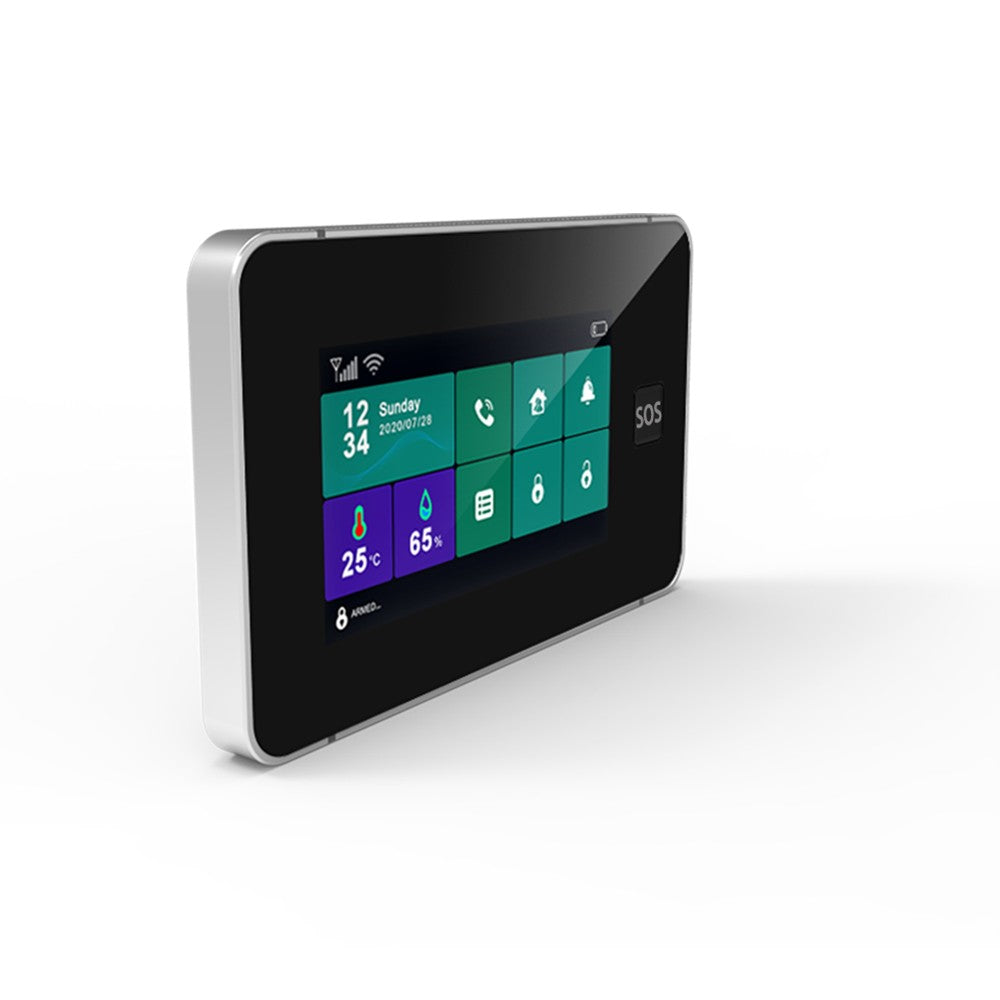

• Touch Screen Alarm Panel:
  • Power Supply: Micro USB 110/220VAC to 5V, 2000mA

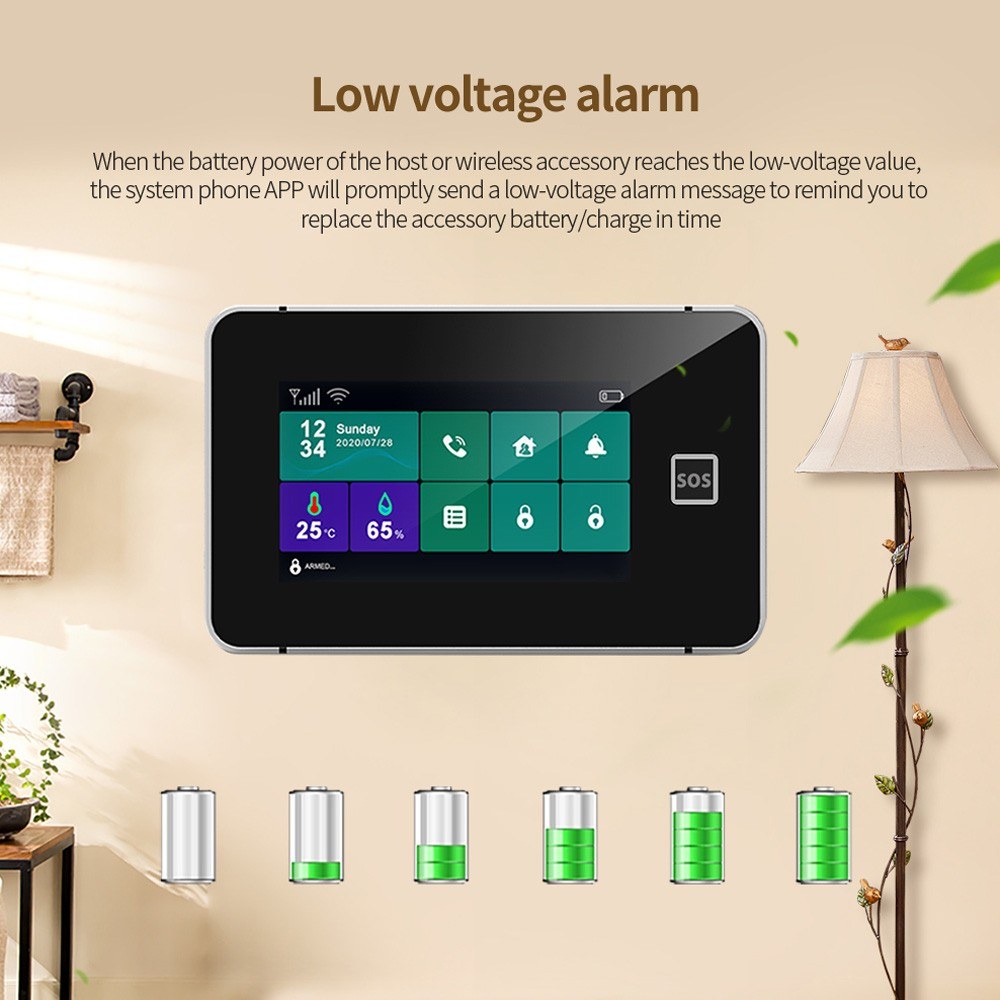

  • Backup Battery: 3.7V, 500mAh rechargeable lithium battery
  • Consumption: <350mA at normal
  • Alarm Output: <500mA
  • RF: 433Mhz
  • GSM: 850/900/1800/1900MHz
  • WiFi: IEEE802.11b/g/n
  • Working Temperature: -10~55 ℃
• Remote Control:
  • Power Supply: DC 3V (CR2025 lithium battery x1)
  • Standby Current: <5uA
  • Alarm Current: <15mA
  • Transmission Distance: <80m (open area)
  • RF: 433Mhz
  • Working Temperature: -10~55 ℃
• Door/Window Sensor:
  • Power Supply: DC 3V (CR2032 lithium battery x1)
  • Standby Current: <8uA
  • Alarm Current: <15mA
  • Transmission Distance: <80m (open area)
  • RF: 433Mhz
  • Working Temperature: -10~55 ℃
• PIR Motion Detector:
  • Power Supply: DC 3V (CR2450 lithium battery x1)
  • Standby Current: <15uA
  • Alarm Current: <25mA
  • Detection Range: <12m
  • Transmission Distance: <80m (open area)
  • RF: 433Mhz
  • Working Temperature: -10~55 ℃

Note: Due to different screen settings, the actual color may slightly vary from the images.
