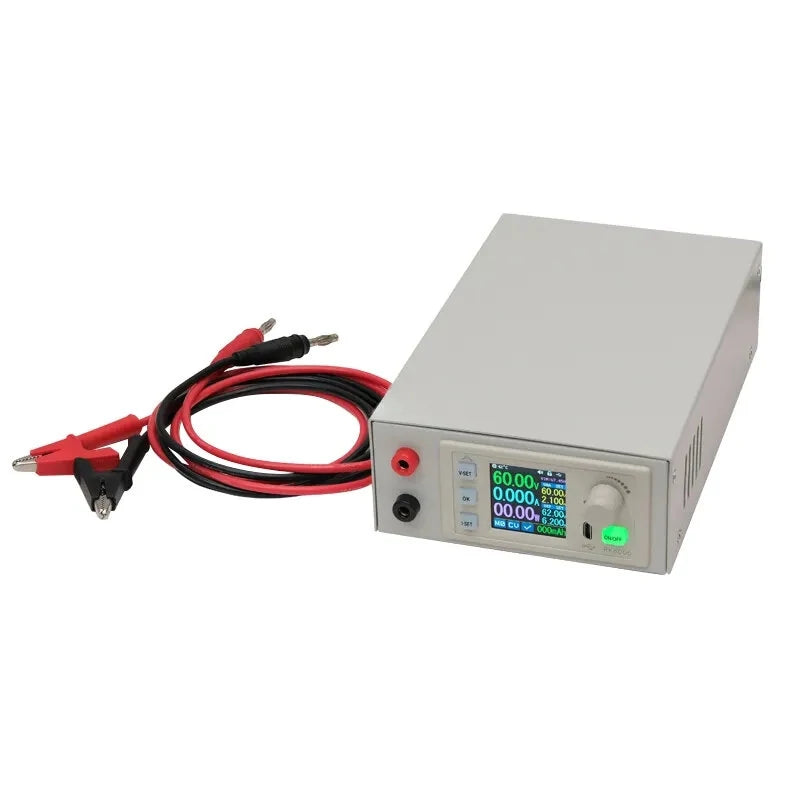

RIDEN® RK6006-C 60V 6A 4-Digit Adjustable AC/DC Step Down Voltage Bench Power Supply Module with Current Regulation
RIDEN® RK6006-C 60V 6A 4-Digit Adjustable AC/DC Step Down Voltage Bench Power Supply Module with Current Regulation
Regular price
$92.99 USD
Regular price
$0.00 USD
Sale price
$92.99 USD
Unit price
per
Shipping calculated at checkout.
Estimated Delivery: -
Couldn't load pickup availability
Product Overview
The RK6006-C is a high-performance AC to DC power supply designed for precise power delivery with Bluetooth connectivity. Please take note of the following specifications and features for optimal use.
Important Notes:
- The RK6006-C includes a Bluetooth function but does not come with an AC power cord or an external temperature sensor cable. Please source these separately.
- By default, the RK6006-C is set to use 200-240V AC input. If operating with 100-120V AC, switch the AC selector to the 110V setting.
Downloads:
- For the RK6006-C manual, PC software, and app: Download here
- For the iOS app, search "RUIDENG" in the App Store.
- For the Android app: Download here
Specifications:
| Model | RK6006-C |
|---|---|
| Input Voltage Range | 100-120V / 200-240V AC |
| Output Voltage Range | 0-60.00V |
| Output Current Range | 0-6.000A |
| Output Power Range | 0-360W |
| Output Voltage Setting/Reading Resolution | 0.01V |
| Output Current Setting/Reading Resolution | 0.001A |
| Output Voltage Setting/Reading Accuracy | ±(0.3% + 3 digits) |
| Output Current Setting/Reading Accuracy | ±(0.5% + 5 digits) |
| Working Temperature Range | -10°C to 40°C |
| Screen | 1.54 inch 240x240 color LED display |
| Weight (with package) | About 1.3 kg |
| Dimensions | 200 x 115 x 57 mm |
| USB/Bluetooth Communication | Yes |
Frequently Asked Questions:
- Q: What is included in the RK6006-C package?
- A: You will receive the RK6006-C unit, an X15A output cable, a micro USB cable, and a backup fuse. Note: The package does not include an AC power cable or external temperature sensor cable.
- Q: How do I choose the AC input?
- A: The default setting is 200-240V AC. For 100-120V AC use, adjust the AC selector to the 110V gear.
- Q: Why does the product I received differ slightly from the picture?
- A: Continuous updates to hardware and software may result in slight variances, aiming to improve functionality without affecting usability.
- Q: Can I use it to power inductive loads?
- A: When powering inductive loads such as motors, ensure the maximum working voltage and current do not exceed 1/3 of the full range.
- Q: Is the included fuse installed?
- A: The included fuse is a backup. Use it to replace a blown fuse due to incorrect operations.
- Q: The app crashes on my phone. What can I do?
- A: Check compatibility before purchasing. The PC software supports Windows 7 and above, while the app supports Android 8.0 and above. Compatibility issues may not qualify for a refund if the product functions otherwise.
Package Includes:
- 1x RIDEN RK6006-C Machine
- 1x X15A Output Cable
- 1x Backup Fuse
- 1x Micro Communication Cable
