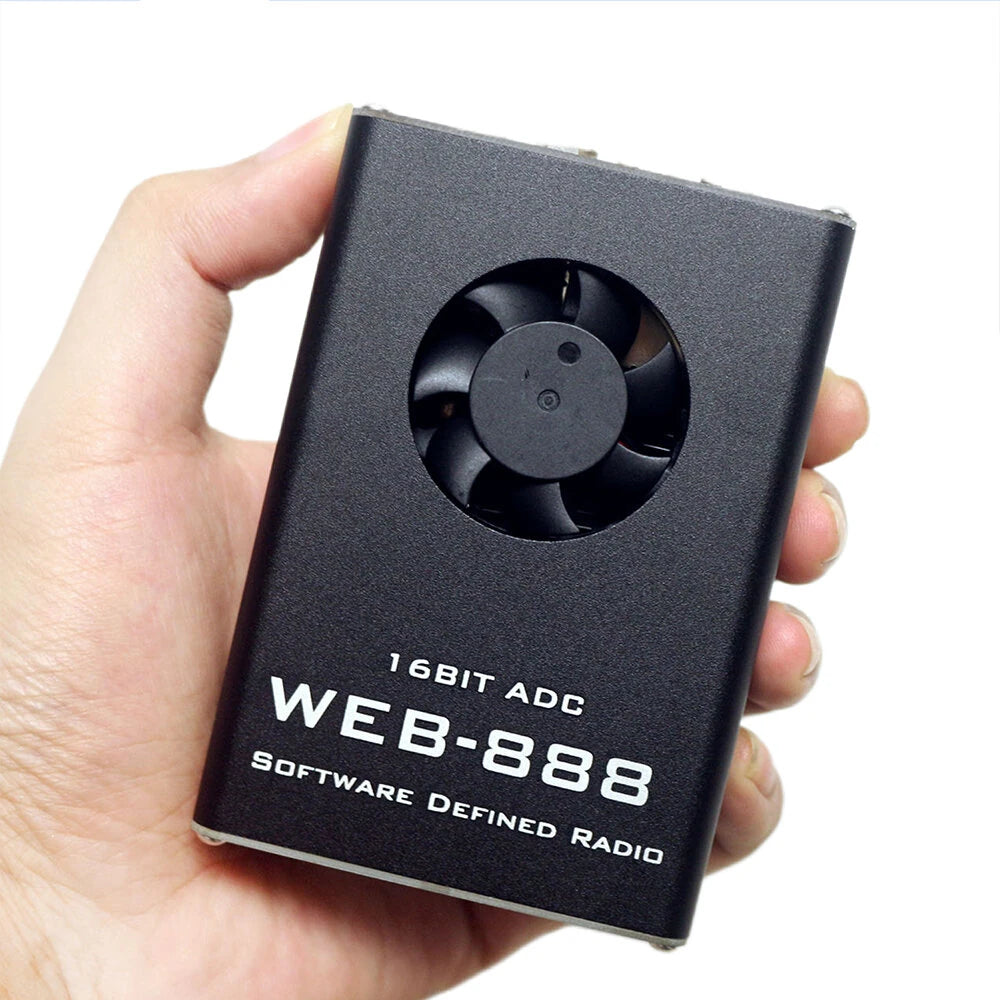

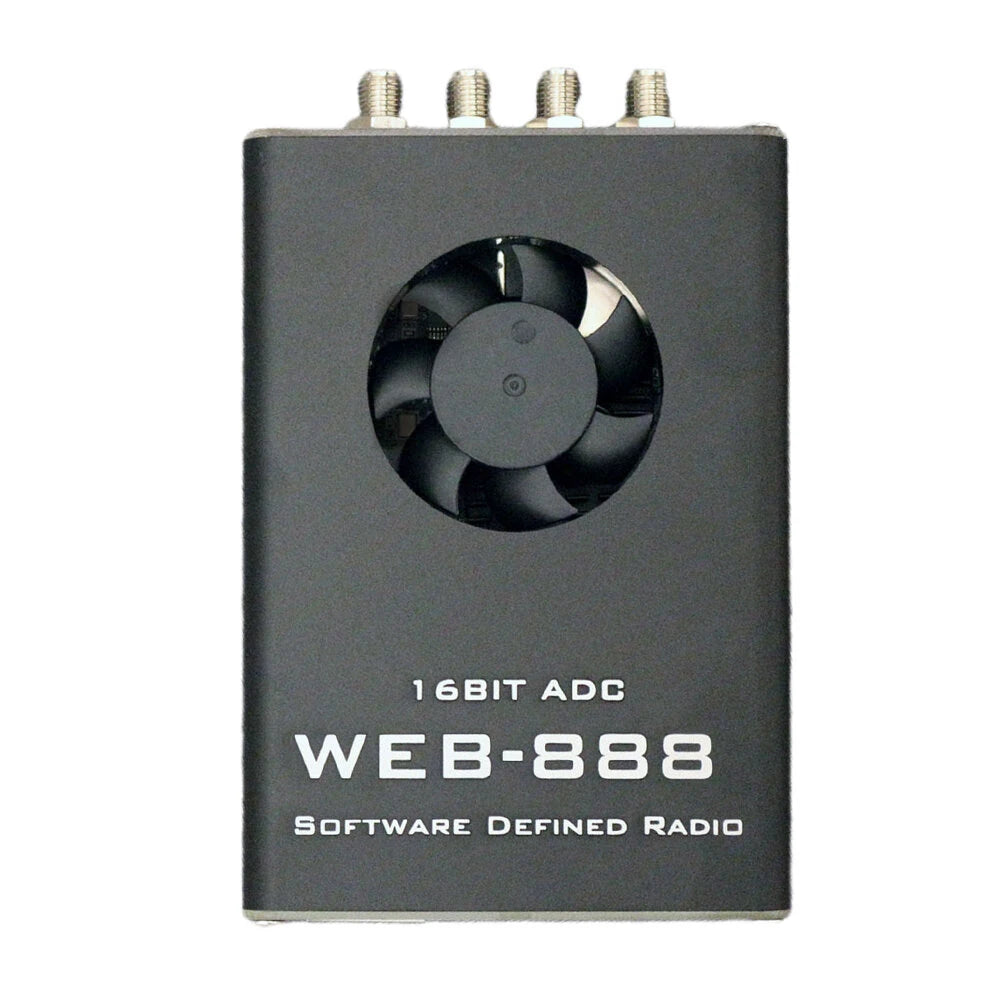

Advanced Web-888 SDR: Dual Antenna, 16-Bit ADC, 62MHz, Gigabit Ethernet, Built-in GPS

Specifications

• Dimensions: 100mm x 25.2mm x 17mm (excluding SMA)
• Active Cooling Fan: 40mm
• ADC: 16-bit, 130 MSPS LTC2208
• Real-time Bandwidth: 61.44 MHz

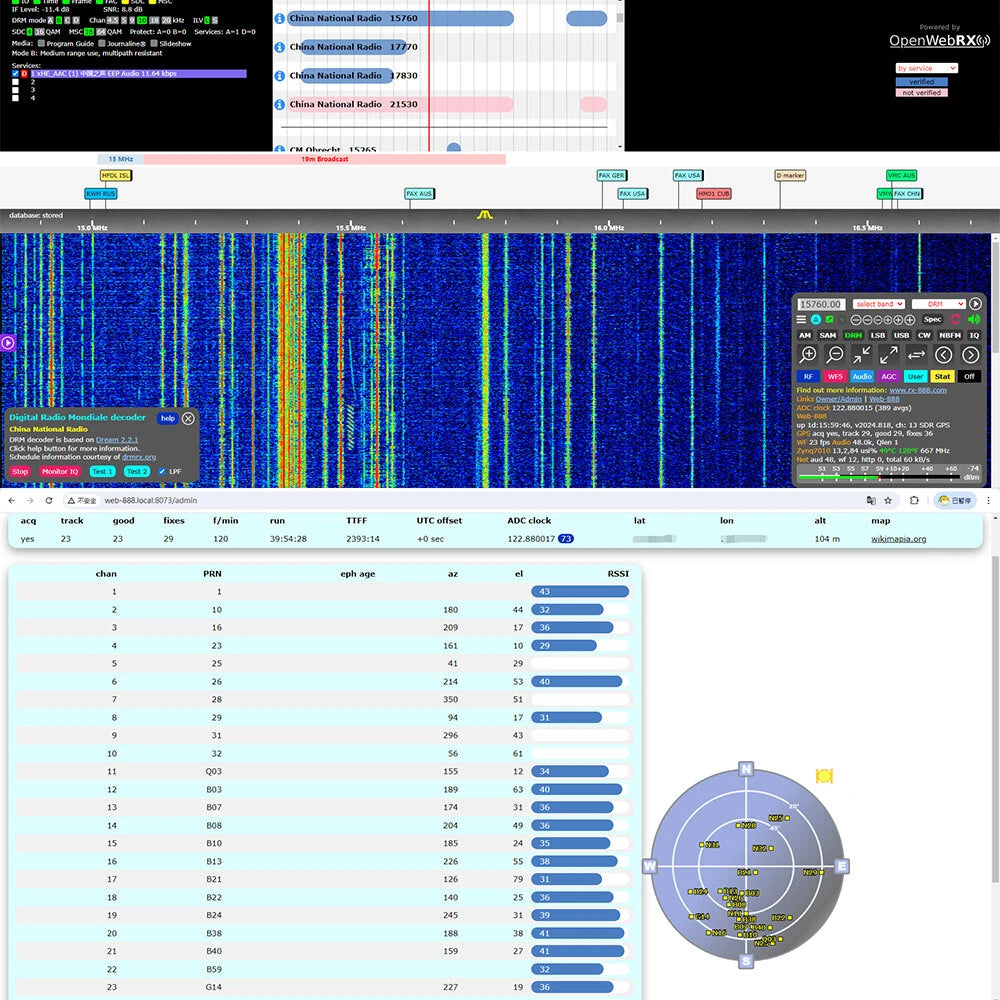

• GPS Module: Built-in all-constellation

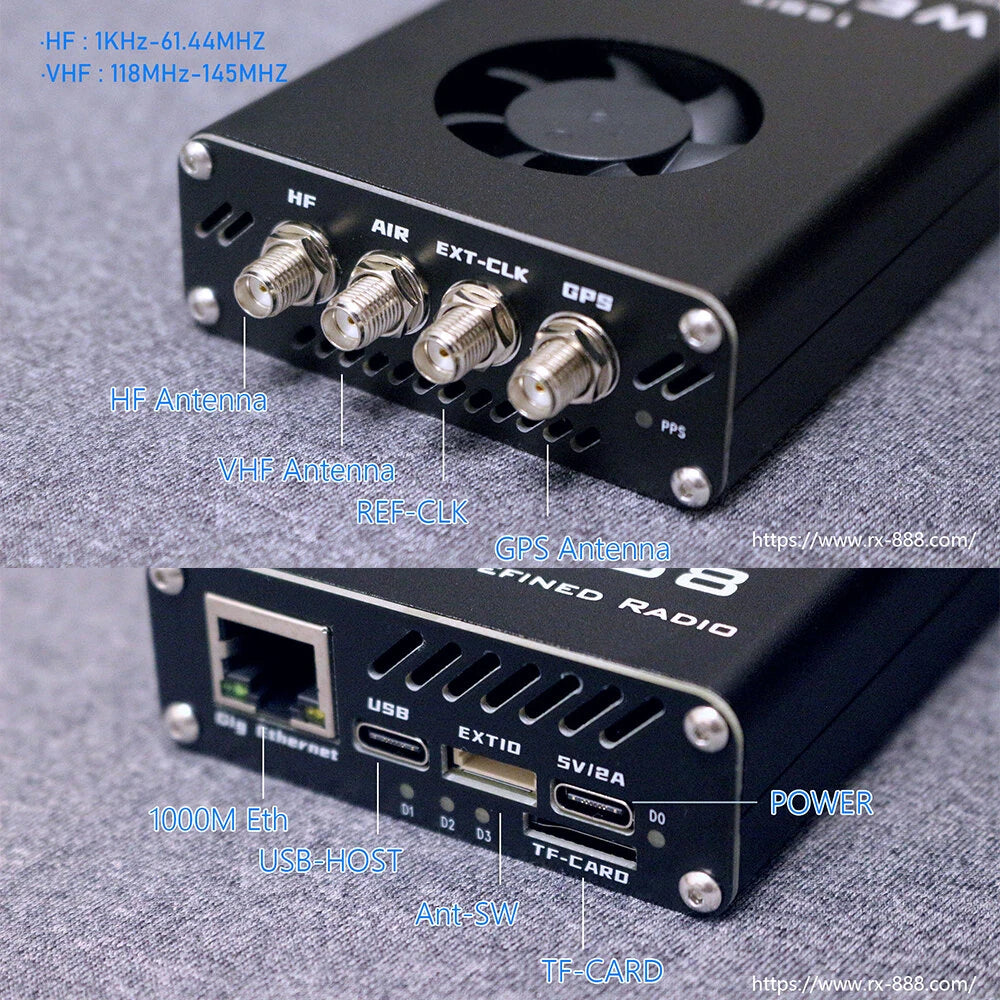

• Antenna Inputs: Dual
• Ethernet: Gigabit
• Reference Clock: Input/output, 24.576MHz, 0.5 ppm TCXO
• Expandable IOs: 8 for antenna switching
• Operating System: Alpine Linux 3.20 with Linux 6.6 Kernel

Features

• Advanced SDR Capabilities: Utilizes a 16-bit ADC sampling with a 61.44 MHz bandwidth, offering high precision and detailed signal processing.
• Powerful FPGA and ARM Cores: The Zynq7010 FPGA with dual A9 ARM cores delivers robust performance for SDR applications, enabling efficient data handling and processing.

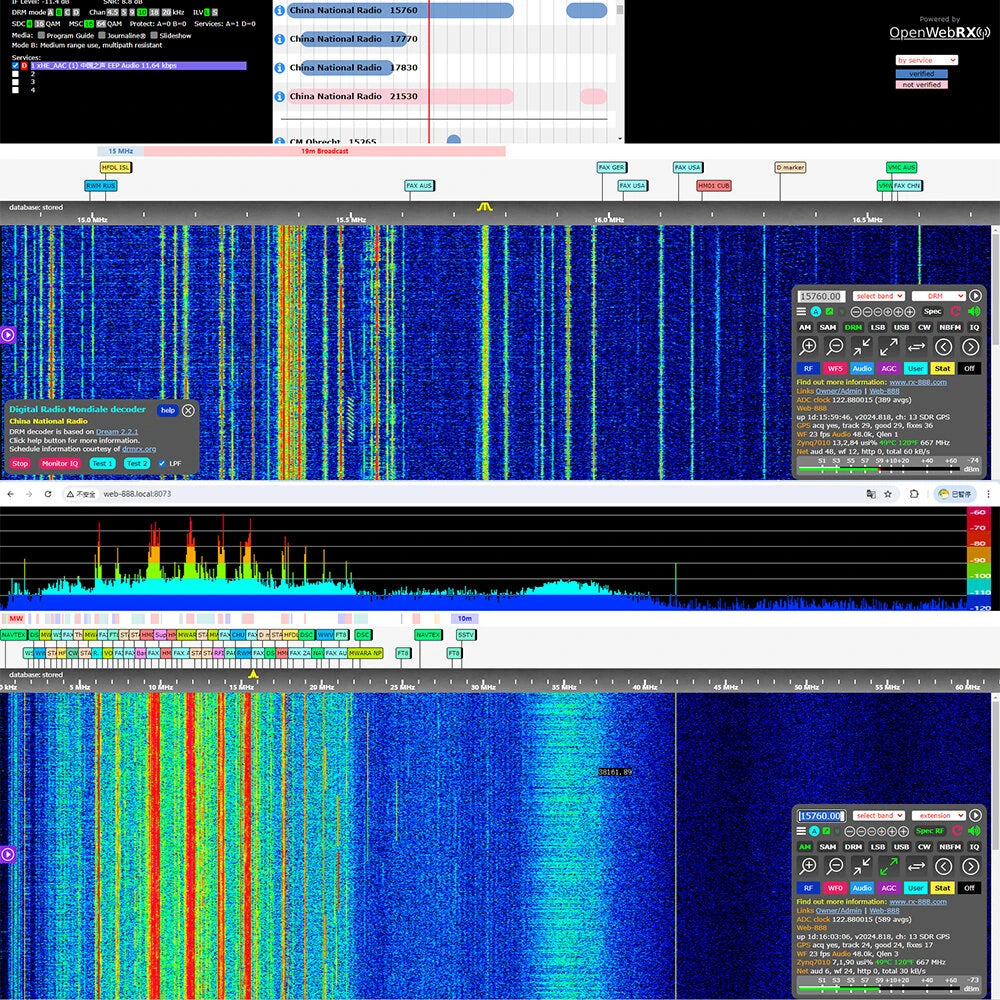

• User-Friendly Web Interface: No need for extensive setup or learning curve; simply start using it through your web browser. Ideal for both beginners and advanced users.
• Versatile Skimming Support: Covers 13 channels across all HF bands and the 6M band with FT4/FT8 and WSPR skimming capabilities, and future CW skimming support.
• Expandable and Customizable: Includes support for various Red Pitaya applications, offering a flexible platform for experiments in FPGA, HF/VHF, and more.

Package Included

• 1 x Web-888 SDR
• 1 x Data Cable
