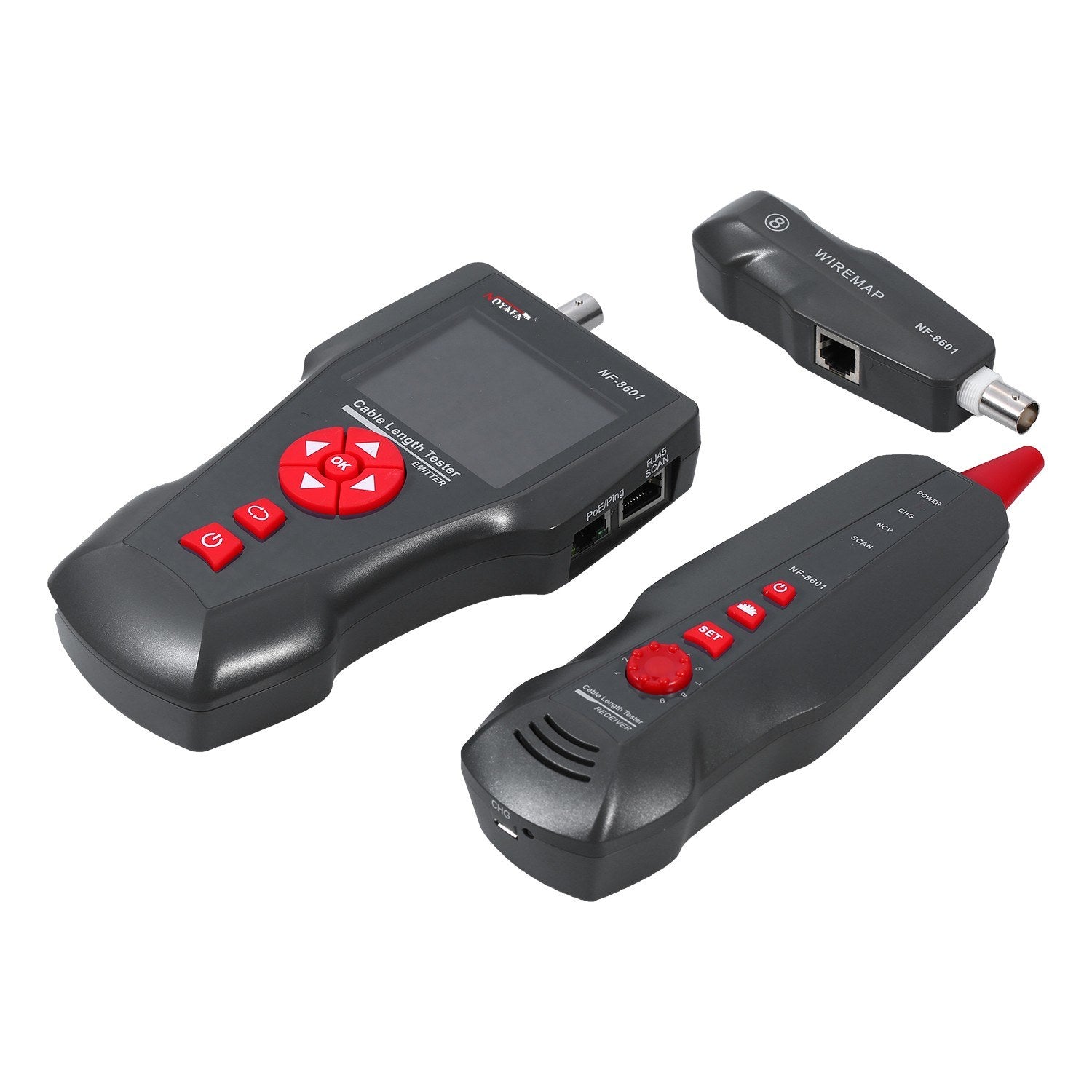

Multi-Functional Wire Tracker Tester

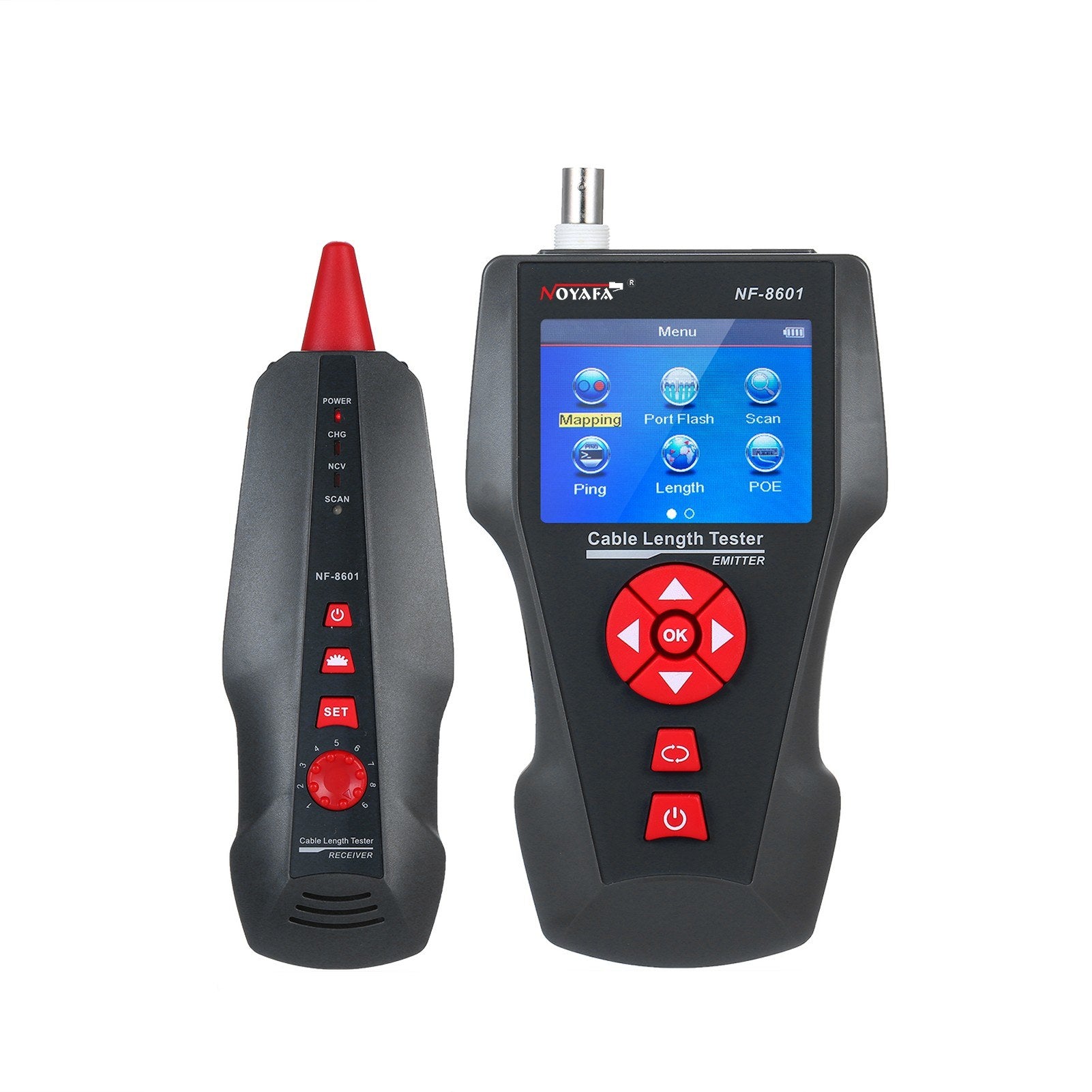

This versatile tester is ideal for telecommunication, wiring engineering, and network maintenance. It includes both a cable emitter and receiver, offering fast and accurate measurements for a wide range of wire tracking and checking functions.

Features

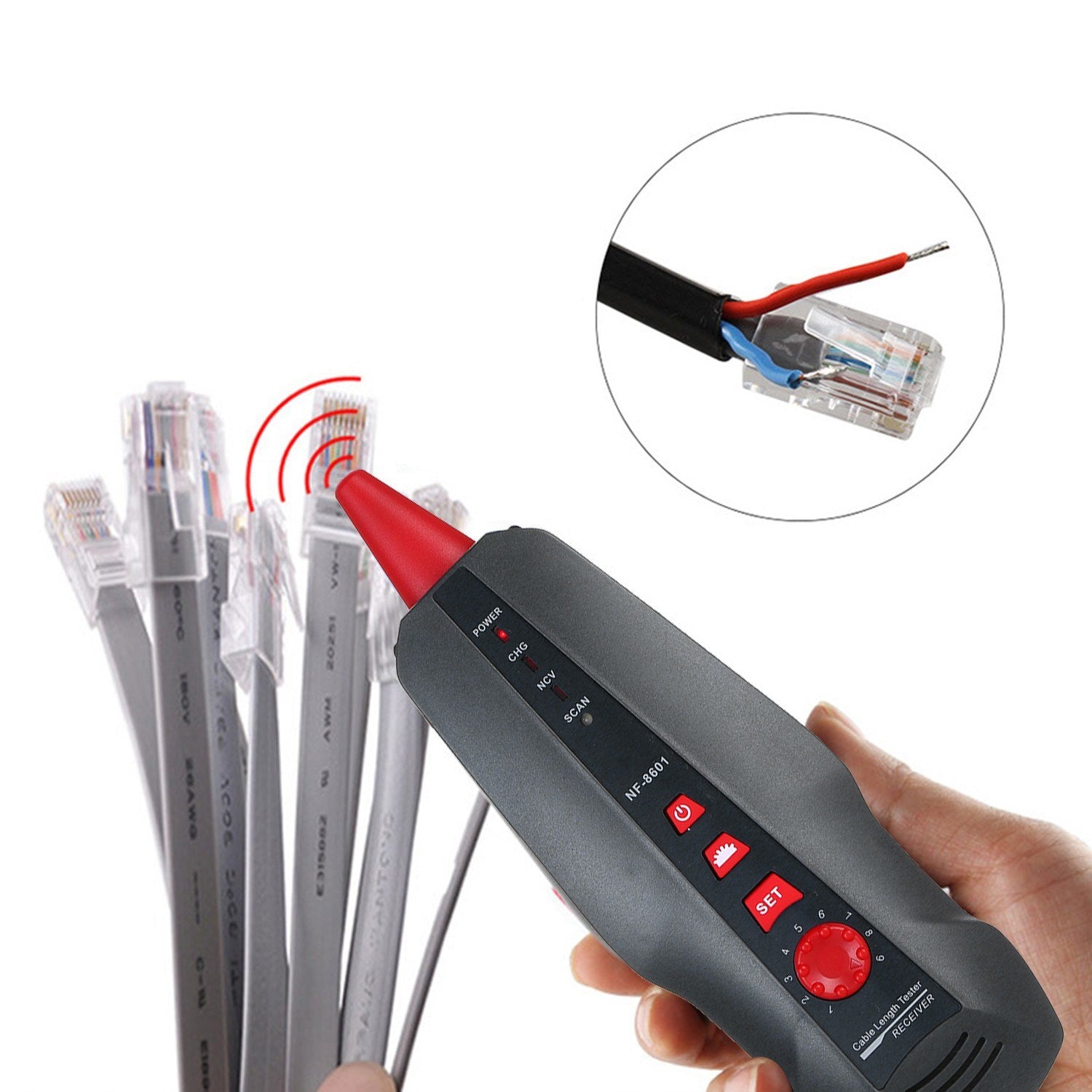

• Track telephone wires, network wires, and coaxial cables efficiently.
• Clear LCD display with backlight for easy reading in various lighting conditions.
• Equipped with PING & POE testing and calibration capabilities.

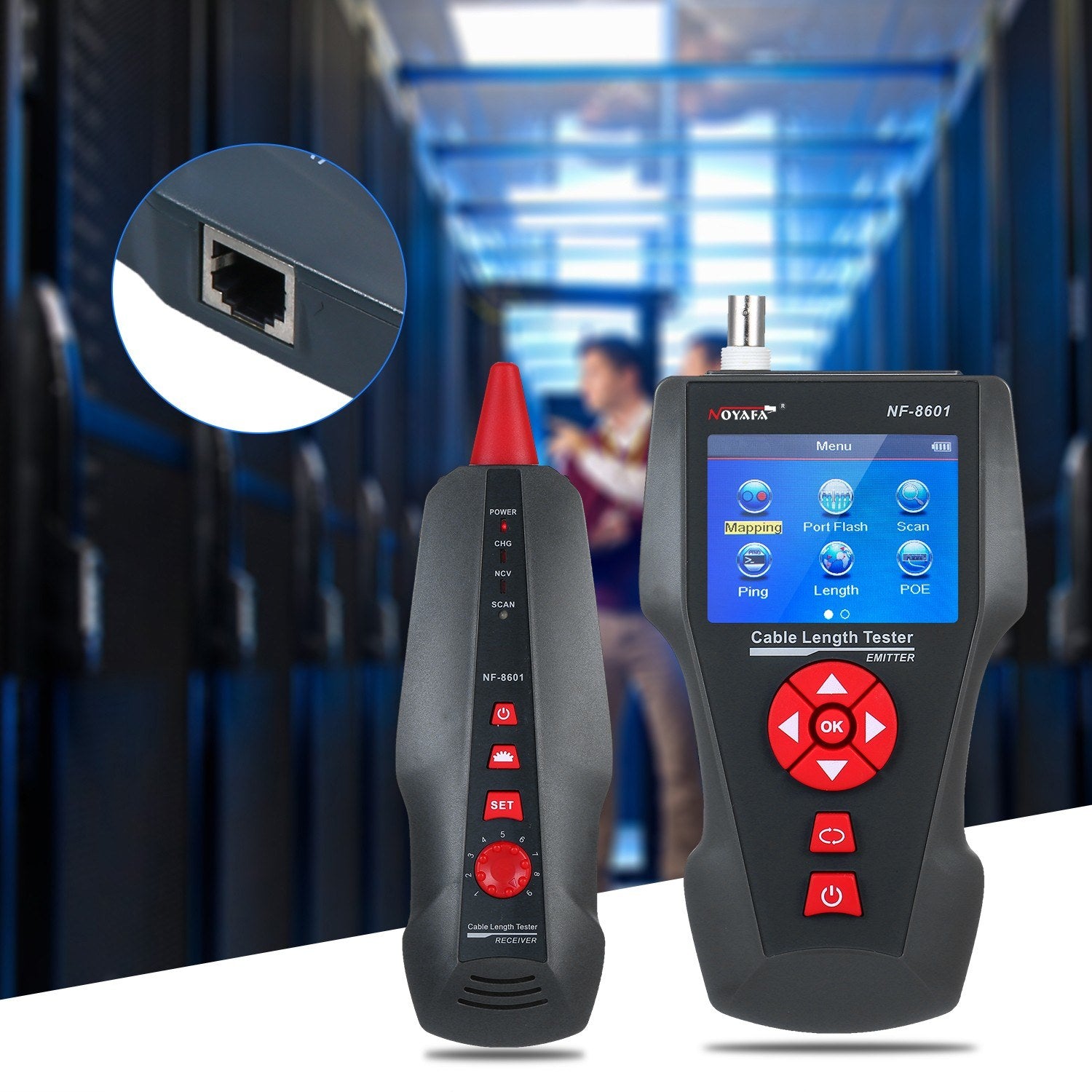

• Portflash function helps locate network ports on Hubs or Switches.

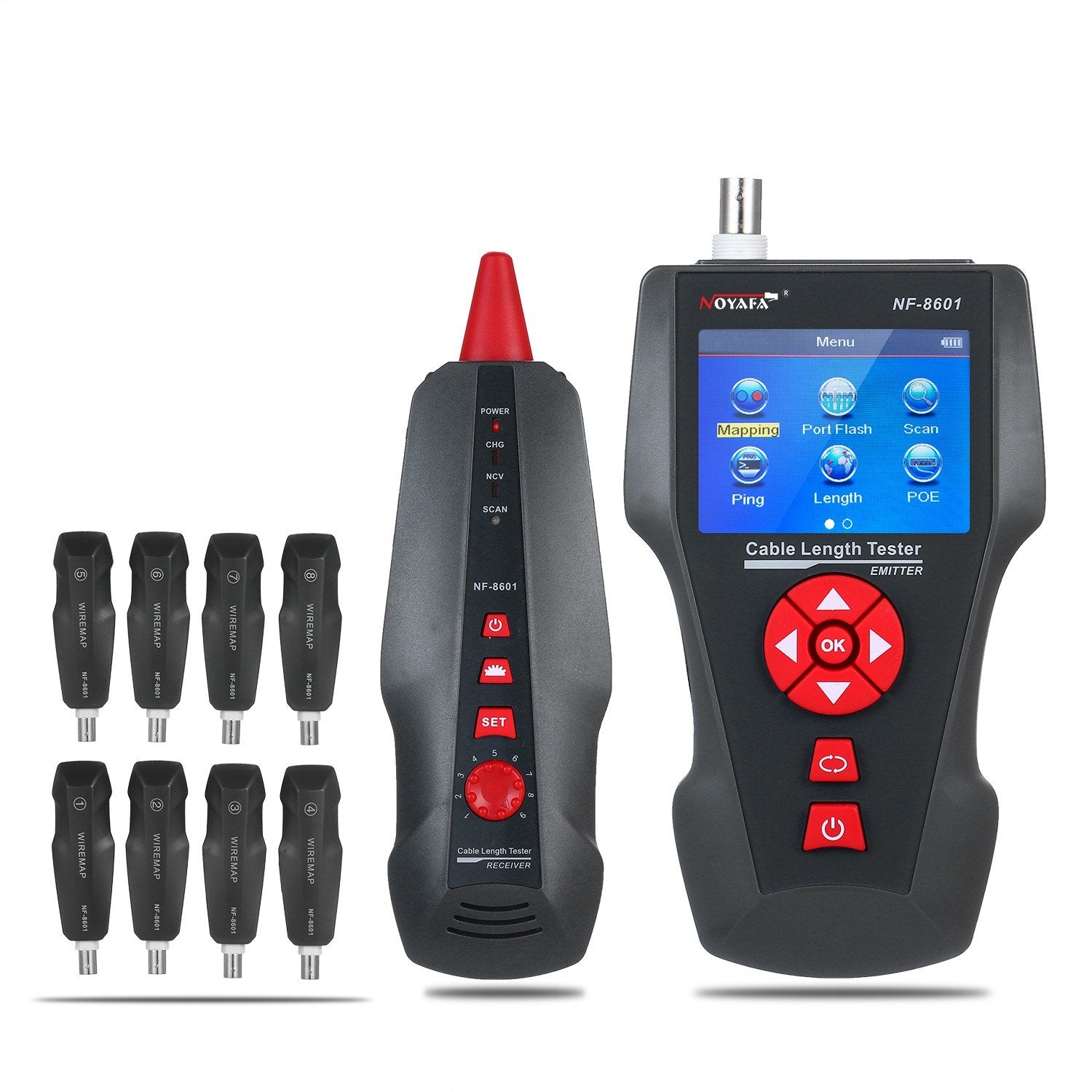

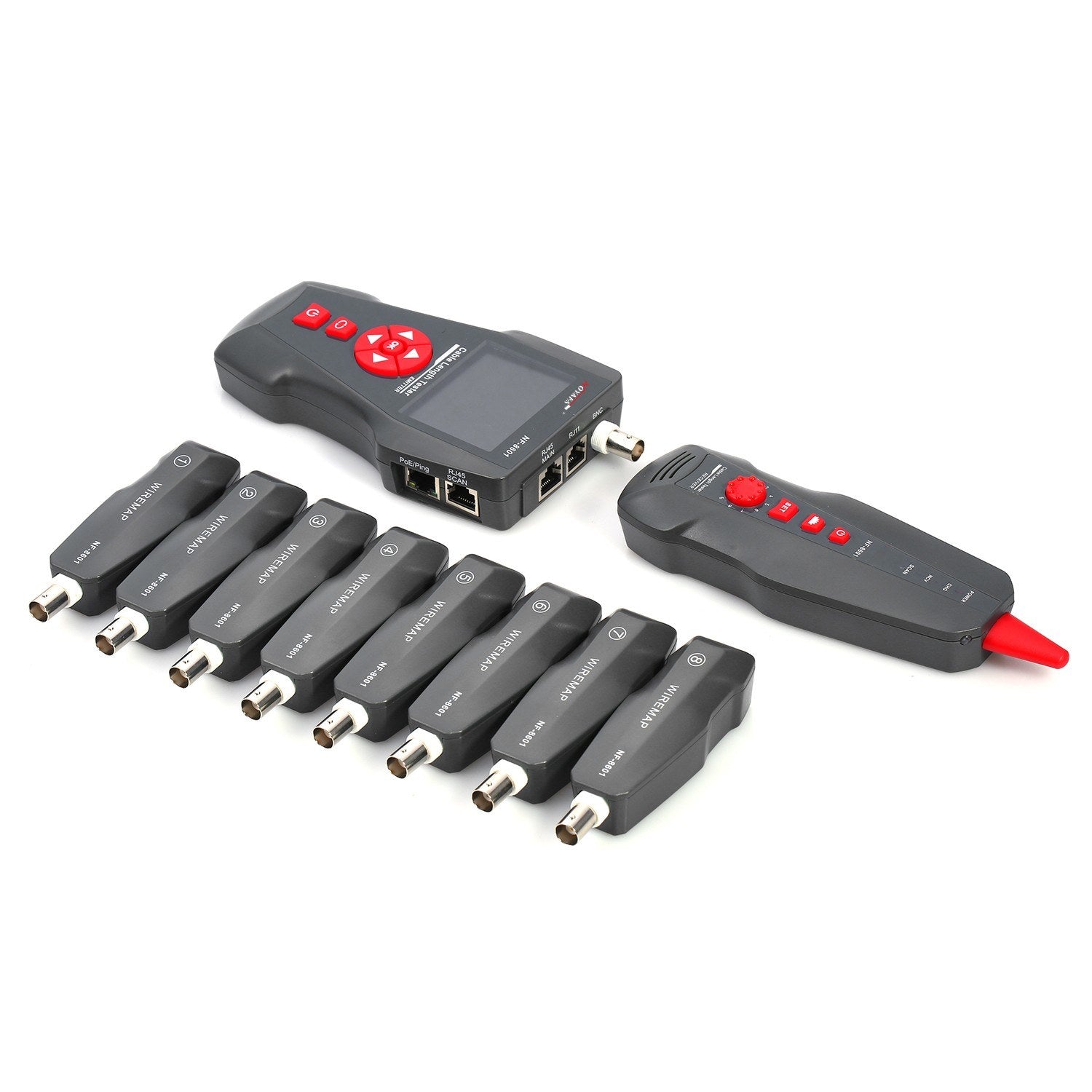

• Includes 8 remote adapters for high working efficiency.
• Comes with RJ11 and RJ45 cables and a built-in interface on the transmitter.
• Network wire checking function determines normal, short-circuit, open-circuit, or crossing conditions.
• Effortlessly locate wire breakpoints without removing the cover.
• Stores up to 160 groups of data records and features data transmission capability.
• Low battery indicator and automatic power-off functionality.

Specifications

• Material: ABS
• Display: LCD
• Input: AC110-220V, 1Hz
• Output: 5V
• Working Temperature: 0–50°C
• Storage Temperature: -10–50°C
• Accuracy: 3% (after calibration)
• Compatible Connectors: RJ11, RJ45, BNC
• Signal Transmission: Multifrequency Pulse
• Short Circuit/Open Circuit Detection: Yes
• Max. Distance of Wiremap: 2000m
• Max. Distance of Tracing: 2000m
• Max. Distance of Cable Length: 1000m
• Min. Distance of Calibration: 10m
• Built-in Lithium Battery: Emitter: 1 x 3.7V 1800mAh; Receiver: 1 x 3.7V 1800mAh
• Emitter Size: Approx. 17 x 8.5 x 2.7cm / 6.7 x 3.3 x 1.1in
• Receiver Size: Approx. 18 x 5.5 x 2.3cm / 7.1 x 2.2 x 0.9in
• Emitter Weight: Approx. 204g / 7.2oz
• Receiver Weight: Approx. 121g / 4.3oz
• Package Size: Approx. 27.2 x 20 x 9.3cm / 10.7 x 7.9 x 3.7in
• Package Weight: Approx. 1073g / 37.8oz

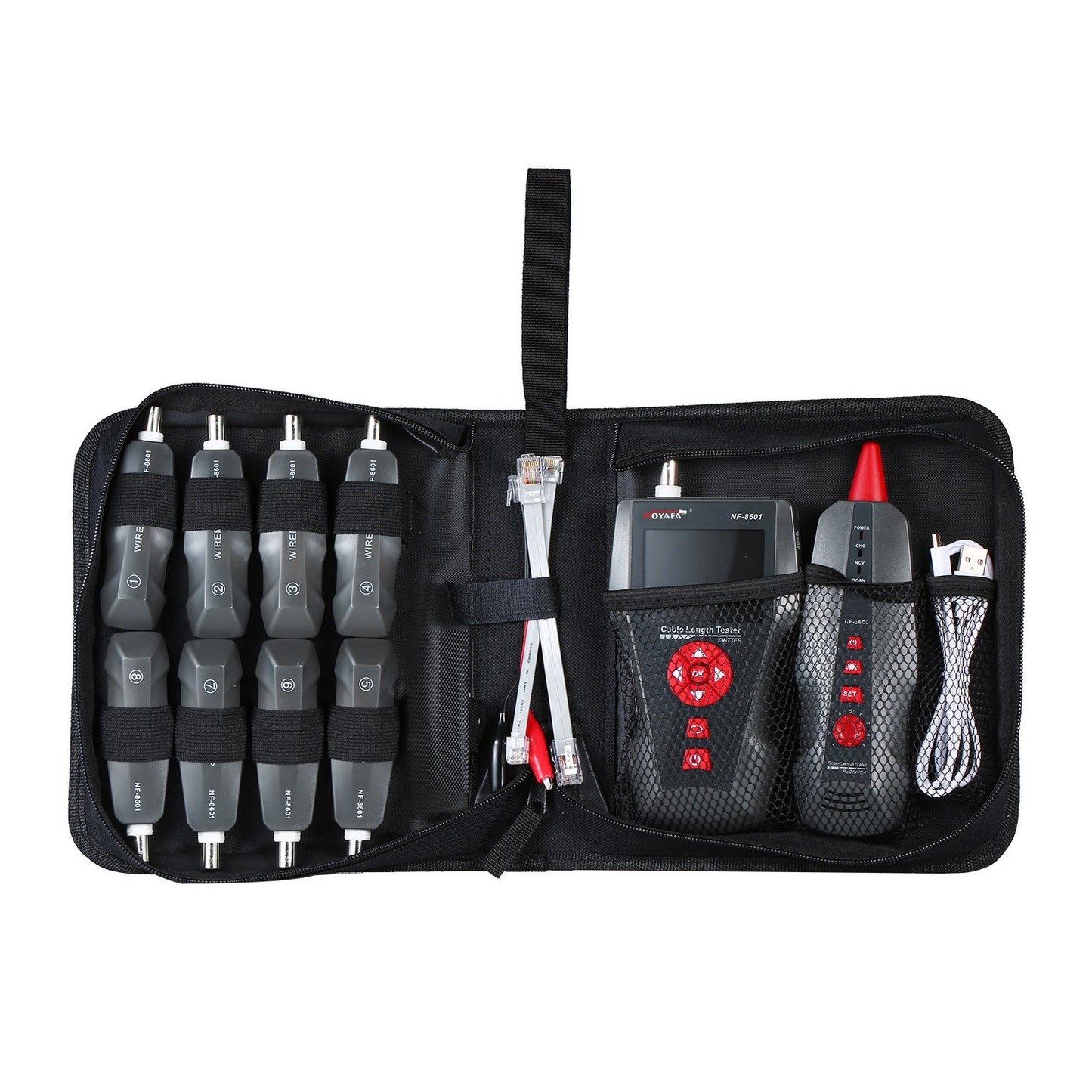

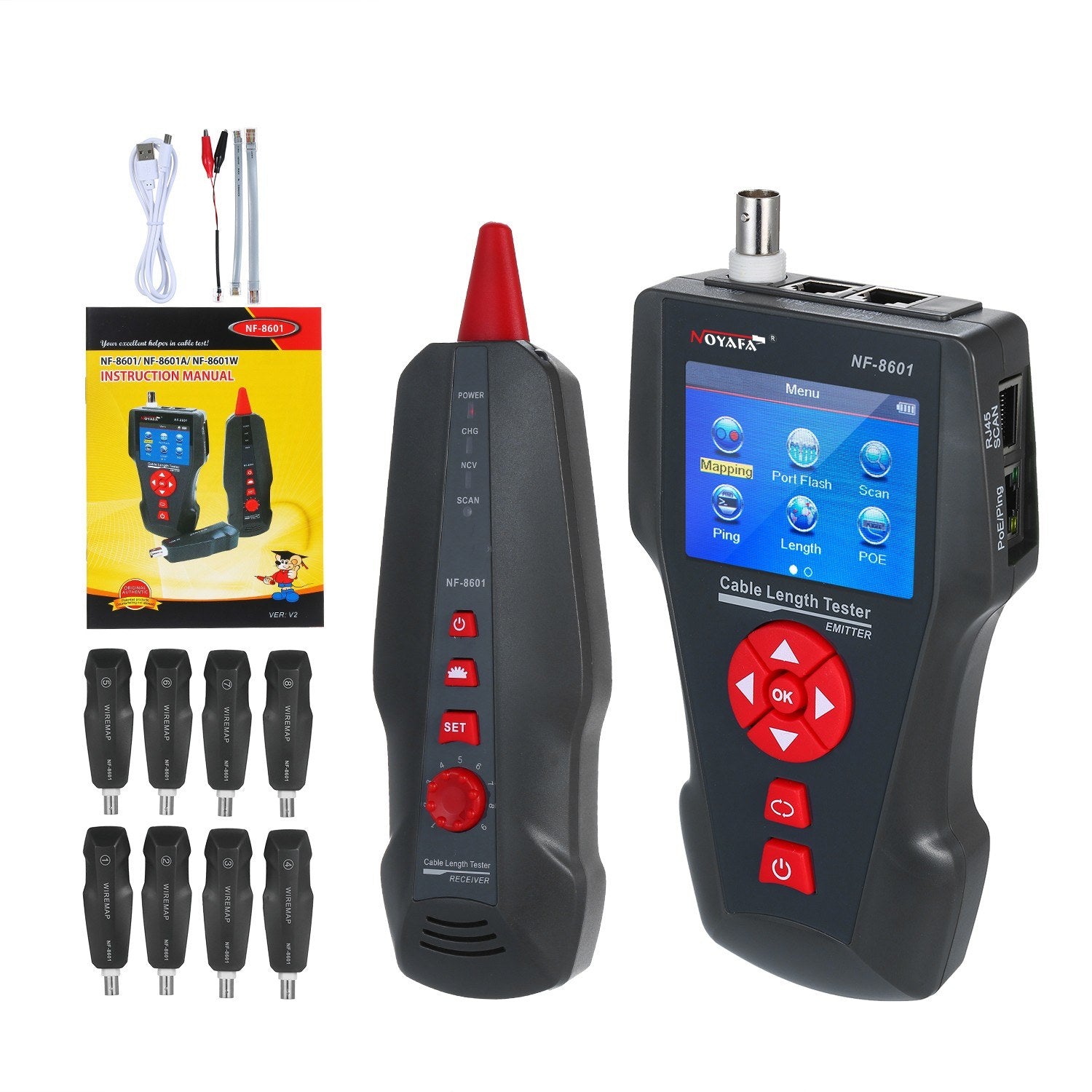

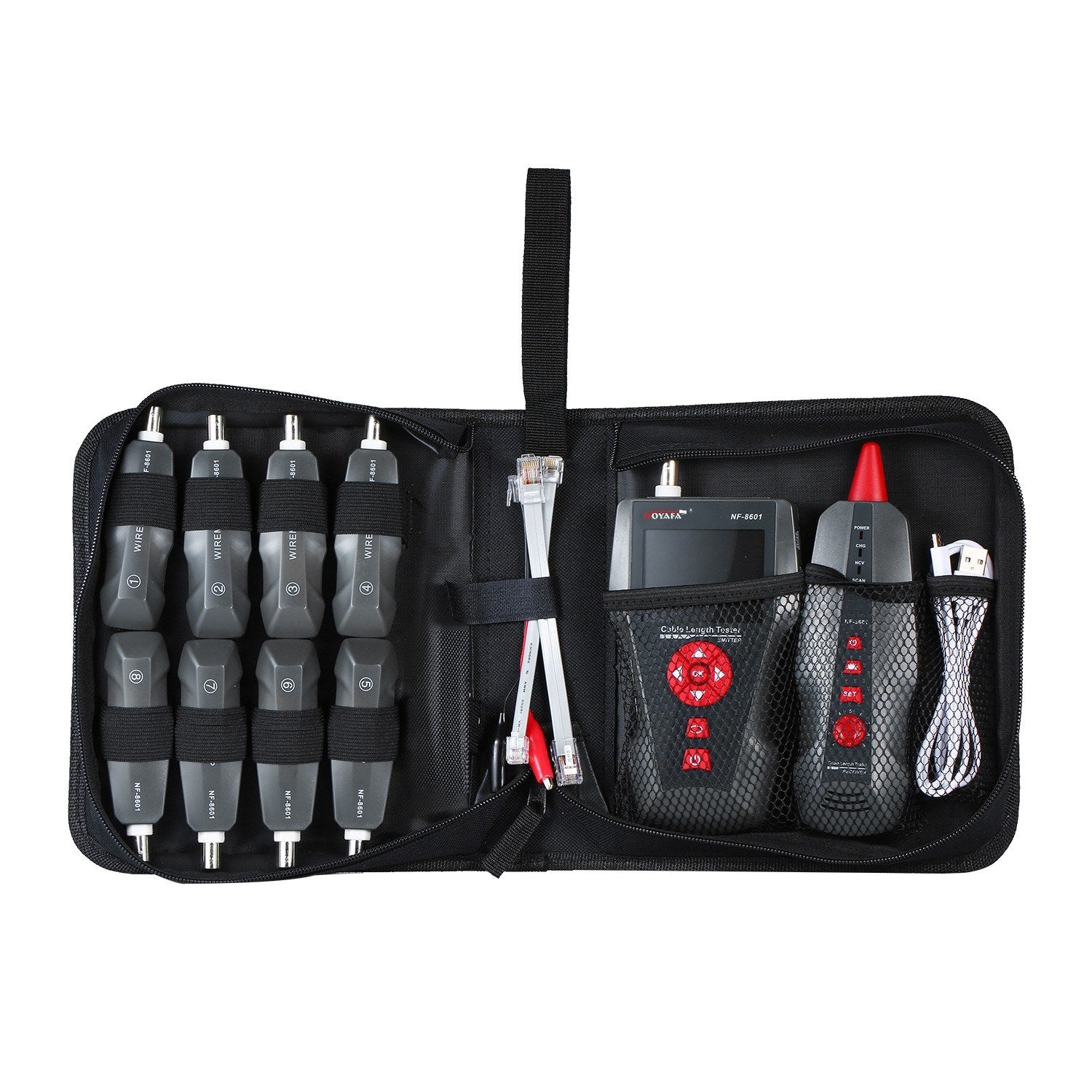

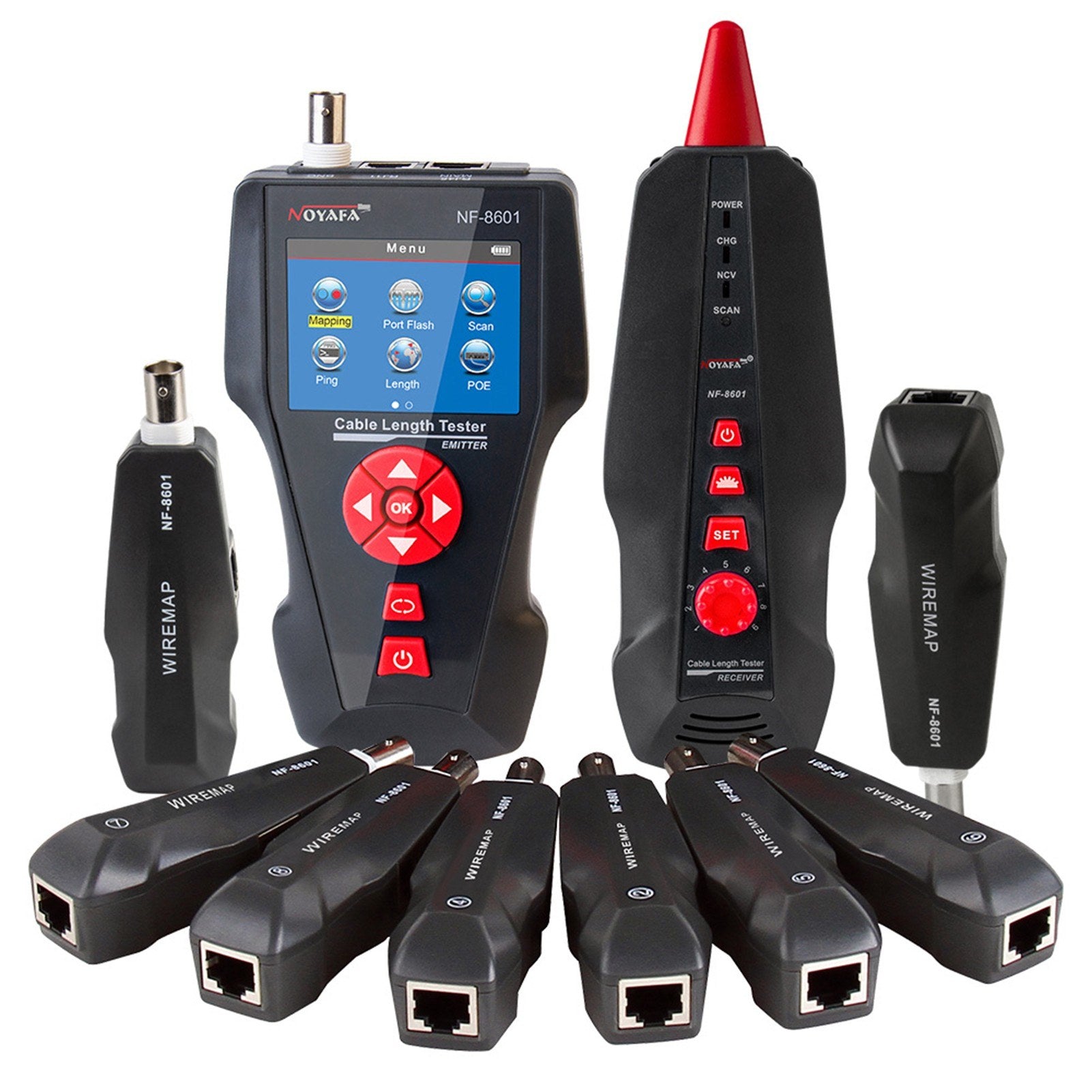

Packing List

• 1 Emitter
• 1 Receiver
• 1 RJ11 Cable
• 1 RJ45 Cable
• 1 Crocodile Clip Test Line
• 8 Remote Adapters
• 1 USB Cable
• 1 Carry Bag
• 1 User Manual (English)
