ANENG MH14 Ground Resistance Megohmmeter

Overview

The ANENG MH14 is a professional ground resistance tester designed to measure the grounding resistance of electrical equipment. It features an improved circuit, structure, and design over traditional testers, offering a stylish and practical appearance combined with enhanced accuracy and reliability. This tester is perfect for field use with its dust-proof and moisture-proof design. It is ideal for assessing grounding resistance values in various power systems, power equipment, lightning protection equipment, and other grounding systems, as well as measuring AC voltage.

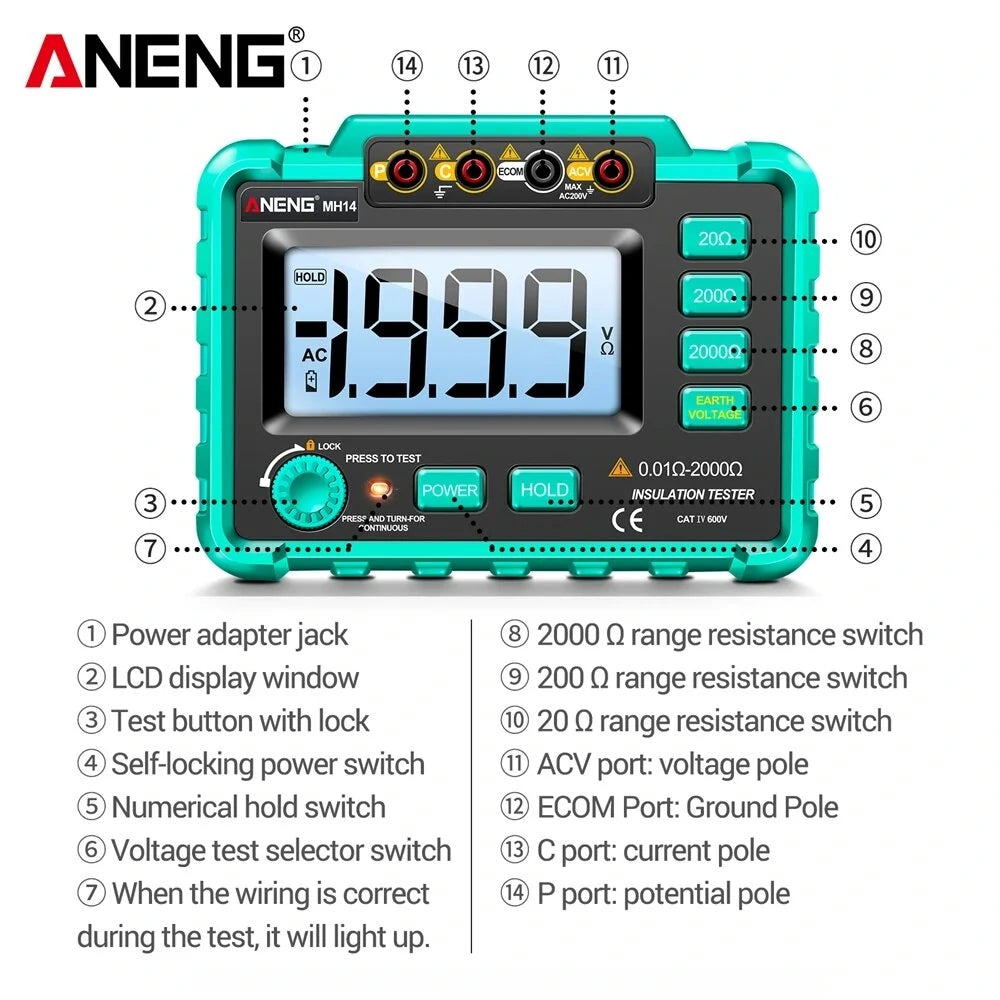

Features

• Display: LCD Display with 1999 counts.
• Over-range Indication: Displays "1" when limits are exceeded.
• Power Supply: 8 x 5# alkaline batteries LR6 (1.5V) with an optional external power adapter available. Indicates under-voltage when battery is low. Batteries not included.

Specifications

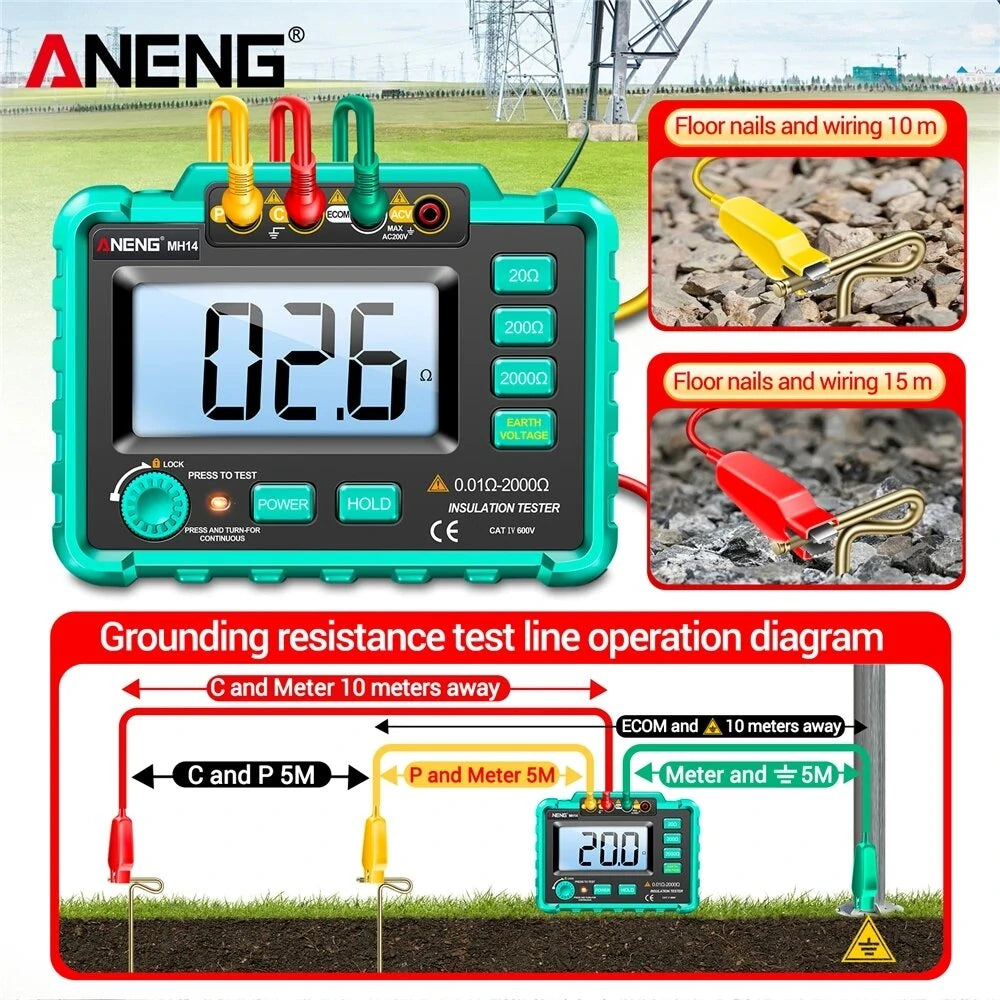

Grounding Resistance

• Range: 20Ω | Basic Accuracy: ±2% + 0.1Ω | Resolution: 0.01Ω
• Range: 200Ω | Basic Accuracy: ±2% + 3d | Resolution: 0.1Ω
• Range: 2000Ω | Basic Accuracy: ±2% + 3d | Resolution: 1Ω

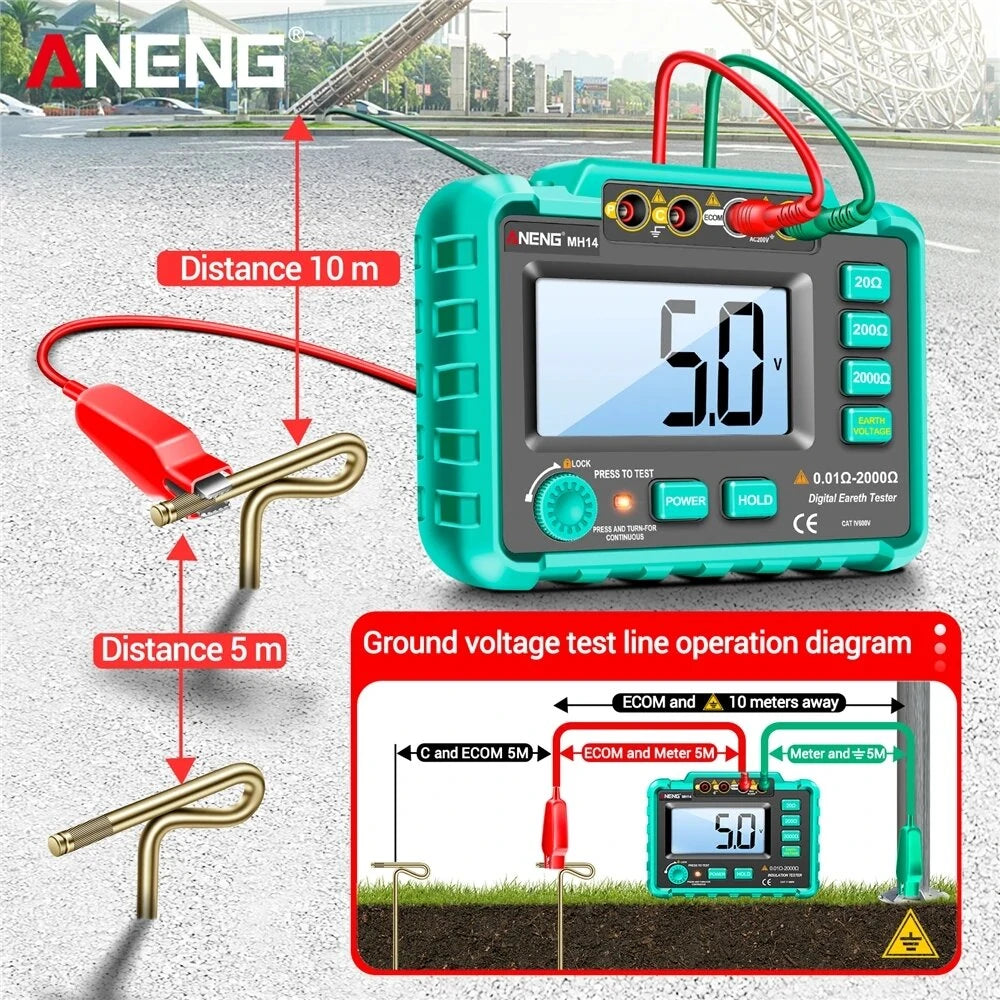

Ground Voltage (50Hz~200Hz)

• Range: AC200V | Basic Accuracy: ±2% + 6d | Resolution: 0.1V | Input Impedance: 1MΩ | Overload: 200Vrms

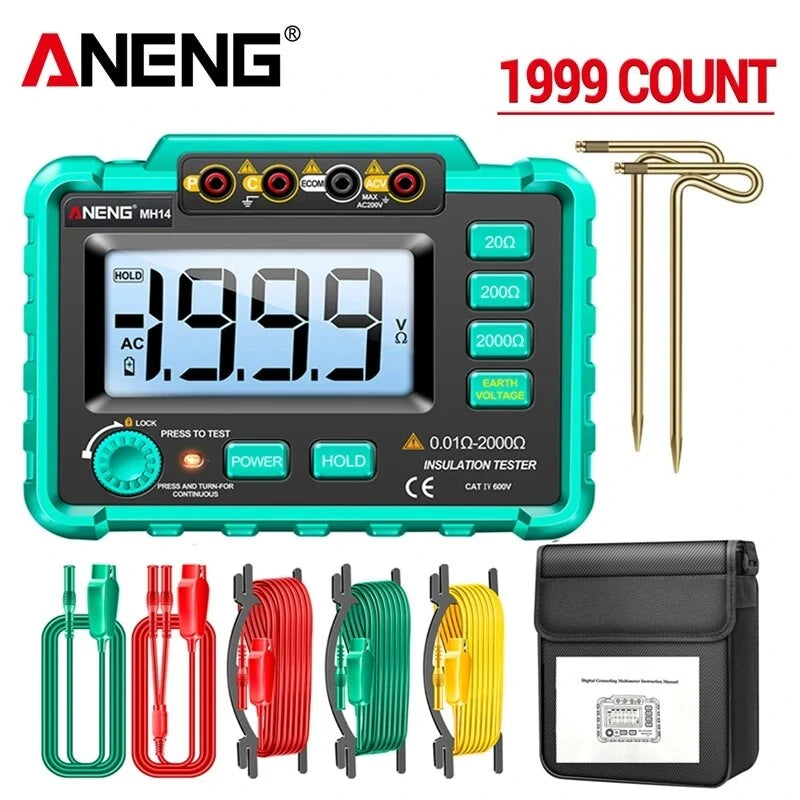

Package Includes

• 1 x Grounding Resistance Tester Set
