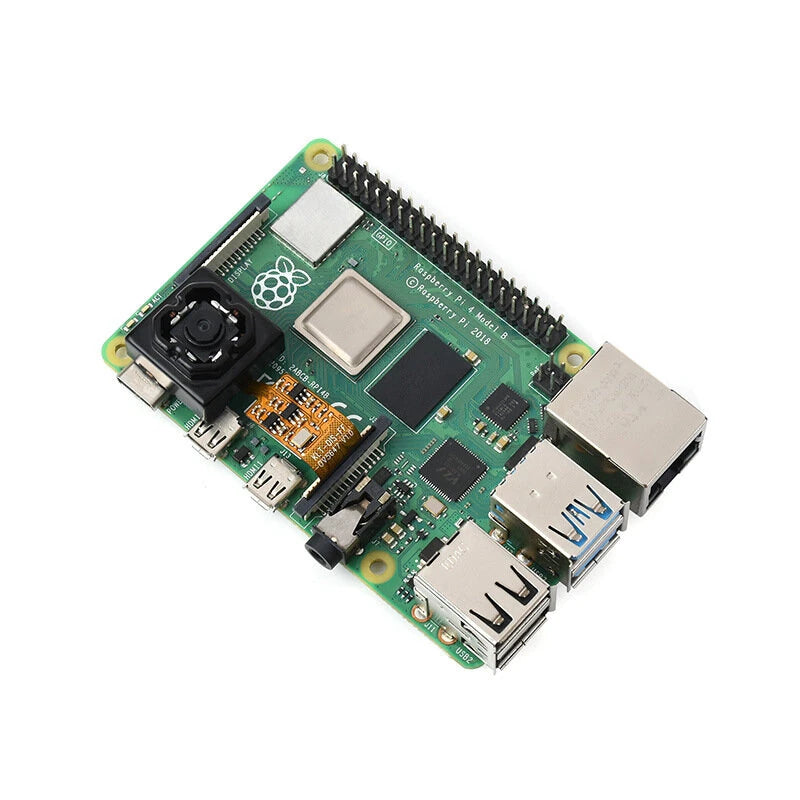

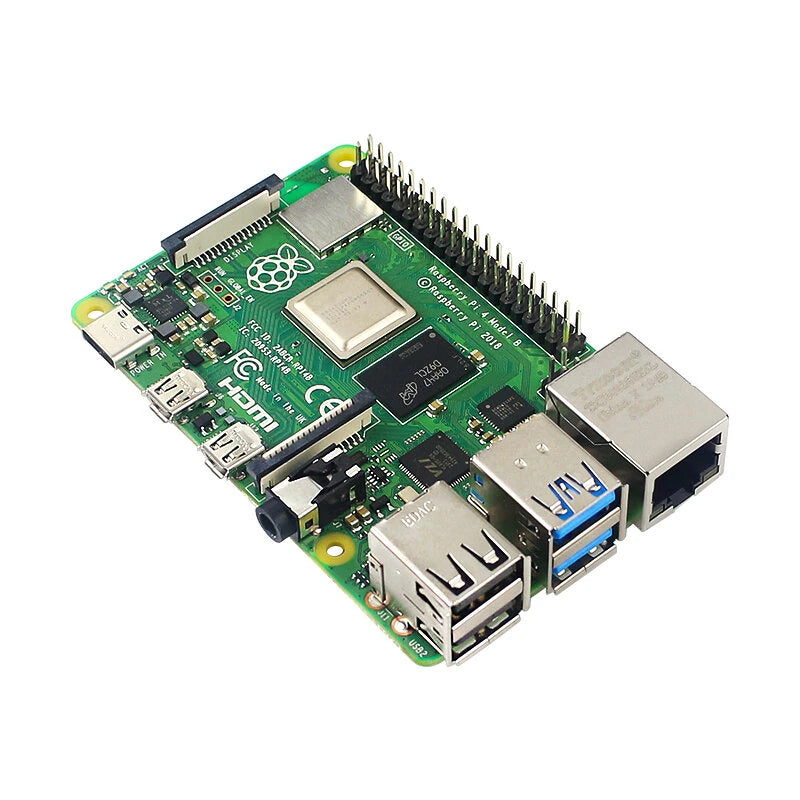

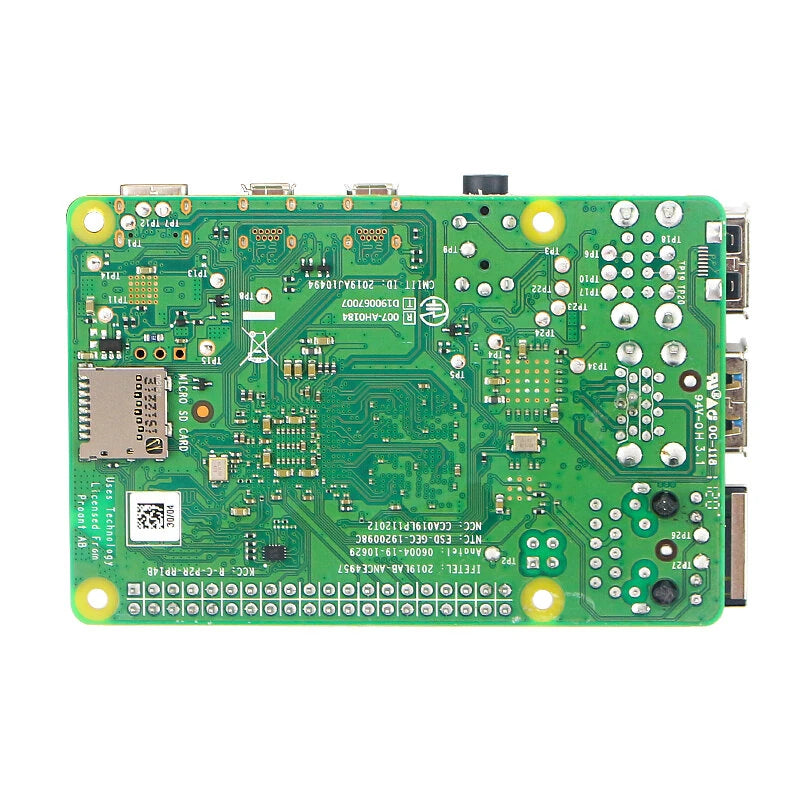

Raspberry Pi 4 Model B 2GB with 5MP Camera Module, 1.5GHz Cortex-A72, 64-bit SoC, Gigabit Ethernet, WiFi, BLE, 4K Video Development Board

Product Specifications

• Interface: Supports TF Card, HDMI, and RCA Output
• Integrated Features: 10/100/1000Mbps Ethernet, WiFi 802.11b/g/n, Bluetooth
• ROM Capacity: None
• Model Number: Raspberry Pi 4 Model B
• Demo Board Type: ARM
• RAM Options: 1GB/2GB/4GB/8GB LPDDR4-2400 SD-compatible
• CPU Model: Broadcom BCM2711, Quad-Core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
• Wireless Connectivity: 2.4 GHz and 5.0 GHz IEEE 802.11ac, Bluetooth 5.0, BLE
• USB Ports: 2 USB 3.0 ports, 2 USB 2.0 ports
• A/V Output: 4-pole stereo audio and composite video port
• Additional Features:
  • Standard 40-pin GPIO header, backward compatible
  • 2 × micro-HDMI ports (up to 4kp60 supported)
  • 2-lane MIPI DSI display & CSI camera ports
  • H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
  • OpenGL ES 3.1, Vulkan 1.0
  • Micro-SD card slot for loading OS and storage
  • Power: 5V DC via USB-C (min 3A*) or GPIO header
  • PoE enabled (requires PoE HAT)
  • Operating temperature: 0 – 50°C ambient

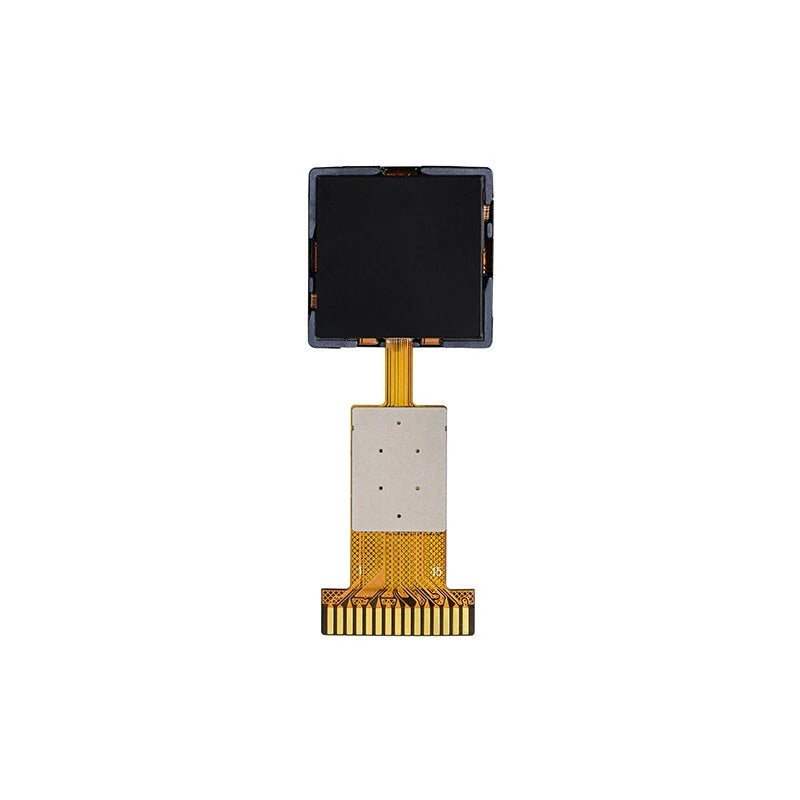

Camera Module Specifications

• Sensor: OV5647
• CMOS Size: 1/4 inch
• Pixels: 5MP
• Aperture: F 2.8
• Focal Length: 3.2mm
• Field of View: 70°

Key Features

1. Improved performance with a powerful quad-core processor for faster multitasking and smoother operation.
2. Enhanced connectivity with dual-band wireless LAN and Gigabit Ethernet for easy internet and device connections.
3. High-resolution display support up to 4K with micro-HDMI ports for stunning visuals.
4. Versatile multimedia capabilities with micro-HDMI ports, MIPI DSI display, and CSI camera port for limitless project possibilities.
5. User-friendly design with USB-C power supply and expandable GPIO header for customization.

Model Comparison

Feature	Raspberry Pi 3 Model B	Raspberry Pi 3 Model B+	Raspberry Pi 4 Model B
Processor	Broadcom BCM2837B0, Cortex-A53, 64-bit SoC @ 1.4GHz	Broadcom BCM2837B0, Cortex-A53, 64-bit SoC @ 1.4GHz	Broadcom BCM2711, Quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
Memory	1GB LPDDR2 SDRAM	1GB LPDDR2 SDRAM	1GB, 2GB, 4GB, or 8GB LPDDR4 (optional)
Internet	802.11 b/g/n wireless LAN	2.4GHz and 5GHz IEEE 802.11.b/g/n/ac Wireless LAN	2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac Wireless LAN
Bluetooth	Bluetooth 4.1	Bluetooth 4.2	Bluetooth 5.0
Ethernet	100Mbps	300Mbps	Gigabit Ethernet
USB	USB 2.0 Ports: 4	USB 2.0 Ports: 4	2 x USB 3.0 Ports, 2 x USB 2.0 Ports
GPIO	Extended 40-pin GPIO Header	Extended 40-pin GPIO Header	Standard 40-pin GPIO Header
Video & Sound	1 x Full Size HDMI MIPI DSI Display MIPI CSI Camera Port 4 Pole Stereo Output and Composite Video Port	1 x Full Size HDMI MIPI DSI Display MIPI CSI Camera Port 4 Pole Stereo Output and Composite Video Port	2 x microHDMI 2-lane MIPI DSI Display 2-lane MIPI CSI Camera 4-pole Stereo Audio and Composite Video
Multimedia	H.264, MPEG-4 Decode (1080p30) H.264 Encode(1080p30) OpenGL ES 1.1, 2.0 graphics	H.264, MPEG-4 Decode (1080p30) H.264 Encode(1080p30) OpenGL ES 1.1, 2.0 graphics	H.265 (4Kp60 decode) H.264 (1080p60 Decode, 1080p30 encode) OpenGL ES, 3.0 Graphics
SD Card Support	Micro SD Format for Loading OS and data Storage	Micro SD Format for Loading OS and data Storage	Micro SD Card Slot for Loading OS and Data Storage
Input Power	Micro SD Format for Loading OS and data Storage	Micro SD Format for Loading OS and data Storage	5V DC via USB-C Connector 5V DC via GPIO Header
