DEMOKE 6PCS Quick Change Tool Post System, High Precision Lathe Tool Holders 250-101 to 250-111

Description

Versatile Quick-Change Tool Post System: Enhance your lathe operations with our indispensable quick-change tool post system. Designed for standard lathes, it consists of a durable tool post and a variety of tool holders, enabling a wide array of machining tasks including cylindrical facing, end facing, grooving, drilling, reaming, and boring. The intuitive dovetail slot installation allows for rapid tool holder exchange, improving productivity in diverse machining processes.

High Precision and Exceptional Rigidity: The dovetail installation system ensures precise tool positioning and superior rigidity for all operations. It offers significant advantages over traditional square turrets by facilitating swift tool mounting and removal outside the machine tool, boosting efficiency and craftsmanship. This makes it an optimal replacement for conventional square turrets.

Wide Range of Tool Bit Compatibility: Our tool holders cater to a broad spectrum of tool bit sizes, addressing varying machining needs. Models like 250-101 and 250-102 support tool bit ranges between 3/16" to 1/2", while models such as 250-110 provide extended clamping capacities, proving the system's adaptability for specific machining requirements.

Rugged and Weight-Optimized Construction: Built to withstand challenging conditions, these tool holders range in size and weight to suit different operational demands. From the lightweight 0.40 kg to the robust 2.23 kg Model 250-111, each holder is designed to deliver consistent performance in both light and heavy-duty machining tasks.

User-Friendly Design for Efficient Setup and Operation: The ergonomic design ensures easy tool changes, significantly minimizing setup time and enhancing operational efficiency. Installing each component is straightforward, aided by a detailed user manual. This design facilitates quick setup and operation for users of all technical levels, optimizing workflow and productivity.

Specifications

• Model: 250-101, 250-102, 250-104, 250-107, 250-110, 250-111

Specifications by Model:

Model	A (in)	B (in)	C (in)	D (in)	Tool Bit Range (in)	Weight (kg)	Additional Specs

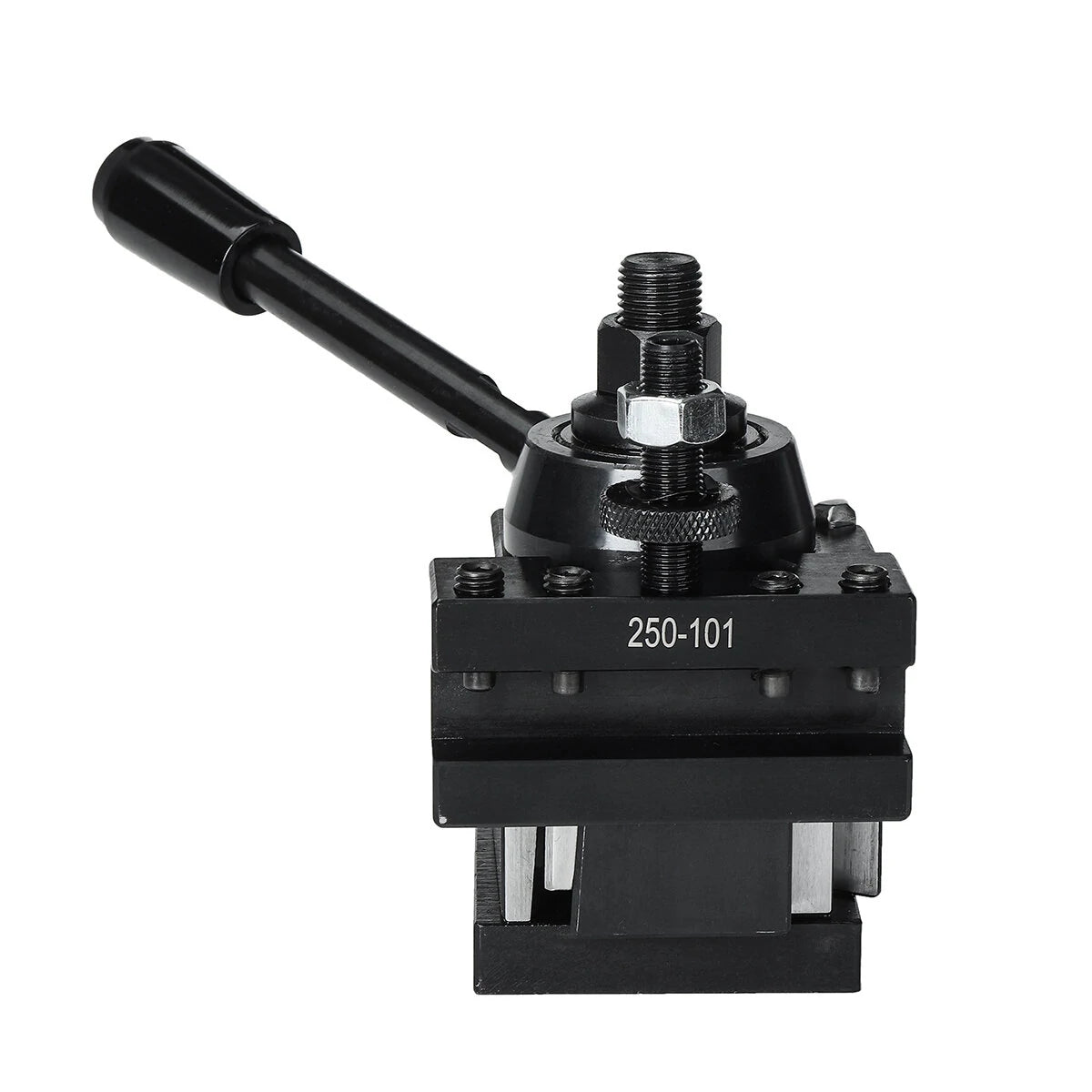

250-101	1	1/2	29/64	1-1/2	3/16-1/2	0.40	N/A
250-102	1	1/2	29/64	1-1/2	3/16-1/2	0.40	N/A

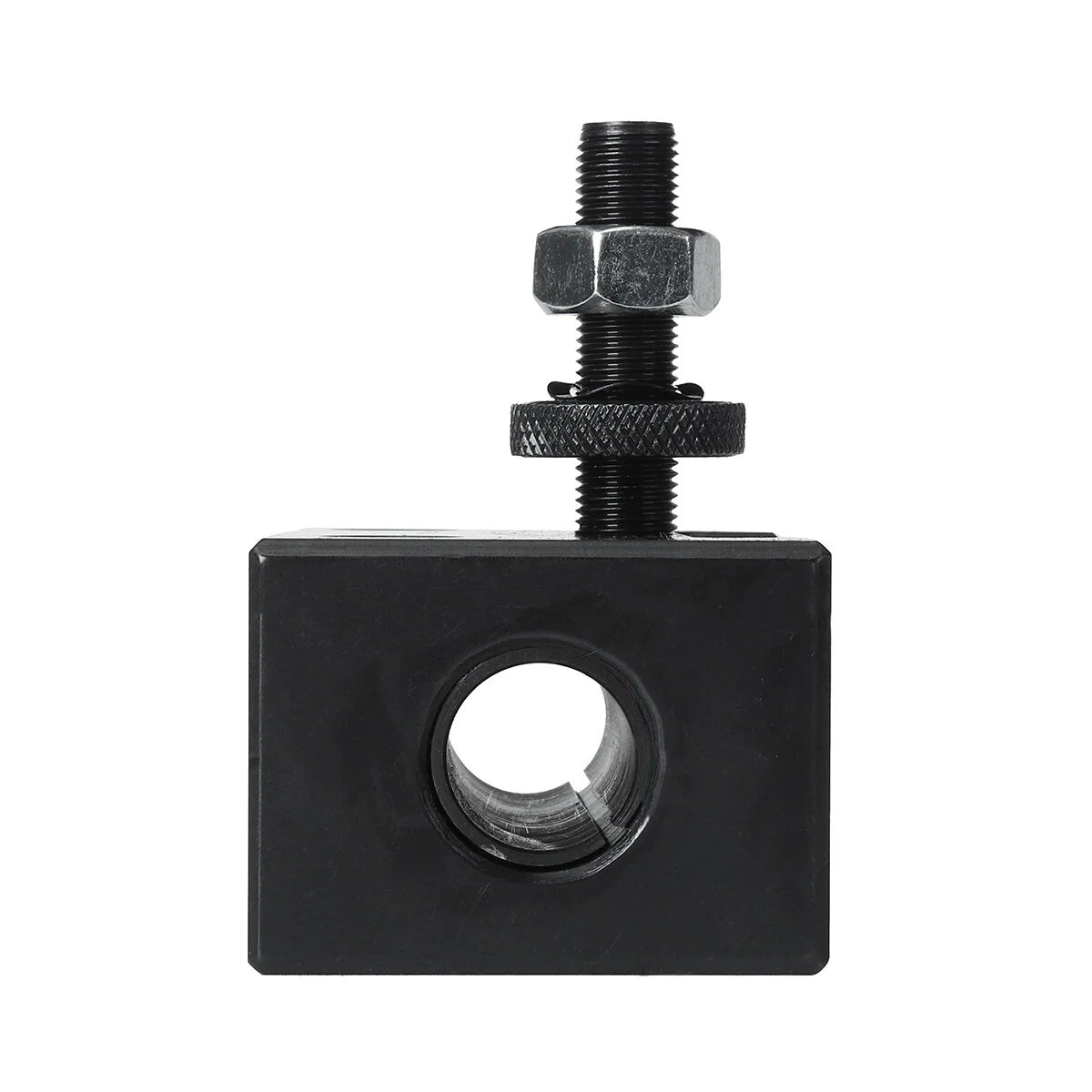

250-104	3/4	1-1/2	5/8	3/4	N/A	0.90	N/A

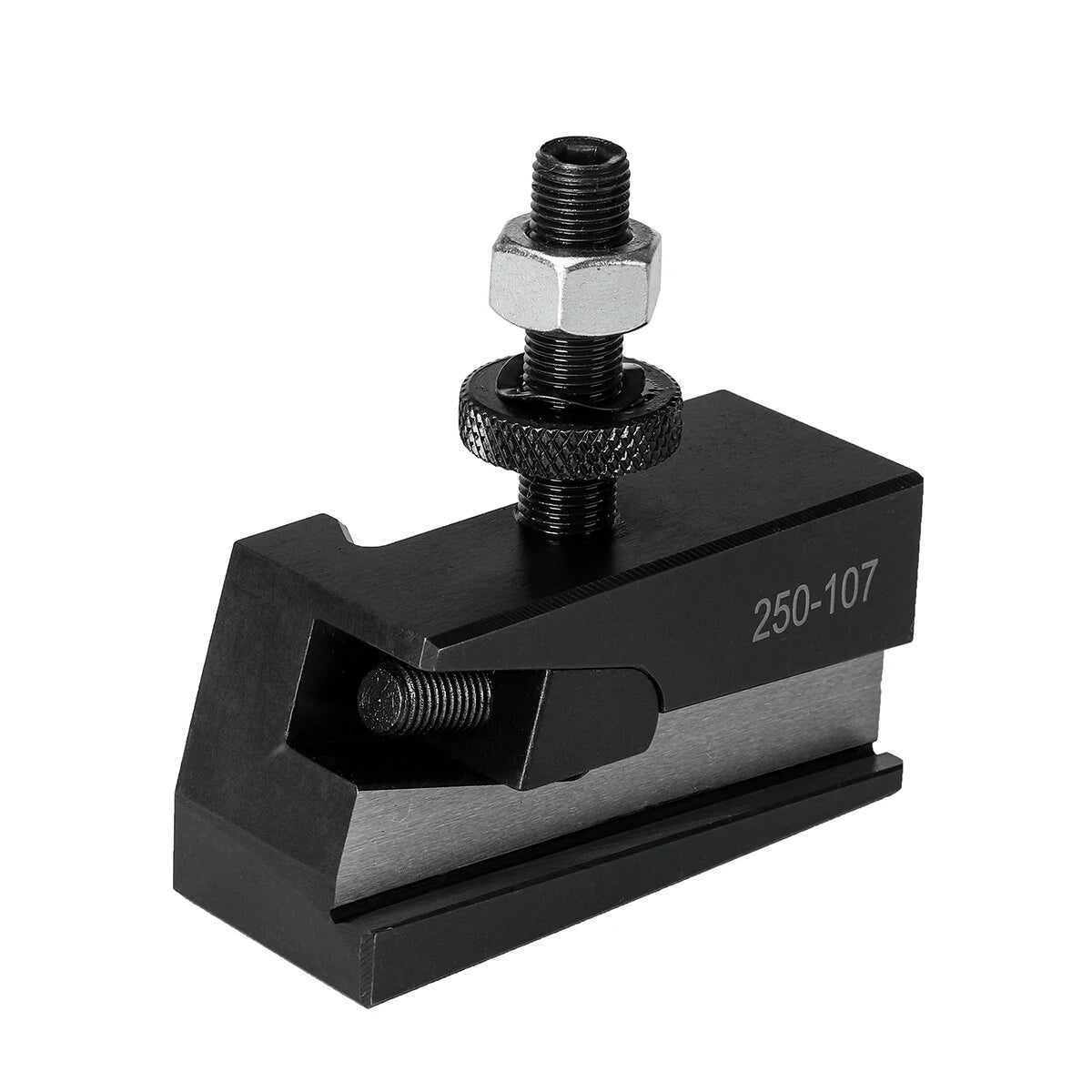

250-107	3/16	1/2	1-1/2	N/A	N/A	0.53	Blade Height: 1/2 in

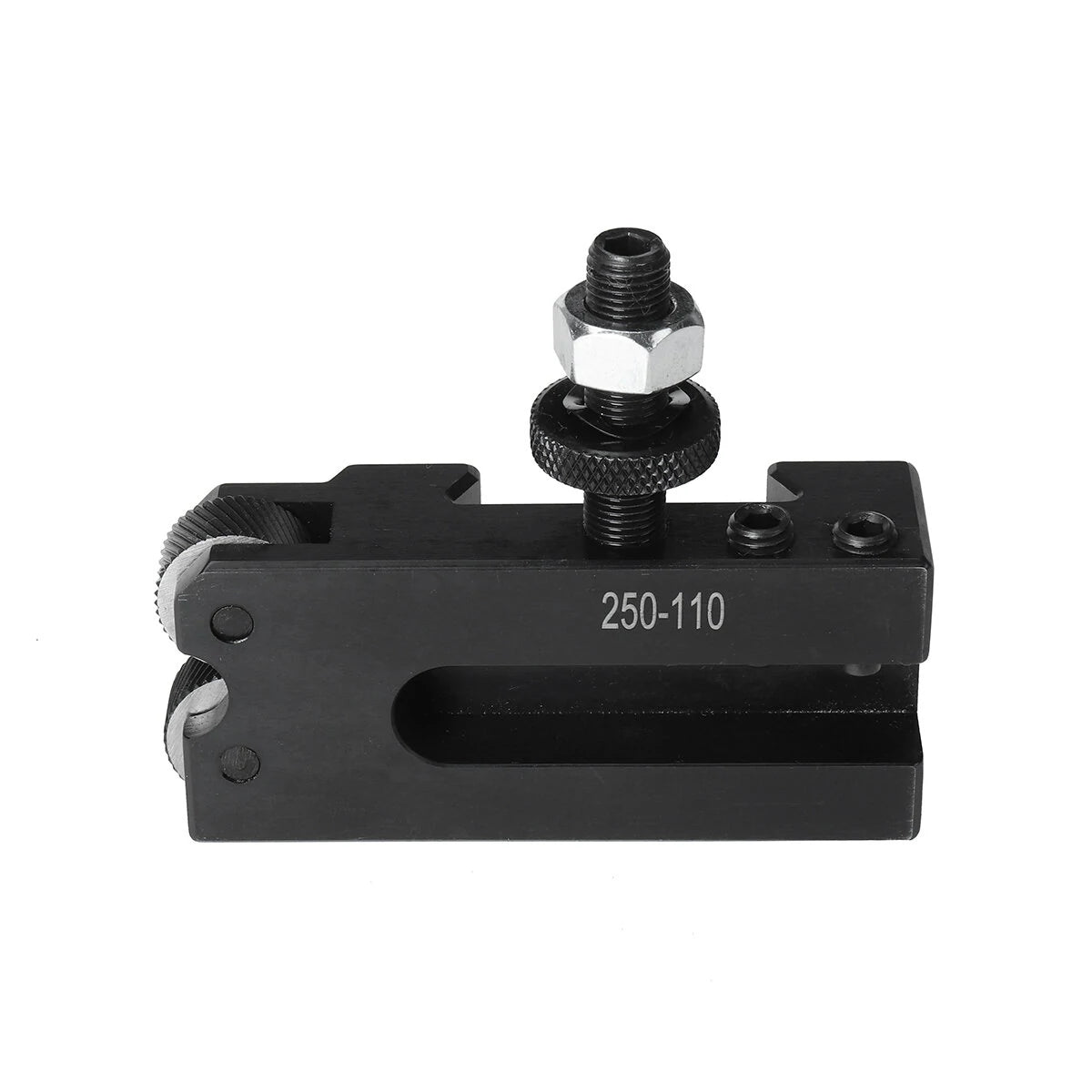

250-110	7/8	2-1/2	1-9/16	N/A	3/4x3/8x1/4	0.48	Clamping Range: 3/16-1/2 in
250-111	2-1/2	3-7/8	2-1/4	9/16	N/A	2.23	Swing Diameter: 12 in

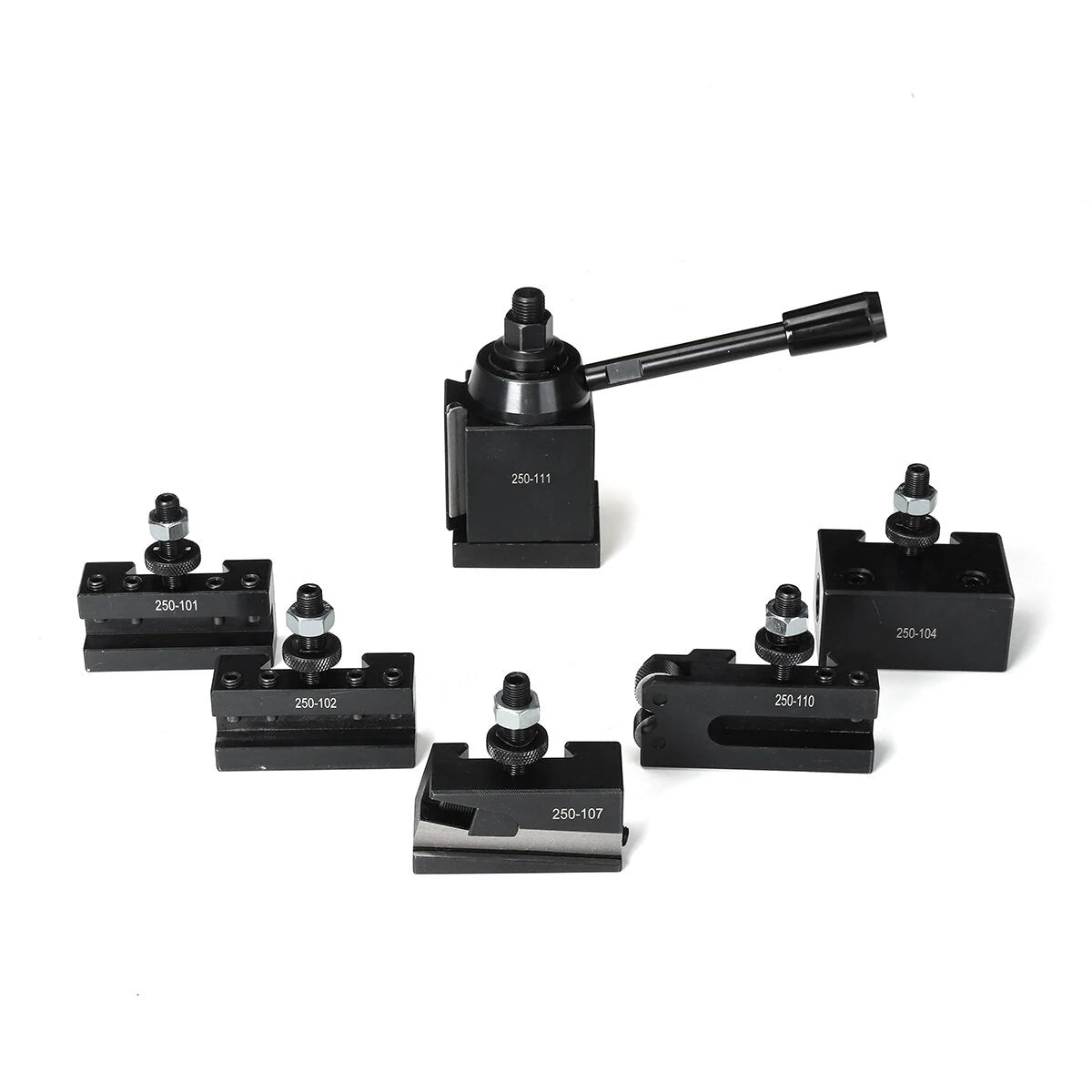

Package Included

• 1 x 250-101 Tool Holder
• 1 x 250-102 Tool Holder
• 1 x 250-104 Tool Holder
• 1 x 250-107 Tool Holder
• 1 x 250-110 Tool Holder
• 1 x 250-111 Tool Holder
