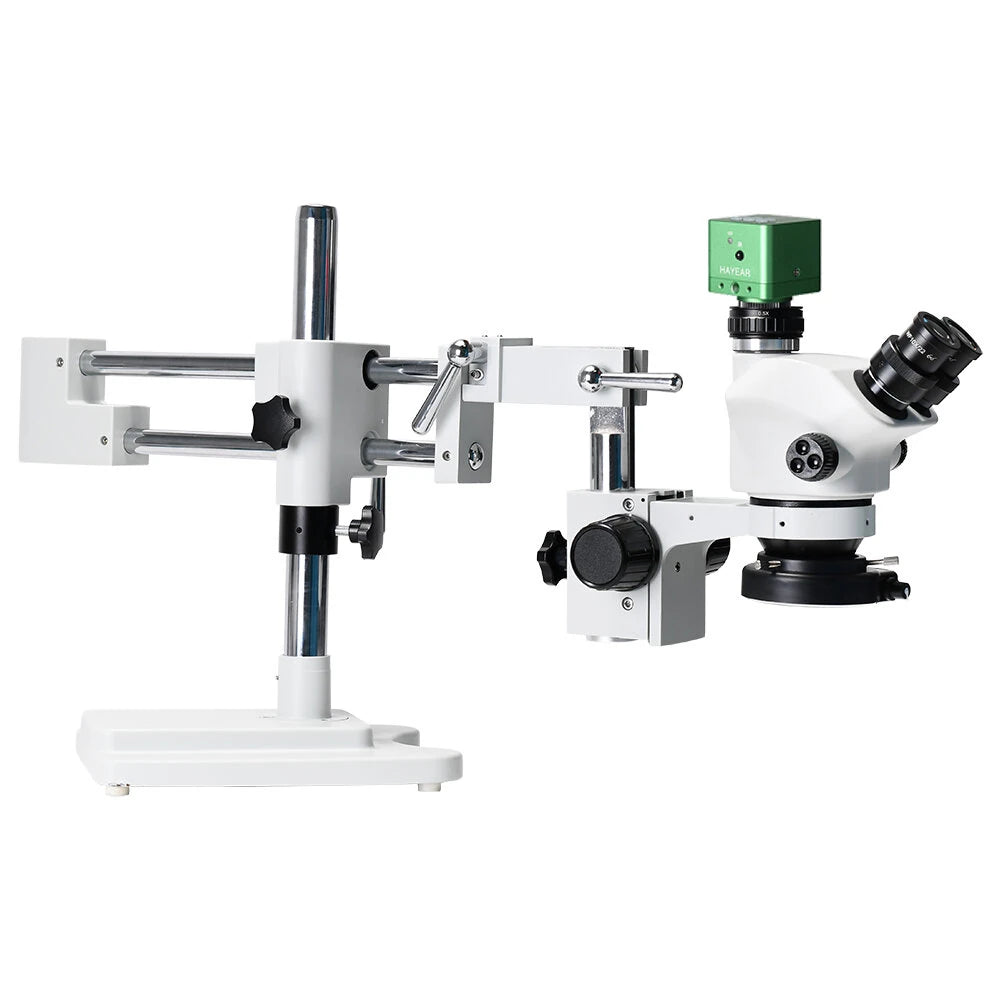

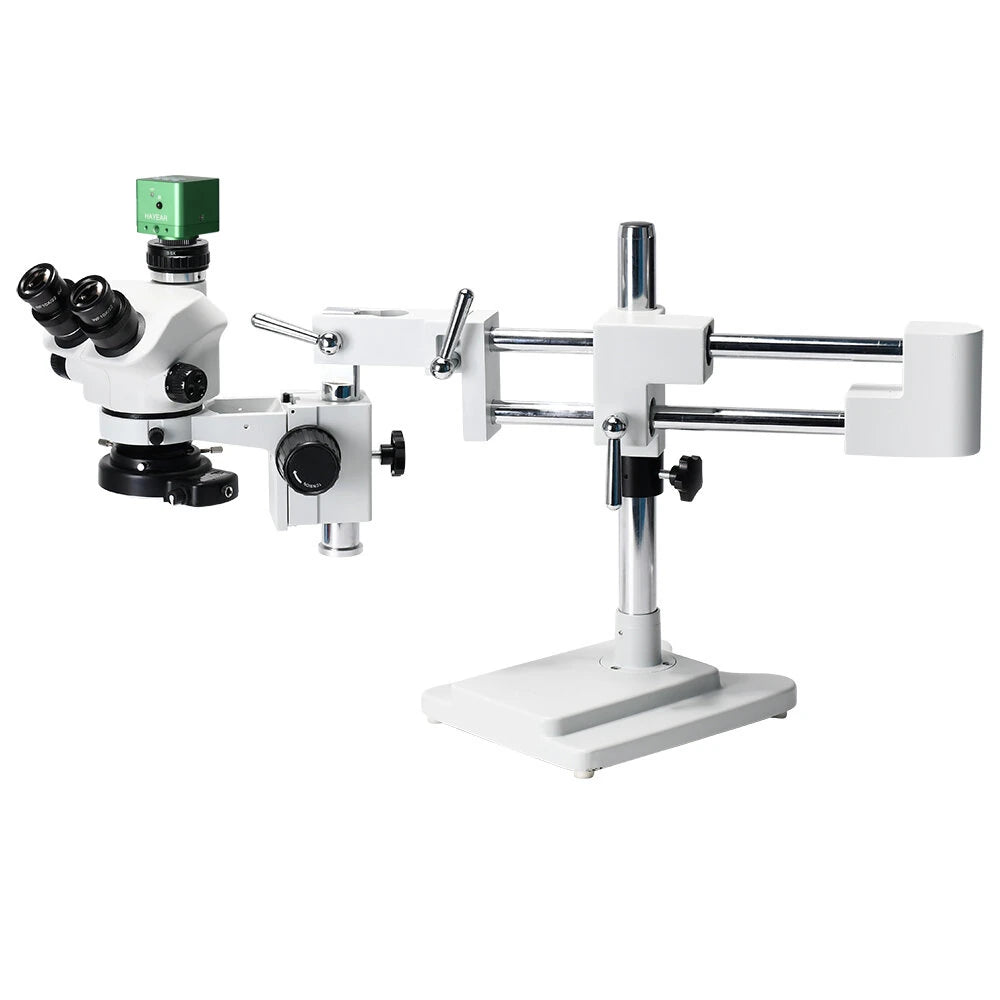

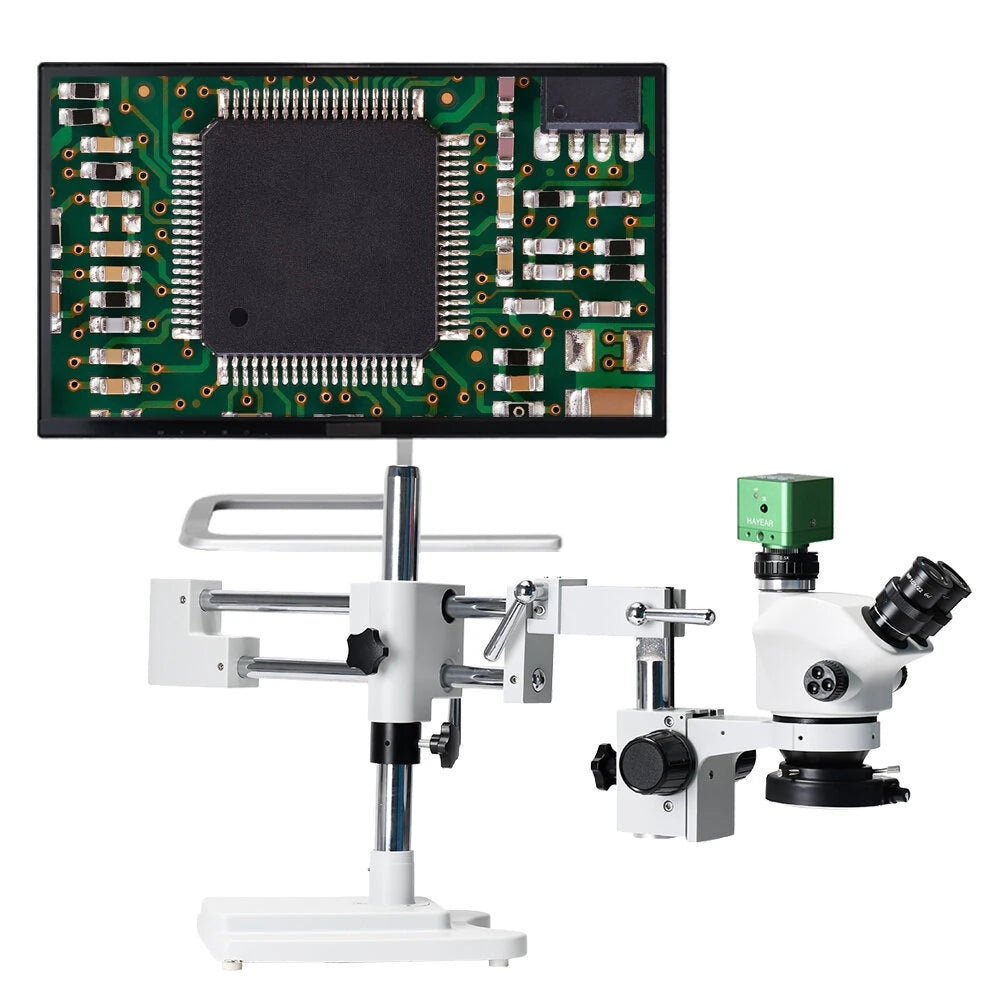

4K Trinocular Stereo Zoom Microscope 3.5X-100X with Double Boom for PCB Repair

Features

• High Magnification Power: Experience a 7X-50X wide zoom magnification for clear and sharp images, perfect for PCB repair and industrial inspections.
• 4K Camera with Sony IMX Sensor: Capture high-resolution images with a 41MP 4K camera utilizing the IMX678 CMOS sensor, offering 3840x2160P at 30FPS and 1080P at 60FPS.
• Versatile Connectivity: Easily access live viewing and recording with HDMI-compatible, USB, and memory card interfaces. Supports various screen resolutions via HDMI-compatible output.
• Adjustable LED Illumination: The 144-LED ring light offers adjustable direction and power control for shadow-free illumination.
• Sturdy Double Boom Stand: The robust all-metal stand provides stability, reducing eye strain during extended use. Features adjustable interpupillary distance and a high-temperature resistant working pad.

Specifications

• Brand: Mustool
• Item Type: Microscope Camera
• Module: HY-6210S
• Sensor: IMX678 CMOS
• Optical Format: 1/1.8 inch
• Pixel Size: 2.0μm x 2.0μm
• Interface: HDMI-compatible (Type A), USB (Type B), Small memory card
• Image Resolution: 41MP
• Video Resolution: 4K at 30FPS, 1080P at 60FPS
• HDMI-compatible Resolution: 3840 x 2160P at 30FPS, 1920 x 1080P at 60FPS
• HDMI-compatible Scale: Supports 4:3, 16:9, 16:10 screen formats
• USB2.0: Supports resolutions up to 3840 x 2160 at 30FPS
• Small Memory Card: Up to 512GB (not included)
• AWB: Automatic white balance, RGB value settings, and manual adjustments
• Exposure: Automatic/manual with adjustable AE value
• Additional Features: 8-line cross line, 2-scale line, sharpness/contrast/color gain settings, mono negative film support, and horizontal/vertical mirror
• Languages: English/Chinese
• Digital Zoom: Supported
• Infrared Remote Control: Supported (battery not included)
• Voltage Input: DC 5V
• Power Supply: AC100-240V input, DC 5V output
• Power Consumption: Max 0.15W
• Lens Interface: C/CS port
• LED Light Lifespan: 100,000 hours

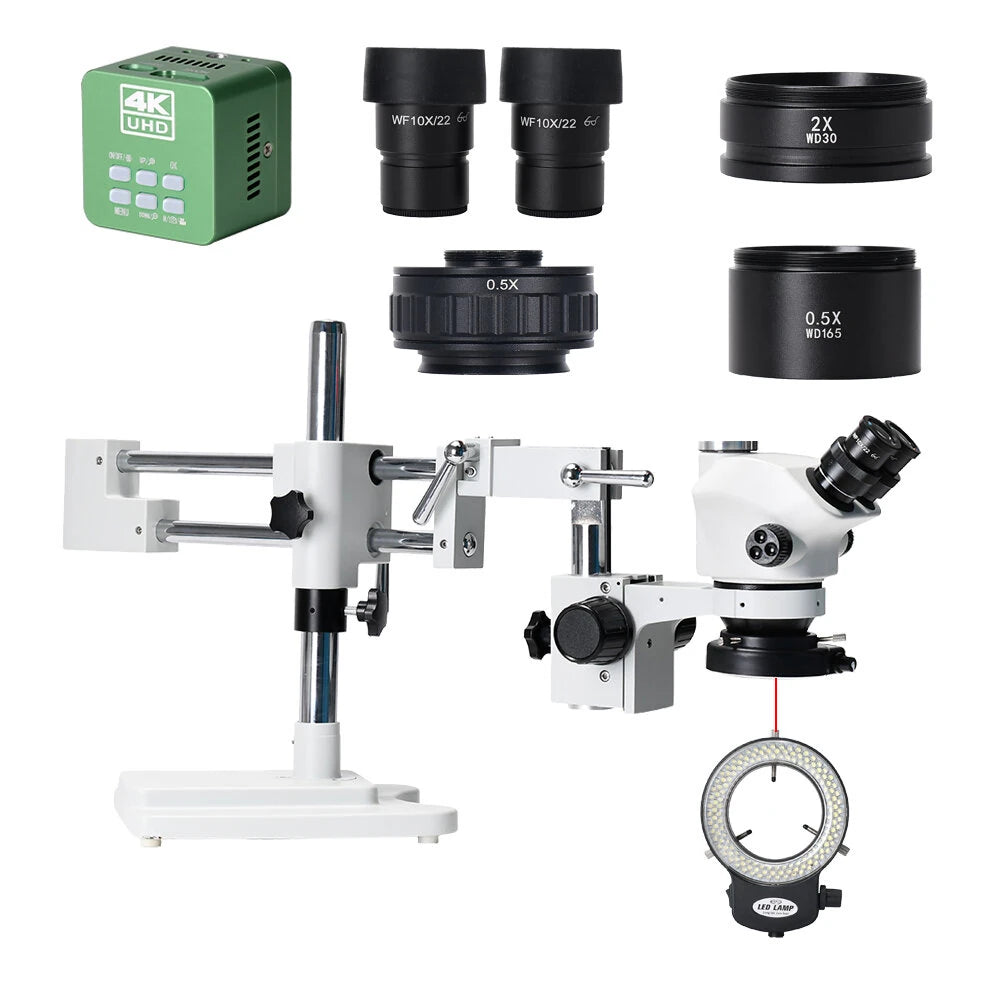

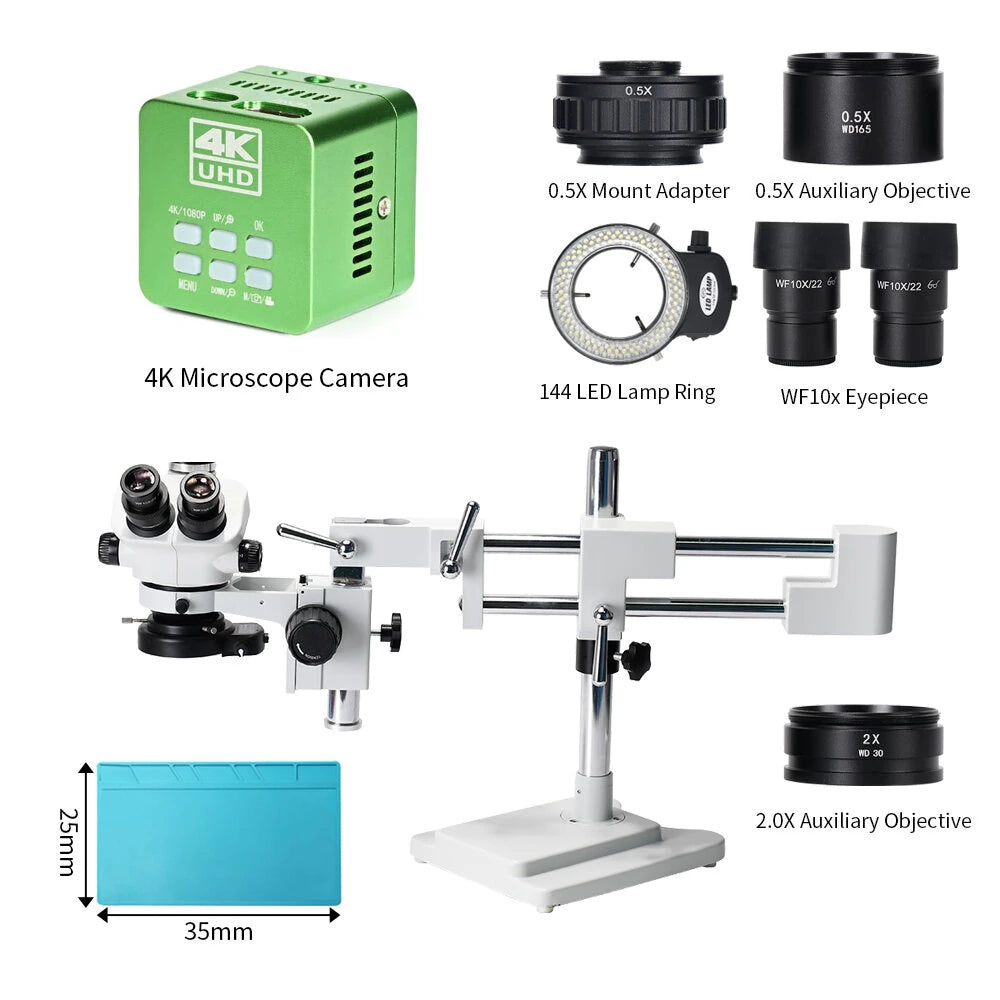

Package Includes

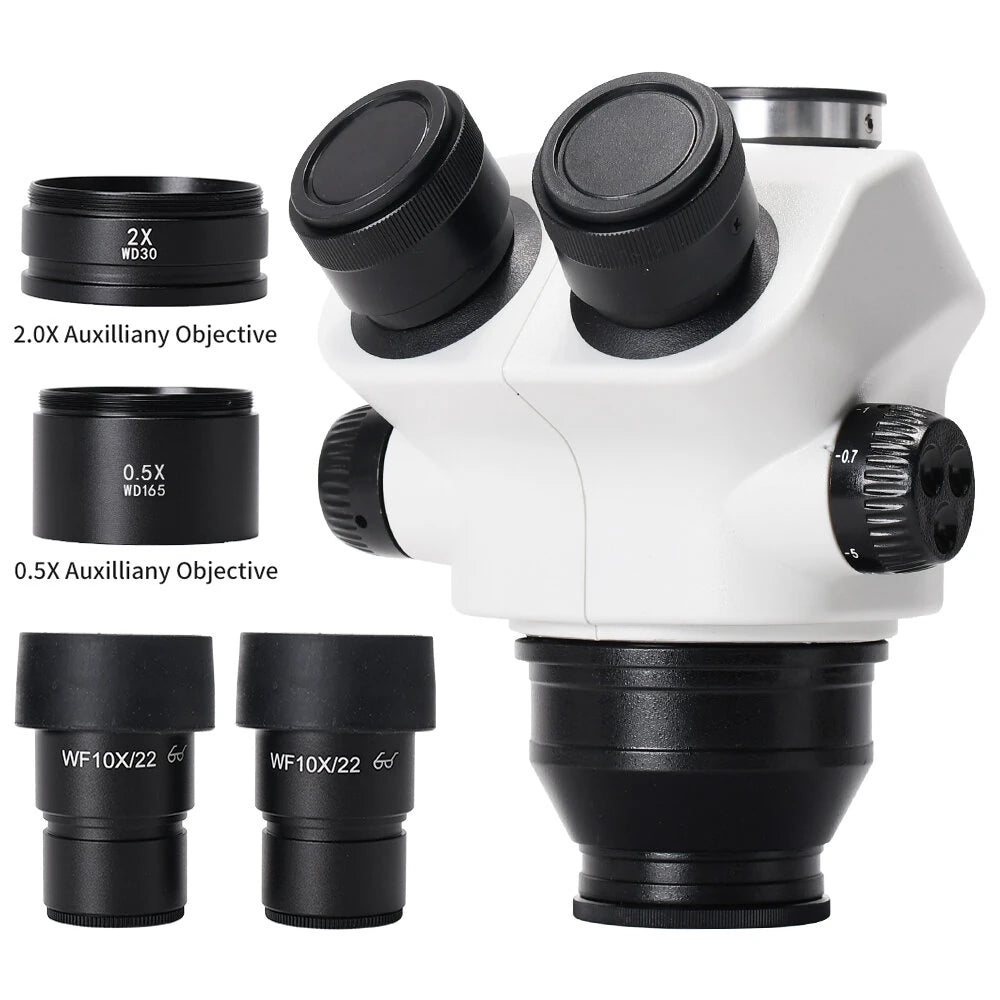

• 1 x Trinocular Stereo Zoom Head
• 1 x Pair of Super Widefield 10X20MM Eyepieces
• 1 x 144-LED Ring Light

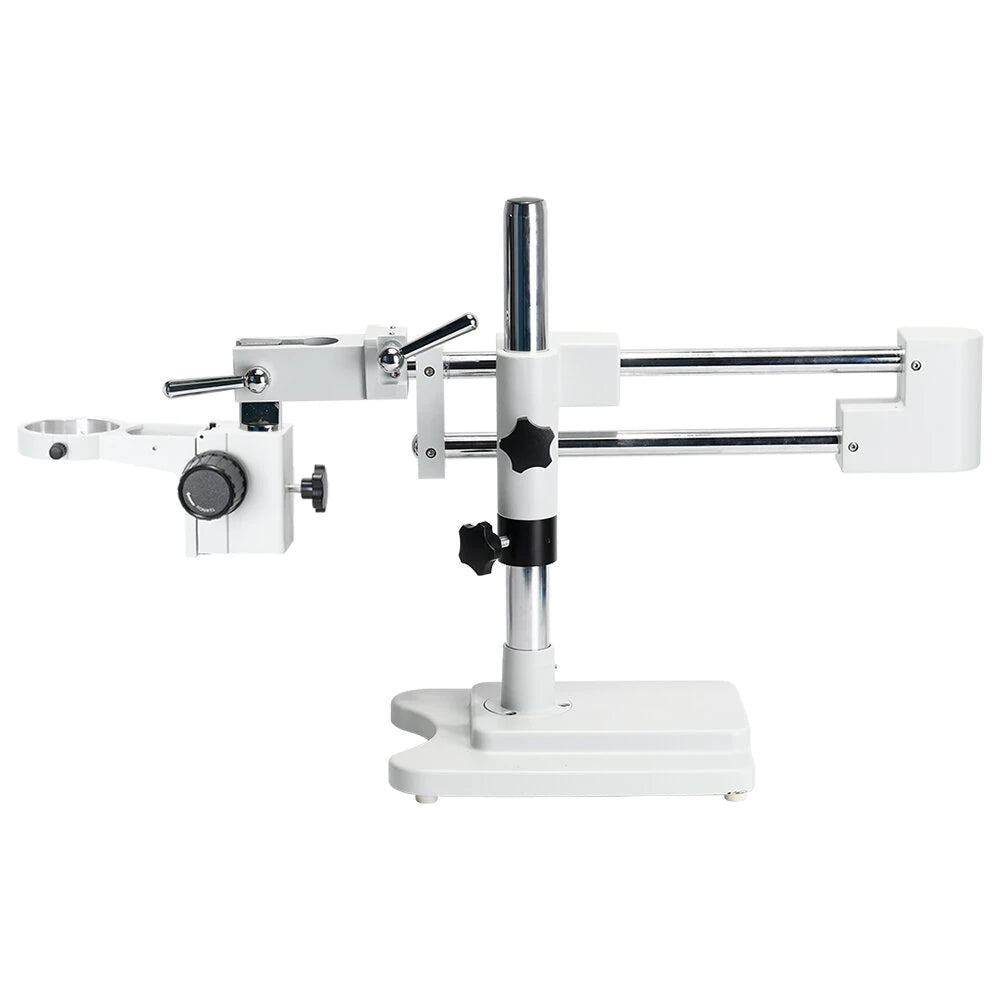

• 1 x Double Boom Microscope Bracket
• 1 x Focusing Rack
• 1 x 0.5X C-mount Adapter
• 1 x Pair of Eye-Guards
• 1 x Dust Cover

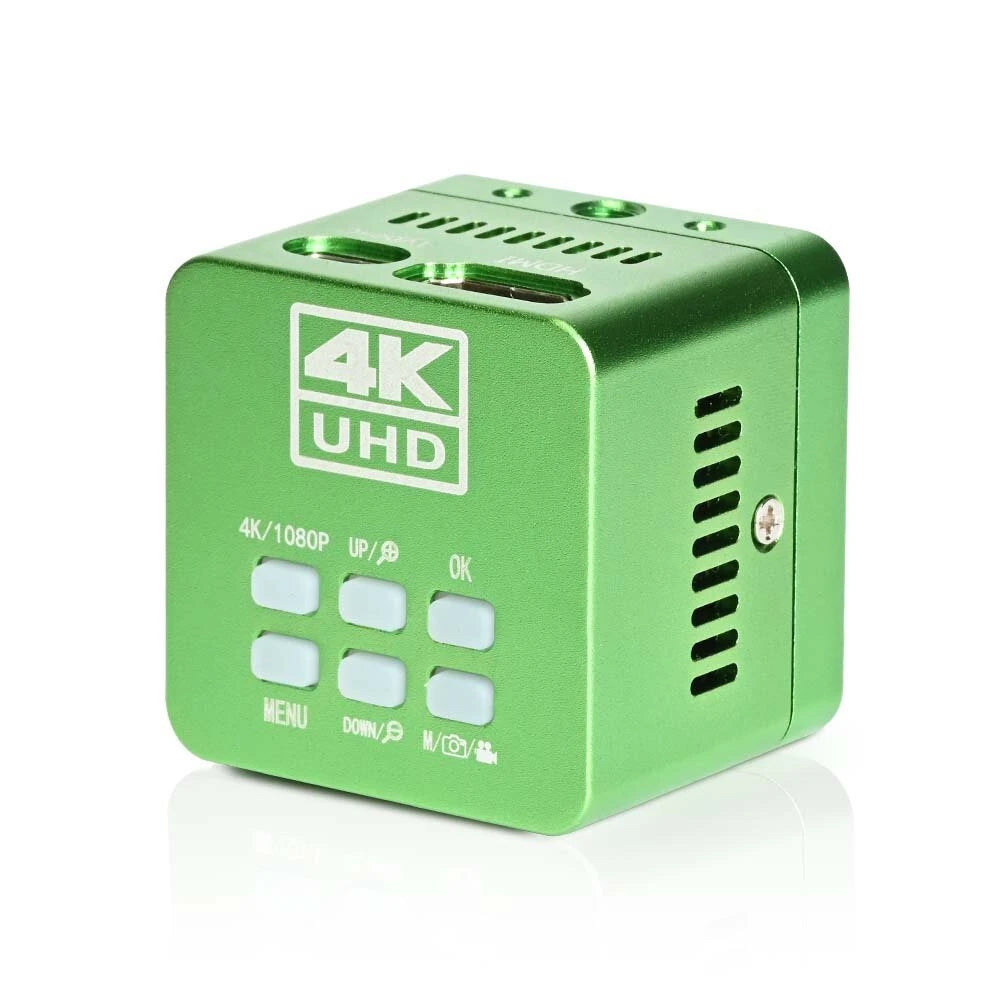

• 1 x 4K Microscope Camera
• 1 x Power Adapter (Plug Type as Per Your Choice)
• 1 x IR Remote
• 1 x HDMI-compatible Cable
• 1 x User Manual
• 1 x 0.5X Microscope Auxiliary Objective Lens (Working Distance 165 mm)
• 1 x 2.0X Microscope Auxiliary Objective Lens (Working Distance 40 mm)
• 1 x High Temperature Resistant Working Pad
