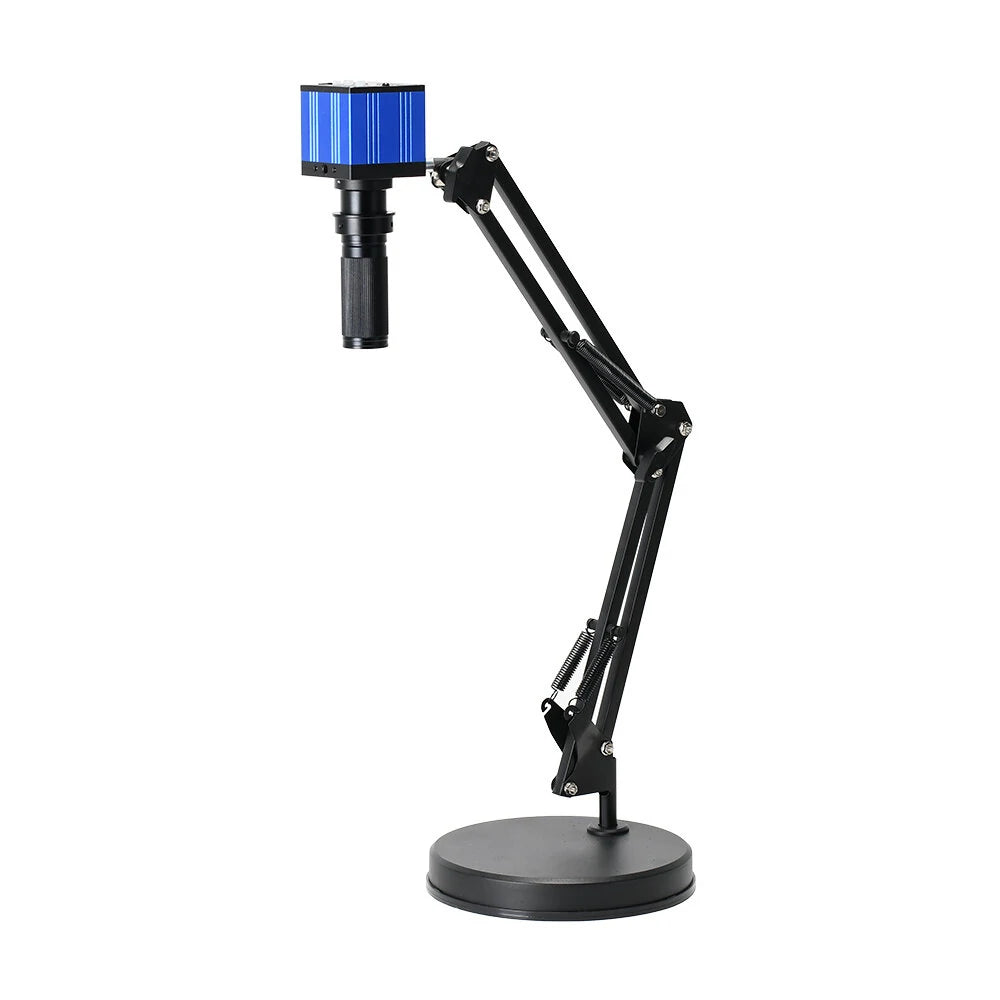

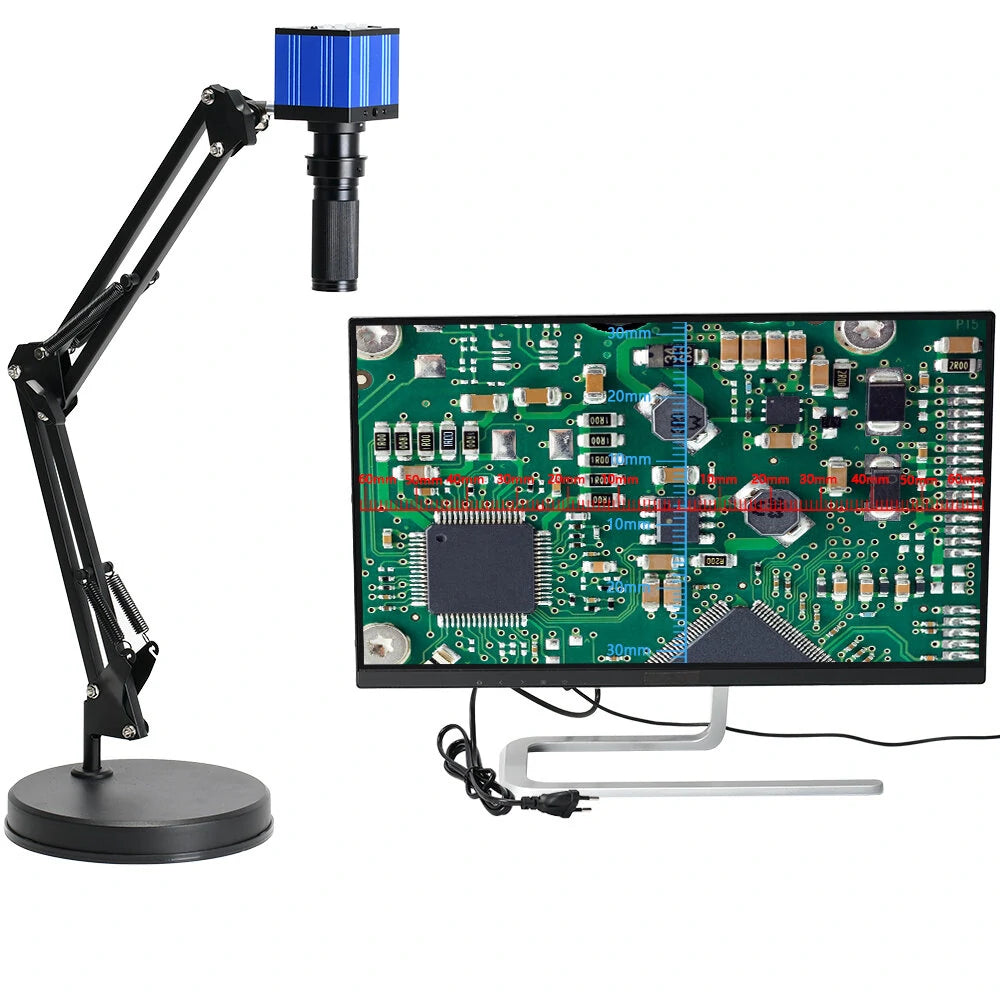

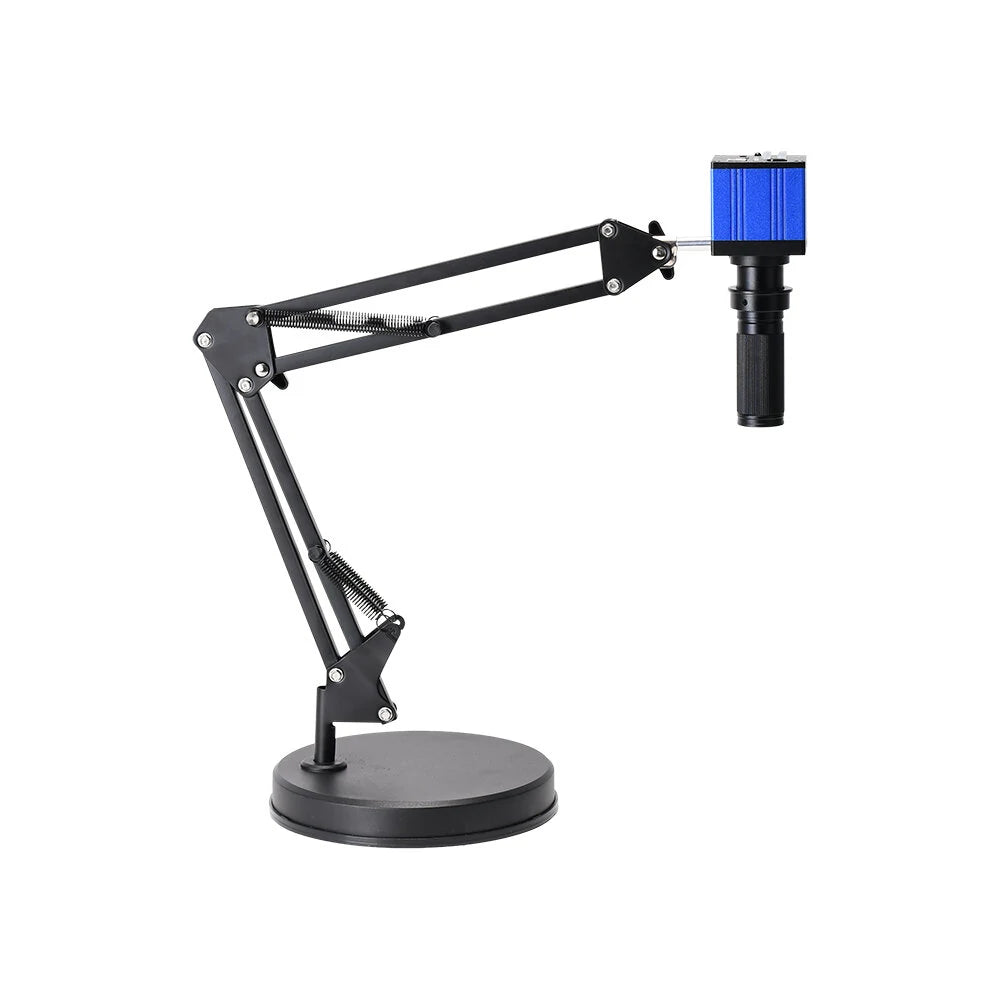

HAYEAR 51MP 2K HDMI USB Video Microscope Camera with 120X Zoom Lens for PCB Soldering Repair

51MP Microscope Camera

Features:

1. Versatile applications in microelectronics, molds, jewelry, printing, mobile phone repair schools, and more.
2. Ideal for observing the surface microstructure of larger objects.
3. Constructed with high-quality materials, promising strength and longevity.
4. Equipped with an HD camera featuring a 51 megapixel CMOS sensor and HDMI & USB ports.
5. Ensures safety and reliability with strict quality control measures.

Specifications:

Item Type	Microscope Camera
Module	2037D
Sensor	51MP CMOS
Optical Format	1/2.9 inch
Pixel Size	1.335 μm x 1.335 μm

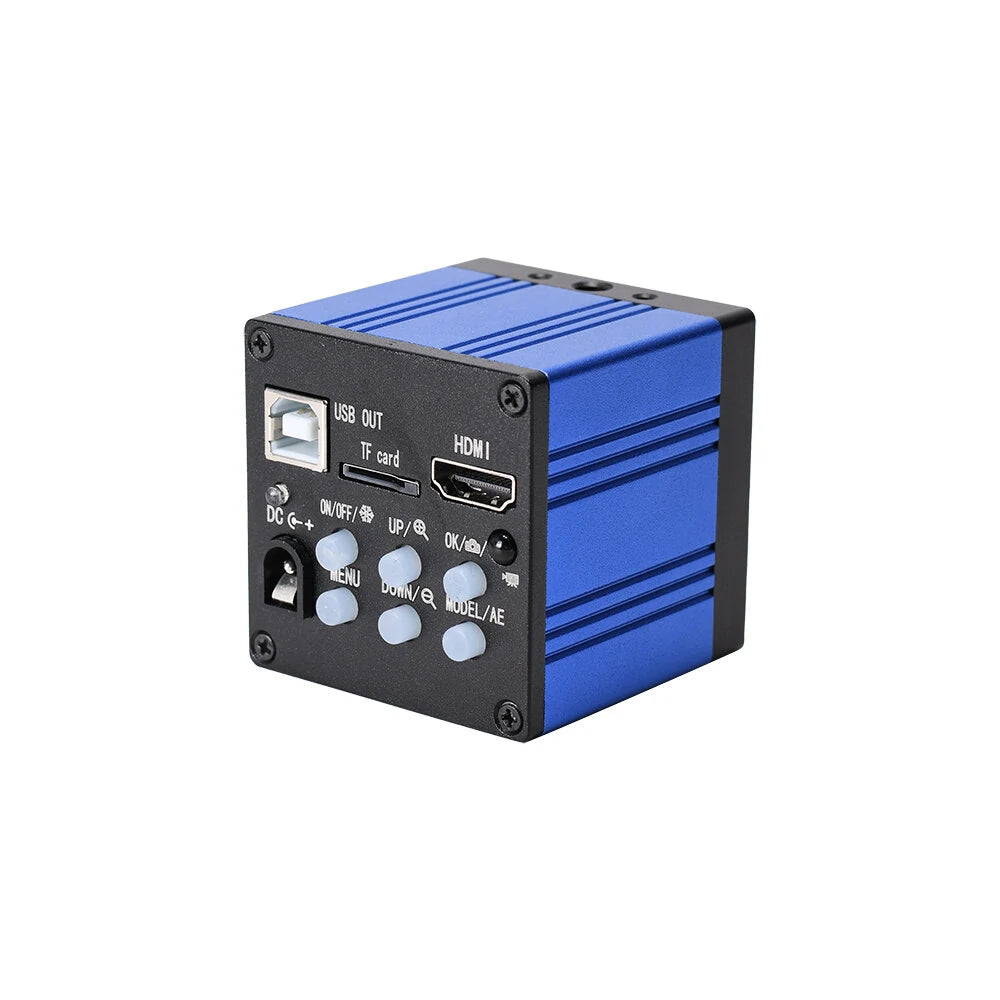

Interface	HDMI (Type A), USB (Type B), Small Memory Card
HDMI Image Resolution	51MP
Video Resolution	2K at 30FPS, 1080p at 60FPS
HDMI Resolution	1920 x 1080p at 60FPS
HDMI Scale	Supports 4:3, 16:9, 16:10 formats
USB2.0 (Drive Free)	1920 x 1080 at 30FPS, 1280 x 720 at 30FPS, 640 x 480 at 30FPS
Small Memory Card	Up to 128GB (not included)
AWB	Automatic White Balance (AWB), color correction/manual
R.G.B Value Setting	Independent
Exposure	Automatic/manual, AE value adjustable
Cross Line	8 lines, adjustable color, width, position
Scale Line	2 lines
Dotted Line	2 lines, adjustable color, width, position
Sharpness/Contrast/Color Gain	Supported
Mono Negative Film	Supported
Mirror	Horizontal and vertical
Language	English, Simplified Chinese, French, Spanish, Japanese, German, and more
Digital Zoom	Supported
Infrared Remote Control	Supported
Voltage Input	DC 12V
Power Supply Voltage	AC 100-240V, Output: DC 12V
Power Consumption	Max 0.15W 12V, 0.12A
Lens Interface	C/CS port
Remote Control Battery	1 x CR2025 button battery

120X Lens:

• Magnification Power: 0.12-2X (approximates 8X-120X on display)
• Visual Field: 2.4mm-66mm
• Zoom Ratios: 5:1
• Size: 100mm (L) x 28mm (DIA)
• Weight: 100g

Troubleshooting:

LCD Issues: No video or flickering

1. Confirm adequate power supply and that the red LED is activated. Press PowerKey to engage.
2. Ensure lens cap is removed and increase lighting.

Image Issues: Black bars or distortion

1. Adjust LCD resolution.
2. Modify camera resolution accordingly.

Dirty Spots:

1. Inspect camera and lens for dust, and clean with absolute ethanol or detergent if necessary.

Package Includes:

• 1 x 51MP Microscope Camera
• 1 x HDMI Cable
• 1 x USB Cable
• 1 x Infrared Remote Control
• 1 x Power Adapter
• 1 x Stand
• 1 x 120X Lens
