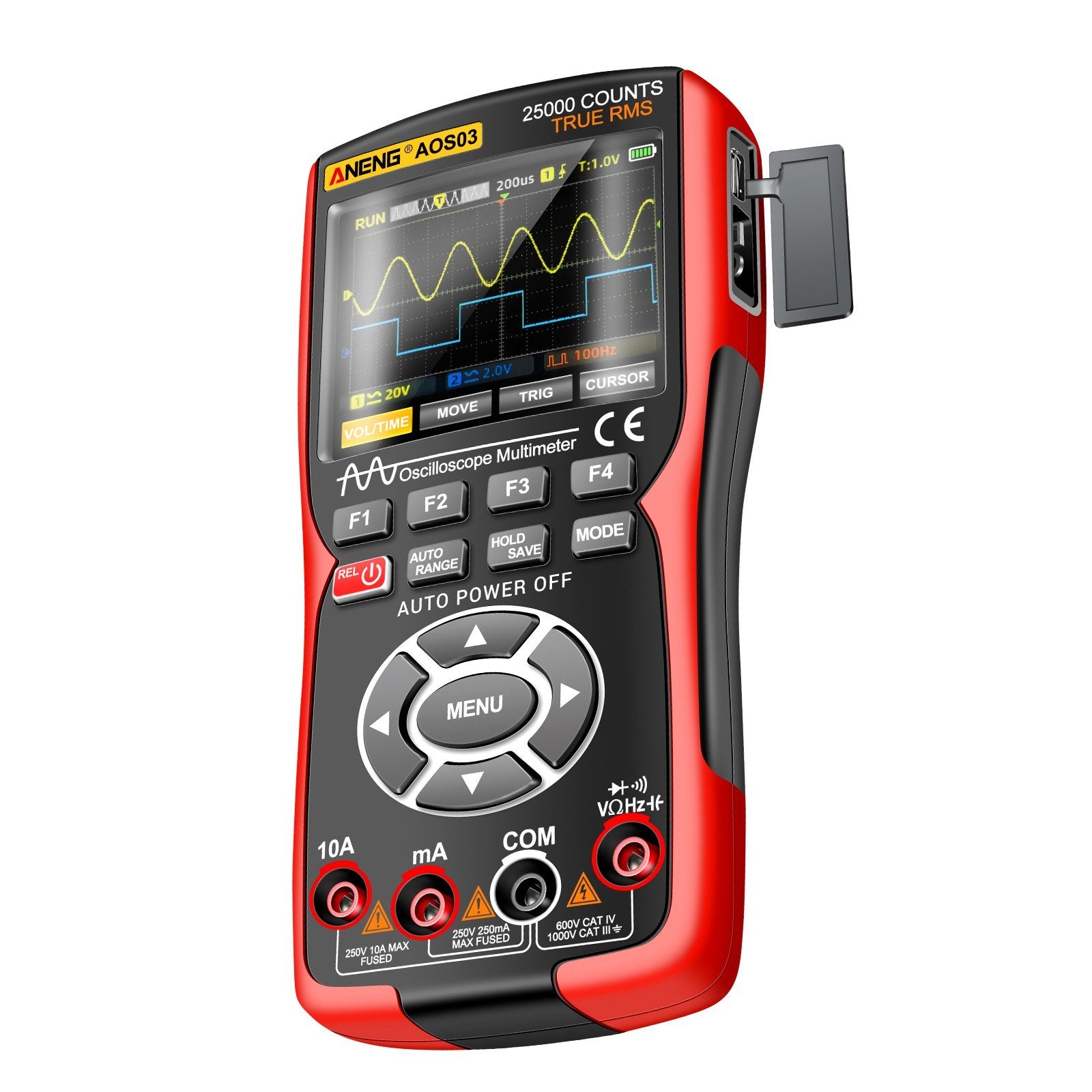

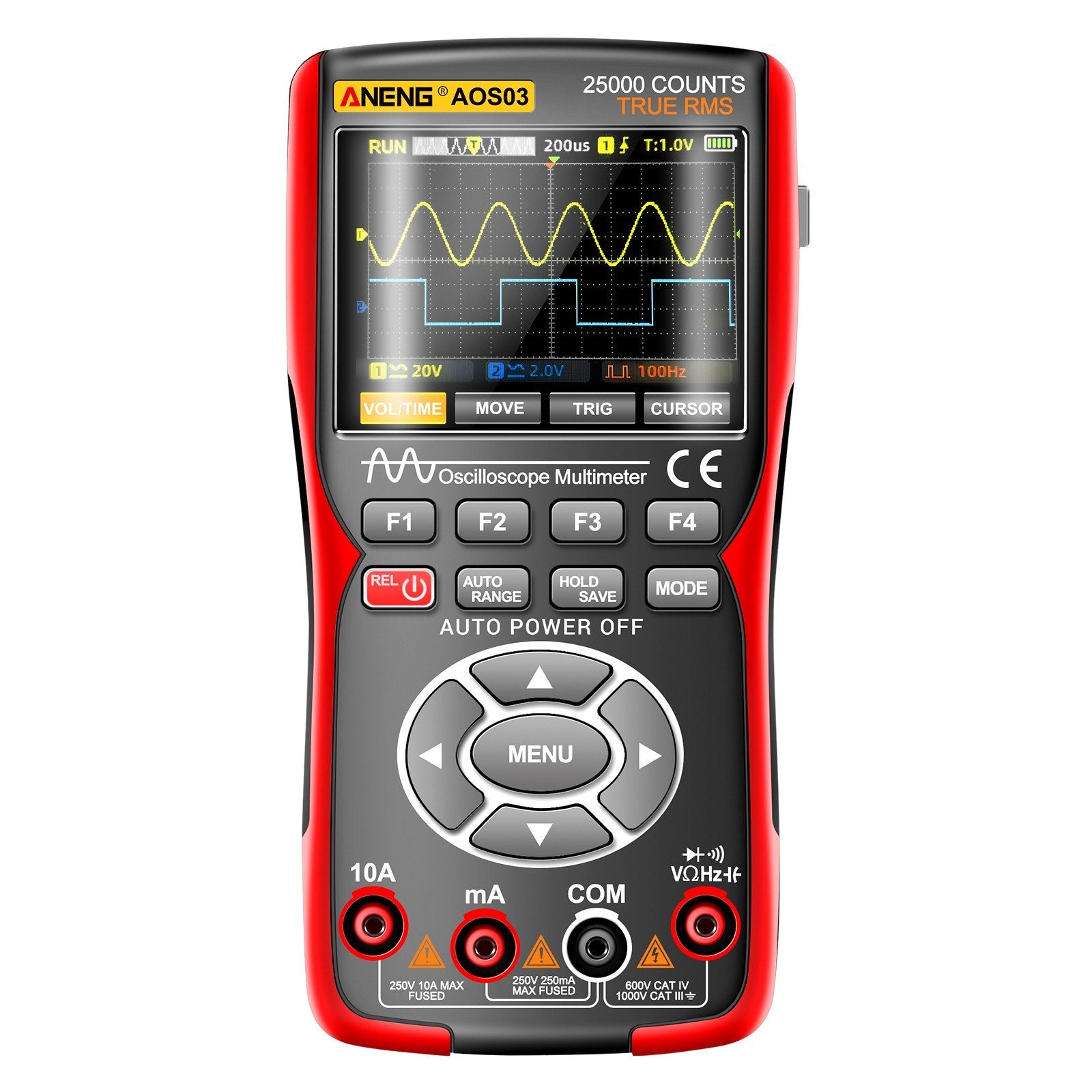

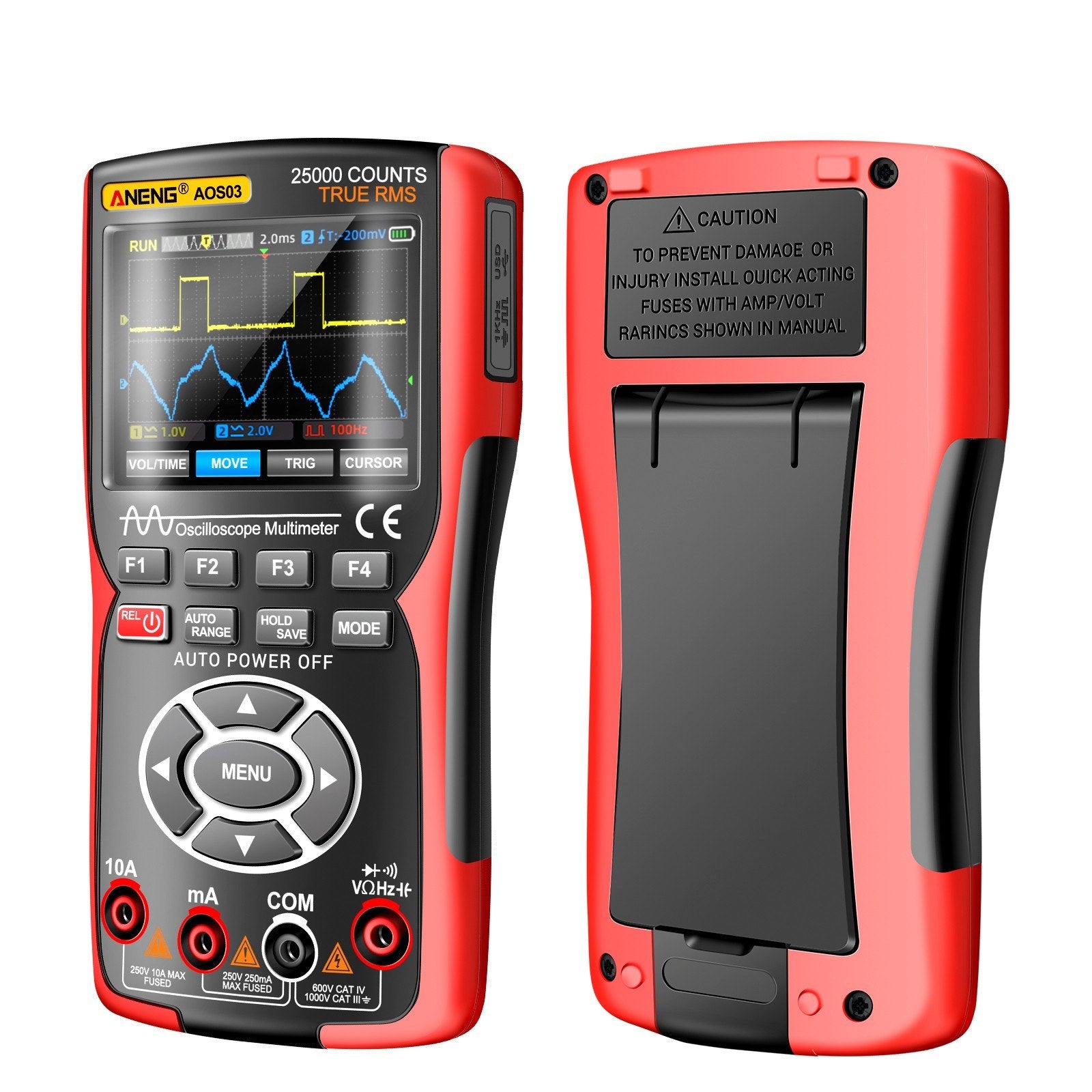

3-in-1 Handheld Oscilloscope Multimeter

This versatile device combines the functionalities of an oscilloscope, multimeter, and signal generator, making it an essential tool for professionals and enthusiasts alike. Its compact size and ergonomic design ensure easy portability and operation in diverse measurement scenarios.

Key Features

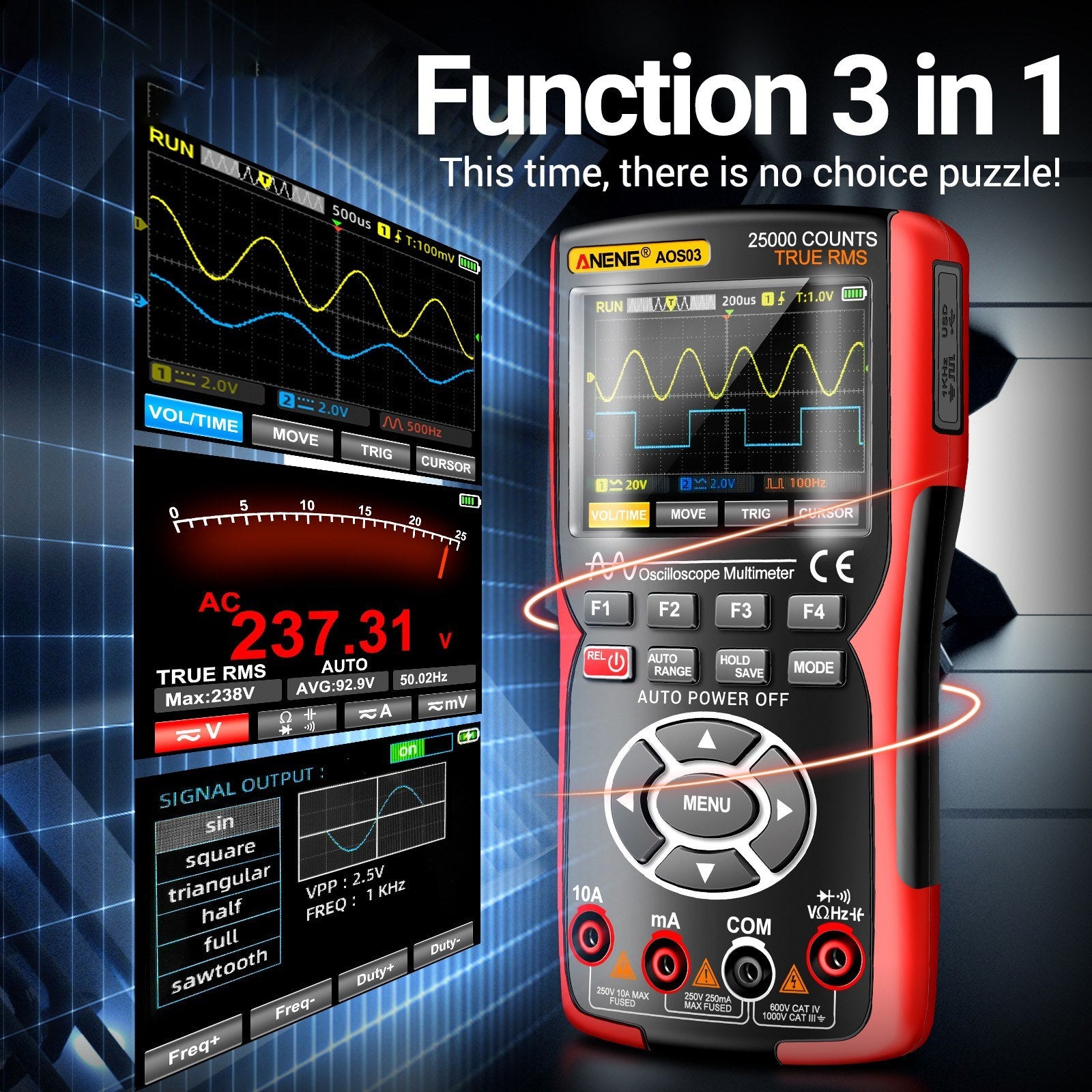

• 3-in-1 Functionality: Dual-channel device with oscilloscope, multimeter, and signal generator capabilities.

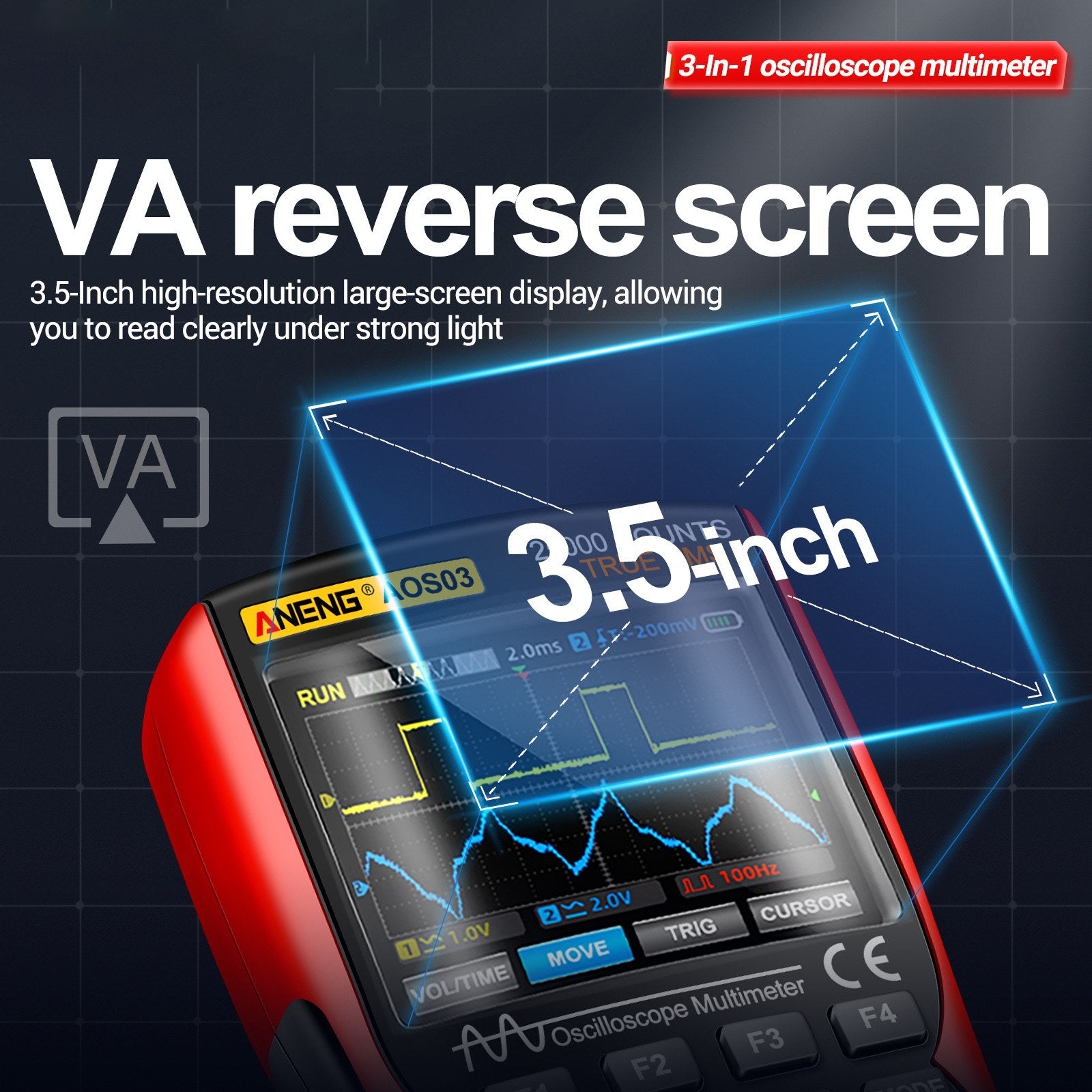

• Advanced Display: 3.5" IPS full-view color display for crisp and clear visual data.
• High Performance: 50MHz bandwidth, 280MSa/s sampling rate, and 128Kb recording depth for accurate measurements.
• User-Friendly Design: Clearly labeled functional buttons and an intuitive menu interface for seamless operation.

Detailed Features

Oscilloscope Mode

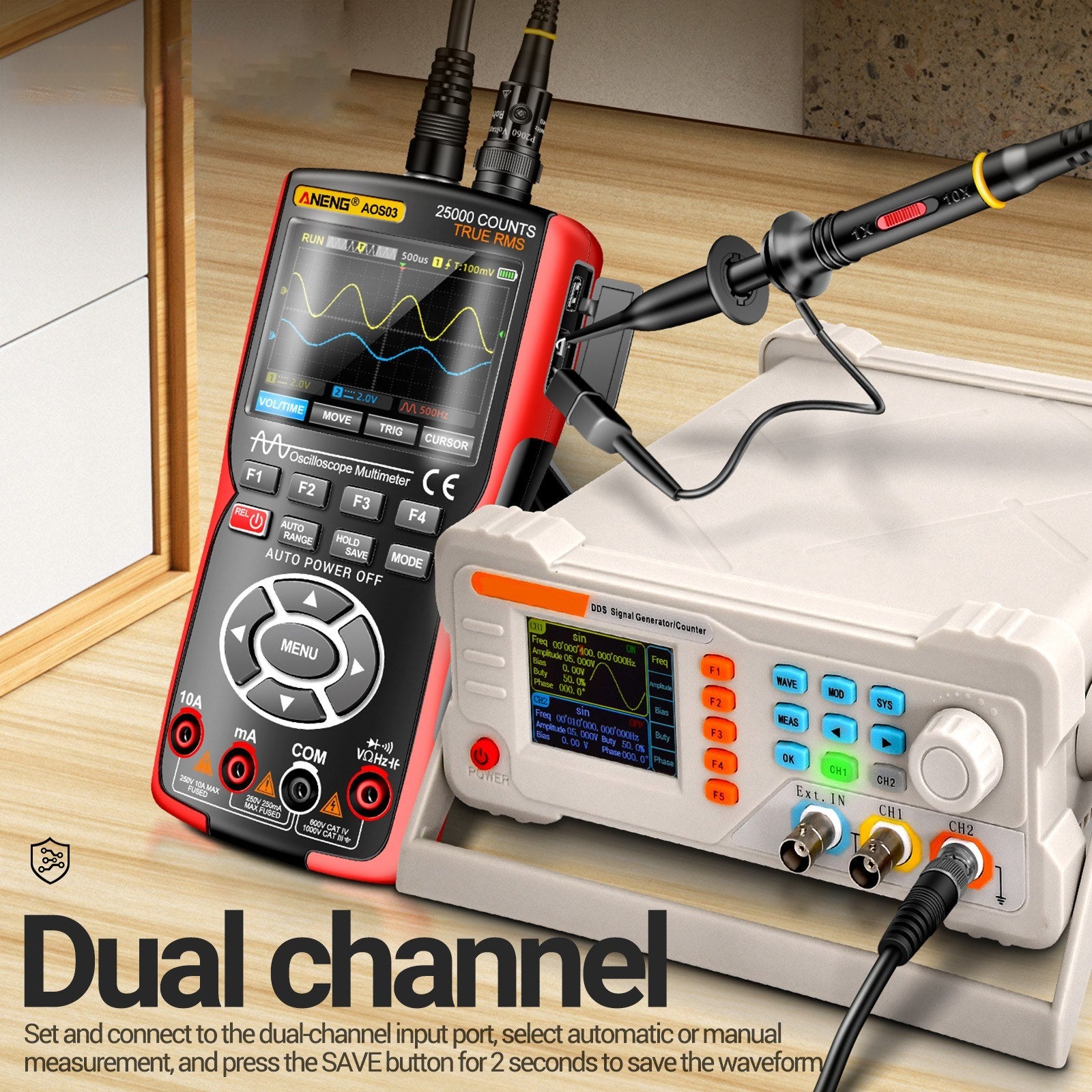

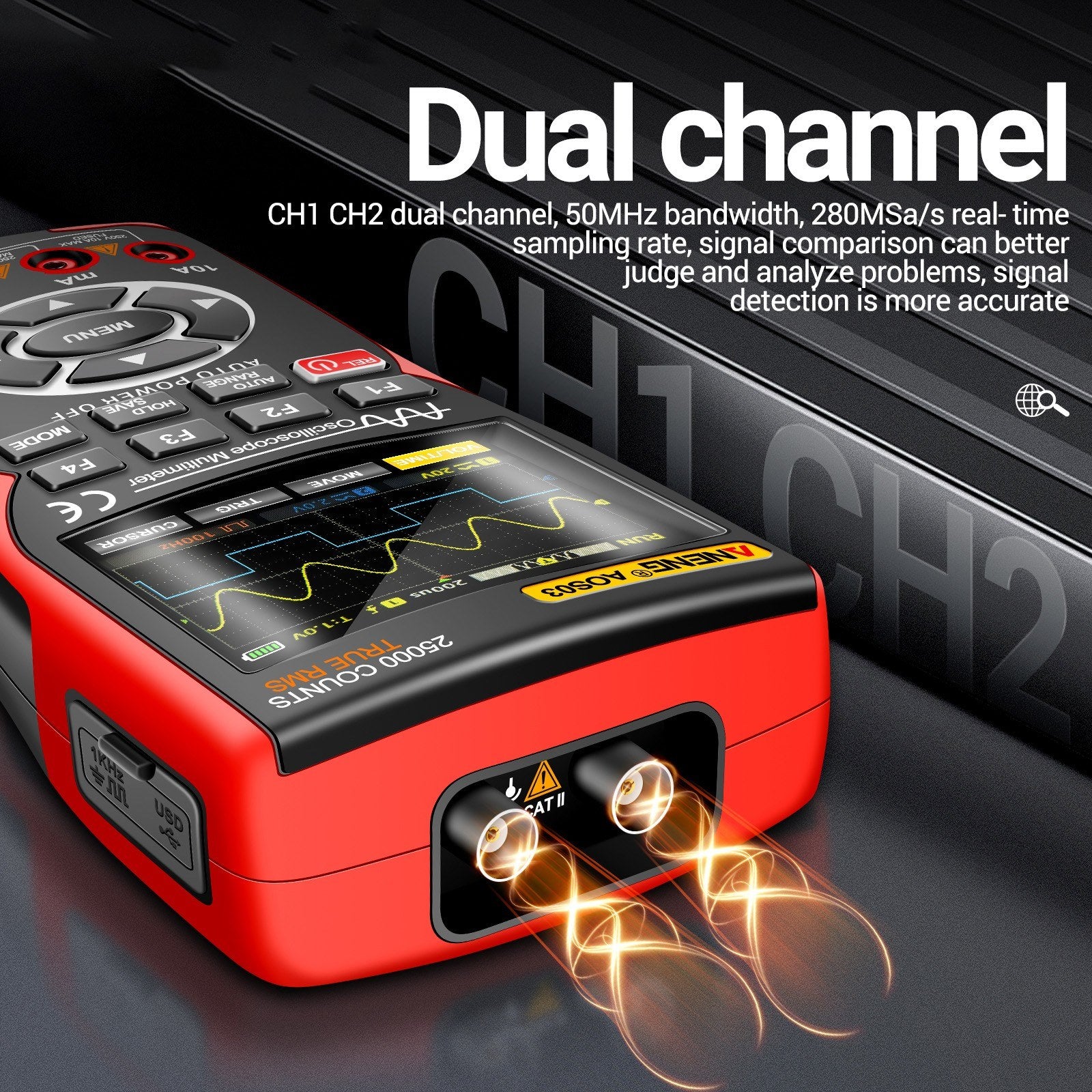

• 2-channel operation with a 50MHz bandwidth.
• Automatic measurement and trigger functions for efficient data collection.
• Supports waveform storage and export for further analysis.

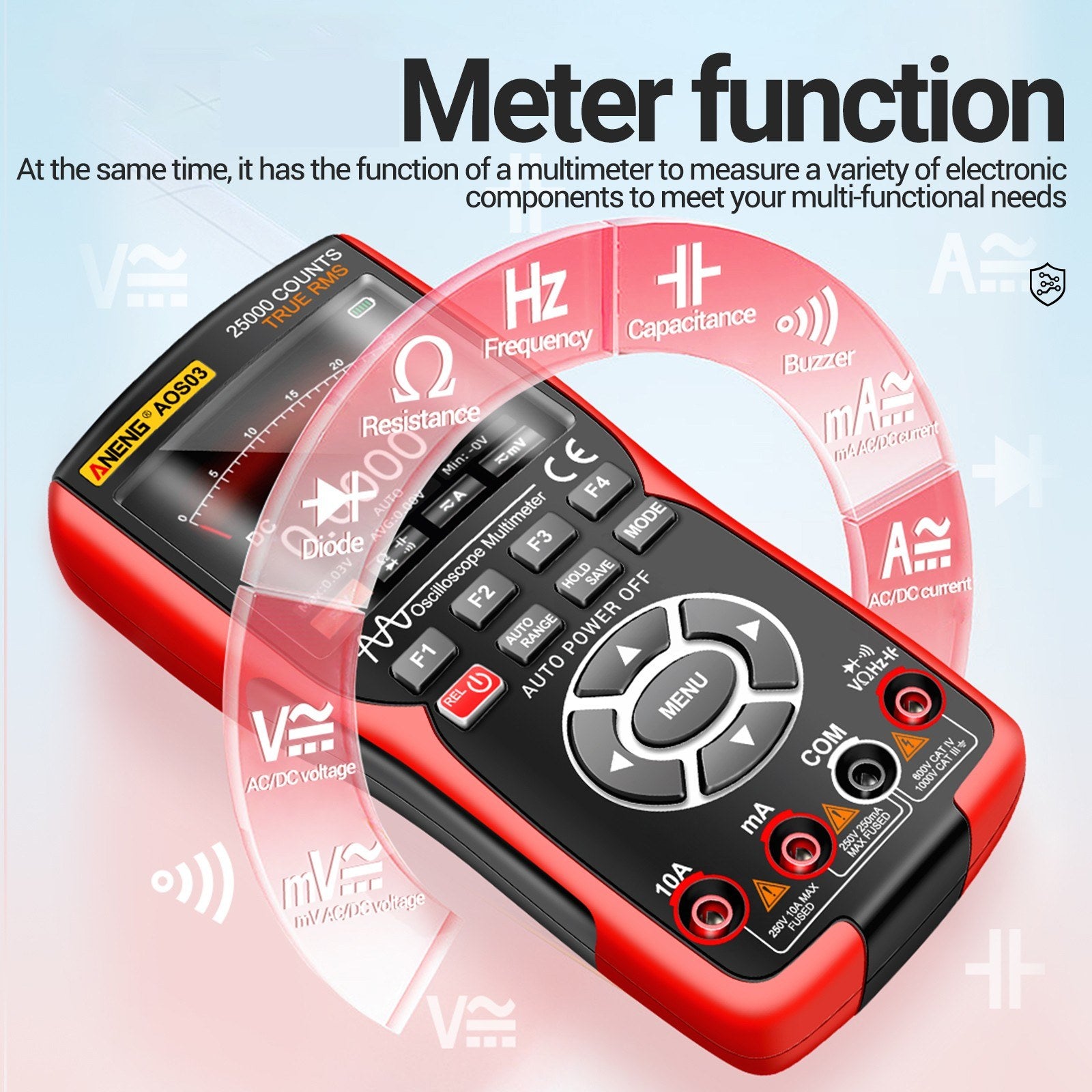

Multimeter Mode

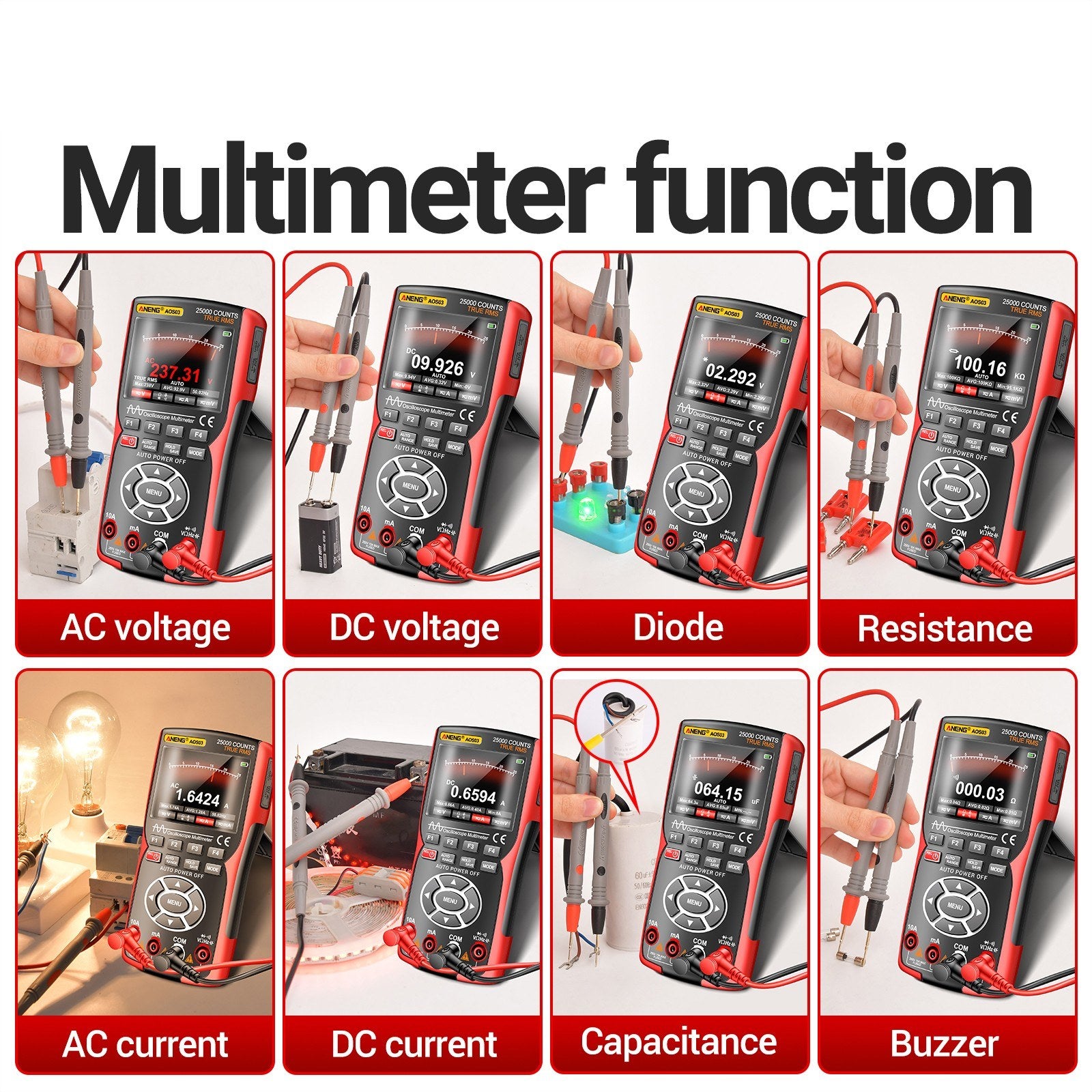

• Measures AC/DC voltage, current, resistance, capacitance, frequency, and diode values.
• Up to 25,000 counts; ideal for professionals and hobbyists.
• Features data retention and low battery indication.

Robust Design

• Constructed with a dual injection molded ABS and TPE structure for enhanced durability.

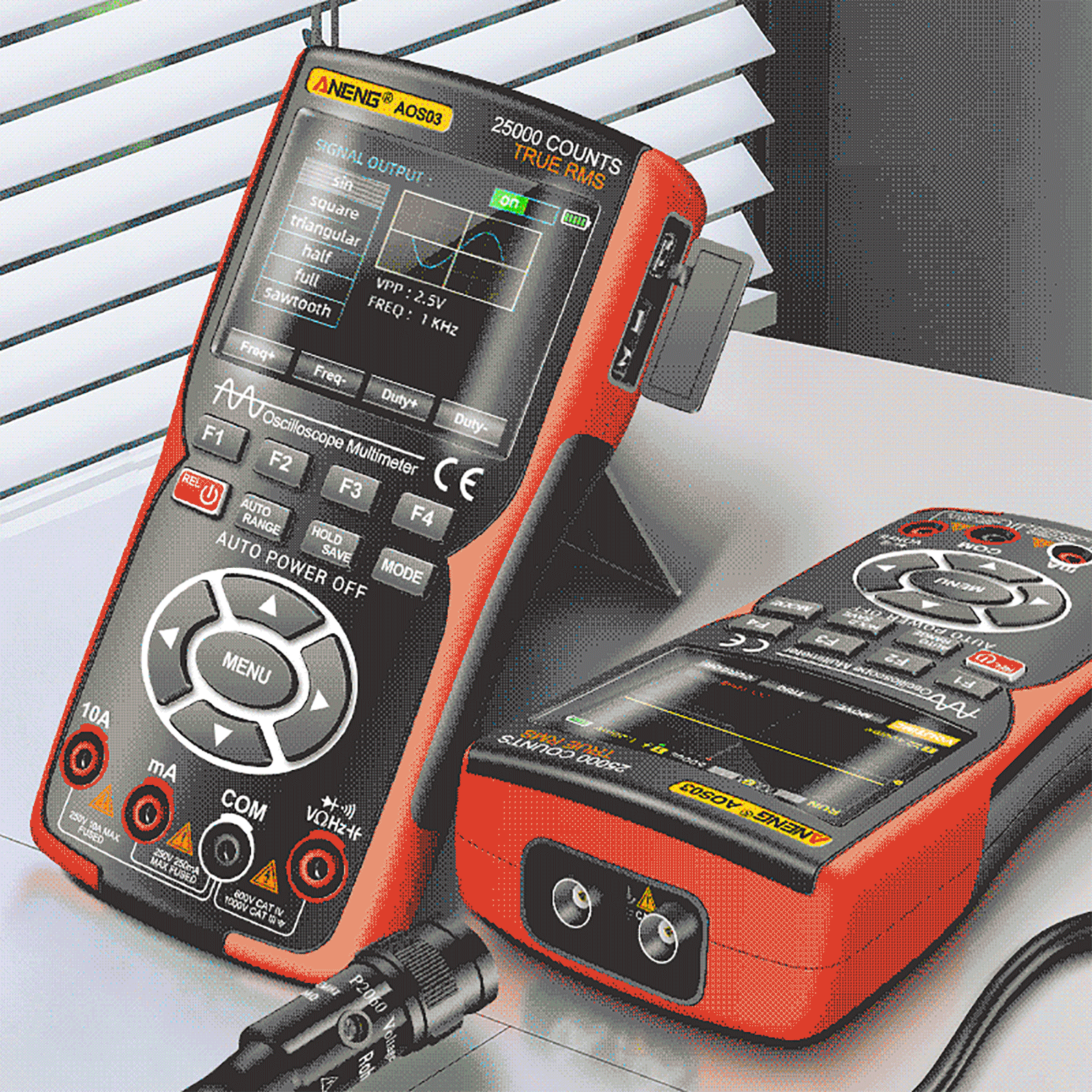

• Signal generator function can output various waveforms including sine and square waves.

Waveform Storage and Connectivity

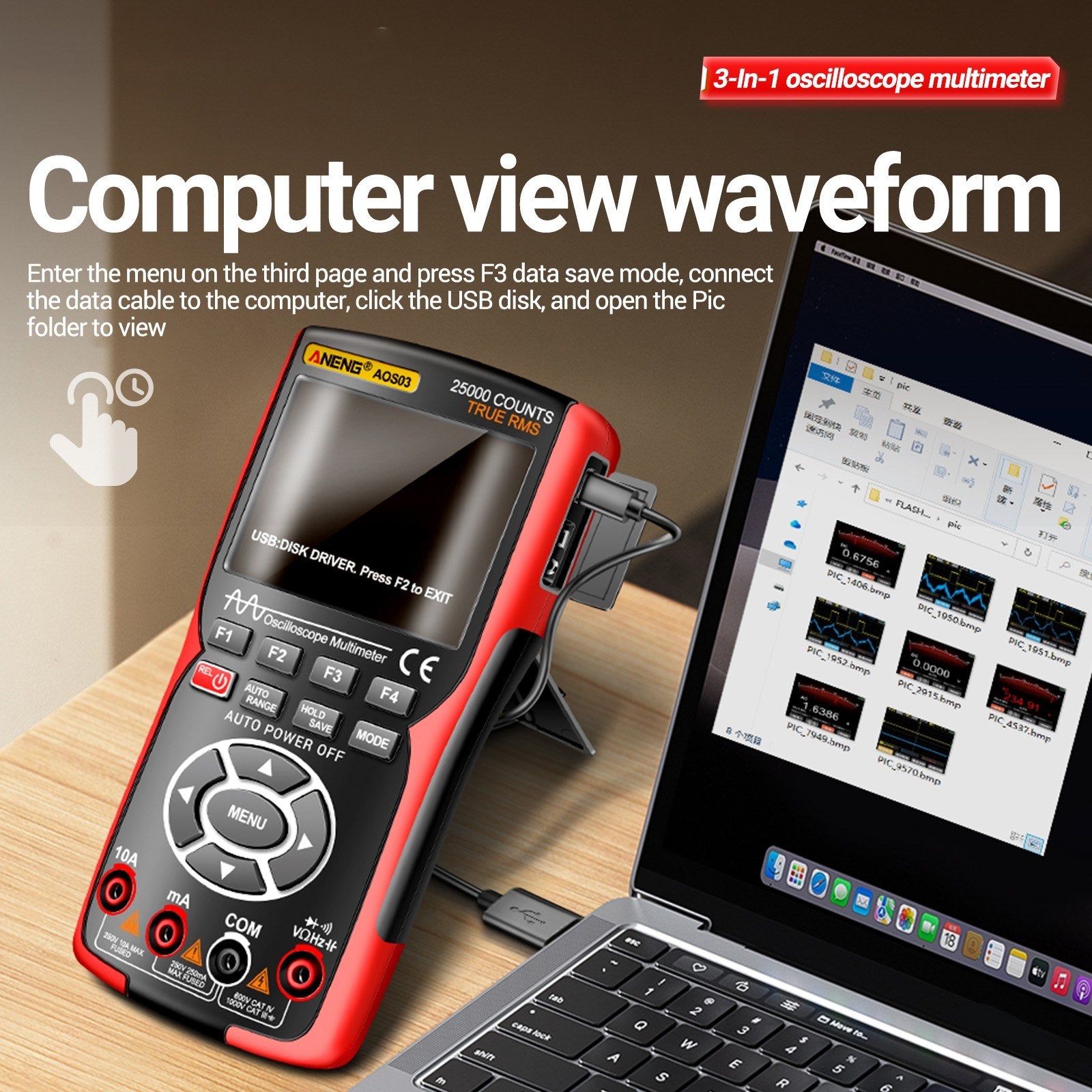

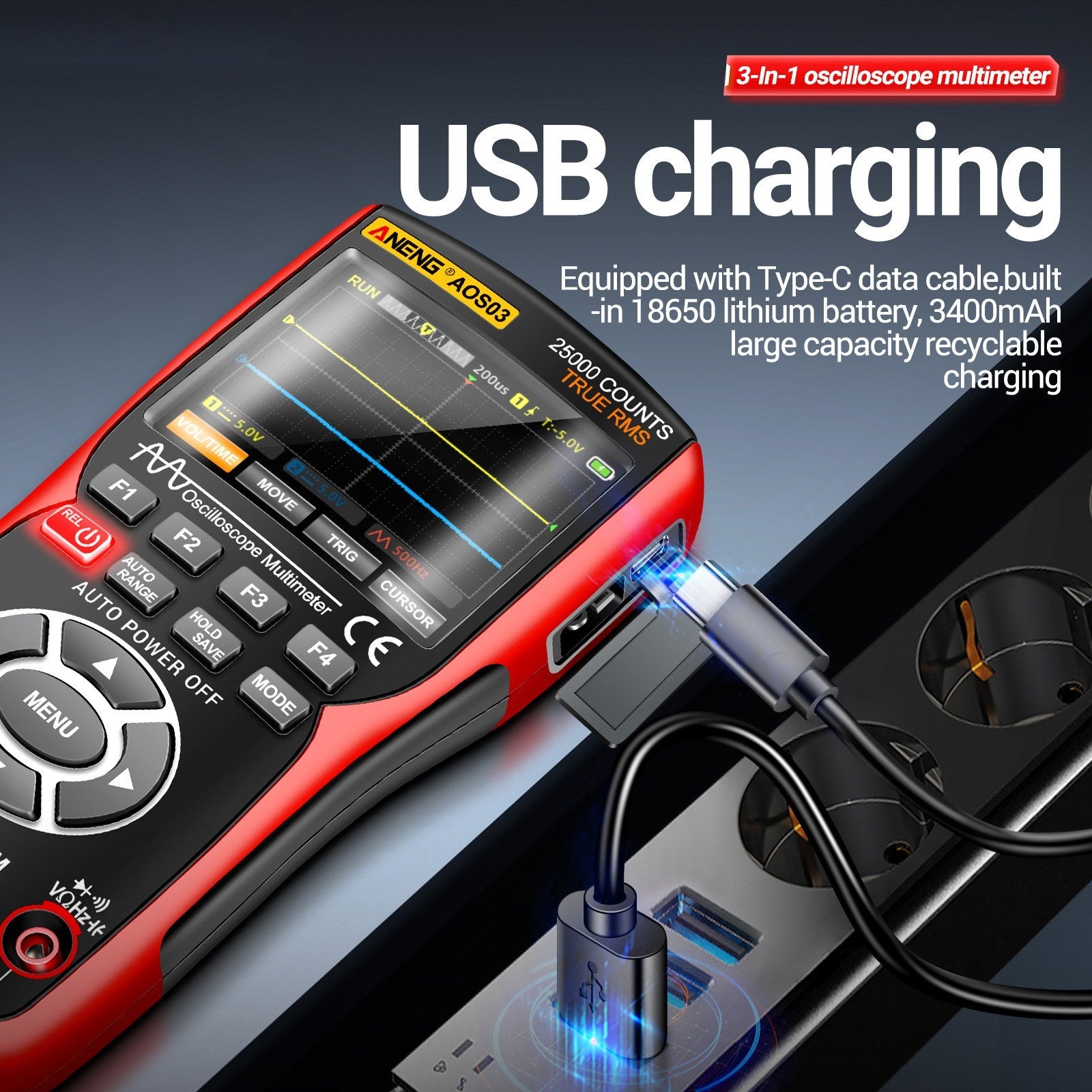

• Automatically stores measurement data, accessible via a Type-C connection to a computer.
• Customizable auto power-off settings for energy efficiency.

Specifications

Material: ABS + TPE

Oscilloscope Information

• Bandwidth: 50MHz, Dual channel
• Sampling Method: Real-time, 200M/280MSa/s rate
• Input Coupling: DC, AC
• Vertical Sensitivity: 20mV/div-10V/div
• Trigger Modes: Auto, normal, single

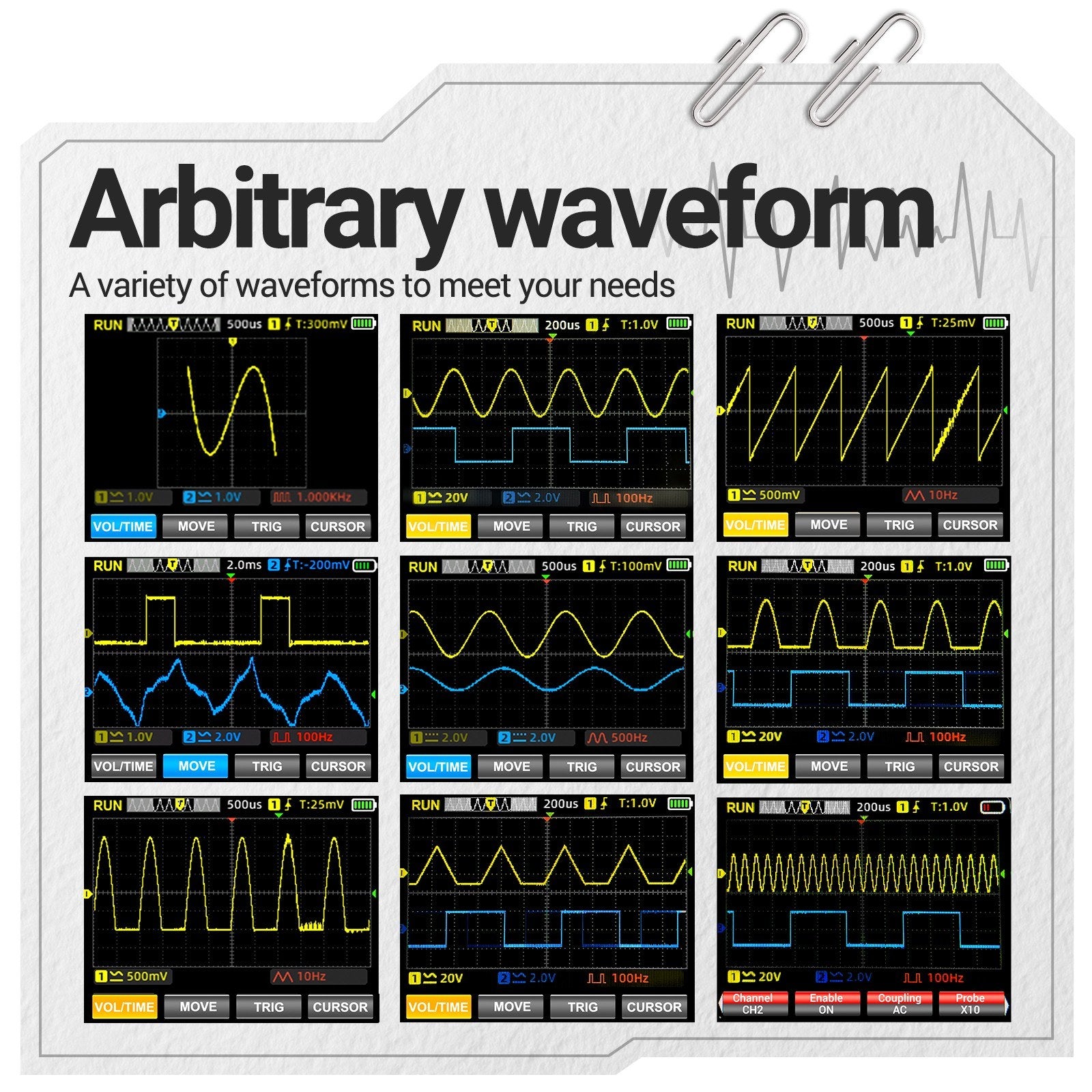

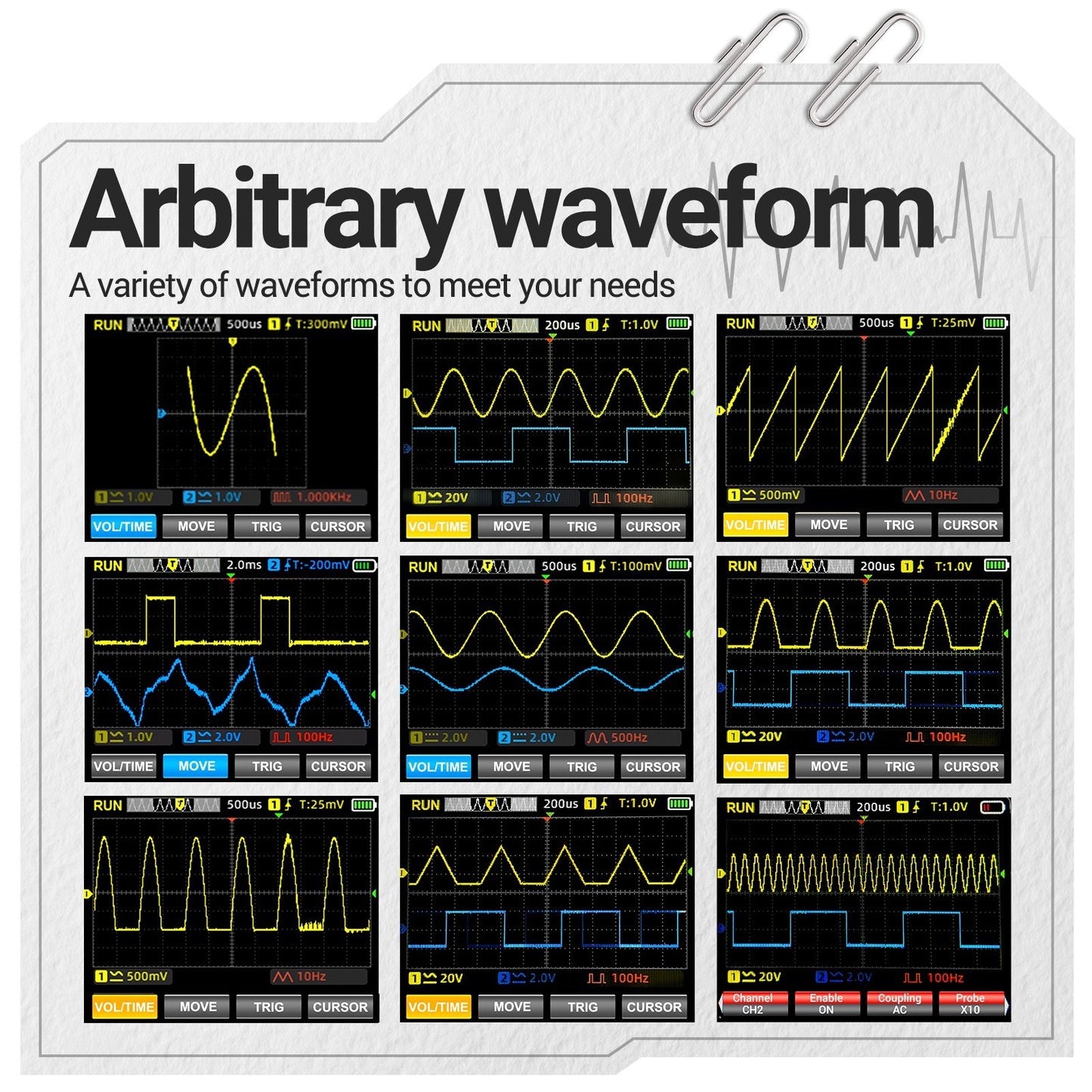

• Signal Generator Output: Sine, square, sawtooth, half, and full waves

Multimeter Information

• AC Voltage: 0V-750.0V ±(0.5%+3)
• DC Voltage: 0V-1000.0V ±(0.05%+3)
• Resistance: 0Ω-250.0MΩ ±(5.0%+5)
• Capacitance: 0nF-99.99mF ±(5.0%+20)
• Frequency: 0Hz-999.9kHz ±(0.1%+2)
• Data Storage/Viewing: Supports USB connection to a computer

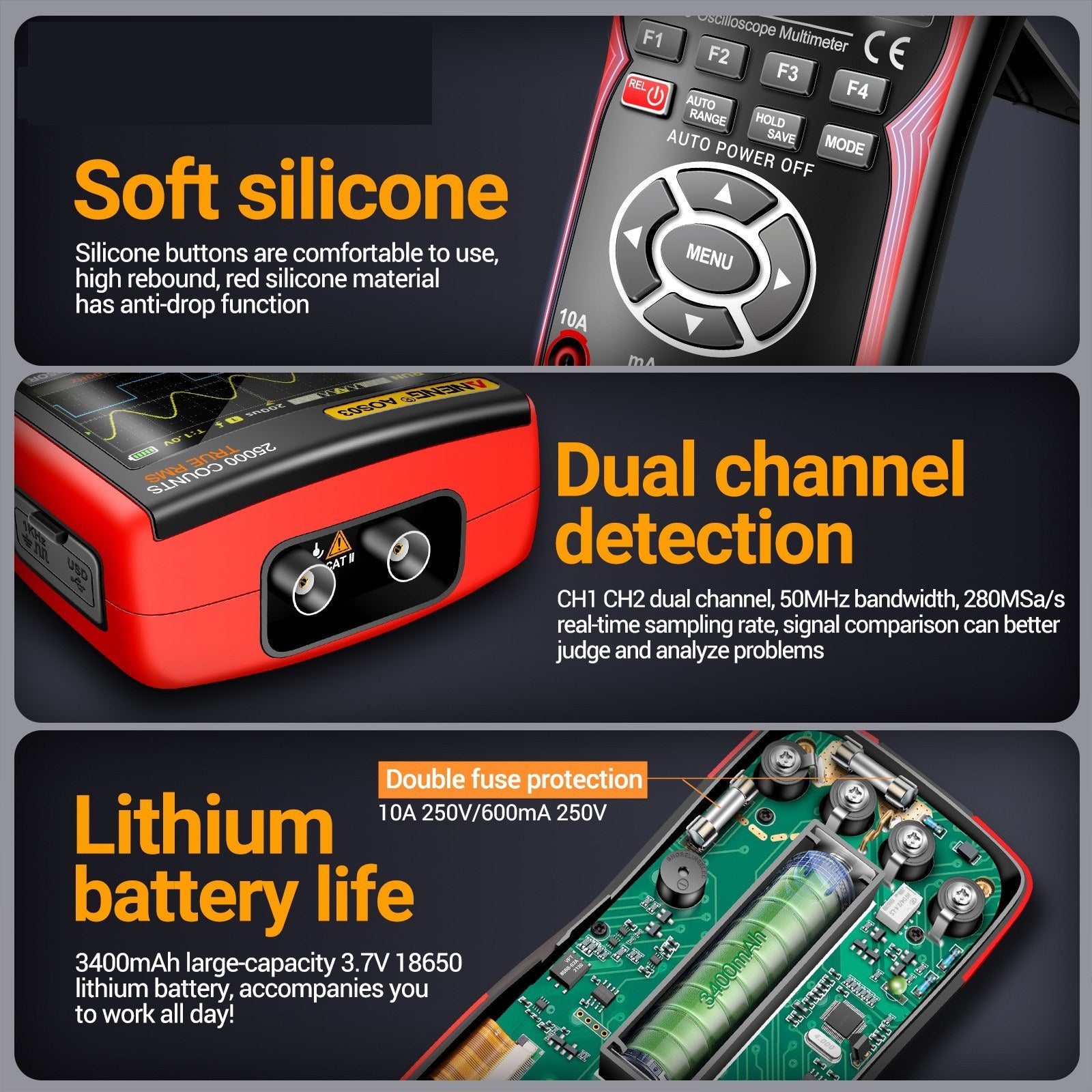

• Battery Model: 1 * 3.7V 18650 battery

Package Includes:

• 1 * 3-in-1 Oscilloscope Multimeter

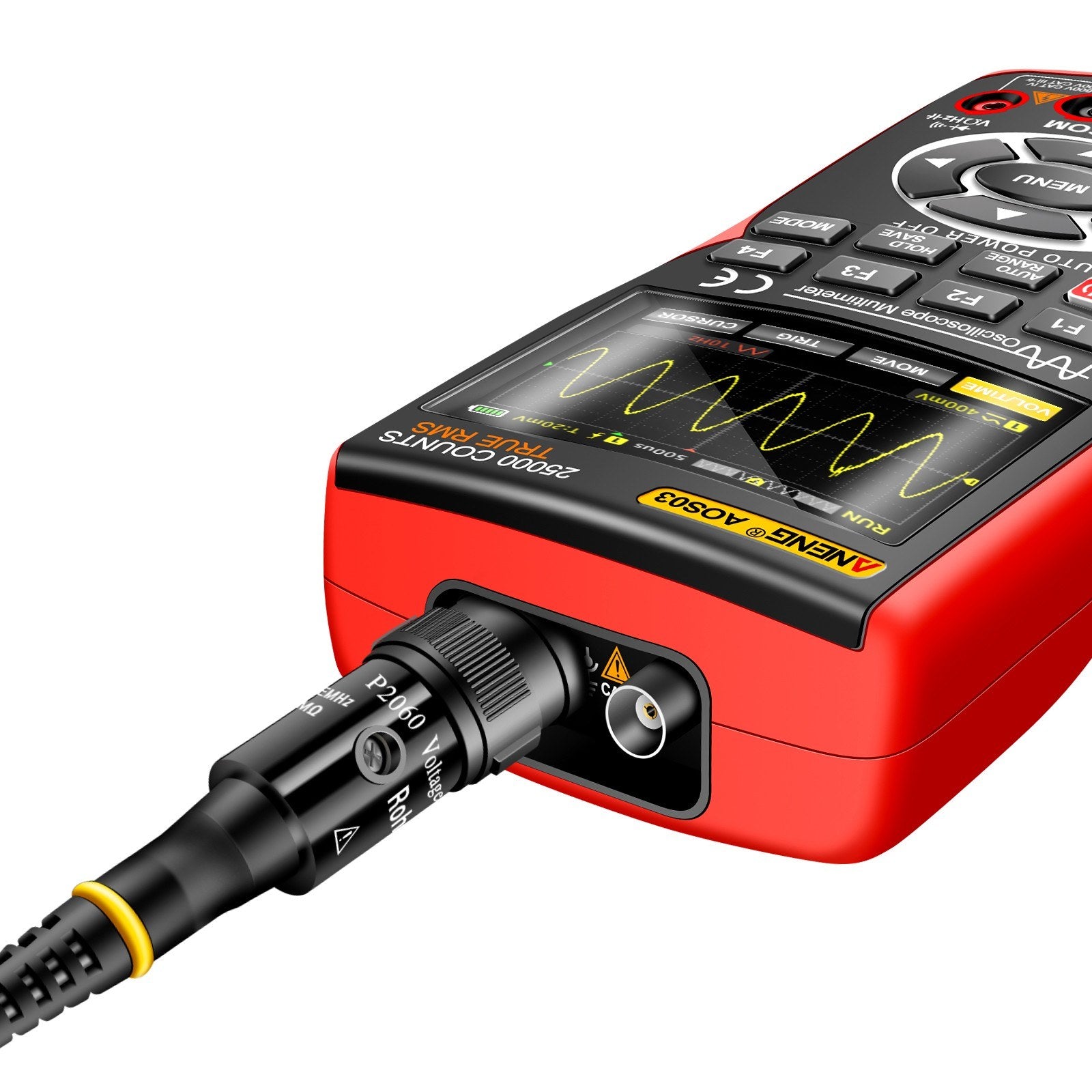

• 1 * Oscilloscope Pen
• 2 * Positioning Sleeves
• 8 * Tag Rings
• 1 * Probe Compensation Screwdriver
• 1 * Alligator Clip Ground Lead
• 1 * Storage Bag
• 1 * Extra Tip Pen
• 1 * USB Data Cable
• 2 * User Manuals (English)
