Innovative Power Supply Device

Features

• Compact design for easy portability
• High resolution: 10mV / 1mA
• Editable waveform output with 10 timing settings
• Low ripple and noise output
• Over voltage and over current protection
• Voltage and current curve monitoring

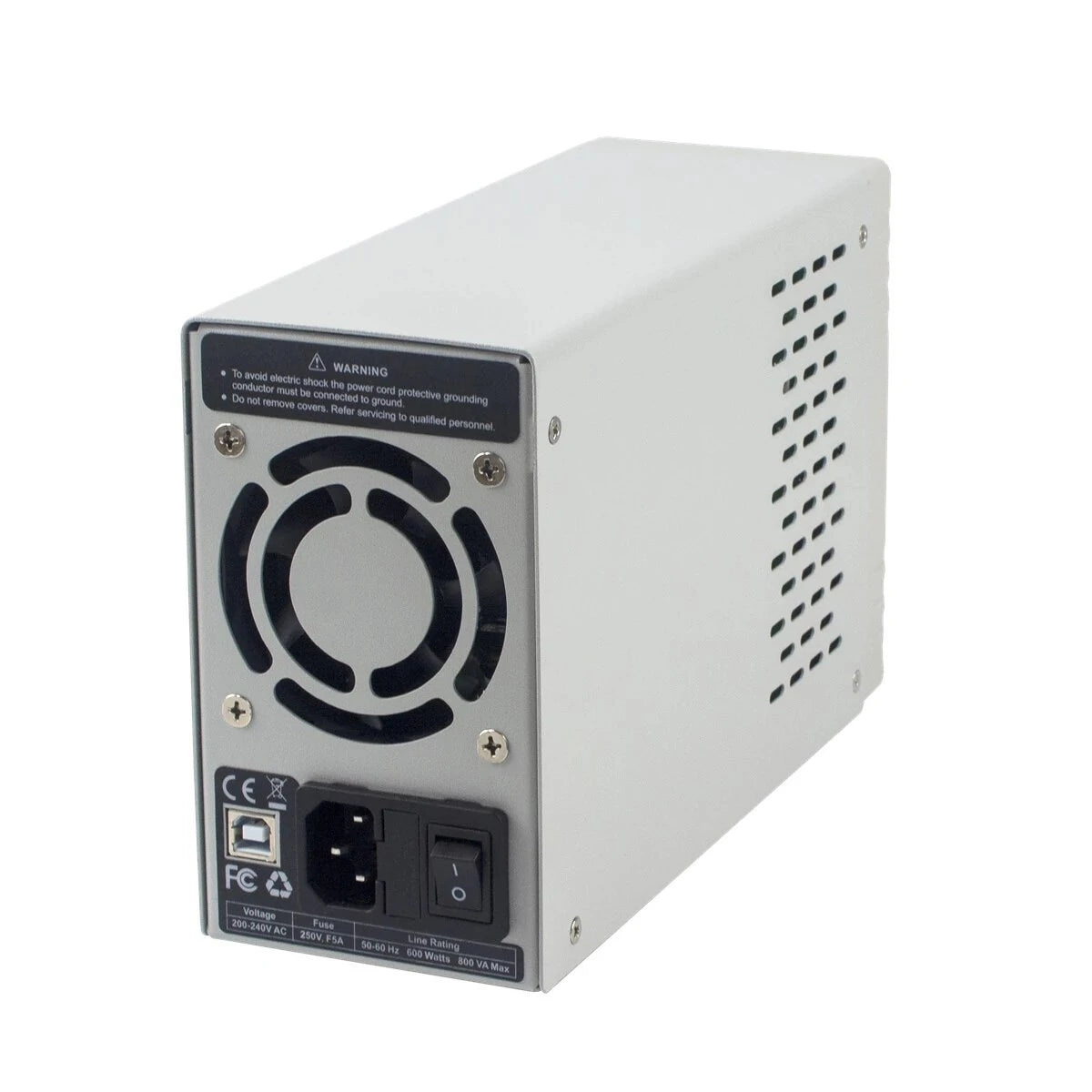

• Intelligent temperature-controlled fan cooling
• 2.8-inch TFT LCD display
• USB communication interface with SCPI support

Applications

• Military R&D
• Quality Inspection
• Circuit Functional Testing
• Automotive Circuit Testing
• Education and Technical Training
• Electronic Component Testing
• Aging Experiment
• Monitoring Battery Charging Curves

Specifications

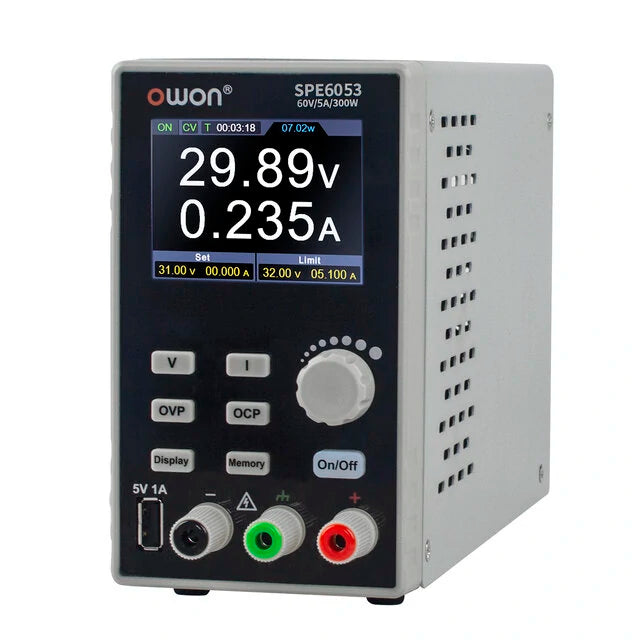

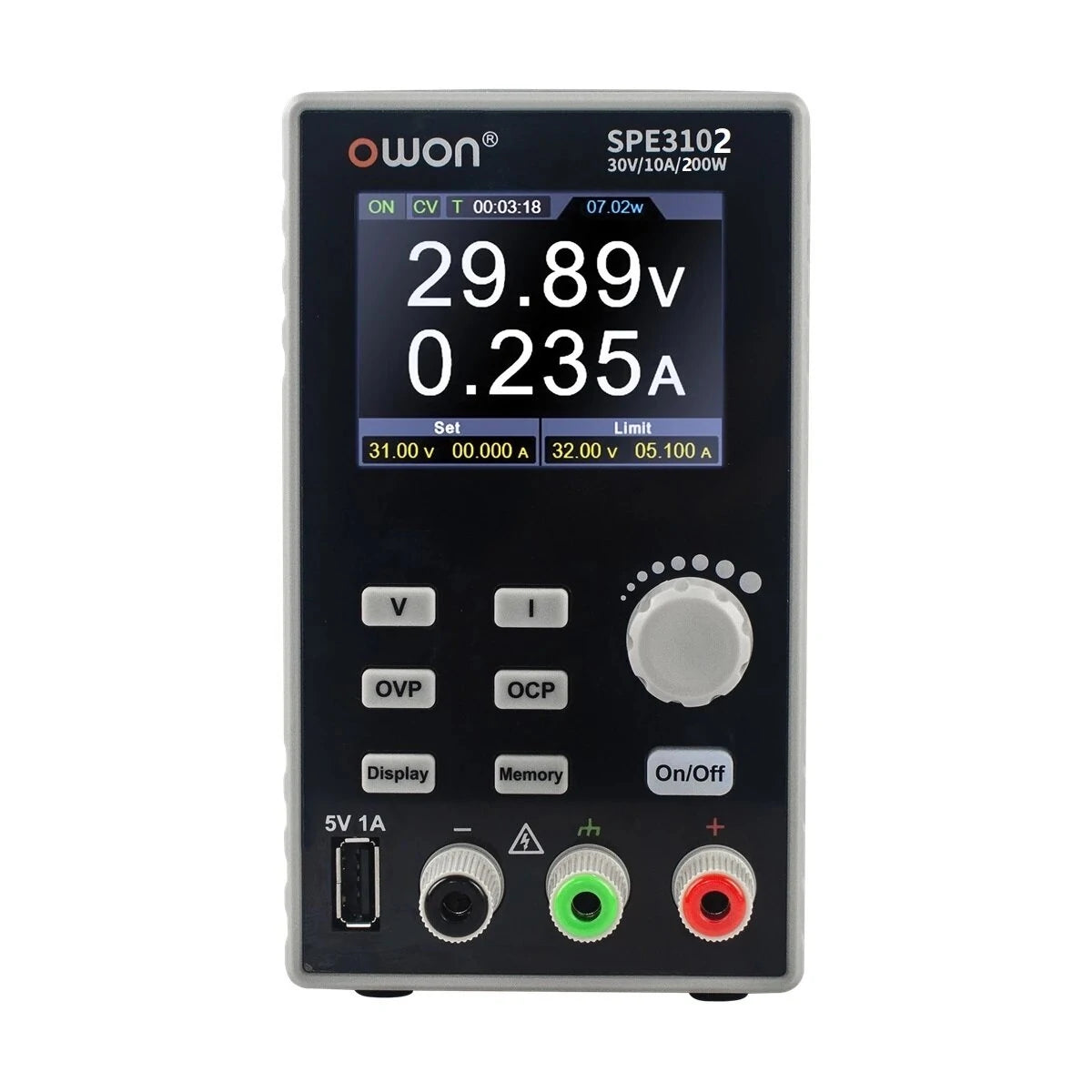

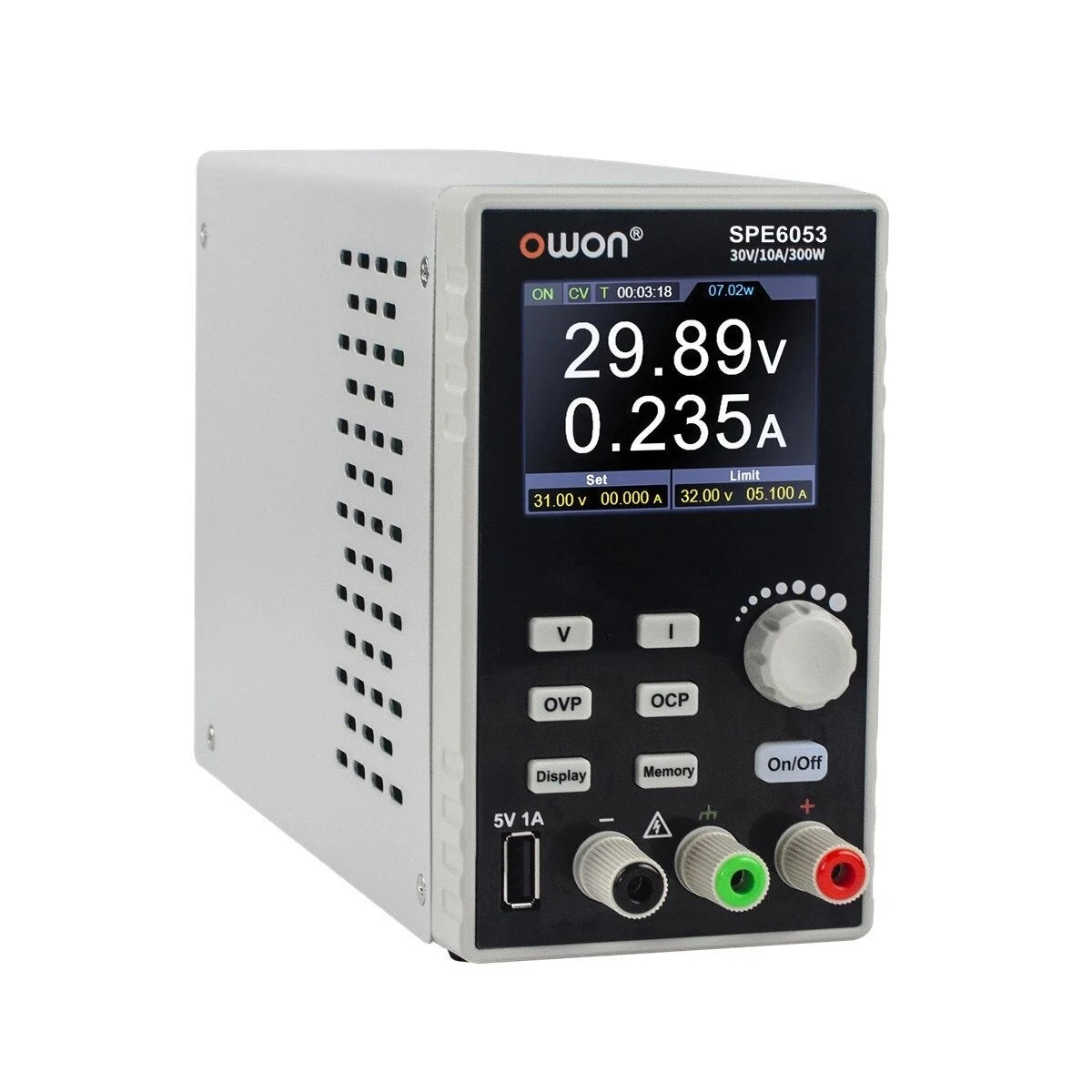

Model	SPE3051	SPE3102	SPE6102	SPE6053
Output Channel	Single Channel
Total Output Power	150W	200W	300W	300W
Channel Output (V / A)	0-30V / 0-5A	0-30V / 0-10A	0-60V / 0-10A	0-60V / 0-5A
Display	2.8-inch color LCD
Dimension (L×H×D)	82mm × 142mm × 226mm
Weight	Approx. 1.5kg
Interface	USB

Key Specifications

• Load Regulation: Voltage ≤30mV, Current ≤20mA
• Power Regulation: Voltage ≤30mV, Current ≤20mA
• Setting Resolution: Voltage 10mV, Current 1mA
• Ripple & Noise (Vp-p/rms): Voltage ≤30mVp-p, Current ≤30mAp-p
• Storage Capacity: 4 data groups
• Working Temperature: 0-40℃

Comparison with SP Series

• Display: SPE features a 2.8-inch LCD, while SP has a 3.7-inch
• Voltage Setting: SPE requires preset voltage, SP does not
• Front Panel USB: Includes 5V/1A output in SPE, not in SP
• Communication: SPE supports USB, SP supports USB and RS232
• Memory: SPE allows 4 memory groups; SP allows 5
• Boot Up: SPE can set automatic output; SP cannot
• Main Interface: SPE displays both voltage and current; SP displays only one

Package Includes

• 1 x Power Supply Main Device
• 1 x Power Cord (US Plug)
• 1 x User Manual
• 1 x Fuse
• 1 x Test Leads
