Product Features & Specifications

Features

• Multi-computer Control: Seamlessly manage up to three computers or laptops with a single set of keyboard and mouse, enhancing convenience and efficiency.
• Multiple Display Modes: Enjoy diverse display options including extension, mirroring, and splicing wall to cater to various usage scenarios.
• High-Clear Display: Experience exceptional visual quality with Displayport resolutions up to 4K@144Hz and 8K@30Hz, and HDMI resolutions up to 4K@120Hz and 8K@60Hz, ensuring crystal-clear and stable images.
• Switching Mode: Easily switch between devices using a physical button for simple operation and broad compatibility.
• Automatic Matching: Automatically connect to the correct signal source and display device, with a built-in adjustment system to maintain a smooth, clear, and stable image.
• Safety Protection and Easy Installation: Implement secure operations with a built-in ESD protection system, and enjoy hassle-free installation with plug and play functionality.

Specifications

• Color: Black
• Material: Metal
• Standards: Displayport 1.4, HDMI 2.1
• DP Resolution Range: Up to 8K@30Hz, 4K@144Hz/120Hz/60Hz; 1440P@144Hz/120Hz/60Hz; 1080P@240Hz/165Hz/144Hz/120Hz/60Hz (Dependent on system and connected hardware)
• HDMI Resolution Range: Up to 8K@60Hz, 4K@120Hz/60Hz, 1080p@60Hz
• HDMI Cable Range: <5M (Resolution: 1920*1080@60Hz); <3M (Resolution: 3840*2160@60Hz)
• DP Cable Range: <2M (Resolution: 3840*2160@144Hz)

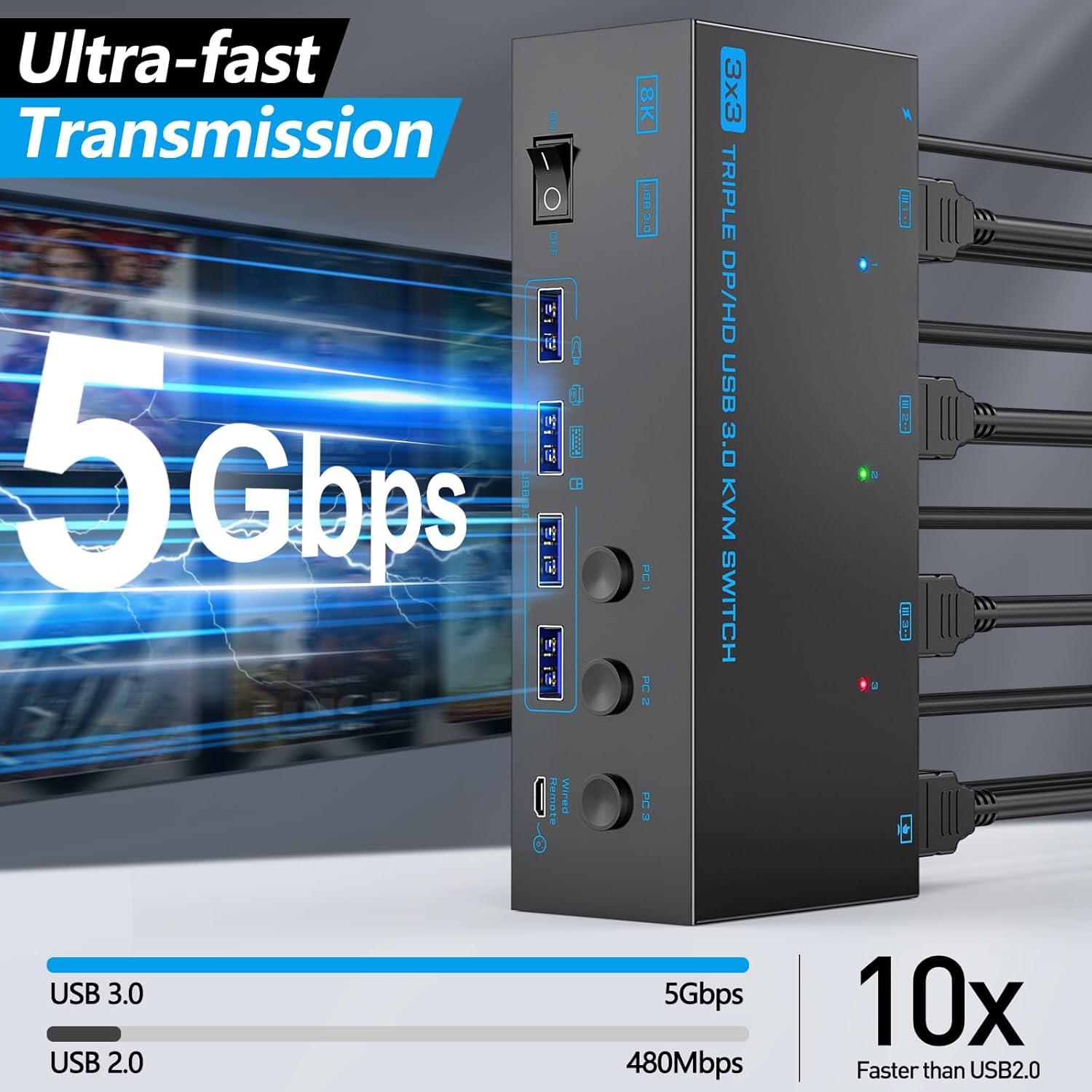

• Interface Protocols: USB 3.0
• Power Supply: DC/5V-12V Adapter Charger
• Power Dissipation: Maximum 5W
• Temperature: Operating: -5°C ~ +70°C
• Humidity: Operating: 5% ~ 90%
• Package Size: 20 x 15 x 5 cm
• Package Weight: 830 g

Package List

• 1 x KVM Switcher
• 3 x USB Cables
• 1 x User Manual
