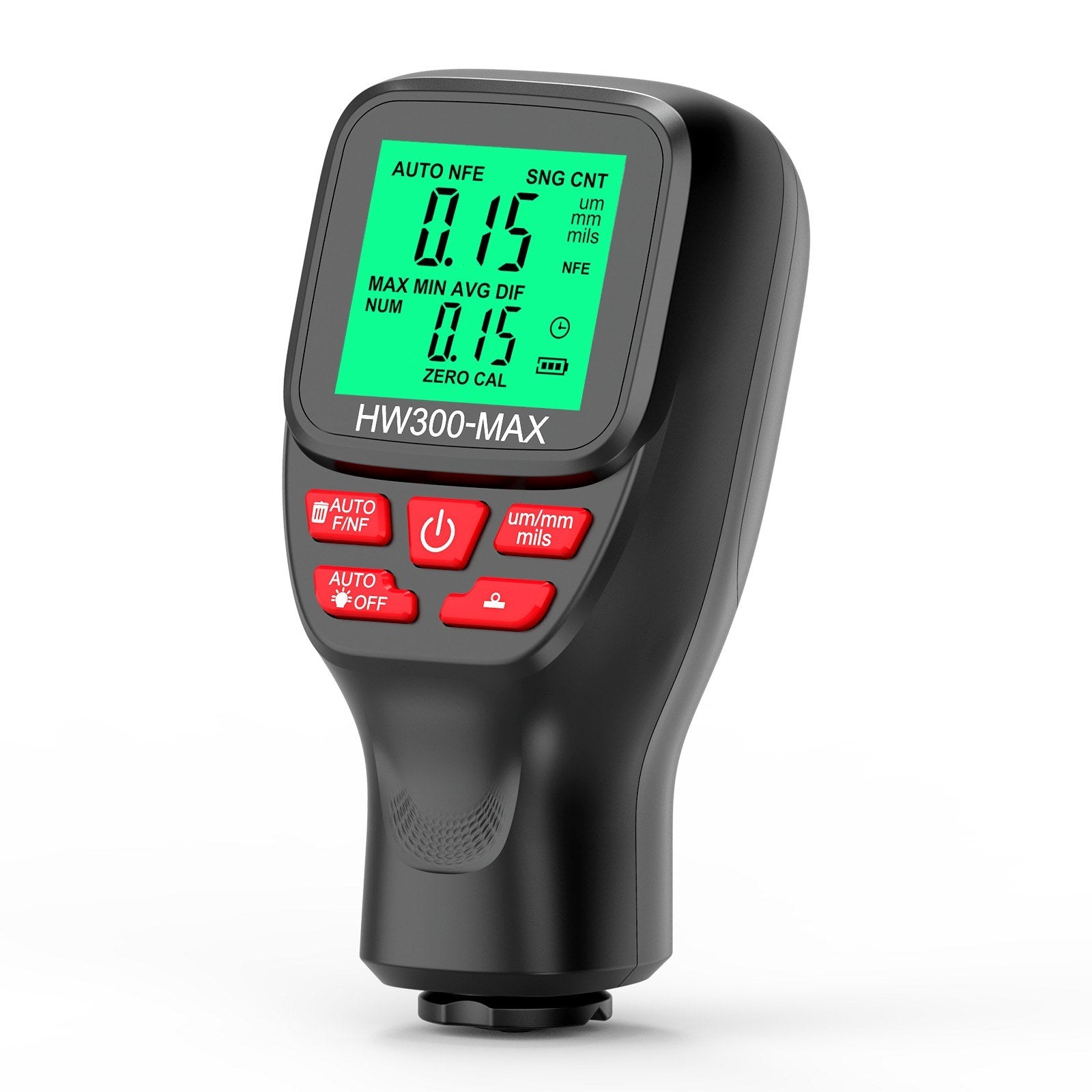

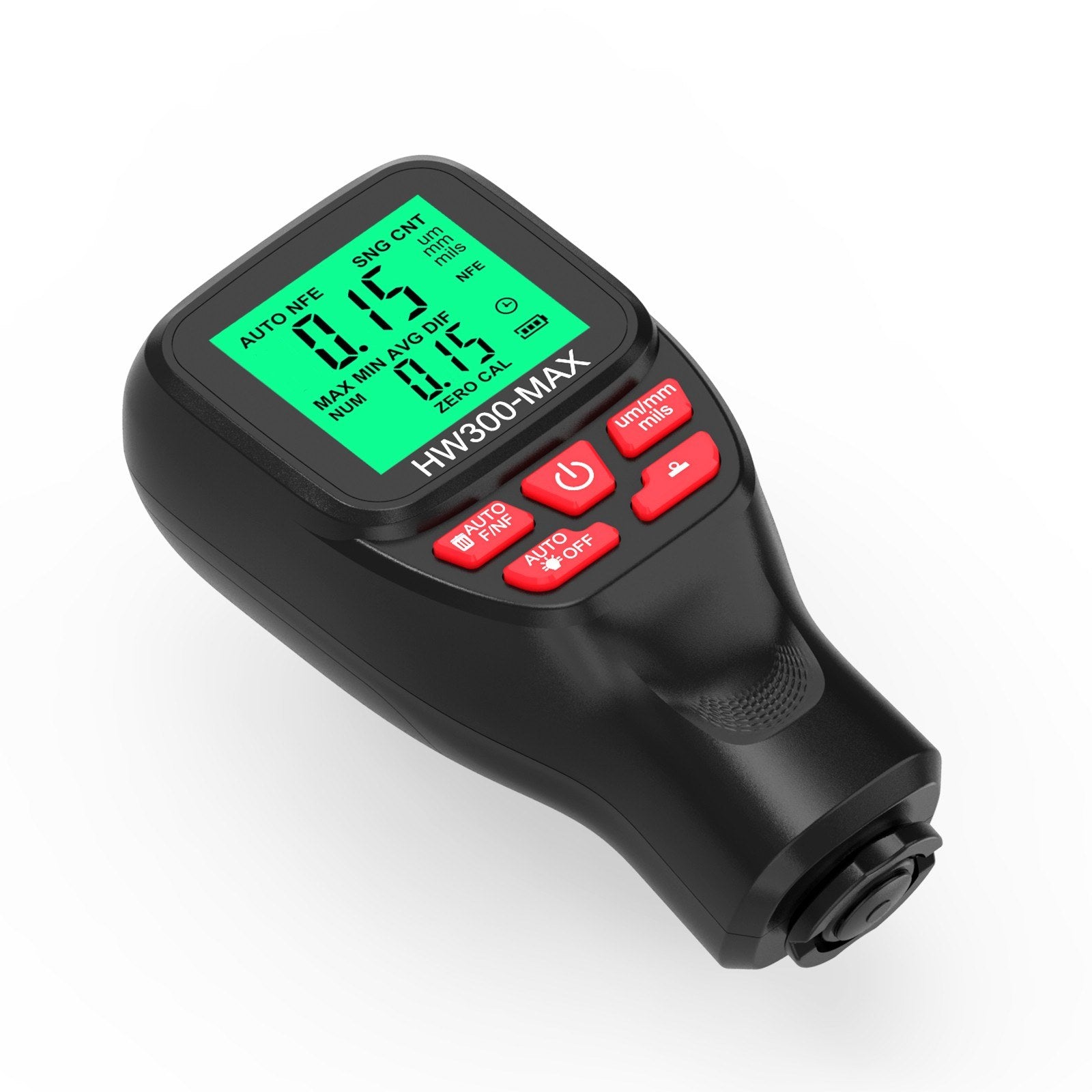

Digital Thickness Gauge 0-2000UM with LCD Display, High Precision Car Paint Tester – Three Probe Modes & Units, Zero Calibration Function

Product Description

The Thickness Gauge is expertly designed to measure the thickness of metal plating and coatings such as paint, enamel, and chrome on steel, as well as paint and anodic oxide coatings on aluminum and copper. It automatically detects the attributes of the substrate, making it an invaluable tool for non-destructive measurement of coating thicknesses. Ideal for use in manufacturing, metal processing industries, and commercial inspections, it is versatile enough to operate effectively in laboratories, workshops, and outdoor environments.

Key Features:

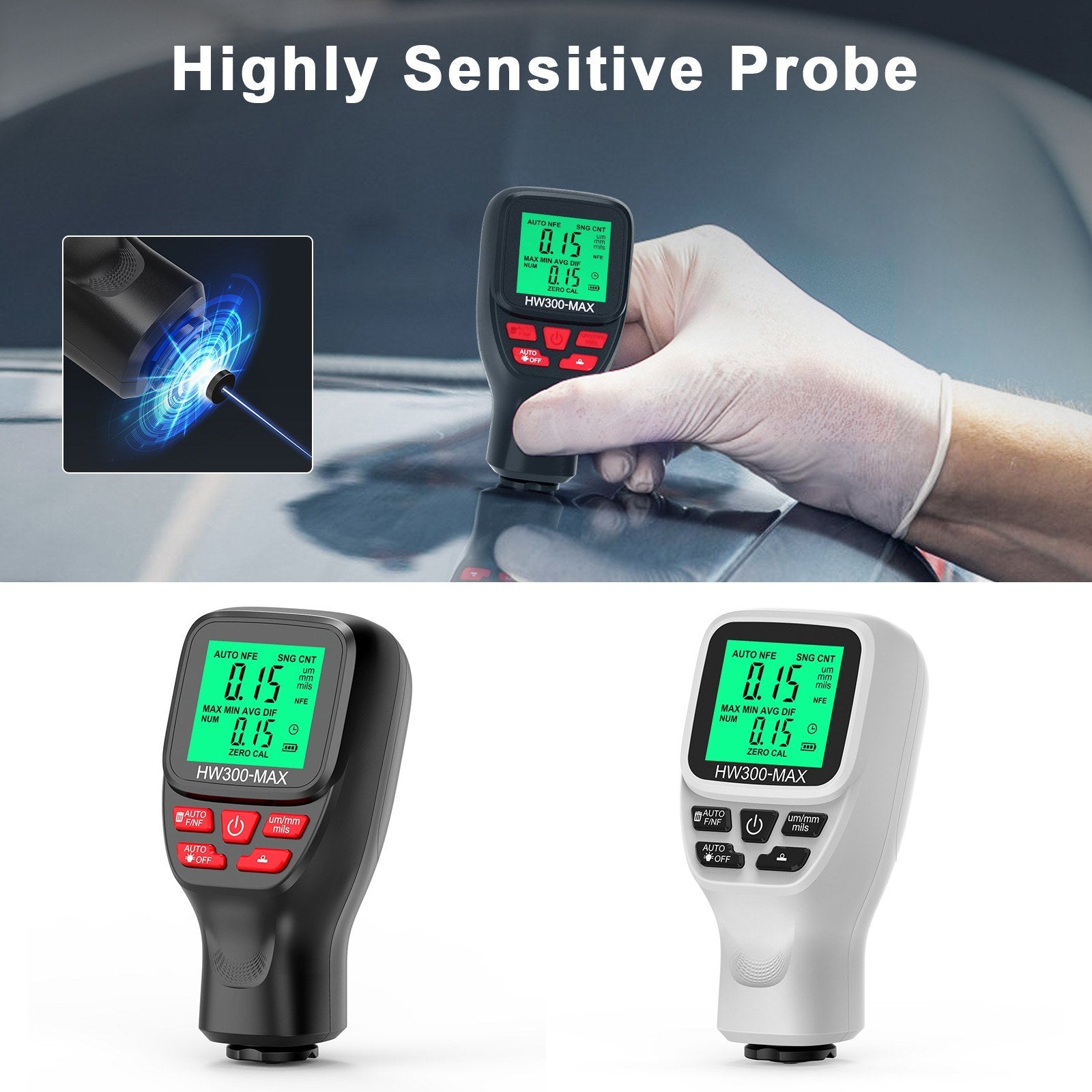

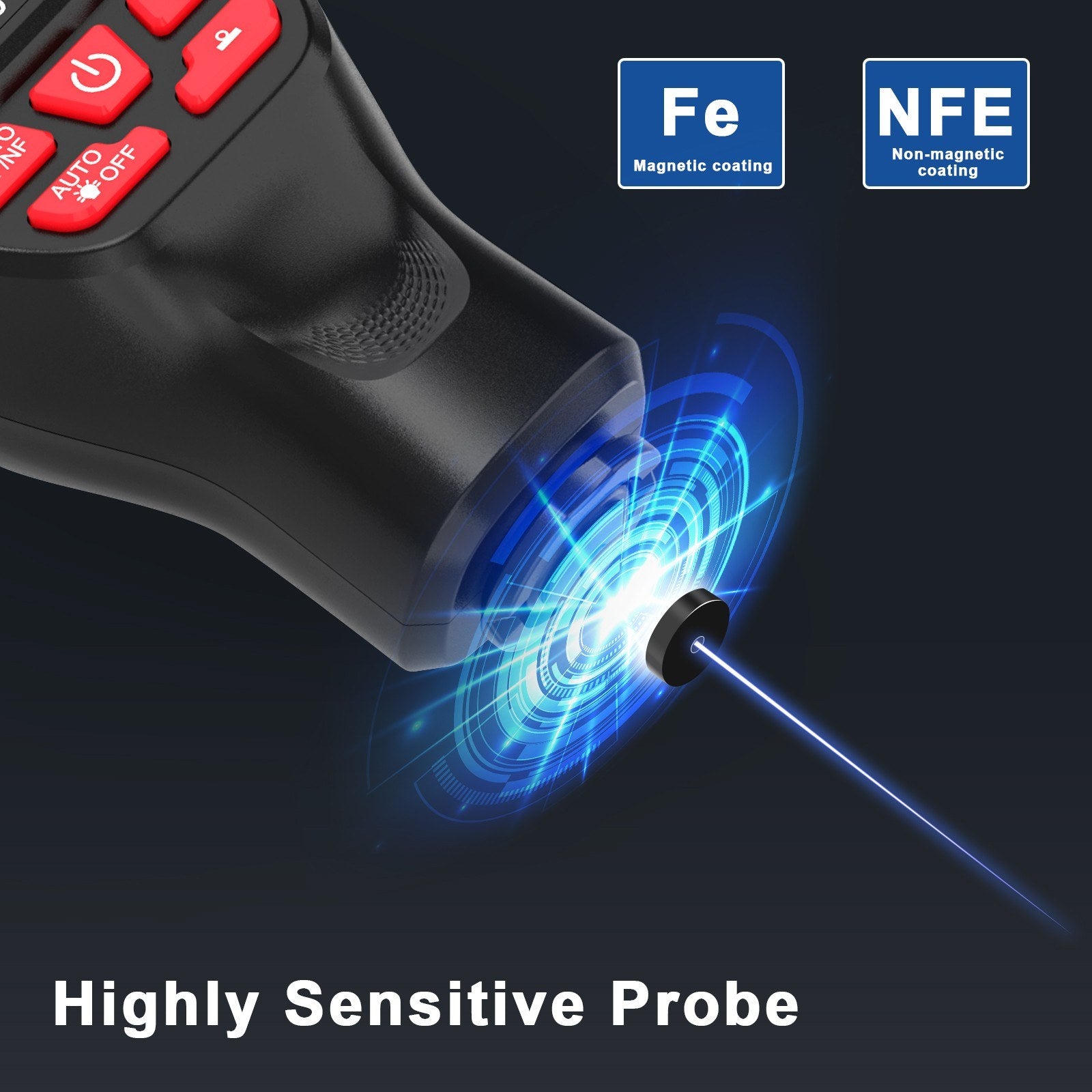

• Easy Operation: Features a built-in magnetic induction and vortex double principle probe that automatically identifies the measured metal substrate. Simply place it on the surface to calculate the coating thickness.

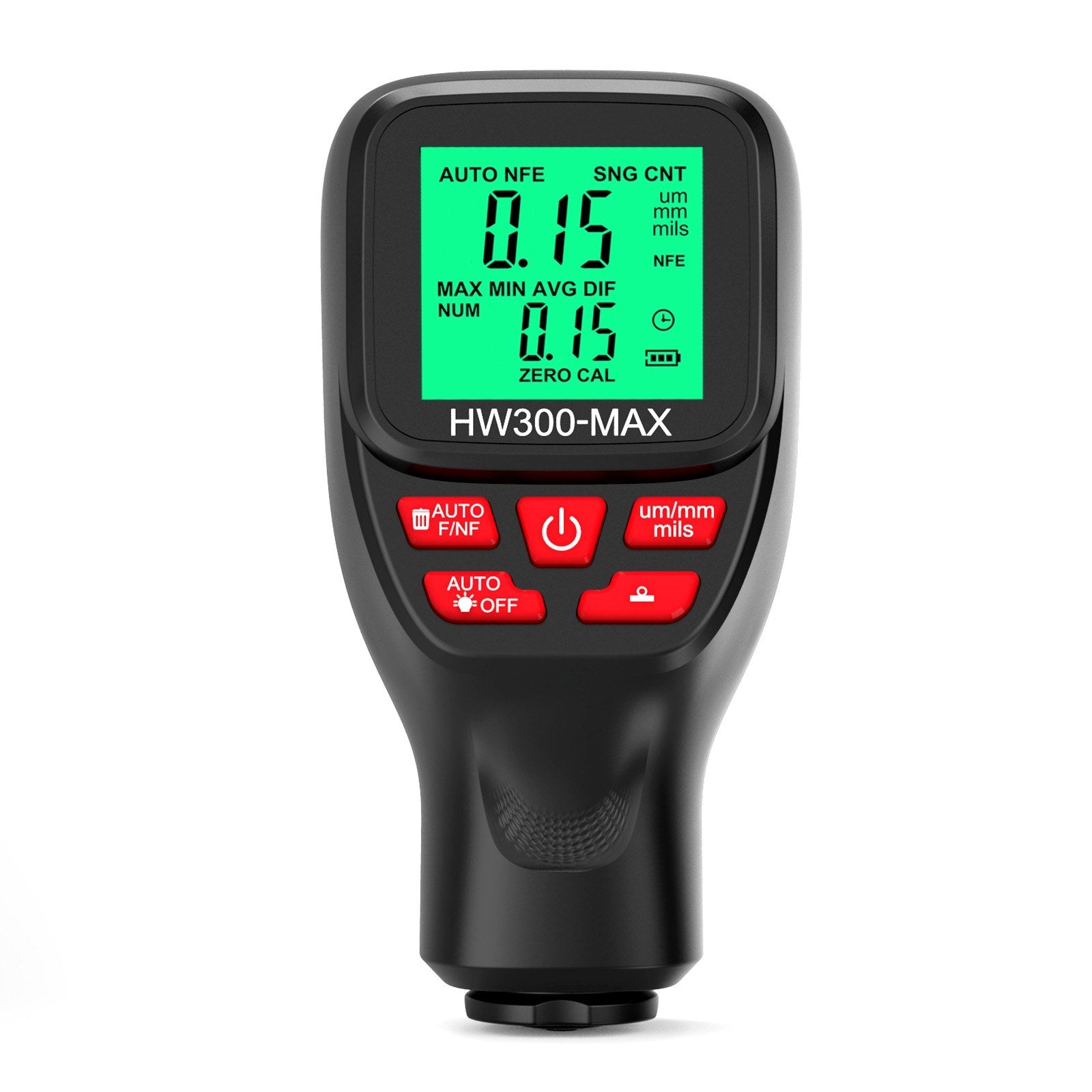

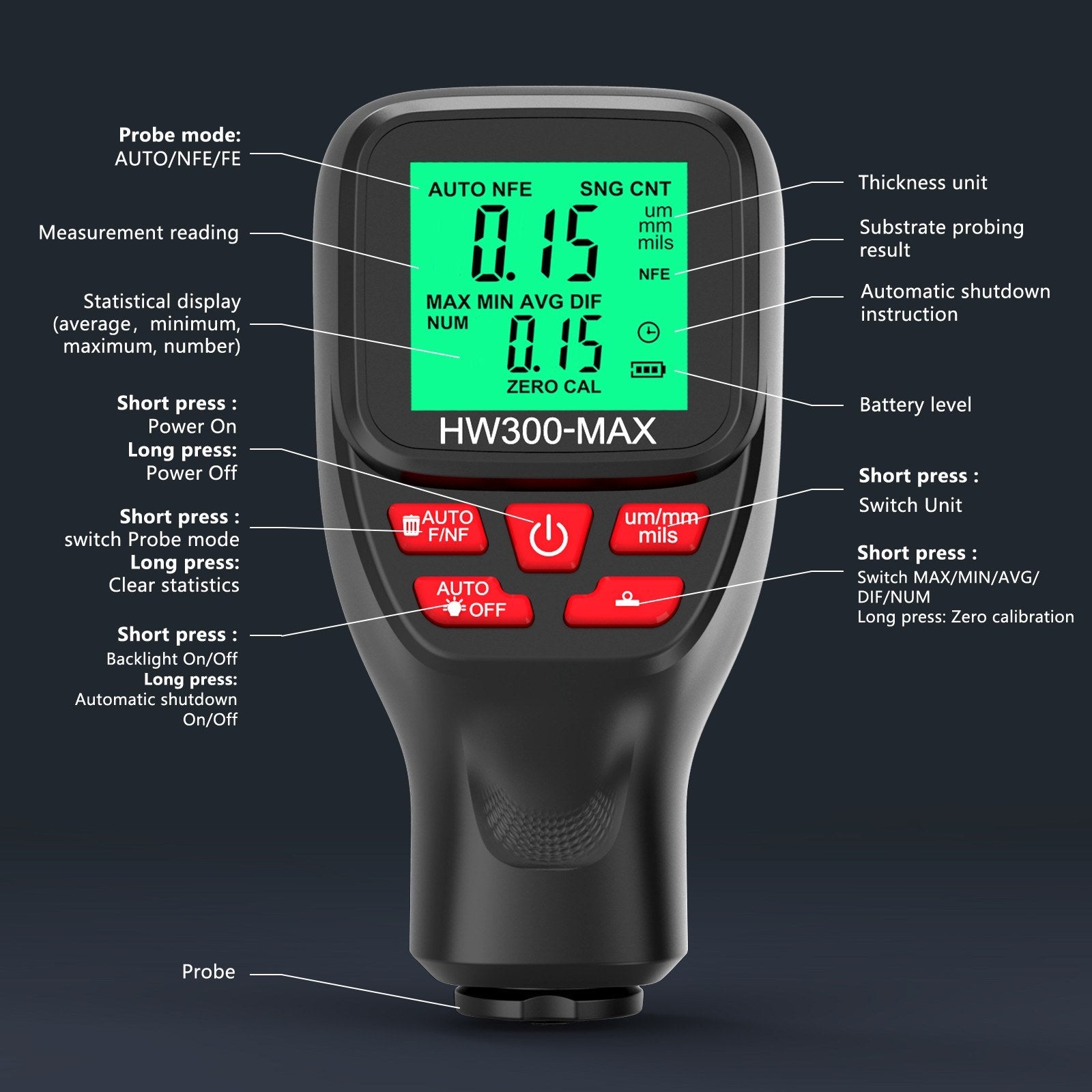

• Digital LCD Display: The digital display with a backlight shows statistical data, including average, minimum, maximum values, and number of measurements. Supports up to 50 data points, automatically updating as new data is recorded.

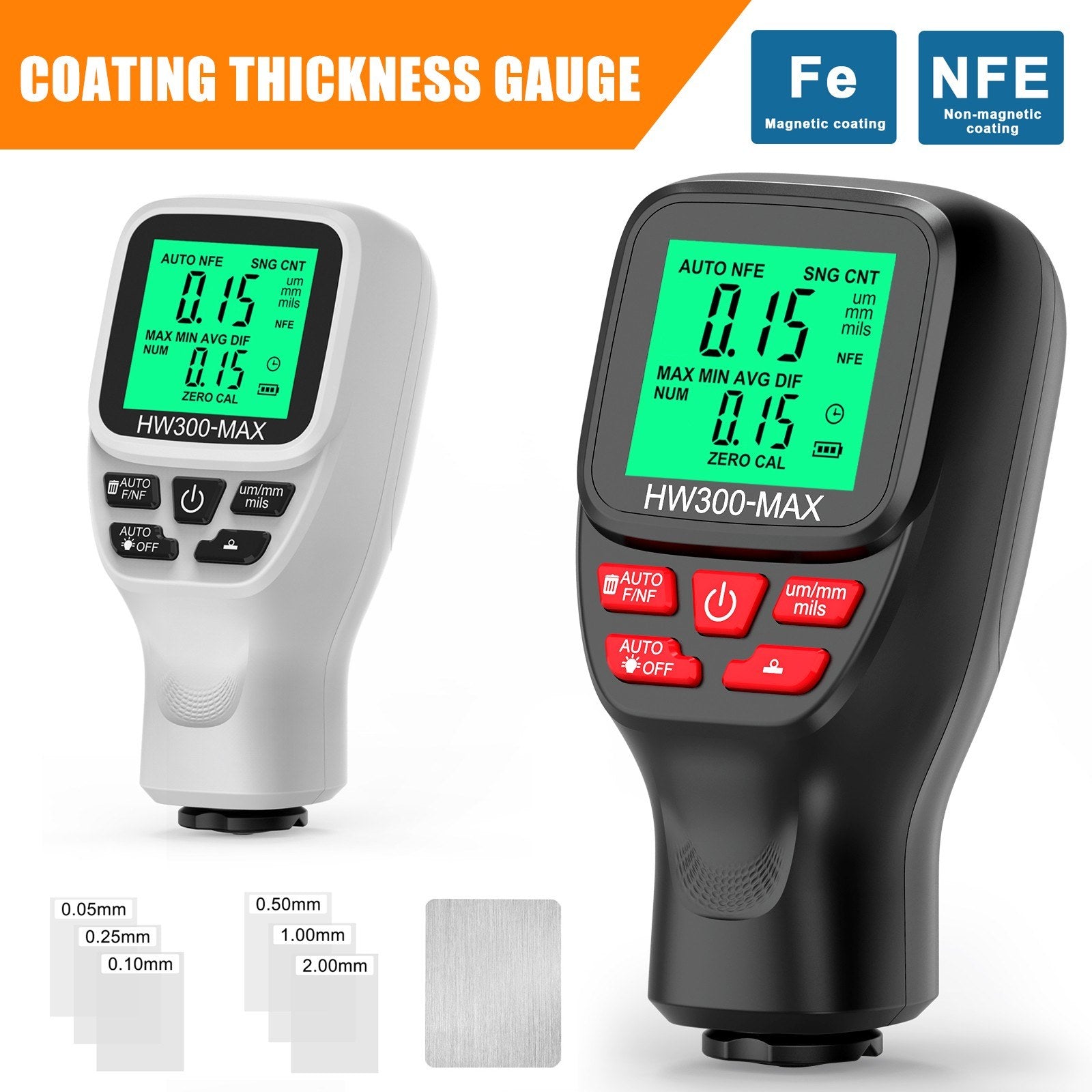

• Three Probe Modes: Switch between automatic (AUTO) mode, magnetic induction (F) mode, and vortex (NFE) mode to suit your measurement needs.
• Unit Switching Function: Easily switch measurement units between microns (um), millimeters (mm), and mils.
• Zeroing Calibration: For improved accuracy, it's recommended to calibrate the instrument for precise results.
• Multifunctional Design: Comes with a battery power indicator, 3-minute auto shutoff for inactivity, and optional backlight toggling.
• Statistical Display: View statistical values clearly, with the device supporting automatic updates for 50 data entries.

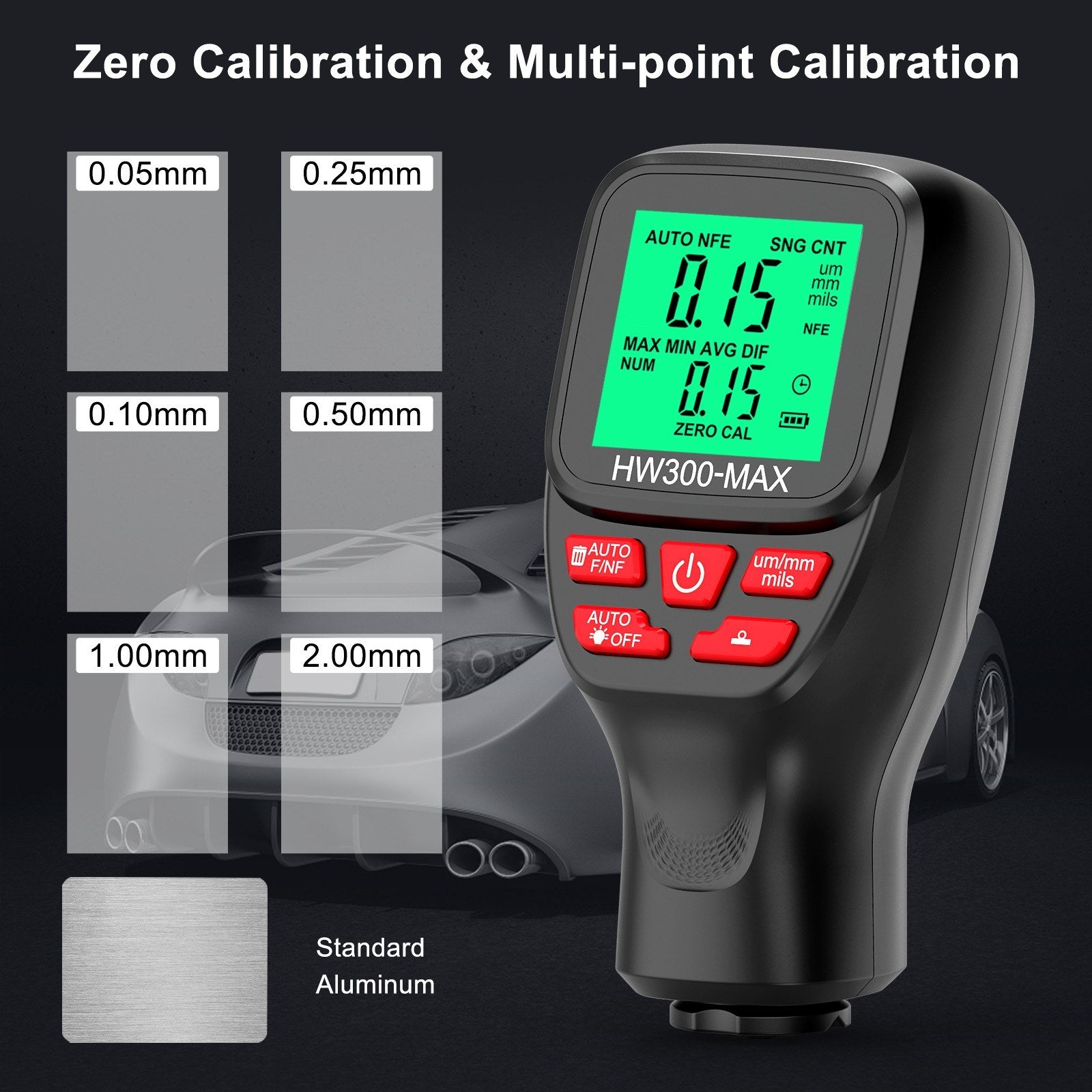

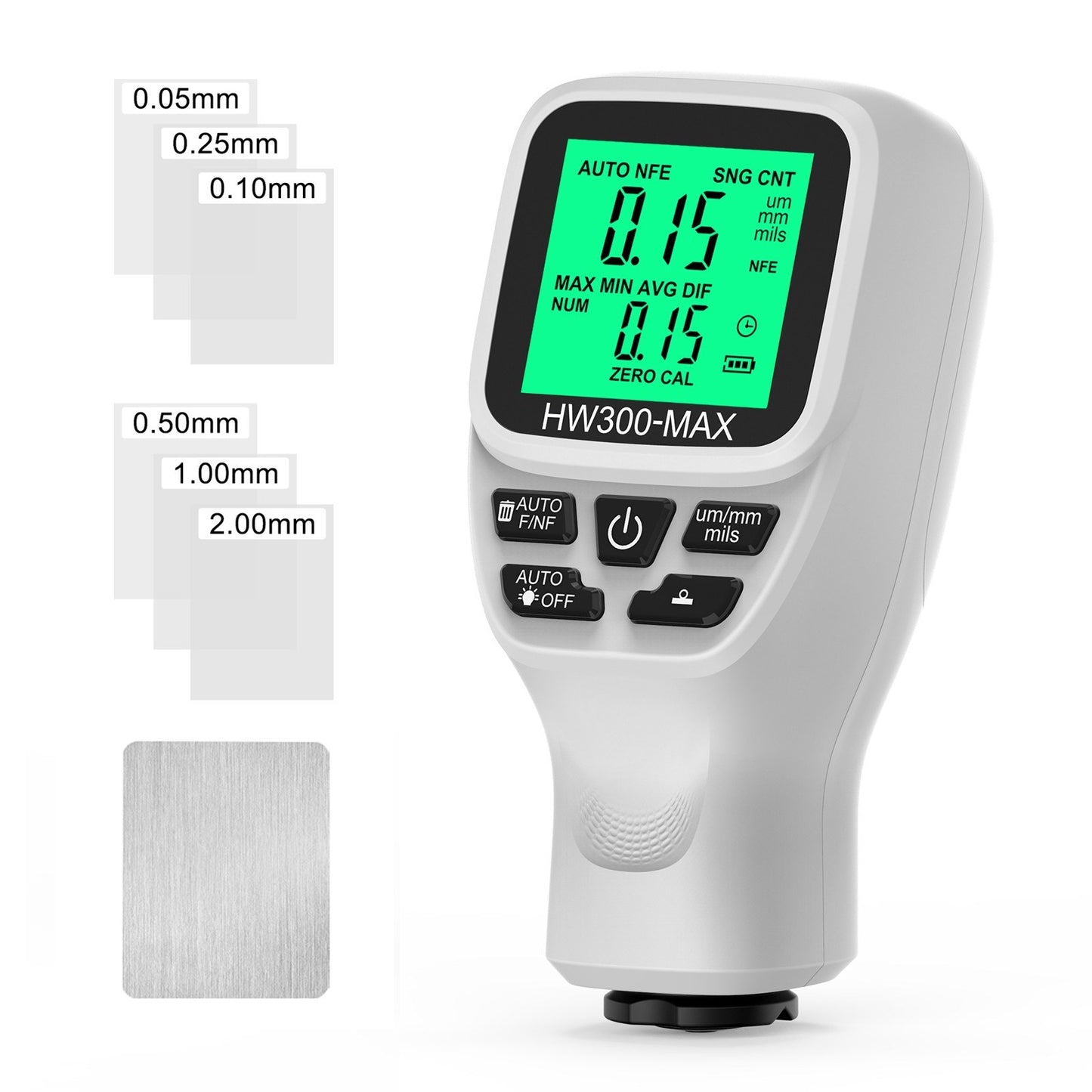

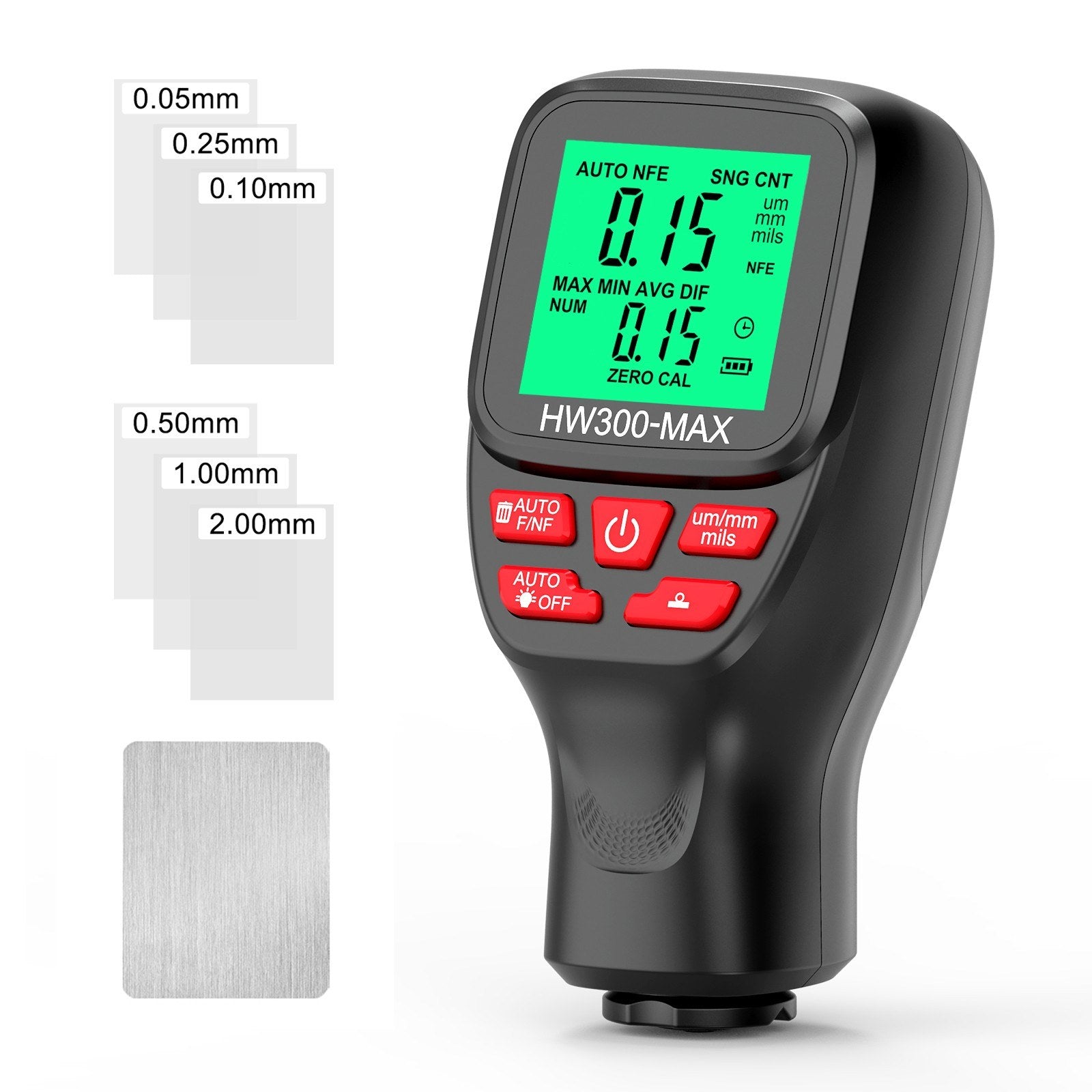

• Standard Aluminum Film: Includes an aluminum sheet and six calibration films with varying thicknesses to meet diverse requirements.

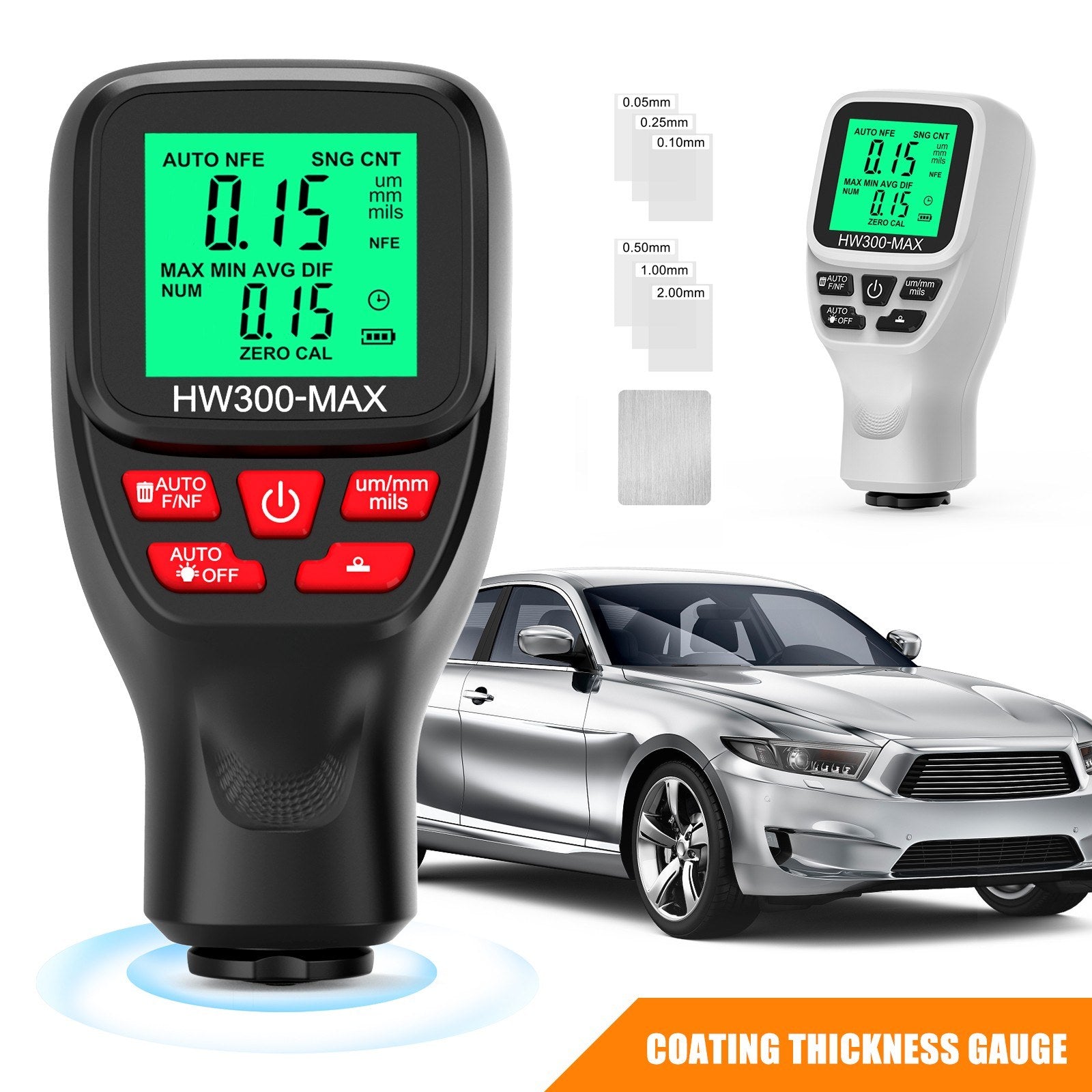

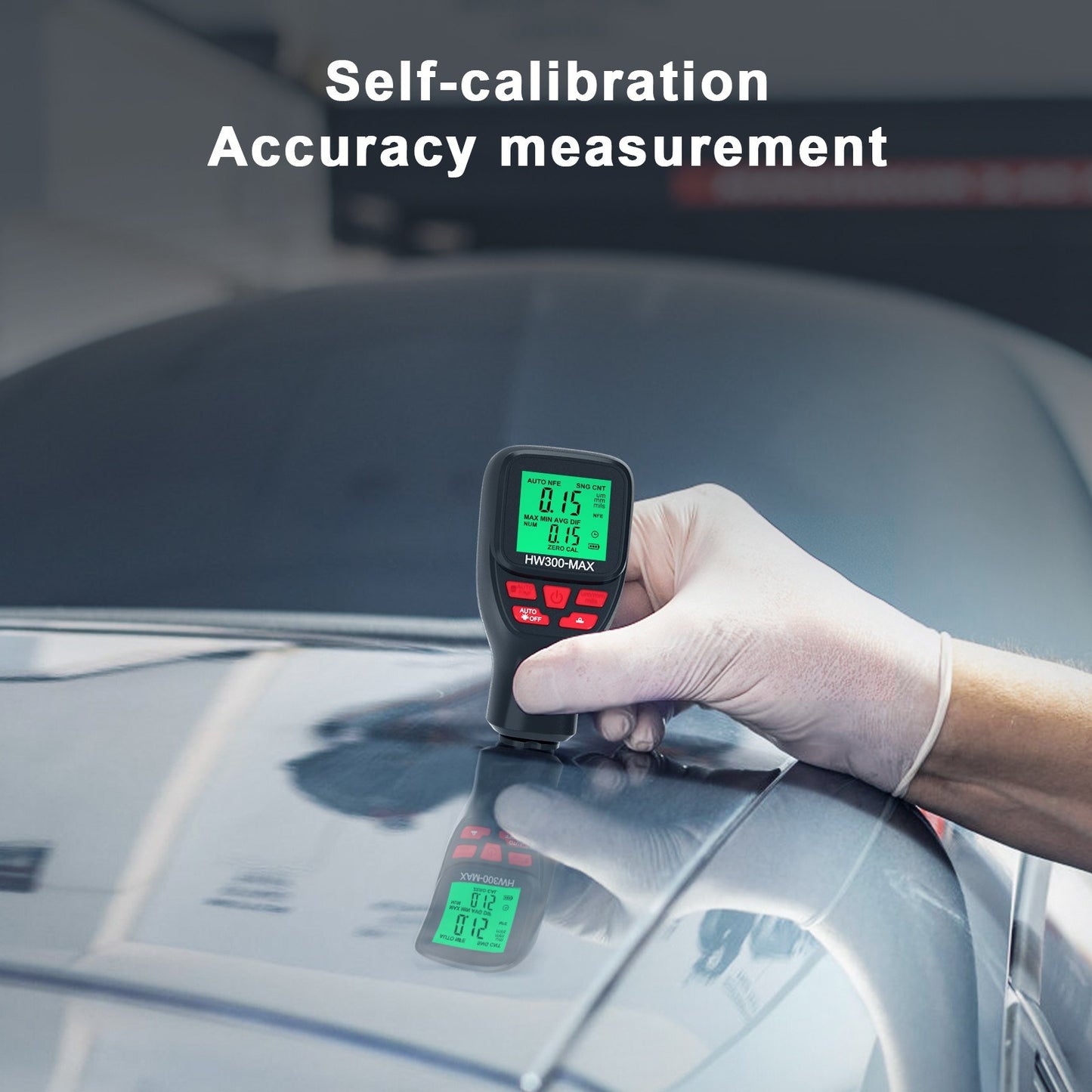

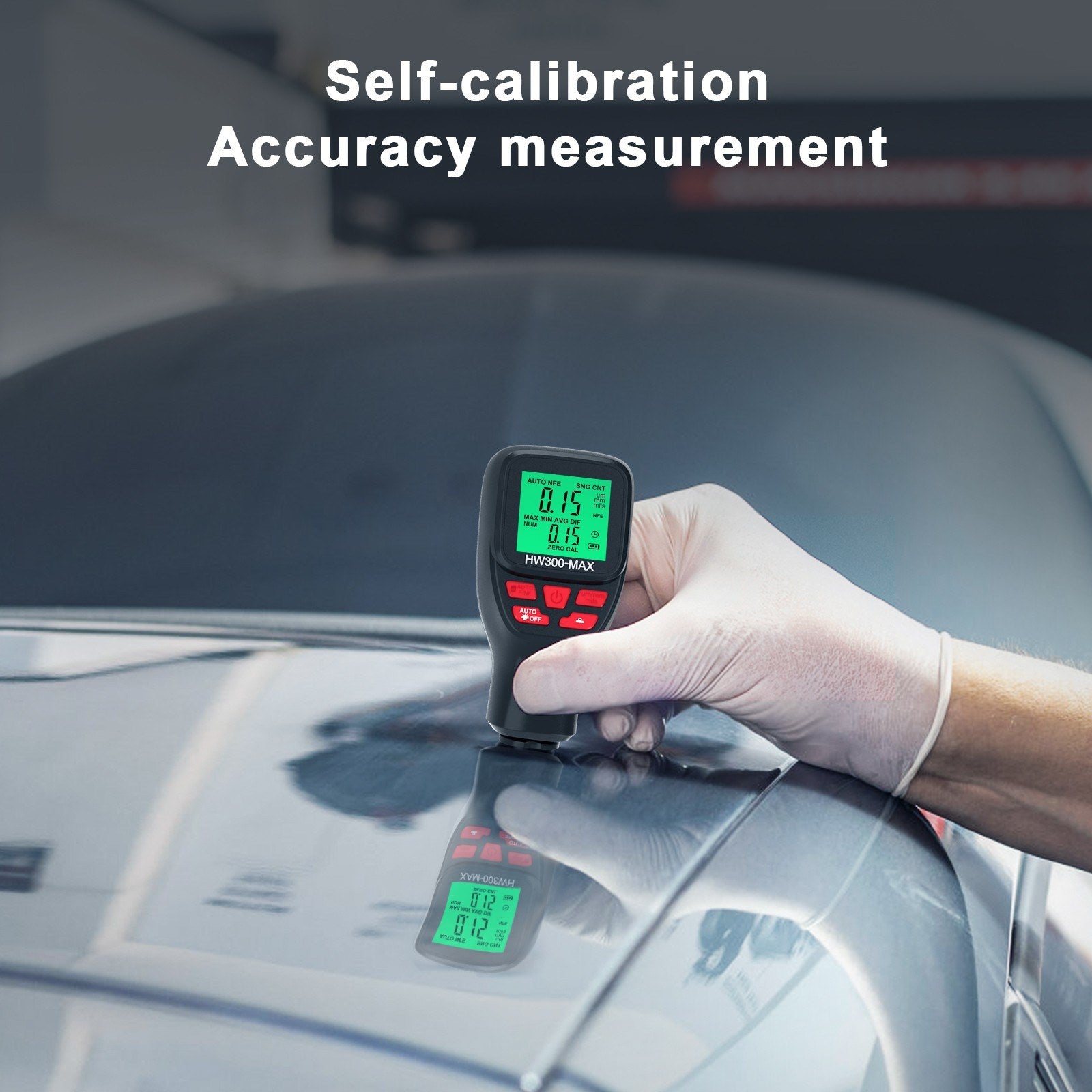

• Measurement Object: Measures non-conductive coating thickness on metal surfaces and non-ferromagnetic coating on ferromagnetic metals. Perfect for checking paint thickness on cars and coating thickness on metal parts.

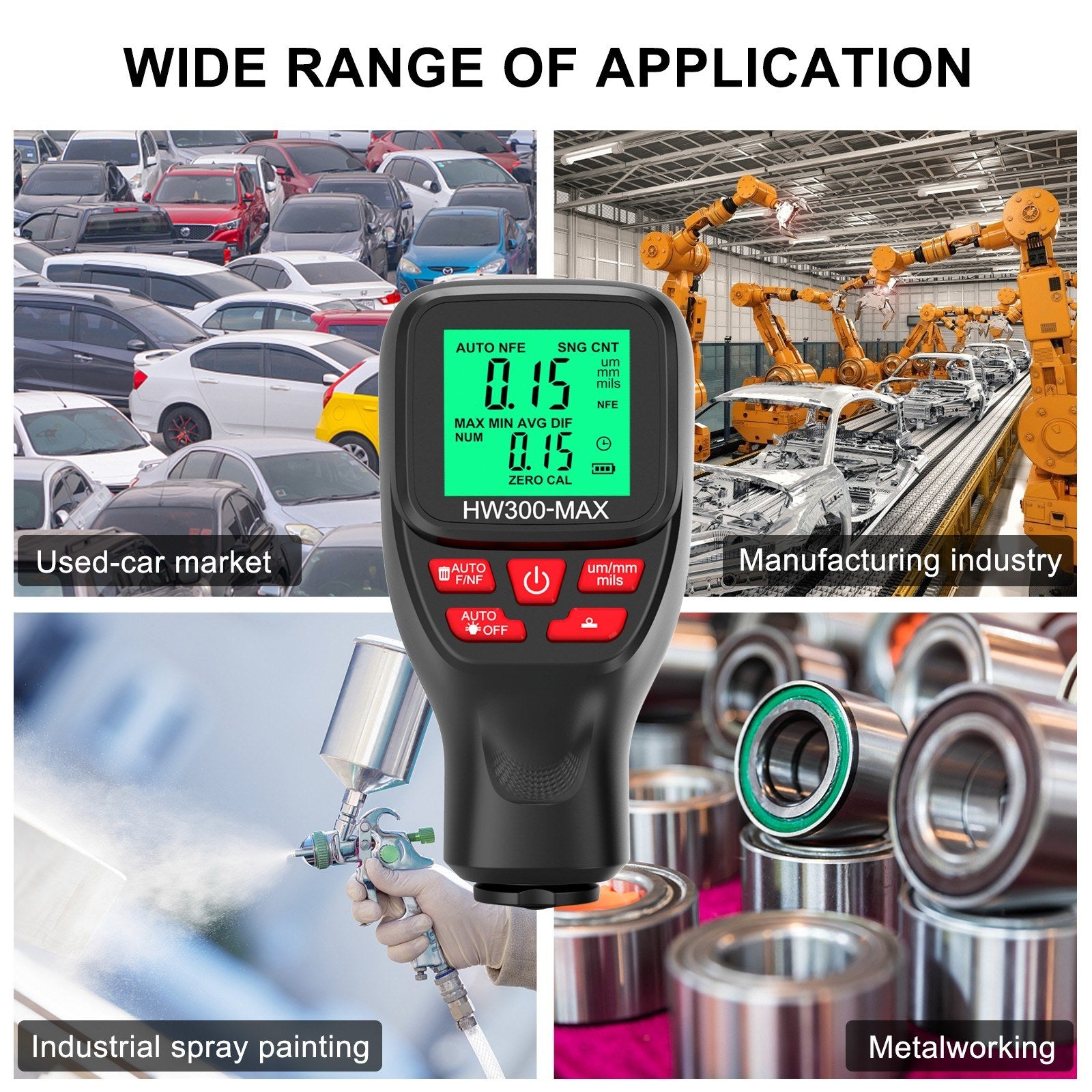

• Wide Applications: Suitable for a broad range of fields, including manufacturing and chemical industries, as well as commercial inspections.

Specifications:

• Name: Thickness Gauge
• Material: ABS
• Color: White, Black (optional)
• Display: LCD backlight display
• Battery: 2 x 1.5V AAA batteries (not included)
• Measurement Range: 0-2000UM
• Measurement Accuracy: ±(3% + 1UM)
• Operating Temperature: -10℃ to 50℃

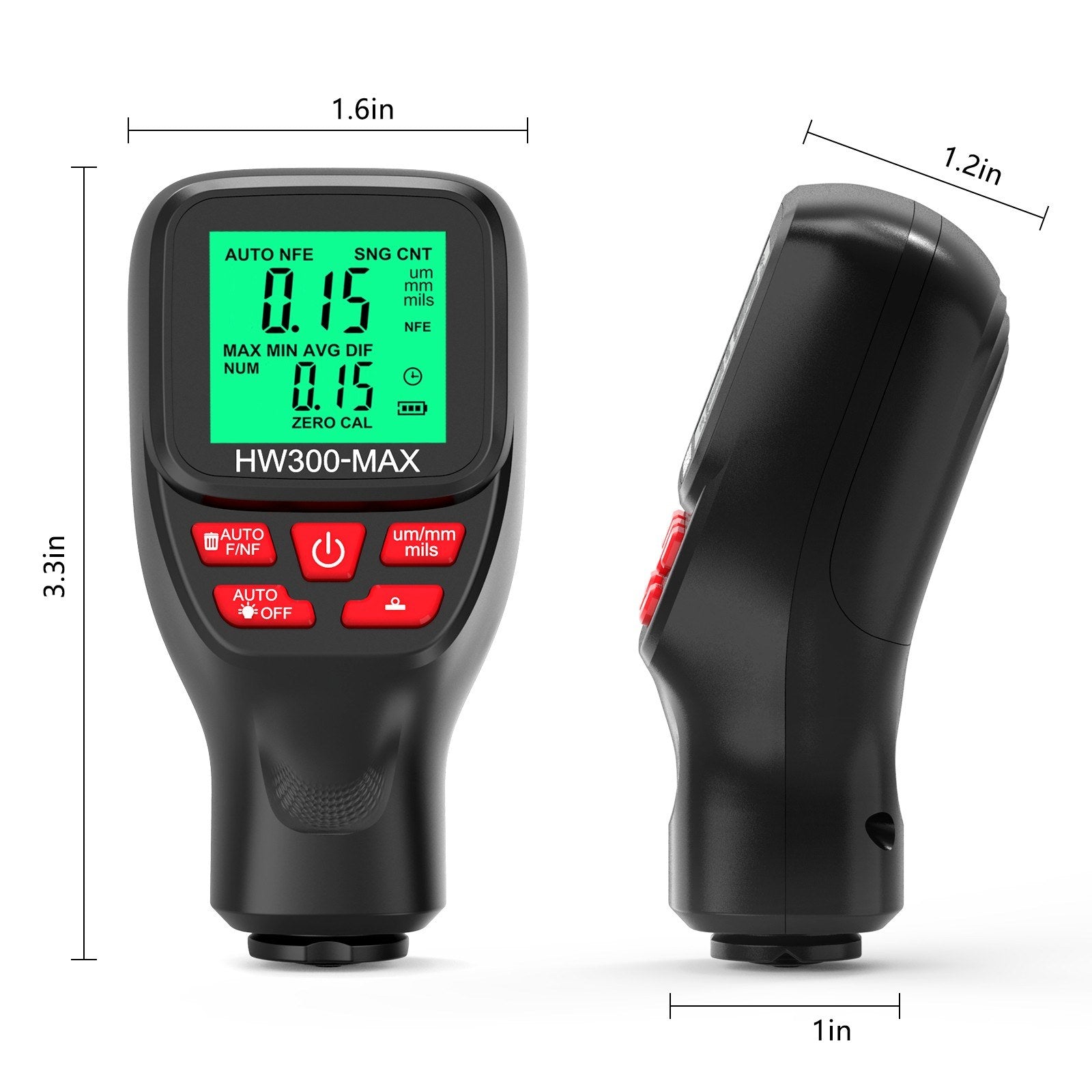

• Item Size: 85 x 40 x 30mm / 3.35 x 1.57 x 1.18 inches
• Package Size: 90 x 55 x 42mm / 3.54 x 2.17 x 1.65 inches
• Package Weight: 82g / 2.89 ounces

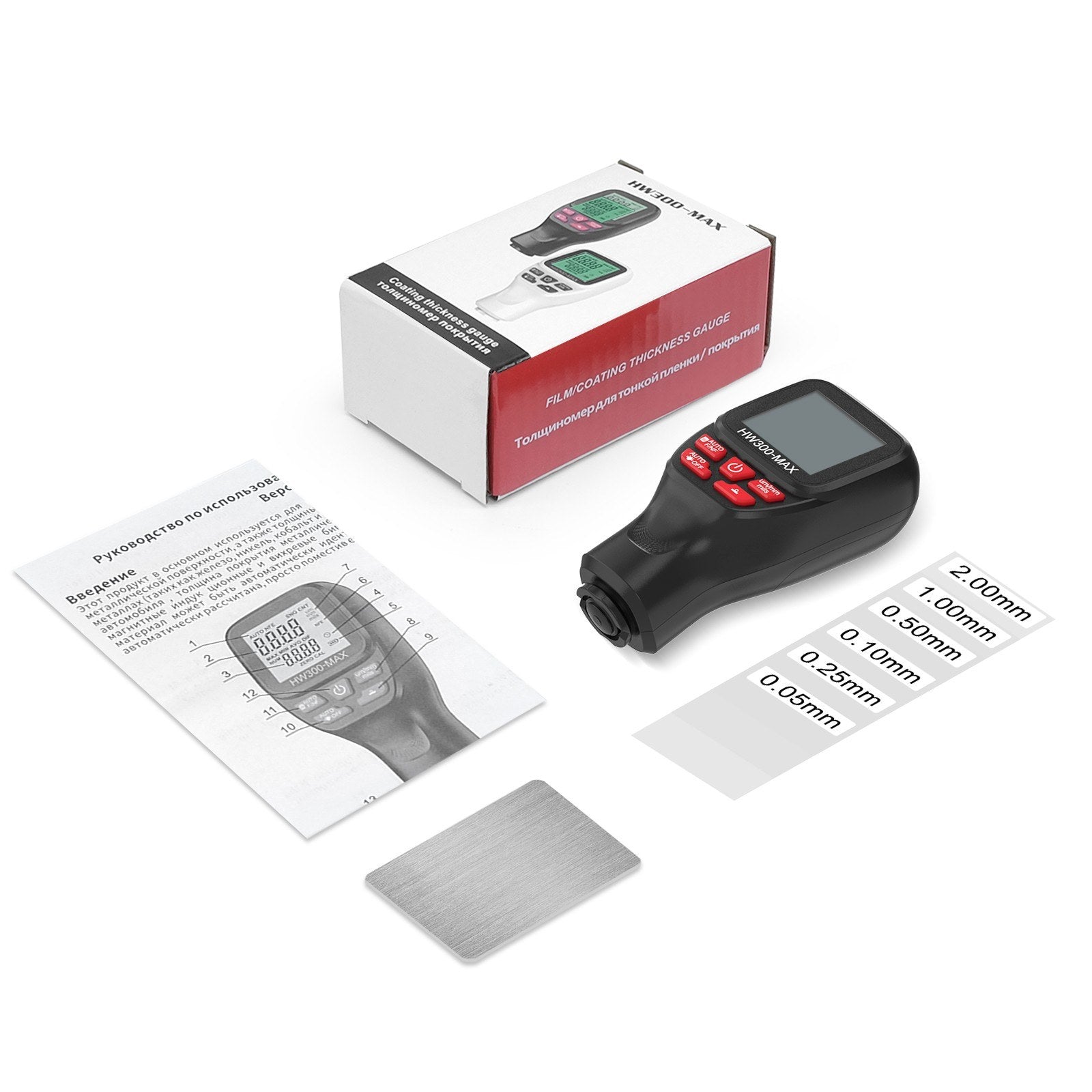

Packing List:

• 1 x Thickness Gauge
• 6 x Calibration Film
• 1 x Base Sheet
• 1 x Manual
