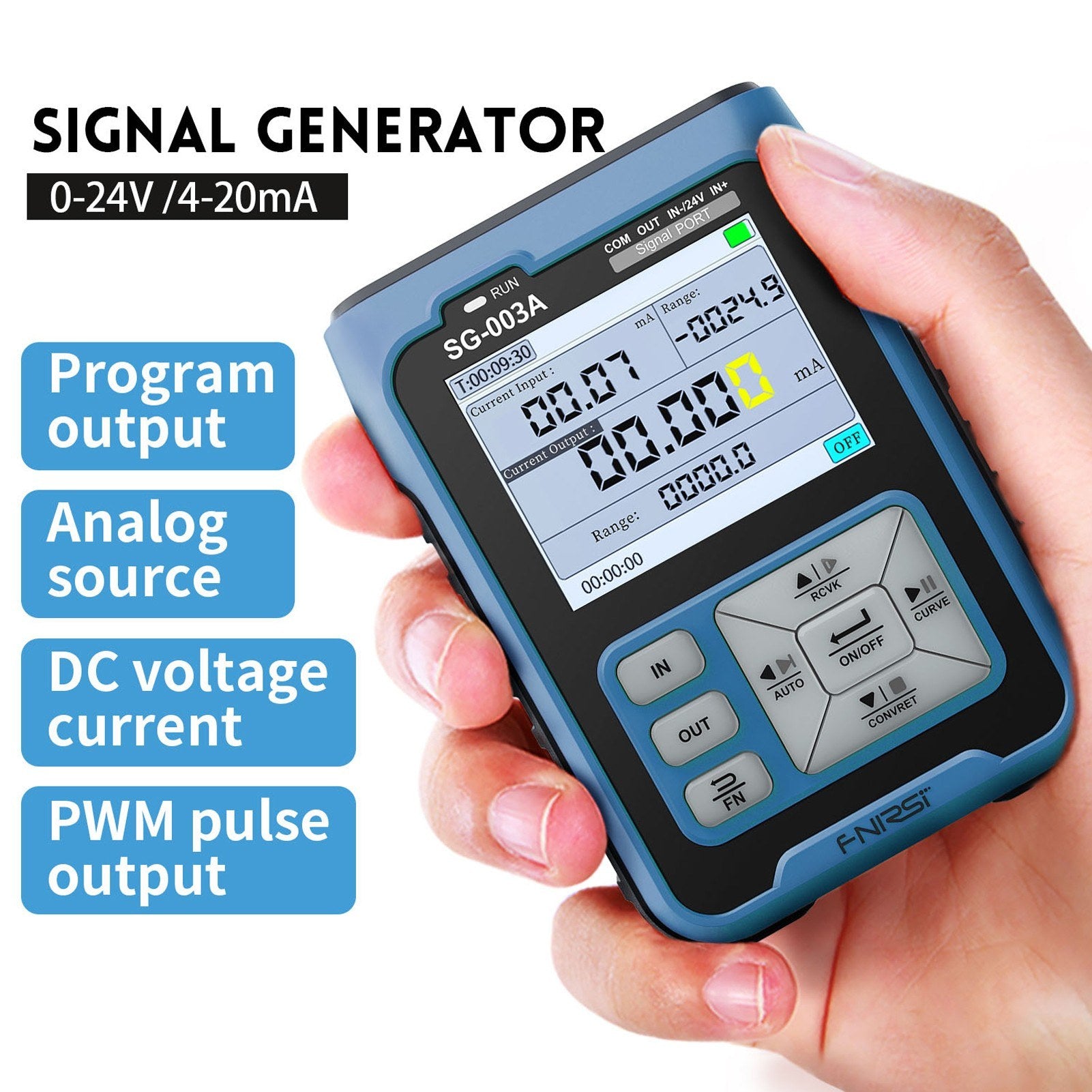

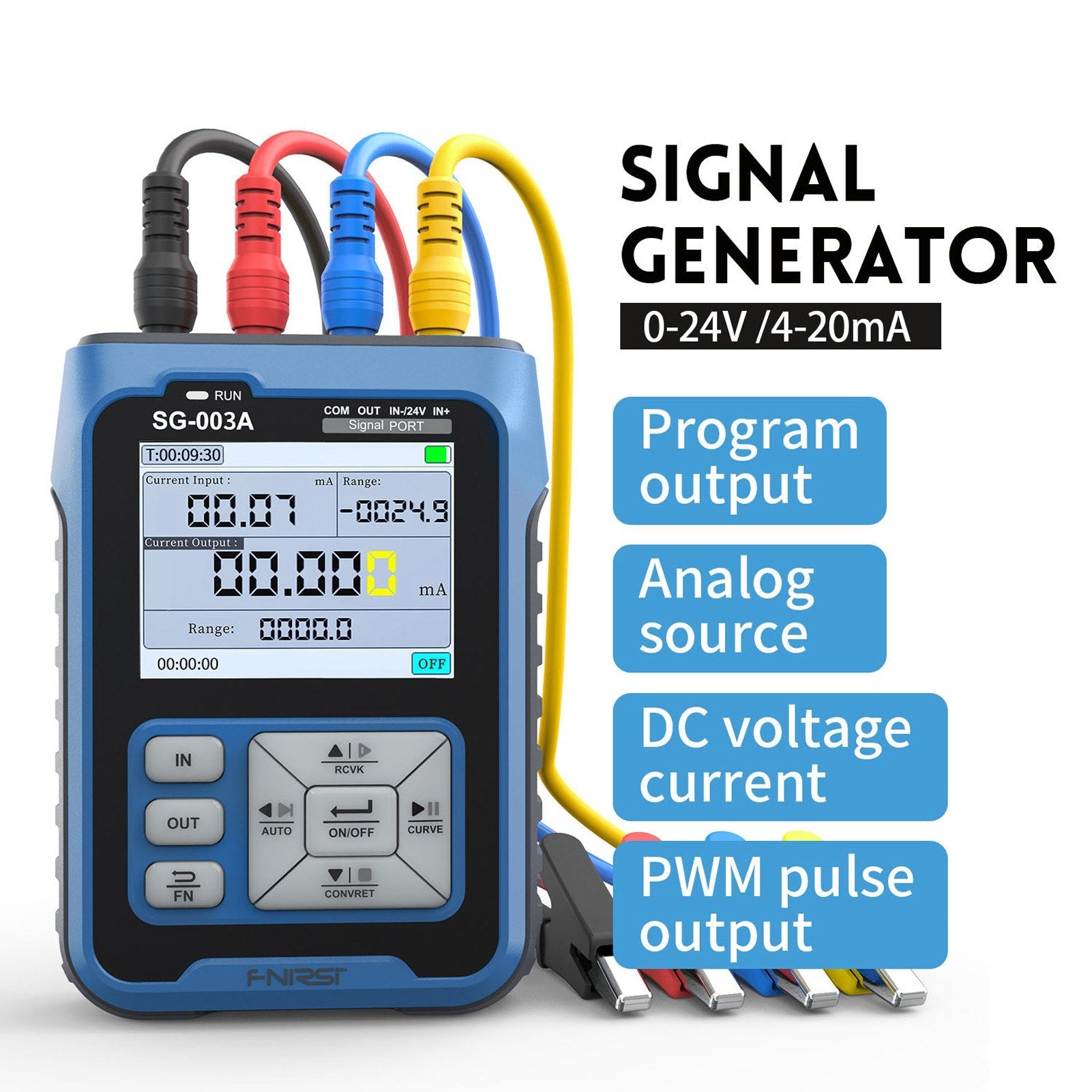

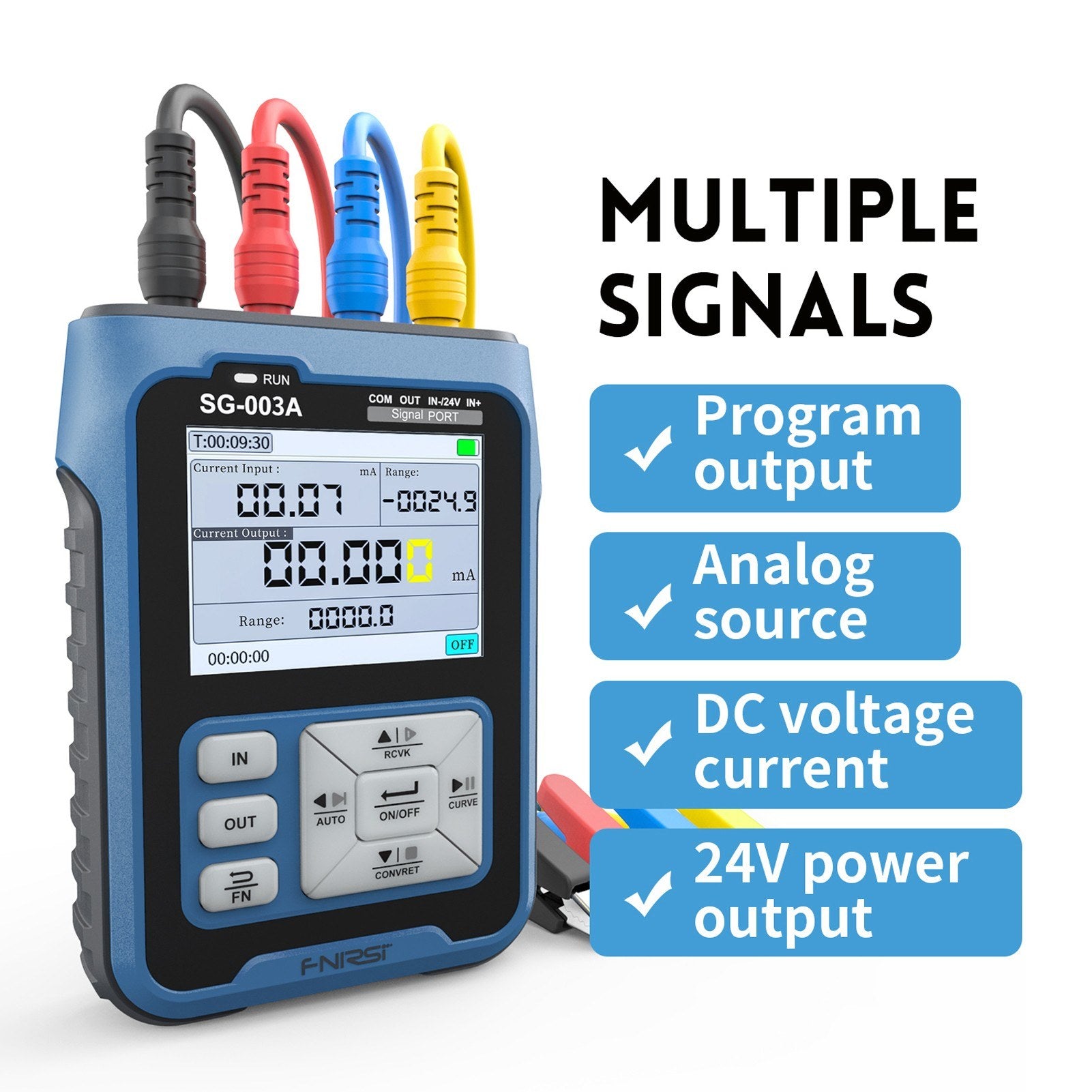

FNIRSI Handheld Adjustable Current Voltage Simulator Generator with 2.4 LCD Display

Portable Signal Generator for Industrial Use

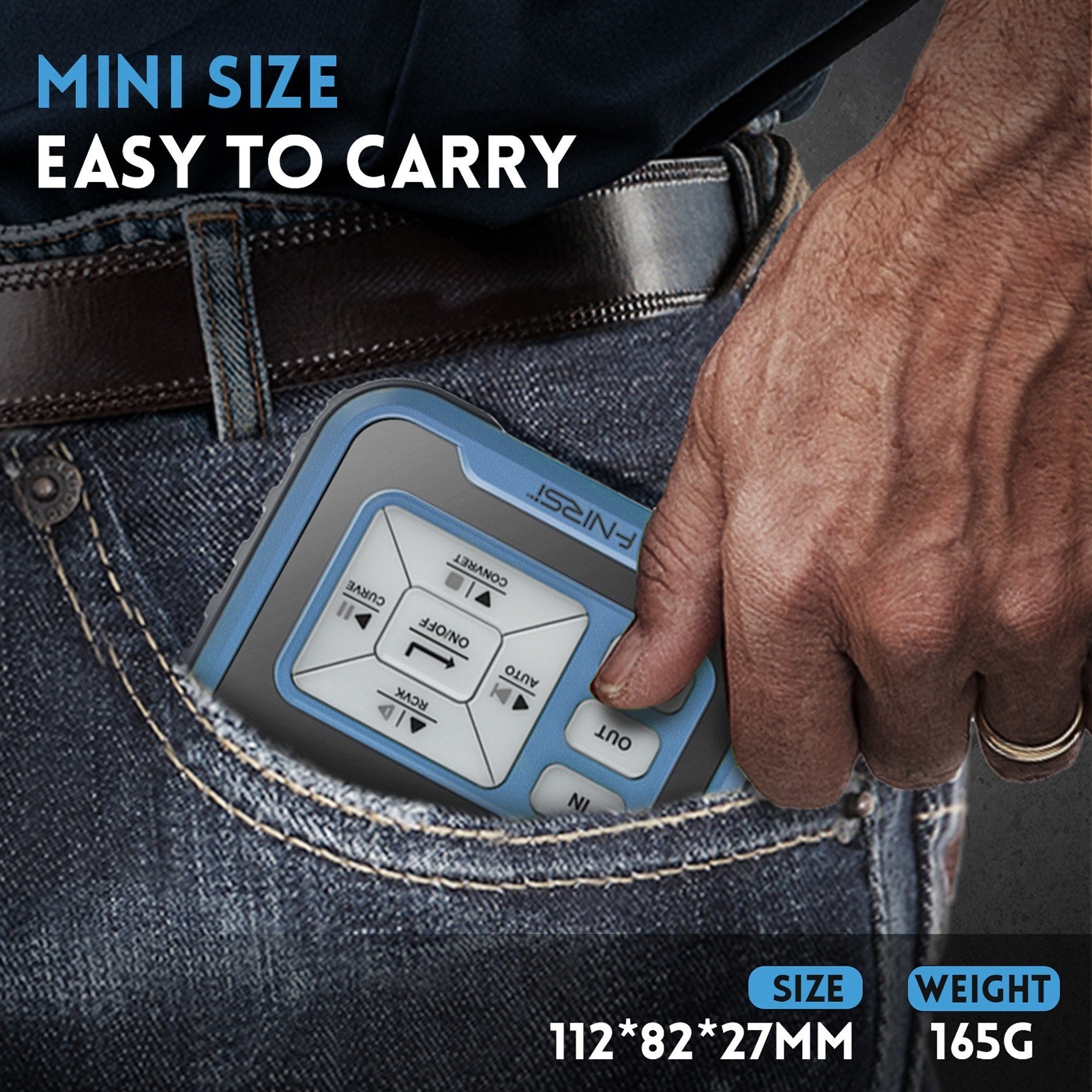

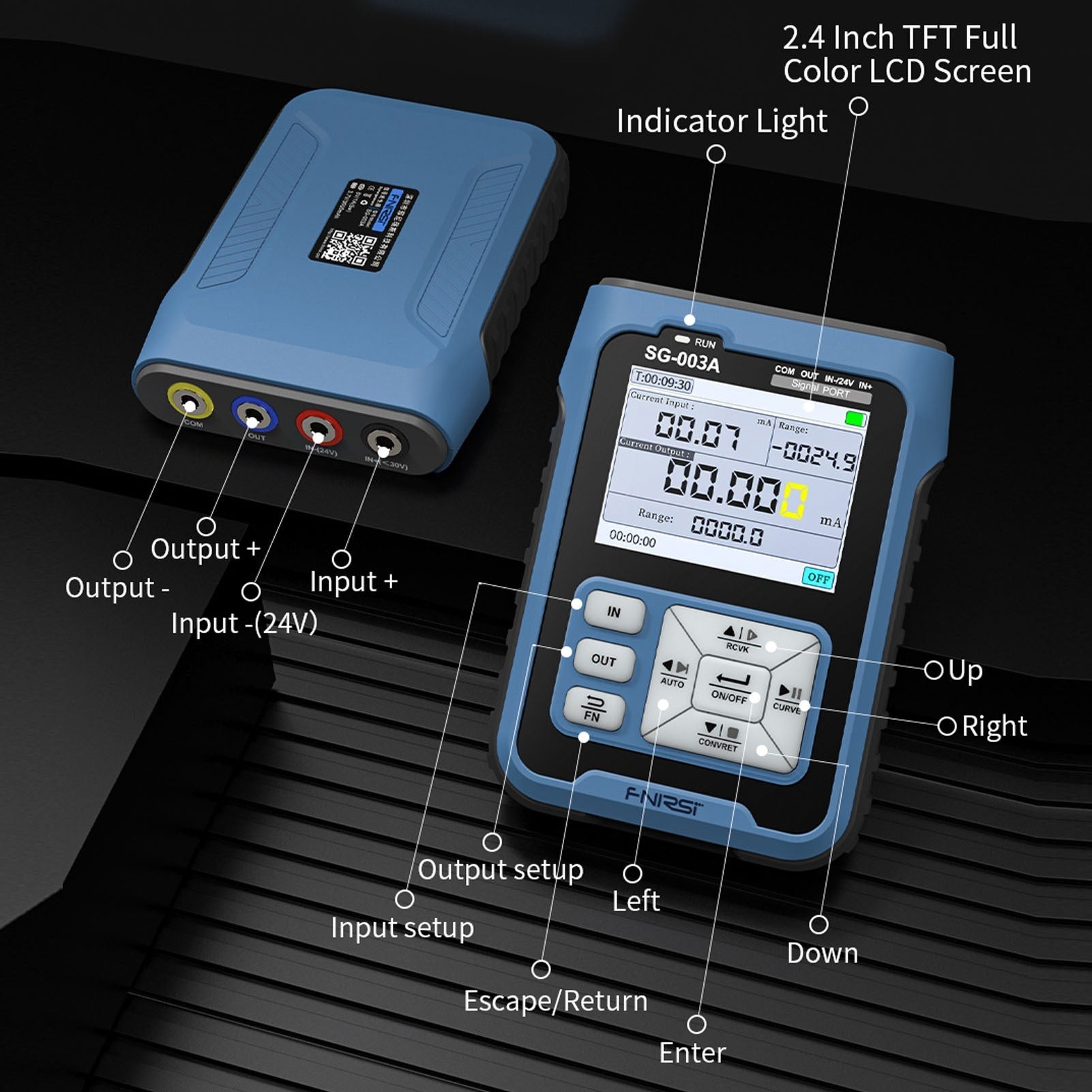

This compact and lightweight signal generator is your go-to tool for industrial field PLC debugging, process instrumentation, electric valve calibration, and more. Designed for convenience, it features an easy-to-use interface and a long standby time, ensuring accuracy and efficiency wherever you work. Whether day or night, the adjustable button backlight and high-definition TFT color LCD screen enhance user experience.

Key Features

• Comprehensive signal input and output functions.
• Automatic output for voltage and current with single rise, three drop modes, and cycle options.

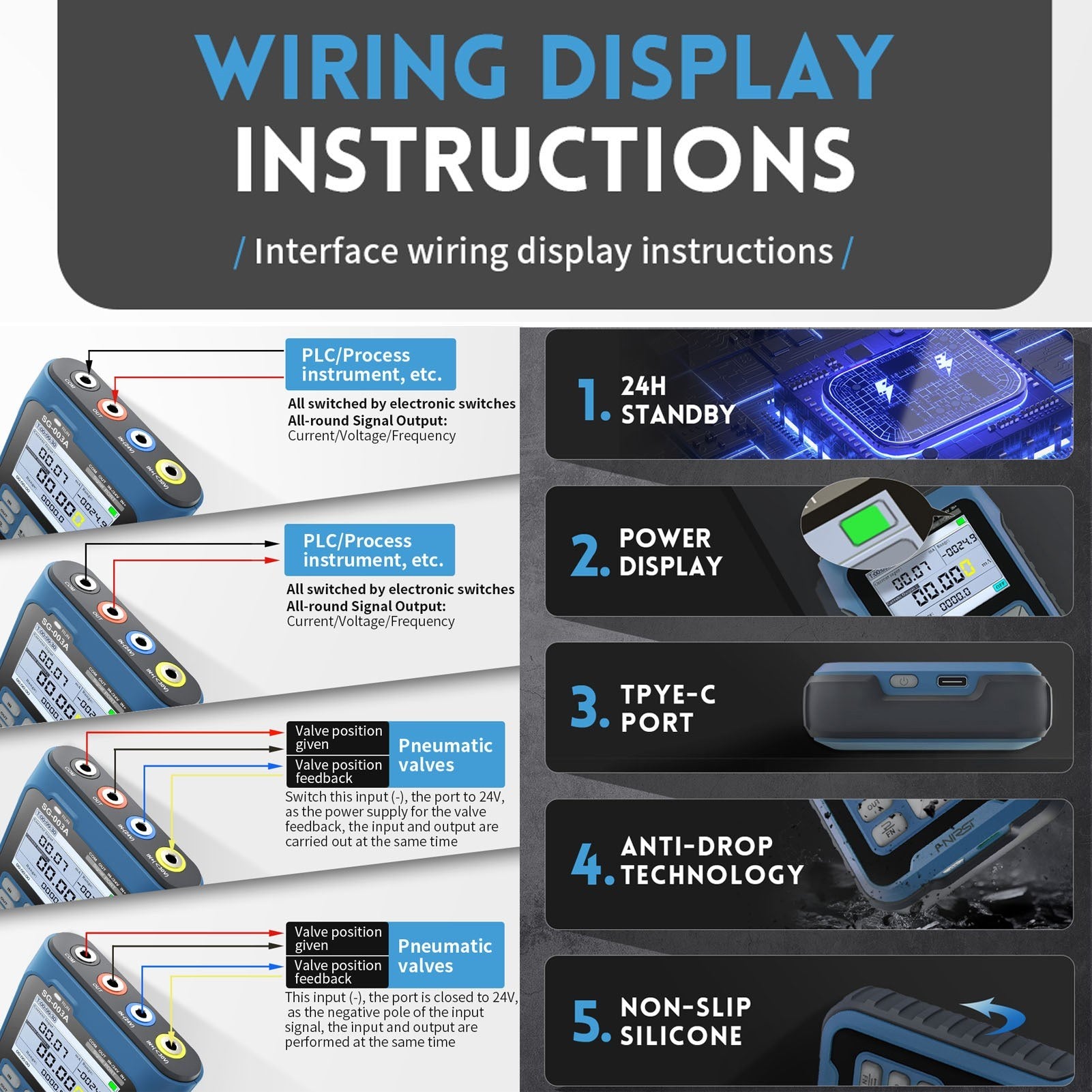

• Input to output conversion, including voltage conversion to active current mode, passive mode, and current to voltage conversion.
• Customizable output limits to suit your requirements.
• Voltage and current input diagrams with a 10-frame rate for precise monitoring.
• PWM output with adjustable frequency and duty cycle.

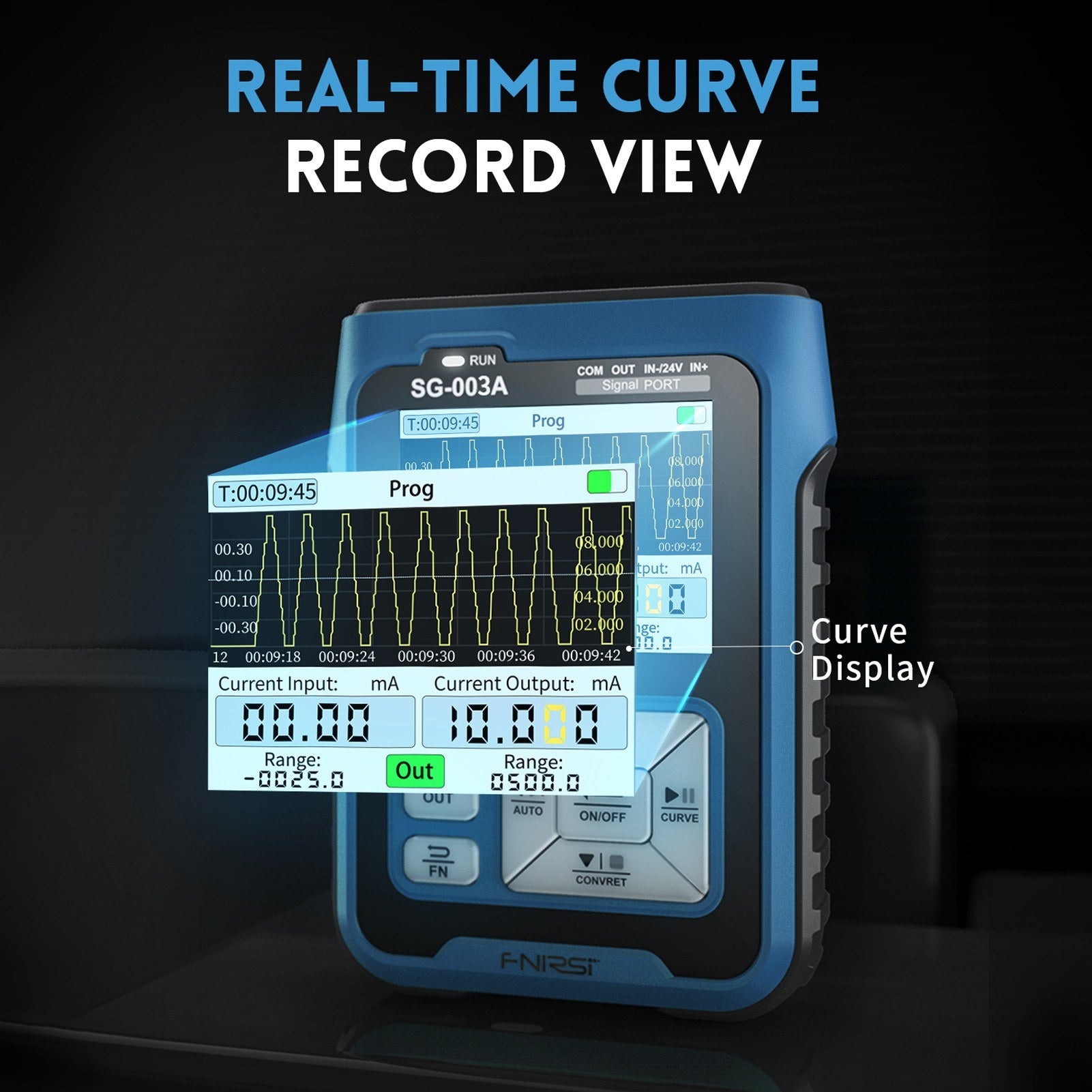

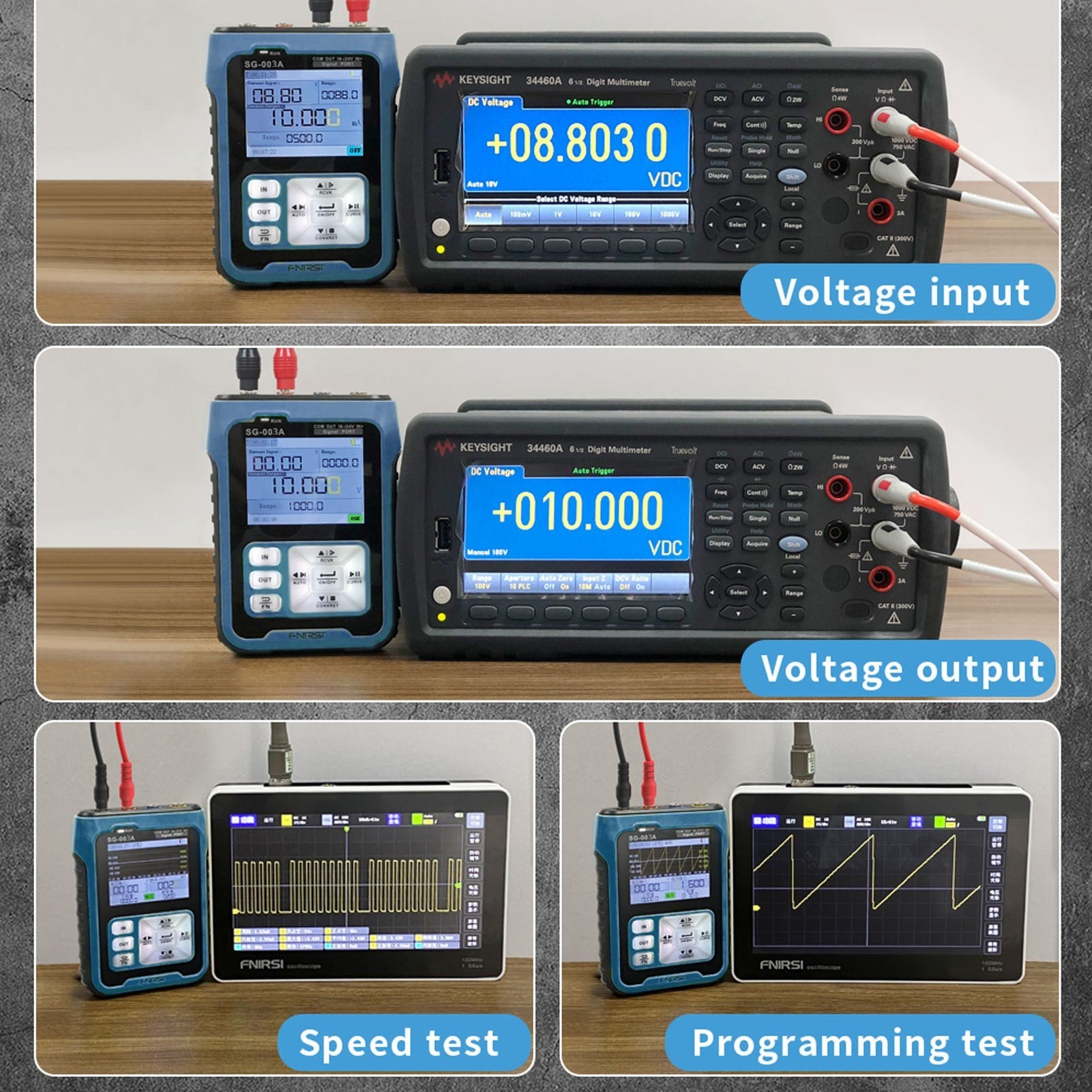

• Real-time curve for immediate observation of voltage and current fluctuations.
• Powered by a 3000mAh lithium battery with a Type-C charging interface for extended working hours.

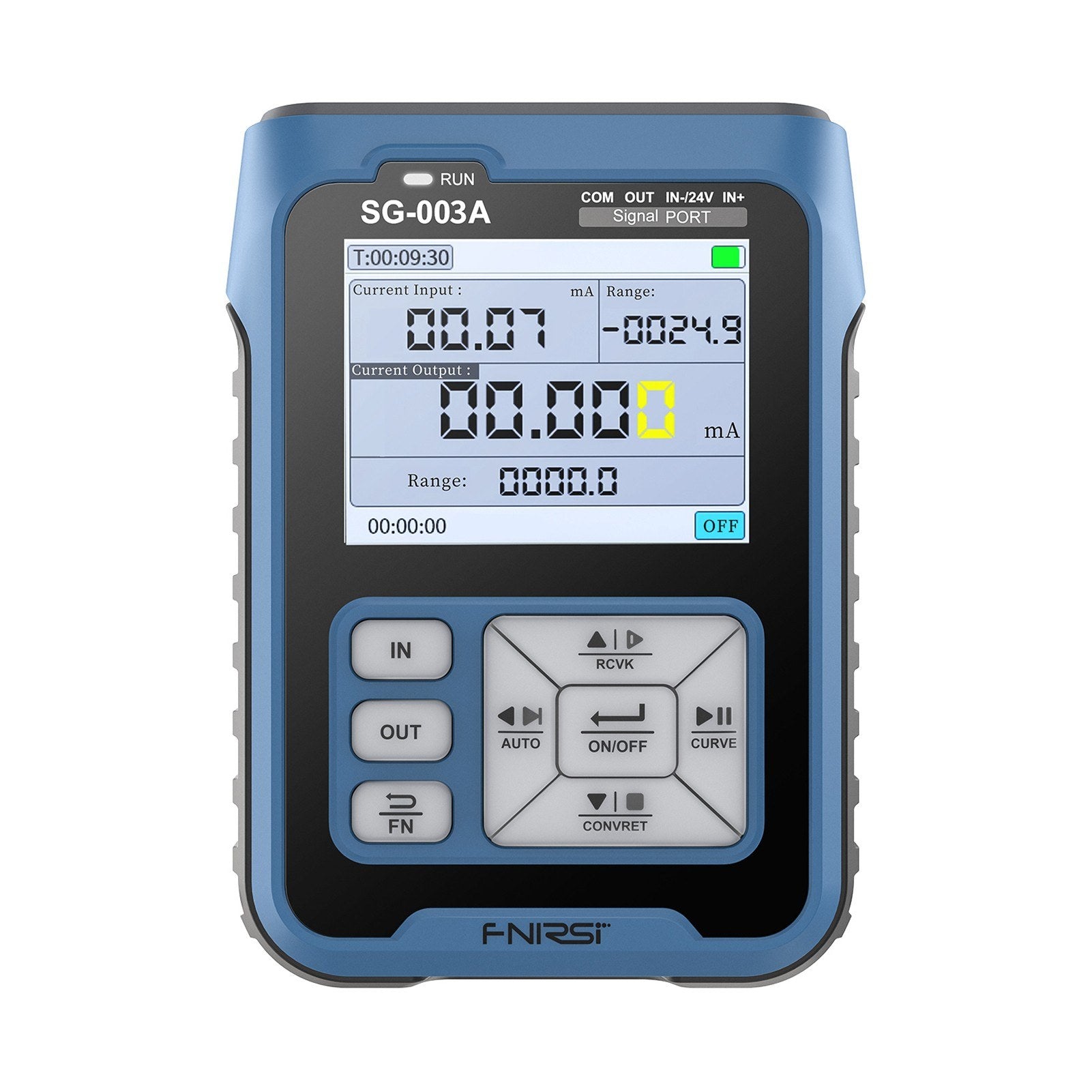

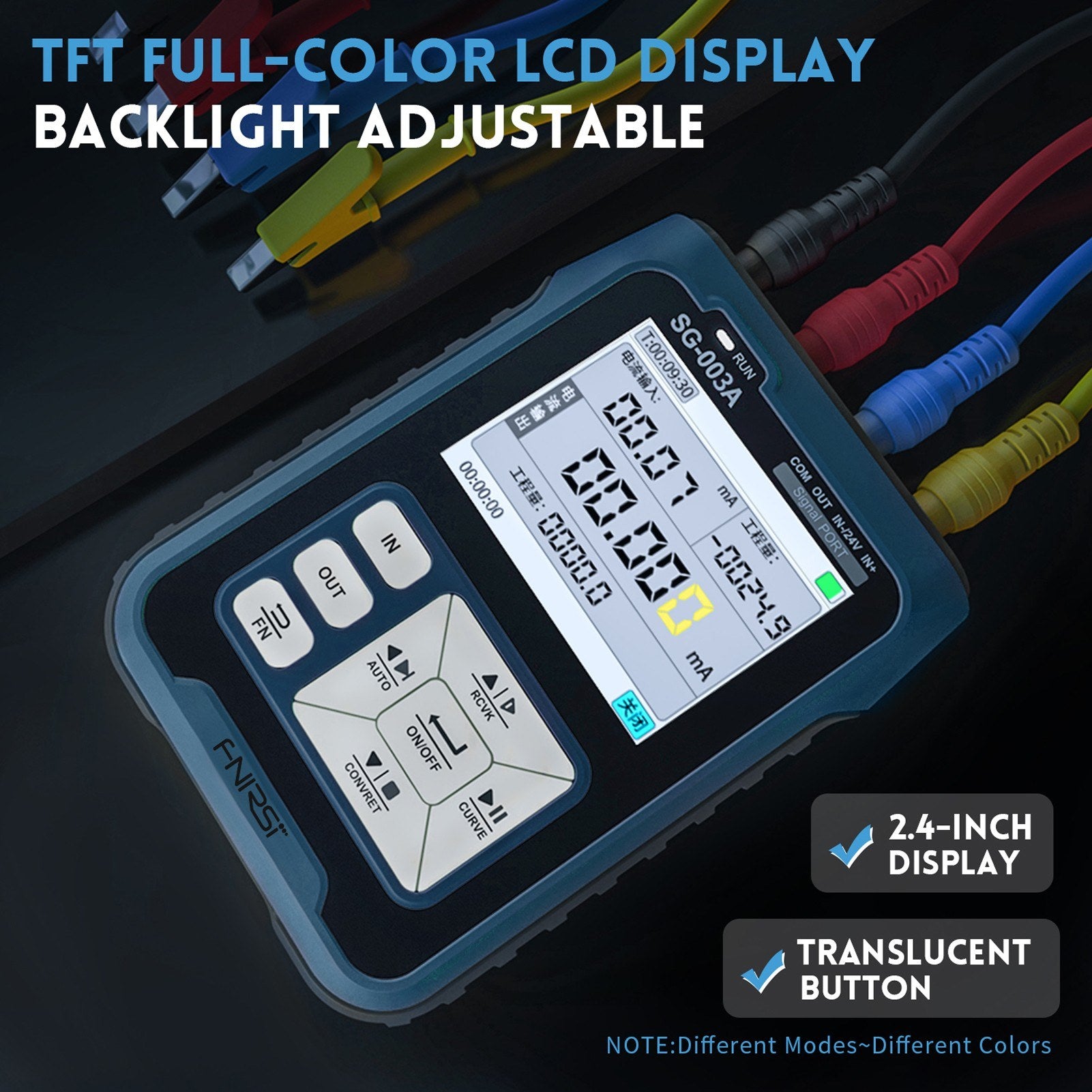

• Eye-catching TFT color LCD screen with a resolution of 240x320.

Specifications

• Material: ABS
• Active Current Output:
  • Range: 0~24mA
  • Resolution: 0.01 mA
  • Maximum Load: 750Ω

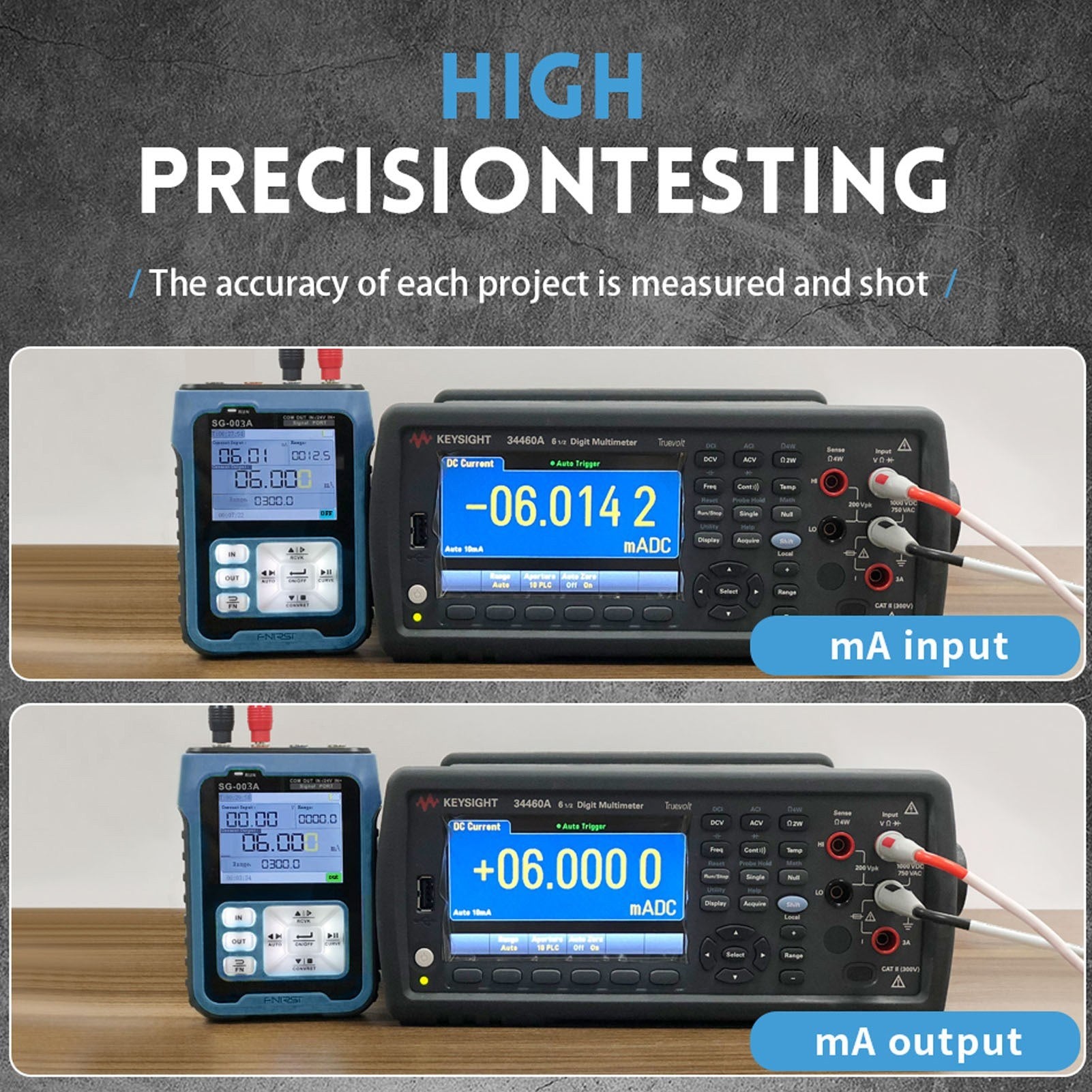

  • Precision: ±(0.1%+0.005)
• Passive Current Output:
  • Range: 0~24mA
  • Resolution: 0.01 mA
  • External Power Supply: Up to 30V
  • Precision: ±(0.1%+0.005)
• Voltage Output:
  • Range: 0~24V
  • Resolution: 0.01V
  • Maximum Current: 30mA
  • Precision: ±(0.1%+0.005)
• 24V Voltage Output:
  • Drive Current: 24mA
  • Resolution: 0.01 mA
  • Precision: ±(0.1%+0.005)
• Current Input Measurement:
  • Range: 0~24mA
  • Resolution: 0.01 mA
  • Input Impedance: 100Ω
  • Precision: ±(0.1%+0.05)
• Voltage Input Measurement:
  • Range: 0~30V
  • Resolution: 0.01V
  • Input Impedance: 2MΩ
  • Precision: ±(0.1%+0.05)
• PWM Output (Frequency):
  • Range: 0~9999Hz

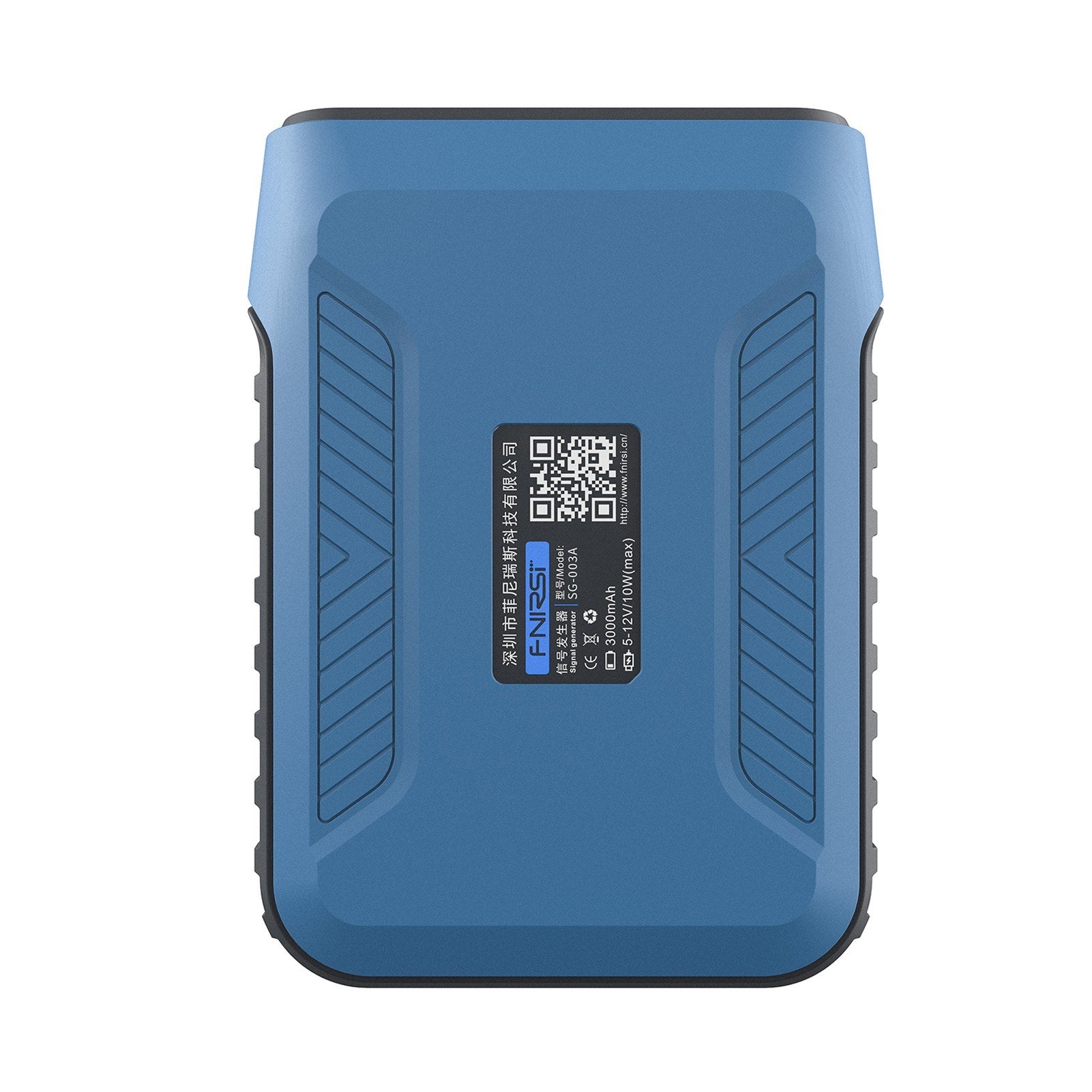

• Battery: 1 x Lithium Battery, 3.7V 3000mAh (included)

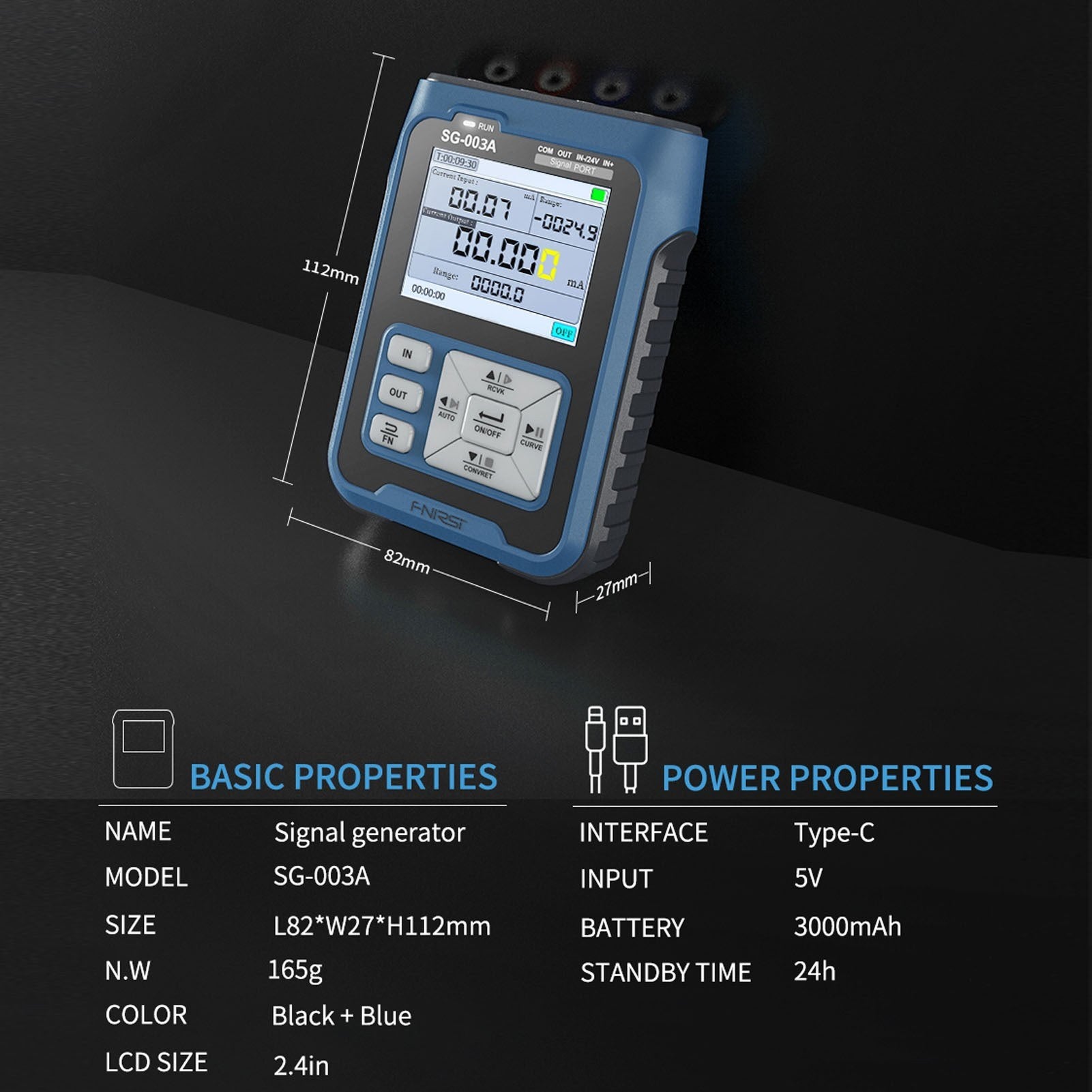

• Package Size: 150 x 145 x 80mm / 5.9 x 5.7 x 2.0in
• Package Weight: 474.6g / 1.0lb

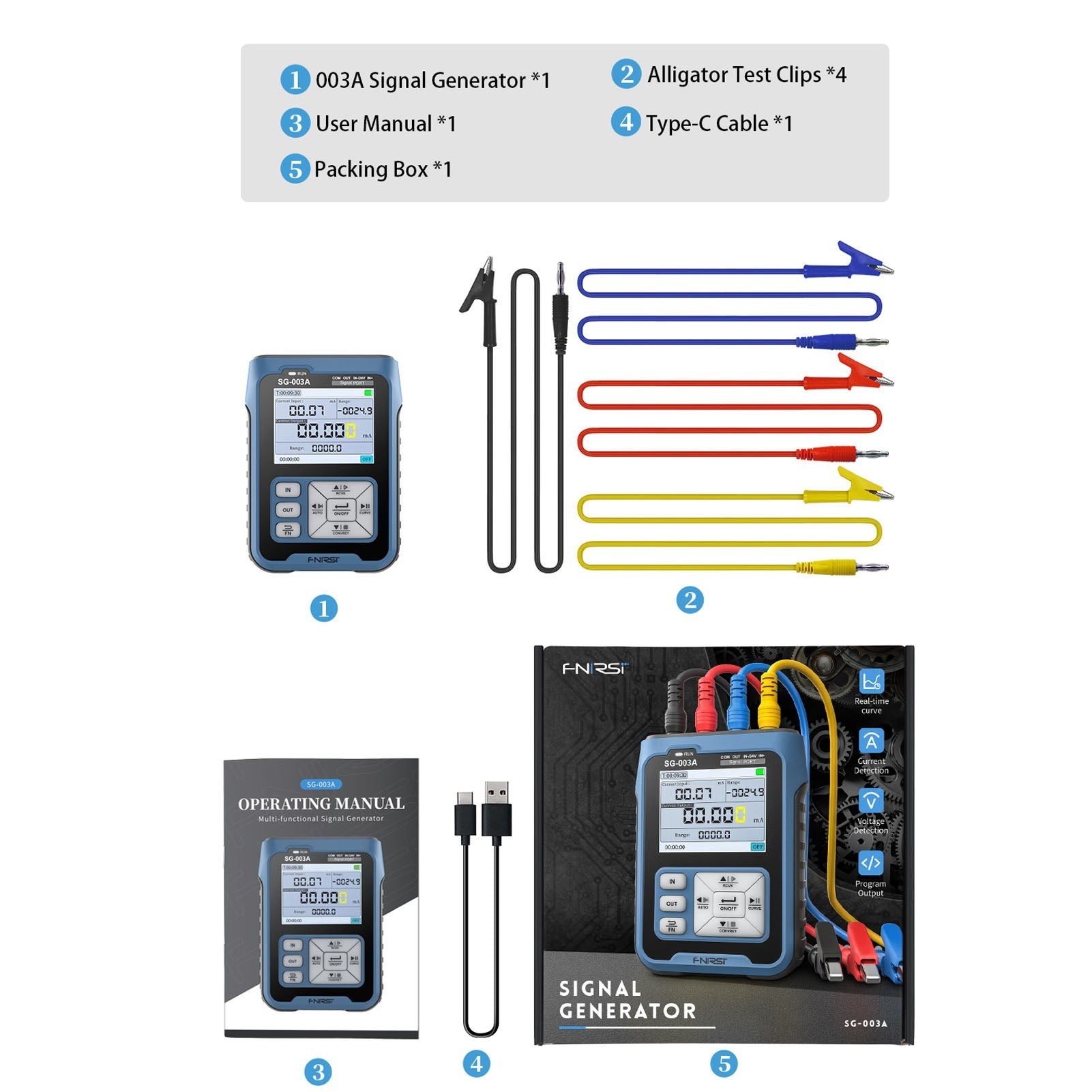

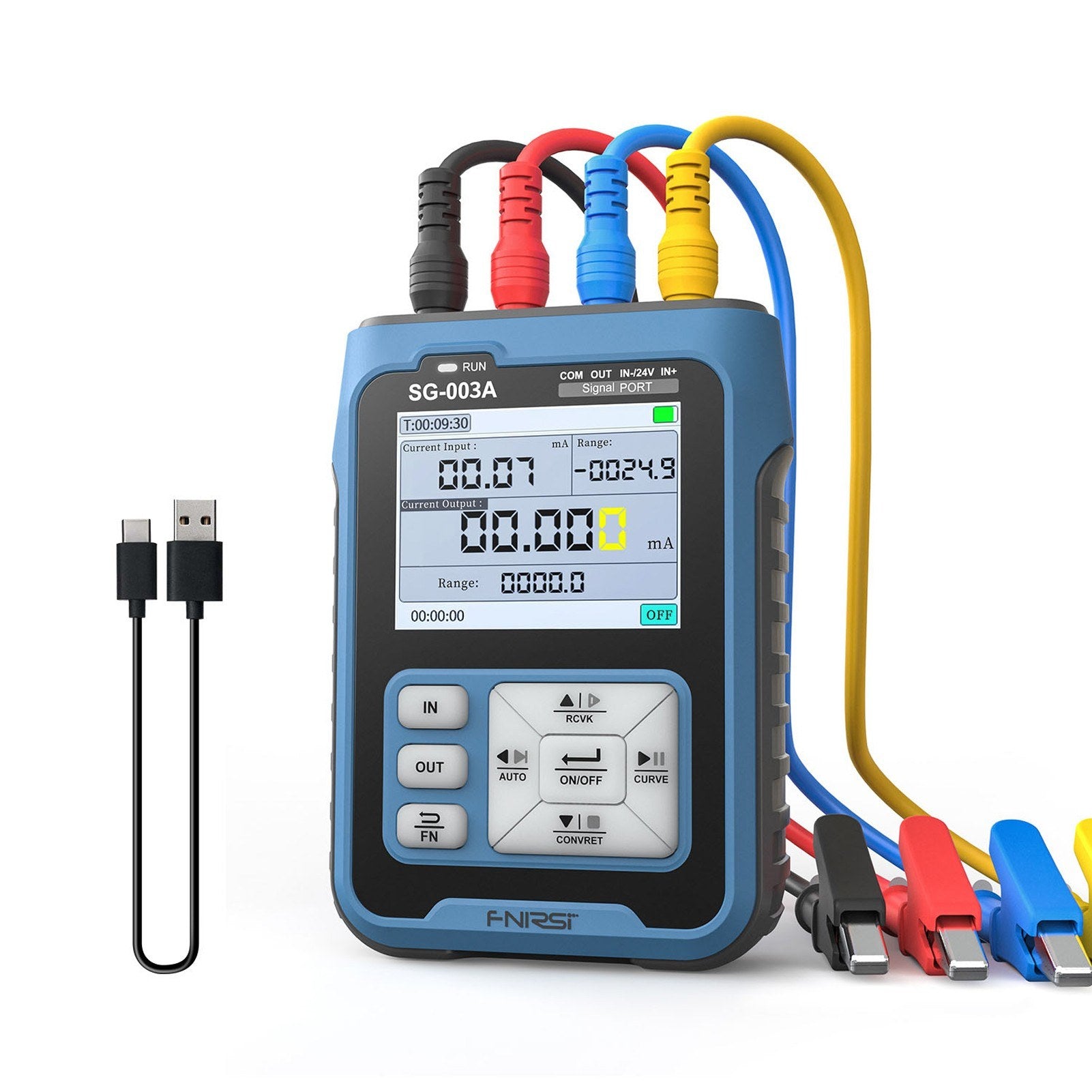

Packing List

• 1 x Signal Generator Calibrator
• 4 x Test Clips
• 1 x Type-C Recharging Cable
