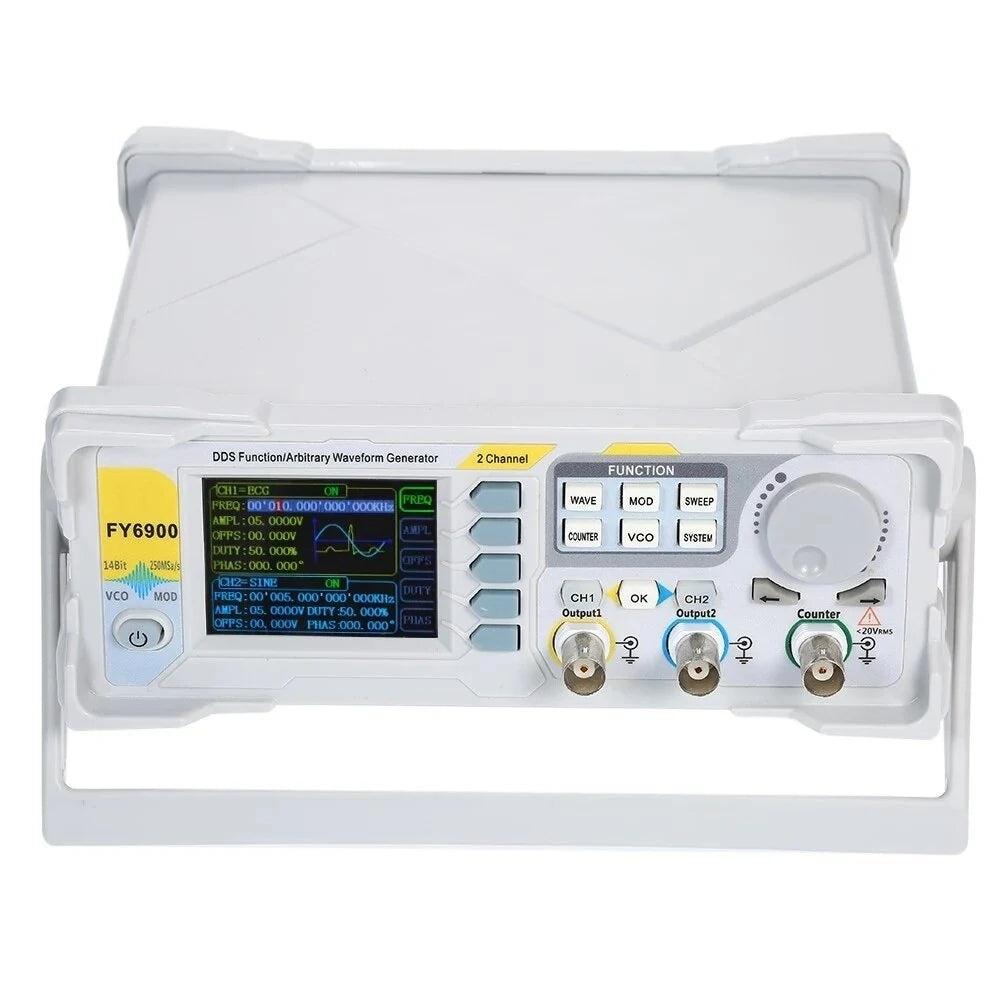

FY6900 100MHz Dual-Channel DDS Signal Generator - High Precision Digital Waveform Function Generator

FY6900 100MHz Dual-Channel DDS Signal Generator - High Precision Digital Waveform Function Generator

Regular price $282.99 USD
Regular price $0.00 USD Sale price $282.99 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Icon Estimated Delivery: -

Lock Icon
Guaranteed secure & safe checkout.
Payment Logos

Features:

  • Utilizes Direct Digital Synthesizer (DDS) technology for stable, precise, and low distortion signals.

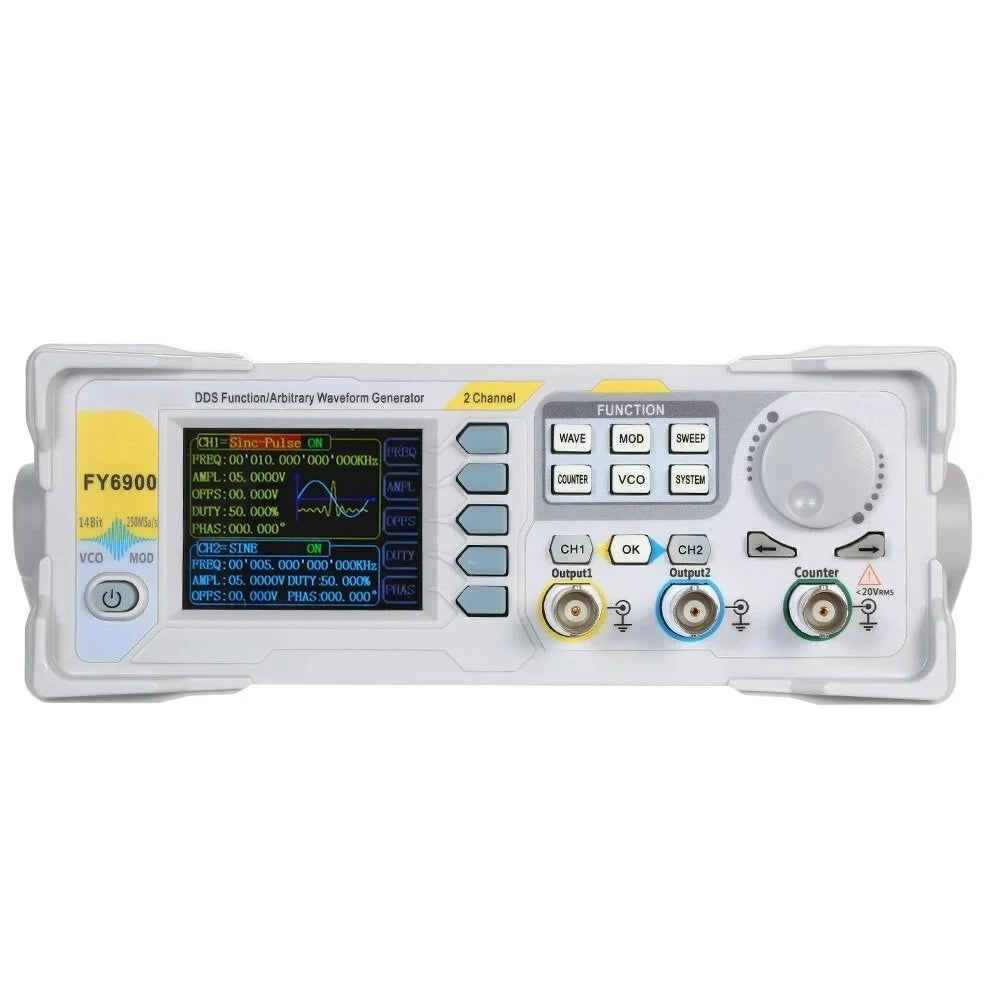

  • 2.4-inch TFT color LCD with 320x240 resolution, displaying parameters and graphics for both CH1 and CH2.
  • Incorporates MagicPulse Technology, ensuring low jitter (RMS).
  • Features a 14-bit high-speed D/A converter chip with a sample rate of 250MSa/s, vertical resolution of 14 bits, and quantization error of less than 1mV at 5Vpp output.
  • Offers up to 99 groups of functions/arbitrary waveforms, including 35 preset and 64 user-defined waveforms.
  • Supports various modulation types including AM, FM, PM, ASK, FSK, and PSK.
  • Includes a sweep function with linear and logarithmic types.
  • Features VCO (Voltage Control Output) enabling voltage-controlled frequency, amplitude, offsets, and duty cycle with PWM modulations.
  • Provides burst output options with multiple trigger sources.
  • Comes with a 100M frequency meter function capable of measuring frequency, period, pulse width, and duty cycle.
  • Dual full functional channels equivalent to two independent generators with channel synchronization support.
  • Allows precise phase adjustments with a resolution of 0.01°.
  • Amplitude resolution up to 1mV with a range of 0-24Vpp.
  • Stores 64 arbitrary waveform data files, each achieving high signal detail restoration.
  • Equipped with output short-circuit protection for over 60 seconds of operation when short-circuited.

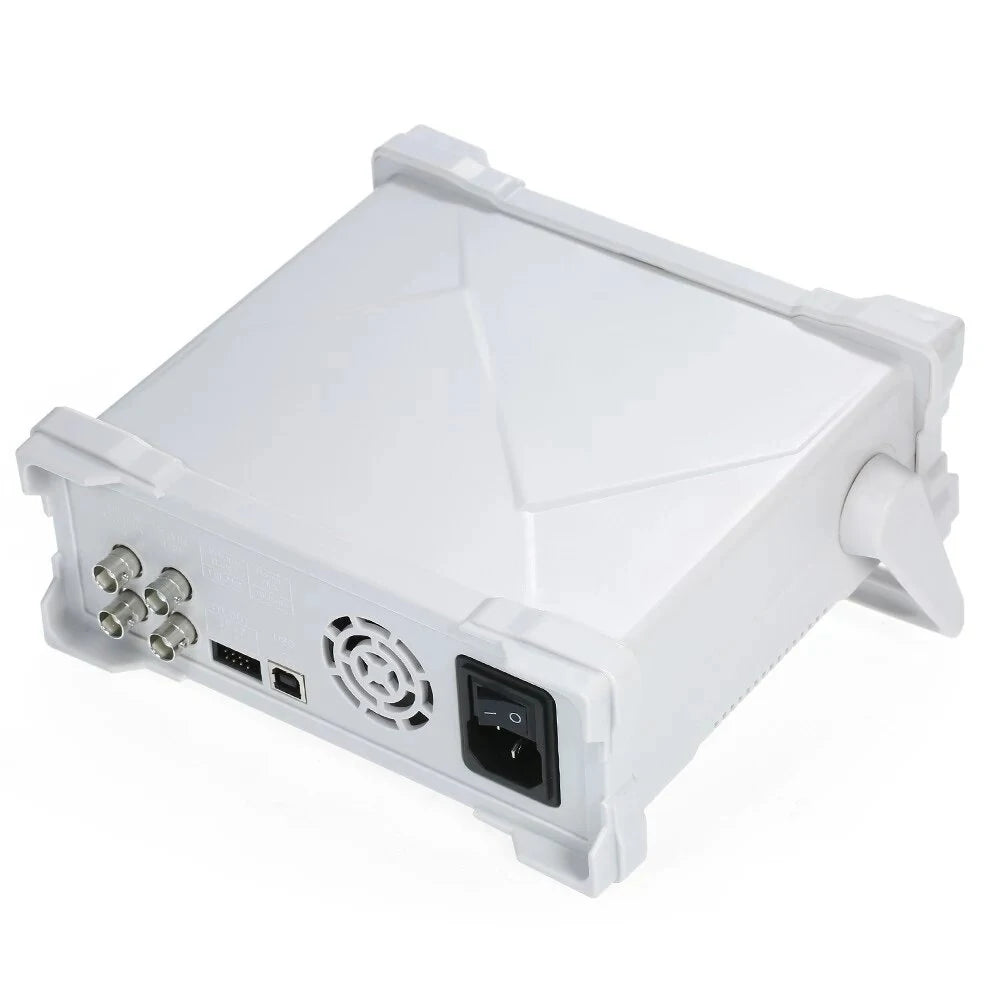

  • Sleek ABS plastic shell with a table-type design and wide voltage power supply range of 100-240V AC.

Specifications:

  • Plug Type: AU / EU / US / UK (Optional)
  • Model: FY6900-100M
  • Sine Frequency: 0~100MHz
  • Square Frequency: 0~25MHz
  • Ramp, Triangle: 0~10MHz
  • Pulse: 0~10MHz
  • TTL/CMOS: 0~10MHz
  • Arbitrary Waveform: 0~10MHz
  • Minimum Pulse Width: 20ns
  • Min. Frequency Resolution: 1μHz

General Specifications:

  • Display Type: 2.4-inch TFT Color Display
  • Memory: Save up to 20 sets of user-defined parameters
  • Interface: USB to Serial
  • Power Voltage Range: AC100V~240V
  • Environment: 0~40°C; Humidity: <80%

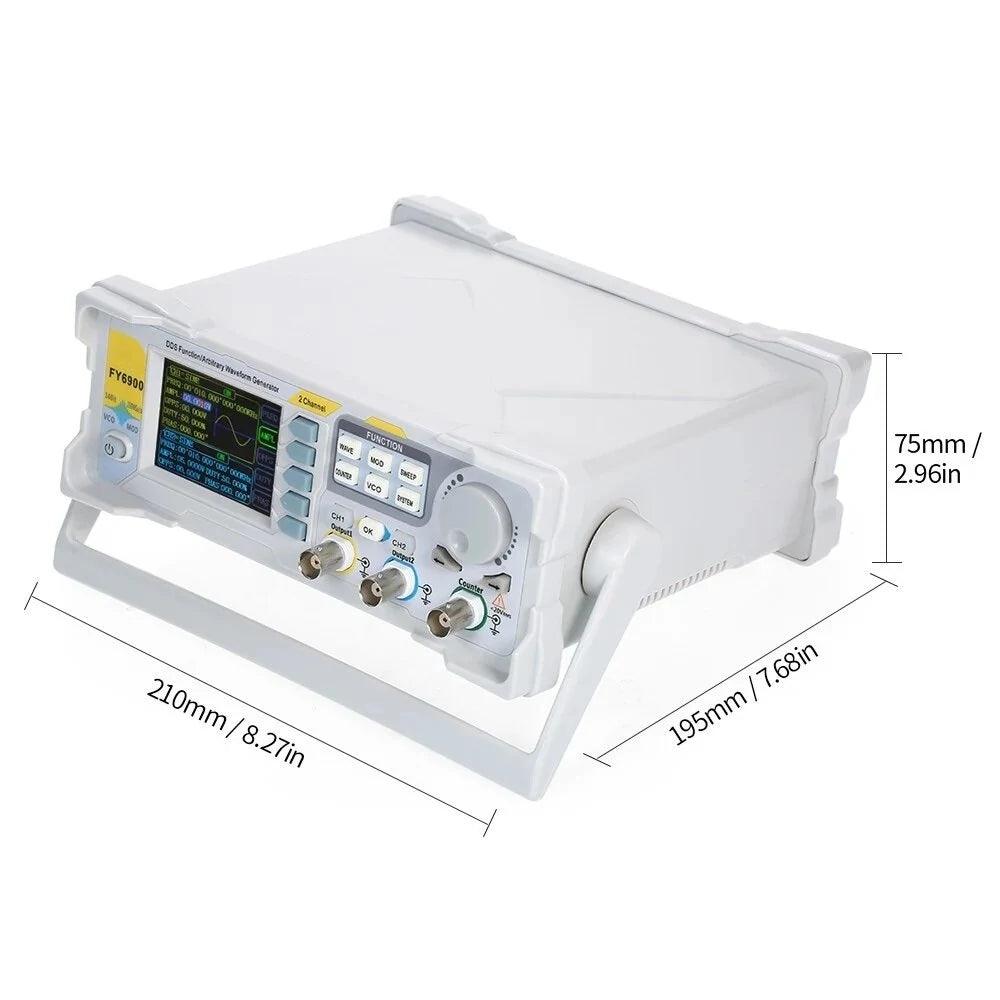

  • Size: Approx. 210mm x 195mm x 75mm
  • Weight: Approx. 611g

Package Includes:

  • 1 x DDS Signal Generator
  • 1 x Power Cable
  • 1 x USB Data Cable
  • 1 x BNC-BNC Cable
  • 2 x BNC-Clip Cable
