XY-SK60 60W 5A MPPT WiFi RS485 Modbus Buck-Boost Converter Solar Charger Voltage Regulator DC0-36V CC CV Module

XY-SK60 60W 5A MPPT WiFi RS485 Modbus Buck-Boost Converter Solar Charger Voltage Regulator DC0-36V CC CV Module

Regular price $11.99 USD
Regular price $0.00 USD Sale price $11.99 USD
Sale Sold out
Shipping calculated at checkout.
Wattage

Shipping Icon Estimated Delivery: -

Lock Icon
Guaranteed secure & safe checkout.
Payment Logos
Product Description

Precise Details:

Manual: Click here to open

Specifications:

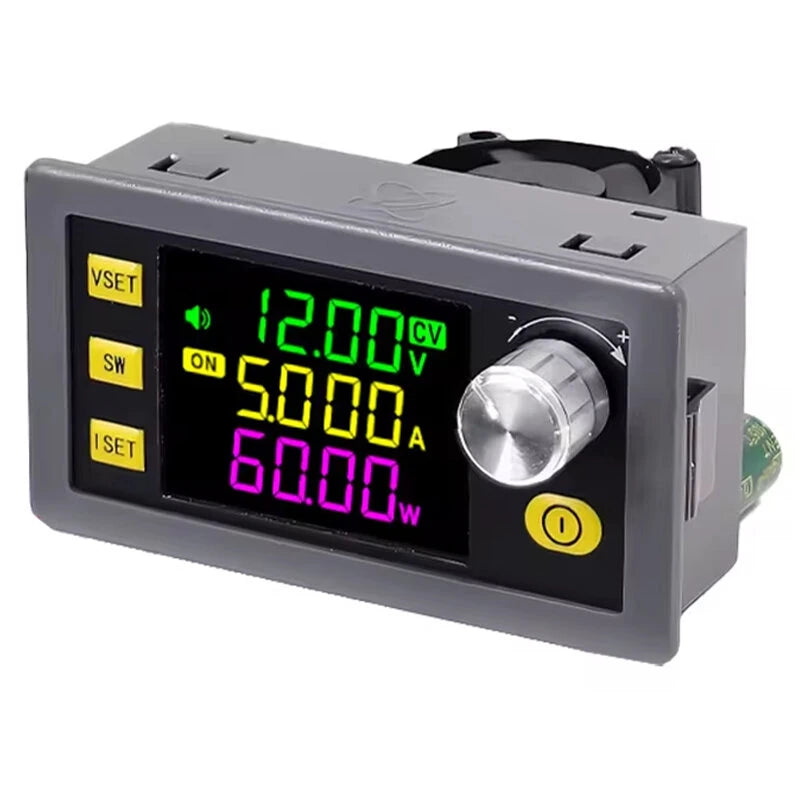

XY-SK60:

  • Input Voltage: 6.0~36V
  • Output Current: 0~5.000A
  • Output Power: 60W
  • Voltage Resolution: 0.01V
  • Conversion Efficiency: Approximately 88%
  • Output Voltage: 0~36V
  • Voltage Accuracy: ±0.5% + 1 word
  • Current Accuracy: ±0.5% + 3 words
  • Current Resolution: 0.01A
  • Data Storage Groups: 10 groups
  • MPPT Function: Supports MPPT Solar Energy
  • Charging Buzzer: Yes
  • Soft Start: Yes

Protection Mechanism:

  • Input Anti-Reverse Connection: Yes
  • Output Anti-Reverse: Yes
  • Input Undervoltage Protection: 5.5-36V adjustable, default 5.5V
  • Output Over-Voltage Protection: 0-38V adjustable, default 38V
  • Output Overcurrent Protection: 0-5.2A adjustable, default 5.2A
  • Output Over Power Protection: 0-80W adjustable, default 65W
  • Over-Temperature Protection: 0-110°C adjustable, default 95°C
  • Timeout Protection: 0-100H adjustable, default off
  • Over Capacity Protection: 0-9999AH adjustable, default off
  • Super Energy Protection: 0-4200KWH adjustable, default off

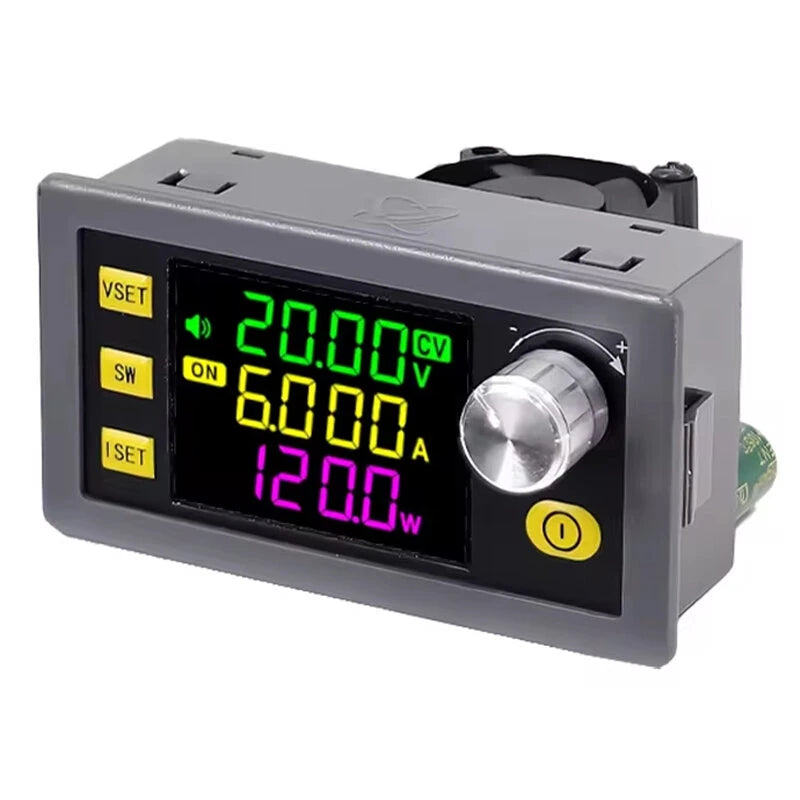

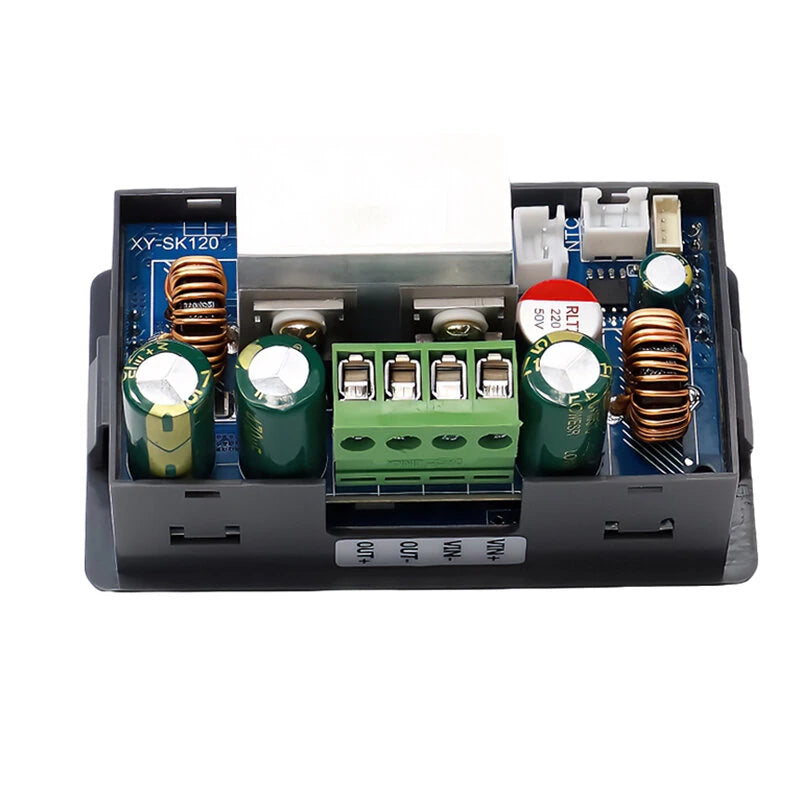

XY-SK120:

  • Input Voltage: 6.0~36V
  • Output Current: 0~6.000A
  • Output Power: 120W
  • Voltage Resolution: 0.01V
  • Conversion Efficiency: Approximately 88%
  • Output Voltage: 0~36V
  • Voltage Accuracy: ±0.5% + 1 word
  • Current Accuracy: ±0.5% + 3 words
  • Current Resolution: 0.001A
  • Data Storage Groups: 10 groups
  • MPPT Function: Supports MPPT Solar Charging
  • Buzzer: Yes
  • Soft Start: Yes

Protection Mechanism:

  • Input Anti-Reverse Connection: Yes
  • Output Anti-Reverse: Yes
  • Input Undervoltage Protection: 5.5-36V adjustable, default 5.5V
  • Output Over-Voltage Protection: 0-38V adjustable, default 38V
  • Output Overcurrent Protection: 0-6.2A adjustable, default 6.2A
  • Output Over Power Protection: 0-150W adjustable, default 125W
  • Over-Temperature Protection: 0-110°C adjustable, default 95°C
  • Timeout Protection: 0-100H adjustable, default off
  • Over Capacity Protection: 0-9999AH adjustable, default off
  • Super Energy Protection: 0-9999KWH adjustable, default off

Features:

  1. High-quality PCB materials ensure a longer product life.
  2. The LCD screen has a user-friendly layout with large, rounded fonts for easy readability.
  3. Built-in buzzer offers key and alarm prompts for safer usage.
  4. Upgraded plug-in terminals for easy disassembly and replacement.
  5. Adaptable for various applications with MPPT solar charging support, and compatibility with external temperature probes for enhanced protection.

Package Includes:

  • 1x Adjustable Boost and Buck Module
