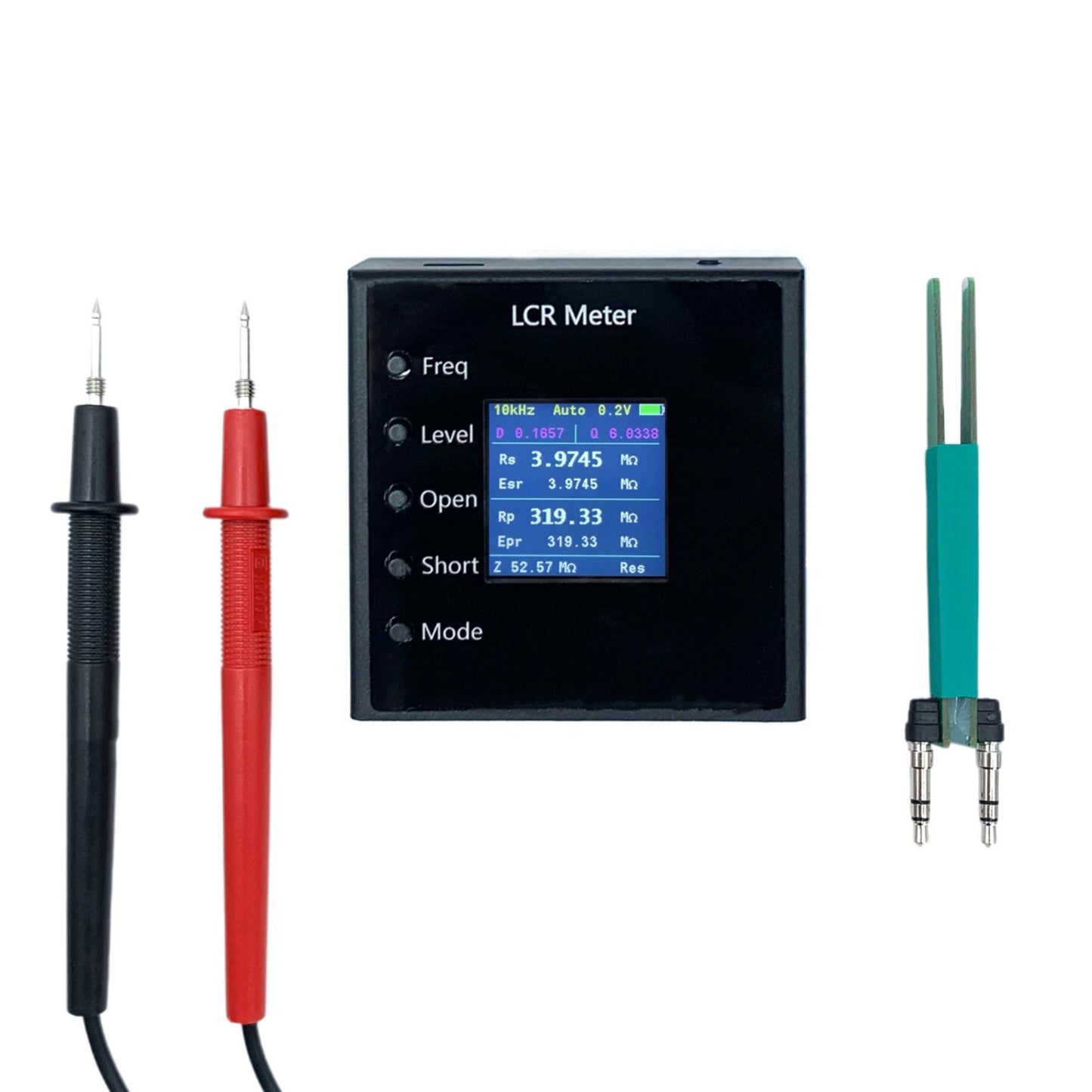

LCR-P1 Transistor Tester Multimeter - Diode, Capacitance & Resistance Meter with Frequency Test (100Hz-100kHz) and 1.54 Color Screen, Kelvin Clip & Tweezer

Product Description: LCR-P1

Features:

• The LCR-P1 is a multifunctional portable testing instrument offering precise automatic measurements of resistance, capacitance, inductance, and continuity.

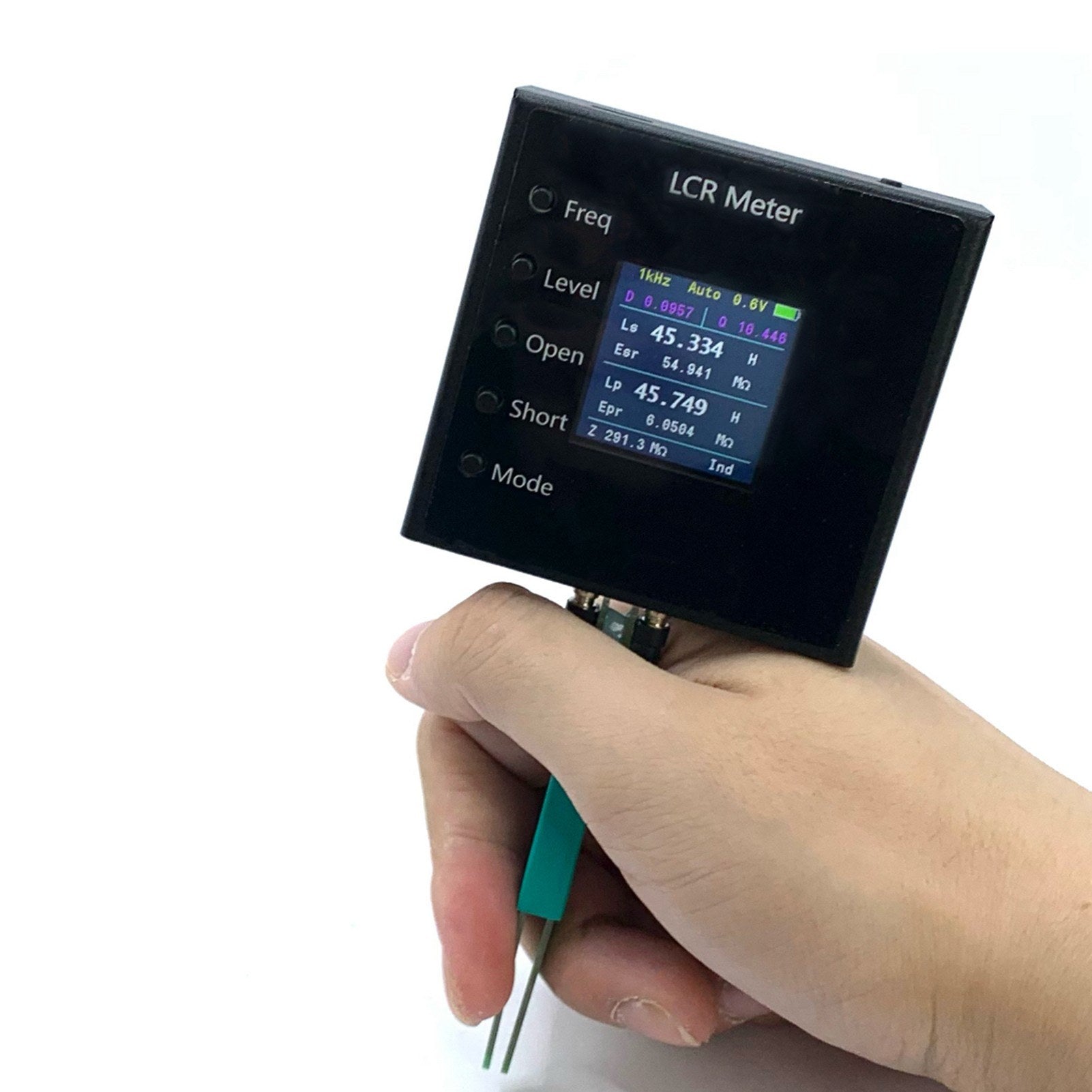

• Equipped with a 1.54-inch color screen and a 1200mAh lithium battery, it is designed for ease of use. The display content can be rotated in four directions to accommodate various usage scenarios.

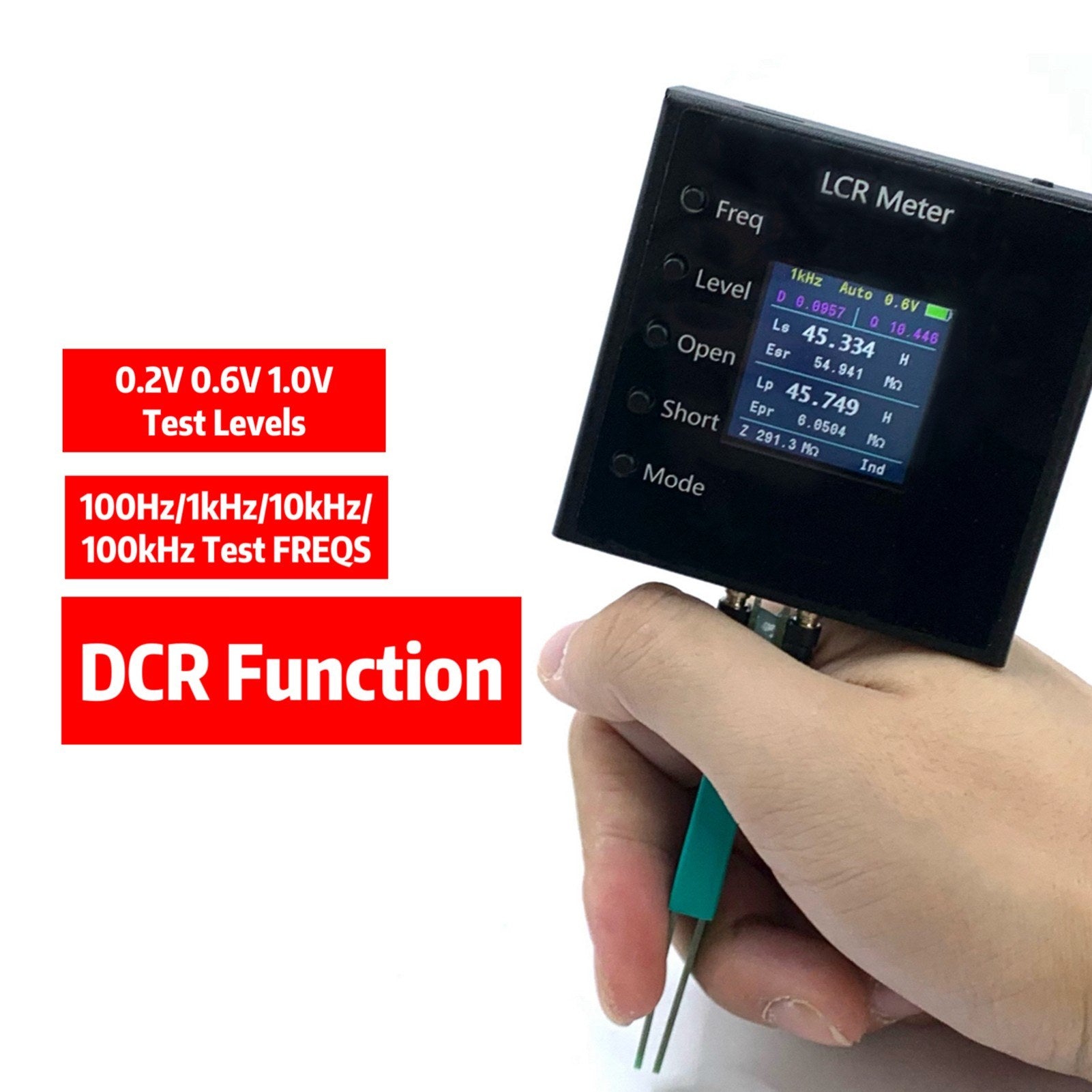

• Supports measurement frequencies of 100Hz, 1kHz, 10kHz, 100kHz, and DCR (0Hz).
• Test levels available: 0.6V, 1V, 0.2V RMS.

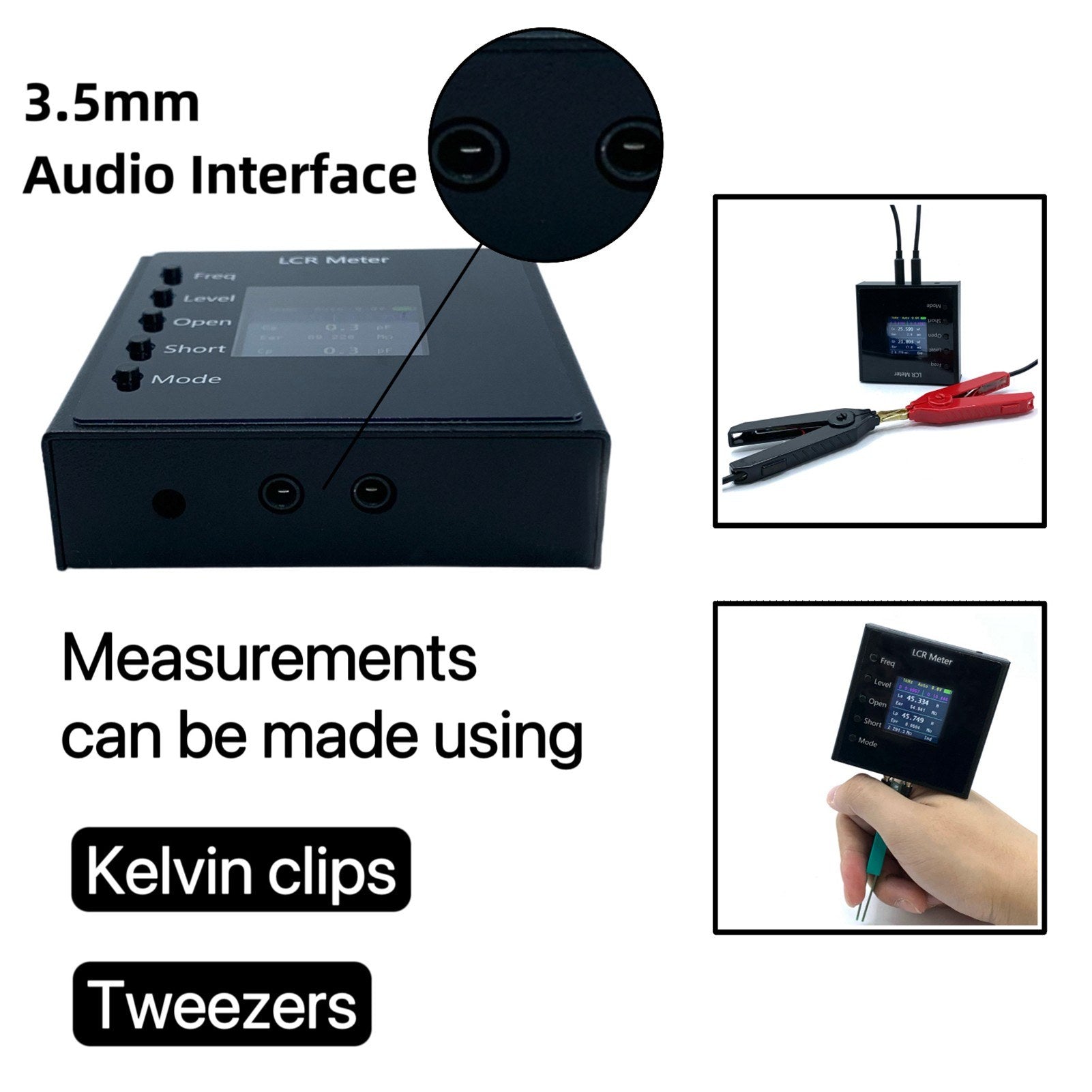

• Features a 3.5MM audio interface for testing with test leads, Kelvin clips (optional), or standard tweezers for fast testing.

Specifications:

• Model: LCR-P1
• Color: Black
• Product Material: Metal Shell
• Connection Method: TYPE-C interface for charging (5V 1A)
• TF Card Support: No
• Battery: Lithium type, 1200mAh capacity, 1 battery included
• Power Supply (external): Not required
• Output: Not applicable
• Capacitance Range: 1pf - 50mF with a resolution of 0.1pf
• Inductance Range: 1uh - 2000H with a resolution of 0.1uh
• Resistance Range: 10mΩ - 20MΩ with a resolution of 0.1mΩ
• Frequency Test: 100Hz, 1kHz, 10kHz, 100kHz, DCR (0Hz)
• Level Test: 0.6V/1V/0.2V RMS
• Display: 1.54-inch color screen
• Power Supply: 1200mAh lithium battery
• Automatic Identification Measurement: Supported

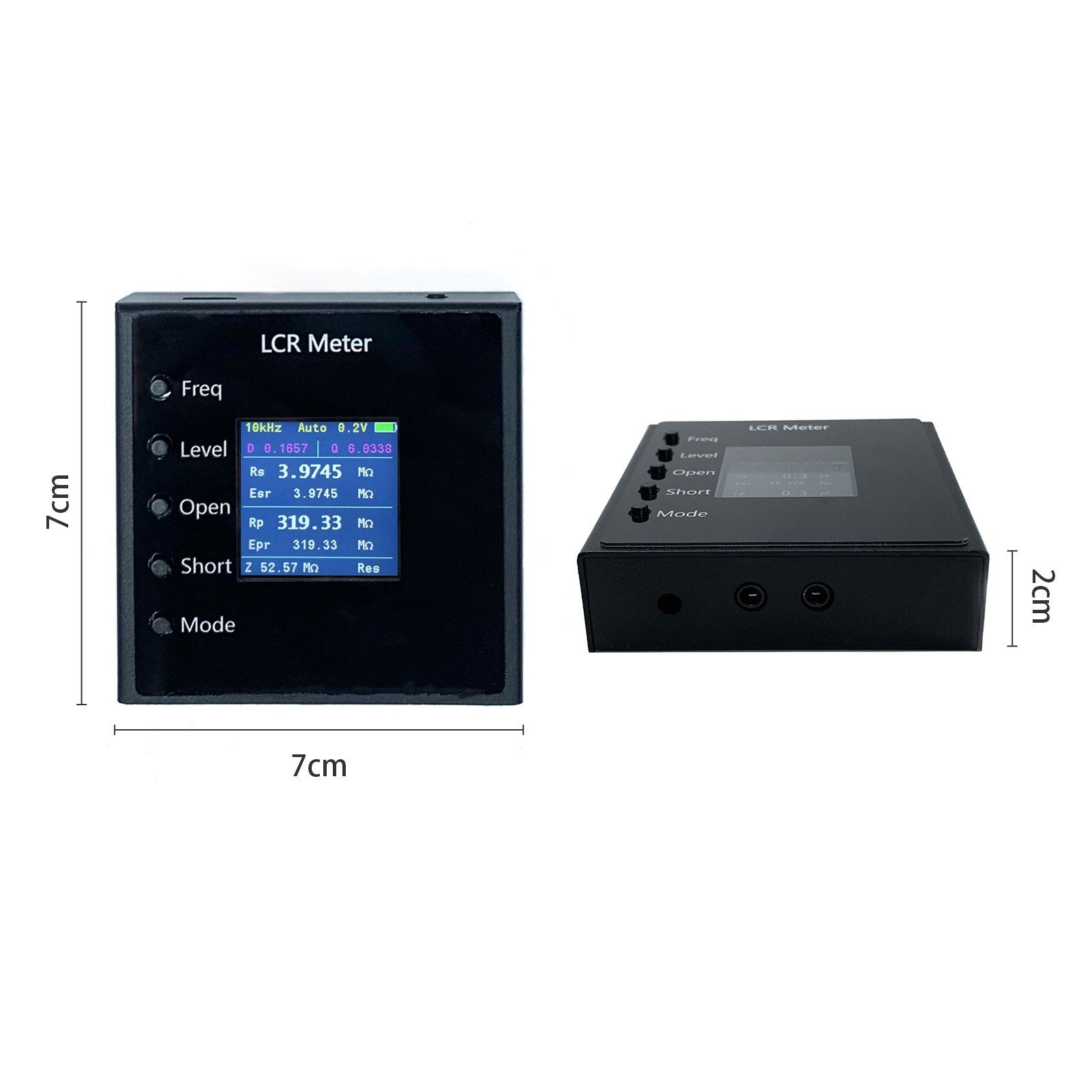

• Product Size: 7 x 7 x 2 cm
• Product Weight: 163g

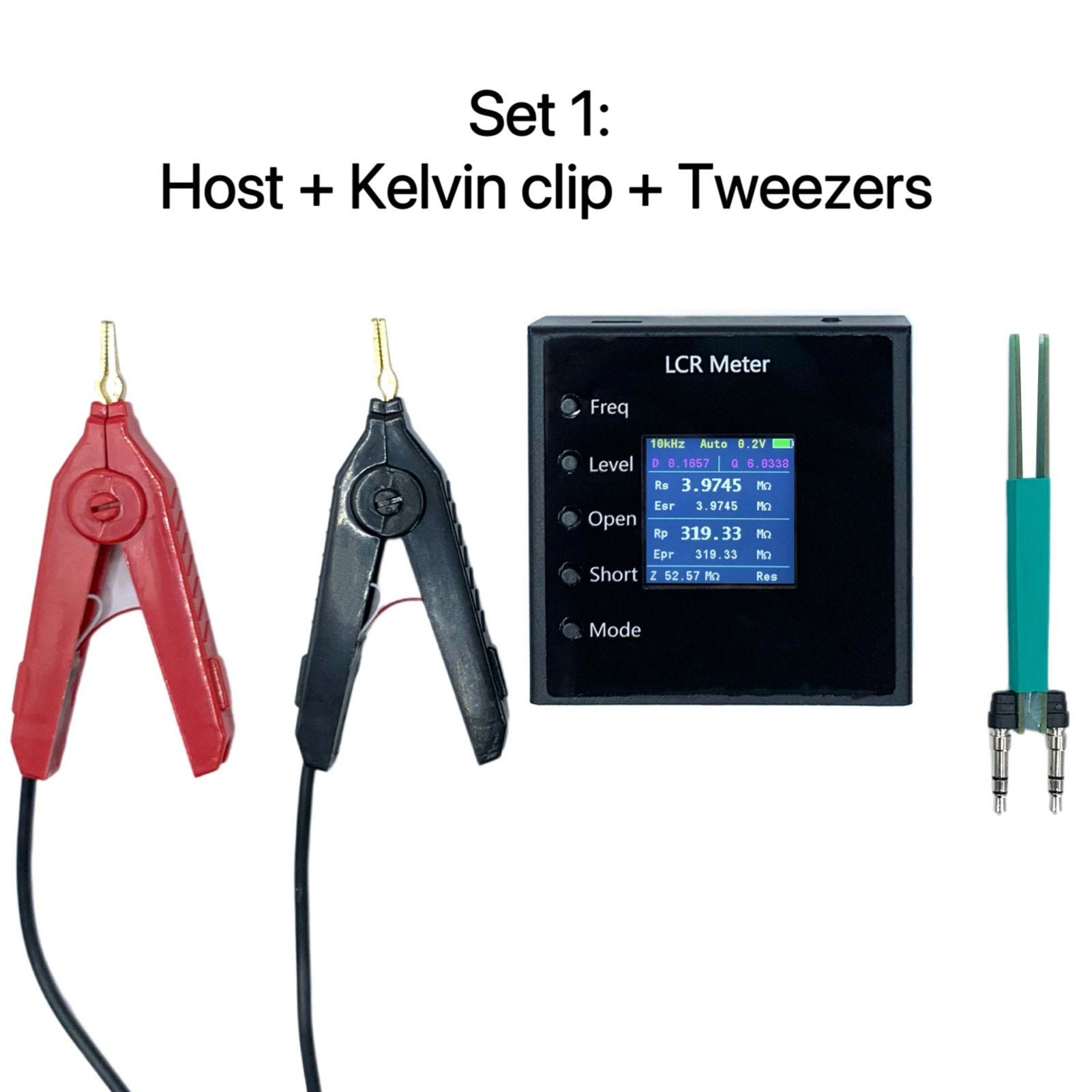

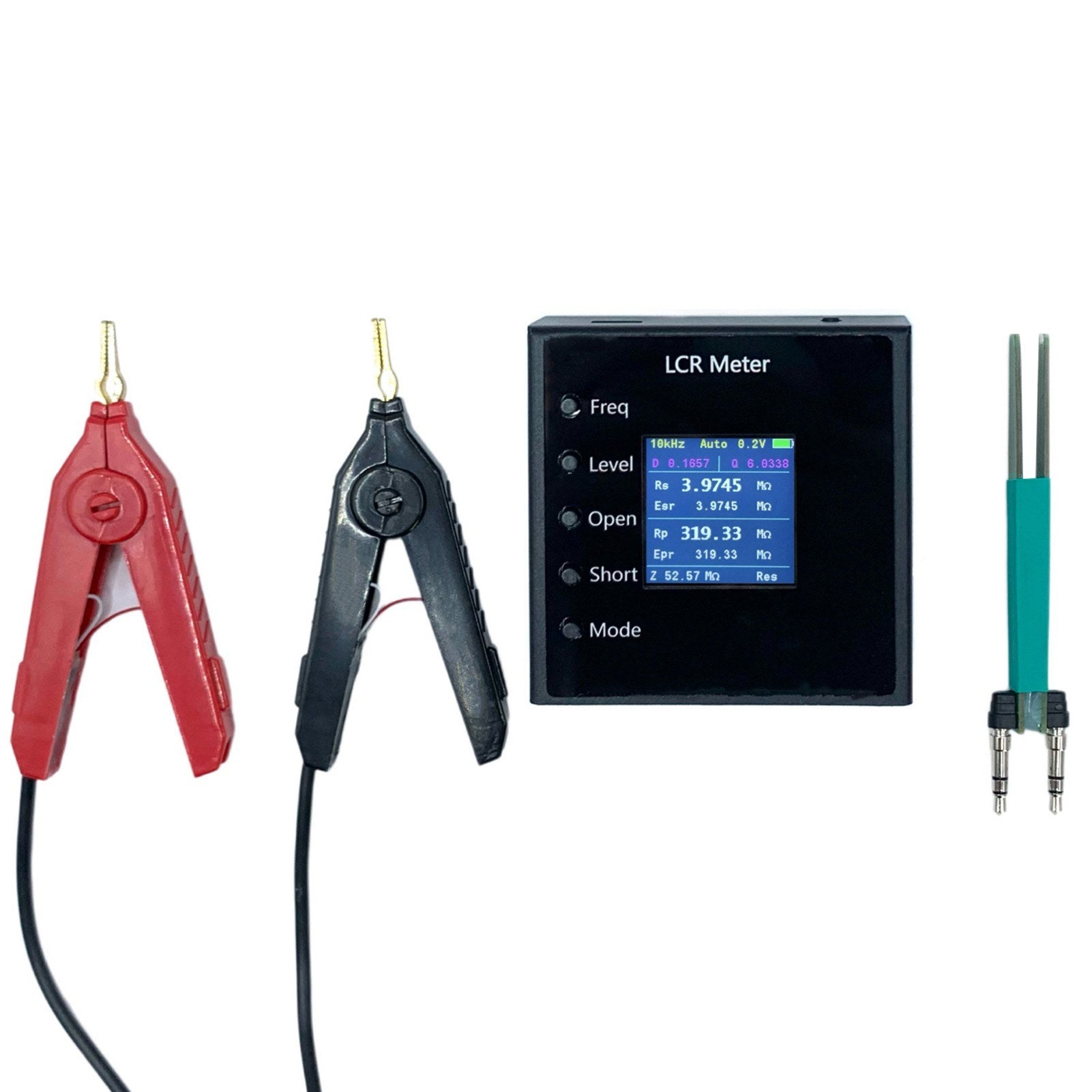

Package List:

• 1 x Host
• 1 x Pair of Kelvin Clips
• 1 x Tweezer
