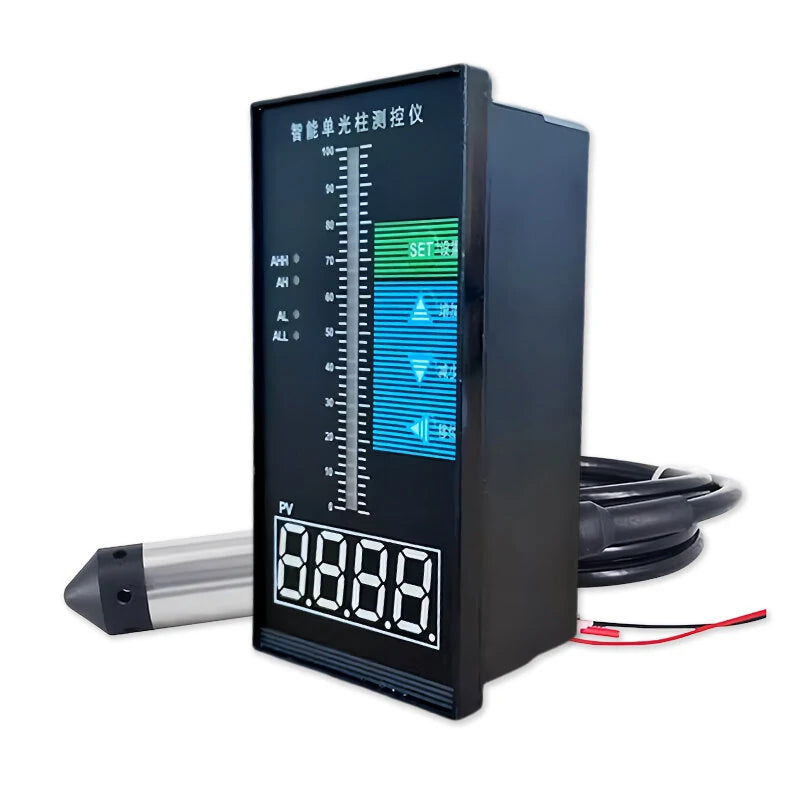

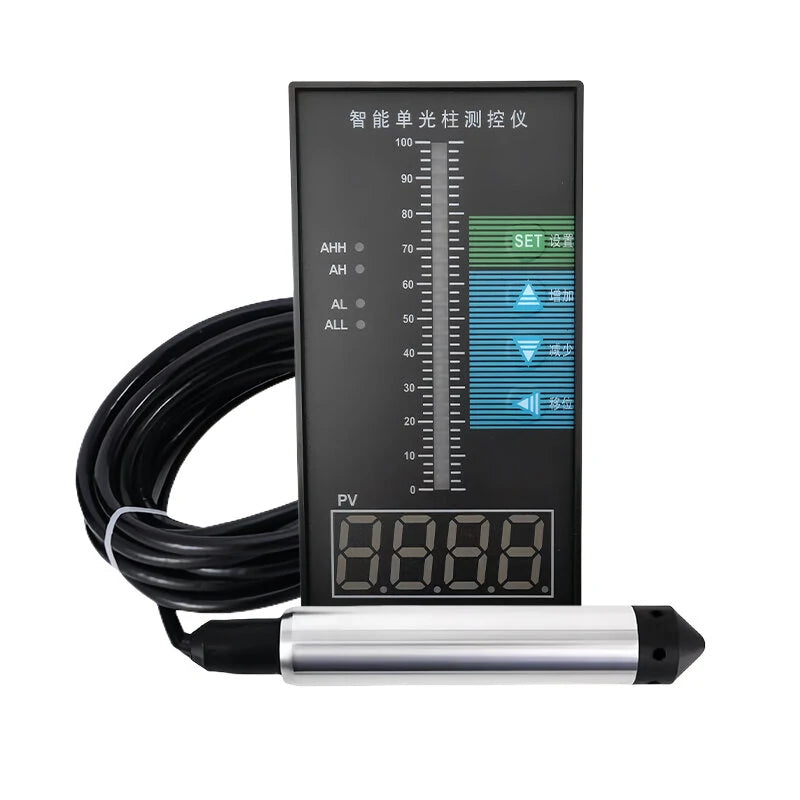

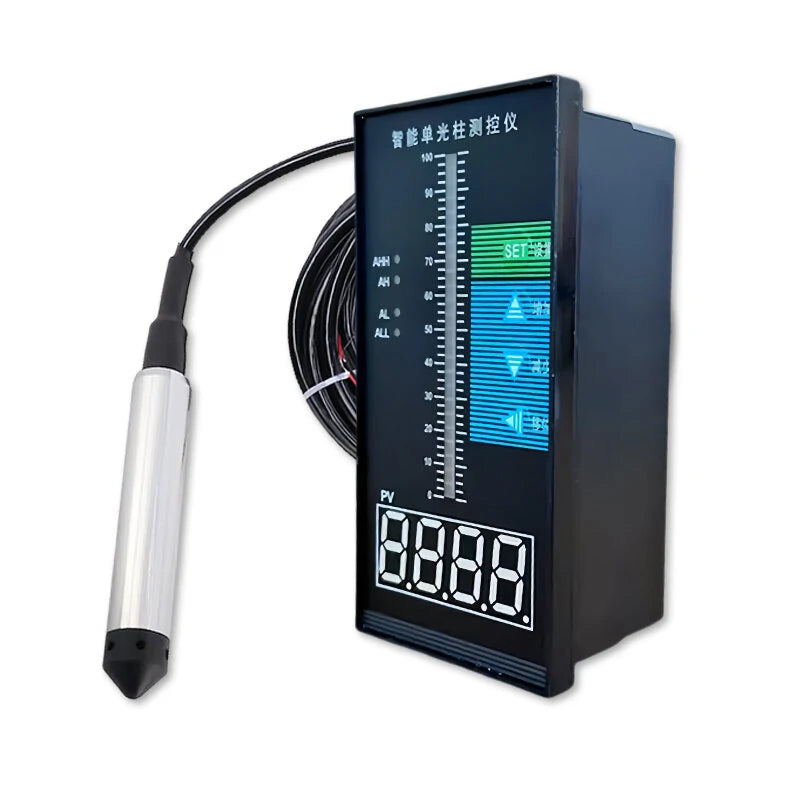

5-Meter Liquid Level Transmitter

Features:

• High Accuracy: Featuring integrated imported chips with a measurement accuracy of 0.5%, this level meter provides precise conversion circuitry and 0.01% linearity for the most accurate results.
• Durable and Anti-clogging Design: With a 3mm pressure hole and filter screen, this level meter is engineered to resist clogging, ensuring longevity and smooth operation.
• IP65 Protection: The product is designed with an IP65 protection rating. It includes a high-quality protective sleeve for joint protection, offering high-density packaging and resistance to penetration for reliable performance in all conditions.
• Fast-Responding and Anti-blocking: Equipped with an integrated probe, it offers quick responses to liquid level changes. The anti-blocking design ensures accurate and consistent measurements.

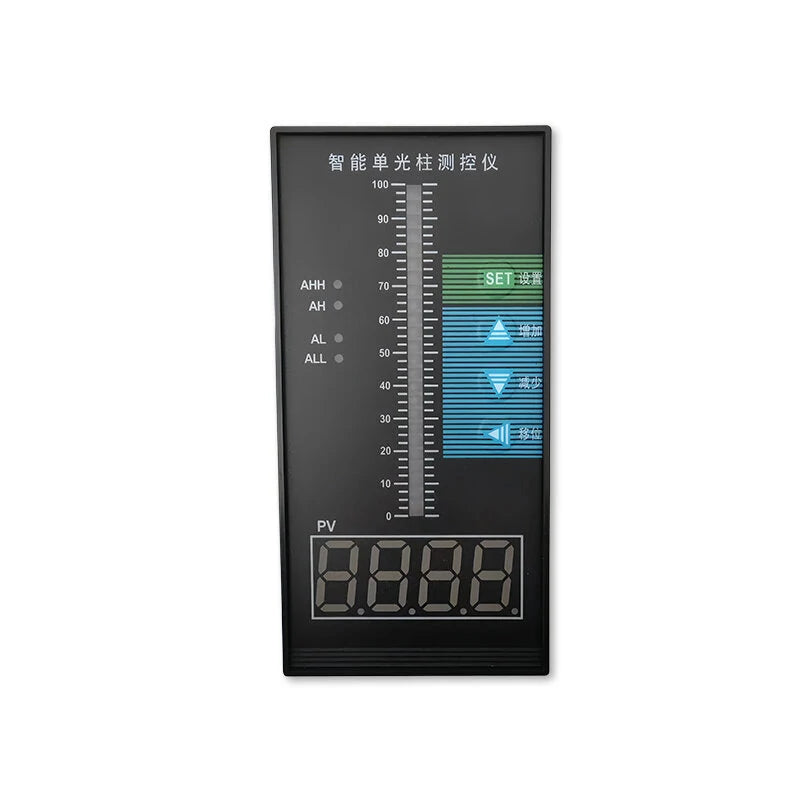

• Advanced LED Display: The high-brightness LED digital display with a high-resolution light column provides clear and intuitive readings of measurement control values.

Specifications:

• Measuring Range: -1999 to 9999
• Measurement Accuracy: 0.5%FS ± 1 word
• Power Supply: 220V (DC24V optional)
• Signal Input: Universal signal
• Control Output: Four-way relay
• Dimensions: 80×160mm
• Opening Size: 76×152mm
• Panel Size: 75x149mm

Package Included:

• 1 x 5-meter Input Type Liquid Level Transmitter
• 1 x High-quality Protective Sleeve
