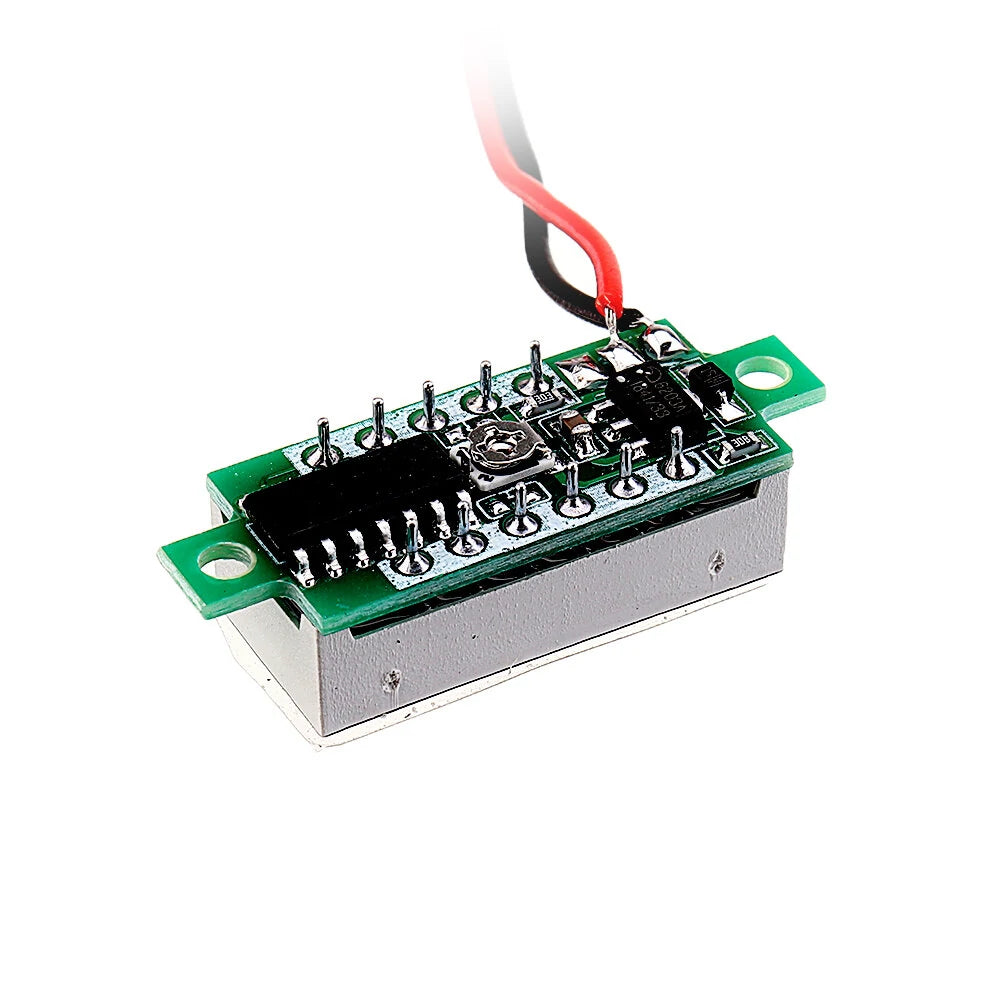

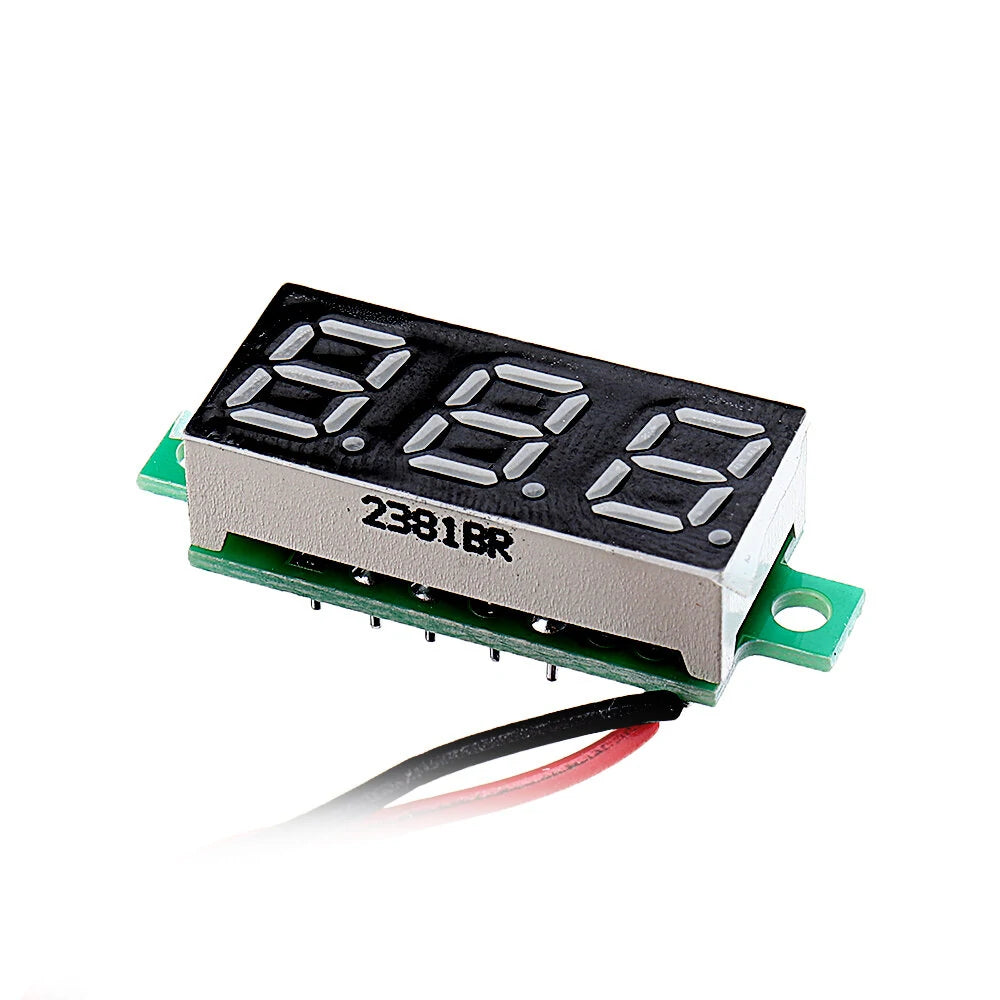

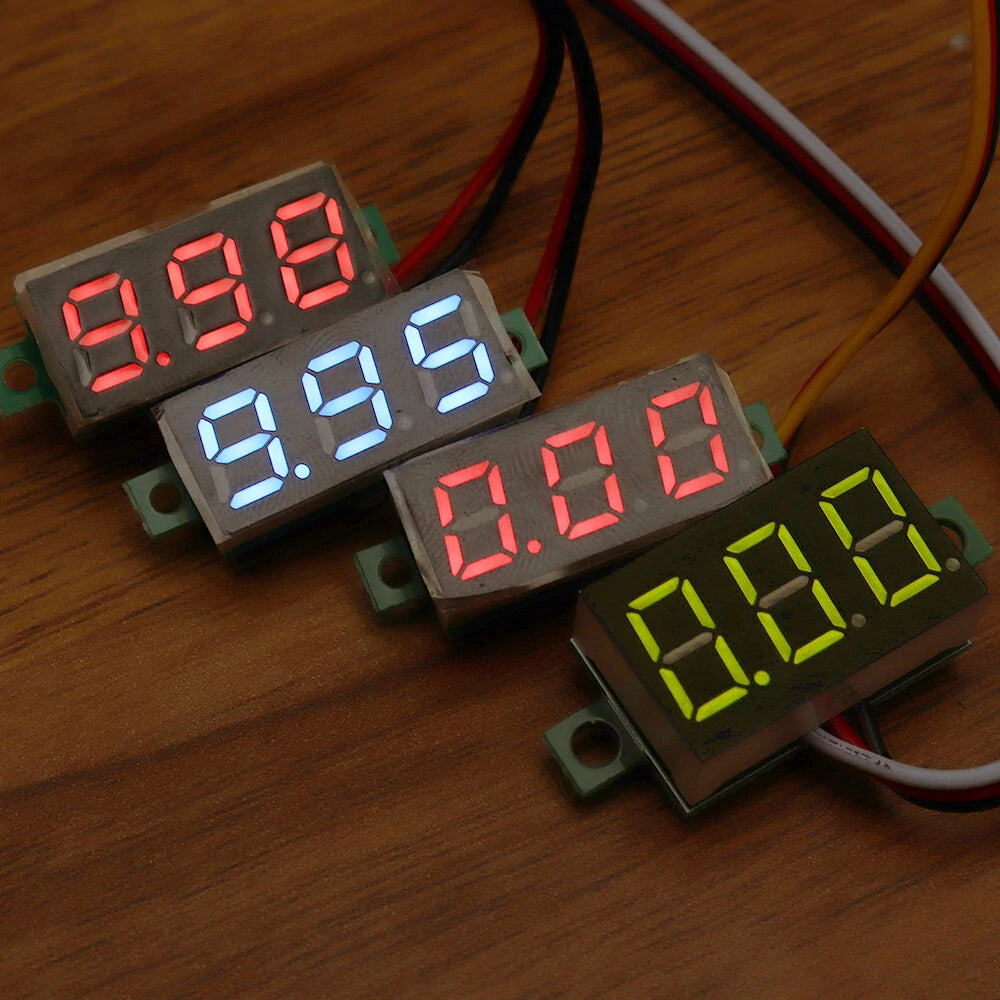

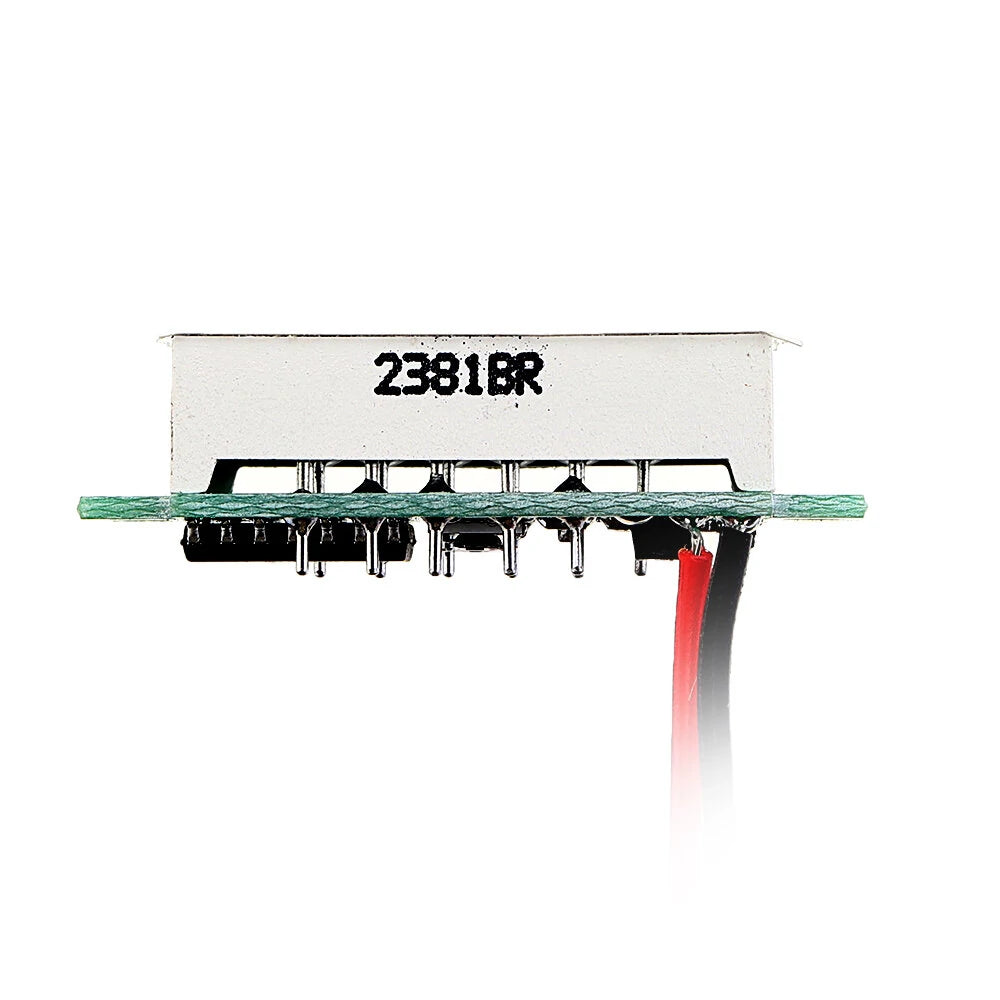

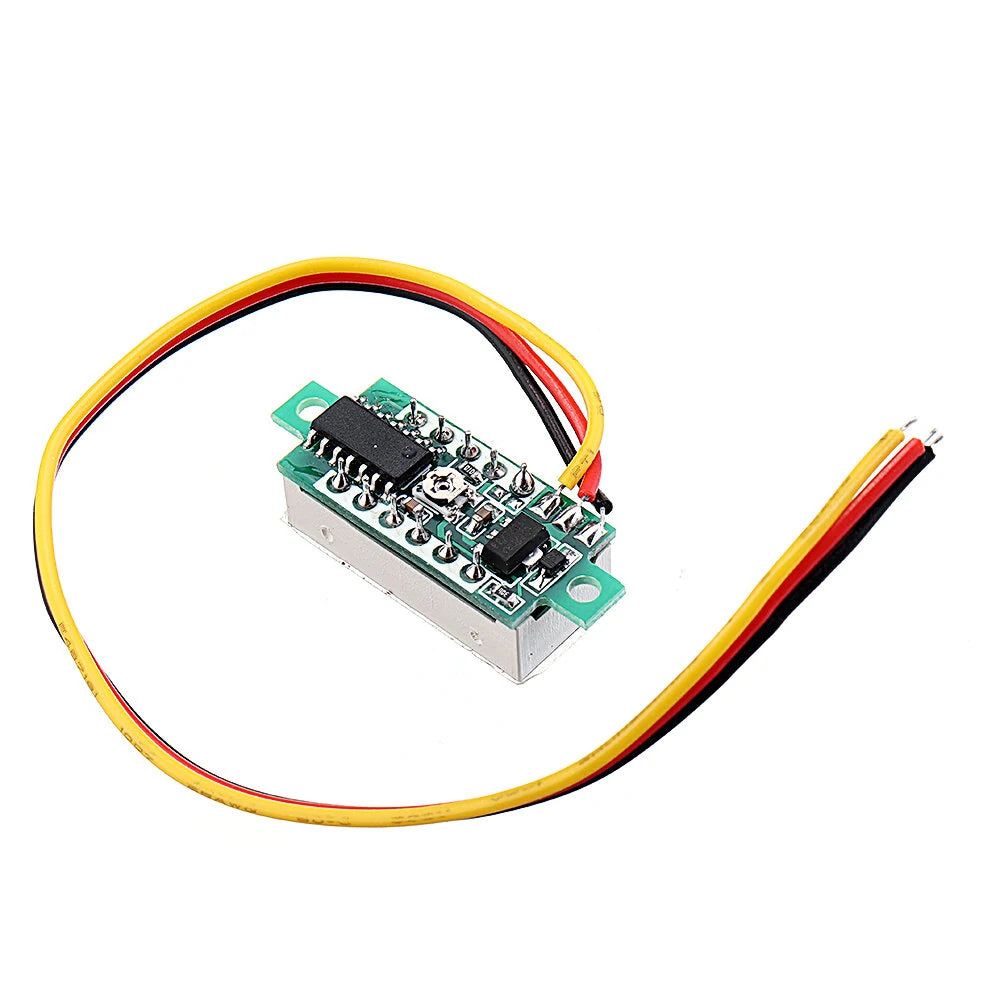

Geekcreit® 0.28 Digital Voltmeter Adjustable DC Voltage Meter, Two-wire 2.5-30V / Three-wire 0-100/500V Display

Product Details

• Feature:
• The wiring of this voltmeter is simple. It uses a conventional two-wire system, where the red wire connects to the positive and the black wire connects to the negative. Protection against reverse connection is ensured.
• No external power supply is generally needed. The voltmeter can directly operate with the measuring voltage. The measuring voltage range is 2.50-30V for two-wire and 0-100V for three-wire connections.
• This voltmeter supports wide voltage operation, with a low safe limit of 2.50V and a maximum up to 40V. Voltages exceeding 40V may cause damage.
• When measuring voltages below 10V, two decimal places are displayed. For voltages above 10V, only one decimal place is shown.

Specifications:

• Measuring Range: Two-wire DC 2.50~32.0V / Three-wire DC 0-100V
• Power Supply Range: No need to supply power separately.
• Test Accuracy: ±1%. For >10V, error ±0.1V
• Input Resistance: >50KΩ
• Working Current: Not specified
• Refresh Rate: Approximately 100ms
• Display Specification: Three-digit 0.28 LED digital tubes
• Lead Length: Default 20cm
• Dimensions: 30 x 11.5 x 9 mm
• Hole Size: Pitch: 26mm, Aperture: 2.4mm
• Net Weight: 4g
• Operating Temperature: -10 to +80°C
• Working Humidity: 10 to 80%
• Working Pressure: 80 to 106 kPa

Package Includes:

• 1 x Voltage Meter
