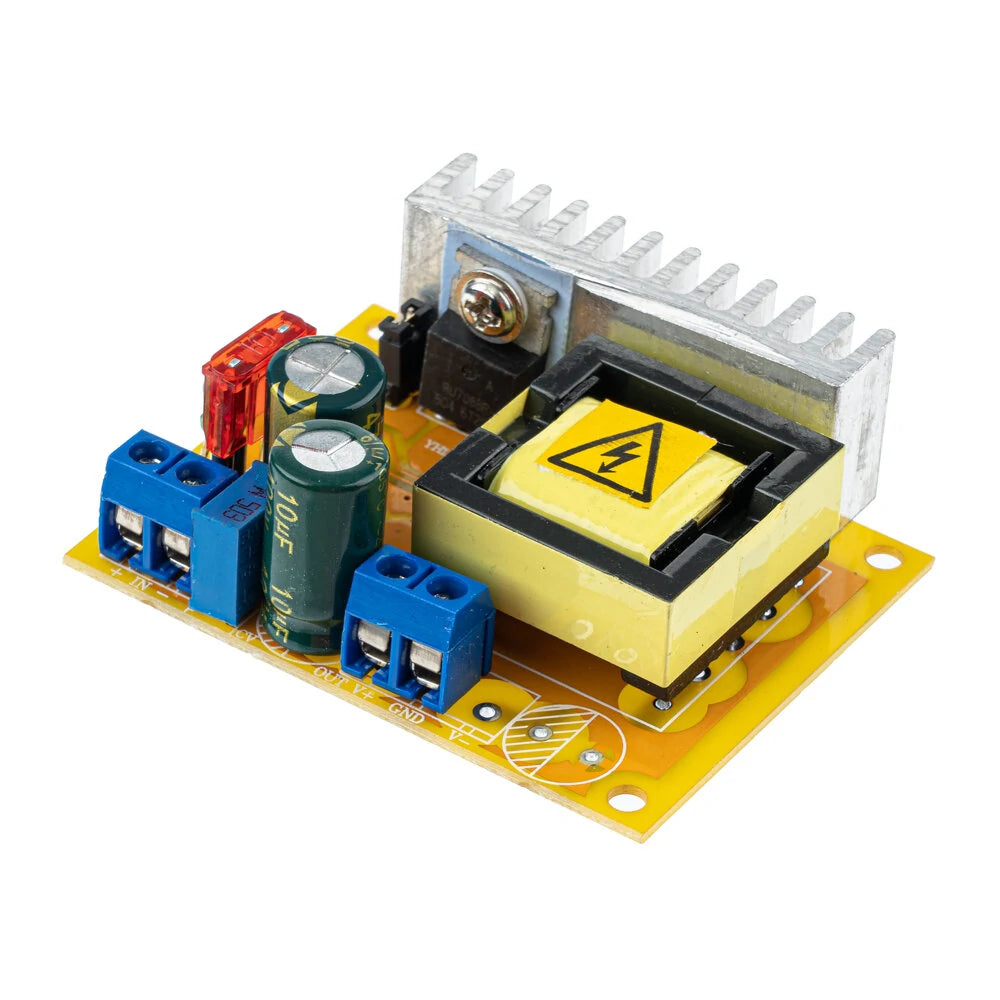

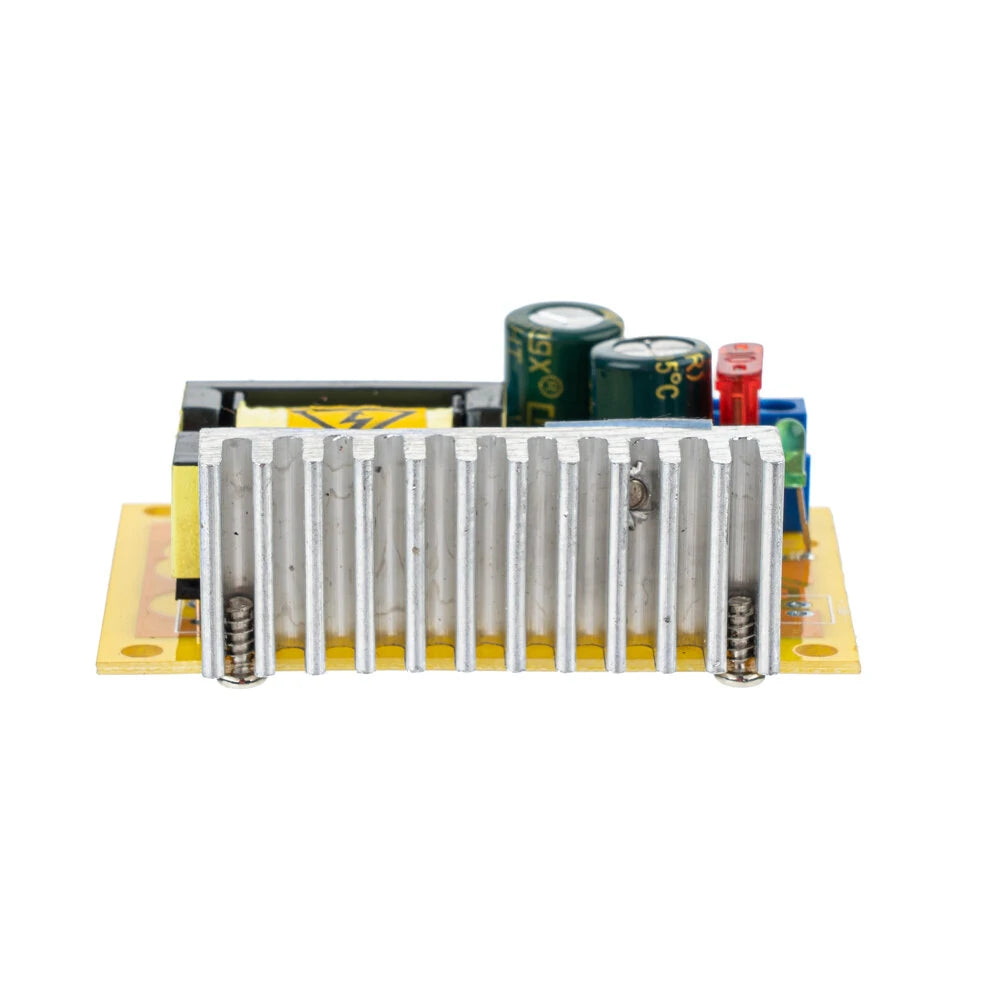

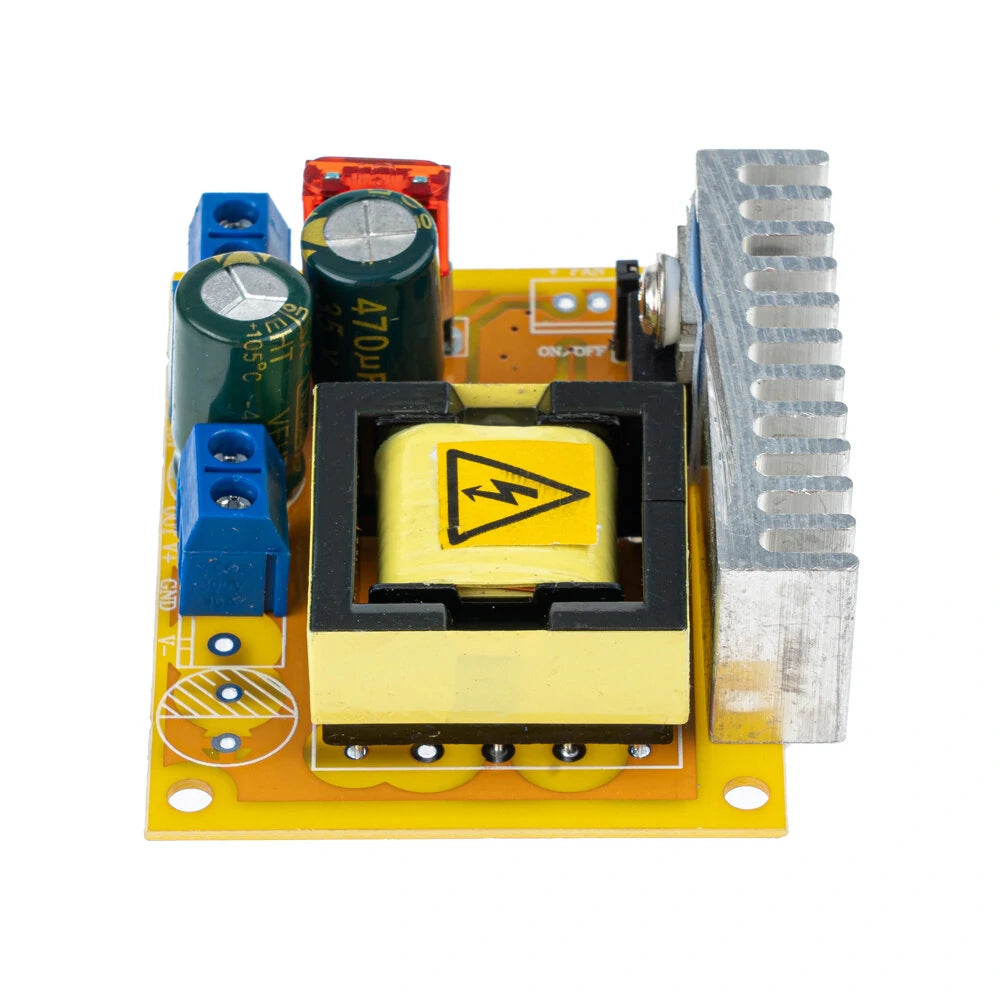

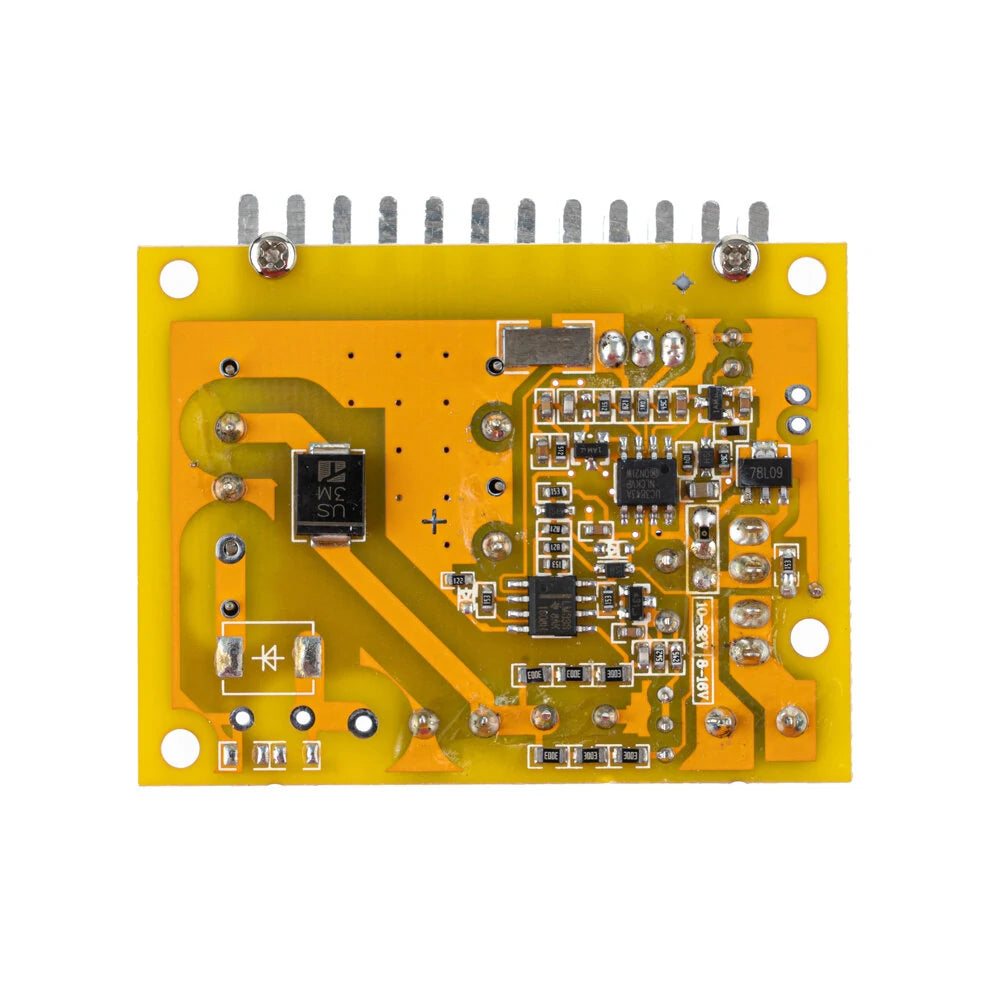

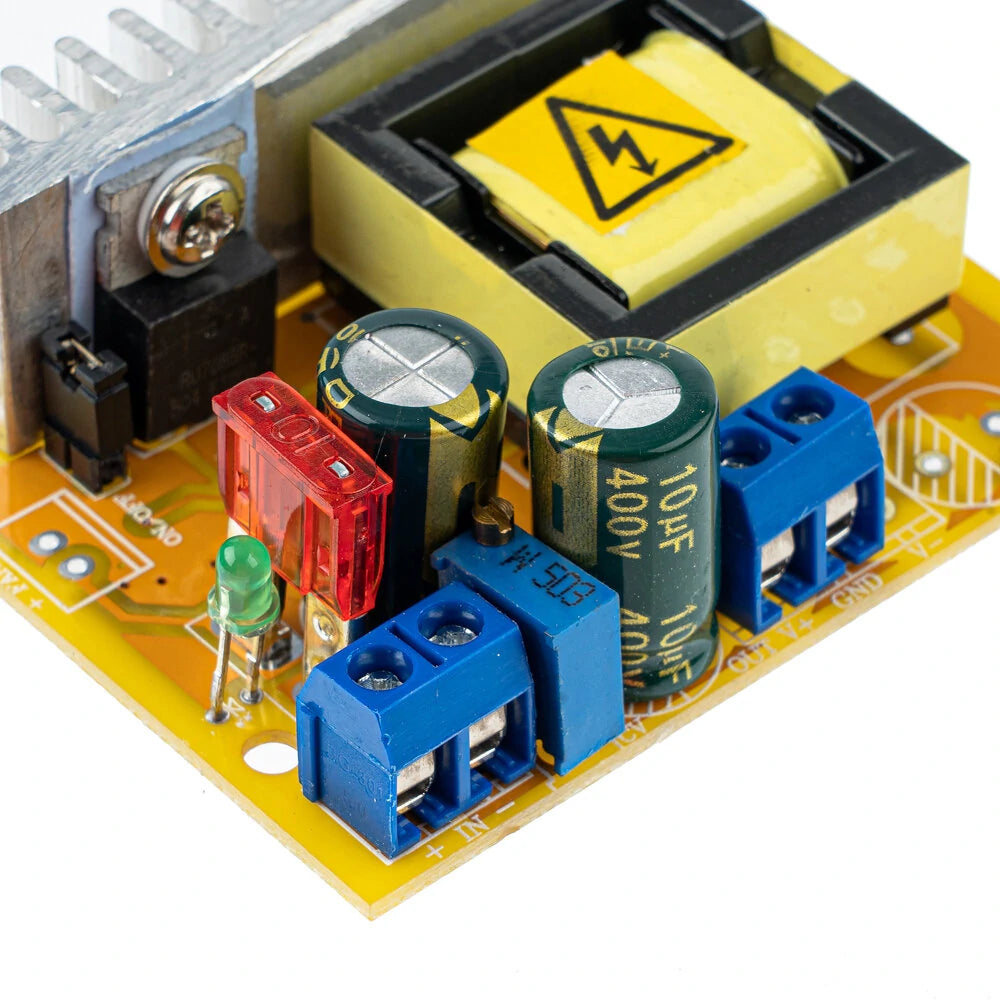

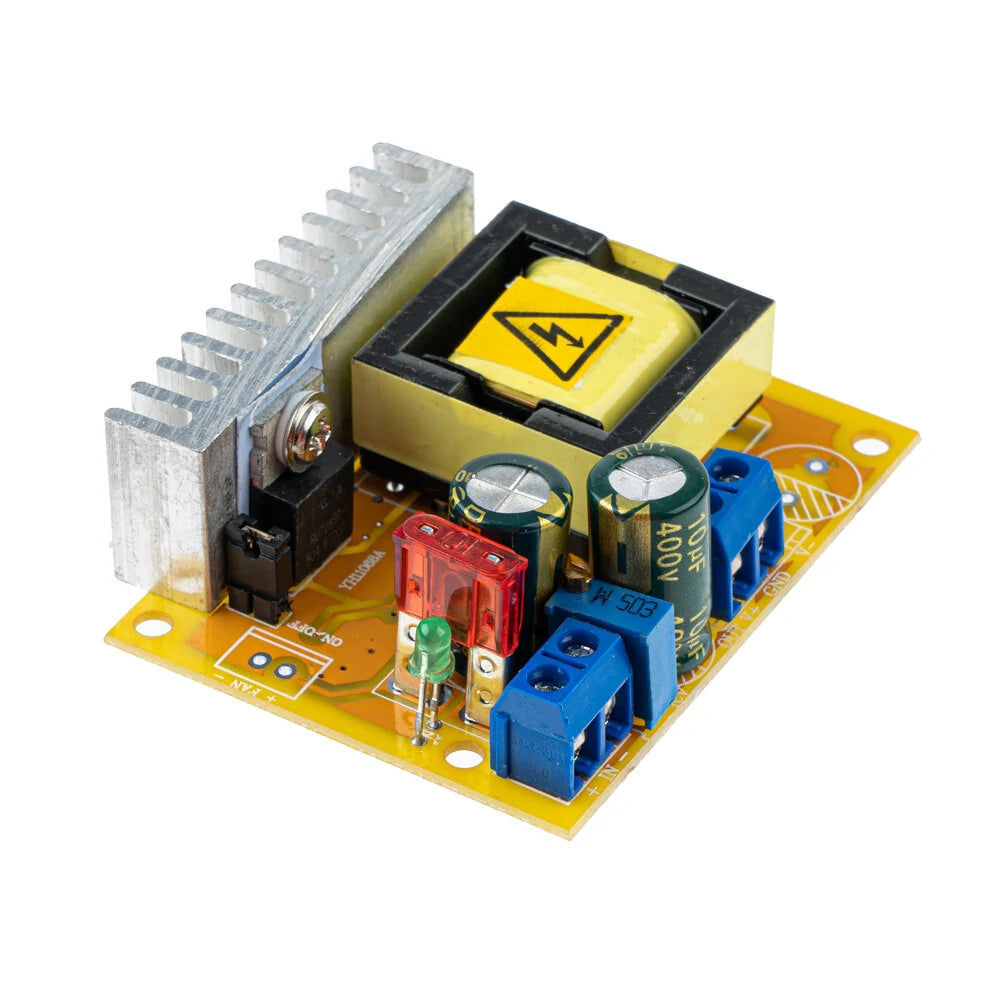

High Voltage Boost Module

Module Parameters:

• Module Name: High Voltage Boost Module
• Module Properties: Non-isolated step-up module
• Input Voltage: 8-32V (Default: 10-32V)
• Input Current: Maximum 5A
• Quiescent Current: 15mA (12V to 50V; current increases with output voltage)
• Output Voltage: +45~390V, continuously adjustable (Default: 50V)
• Output Current: Maximum 0.2A (Dependent on input/output voltage)
• Output Power: 40W (Peak: 70W)
• Working Temperature: -40℃ to 85℃ (Enhance heat dissipation if needed)
• Operating Frequency: 75KHz
• Conversion Efficiency: Up to 88% (Efficiency varies with input/output conditions)
• Short Circuit Protection: Yes
• Over Current Protection: Yes (Reduces output voltage if input current exceeds 4.5A)
• Overvoltage Protection: Yes (Lowers output voltage if it exceeds 410V)
• Input Reverse Polarity Protection: Yes (Non-self-healing; avoid reversing connections)
• Installation: Secured with four 3mm screws
• Wiring: Free welding output terminals

Applications:

• Capacitor charging and electromagnetic gun power supply
• Power supply for electronic devices with customizable output voltage
• Pressure test power source
• Hunting and rodent eradication

Package Includes:

• 1 x High Voltage Boost Module
