Raspberry Pi PICO RP2040 with 1.3 LCD Game HAT Display & Audio Buzzer

Product Description

This kit combines the RP2040-PiZero board with a 1.3-inch game console. It's perfect for creating Raspberry Pi PICO RP2040 projects, such as game consoles and digital photo albums.

Specifications

RP2040-PiZero Board

• Powered by the RP2040 microcontroller chip designed by Raspberry Pi.
• Dual-core ARM Cortex M0+ processor with a flexible clock running at 133MHz.
• Includes 264KB of SRAM and 16MB of on-chip Flash storage.
• On-board DVI interface to drive HD screens (DVI interface required).
• Features an onboard PIO-USB interface for USB master and slave functionality.
• Includes an onboard Micro SD card holder for reading and writing Micro SD cards.
• On-board lithium battery charging and discharging interface for mobile use.
• USB1.1 host and device support.
• Drag-and-drop program download, recognized as mass storage via USB.
• Supports low-power sleep and hibernation modes.
• Includes 2 SPI, 2 I2C, 2 UART, 4 12-bit ADC, and 16 PWM channels.
• Accurate on-chip clock and timer.
• Built-in temperature sensor.
• On-chip accelerated floating-point library.
• Eight programmable I/O (PIO) state machines for custom peripheral support.

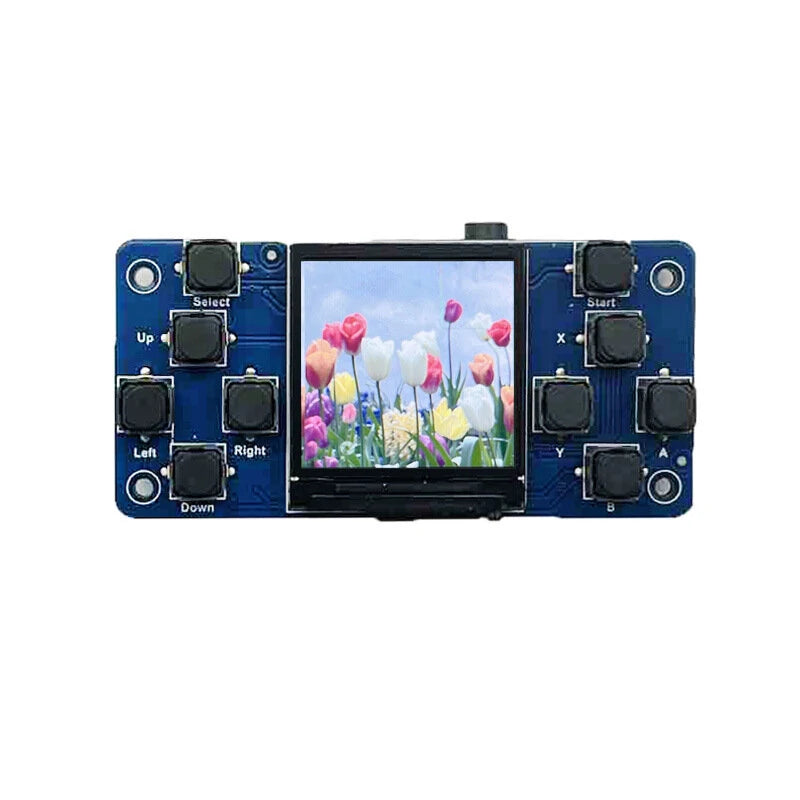

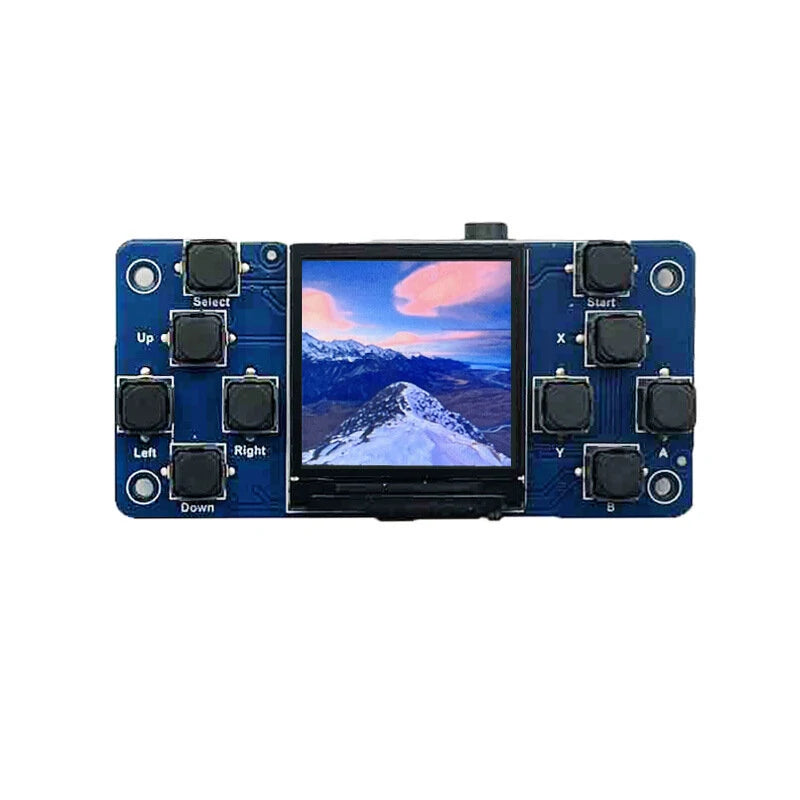

1.3-Inch Game Hat

• Working voltage: 3.3V
• Interface: SPI
• LCD type: TFT
• Display controller: ST7789V
• Resolution: 240 x 240
• PWM audio output: includes buzzer and headphone port
• 12 keys for input

Features

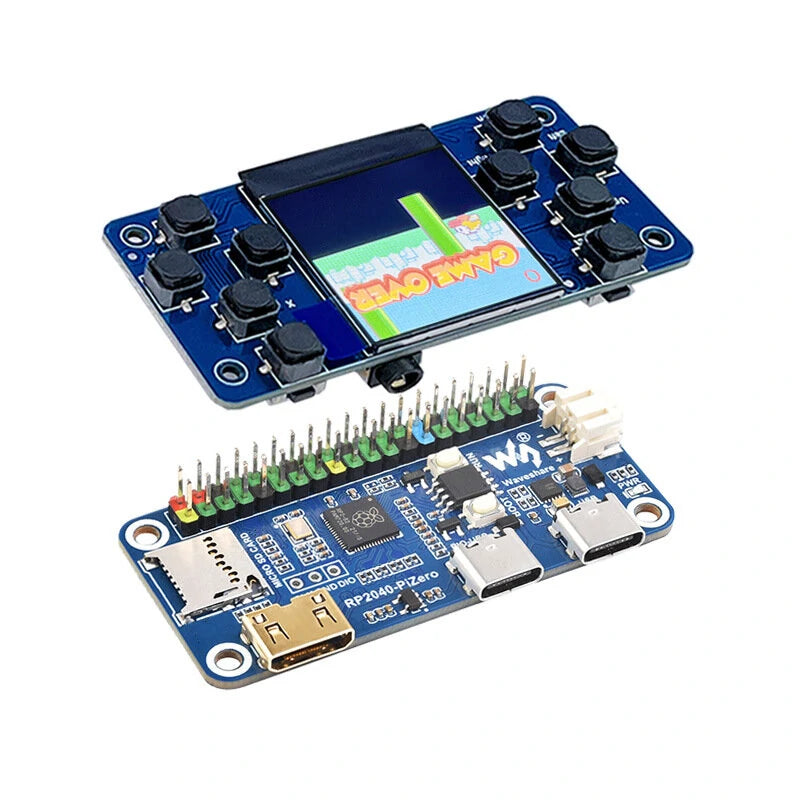

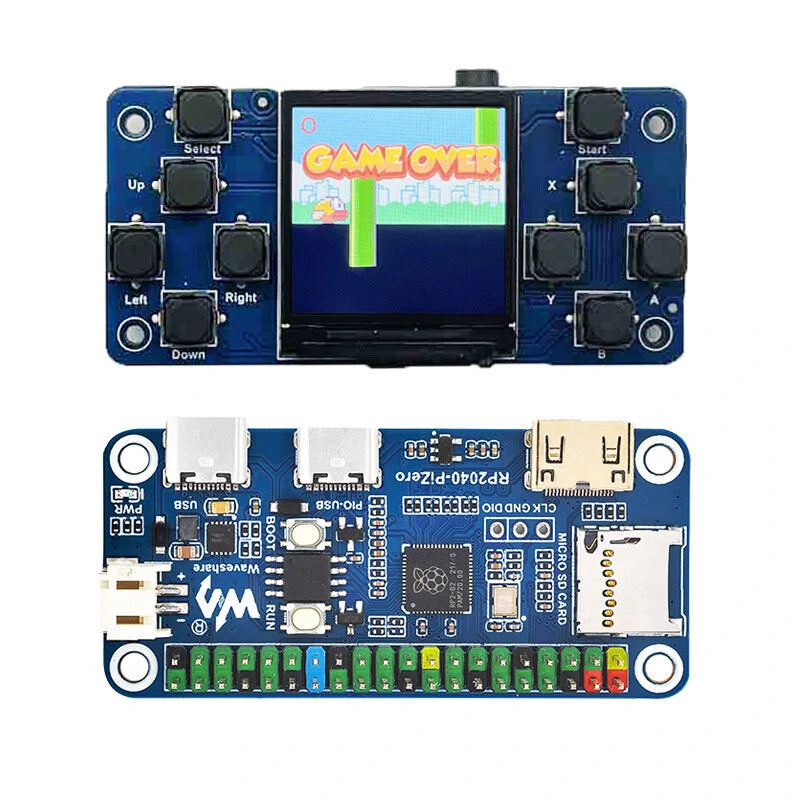

• This product is a kit, including two components: the RP2040-PiZero and the 1.3-inch game console.
• Ideal for Raspberry Pi PICO RP2040 projects, such as gaming and digital photo frames.
• The 1.3-inch game console is compatible with RP2040-PiZero and can also be used with Raspberry Pi Zero.

Package Includes

• 1 x 1.3-inch RP2040-PiZero board
• 1 x Expanding board

Note: The RP2040-PiZero is not a Raspberry Pi Zero, so it cannot run Linux. It is designed for use with the Raspberry Pi PICO RP2040 board.
