NanoVNA-F V2 Vector Network Analyzer 50kHz-3GHz V5.0, 4.3 IPS LCD, S-A-A-2 Antenna Analyzer for HF VHF UHF

Description

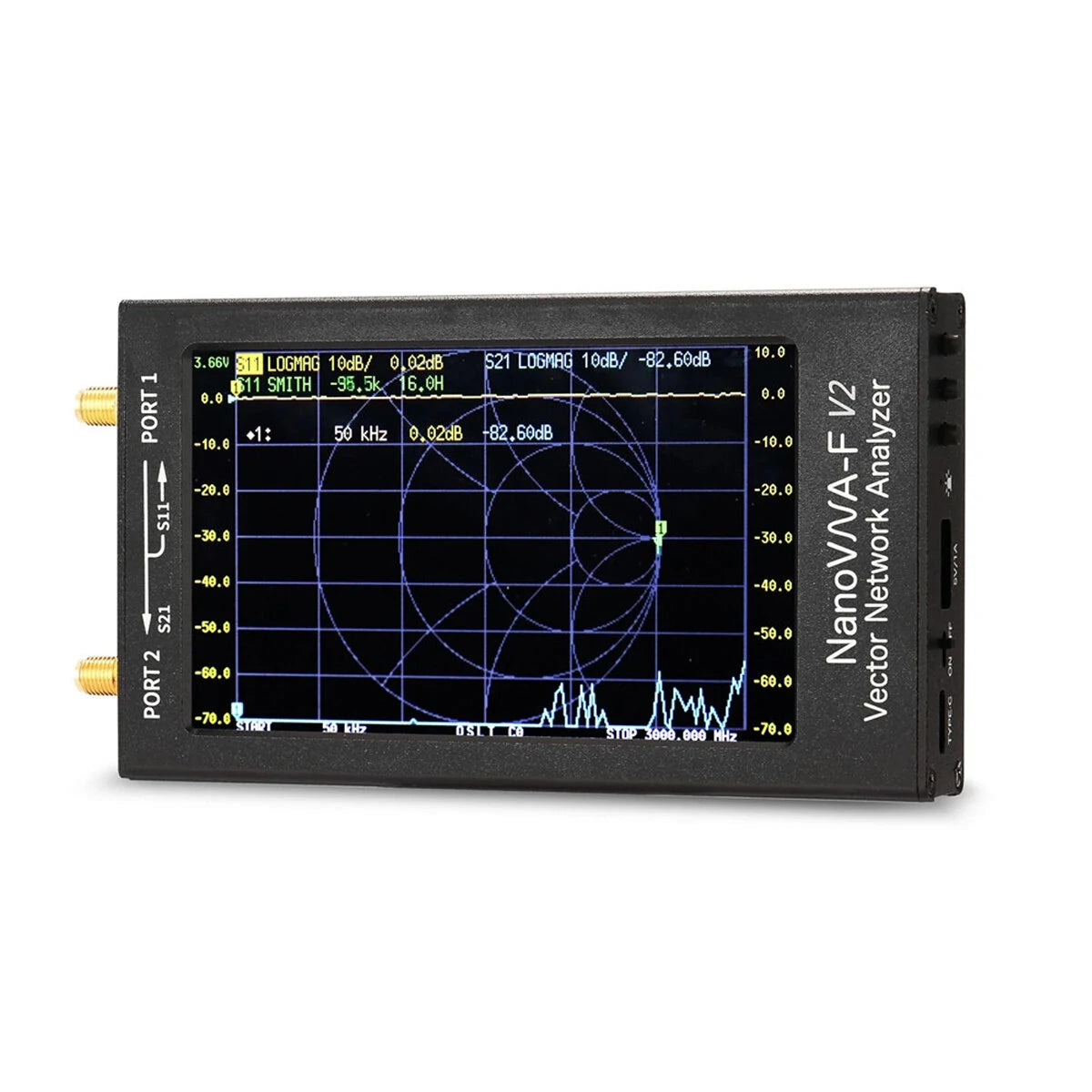

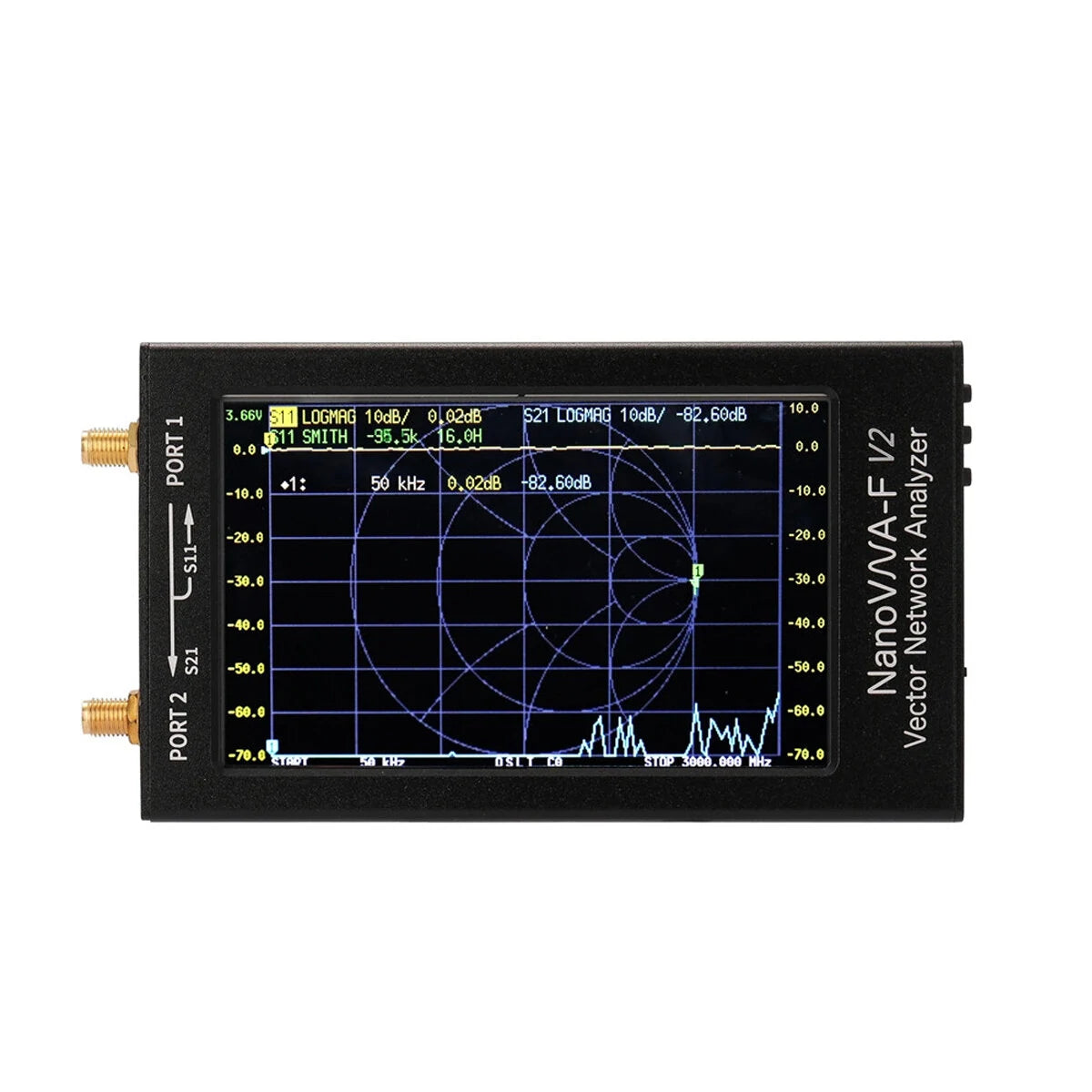

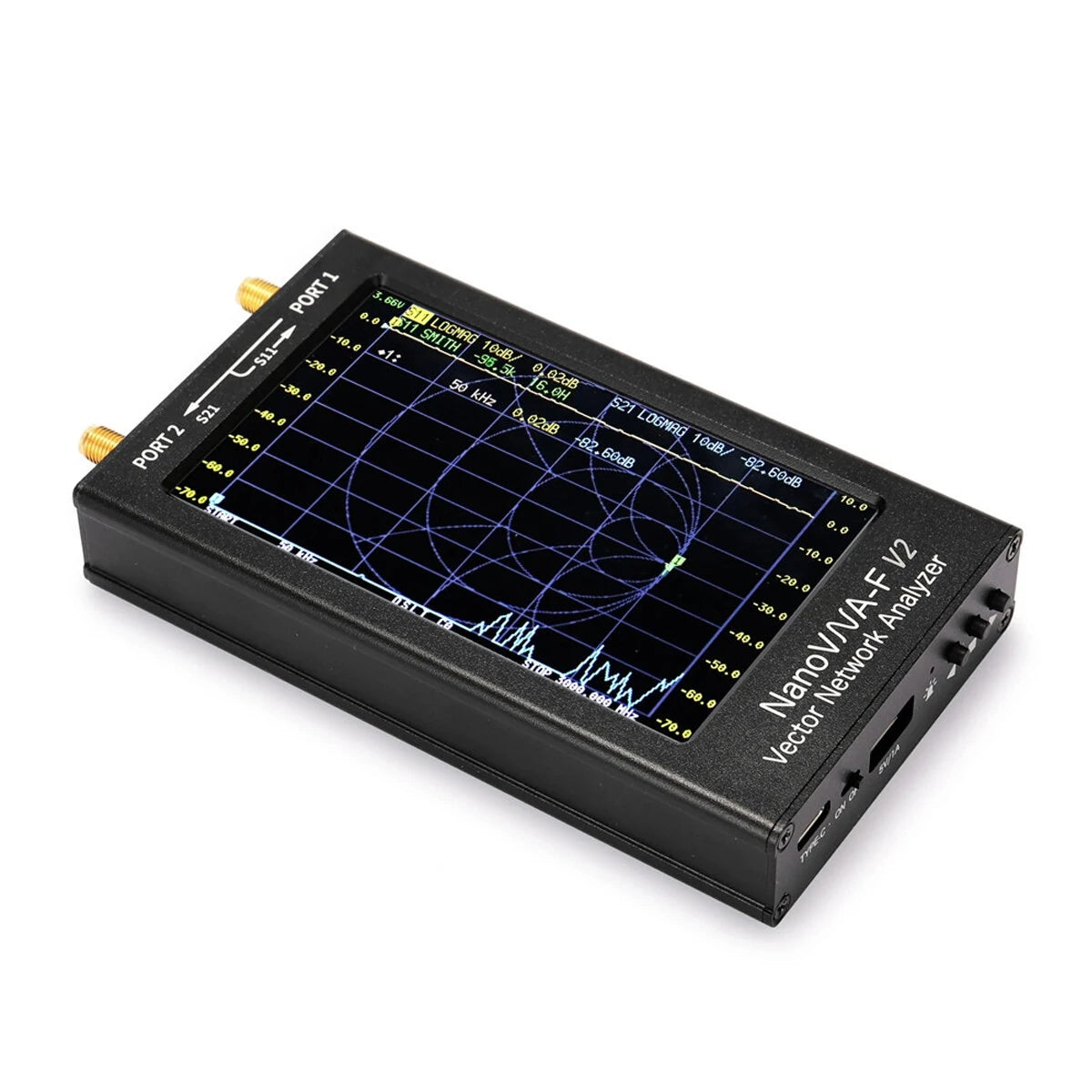

The NanoVNA-F V2 Portable Vector Network Analyzer is a sophisticated tool designed to enhance your measurement capabilities. With its modern 4.3-inch IPS LCD display and durable aluminum alloy casing, it combines cutting-edge technology with robust design. The device features a high-capacity 5000mAh lithium battery, ensuring long-lasting operation. Its user-friendly interface supports both touch screen and side button operations, and is available in both Chinese and English.

Developed from the NanoVNA-F foundation with advancements in both hardware and software, the NanoVNA-F V2 extends the measurement range to 3GHz with improved dynamic and measurement accuracy. The interface is fully compatible with its predecessor, NanoVNA-F, ensuring an easy transition for existing users.

Features

• 4.3-inch IPS LCD display with 800x480 resolution for crisp, clear viewing.
• Sturdy aluminum alloy case effectively shields against electromagnetic interference.

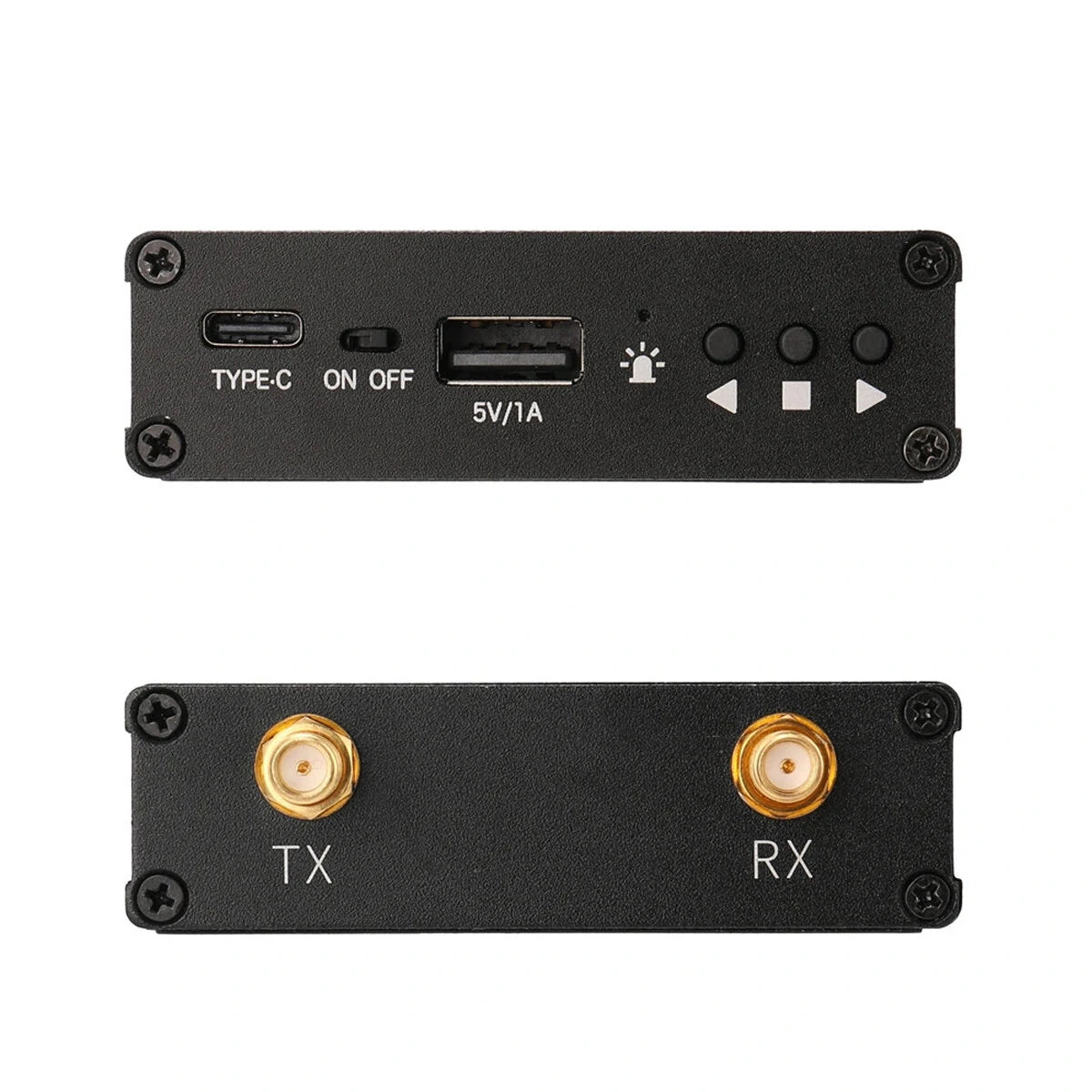

• SMA radio frequency interface for easy connection to various components.
• Full touch screen with additional side buttons for flexible operation.
• Supports dual-language interface (Chinese and English).
• Optimized user interface for easy measurement operations.
• Adjustable screen brightness for user comfort.
• Firmware upgradable via USB Type-C data cable – no programmer required.
• High-quality calibration parts and RG405 phase-stable cable included for precise calibration.
• USB power output interface supports 5V/1A power output.
• 2A high-current recharging IC for faster charging times.
• Compatible with host computer software supporting Chinese and English interfaces.

Functionality

This versatile device measures S parameters, voltage standing waves ratio, Smith chart, phase, group delay, and more.

Specifications

• Material: Aluminum alloy (case)
• Main Color: Black
• Battery: 1 x 5000mAh lithium battery
• Frequency Range: 50kHz to 3GHz
• RF Output Power: -9dBm (error within 1GHz: ±1dB)
• Frequency Accuracy: ±1dB within 1GHz
• S21 Dynamic Range: 70dB (1.5GHz), 60dB (3GHz)
• S11 Dynamic Range: 50dB (1.5GHz), 40dB (3GHz)
• 2-Port Return Loss: Typical 20dB (1.5GHz), Minimum 13dB (3GHz)
• Number of Calibration Points: 101
• Number of Scanning Points: 101
• Number of Traces: 4
• Number of Mark Points: 4 (adjustable on-screen)
• USB Interface: USB Type-C, CDC (serial) communication mode
• Settings Save: 5 groups (automatically recalled upon restart)
• Supports calibration result interpolation without recalibration needed after frequency adjustments.
• Scan Time: Approximately 1.9 seconds per full frequency band sweep (50kHz-3000MHz)

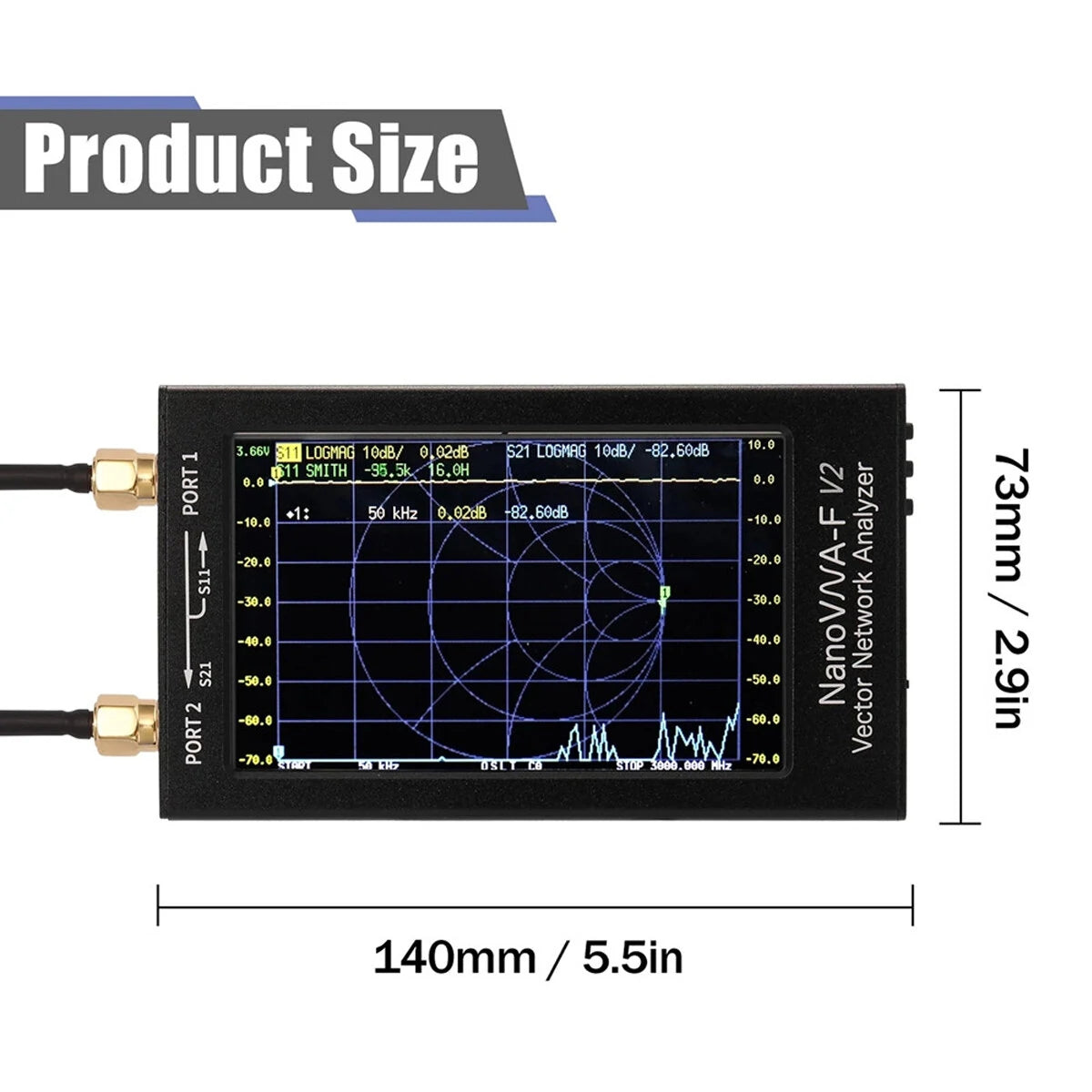

• Item Dimensions: 140 x 73 x 20mm / 5.5 x 2.9 x 0.8 inches
• Item Weight: 270g / 9.5 ounces
• Packing Size: 250 x 150 x 50mm / 9.8 x 5.9 x 2.0 inches
• Packing Weight: 500g / 1.1 pounds

Package Includes

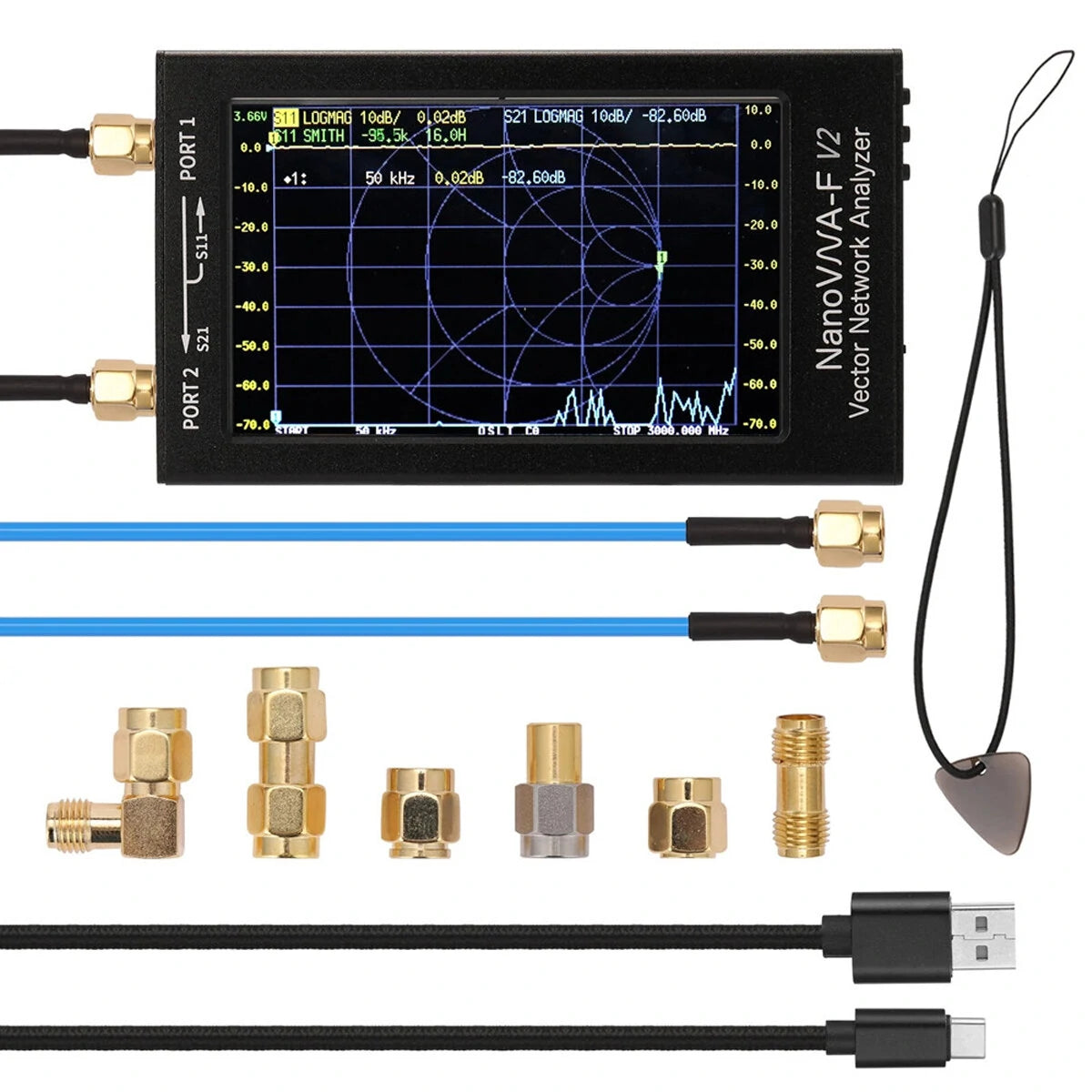

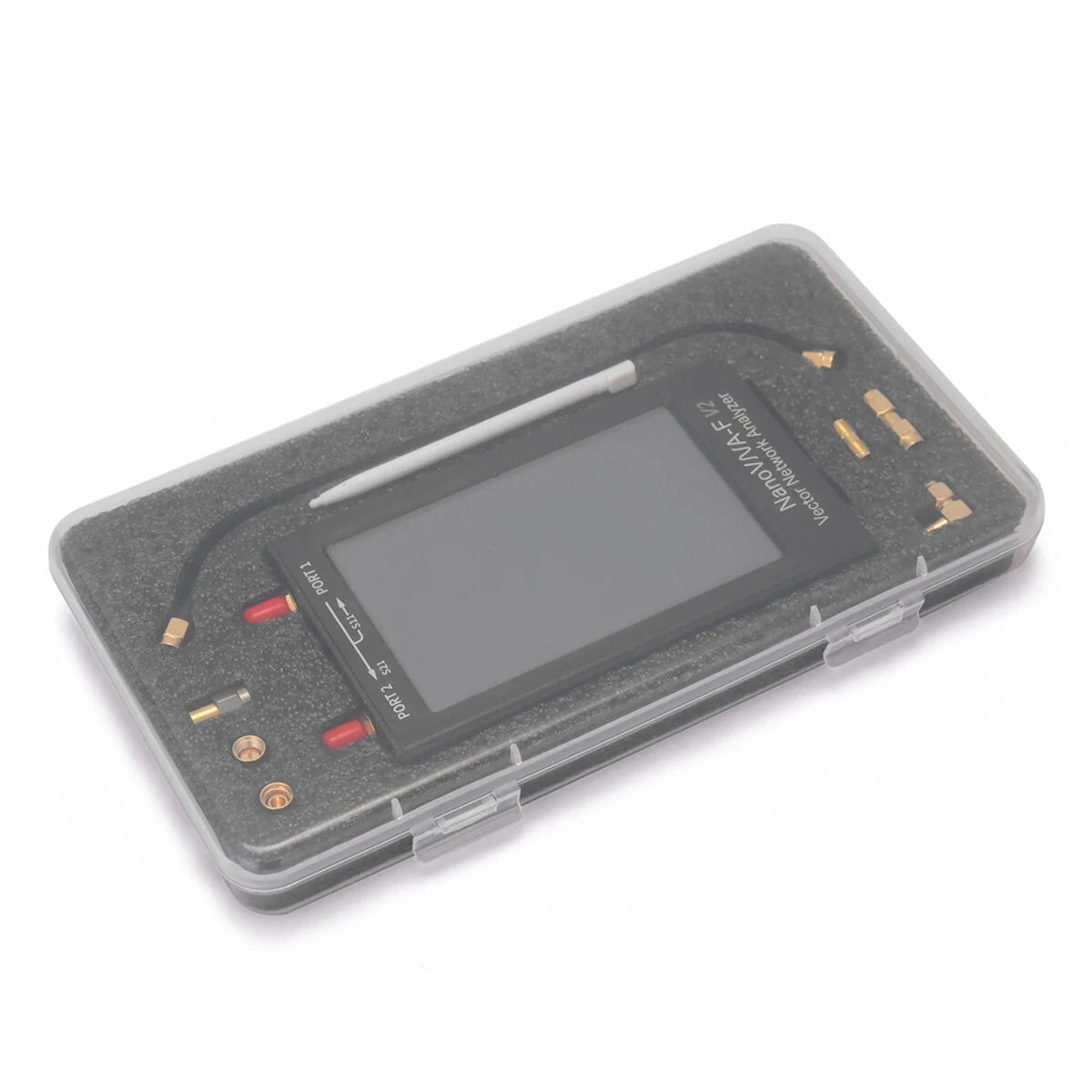

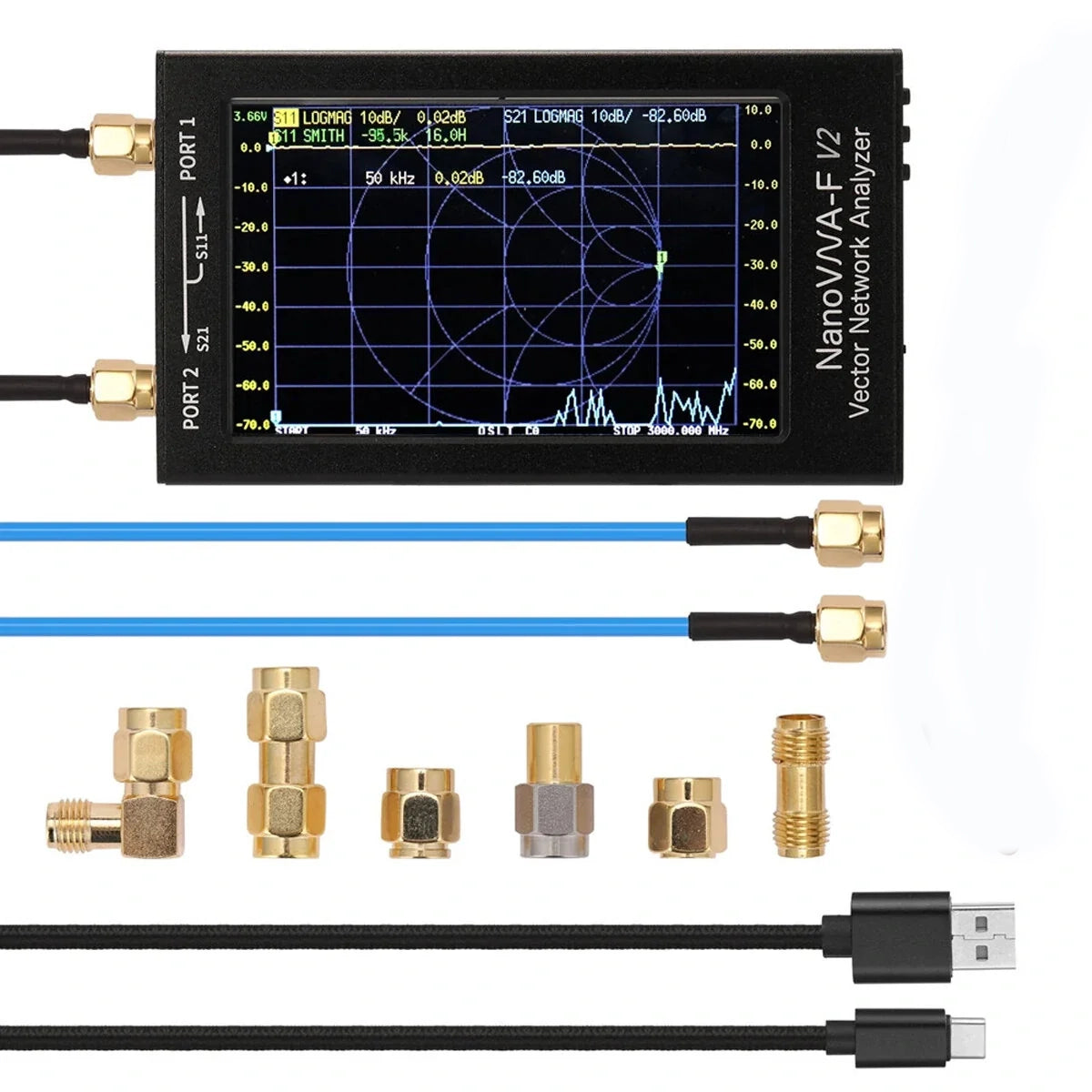

• 1 x Host
• 1 x SMA Open Calibration Kit
• 1 x SMA Short-circuit Calibration Kit
• 1 x SMA 50Ω Load Calibration Kit
• 1 x SMA-KK Double-Head Female Hole Adapter
• 1 x SMA-JJ Double-Head Male Pin Adapter
• 1 x SMA-JKW Elbow Outer Screw Inner Hole To Inner Screw Inner Needles Adapter
• 2 x 200mm SMA-JJ RG405 RF Cable
• 1 x USB Type-C Data Cable
• 1 x Stylus
