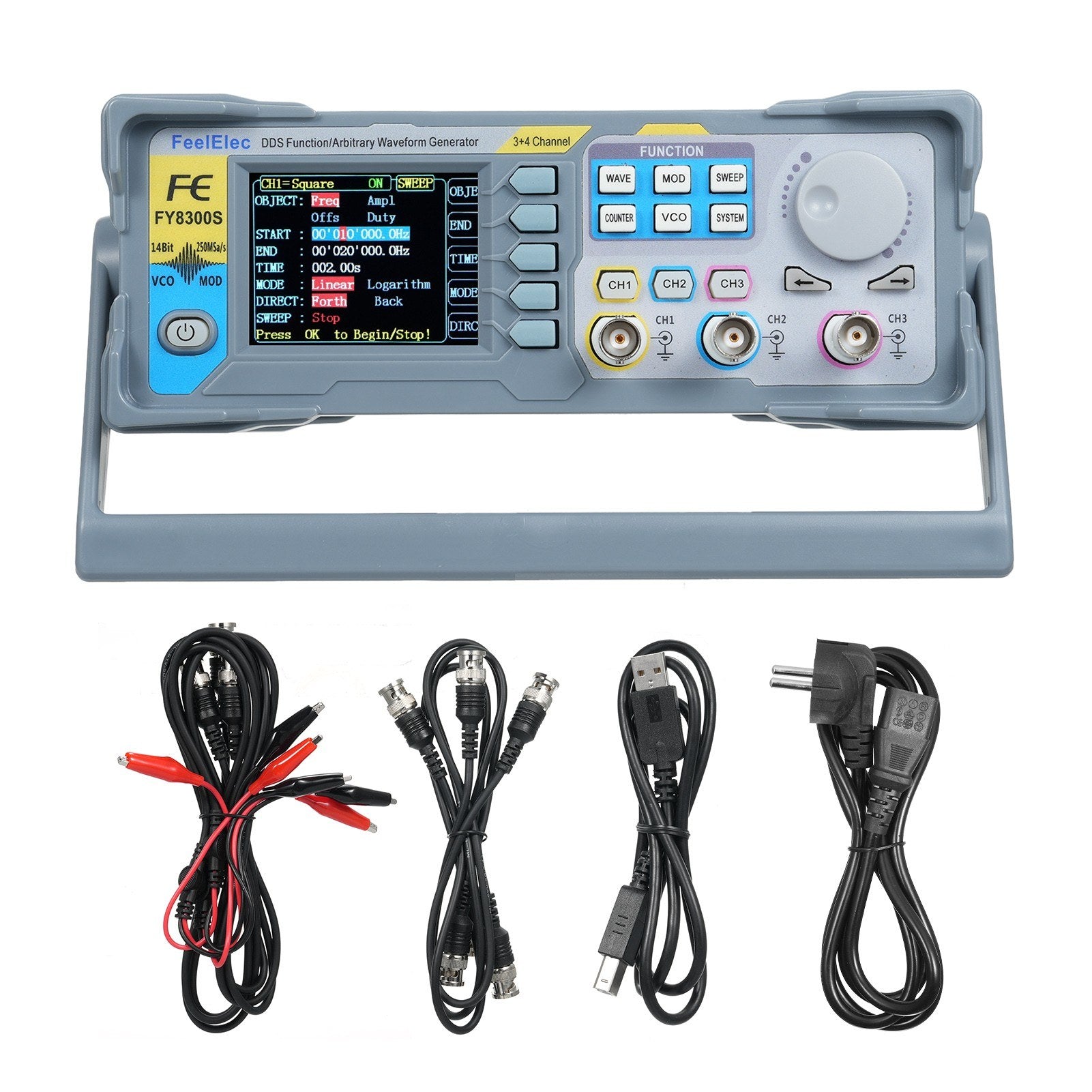

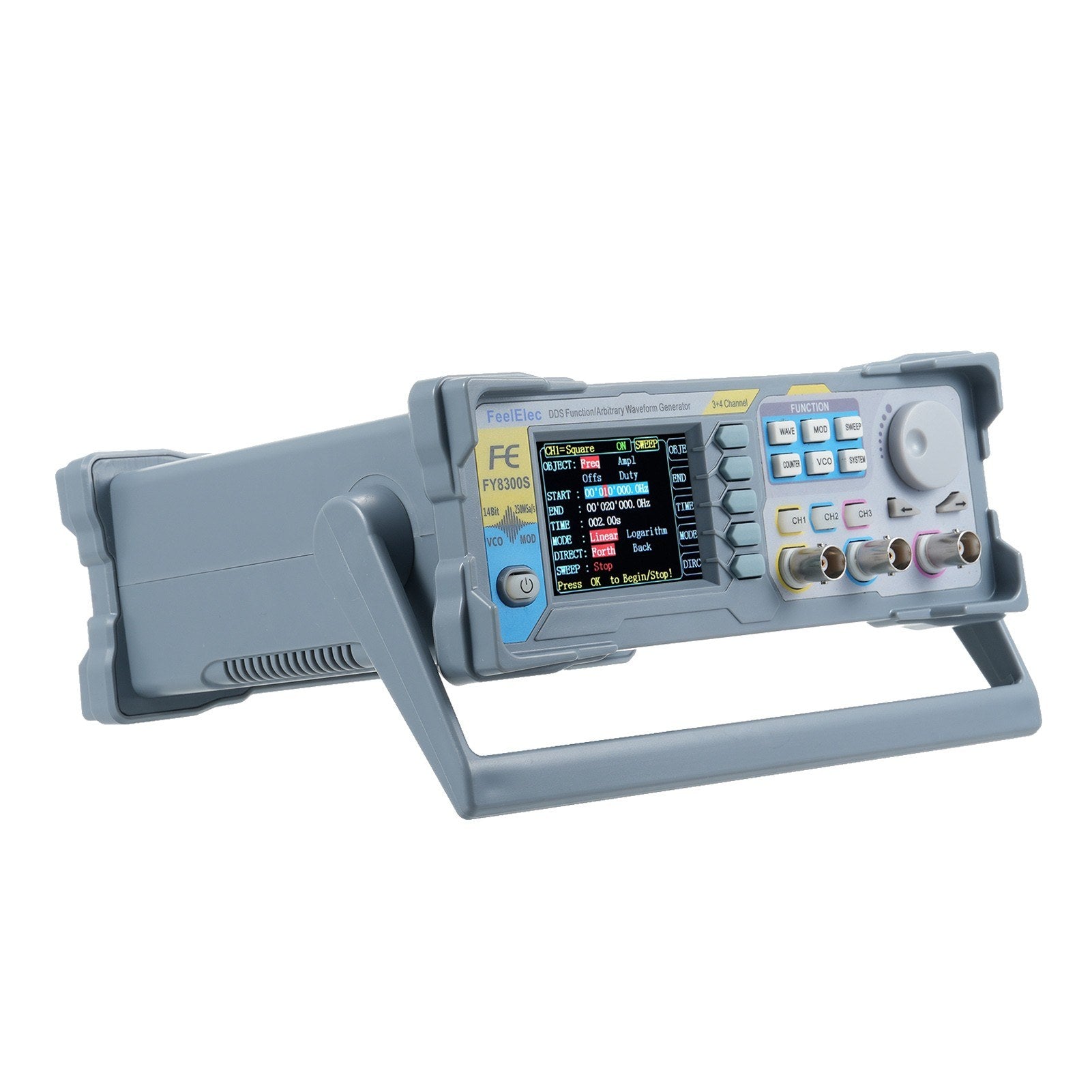

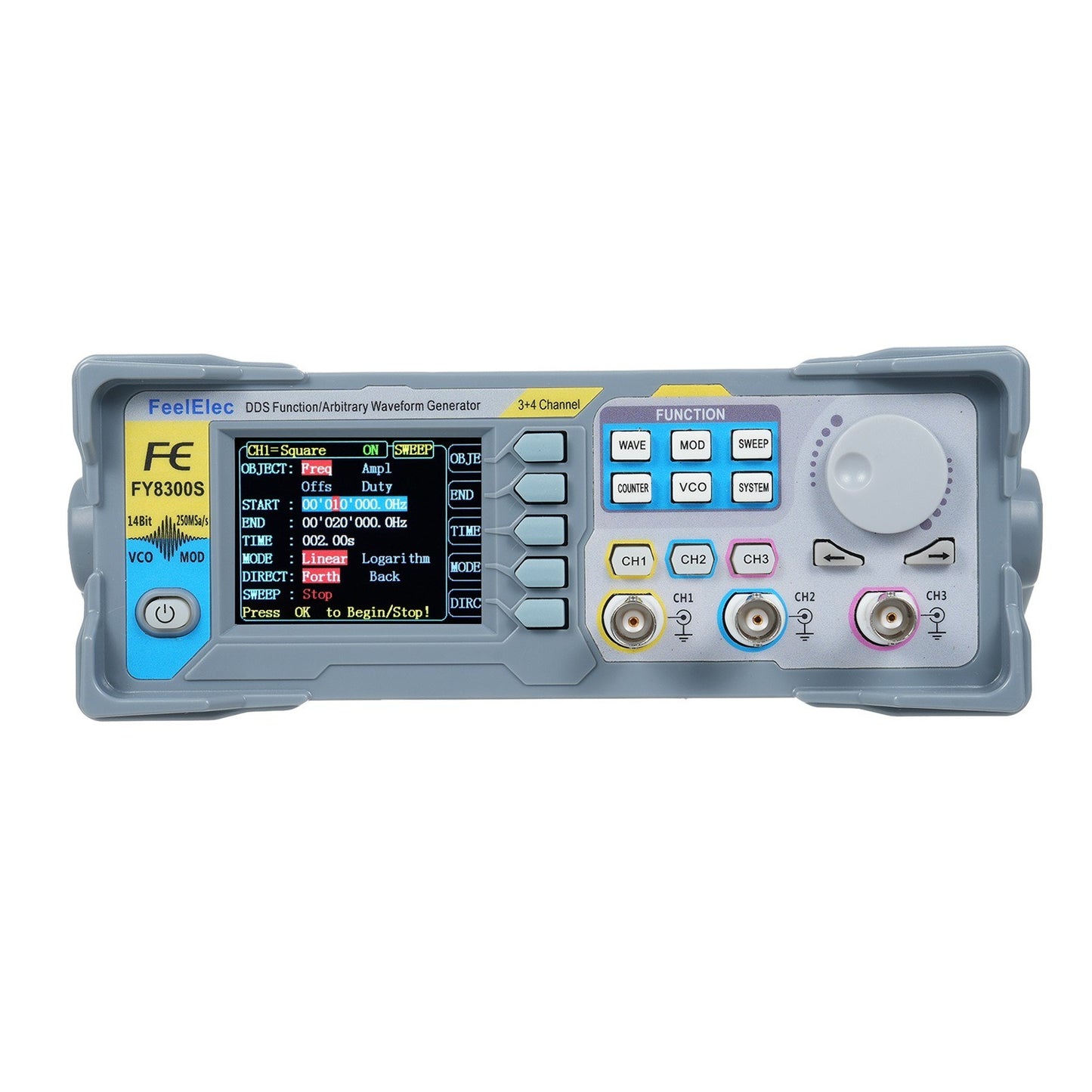

FeelElec FY8300S-60M 60MHz 3-Channel Signal Generator with 4 TTL Outputs and DC Bias Function

The FY8300S Series Dual-Channel Function/Arbitrary Waveform Generator is a high-performance, cost-effective signal generator. It functions as a function signal generator, arbitrary waveform generator, pulse signal generator, VCO, frequency sweeper, counter, and frequency meter. Rich shortcut keys simplify complex operations, making it ideal for electronic enthusiasts, scientific research institutions, high-tech enterprises, automotive repair, and more.

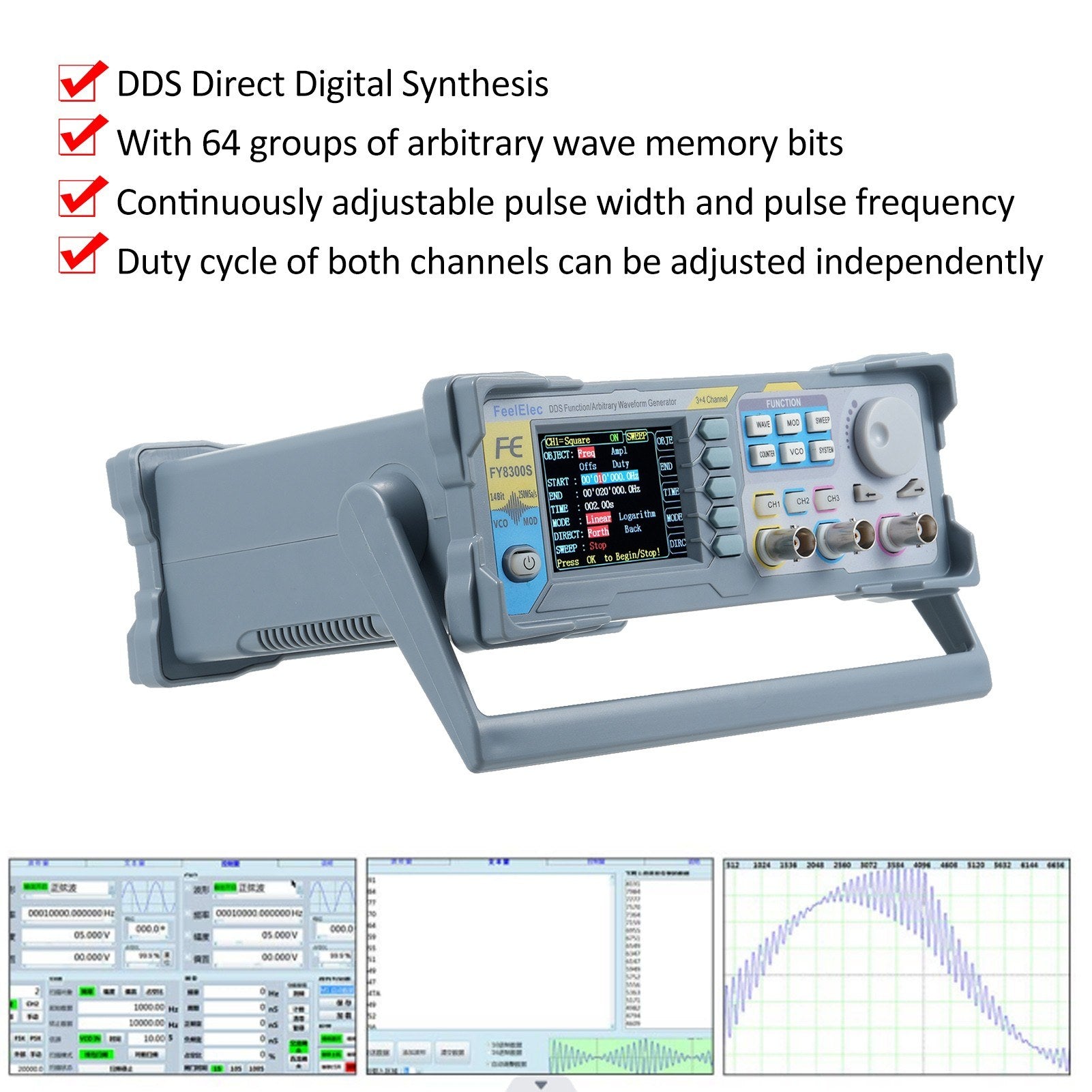

Features:

• Versatile Functionality: With 98 groups of functions and waveforms, including preset and custom options, this generator meets diverse waveform needs.
• Accurate Output Signals: Utilizes direct digital synthesis technology (DDS) for stable and precise low-distortion output signals.
• Improved Operability: Equipped with keyboard shortcuts and software control to enhance user experience and simplify operations.
• All-in-one Generator: Offers a wide range of functions, including function generator, arbitrary waveform generator, VCO, and more.

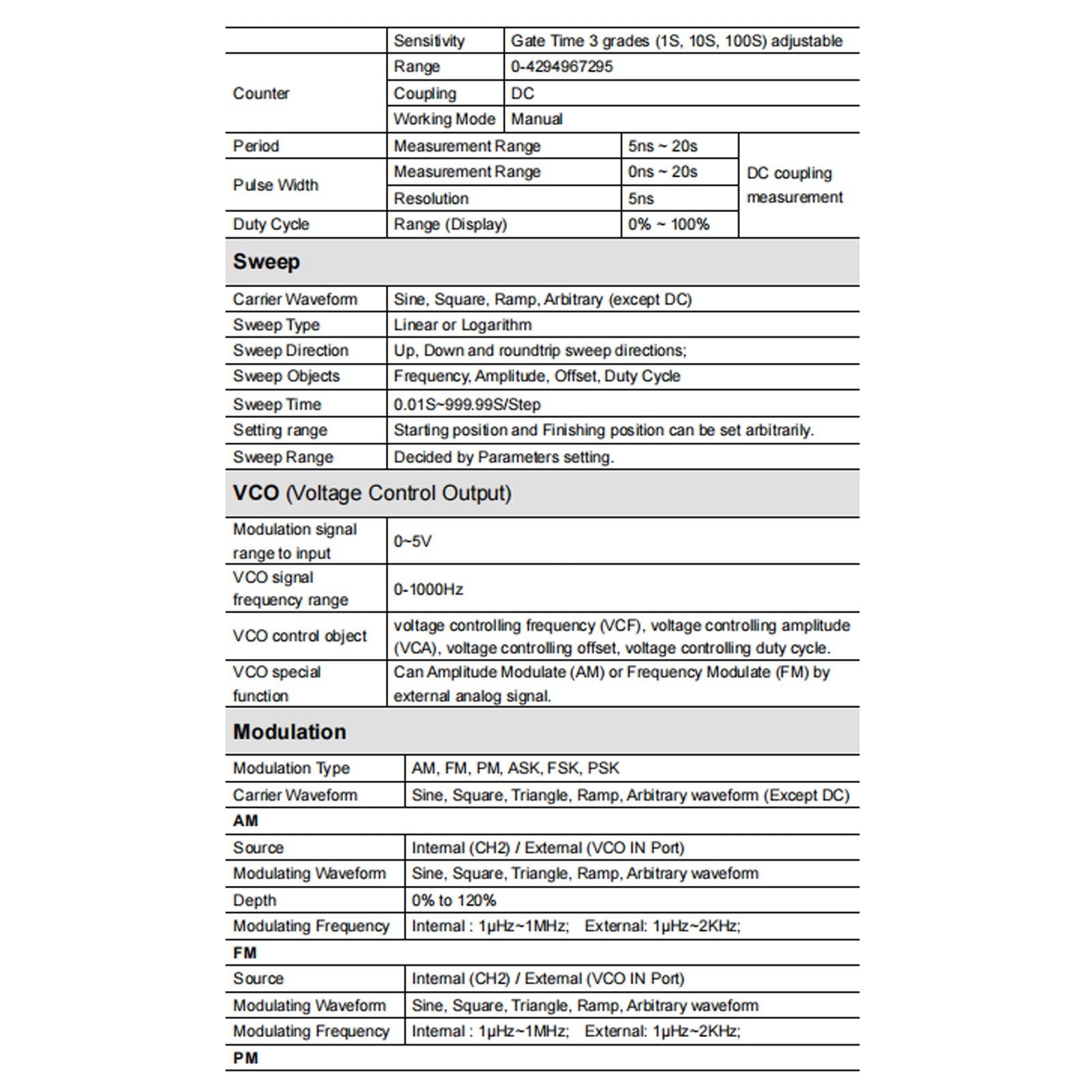

• Advanced Measurement: Features a 100M frequency meter with multiple measurement methods for comprehensive analysis.

Specifications:

• Plug: EU / US / UK / AU (Optional)
• Model: FY8300S-60M
• Material: ABS

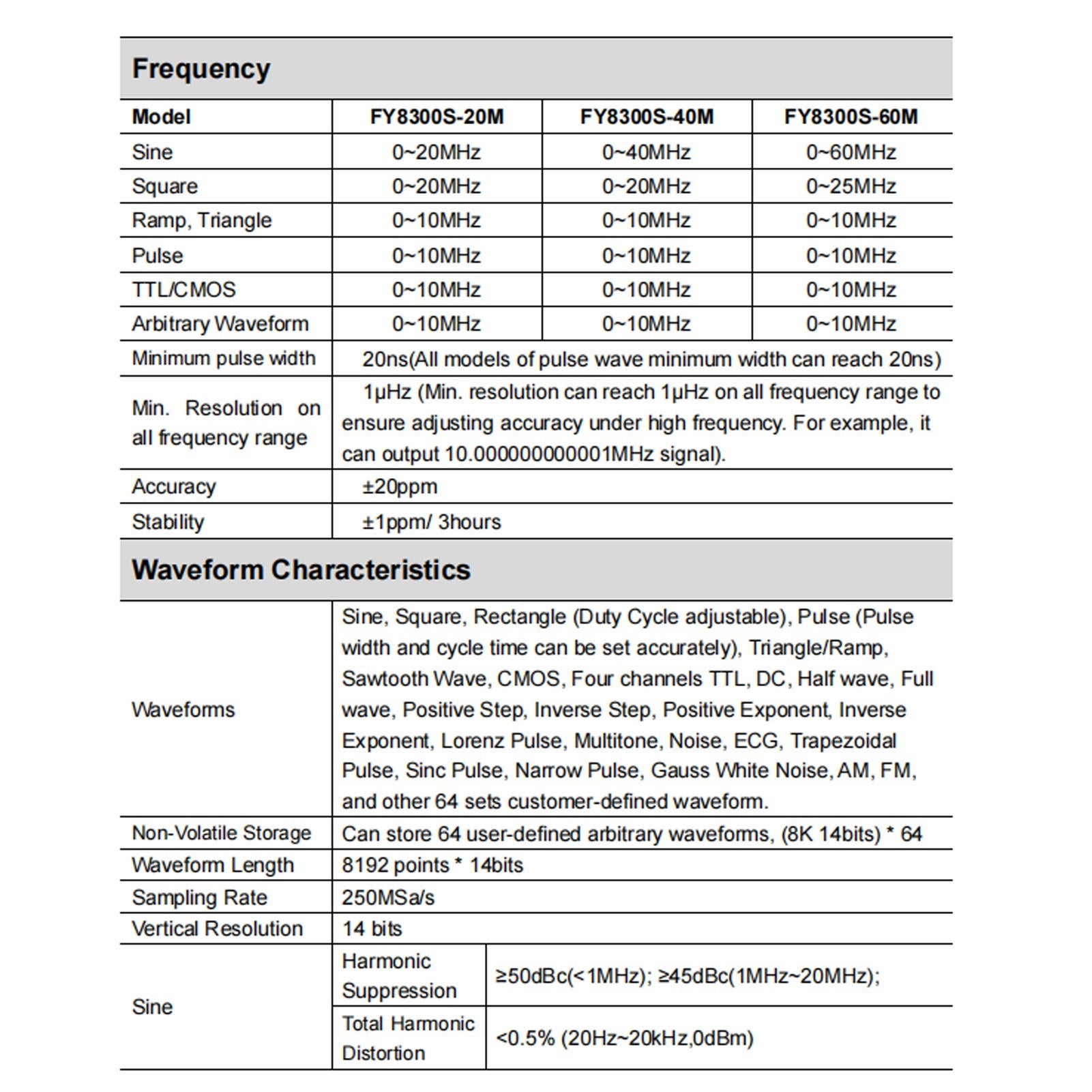

• Sine: 0~60MHz
• Square: 0~25MHz
• Ramp, Triangle: 0~10MHz
• Pulse: 0~10MHz
• TTL/CMOS: 0~10MHz
• Arbitrary Waveform: 0~10MHz
• Minimum Pulse Width: 20ns (All models of pulse wave minimum width can reach 20ns)
• Min. Resolution on All Frequency Range: 1μHz (Ensures adjusting accuracy under high frequency, can output 10.000000000001MHz signal)
• Accuracy: ±20ppm
• Stability: ±1ppm/3 hours

Waveform Characteristics

• Waveforms: Sine, Square, Rectangle (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, Sawtooth Wave, CMOS, Four channels TTL, DC, Half wave, Full wave, Positive Step, Inverse Step, Positive Exponent, Inverse Exponent, Lorenz Pulse, Multitone, Noise, ECG, Trapezoidal Pulse, Sinc Pulse, Narrow Pulse, Gauss White Noise, AM, FM, and 64 other customer-defined waveforms.
• Non-Volatile Storage: Can store up to 64 user-defined arbitrary waveforms, (8K 14 bits) x 64
• Waveform Length: 8192 points x 14bits
• Sampling Rate: 250MSa/s
• Vertical Resolution: 14 bits

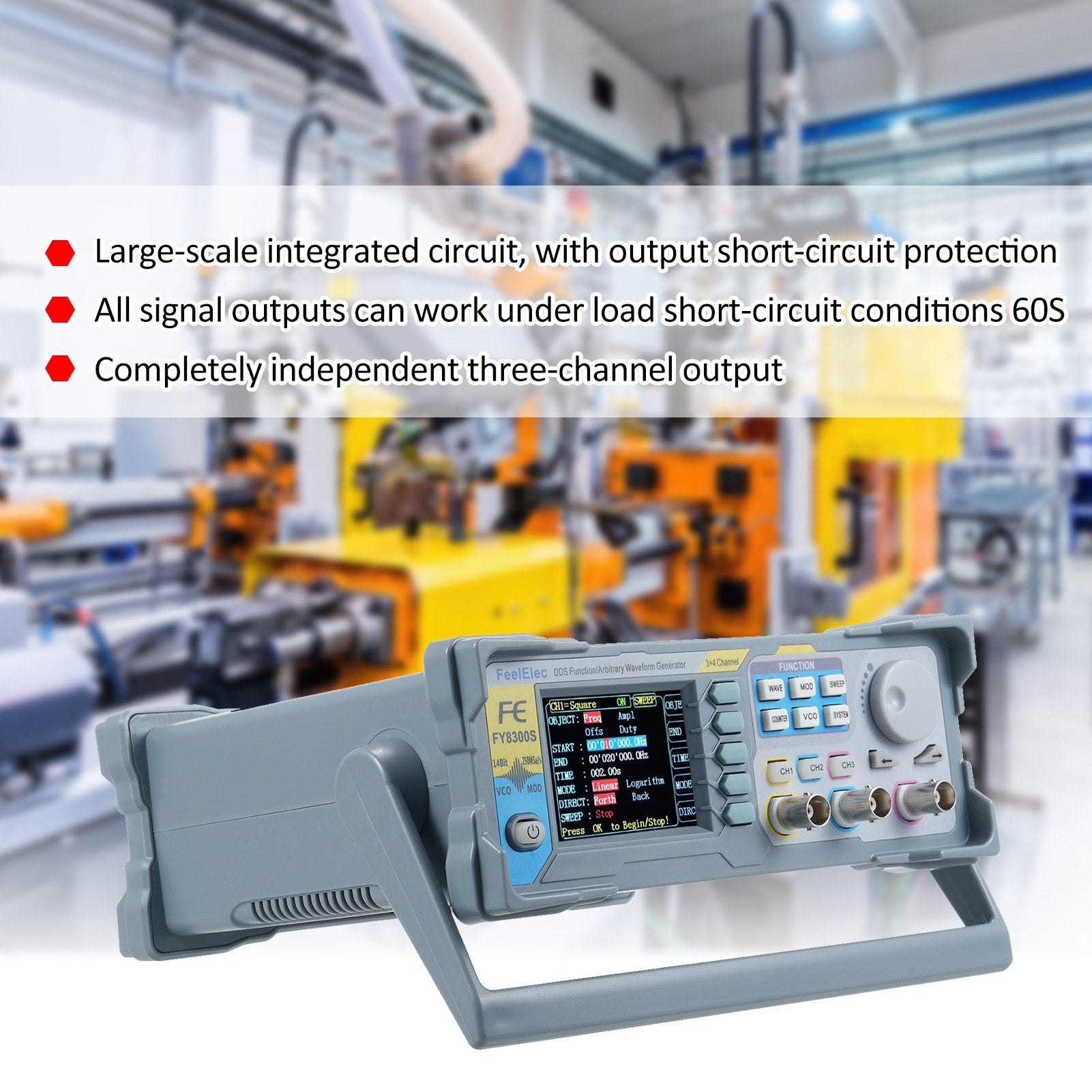

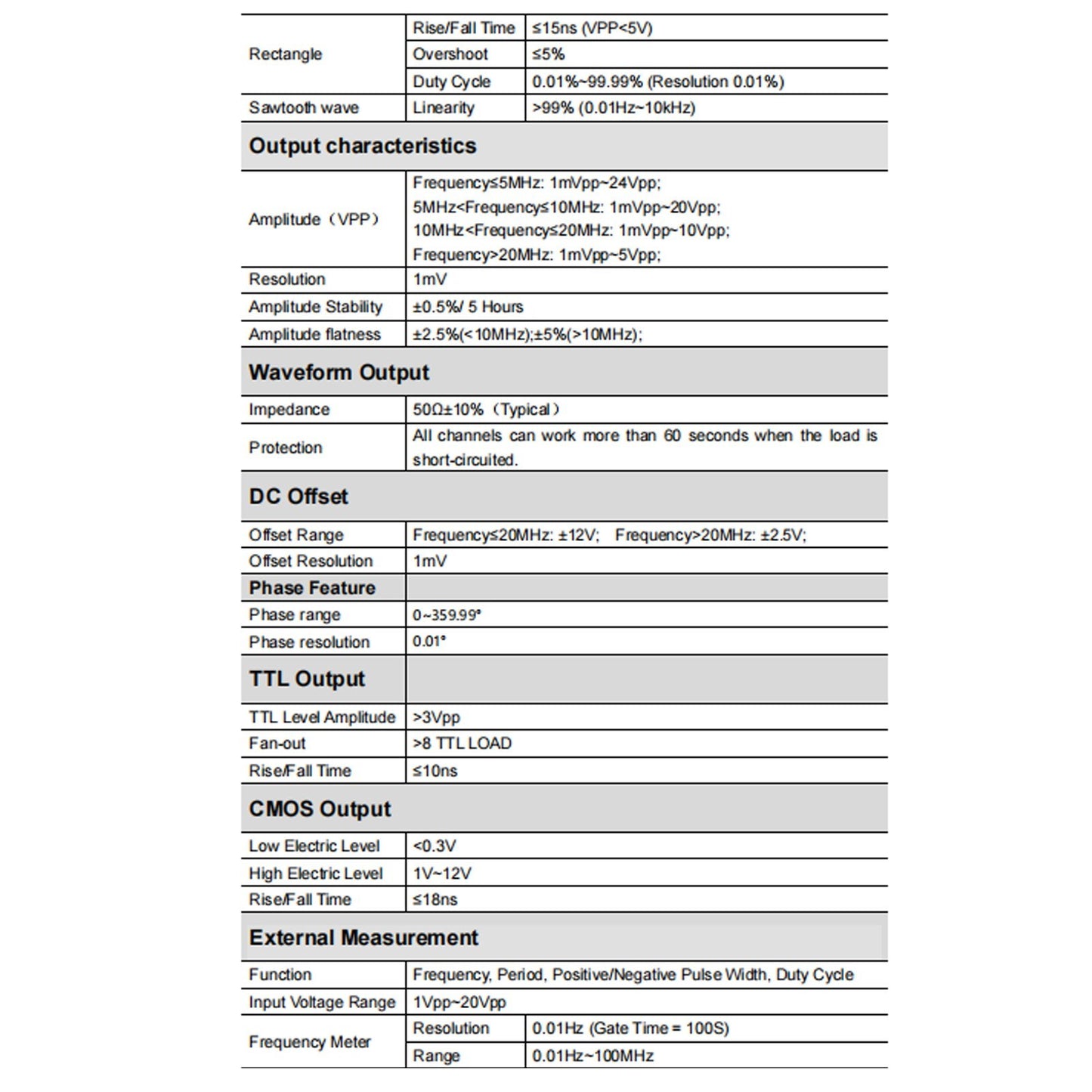

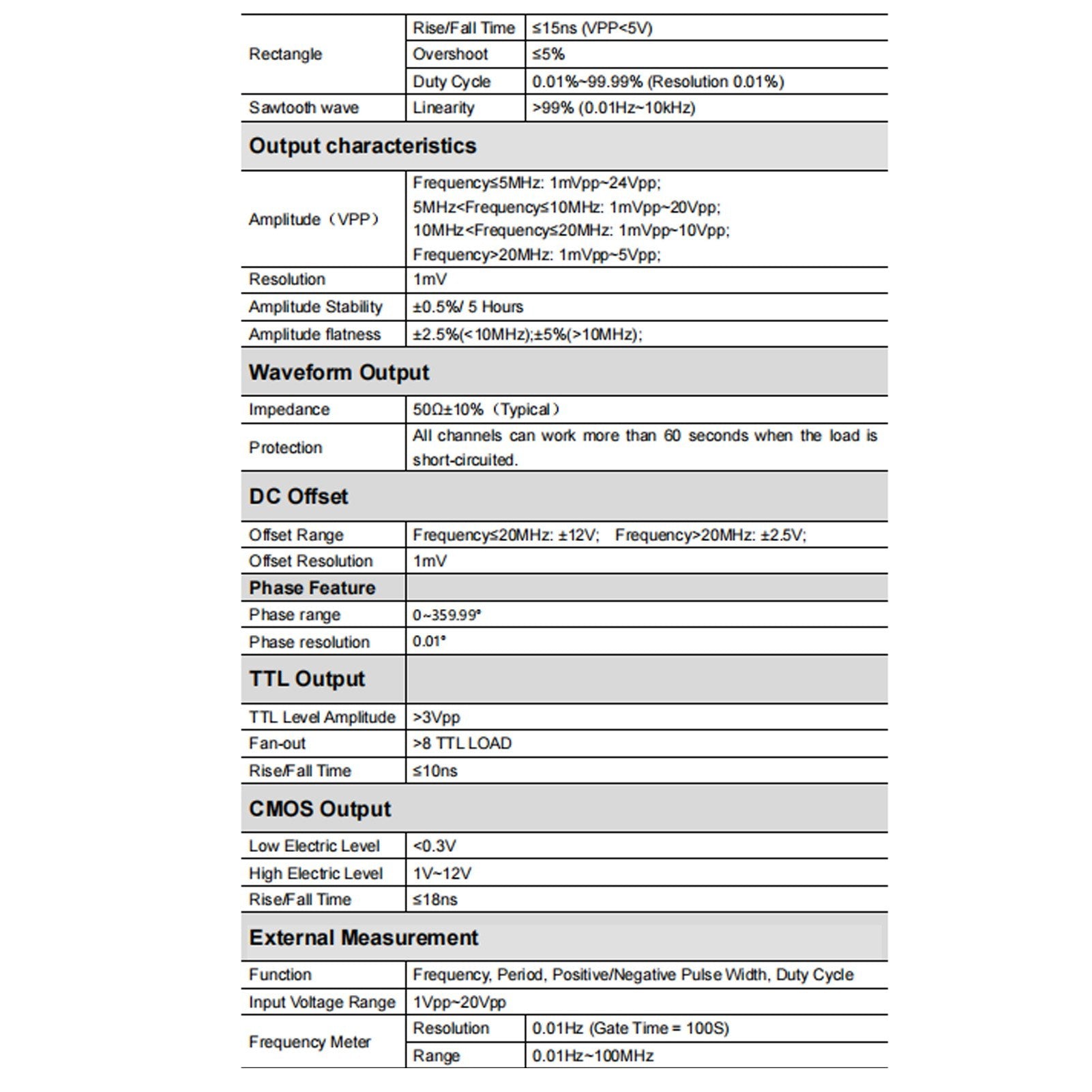

• Sine: Harmonic Suppression: ≥50dBc (<1MHz); ≥45dBc (1MHz~20MHz), Total Harmonic Distortion: <0.5% (20Hz~20kHz, 0dBm)
• Rectangle: Rise/Fall Time: ≤15ns (VPP<5V), Overshoot: ≤5%, Duty Cycle: 0.01%~99.99% (Resolution 0.01%)
• Sawtooth Wave: Linearity: >995 (0.01Hz~10kHz)

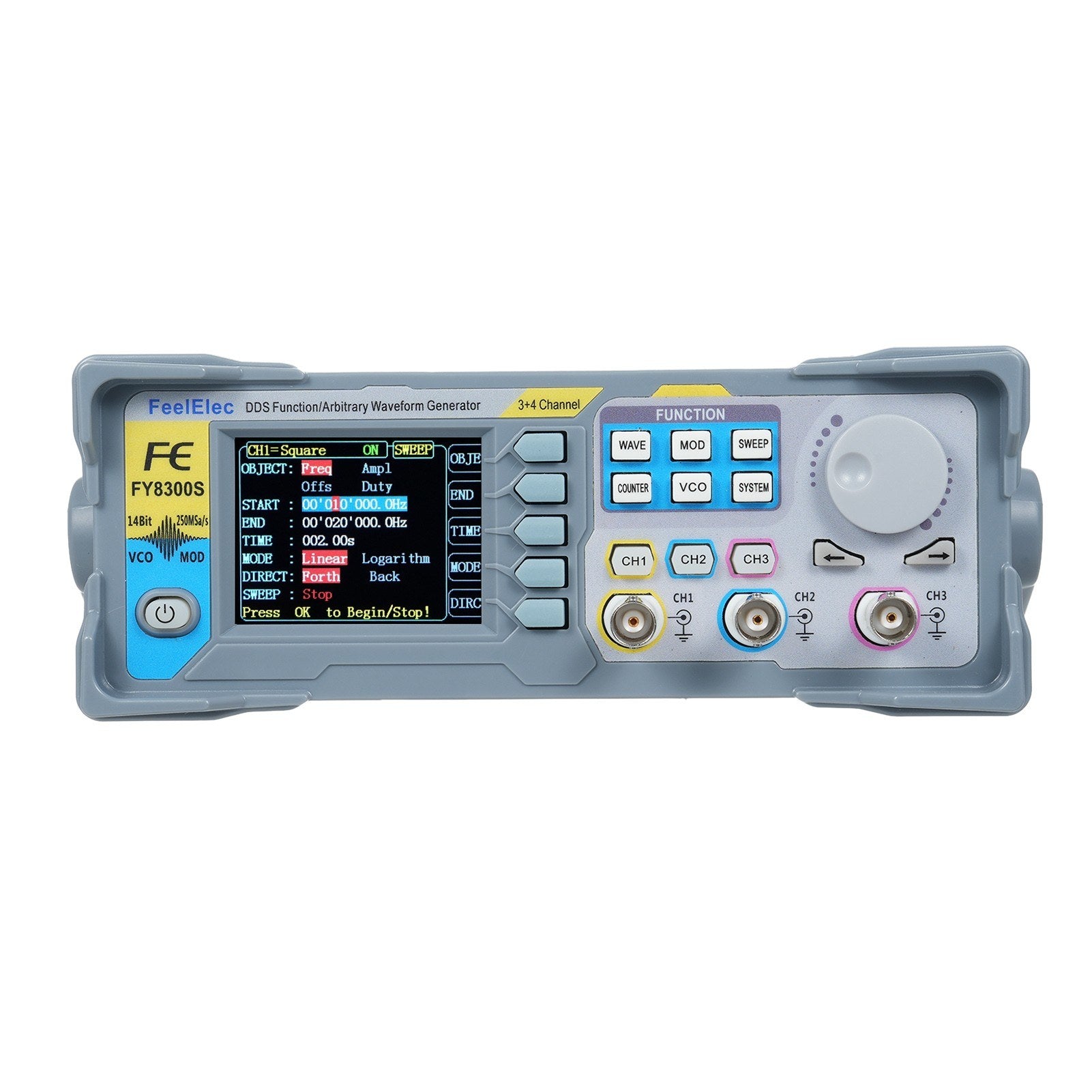

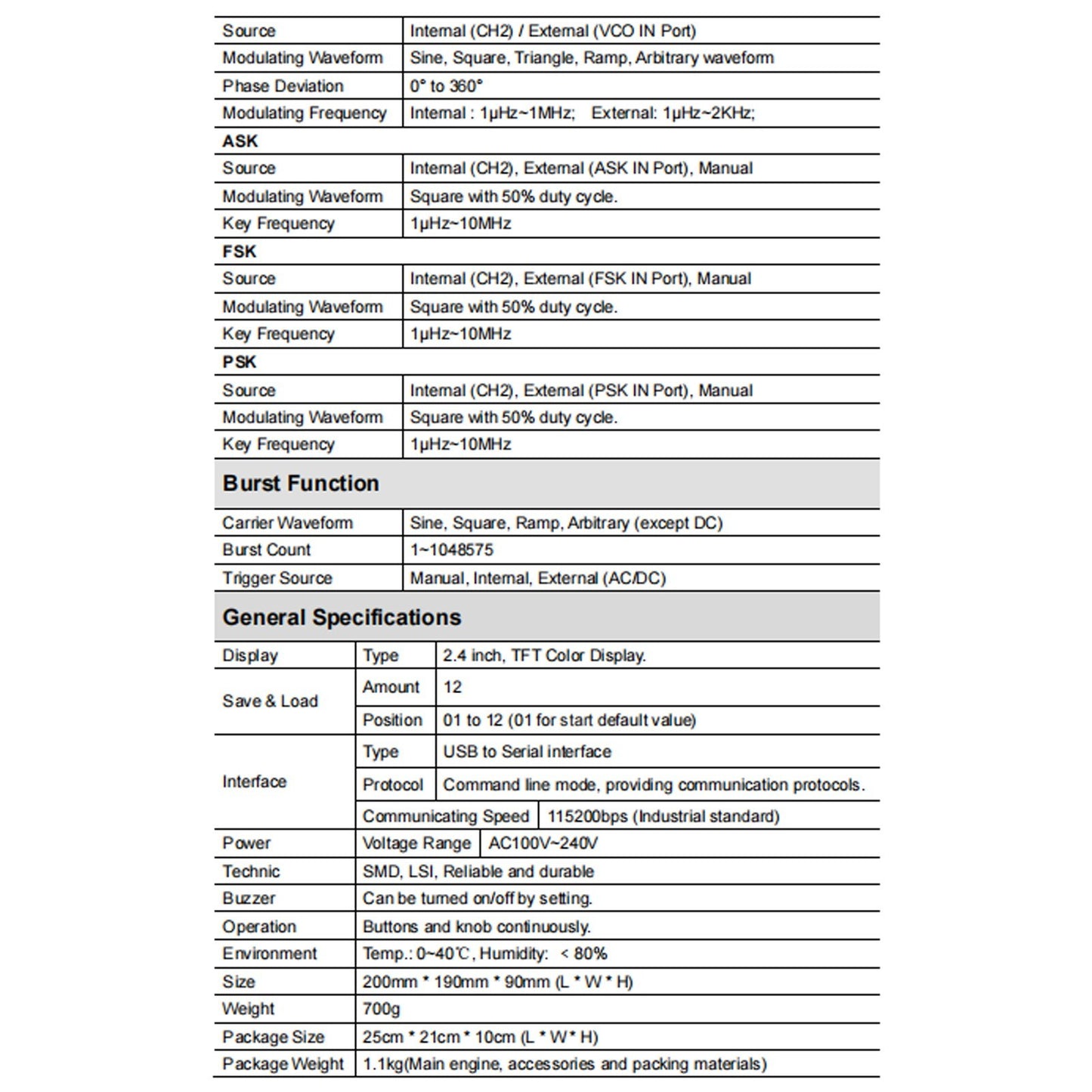

Display:

• Type: 2.4 inch, TFT Color Display

Save & Load:

• Amount: 12
• Position: 01 to 12 (01 for start default value)

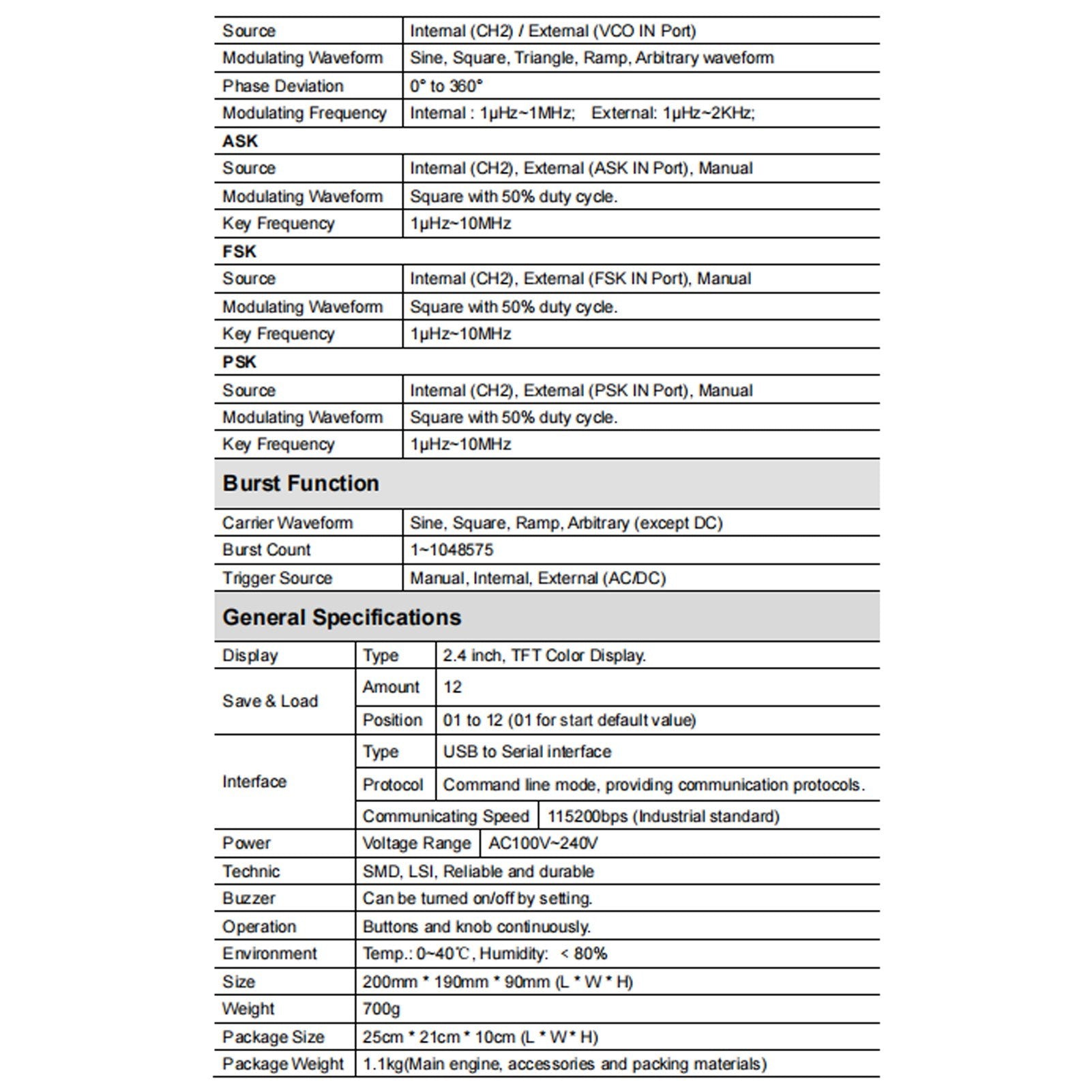

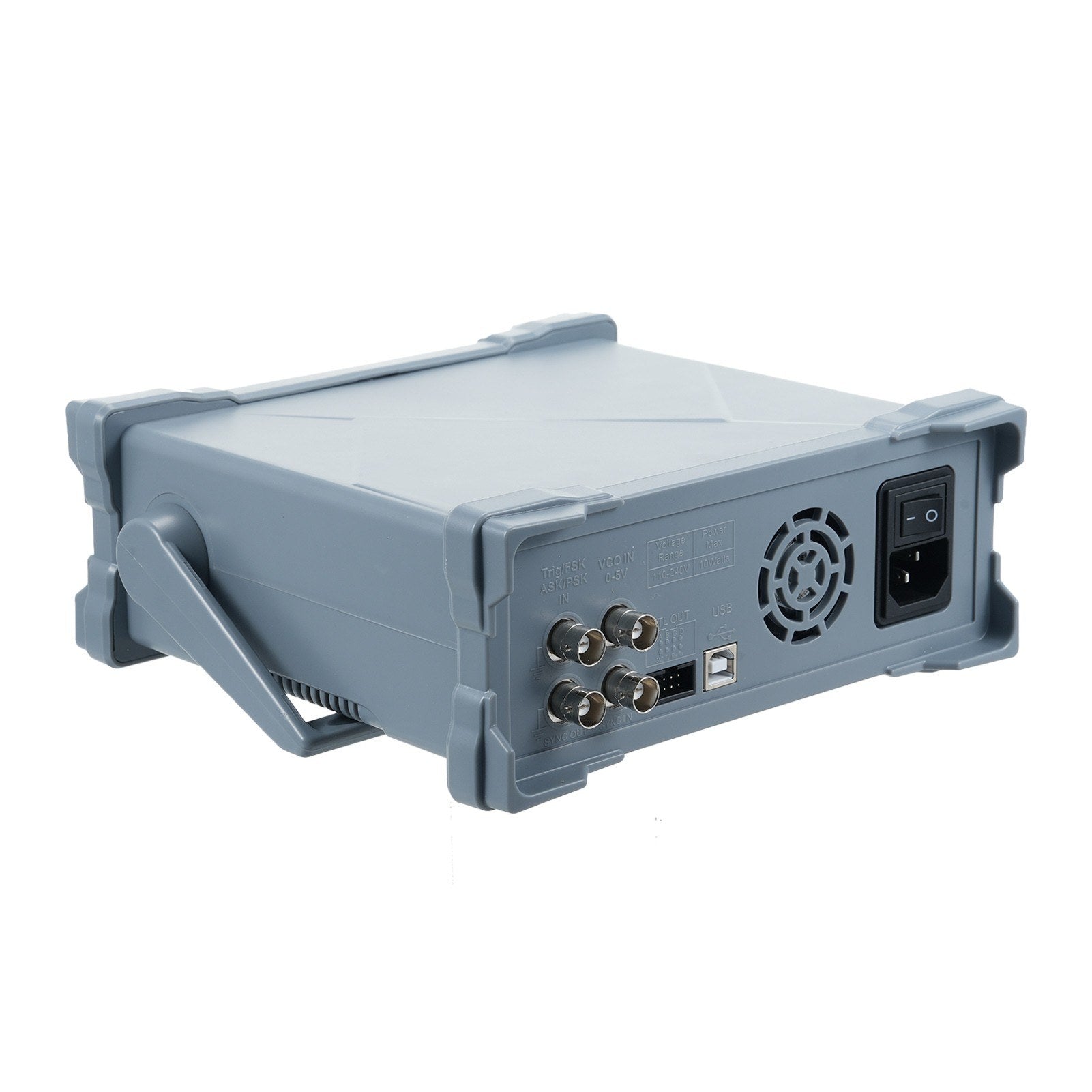

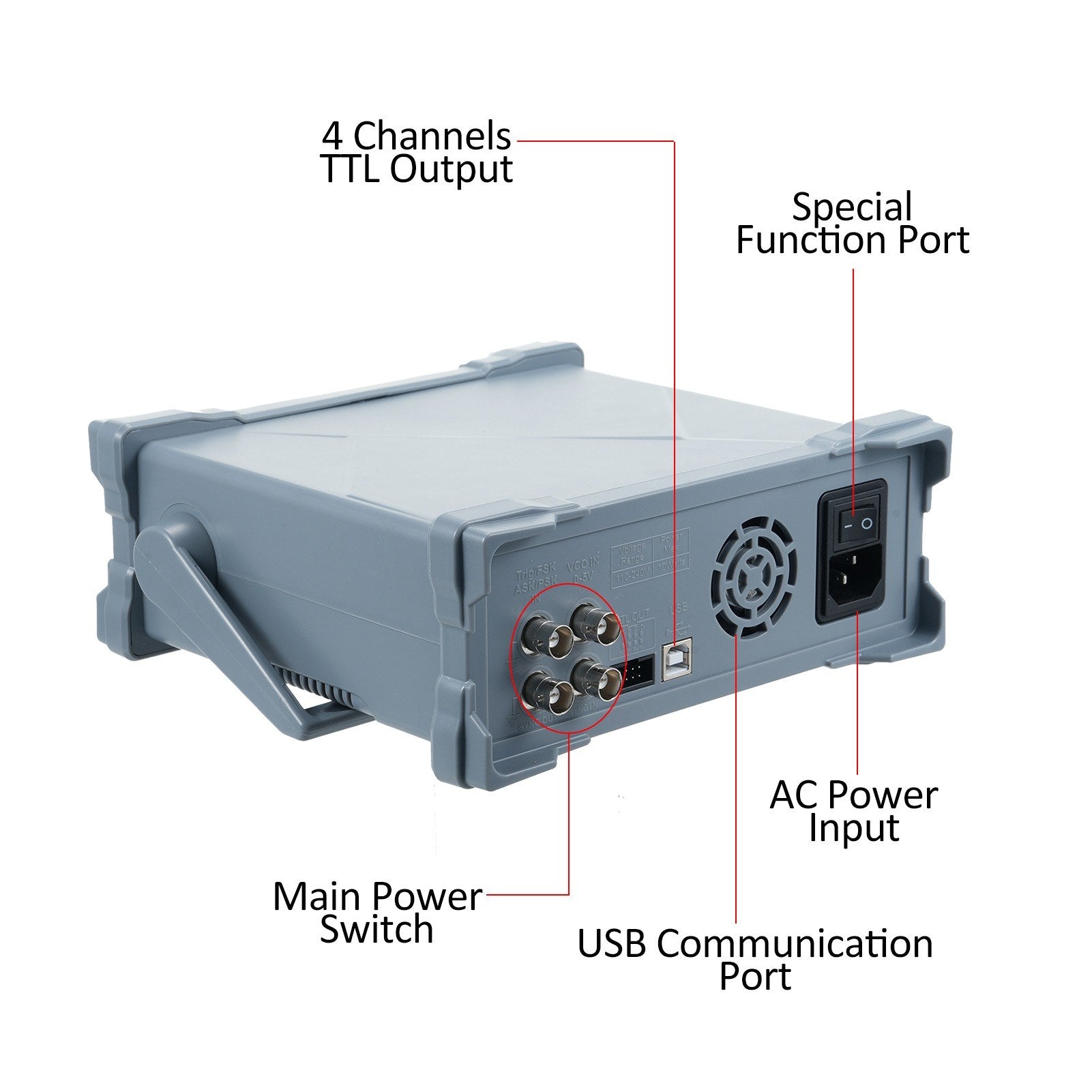

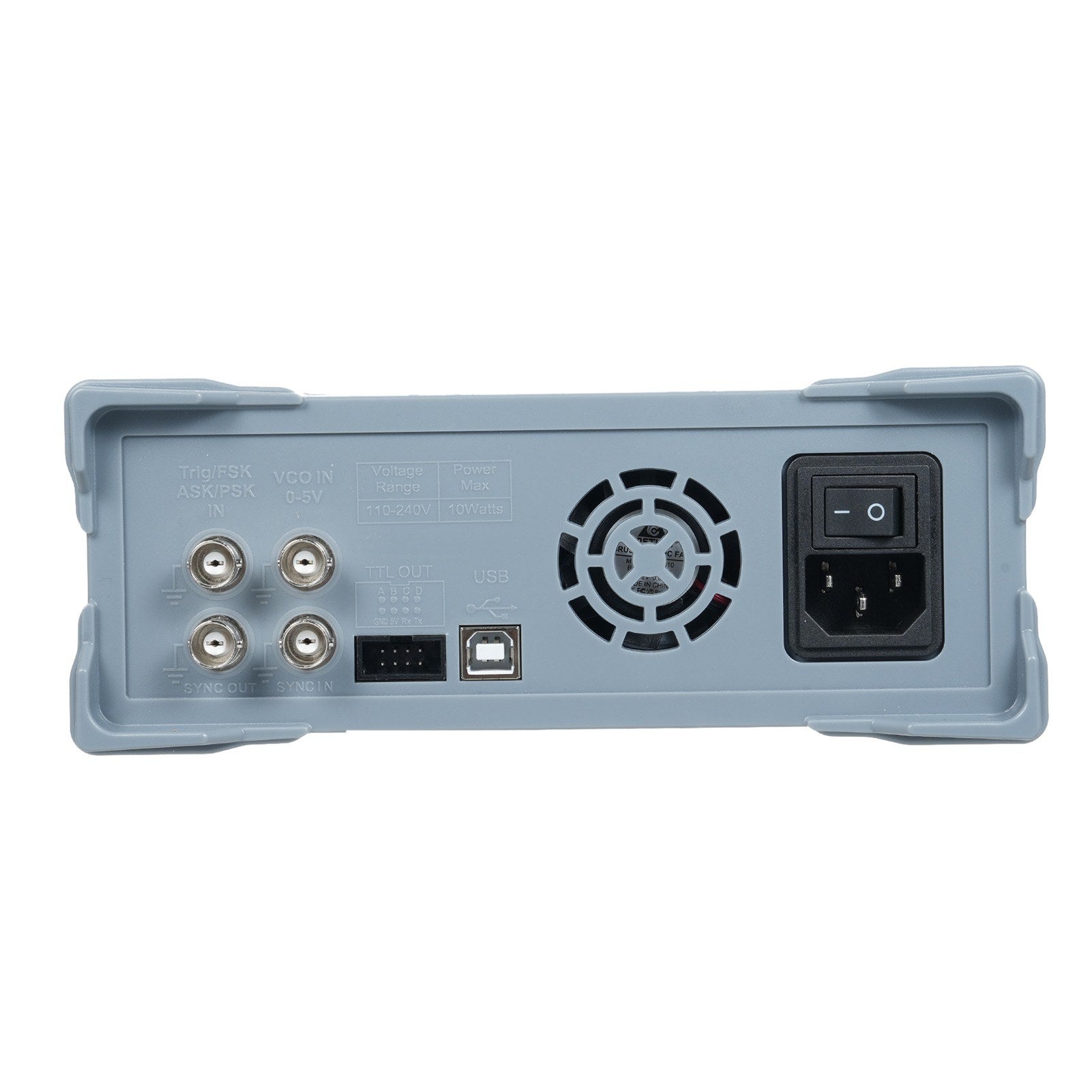

Interface:

• Type: USB to Serial interface
• Protocol: Command line mode, providing communication protocols
• Communicating Speed: 115200bps (Industrial standard)

Power:

• Voltage Range: AC 100V~240V

Technic:

• SMD, LSI, Reliable and durable
• Buzzer: Can be turned on/off by setting

Operation:

• Buttons and knob continuously

Environment:

• Temp: 0~40℃
• Humidity: <80%

Dimensions:

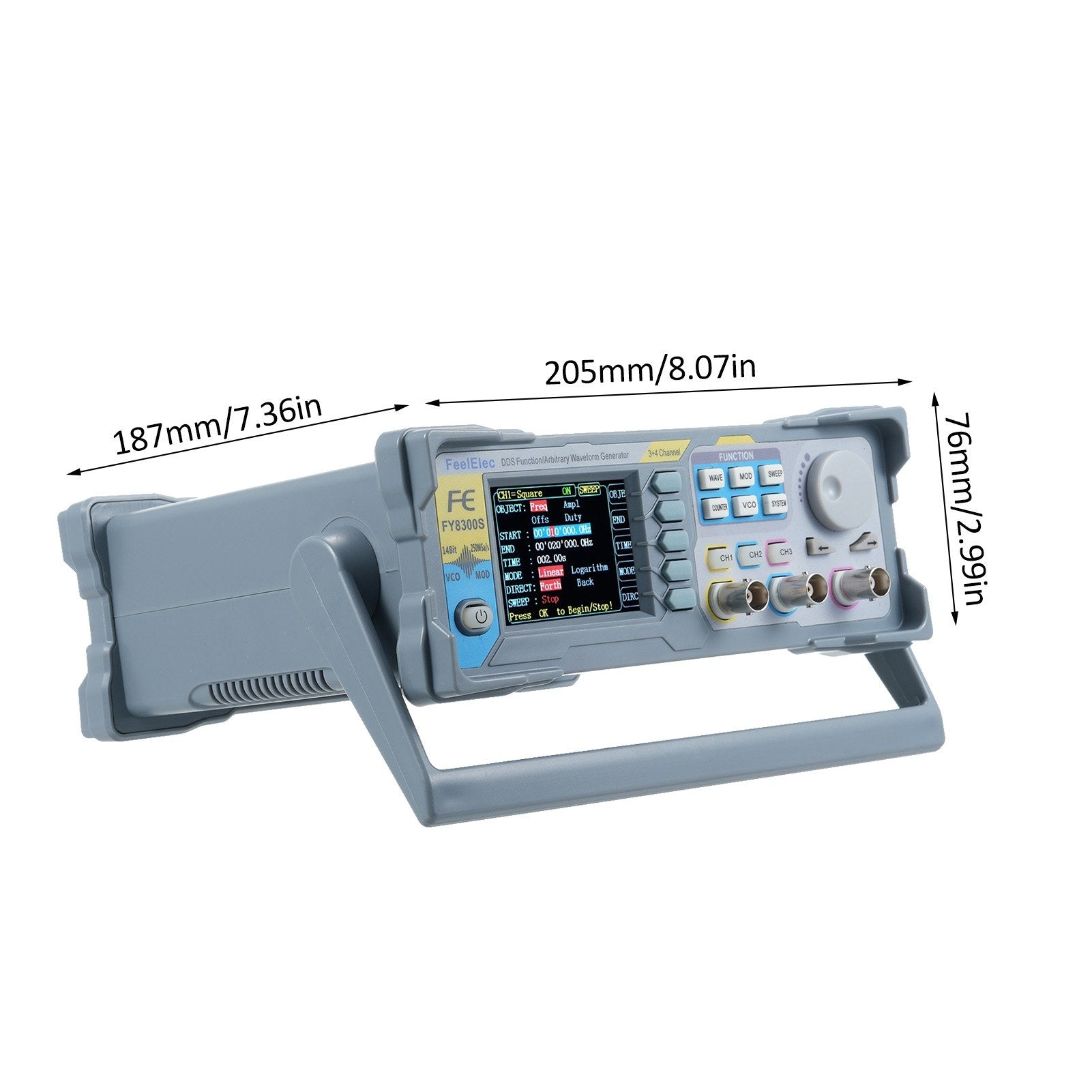

• Item Size: 205 x 187 x 76mm / 8.07 x 7.36 x 2.99in
• Item Weight: 621g / 1.37lb
• Package Weight: 1207g / 2.66lb
• Package Size: 27.5 x 21 x 9.5cm / 10.83 x 8.26 x 3.74in

Package List:

• 1 x Signal Generator
• 1 x Power Cord
• 1 x USB Data Cable
• 1 x BNC-BNC Cable
• 3 x Q9 Clip Cables
